What gauge wire do I need for fridge circuit?

Discussion in '3rd Gen. Tacomas (2016+)' started by Rujack, Dec 14, 2018.

  1. Dec 14, 2018 at 11:05 PM
    #1
    Rujack

    Rujack [OP] Stop Global Whining

    Joined:
    Aug 16, 2016
    Member:
    #194732
    Messages:
    2,420
    Gender:
    Male
    Vehicle:
    2016 Tacoma TRD Off Road 6 speed manual
    I’ve got my fridge mounted in the bed near the tail gate.

    I don’t recall how many amps it draws, I’ll have to check in the a.m., but can someone tell me what gauge wire I need, and what size fuse? I am currently only using the stock battery but will be adding a second in a couple of months. To help keep the battery charged I’ve got a 100w solar panel on the roof.

    Also wondering if I need to run the neg all the way back to the battery (can I just run negative to chassis somewhere closer to the fridge?).

    Last edited: Dec 14, 2018
  2. Dec 14, 2018 at 11:21 PM
    #2
    OnHartung'sRoad

    OnHartung'sRoad -So glad I didn't take the other...

    Joined:
    Jul 24, 2017
    Member:
    #224878
    Messages:
    6,456
    Somewhere in the Mojave Desert...
    Vehicle:
    2017 Tacoma OR 4x4 (formerly 2002 OR 4x4, 1995 4x4 4Runner, 1985 4x4 Toy PU) ... and RIP’s (rust in pieces) to a Bronco II 4x4 & S10 Blazer 4x4
    You really need to know the amps to know how to wire this because if you use too small of a gauge, the refrigerator won’t work well or worse :bananadead:

    Running the negative to a ground (with at least the same gauge wire as the positive conductor) on the battery is preferable to using the frame when dealing with higher amp circuits.

    Use this chart to help figure your wire gauge based on length needed and load (amps): https://www.google.com/amp/s/www.engineeringtoolbox.com/amp/amps-wire-gauge-d_730.html

    Also, note that your 100w solar panel will work to top off the battery, but also check to see it it will keep up with daily use of the fridge:

    amp = watt / volt
    amps = 100W / 12V = 8.3333A

    And, since you are only using one battery, get a jumper pack just in case you chill your beer for too long! I made that mistake, but it was a good one- I was camping on a beach in Baja California with a girlfriend and we had the place to ourselves with plenty of supplies, so a dead battery was fine for a couple days. :)

    Last edited: Dec 14, 2018
    SR-71A, Rujack [OP] and Fluffymonkey like this.
  3. Dec 14, 2018 at 11:24 PM
    #3
    Rujack

    Rujack [OP] Stop Global Whining

    Joined:
    Aug 16, 2016
    Member:
    #194732
    Messages:
    2,420
    Gender:
    Male
    Vehicle:
    2016 Tacoma TRD Off Road 6 speed manual
    Ok, that’s what I figured, on all accounts.

    I’ll have to check the amperage in the morning.

  4. Dec 14, 2018 at 11:27 PM
    #4
    Simpleton

    Simpleton Well-Known Member

    Joined:
    Jan 16, 2017
    Member:
    #207801
    Messages:
    731
    Gender:
    Male
    Orange County
    Vehicle:
    2017 DCSBOR
    None as of yet
    need to know the specs of your fridge. should have amps listed on it. and there are numerous charts online to help you determine wire gauge. depends on you length of run from AND back to the battery. As said above I wouldn't use the frame as the ground for high current uses.

  5. Dec 14, 2018 at 11:42 PM
    #5
    JoeCOVA

    JoeCOVA IG @MightyJoeFlannel

    Joined:
    Nov 15, 2016
    Member:
    #202463
    Messages:
    7,092
    First Name:
    Joe
    Colorado Springs
    Vehicle:
    2017 DCSB TRD OR
    35" Trepadors w/ OMF Beadlocks, Kings, OBA, 5.29s etc
    It’s not just amps but also length of wire as well, single wire, bundled etc

    Wsteven and synaps3 like this.
  6. Dec 14, 2018 at 11:59 PM
    #6
    bagleboy

    bagleboy Well-Known Member

    Joined:
    Aug 5, 2017
    Member:
    #226018
    Messages:
    3,646
    Gender:
    Male
    First Name:
    Scott
    Norcal, Santa Rosa
    Vehicle:
    2014 5-lug AC 2.7L VVTI
    Snug top Rebel, Thule tracks, ditch tracks, Bagged rear suspension, F/R anytime camera, intermittent wiper switch...
    Fridge current < fuse rating < wire rating. The fuse protects the wire not the fridge.

  7. Dec 15, 2018 at 2:26 AM
    #7
    jcos112

    jcos112 Well-Known Member

    Joined:
    Jul 30, 2018
    Member:
    #261045
    Messages:
    78
    12

    r1200gs4ok likes this.
  8. Dec 15, 2018 at 8:32 AM
    #8
    Rujack

    Rujack [OP] Stop Global Whining

    Joined:
    Aug 16, 2016
    Member:
    #194732
    Messages:
    2,420
    Gender:
    Male
    Vehicle:
    2016 Tacoma TRD Off Road 6 speed manual

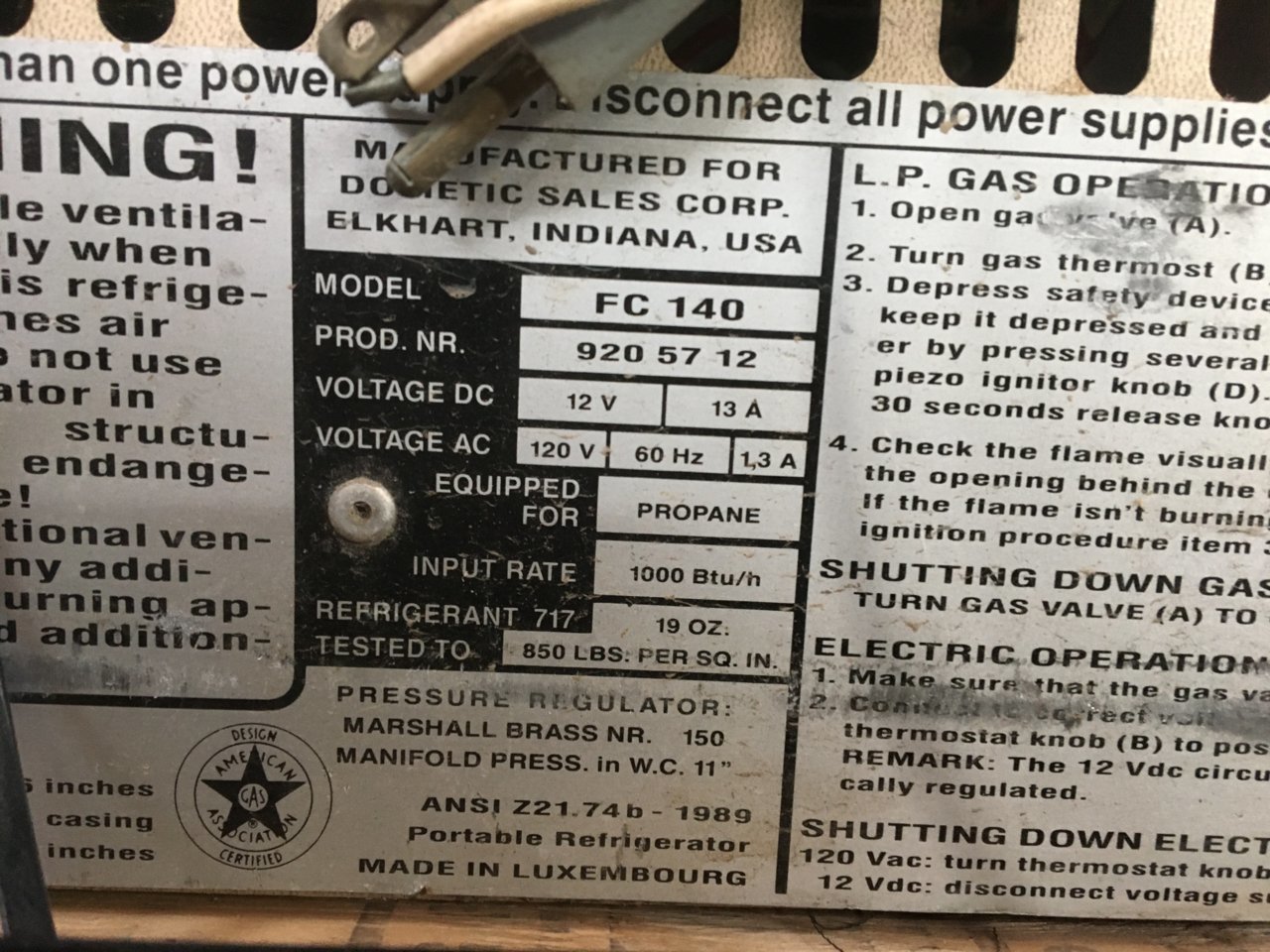

    13a, maybe a 25’ run from batt to fridge


  9. Dec 15, 2018 at 8:34 AM
    #9
    OnHartung'sRoad

    OnHartung'sRoad -So glad I didn't take the other...

    Joined:
    Jul 24, 2017
    Member:
    #224878
    Messages:
    6,456
    Somewhere in the Mojave Desert...
    Vehicle:
    2017 Tacoma OR 4x4 (formerly 2002 OR 4x4, 1995 4x4 4Runner, 1985 4x4 Toy PU) ... and RIP’s (rust in pieces) to a Bronco II 4x4 & S10 Blazer 4x4
    One more suggestion- use larger guage cables than you think you will need for future mods back there. Then iin your camper, use a ground plate and a fuse block to terminate your power cables in the camper so you have a way to attach other goodies. Many out there, like these, but there are some smaller ones available, too:

    https://www.amazon.com/dp/B001P6FTHC/ref=cm_sw_r_cp_api_i_i1sfCbND4S79Z

    https://www.amazon.com/Blue-Sea-Sys...ocphy=9031498&hvtargid=pla-436661250661&psc=1

    I also put a fuse block between the possitive terminal of the battery and the positive cable- there are several types, including circuit breakers with power switches too. They make it a lot safer in case your long power cable shorts.

    Last edited: Dec 15, 2018
  10. Dec 15, 2018 at 8:40 AM
    #10
    Hobbs

    Hobbs McRib: Champion of Justice, Protector of Dogs!

    Joined:
    Mar 20, 2016
    Member:
    #181838
    Messages:
    16,135
    Vehicle:
    Rock Bangen', Desert Tamin', Gold Findin' Machine!
    If you have the owner's manual for the fridge you can find that info in there. Or prolly on the fridge manufacturer's website.

  11. Dec 15, 2018 at 8:45 AM
    #11
    medic2230

    medic2230 @Koditten Pirate Radio member #002

    Joined:
    Oct 13, 2008
    Member:
    #9942
    Messages:
    62,399
    Gender:
    Male
    First Name:
    Murph
    Bama! Roll Tide
    Vehicle:
    2011 Taco 4x4 DCLB 2019 TRD PRO 4runner
    20% Tint, OME 3"complete lift with Dakar's, Light Racing UCA's, 285/75/16 Nitto Terra Grapplers, 10 HP TW sticker, Ultraguage, B.A.M.F. Rock Sliders, MedicFab Bed Rack, Relentless front bumper, Air Flow Snorkel, Ham comms, Tech Deck
    I ran 10ga from the battery to under the drivers seat on mine. Works fine.

  12. Dec 15, 2018 at 8:52 AM
    #12
    windsor

    windsor Just a guy

    Joined:
    Dec 31, 2014
    Member:
    #145322
    Messages:
    6,421
    Gender:
    Male
    First Name:
    Chris
    Myrtle Creek OR
    Vehicle:
    2008 Tacoma Super Duty
    Canopy, fitted seat covers.
    [​IMG]
    For the dometic 3 way fridge, Id run 10 or 8 with a dedicated ground wire.

    Wsteven, JoeCOVA and Rujack [OP] like this.
  13. Dec 15, 2018 at 8:56 AM
    #13
    Rujack

    Rujack [OP] Stop Global Whining

    Joined:
    Aug 16, 2016
    Member:
    #194732
    Messages:
    2,420
    Gender:
    Male
    Vehicle:
    2016 Tacoma TRD Off Road 6 speed manual
    If I use too thick a gauge doesn’t it increase resistance? Anyway I’m just trying to get this hooked up last minute to get it off of propane...

  14. Dec 15, 2018 at 8:57 AM
    #14
    FFBlack

    FFBlack Well-Known Member

    Joined:
    Jun 4, 2016
    Member:
    #188730
    Messages:
    1,166
    Gender:
    Male
    First Name:
    Mike
    Vehicle:
    2019 TRD OFF ROAD
    Do you have the solar charger hardwired to the roof and battery or is it a temp type thing you set up when you arrive.

  15. Dec 15, 2018 at 8:58 AM
    #15
    Rujack

    Rujack [OP] Stop Global Whining

    Joined:
    Aug 16, 2016
    Member:
    #194732
    Messages:
    2,420
    Gender:
    Male
    Vehicle:
    2016 Tacoma TRD Off Road 6 speed manual
    Cool. So if I want to allow for future accessories and a fuse block as @OnHartung'sRoad suggests, should I use 6, or smaller?

  16. Dec 15, 2018 at 9:04 AM
    #16
    windsor

    windsor Just a guy

    Joined:
    Dec 31, 2014
    Member:
    #145322
    Messages:
    6,421
    Gender:
    Male
    First Name:
    Chris
    Myrtle Creek OR
    Vehicle:
    2008 Tacoma Super Duty
    Canopy, fitted seat covers.

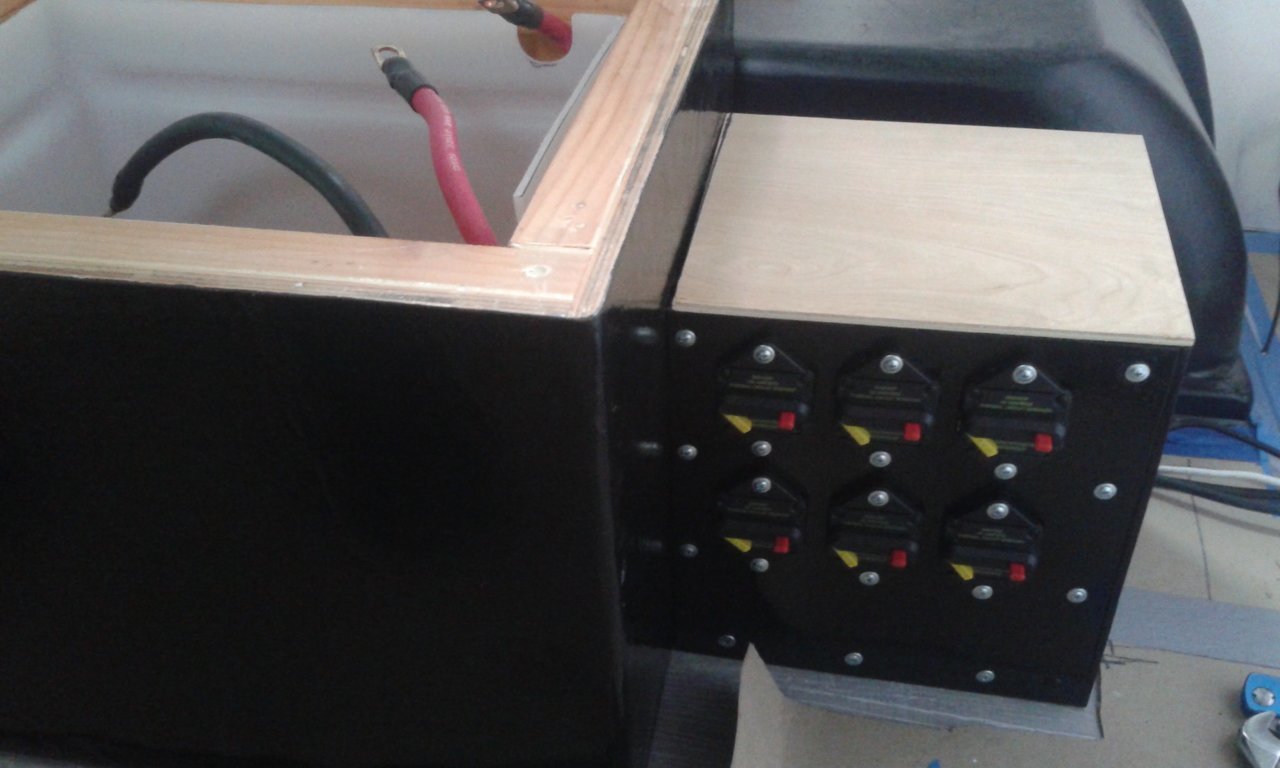

    Personally, I would not put the fridge on a fuse/fuse block. I would (and did in the Airstream) run it with a Bussman breaker of appropriate size.

    JoeCOVA and ScottyR like this.
  17. Dec 15, 2018 at 9:08 AM
    #17
    Rujack

    Rujack [OP] Stop Global Whining

    Joined:
    Aug 16, 2016
    Member:
    #194732
    Messages:
    2,420
    Gender:
    Male
    Vehicle:
    2016 Tacoma TRD Off Road 6 speed manual
    Permanent


    MrBrooks and FFBlack like this.
  18. Dec 15, 2018 at 9:10 AM
    #18
    Rujack

    Rujack [OP] Stop Global Whining

    Joined:
    Aug 16, 2016
    Member:
    #194732
    Messages:
    2,420
    Gender:
    Male
    Vehicle:
    2016 Tacoma TRD Off Road 6 speed manual
    I considered this and may go that route, but the breaker ant be sourced today

  19. Dec 15, 2018 at 9:15 AM
    #19
    bajatacoguy

    bajatacoguy Well-Known Member

    Joined:
    Apr 22, 2013
    Member:
    #102609
    Messages:
    3,235
    Gender:
    Male
    First Name:
    Johnny
    RI to NH
    Vehicle:
    Blk Taco
    OEM: Bed Mat Roof Rack Tri-Fold Tonneau Cover Door Sill Protectors KO2's Dobinson GTS Suspension TRD Beadlocks Timbren Bump Stops SPC UCA Rear SuperSpring SSO Slimline Winch Bumper SmittyBilt x20 Mobtown Sliders Mobtown Front Skid Avid Basket Bed Rack DECKED Draw Organizer Total Chaos Bed Stiffners Relentless Fab Bed Corner Tie Downs CBI Ditch Light Brackets ARB Dual Compressor Instant Air Tank Smittybilt RTT Road Shower II Indel-B Fridge/Freezer w/ Slide Ironman 4x4 Insulated Fridge Case Redline Tuning Hood QuickLIFT Yo_Hec - Center Console Molle Little Johnny III CB Radio KB Voodoo Flashlight Kit Switch Pro 8100 BlueSea Fuse Pelfreybilt Fuse Panel Mount Gecko - LED Bed Lights Gecko - LED Hood Lights Raptor Grill Lights Cali Raised - Bed Flag Pole Holder Center Console Tray & Organizer Weather Tech Floor Mats Weather Tech Hood Deflector TRAILER BUILD HAPPENING! Plate: Negan

    You have the best bed rack in the whole world!

  20. Dec 15, 2018 at 9:37 AM
    #20
    Rujack

    Rujack [OP] Stop Global Whining

    Joined:
    Aug 16, 2016
    Member:
    #194732
    Messages:
    2,420
    Gender:
    Male
    Vehicle:
    2016 Tacoma TRD Off Road 6 speed manual
    I’m a fan myself!

    bajatacoguy likes this.
