What gauge wire do I need...for fridge

Discussion in '2nd Gen. Tacomas (2005-2015)' started by Icepuck72, Aug 28, 2019.

  1. Aug 28, 2019 at 10:20 AM
    #1
    Icepuck72

    Icepuck72 [OP] Well-Known Member

    Joined:
    Jul 9, 2011
    Member:
    #59563
    Messages:
    1,796
    Gender:
    Male
    First Name:
    Mark
    Richmond, VA
    Vehicle:
    2006 DC TRD
    OME 885's, Dakars, TRD Trail Edition Wheels, 285x75x16 Goodyear Duratracs, Magnaflow 12256 muffler, Fog Light mod, 2 Baby seats
  2. Aug 28, 2019 at 10:25 AM
    #2
    Rock Lobster

    Rock Lobster knows nothing, yet an expert in everything.

    Joined:
    Dec 14, 2018
    Member:
    #275833
    Messages:
    5,450
    Gender:
    Male
    First Name:
    Ryan
    Dee Eff Dub
    Vehicle:
    Sport Crew represent
    Whats the amp draw from the fridge? 12 g is way overkill for the panel, but not sure about the fridge. I personally wouldnt trust that cigarette socket for more than 3-4 amps max.

    Larzzzz, ryfox0276 and Sgt.Tee like this.
  3. Aug 28, 2019 at 10:30 AM
    #3
    ryfox0276

    ryfox0276 Well-Known Member

    Joined:
    Jul 13, 2017
    Member:
    #223928
    Messages:
    1,172
    Gender:
    Male
    First Name:
    Ryan
    Montana
    Vehicle:
    2013 RC 4x4
    I use 14 gauge wire for my fridge. I think that is even overkill. How long of a wire are you gonna have? Mine only runs about 3 feet from my fridge to my fuse block. The longer the wire the more impedance it will have, and will need to be a higher gauge.

    Edit: @Rock Lobster is also right about the cig. lighter. I wouldn't trust it. My fridge also plugged in that way. It kept falling out on any kind of offroad, which totally defeats the purpose of the fridge. I also just didn't trust it with the power draw my fridge has (~ 4 amps). So I cut it off and got some quick disconnect plugs from Autozone rated for 6 amps. It is hooked up directly to my fuse panel.

    Last edited: Aug 28, 2019
    Rock Lobster and Sgt.Tee like this.
  4. Aug 28, 2019 at 10:31 AM
    #4
    Sgt.Tee

    Sgt.Tee Well-Known Member

    Joined:
    Aug 21, 2018
    Member:
    #263555
    Messages:
    1,065
    Gender:
    Male
    First Name:
    Pete
    NE Pa
    Vehicle:
    2019 MGM SR Tacoma 4&4
    Rock Lobster is. Correct, find out how many amps the fridge is drawing, then go from there

    Rock Lobster likes this.
  5. Aug 28, 2019 at 10:37 AM
    #5
    Rock Lobster

    Rock Lobster knows nothing, yet an expert in everything.

    Joined:
    Dec 14, 2018
    Member:
    #275833
    Messages:
    5,450
    Gender:
    Male
    First Name:
    Ryan
    Dee Eff Dub
    Vehicle:
    Sport Crew represent

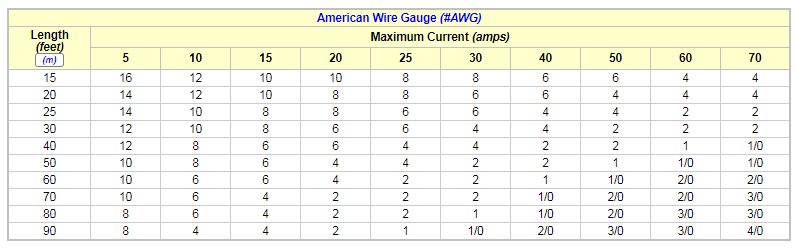

    Here's a rough guide for 12V DC:


    PzTank, mtip and AgBase like this.
  6. Aug 28, 2019 at 10:59 AM
    #6
    golfindia

    golfindia Well-Known Member

    Joined:
    Aug 25, 2017
    Member:
    #228000
    Messages:
    1,293
    Gender:
    Male
    Yes.
    Vehicle:
    2017 4x4 access cab AT
    That fridge draws about 4amps. 12v/50w.

    The distance is the critical factor. I tried using 12g for my Edgestar fridge(in truck bed) but there was noticeable voltage drop so I switched to 10g. Smaller wire is OK if your voltage is high enough, and your engine is on, but you will end up too low too fast just using your car battery.

  7. Aug 28, 2019 at 2:52 PM
    #7
    Icepuck72

    Icepuck72 [OP] Well-Known Member

    Joined:
    Jul 9, 2011
    Member:
    #59563
    Messages:
    1,796
    Gender:
    Male
    First Name:
    Mark
    Richmond, VA
    Vehicle:
    2006 DC TRD
    OME 885's, Dakars, TRD Trail Edition Wheels, 285x75x16 Goodyear Duratracs, Magnaflow 12256 muffler, Fog Light mod, 2 Baby seats
    OK...I think I'll go that route...quick disconnect plugs. I'll probably end up going with 10 gauge....it's going in the back of my bed, the fuse panel is up by the battery.

  8. Aug 28, 2019 at 2:54 PM
    #8
    Icepuck72

    Icepuck72 [OP] Well-Known Member

    Joined:
    Jul 9, 2011
    Member:
    #59563
    Messages:
    1,796
    Gender:
    Male
    First Name:
    Mark
    Richmond, VA
    Vehicle:
    2006 DC TRD
    OME 885's, Dakars, TRD Trail Edition Wheels, 285x75x16 Goodyear Duratracs, Magnaflow 12256 muffler, Fog Light mod, 2 Baby seats
    How did you actually hook up the fridge though, since the cigarette plug option is out.

  9. Aug 28, 2019 at 3:31 PM
    #9
    Rock Lobster

    Rock Lobster knows nothing, yet an expert in everything.

    Joined:
    Dec 14, 2018
    Member:
    #275833
    Messages:
    5,450
    Gender:
    Male
    First Name:
    Ryan
    Dee Eff Dub
    Vehicle:
    Sport Crew represent
    o_O You're going to have a hell of a time routing and terminating a 10 gauge cable. Your realize that's larger than the cable that feeds your full sized fridge at home, right? From bed to engine bay, 14 is slightly overkill, while 16 is just barely sufficient for a 5 amp draw. If I were doing it to my own truck I'd probably run 16, if I were installing on a friend's truck I'd give them the 14. Running anything bigger does nothing but lighten the wallet and add frustration during install.

  10. Aug 28, 2019 at 3:53 PM
    #10
    spencermarkd

    spencermarkd Well-Known Member

    Joined:
    May 15, 2016
    Member:
    #187025
    Messages:
    1,047
    Gender:
    Male
    First Name:
    Spencer
    Pullman, WA
    Vehicle:
    07 Driftwood Pearl 4Runner

    o_O

    10 is easy to route and terminate, buy the appropriate sized connector and use a good crimper, solder if you're extra paranoid. For that long of a run it's not a terrible idea at all. Also gives OP flexibility if he ever wants to expand down the road and change that run to a sub panel. A 15' run at 10 gauge is only suggested up to 20a, thats not all that much at all.

    Also, your fridge at home is a terrible example, that's 120v AC, not 12v DC. Apples and bananas. And that cable at home has 3 conductors in it, most likely 12 gauge, not a single conductor.

    16 minimum, 12 is better, 10 is even better. I'd put in 10 just to not have to re-run it in the future if my plans change.

  11. Aug 28, 2019 at 4:17 PM
    #11
    Larzzzz

    Larzzzz Grande' Ricardo

    Joined:
    Aug 23, 2009
    Member:
    #21609
    Messages:
    2,620
    Gender:
    Male
    First Name:
    Larry
    MA
    Vehicle:
    '06 dclb 300+ kmiles
    Aux back up lights, Bed lights, Re-located trailer plug, Good dooby, a.k.a. jumper cable mod, Heated seats, back up camera,
    Impedance is the total opposition to current flow in an AC circuit and is a combination of resistance and reactance (frequency resistance) from inductors and capacitors. DC voltage has no frequency.

    Last edited: Aug 28, 2019
  12. Aug 28, 2019 at 4:25 PM
    #12
    crazysccrmd

    crazysccrmd Well-Known Member

    Joined:
    Mar 17, 2016
    Member:
    #181592
    Messages:
    4,827
    Gender:
    Male
    Colorado Springs
    Vehicle:
    21 Sport AC MT S/C
    I have never had a problem powering my fridge through a cigarette outlet. The plug has never come out even when slamming around offroad and never failed to provide enough juice. I used 10ga wire for mine with about a 15’ run.

    Icepuck72 [OP] likes this.
  13. Aug 28, 2019 at 4:53 PM
    #13
    stickyTaco

    stickyTaco Fuck Cancer

    Joined:
    Dec 11, 2012
    Member:
    #92904
    Messages:
    4,281
    Gender:
    Male
    First Name:
    Zack
    Reno
    Vehicle:
    '12 DCSB TRD-OR
    Fox/Dakar with Relentless goodies and stuff

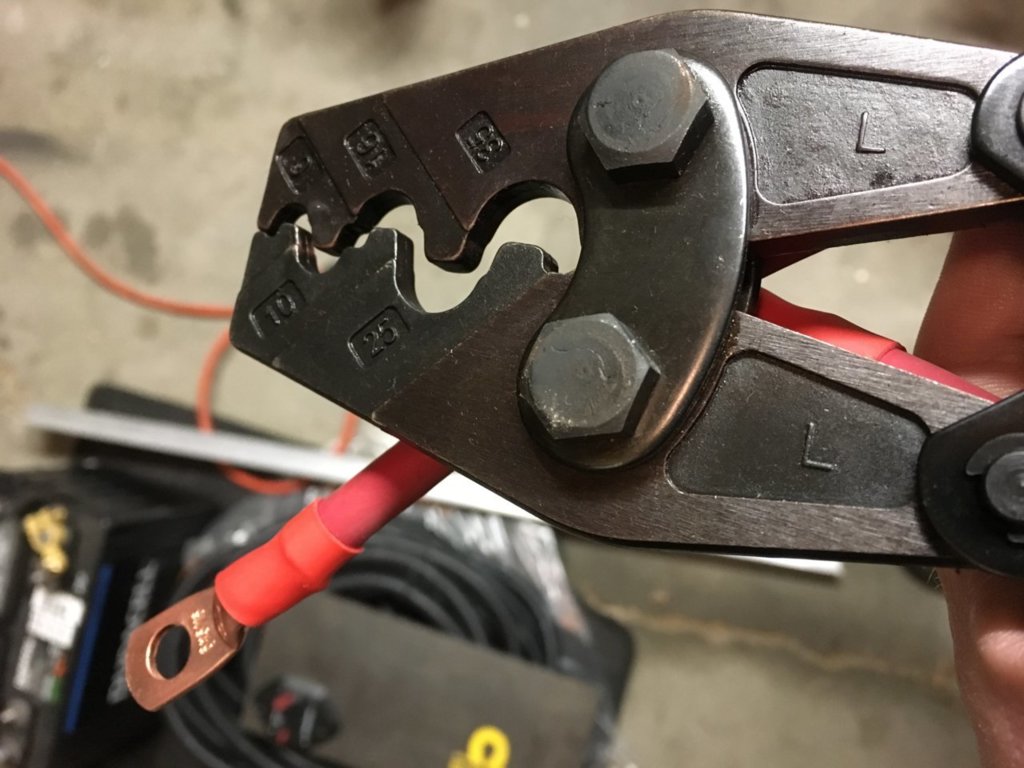

    It's all about the right tools. I ran 6awg and had no problem running or terminating.
    [​IMG]

  14. Aug 28, 2019 at 5:38 PM
    #14
    Icepuck72

    Icepuck72 [OP] Well-Known Member

    Joined:
    Jul 9, 2011
    Member:
    #59563
    Messages:
    1,796
    Gender:
    Male
    First Name:
    Mark
    Richmond, VA
    Vehicle:
    2006 DC TRD
    OME 885's, Dakars, TRD Trail Edition Wheels, 285x75x16 Goodyear Duratracs, Magnaflow 12256 muffler, Fog Light mod, 2 Baby seats
    I'm going with 10. Just to be safe. Thanks for the input.

  15. Aug 28, 2019 at 5:40 PM
    #15
    EatSleepTacos

    EatSleepTacos Well-Known Member

    Joined:
    Mar 24, 2015
    Member:
    #151688
    Messages:
    54,313
    Gender:
    Male
    First Name:
    Randy
    Hampton Roads, VA
    Vehicle:
    4x4 2005 SR5 AC 6MT
    Good decision, that’s what I was going to recommend.

    Depending what fridge you have, it should have a voltage cut off where the fridge will shut off to preserve the battery. Too thin of wire will result in larger voltage drop, so the fridge will cut off earlier than necessary.

  16. Aug 28, 2019 at 6:02 PM
    #16
    golfindia

    golfindia Well-Known Member

    Joined:
    Aug 25, 2017
    Member:
    #228000
    Messages:
    1,293
    Gender:
    Male
    Yes.
    Vehicle:
    2017 4x4 access cab AT
    I use Anderson powerpole connectors on my fridge.

  17. Aug 28, 2019 at 6:14 PM
    #17
    EatSleepTacos

    EatSleepTacos Well-Known Member

    Joined:
    Mar 24, 2015
    Member:
    #151688
    Messages:
    54,313
    Gender:
    Male
    First Name:
    Randy
    Hampton Roads, VA
    Vehicle:
    4x4 2005 SR5 AC 6MT
    I haven’t had any issues with a cigarette lighter outlet in mine. Only time I had an issue was when I jumped my truck off a small ledge, launching my stove forward and shearing the fridge wire. Whoops.

    $15 later for a new cord and good to go.

  18. Aug 28, 2019 at 6:15 PM
    #18
    uploadadventure

    uploadadventure IG : UploadAdventure

    Joined:
    Jan 30, 2019
    Member:
    #281288
    Messages:
    9,232
    Gender:
    Male
    First Name:
    Rich
    Lake Sherwood, MO
    Vehicle:
    2019 Cavalry Blue Tacoma TRD OR
    OVTune, SOS Armor, MESO stuff, UpTopOverland roof rack, Desert Armor RTT, Softopper, Rigid & BD lights, RCI Armor, ROAM awning, misc stuff
    10.
    Same suggestion.
    Good choice.

  19. Aug 28, 2019 at 6:17 PM
    #19
    WATaco

    WATaco Well-Known Member

    Joined:
    Jan 26, 2015
    Member:
    #147290
    Messages:
    336
    Gender:
    Male
    First Name:
    Ed
    Seattle-ish, WA
    Vehicle:
    '14 Tacoma ORD
    Leer, AllPro sliders, Prinsu, OME, JBA UCA
    Personally, I did 10ga off a circuit breaker under the hood to a fuse panel in the bed so I could power the fridge easily and have some USB ports to charge stuff. I had a cig adapter originally but that failed on my first trip so I just hard wired the cord to the fuse block. I plan to swap to anderson plugs at some point.

    MountainManGuy likes this.
  20. Aug 29, 2019 at 5:00 AM
    #20
    badger

    badger Well-Known Member

    Joined:
    Jan 6, 2012
    Member:
    #70102
    Messages:
    2,089
    Gender:
    Male
    Vehicle:
    07 SR5
    Here is the critical piece of information you need to know when choosing wire size: Voltage drop. Below is a calculator that takes the mystery out of the decision. I would not rely on wire size charts because most of them are based on a 5% voltage drop criteria or more. When they say "maximum allowable amps", that means marginal performance from the device. Some things will run OK on a 5% drop, but other things require better. For my wiring I size for a 2% drop. Many frig units have a low voltage cut out, that shuts off the fridge when it detects voltage below some level. It will be a bigger issue when the truck is not running since you are starting with the standing voltage of the battery. This could be 12V or less. When the engine is running, you have 13.5 to 14V from the alternator, so a low voltage cut out is less likely. Some items like headlights just get dimmer as the voltage drops. This is why so many people install upgraded headlight harnesses to bypass the wimpy OEM wiring.

    Most people don't know how any of this works, so the best advise is to use the calculator below and choose the wire size that gives you a 2% drop. 2% will ensure that whatever you wire is safe and functioning at a high level. Going lower than 2% is a case of rapidly diminishing returns.

    https://www.calculator.net/voltage-...ance=20&distanceunit=feet&amperes=5&x=51&y=17
