What is the secret to these CV axles?

Discussion in '3rd Gen. Tacomas (2016+)' started by OdiN1701, Jul 11, 2020.

  1. Jul 11, 2020 at 9:09 AM
    #1
    OdiN1701

    OdiN1701 [OP] Well-Known Member

    Joined:
    Feb 19, 2017
    Member:
    #210998
    Messages:
    1,954
    Gender:
    Male
    Colorado
    Vehicle:
    2017 Quicksand TRD OR DC SB
    Trying to do the ECGS bushing, cannot get this damned thing out.

    At least on my Xterra, it was just bolted to the diff.

  2. Jul 11, 2020 at 9:10 AM
    #2
    jowybyo

    jowybyo Mobtown Offroad

    Joined:
    Nov 19, 2013
    Member:
    #116863
    Messages:
    5,662
    Gender:
    Male
    First Name:
    Joe
    Baltimore, MD
    Vehicle:
    '14 MGM DCSB Postrunner 4wd Conversion, Debadged
    42 Designs Catch Can Mobtown Offroad Ribbed Tailgate Skin Mobtown Offroad Tailgate Cap Mobtown Offroad Locking Storage Doors Mobtown Offroad Utility Bed Bars (Prototype)
    You need to try different positions. If it’s not coming out, rotate it about 15° and try again. Eventually, it will be in the correct orientation and pop right out.

  3. Jul 11, 2020 at 9:12 AM
    #3
    OdiN1701

    OdiN1701 [OP] Well-Known Member

    Joined:
    Feb 19, 2017
    Member:
    #210998
    Messages:
    1,954
    Gender:
    Male
    Colorado
    Vehicle:
    2017 Quicksand TRD OR DC SB
    I've turned it all the way around. It doesn't help that I'm doing this with just jack stands so I don't have a ton of leverage.

  4. Jul 11, 2020 at 9:17 AM
    #4
    3JOH22A

    3JOH22A Cunning Linguist

    Joined:
    Mar 27, 2019
    Member:
    #288172
    Messages:
    4,777
    Gender:
    Male
    District 6ix
    Vehicle:
    3rd Gen TRD Off-Road on 35"s


    Another way is to engage the notches on the CV cup with a pry bar and hammer on the pry bar like a chisel.

  5. Jul 11, 2020 at 9:18 AM
    #5
    jowybyo

    jowybyo Mobtown Offroad

    Joined:
    Nov 19, 2013
    Member:
    #116863
    Messages:
    5,662
    Gender:
    Male
    First Name:
    Joe
    Baltimore, MD
    Vehicle:
    '14 MGM DCSB Postrunner 4wd Conversion, Debadged
    42 Designs Catch Can Mobtown Offroad Ribbed Tailgate Skin Mobtown Offroad Tailgate Cap Mobtown Offroad Locking Storage Doors Mobtown Offroad Utility Bed Bars (Prototype)
    I got a slide hammer from the auto parts store and used one of the U shaped attachments as a wedge that I hammer in between the CV and the diff housing.

  6. Jul 11, 2020 at 9:25 AM
    #6
    Bertw192

    Bertw192 Well-Known Member

    Joined:
    Aug 3, 2017
    Member:
    #225852
    Messages:
    9,108
    Gender:
    Male
    First Name:
    Bert
    Seattle, WA
    Vehicle:
    2017 TRD OR DCSB
    Katzkins, sport hood, 17"×8.5" SCS Ray10 matte gunmetal wheels with BFG KO2 265/70/17 tires, heavily modified Mobtown bed bars, tinted windows, Mesojdm OR taillights, TRD Pro skid plate, ADS Ext Suspension, TRD Pro shift knob, TRD Pro Rigid fog lights, TRD Pro grille, passenger smart handle, SSO Slimline bumper with Warn M8000 synthetic winch, TC bed stiffeners, RCI hidden hitch rear bumper
    Use a huge screwdriver or pry bar, against the notches of the CV and smack the screwdriver or pry bar with a BFH. Don't be gentle, it takes some good whacks. As others have said, try rotating the CV if you're not making progress.

    Asphaltcowboychip likes this.
  7. Jul 11, 2020 at 9:26 AM
    #7
    OdiN1701

    OdiN1701 [OP] Well-Known Member

    Joined:
    Feb 19, 2017
    Member:
    #210998
    Messages:
    1,954
    Gender:
    Male
    Colorado
    Vehicle:
    2017 Quicksand TRD OR DC SB
    Yeah I'm getting a loaner see if that works

  8. Jul 11, 2020 at 9:27 AM
    #8
    OdiN1701

    OdiN1701 [OP] Well-Known Member

    Joined:
    Feb 19, 2017
    Member:
    #210998
    Messages:
    1,954
    Gender:
    Male
    Colorado
    Vehicle:
    2017 Quicksand TRD OR DC SB
    Been doing that. I don't have a ton of leverage though.

    Bertw192 likes this.
  9. Jul 11, 2020 at 9:29 AM
    #9
    Bertw192

    Bertw192 Well-Known Member

    Joined:
    Aug 3, 2017
    Member:
    #225852
    Messages:
    9,108
    Gender:
    Male
    First Name:
    Bert
    Seattle, WA
    Vehicle:
    2017 TRD OR DCSB
    Katzkins, sport hood, 17"×8.5" SCS Ray10 matte gunmetal wheels with BFG KO2 265/70/17 tires, heavily modified Mobtown bed bars, tinted windows, Mesojdm OR taillights, TRD Pro skid plate, ADS Ext Suspension, TRD Pro shift knob, TRD Pro Rigid fog lights, TRD Pro grille, passenger smart handle, SSO Slimline bumper with Warn M8000 synthetic winch, TC bed stiffeners, RCI hidden hitch rear bumper
    You'll get it... just keep at it. I laid under the truck, head first from the passenger side... try different positions. Sometimes they're stubborn.

  10. Jul 11, 2020 at 9:32 AM
    #10
    jowybyo

    jowybyo Mobtown Offroad

    Joined:
    Nov 19, 2013
    Member:
    #116863
    Messages:
    5,662
    Gender:
    Male
    First Name:
    Joe
    Baltimore, MD
    Vehicle:
    '14 MGM DCSB Postrunner 4wd Conversion, Debadged
    42 Designs Catch Can Mobtown Offroad Ribbed Tailgate Skin Mobtown Offroad Tailgate Cap Mobtown Offroad Locking Storage Doors Mobtown Offroad Utility Bed Bars (Prototype)
    Ive never been able to make this method work.

    Bertw192 likes this.
  11. Jul 11, 2020 at 9:34 AM
    #11
    Bertw192

    Bertw192 Well-Known Member

    Joined:
    Aug 3, 2017
    Member:
    #225852
    Messages:
    9,108
    Gender:
    Male
    First Name:
    Bert
    Seattle, WA
    Vehicle:
    2017 TRD OR DCSB
    Katzkins, sport hood, 17"×8.5" SCS Ray10 matte gunmetal wheels with BFG KO2 265/70/17 tires, heavily modified Mobtown bed bars, tinted windows, Mesojdm OR taillights, TRD Pro skid plate, ADS Ext Suspension, TRD Pro shift knob, TRD Pro Rigid fog lights, TRD Pro grille, passenger smart handle, SSO Slimline bumper with Warn M8000 synthetic winch, TC bed stiffeners, RCI hidden hitch rear bumper
    3x champion myself, on 3 different trucks.

    I was actually thinking about making a tool that would slide into the CV notches and provided a strike plate, for even easier removal.

    Gaper likes this.
  12. Jul 11, 2020 at 9:35 AM
    #12
    Franky86

    Franky86 Well-Known Member

    Joined:
    Apr 7, 2019
    Member:
    #289441
    Messages:
    142
    Gender:
    Male
    Sac
    Vehicle:
    2019 OR
    I’ll second this, I used a pry bar and a mallet on the notches and popped it free. Keep rotating if it’s not coming loose after a few whacks. There’s a little spring collar in there that you have to pop free with enough force. I was a little paranoid being under there while hammering so I had jack stands and my floor jack as a backup. Good luck!

    Bertw192 likes this.
  13. Jul 11, 2020 at 10:04 AM
    #13
    OdiN1701

    OdiN1701 [OP] Well-Known Member

    Joined:
    Feb 19, 2017
    Member:
    #210998
    Messages:
    1,954
    Gender:
    Male
    Colorado
    Vehicle:
    2017 Quicksand TRD OR DC SB
    I have jack stands and I put my tire under too.

    Still can't get it, the removal tool doesn't really fit. Been hammering away and prying and everything for an hour before I got that tool. I may just have to do the rest of the lift and have toytec or someone do the bushing. I hate doing that, but this damn thing won't budge. Running on the stock bearing for like 2000 miles shouldn't kill it I doubt.

  14. Jul 11, 2020 at 10:27 AM
    #14
    Franky86

    Franky86 Well-Known Member

    Joined:
    Apr 7, 2019
    Member:
    #289441
    Messages:
    142
    Gender:
    Male
    Sac
    Vehicle:
    2019 OR
    Oh gotcha. The bushing isn’t totally needed while lifting. Some people eventually need it some don’t. 2k miles should be fine.

  15. Jul 11, 2020 at 11:33 AM
    #15
    OdiN1701

    OdiN1701 [OP] Well-Known Member

    Joined:
    Feb 19, 2017
    Member:
    #210998
    Messages:
    1,954
    Gender:
    Male
    Colorado
    Vehicle:
    2017 Quicksand TRD OR DC SB
    Yeah, tired of fighting with it. Need the proper tool, but can't get it =/

    Oh well, got the axle all put back in and the 6112's and SPC's installed on the driver side. No problems with any of that, save that stupid bracket under the battery is a PITA for getting the UCA bolt out.

  16. Jul 11, 2020 at 11:44 AM
    #16
    sagexp

    sagexp Well-Known Member

    Joined:
    Feb 6, 2017
    Member:
    #209799
    Messages:
    457
    Gender:
    Male
    Vehicle:
    2002 Tacoma DC 4X4 2017 Tacoma DC 4X4
    - Using a small cold chisel there's about 1/8 to 3/16 area around the "tulip" (end of CV) and the diff housing where you can get a good "bite" between the two parts without damaging any seals or seats. A few taps with the chisel between the face of the diff and the "tulip" on the end of the CV joint, and it pops out fairly easy. You are basically "wedging" the cold chisel parallel between these two points to separate the joint. I've used this method on probably 6 or so CV axle swaps over the years, and it's the easiest, least frustrating method I've found. Just be careful not to go in too far and damage the silver outer dust seal seat on the end of the CV.

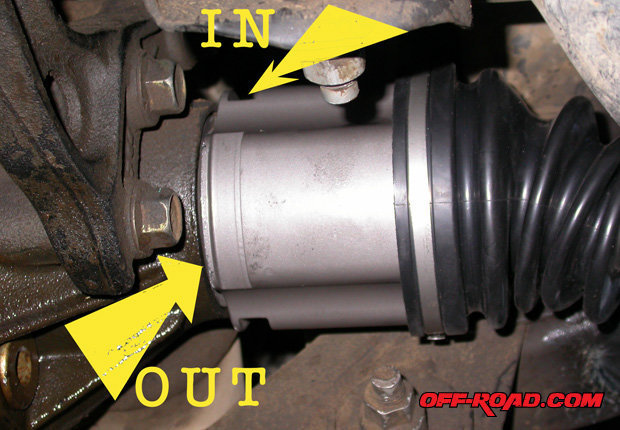

    - When putting the CV back in, there are notches on the end of the tulip (see pic below) which allow you to get a cold chisel on them, and tap the shaft back in. Tap, turn, tap, turn....and within a few whacks, it will pop back in and seat without breaking a sweat (or part of the truck).


  17. Jul 11, 2020 at 11:53 AM
    #17
    OdiN1701

    OdiN1701 [OP] Well-Known Member

    Joined:
    Feb 19, 2017
    Member:
    #210998
    Messages:
    1,954
    Gender:
    Male
    Colorado
    Vehicle:
    2017 Quicksand TRD OR DC SB
    I was trying the chisel on the notches to get them out. I didn't want to damage the axle by pounding anything in the gap. It seemed like there is a metal piece in there that is fairly fragile.

  18. Jul 11, 2020 at 2:34 PM
    #18
    Tacomike18

    Tacomike18 Well-Known Member

    Joined:
    Oct 28, 2018
    Member:
    #270886
    Messages:
    1,383
    Gender:
    Male
    First Name:
    John
    Socal
    Vehicle:
    2018 toyota tacoma sr 2.7
    The end that goes into the transmission is splined and has a ring at the end. When inserting it in, you have to push turn push turn push turn repeat. Removing it is a pita. I wedge a chisel and tap tap tap.

  19. Jul 11, 2020 at 3:08 PM
    #19
    sagexp

    sagexp Well-Known Member

    Joined:
    Feb 6, 2017
    Member:
    #209799
    Messages:
    457
    Gender:
    Male
    Vehicle:
    2002 Tacoma DC 4X4 2017 Tacoma DC 4X4
    There is the dust seal flange (the thin silver disc) that you don't want to bend or damage. But if you insert the cold chisel just so it gets a little bite on both the edge of the axle housing on the diff and the face of the CV (without pinching the silver dust seal seat), give it a few solid taps, it should pop out without damaging anything.

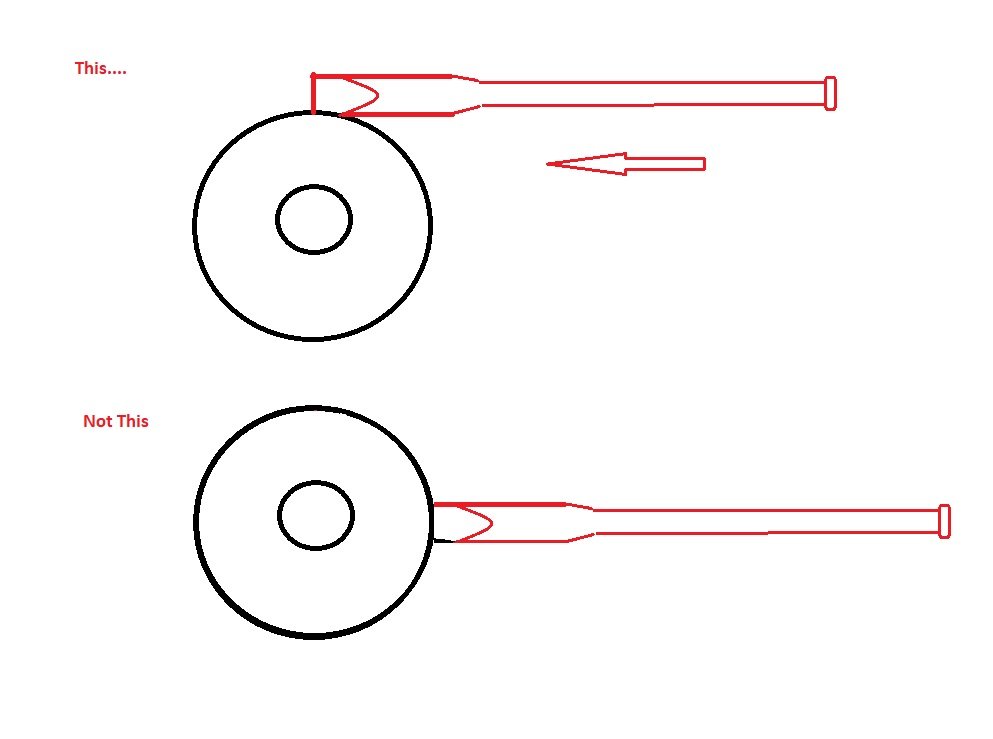

    Not sure if I am being clear, so here's a little pic I drew up. Done like this I've never damaged anything, and it comes out pretty easy.



    CV Removal.jpg

  20. Jul 11, 2020 at 3:44 PM
    #20
    $yoda$

    $yoda$ Well-Known Member

    Joined:
    Jun 11, 2019
    Member:
    #296087
    Messages:
    942
    Gender:
    Male
    First Name:
    Tom
    Vehicle:
    2007 Tacoma 4.0
    4 inch lift/Magnuson 2nd gen TRD supercharger kit

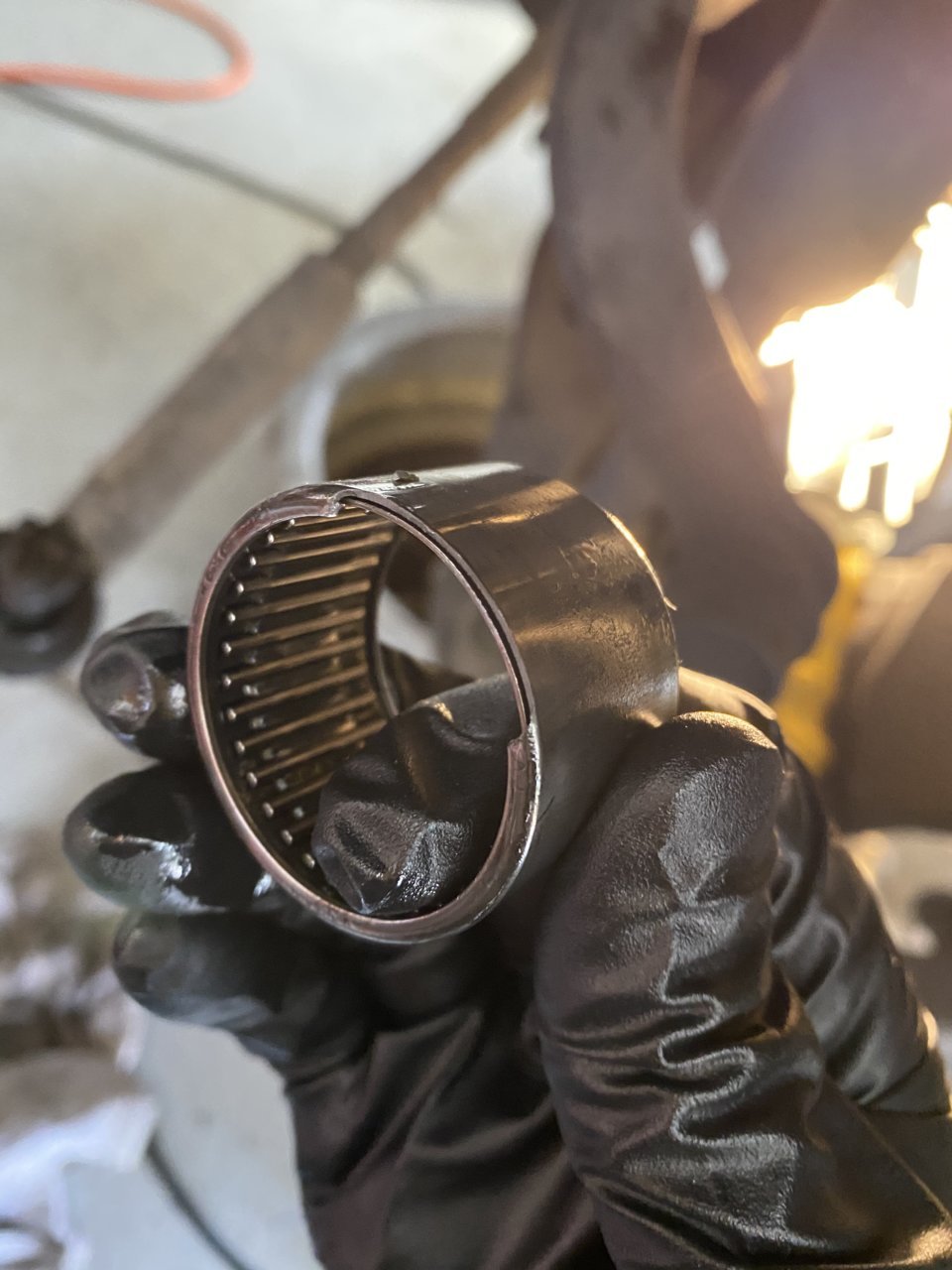

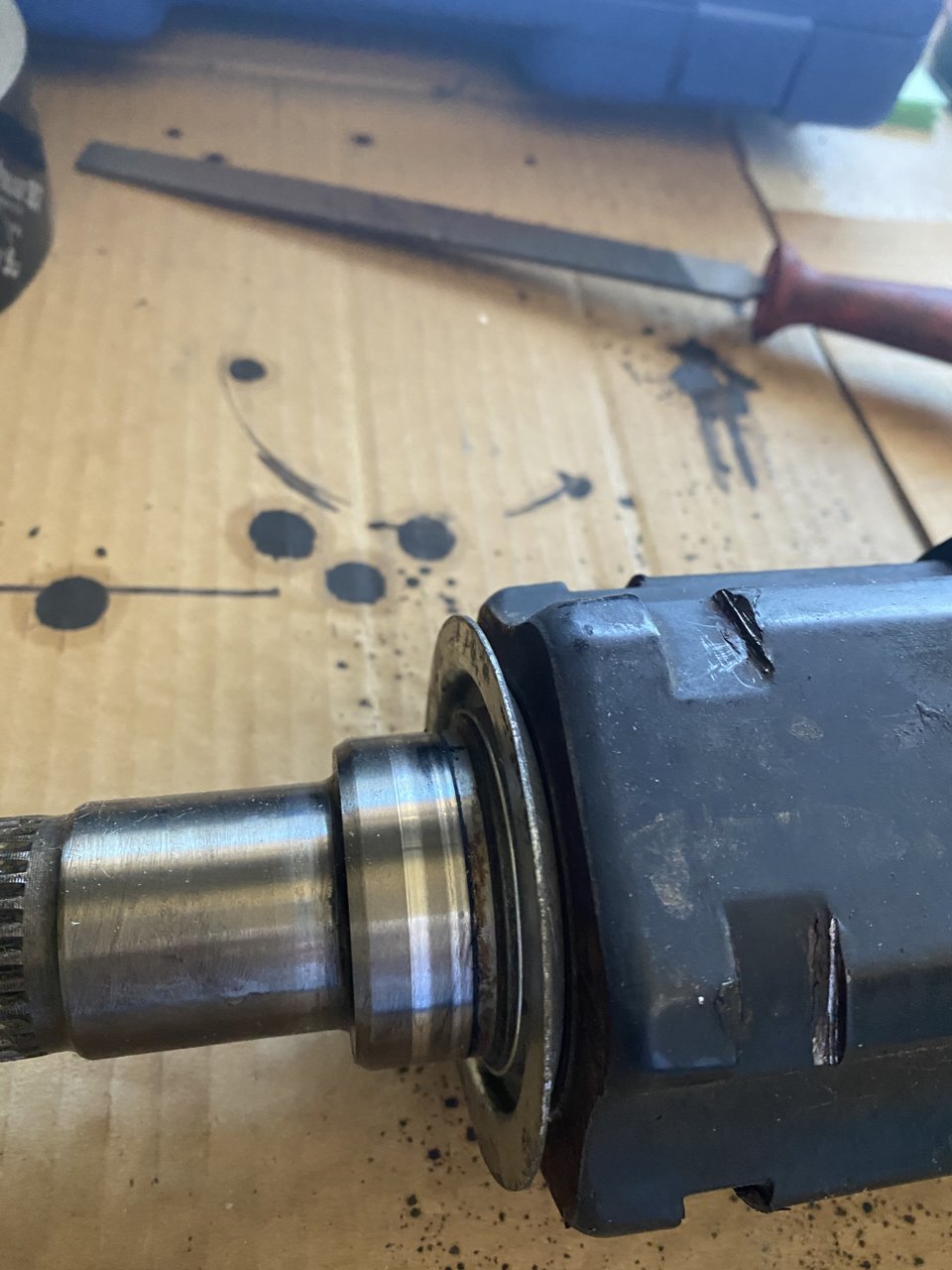

    2A2D90E8-CEFC-46D1-B3F5-E44CB94A2CB8.jpg 16CEF0BE-2592-4F7C-ABF9-EF61E35AFBD3.jpg D8845544-C01B-4A43-B0C4-9CE6730CE519.jpg 2A2D90E8-CEFC-46D1-B3F5-E44CB94A2CB8.jpg 16CEF0BE-2592-4F7C-ABF9-EF61E35AFBD3.jpg

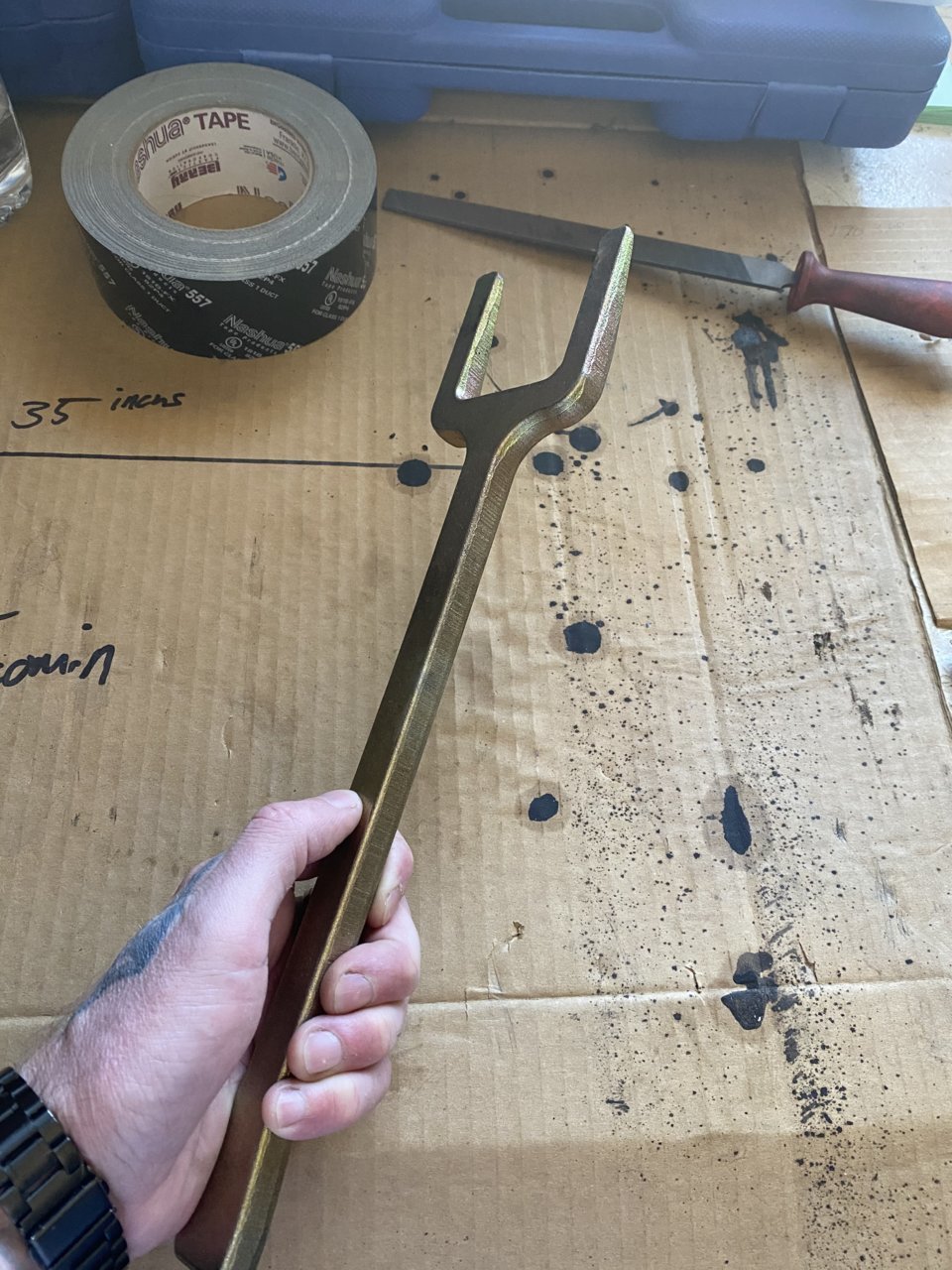

    I had to fight them a bit the chisel method worked on the passenger side but the driver was a pia. I’ll post a pic of the tool I used. You just gotta keep working with it and it will go. That little piece of metal your talking about pops off the axle and you can hammer it back into shape as long as you don’t bend it up to much just be careful with your diff. Also when you get the needle bearing out make sure it’s intact mine broke apart and I had to fish out a couple pieces of it. 2A2D90E8-CEFC-46D1-B3F5-E44CB94A2CB8.jpg
