What is this part that goes into the license plate wiring plug called?

Discussion in '2nd Gen. Tacomas (2005-2015)' started by Sweets123, Apr 10, 2019.

  1. Apr 10, 2019 at 4:30 PM
    #1
    Sweets123

    Sweets123 [OP] Active Member

    Joined:
    Mar 19, 2019
    Member:
    #287222
    Messages:
    30
    Gender:
    Female
    Oregon Coast
    Vehicle:
    2007 Blue TRD
    TkdIcUd_tiVWgWxUCPaxfREi8PhnzkBMGbn1ajAu_6b635ad84786c1c07611c338d9e0f4bff0351047.jpg
    CsNZnHHheZJR1OyV8njoyRw5mENf9_VqsfJkPJaz_417a50624fdf5ee2e9cad30f3094e3cb89e0e17d.jpg

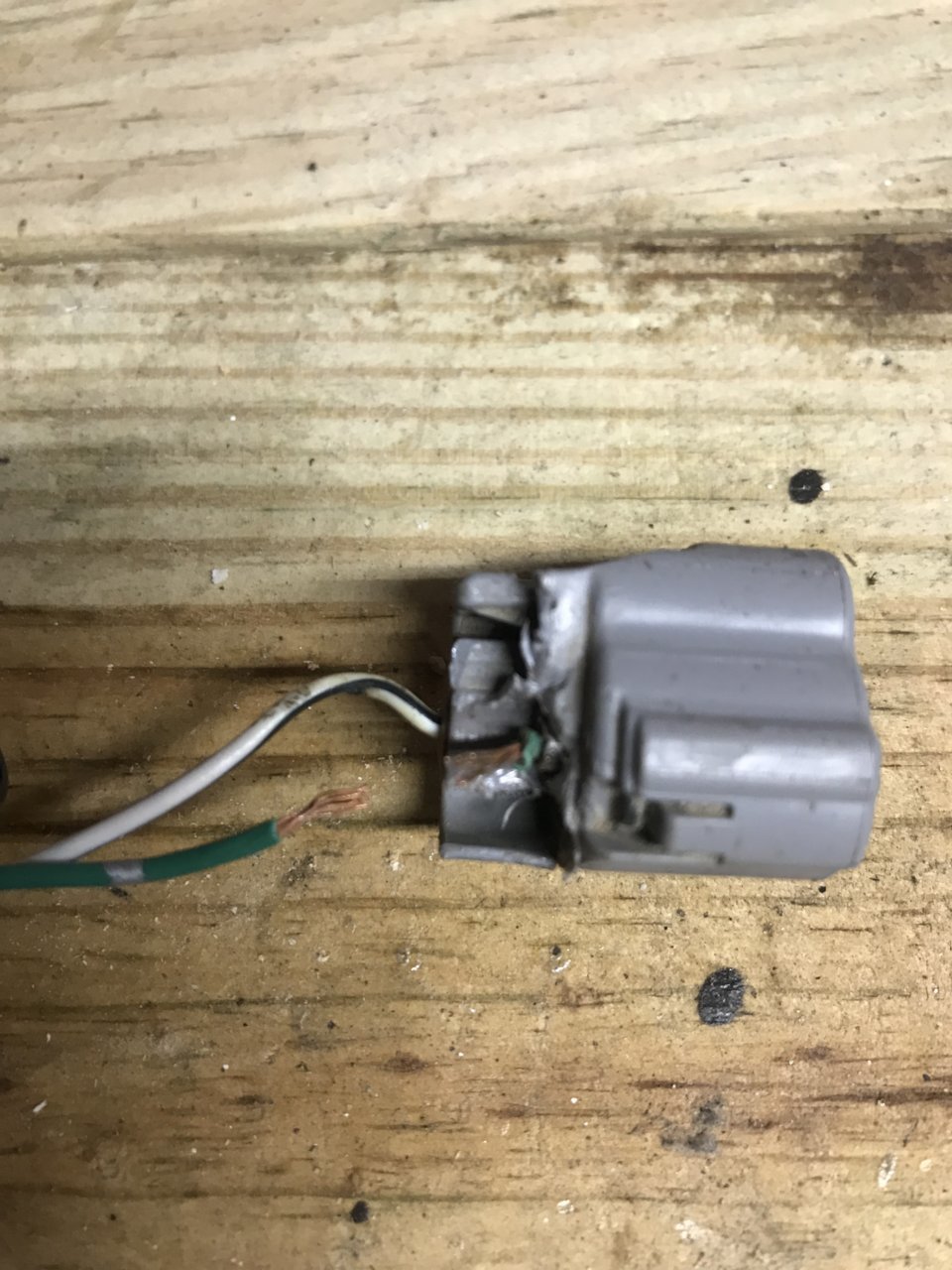

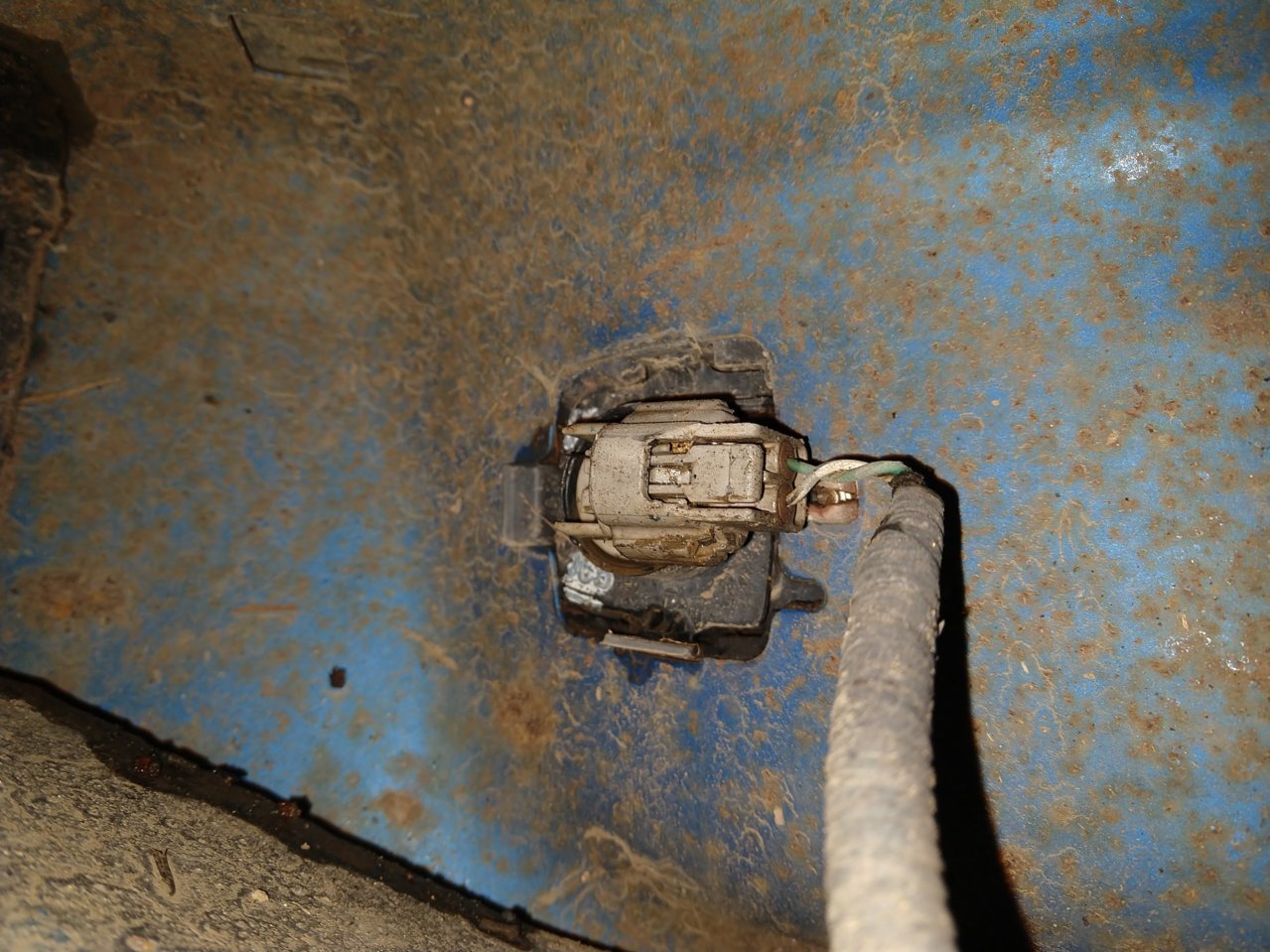

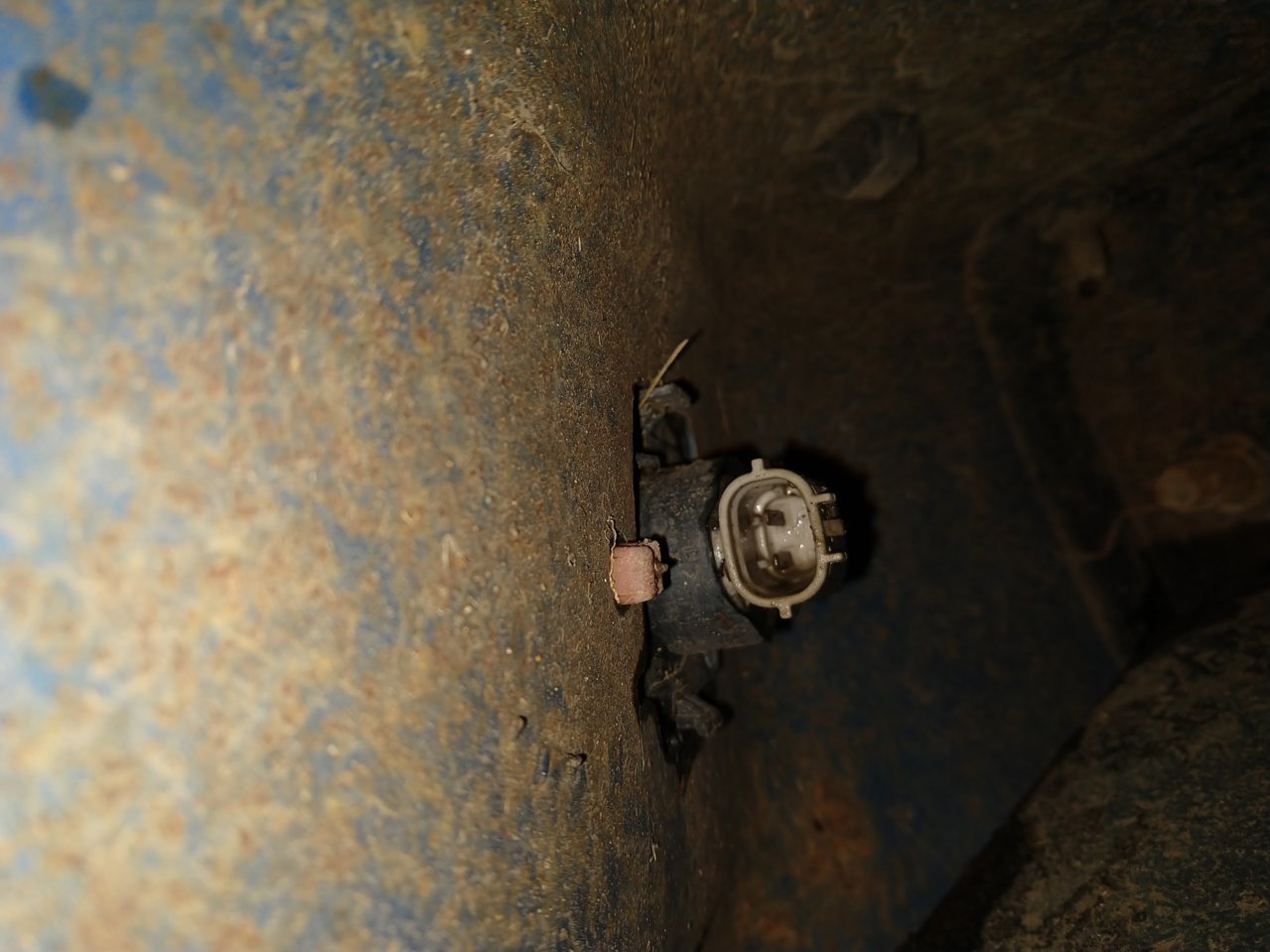

    One light is plugged in but the other side the wires are just loose and the plug end is gone. I'm new to doing work on my own vehicle and with some google searching I'm not making much progress on what this is called. If you know a part number for it that would be amazing but really anything to get me started would be great. Thank you!

  2. Apr 10, 2019 at 4:48 PM
    #2
    Muddinfun

    Muddinfun Well-Known Member

    Joined:
    Apr 17, 2017
    Member:
    #216500
    Messages:
    7,509
    Wire connector. @DaveInDenver is our resident connector expert.

  3. Apr 10, 2019 at 5:21 PM
    #3
    Sweets123

    Sweets123 [OP] Active Member

    Joined:
    Mar 19, 2019
    Member:
    #287222
    Messages:
    30
    Gender:
    Female
    Oregon Coast
    Vehicle:
    2007 Blue TRD
  4. Apr 10, 2019 at 5:35 PM
    #4
    Muddinfun

    Muddinfun Well-Known Member

    Joined:
    Apr 17, 2017
    Member:
    #216500
    Messages:
    7,509
    Toyota sells the plastic connector and pigtails separately. They're kind of expensive for what they are, but that's the easiest way to fix it. There are alternate cheaper sources for the connector and terminals, but then you have crimp the terminals. Dave was here about an hour ago. It would be best to wait for him to answer.

  5. Apr 10, 2019 at 6:44 PM
    #5
    vwbuggsy

    vwbuggsy Well-Known Member

    Joined:
    Apr 9, 2011
    Member:
    #54641
    Messages:
    346
    Gender:
    Male
    Clinton, MD
    Vehicle:
    09 DC 4X4 LB Black Sand Pearl
    N-fab steps, Wet Okole Covers, line-x, tint, vent shades, budget stereo upgrades, weathertech floor liners
    You might try a junk yard for those. If you can find a Toyota of similar year I'd bet you can find an appropriate 2 wire connector and just cut the wires back a couple feet from the connector end. I don't know for sure but I'd be willing to bet the connector used would be common across several Toyota vehicles of similar year range (highlander, 4 runner, maybe even a Lexus or Scion).

    The best kind of yard for this would be a "pick-n-pull" or pull your own parts place. They are usually cheap and you can look around yourself for what you need. Since you're inexperienced you can have the opportunity to mess around with Toyota's that you don't have to worry about messing up too.

    Just my two cents.

    Jimmyh likes this.
  6. Apr 11, 2019 at 6:00 AM
    #6
    DaveInDenver

    DaveInDenver Not Actually in Denver

    Joined:
    May 18, 2013
    Member:
    #104390
    Messages:
    3,595
    Gender:
    Male
    First Name:
    David
    Grand Junction
    Vehicle:
    2008 Super White TRDOR AC 6MT
    Unexceptional
    I'm slightly confused, so bear with me. Do you need the side in the wiring harness on the truck? IOW, the connector has broken off from the wiring harness?

    If so, it's part number 90980-11162 for the plastic connector (housing) and 82998-12440 for the repair pigtails. It's a common connector used in a lot of places on our trucks and across Toyota.

    But it's significantly cheaper to buy a kit from Corsa Technic that includes the housing, terminals and seals. Their part number is 090II-2S-5.

    They sell Yazaki and Sumitomo, which are the OEMs for the electrical connectors Toyota uses. It's the same part just not in a Toyota box.

    https://www.corsa-technic.com/item.php?item_id=747


    If you're talking about the plastic part that holds the bulb and turns 90 degrees in the bumper then that has to come from Toyota.


    That part number is 90075-60005. A junk yard is a totally acceptable way to find those if you can. They may be brittle and broken by now, though I think they are the same for all 05-15 so it shouldn't be hard to find.

    https://www.toyotapartsdeal.com/oem/toyota~socket~plug~license~plate~lamp~90075-60005.html

    It's about $10 from a dealer, so probably not worth digging in junk yards is my point.

    Last edited: Apr 11, 2019
    Puppypunter, Geezer3, ABNFDC and 5 others like this.
  7. Apr 11, 2019 at 7:11 AM
    #7
    Muddinfun

    Muddinfun Well-Known Member

    Joined:
    Apr 17, 2017
    Member:
    #216500
    Messages:
    7,509
    WOOOOHOOOOOO!!!!!! Good job Dave. Always awesome to have your expertise on wire connectors.

  8. Apr 11, 2019 at 10:55 AM
    #8
    Sweets123

    Sweets123 [OP] Active Member

    Joined:
    Mar 19, 2019
    Member:
    #287222
    Messages:
    30
    Gender:
    Female
    Oregon Coast
    Vehicle:
    2007 Blue TRD
    Thank you so much!

    It looks like this is what I need! The wires look like this:

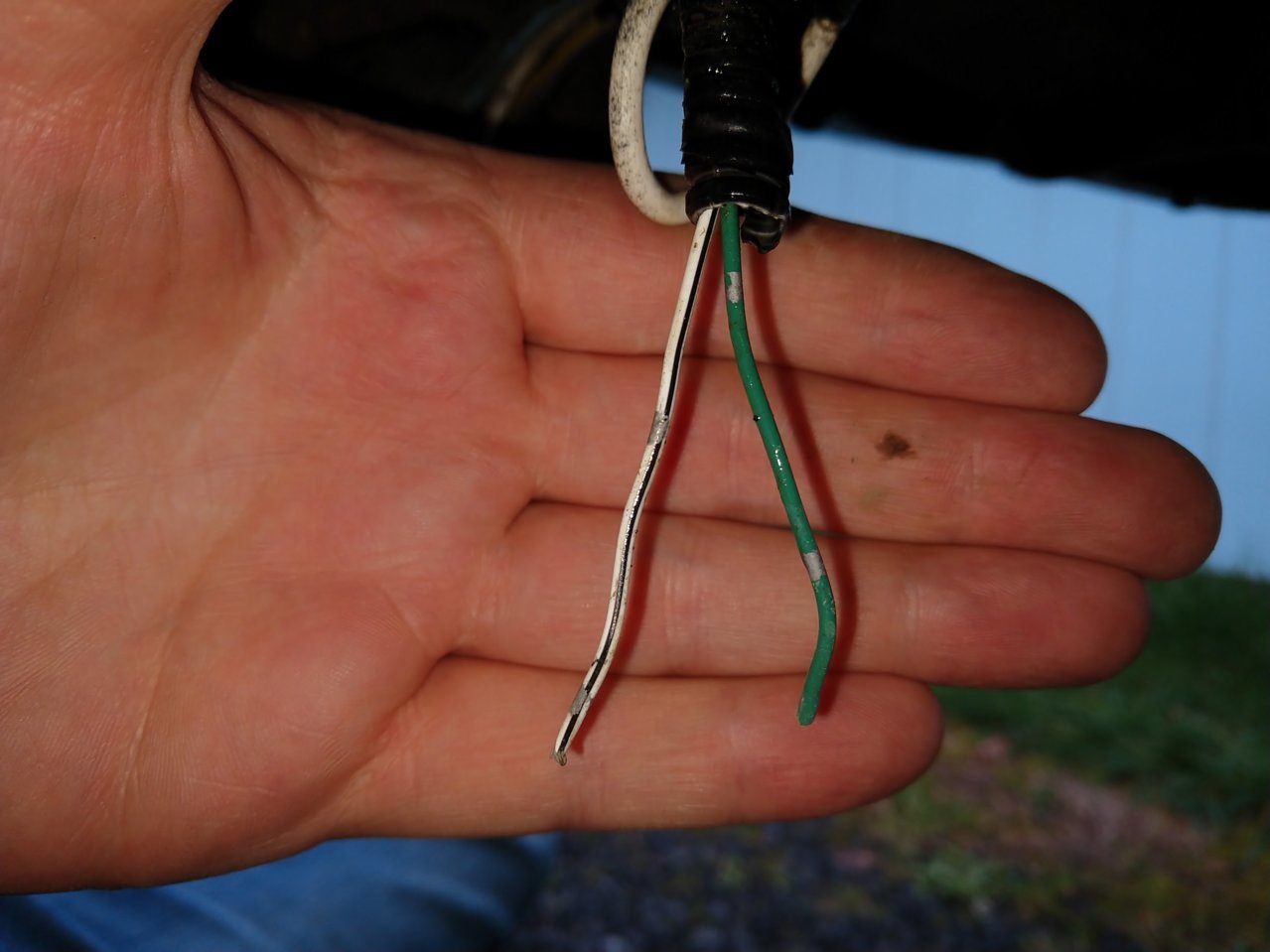

    odqHUgpzNfsTsNLrZWKSQ4oqG8GTz11mryuKwkob_5fc5a840b0051268105e09c99d0fb1f096cda6d7.jpg

    Will I be able to strip and crimp them in that housing or do I need one with the pigtails already inside? Like this?: https://www.ebay.com/i/252794202801?chn=ps
    Looking at the one you linked I'm guessing the seals and socket contacts it comes with are whats used to connect these wires? I don't have a caliper is there any chance you know the wire and seal size I would select on that page? I really appreciate the help and time you took for such a simple and cheap part. Thank you again!

  9. Apr 11, 2019 at 11:32 AM
    #9
    DaveInDenver

    DaveInDenver Not Actually in Denver

    Joined:
    May 18, 2013
    Member:
    #104390
    Messages:
    3,595
    Gender:
    Male
    First Name:
    David
    Grand Junction
    Vehicle:
    2008 Super White TRDOR AC 6MT
    Unexceptional
    The Toyota repair pigtails have 160mm long wires with the terminals and seals crimped on, like this:


    You'd cut and splice them with your broken ends, crimped with a butt connector, solder them, etc.

    The kit I linked would require you to strip and crimp the terminals on and they'd end up looking like repair pigtails when you're done.

    Without a caliper it's hard to know but if I was guessing (please know it's only a guess!) I'd suggest get the 18-16 AWG terminals and insulation of 1.5-1.9 mm.

  10. Apr 11, 2019 at 1:36 PM
    #10
    Larzzzz

    Larzzzz Grande' Ricardo

    Joined:
    Aug 23, 2009
    Member:
    #21609
    Messages:
    2,541
    Gender:
    Male
    First Name:
    Larry
    MA
    Vehicle:
    '06 dclb 300+ kmiles
    Aux back up lights, Bed lights, Re-located trailer plug, Good dooby, a.k.a. jumper cable mod, Heated seats, back up camera,

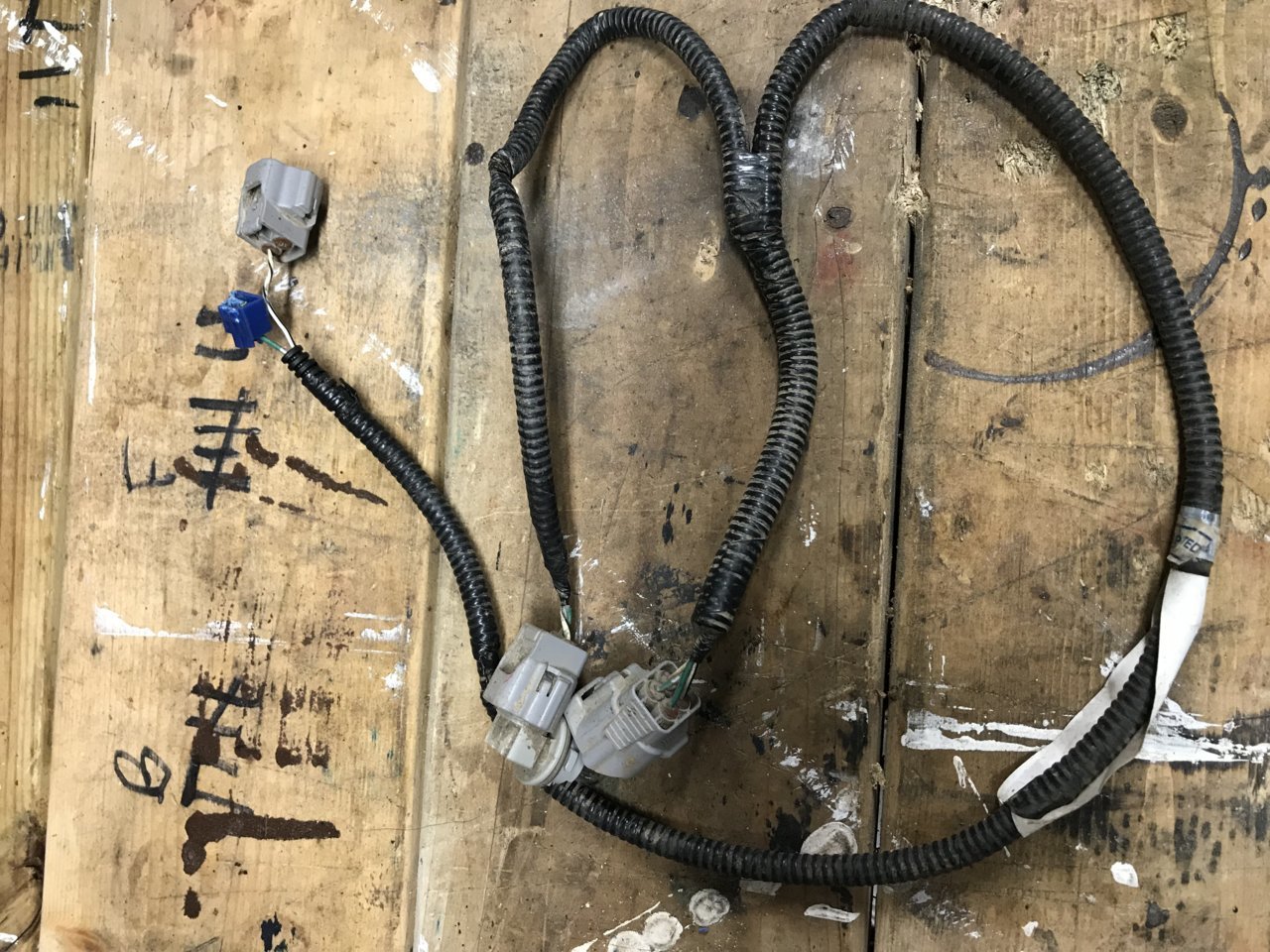

    @DaveInDenver is there a connector body available that if I unplug one of my plate lights, I could plug into the harness and have 2 wires to work with?

    Armyhater458 likes this.
  11. Apr 11, 2019 at 3:33 PM
    #11
    DaveInDenver

    DaveInDenver Not Actually in Denver

    Joined:
    May 18, 2013
    Member:
    #104390
    Messages:
    3,595
    Gender:
    Male
    First Name:
    David
    Grand Junction
    Vehicle:
    2008 Super White TRDOR AC 6MT
    Unexceptional
    The Toyota mating plug that mimics the license plate bulb connector is 90980-11168 and the repair pigtails are 82998-12430.

    Note that this is for 2nd gen trucks, I believe 3rd gen uses a different connector. Can't say if it fits 1st gen or earlier trucks.

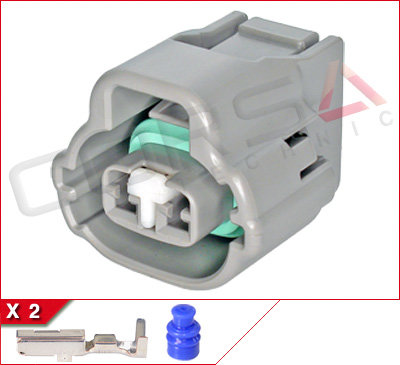

    But if you want a raw plug and loose terminals Corsa Technic kit 090II-2P-5 works fine. In fact I used two of this exact kit to wire the lamps on my All Pro rear bumper I just installed on my truck.

    https://www.corsa-technic.com/item.php?item_id=1044


    Last edited: Apr 11, 2019
    Larry Dangerfield likes this.
  12. Apr 11, 2019 at 6:21 PM
    #12
    Larzzzz

    Larzzzz Grande' Ricardo

    Joined:
    Aug 23, 2009
    Member:
    #21609
    Messages:
    2,541
    Gender:
    Male
    First Name:
    Larry
    MA
    Vehicle:
    '06 dclb 300+ kmiles
    Aux back up lights, Bed lights, Re-located trailer plug, Good dooby, a.k.a. jumper cable mod, Heated seats, back up camera,
    Larry Dangerfield likes this.
  13. Apr 11, 2019 at 6:29 PM
    #13
    vwbuggsy

    vwbuggsy Well-Known Member

    Joined:
    Apr 9, 2011
    Member:
    #54641
    Messages:
    346
    Gender:
    Male
    Clinton, MD
    Vehicle:
    09 DC 4X4 LB Black Sand Pearl
    N-fab steps, Wet Okole Covers, line-x, tint, vent shades, budget stereo upgrades, weathertech floor liners
    No way, I love junk yards and will personally use any excuse I can find to go and hunt around in one. At my local pick and pull a buck gets you through the door. A connector like that would go in my pocket along with the various relays, fuses, light bulbs, bolts, and other such small free samples items. I'm bound to find some other larger treasures while I'm in there too. I wouldn't go there just for that connector, but then I always find cool stuff and never consider an afternoon at the junk yard as a wasted day!

    DaveInDenver likes this.
  14. Jul 30, 2019 at 5:15 PM
    #14
    cousincraig

    cousincraig Active Member

    Joined:
    Apr 1, 2019
    Member:
    #288694
    Messages:
    36
    Gender:
    Male
    First Name:
    Craig
    Vehicle:
    2010 tacoma

    So did the 18-16 1.5 to 1.9 work? I had some problem wire broke to close to fix. The whole harness is $218 from Toyota. Thanks for any help 0E3C6BB3-5178-48D8-8101-F4246D4619FE.jpg

  15. Jul 30, 2019 at 5:35 PM
    #15
    Muddinfun

    Muddinfun Well-Known Member

    Joined:
    Apr 17, 2017
    Member:
    #216500
    Messages:
    7,509
  16. Jul 30, 2019 at 6:18 PM
    #16
    cousincraig

    cousincraig Active Member

    Joined:
    Apr 1, 2019
    Member:
    #288694
    Messages:
    36
    Gender:
    Male
    First Name:
    Craig
    Vehicle:
    2010 tacoma

    I think he meant for the whole harness. Glad I found this though will save me a lot of money if doesn’t work will install small light bar above license plate and just leave old covers off so don’t get pulled over thinking they are not working


  17. Jul 30, 2019 at 6:49 PM
    #17
    Sweets123

    Sweets123 [OP] Active Member

    Joined:
    Mar 19, 2019
    Member:
    #287222
    Messages:
    30
    Gender:
    Female
    Oregon Coast
    Vehicle:
    2007 Blue TRD
    Muddinfun likes this.
  18. Aug 5, 2019 at 6:08 PM
    #18
    cousincraig

    cousincraig Active Member

    Joined:
    Apr 1, 2019
    Member:
    #288694
    Messages:
    36
    Gender:
    Male
    First Name:
    Craig
    Vehicle:
    2010 tacoma
    Muddinfun likes this.
  19. Jul 14, 2020 at 2:10 PM
    #19
    Armyhater458

    Armyhater458 Well-Known Member

    Joined:
    Sep 11, 2017
    Member:
    #229702
    Messages:
    2,452
    Gender:
    Male
    First Name:
    Mike
    Clarion, PA
    Vehicle:
    2012 TX Pro
    OME 887, LR UCA, Dakar 095 (medium duty), Dick Cepek Extreme Country 255/85/16
    Just to confirm, if I get license plate bulb connector is 90980-11168 and the repair pigtails are 82998-12430, I can use the plug on the original harness to run 2 wires for https://www.amazon.com/gp/aw/d/B07937BQYJ?ref=ppx_pt2_mob_b_prod_image

  20. Jul 14, 2020 at 2:53 PM
    #20
    DaveInDenver

    DaveInDenver Not Actually in Denver

    Joined:
    May 18, 2013
    Member:
    #104390
    Messages:
    3,595
    Gender:
    Male
    First Name:
    David
    Grand Junction
    Vehicle:
    2008 Super White TRDOR AC 6MT
    Unexceptional
    Yes.

    1 x 90980-11168 + 2 x 82998-12430 = 1 x license plate bulb and fixture equivalent.

    I would emphasize again to buy this kit...

    https://www.corsa-technic.com/item.php?item_id=1044

    ...from a company called Corsa-Technic. It's the exact same plastic housing as you get from Toyota with two loose terminals and wire seals that you can crimp directly to the ends of the wires on the bracket you buy from Amazon.
