What kind 20" wheel offset and widest tires will be fit on 3rd gen trd offroad with out lifted?

Discussion in '3rd Gen. Tacomas (2016+)' started by manllyy007, Jan 23, 2019.

  1. Jan 23, 2019 at 3:05 PM
    #1
    manllyy007

    manllyy007 [OP] Member

    Joined:
    Jan 18, 2019
    Member:
    #279743
    Messages:
    15
    Gender:
    Male
    First Name:
    Tony
    Vehicle:
    tacoma TRD offroad
    what kind 20" wheel offset and widest tires will be fit on 3rd trd offroad with out lyfted ?

  2. Jan 23, 2019 at 4:27 PM
    #2
    Methadras

    Methadras Well-Known Member

    Joined:
    Feb 20, 2018
    Member:
    #245060
    Messages:
    329
    I'm in for the win. Let the games begin.

    oconnor, Chew and Scoobarooo like this.
  3. Jan 23, 2019 at 4:31 PM
    #3
    cseigh

    cseigh It's time for the smug face!!!!

    Joined:
    Jul 28, 2016
    Member:
    #193144
    Messages:
    264
    Gender:
    Male
    First Name:
    Carter
    Eastern NC
    Vehicle:
    '17 TRD OR DCSB 6MT MGM
    Lol wut?

    chucklefunkk likes this.
  4. Jan 23, 2019 at 4:32 PM
    #4
    jschwerdtfeger

    jschwerdtfeger Well-Known Member

    Joined:
    Apr 23, 2014
    Member:
    #128305
    Messages:
    194
    Gender:
    Male
    First Name:
    Jeff
    Santa Cruz, CA
    Vehicle:
    2020 Tacoma DLCB TRD Off Road
    Fox 2.5/2.0, Deaver Expo Stage I
  5. Jan 23, 2019 at 5:02 PM
    #5
    aaen

    aaen Well-Known Member

    Joined:
    Jan 31, 2016
    Member:
    #176696
    Messages:
    1,864
    Gender:
    Male
    First Name:
    Steve
    Northern Alberta
    Vehicle:
    2016 DCLB 4x4 TRD Sport BBP
    Kings, ARB Summit Bumper, SMittybilt Winch, vagabond Drifter, Prinsu Cabrac, Crusinoffroad slidersand rear bumper
    Why would you want 20” wheels on a taco trd off-road? Your severely limiting your tyre options,ability to air down without damaging rim, and also weight capacity on the truck.

    Or are you planning to just drive this around town? If that’s the case get a rav4 or a mini van ;).

    tjpratt, Jamie4x4 and shane100700 like this.
  6. Jan 23, 2019 at 5:04 PM
    #6
    manllyy007

    manllyy007 [OP] Member

    Joined:
    Jan 18, 2019
    Member:
    #279743
    Messages:
    15
    Gender:
    Male
    First Name:
    Tony
    Vehicle:
    tacoma TRD offroad
    yes, i liked flat tire and just only drive around the tow.hahaha

  7. Jan 23, 2019 at 5:04 PM
    #7
    TurdGenTuRDOffRoad

    TurdGenTuRDOffRoad Well-Known Member

    Joined:
    Oct 28, 2017
    Member:
    #234322
    Messages:
    82
    Gender:
    Male
    Vehicle:
    2017 TRD Off Road 4x4
    a little on the nose, but not bad

  8. Jan 23, 2019 at 5:06 PM
    #8
    shane100700

    shane100700 Bed, Bath & Beyond Crawler

    Joined:
    Jun 1, 2011
    Member:
    #57578
    Messages:
    7,060
    Gender:
    Male
    Montana
    Vehicle:
    2019 DCSB, OR
    Rocket Boosters
    Bet you won’t do it. :anonymous:

  9. Jan 23, 2019 at 5:19 PM
    #9
    VE7OSR

    VE7OSR Well-Known Member

    Joined:
    Dec 12, 2011
    Member:
    #68608
    Messages:
    4,861
    Gender:
    Male
    First Name:
    Rob II
    Okanagan, Canada
    Vehicle:
    05 DCLB TRD Sport
    Armour: All-Pro Skid plates - IFS, transmission, and transfer case. Pelfreybilt rear standard plate bumper, Metal Tech Sliders w/ kickout and dimple die filler plates. Front Suspension: OME 885 + NitroCharger 9000 shocks + 1/2" spacers for a 3" lift. Superbumps replacing stock bumpstops. Camburg ball joint UCA SS braid brake lines Future: ADS Extended length, extended length UCA BJ to increase droop capability Rear Suspension: All-Pro Expedition rear leafs, Walker Evans 27" rear shocks, extended rear brake lines (Wheelers Offroad), U -bolt flip kit, rear Timbren bumpstops. Future: Hammer Hangers, Shock relocate, ADS 12" or 14" shock. Interior: Weatherteck floor liners - front, Wet Okoles- front, ScanGauge, LED interior & map lights. Power moonroof. Exterior: Raider Cobra canopy, retrofit headlight by Insight, LED bulbs all around, modified flasher unit for LEDs. Rear diff breather mod. Front diff vibe problem, driver's side needle bearing replaced with ECGS bushing. yet to install: HID Blazer Fog Retrofit, LED Flood & Spot, + switches, fuse panel. swaybar relocate blocks (build my own)
    Tires: 265 50R20 Wheels:

  10. Jan 23, 2019 at 5:27 PM
    #10
    manllyy007

    manllyy007 [OP] Member

    Joined:
    Jan 18, 2019
    Member:
    #279743
    Messages:
    15
    Gender:
    Male
    First Name:
    Tony
    Vehicle:
    tacoma TRD offroad
  11. Jan 23, 2019 at 10:25 PM
    #11
    VE7OSR

    VE7OSR Well-Known Member

    Joined:
    Dec 12, 2011
    Member:
    #68608
    Messages:
    4,861
    Gender:
    Male
    First Name:
    Rob II
    Okanagan, Canada
    Vehicle:
    05 DCLB TRD Sport
    Armour: All-Pro Skid plates - IFS, transmission, and transfer case. Pelfreybilt rear standard plate bumper, Metal Tech Sliders w/ kickout and dimple die filler plates. Front Suspension: OME 885 + NitroCharger 9000 shocks + 1/2" spacers for a 3" lift. Superbumps replacing stock bumpstops. Camburg ball joint UCA SS braid brake lines Future: ADS Extended length, extended length UCA BJ to increase droop capability Rear Suspension: All-Pro Expedition rear leafs, Walker Evans 27" rear shocks, extended rear brake lines (Wheelers Offroad), U -bolt flip kit, rear Timbren bumpstops. Future: Hammer Hangers, Shock relocate, ADS 12" or 14" shock. Interior: Weatherteck floor liners - front, Wet Okoles- front, ScanGauge, LED interior & map lights. Power moonroof. Exterior: Raider Cobra canopy, retrofit headlight by Insight, LED bulbs all around, modified flasher unit for LEDs. Rear diff breather mod. Front diff vibe problem, driver's side needle bearing replaced with ECGS bushing. yet to install: HID Blazer Fog Retrofit, LED Flood & Spot, + switches, fuse panel. swaybar relocate blocks (build my own)
    This will help you understand what you're trying to do.

    explanation of terms, using a diagram.
    https://www.tacomaworld.com/threads/wheel-backspacing-and-offset-info.102992/

    Stock Toyota wheel specs:
    https://www.tacomaworld.com/threads/wheel-specs.30754/

    Calculate Tire height, comparing two different sizes.
    https://www.tacomaworld.com/tirecalc

    For the wheel size selection you are trying to get the inside edge of the wheel no closer to the upper control arm than the stock wheel.
    For that you need to know the wheel width, and offset or backspacing distance.

    For the tire selection you are trying to match the overall height as close as possible to the stock height.

    Those two items will help ensure you are unlikely to have interference.
    When all else fails, talk to a local tire/wheel retailer and let them know what you are trying to achieve, and they can help you.

  12. Jan 23, 2019 at 10:33 PM
    #12
    VE7OSR

    VE7OSR Well-Known Member

    Joined:
    Dec 12, 2011
    Member:
    #68608
    Messages:
    4,861
    Gender:
    Male
    First Name:
    Rob II
    Okanagan, Canada
    Vehicle:
    05 DCLB TRD Sport
    Armour: All-Pro Skid plates - IFS, transmission, and transfer case. Pelfreybilt rear standard plate bumper, Metal Tech Sliders w/ kickout and dimple die filler plates. Front Suspension: OME 885 + NitroCharger 9000 shocks + 1/2" spacers for a 3" lift. Superbumps replacing stock bumpstops. Camburg ball joint UCA SS braid brake lines Future: ADS Extended length, extended length UCA BJ to increase droop capability Rear Suspension: All-Pro Expedition rear leafs, Walker Evans 27" rear shocks, extended rear brake lines (Wheelers Offroad), U -bolt flip kit, rear Timbren bumpstops. Future: Hammer Hangers, Shock relocate, ADS 12" or 14" shock. Interior: Weatherteck floor liners - front, Wet Okoles- front, ScanGauge, LED interior & map lights. Power moonroof. Exterior: Raider Cobra canopy, retrofit headlight by Insight, LED bulbs all around, modified flasher unit for LEDs. Rear diff breather mod. Front diff vibe problem, driver's side needle bearing replaced with ECGS bushing. yet to install: HID Blazer Fog Retrofit, LED Flood & Spot, + switches, fuse panel. swaybar relocate blocks (build my own)
    the wheel is the wrong bolt pattern. Bolt pattern you need is 6 bolts, on a 139.7mm diameter circle = 6 x 139.7 EDIT: Correction 6x5.5 is the inch equivalent to 6 x139.7mm metric designation.

    Look for Toyota specific as the preference is for a hub-centric wheel, that uses the machined wheel center to match the hub diameter on the truck. This centers the wheel more accurately than using the lug nut mounting to center the wheel.

    as for the tire selection, check the overall height in comparison with your stock size. Also pay attention to the recommended wheel width in the tire specs for your desired tire width.

    Last edited: Jan 24, 2019
  13. Jan 23, 2019 at 10:50 PM
    #13
    Ccrames2018

    Ccrames2018 Jack of some trades.

    Joined:
    Mar 7, 2018
    Member:
    #246573
    Messages:
    1,437
    Gender:
    Male
    First Name:
    Caden
    Nor Cal
    Vehicle:
    07 AC 4x4 V6 6MT
    -Bilstein 5100s @1.75" -16x8 SCS Ray10s with 305/70R16 General Grabber AT -CMC -URD Short Throw Shifter -Bed stiffeners -Bed mat -Aftermarket head unit -AFE Rebel exhaust -ME-SO Customs dome/map lights -Window tint with eyebrow -OEM LED 2015 tail lights -GTR Lighting headlight bulbs -Husky floor liners -Camper shell -Sumo Springs -Air intake -Aftermarket Volkswagen key fob -Aftermarket A/C knobs -Aftermarket LED license plate lights -Console organizer -JBA High Caster UCAs

    Not entirely correct. Yes your 6x139.7 is the right pattern, but it is the exact same as a 6x5.5 because 139.7mm is 5.5 inches. A 6x5.5 wheel will fit our trucks no problem. Although, as you stated, I would definitely try to find a hub centric wheel because that will help eliminate vibrations at higher speeds from the wheel not being perfectly centered.

    VE7OSR likes this.
  14. Jan 23, 2019 at 10:55 PM
    #14
    VE7OSR

    VE7OSR Well-Known Member

    Joined:
    Dec 12, 2011
    Member:
    #68608
    Messages:
    4,861
    Gender:
    Male
    First Name:
    Rob II
    Okanagan, Canada
    Vehicle:
    05 DCLB TRD Sport
    Armour: All-Pro Skid plates - IFS, transmission, and transfer case. Pelfreybilt rear standard plate bumper, Metal Tech Sliders w/ kickout and dimple die filler plates. Front Suspension: OME 885 + NitroCharger 9000 shocks + 1/2" spacers for a 3" lift. Superbumps replacing stock bumpstops. Camburg ball joint UCA SS braid brake lines Future: ADS Extended length, extended length UCA BJ to increase droop capability Rear Suspension: All-Pro Expedition rear leafs, Walker Evans 27" rear shocks, extended rear brake lines (Wheelers Offroad), U -bolt flip kit, rear Timbren bumpstops. Future: Hammer Hangers, Shock relocate, ADS 12" or 14" shock. Interior: Weatherteck floor liners - front, Wet Okoles- front, ScanGauge, LED interior & map lights. Power moonroof. Exterior: Raider Cobra canopy, retrofit headlight by Insight, LED bulbs all around, modified flasher unit for LEDs. Rear diff breather mod. Front diff vibe problem, driver's side needle bearing replaced with ECGS bushing. yet to install: HID Blazer Fog Retrofit, LED Flood & Spot, + switches, fuse panel. swaybar relocate blocks (build my own)
    ah, thank-you.

  15. Jan 23, 2019 at 11:19 PM
    #15
    Ccrames2018

    Ccrames2018 Jack of some trades.

    Joined:
    Mar 7, 2018
    Member:
    #246573
    Messages:
    1,437
    Gender:
    Male
    First Name:
    Caden
    Nor Cal
    Vehicle:
    07 AC 4x4 V6 6MT
    -Bilstein 5100s @1.75" -16x8 SCS Ray10s with 305/70R16 General Grabber AT -CMC -URD Short Throw Shifter -Bed stiffeners -Bed mat -Aftermarket head unit -AFE Rebel exhaust -ME-SO Customs dome/map lights -Window tint with eyebrow -OEM LED 2015 tail lights -GTR Lighting headlight bulbs -Husky floor liners -Camper shell -Sumo Springs -Air intake -Aftermarket Volkswagen key fob -Aftermarket A/C knobs -Aftermarket LED license plate lights -Console organizer -JBA High Caster UCAs
    You're welcome! Wasn't trying to be rude or anything, just so the OP knows what kind of selections he has

    VE7OSR likes this.
  16. Jan 24, 2019 at 5:48 AM
    #16
    LeeVanChief

    LeeVanChief Well-Known Member

    Joined:
    Oct 4, 2018
    Member:
    #268320
    Messages:
    362
    Gender:
    Male
    Vehicle:
    2018 OR 6Speeeed Taco
    Wow. Look at all these numbers .I'm out .

    Ps. I wouldn't go more than a -18 offset.

  17. Jan 24, 2019 at 1:17 PM
    #17
    manllyy007

    manllyy007 [OP] Member

    Joined:
    Jan 18, 2019
    Member:
    #279743
    Messages:
    15
    Gender:
    Male
    First Name:
    Tony
    Vehicle:
    tacoma TRD offroad
    yes, i
    measured space from the bolt to other bolt at the
    opposite that be 5,5 inches

  18. Jan 25, 2019 at 3:49 AM
    #18
    manllyy007

    manllyy007 [OP] Member

    Joined:
    Jan 18, 2019
    Member:
    #279743
    Messages:
    15
    Gender:
    Male
    First Name:
    Tony
    Vehicle:
    tacoma TRD offroad
    Yes, asked SOta , they said 6 x5.5

  19. Jan 25, 2019 at 3:55 AM
    #19
    tjpratt

    tjpratt Well-Known Member

    Joined:
    Oct 27, 2015
    Member:
    #167820
    Messages:
    783
    Gender:
    Male
    First Name:
    Travis
    Aurora, Colorado
    Vehicle:
    2016 Limited 4X4 Tacoma
    3.75" Lift / OME OVTuned
    20's on an "OFF ROAD"
    :crazy:

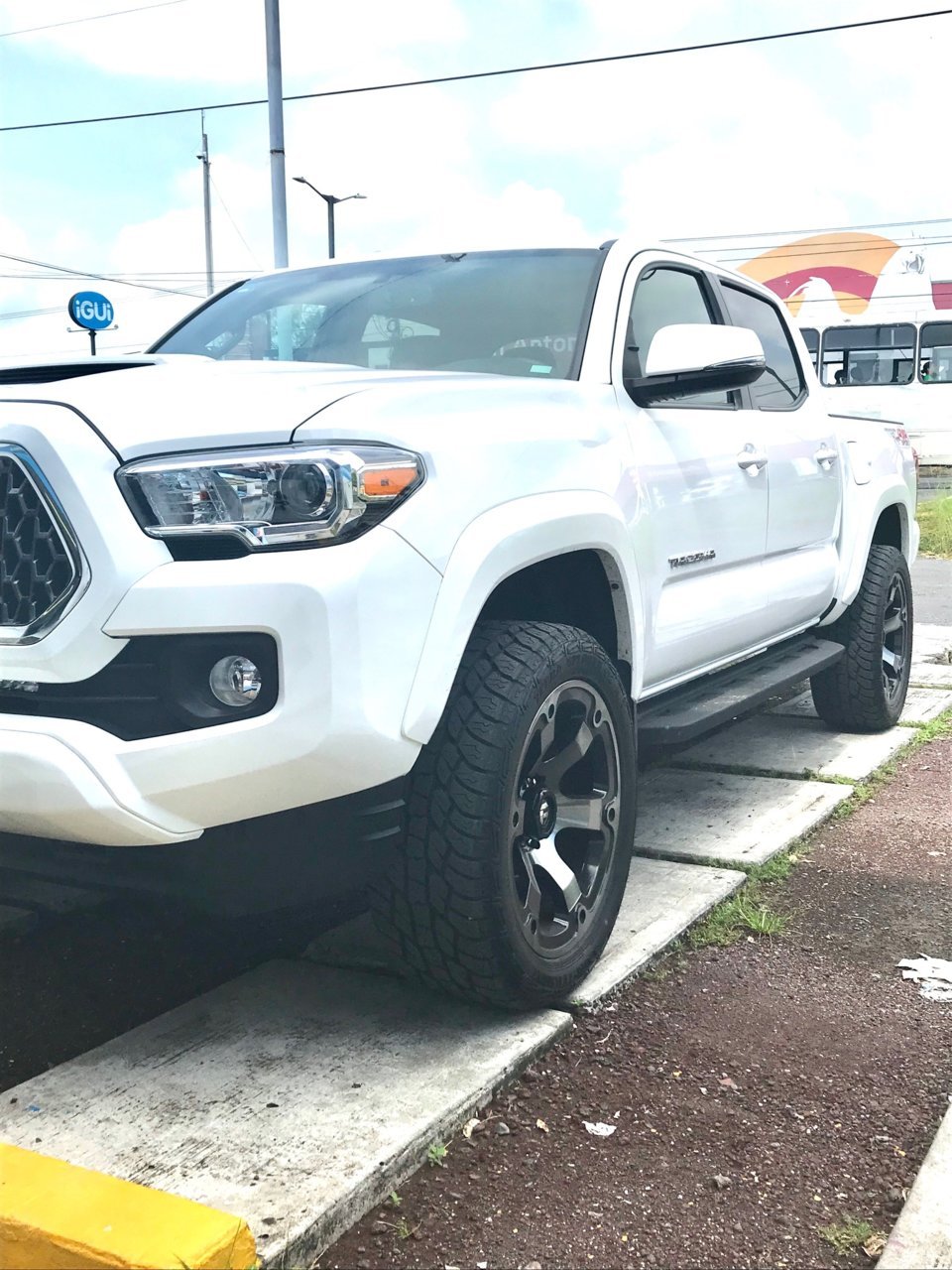

  20. Mar 31, 2019 at 7:28 AM
    #20
    cadillo74

    cadillo74 Member

    Joined:
    Jul 28, 2018
    Member:
    #260835
    Messages:
    7
    Gender:
    Male
