Where's Radiator swap thread with pics?? 1st Gen

Discussion in '1st Gen. Tacomas (1995-2004)' started by TacoMikeK, Aug 17, 2011.

  1. Aug 17, 2011 at 10:58 PM
    #1
    TacoMikeK

    TacoMikeK [OP] Member

    Joined:
    Aug 11, 2011
    Member:
    #61544
    Messages:
    5
    Gender:
    Male
    SoCAL
    Vehicle:
    99' PreRunner
    Hey y'all,
    Saw a thread w pics showing crack/leak on the other side of the top tank.

    Same prob on mine. :(

    I'm newb but learning.


    Is there a How-To in TW with pics on swapping a radiator?:goingcrazy: Cant find one.


    The_Dude was going to post one; havent seen it yet.


    99' PreRunner 3.4 Autom rear 2WD locker

  2. Sep 13, 2011 at 11:04 PM
    #2
    TacoMikeK

    TacoMikeK [OP] Member

    Joined:
    Aug 11, 2011
    Member:
    #61544
    Messages:
    5
    Gender:
    Male
    SoCAL
    Vehicle:
    99' PreRunner
    Ok, guess I'm gonna have to reply to my own post.
    I admit, I'm a newb, but gotta start somewhere right?- so here I am.


    DIY on Tacoma radiator swapping with pics.

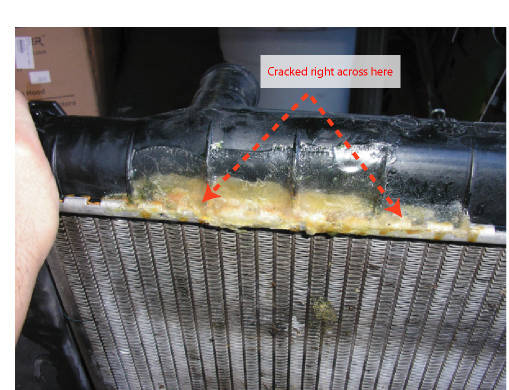

    Busted radiator top tank
    [​IMG]
    After doing some research found a couple others with this kind of crack behind the top hose port on the OEM radiator after 100K+ miles.
    I'm at 114K miles now.

    [​IMG]

    Tried fixing the leak with fiberglass and polyester resin; then JB weld, and eventually...sun cured UV Epoxy!!
    Slowed the leak down allot, but the expanding and contracting under the heat & cold prevented a good bond from forming.


    After looking around at a few posts and learning a bit about cooling system maintenance, I decided on the Koyo Radiator #C1755- for automatic transmission.

    [​IMG]

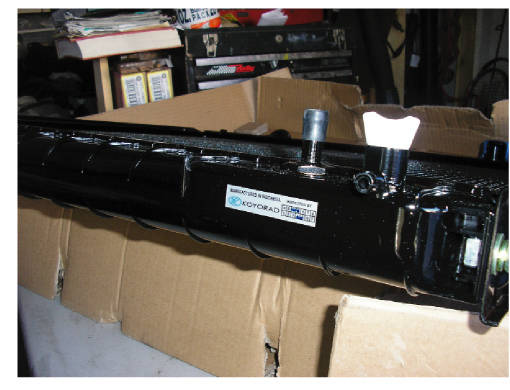

    This one's got two rows for better cooling, instead of the typical one row you find on OEM radiators at most part stores where I am. Got it at Radiators Express. Think Radiators.com is the same company.
    Also, beware of immitations: a Koyo tech informed me that some are selling knock-offs.


    Tools to use

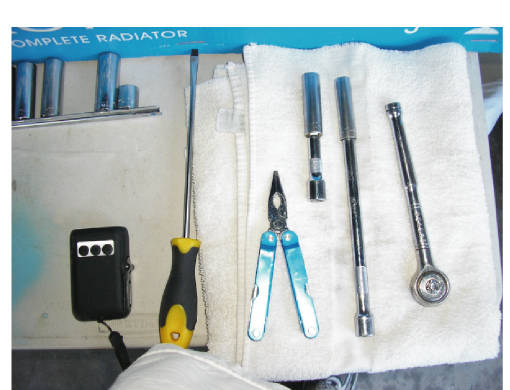

    Pliers for the transmission hose clips, looong screw driver for the
    !@#$% grille clips that are very brittle and break easy.
    The driver also works for the large hose clamps,12mm and 10mm sockets, a ratchet and Extensions. Not seen are two sharpie markers and two gallons of anti-freeze.

    [​IMG]

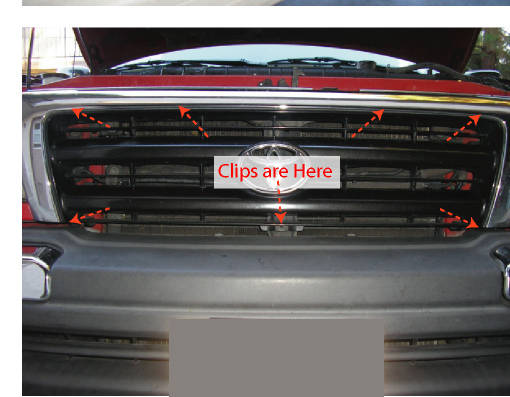

    Removing the Tacoma 99’ Grille

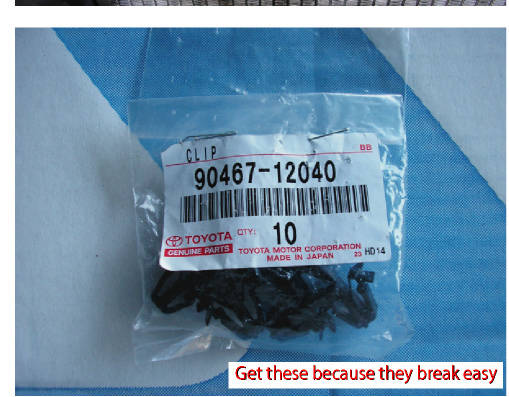

    Got some grille clips from the dealer's part department for under 10 bucks.

    [​IMG]

    [​IMG]

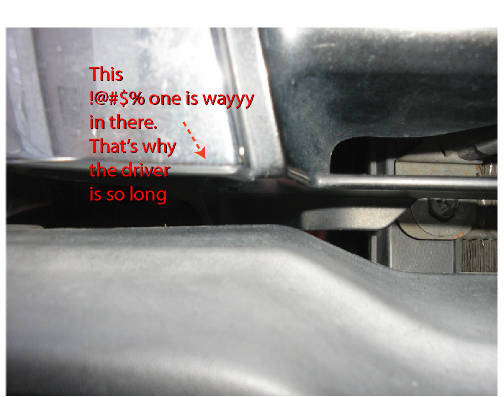

    Ironically, I think this was the hardest part of the job!!

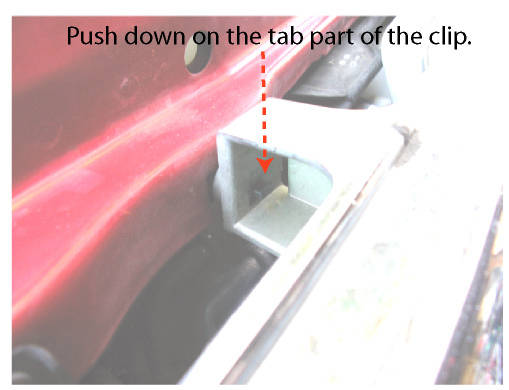

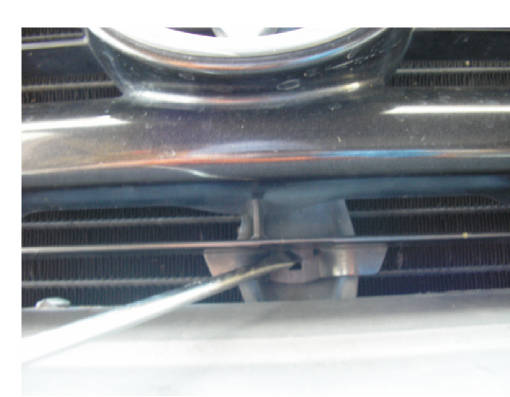

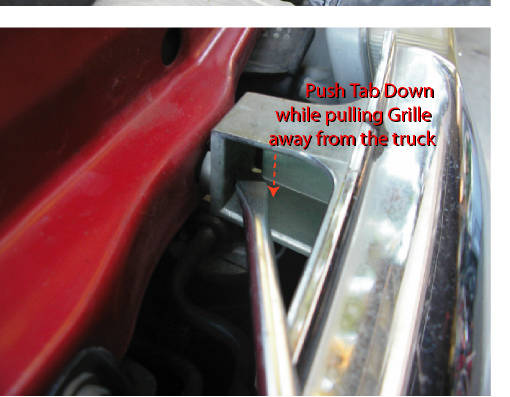

    While pushing the little clip's tab down with the flathead screwdriver, carefully pull the grille 1/4" away from the grille mount, one clip at a time, top ones first.

    [​IMG]

    [​IMG]

    [​IMG]

    Kinda hard to feel the tab on the lower left & right clips because they're so far back in the grille. The flashlight helped. A light mounted on my head would have been cool.
    [​IMG]
    Use the flashlight and long screwdriver for these.

    [​IMG]
    This one's easy!

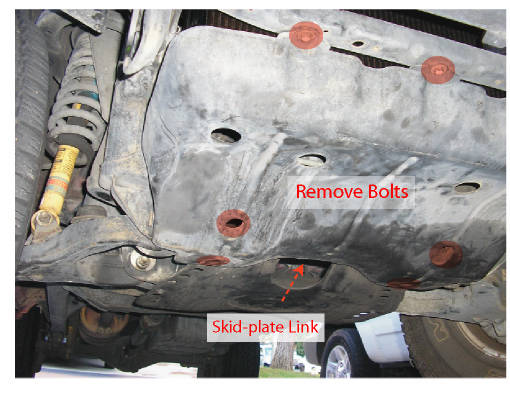

    Removing the Skid Plate
    There are two sections but only removed the front section.

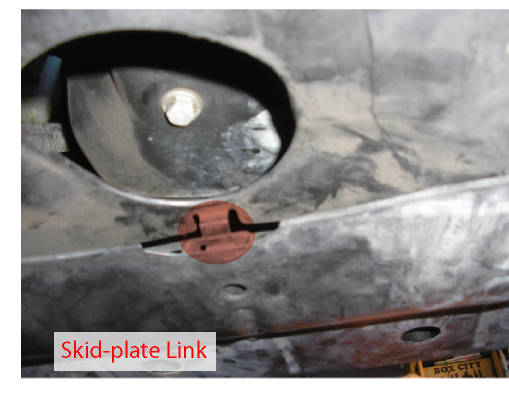

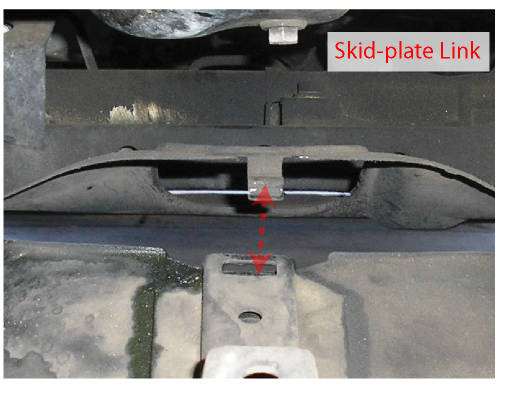

    There is a link-tab in the middle, connecting the two sections of the skid plate. Loosening the bolts on the back section that covers the transmission helps in removing the front section.

    [​IMG]
    Yeah, yeah, the Billstein suspension looks a bit gunked up. Probably my next thing to do. Know any good DIY threads?
    [​IMG] he he

    [​IMG]

    [​IMG]

    [​IMG]

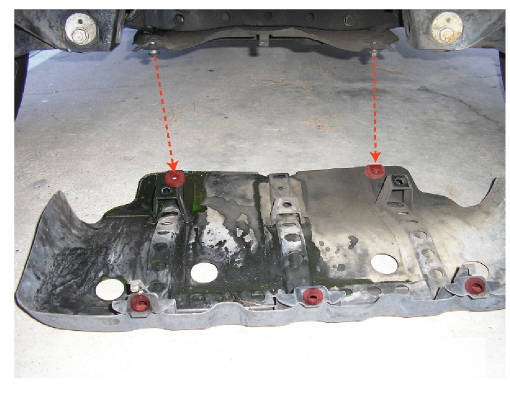

    The two arrows point to another part of the skid plate that is also tongue-in-groove. When putting it back together, the link goes in first
    then the left & right tongue-in-groove bolts. Was a balancing act to get all three together.

    Draining the Radiator Anti-freeze

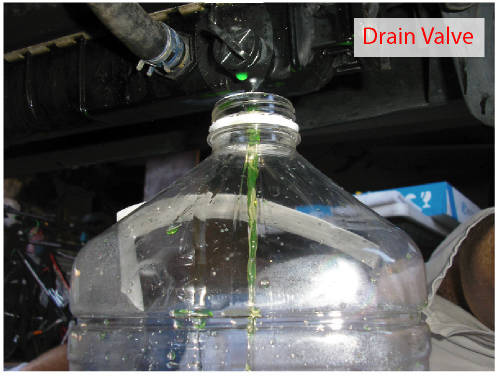

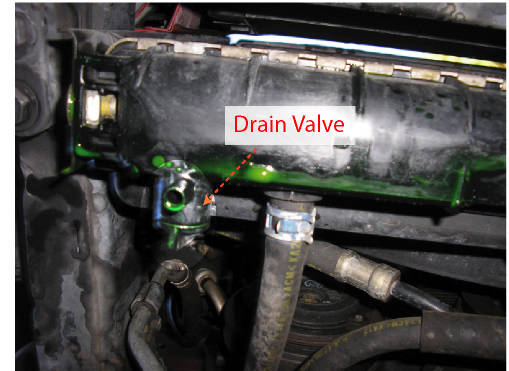

    Removed the radiator cap and opened the drain on the bottom of the radiator. Drained the anti-freeze into two 1 gallon water bottles.
    [​IMG]
    Near the end I took off the lower hose to drain more out.

    [​IMG]

    [​IMG]

    [​IMG]
    Was topping-up with green stuff
    during the time period it was leaking and i was experimenting with different patching material.
    [​IMG]Looks like the OEM pink stuff was mixin with the green stuff? Or rust??? anybody?... Beuler?.. Beuler?...

    Removing and plugging the radiator transmission lines
    [​IMG]
    [​IMG]

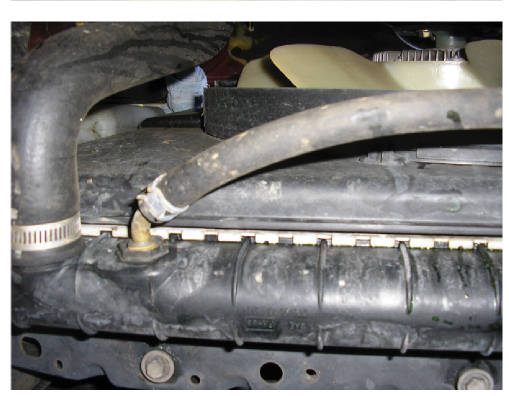

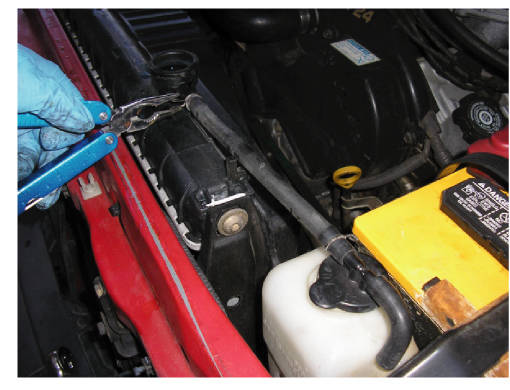

    Using the pliers, squeezed the clips loose and slid them up the hose away from the transmission fittings.

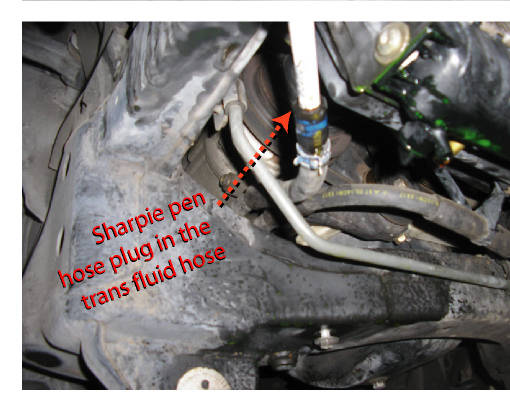

    Used the two Sharpies to plug the transmission hoses. While removing the hose, keep the marker close to the hose end and quickly insert into the hose end when it comes off the fitting. Wont lose more than a tea spoon of fluid.
    [​IMG]

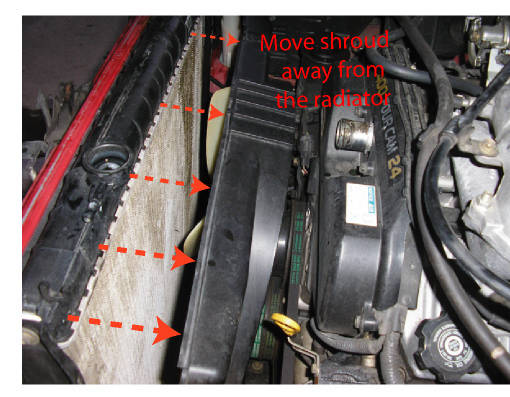

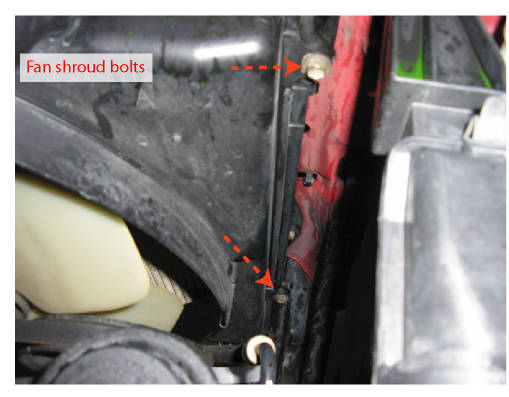

    Removing the fan and shroud from the radiator
    [​IMG]

    [​IMG]

    [​IMG]

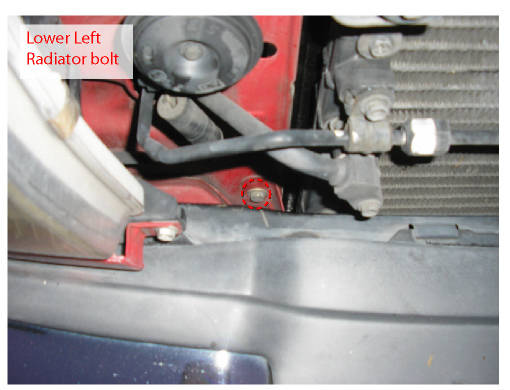

    Removing and installing the radiator

    [​IMG]

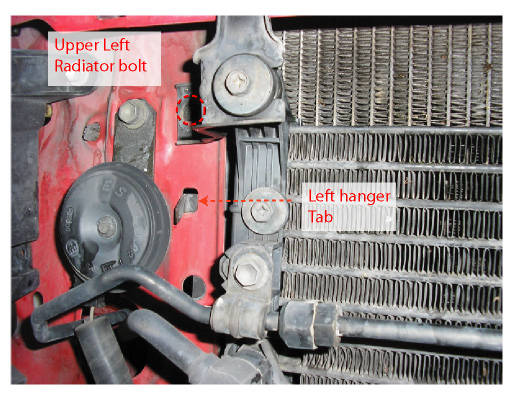

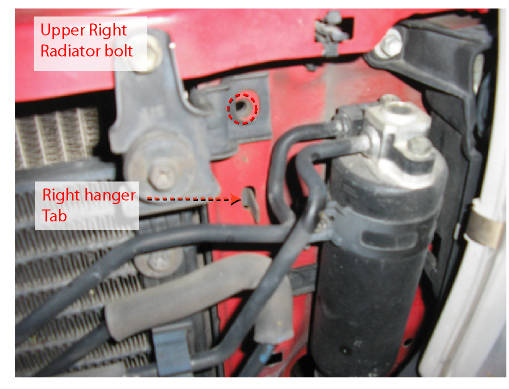

    There is a cool hanger tab on the radiator; this holds the radiator in place while you put in the four bolts.
    [​IMG]
    [​IMG]

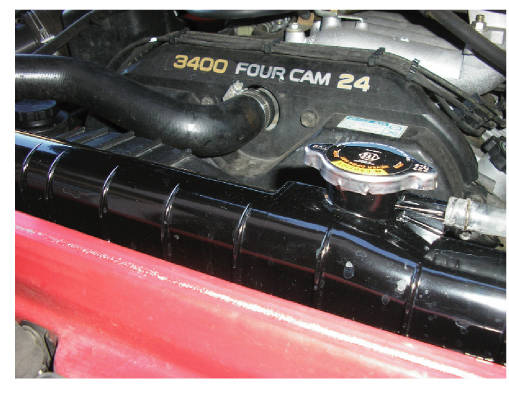

    Here is the stuff!
    [​IMG]

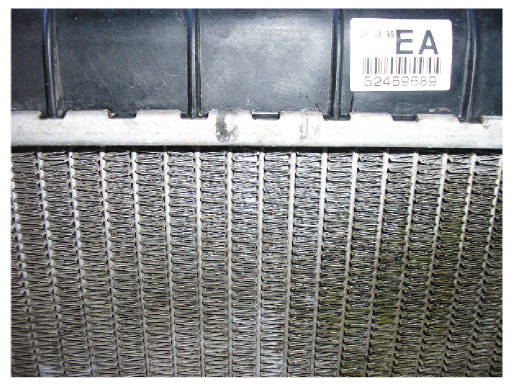

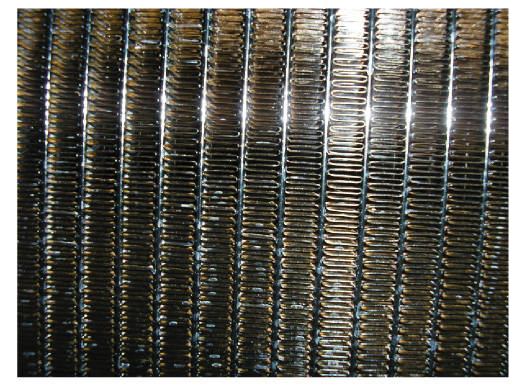

    Notice the difference in fin density. More surface for cooling on the Koyo.
    Old OEM radiator vs ....
    [​IMG]
    [​IMG]

    Finished job!
    [​IMG]
    [​IMG]

  3. Sep 14, 2011 at 6:28 AM
    #3
    StAndrew

    StAndrew Wait for it...

    Joined:
    Feb 8, 2010
    Member:
    #30950
    Messages:
    7,212
    Gender:
    Male
    First Name:
    Chris
    Hampton Roads, Va
    Vehicle:
    SR5 4x4TRD
    Deck Plate Mod; Grey Wire Mod; 1.5" AAL; 1.75" Lift Shackles; Bilstein 5100's; Eiback Coils; LR UCA; Front Diff Drop; Tundra Brake Upgrade; Wheels Offroad Brake Lines; Rear Diff Breather Mod
    Awesome, strait to the DIY Sticky!

  4. Dec 21, 2011 at 12:19 AM
    #4
    Stout890

    Stout890 Well-Known Member

    Joined:
    May 8, 2011
    Member:
    #56287
    Messages:
    511
    Gender:
    Male
    First Name:
    Jason
    Rosamond ca
    Vehicle:
    99 prerunner sr5
    HID head lights, fagtech coil overs and an AAL, gay ass 2 inch body lift (soon to be removed) taneau cover, k&n intake, soon to have an axle swap with a E locker
    nice write up! i just did my research and decided on a koyo also and found this thread on a koyo google search....this thread didnt even come up on a TW search for radiator swap....:smash:

    i ordered mine from go-part.com for $170 to my door since i couldent find a cheaper one and the web site OP says he got his from doesnt seem to carry it anymore.

    ill be doing this probably next week or as soon as it gets to me, so until than i will....:violent:

  5. Jan 6, 2012 at 6:52 AM
    #5
    The Driver

    The Driver Trail Runner/Barefoot Beach Runner/Snow Skier

    Joined:
    Dec 12, 2011
    Member:
    #68618
    Messages:
    1,858
    Gender:
    Male
    First Name:
    Raph
    Lakewood (Green Mountain), CO.
    Vehicle:
    '02 Extra cab 4X4 TRD SR5 3.4
    Aftermarket tranny cooler, 5100 Series Bilsteins, ToyTec Bilstein front coilovers, SPC UCA's, Alcan leafs, Class 3 Hitch, Alcan Leafs,
    Subscribed.

  6. Jan 6, 2012 at 8:10 AM
    #6
    fsusteve

    fsusteve Well-Known Member

    Joined:
    Sep 8, 2011
    Member:
    #63111
    Messages:
    54
    Gender:
    Male
    First Name:
    Steve
    Naples, Fla
    Wished I had seen this write up earlier, the replacement was fairly easy but I wasted time trying to avoid dealing with the grill and remove the side bracket bolts....big waste of time, do it like the write up.

  7. Feb 1, 2012 at 12:51 PM
    #7
    magikbean562

    magikbean562 once flirted with danger, danger got clingy

    Joined:
    Dec 17, 2008
    Member:
    #11681
    Messages:
    8,022
    Gender:
    Male
    First Name:
    greg
    socal
    Vehicle:
    02 4runner 04 solara
    4runner-32x11.5x15 falken rocky mt, tundra king 2.5 coilovers with taco perch, TC UCA, OME rear springs and procomp es9000's, thule roof rack.
    awesome writeup. im fixin to do that this weekend

  8. Feb 1, 2012 at 4:04 PM
    #8
    Wreckless_71

    Wreckless_71 WRECKLESS for Life...

    Joined:
    Jul 13, 2009
    Member:
    #19616
    Messages:
    397
    Gender:
    Male
    First Name:
    Justin
    Pullman, WA.
    Vehicle:
    98 ext cab Tacoma
    3" Lift via OME 881's, Bilstein 5100's, Dakar OME 3" leaf packs, MBRP custom exhaust, HID headlights, CB, Canopy, aluminum wheels, upgraded sound system, full set of studded snow tires and wheels, auxilary lighting, more to come.
    Seriously, this swap is a cake walk. I did it a month ago. Proper tools are key, although I have a separate trans cooler which made it a little easier. Don't stress about it.

  9. Sep 22, 2012 at 4:54 PM
    #9
    truxartis

    truxartis Member

    Joined:
    Aug 21, 2009
    Member:
    #21547
    Messages:
    12
    Gender:
    Male
    N. Dallas
    Vehicle:
    99 PreRunner
    OME N91s 881 coils, OME N85, AAL
    Same deal, same crack, same place...at 180k.
    Thanks for posting this !

  10. Aug 8, 2013 at 1:25 PM
    #10
    aldoraine

    aldoraine Active Member

    Joined:
    Jul 1, 2012
    Member:
    #81682
    Messages:
    33
    Gender:
    Male
    First Name:
    evan
    vallecito ca
    Vehicle:
    99 Tacoma 4WD TRD
    Sorry to revive and old thread, but I had the same crack, same place on the OEM Radiator, and followed your advice to order the Koyo. Got mine from Go-Part.com for $170 shipped.

    Thanks for the writeup!

  11. Aug 8, 2013 at 2:01 PM
    #11
    ARB1977

    ARB1977 Don't be a dick

    Joined:
    Feb 12, 2009
    Member:
    #13537
    Messages:
    688
    Gender:
    Male
    North Texas
    Vehicle:
    2015 Tacoma SR5 Prerunner 4.0L
    Black TRD Fj Cruiser wheels, TRD catback exhaust.
    Saved for future use. 152K and no issues with the OE one. My luck tomorrow it starts leaking, lol.

  12. Oct 29, 2013 at 5:35 AM
    #12
    bunkerboy

    bunkerboy Well-Known Member

    Joined:
    Dec 1, 2011
    Member:
    #68024
    Messages:
    72
    Gender:
    Male
    Gainesville, FL
    Vehicle:
    2014 Prerunner
    My '04 radiator just cracked in the exact same way ... at 309,000 miles.

    I'm planning to trade her in in about four months, so I'm attempting a JB Weld fix. If that doesn't work, this thread will be a huge help.

    Thanks, TacoMike!! :thumbsup:

  13. Oct 29, 2013 at 10:48 AM
    #13
    kcover3575

    kcover3575 New Member

    Joined:
    Oct 29, 2013
    Member:
    #115481
    Messages:
    1
    Gender:
    Male
    Vehicle:
    2001 tacoma TRD
    I have a 01 Taco; You don't need to take off Grill to take off Radiator Bolt's, You can use a long extension and go thru Grill to get to top Bolt's and do the bottom Bolt's from underneath. It's also easier to take off both Skid plate's for reassembly(Put the front Plate on first).
    Thanks you TacoMike for Pic's.

  14. Nov 12, 2013 at 9:12 PM
    #14
    NightProwler

    NightProwler Got lux?

    Joined:
    Nov 12, 2013
    Member:
    #116470
    Messages:
    2,444
    Gender:
    Male
    First Name:
    Harlan
    Maricopa, Az
    Vehicle:
    01 3.4 ext cab prerunner
    Alright so I cant seem to find any details on the c1755.
    Is this a Brass Tank / Copper Core Radiator??
    Or is it a Plastic Tank / Aluminum Core Radiator like stock?

    I just got the crack on mine at 155k. Just got done putting some jb water weld on it, see if that will do the trick or at least slow the leak until I swap.
    Also is this like an EXACT oe replacement as far as dimensions go? I want to get the flex-a-lite electric fan setup (675 I think it is) and want to make sure It will still fit no prob...

  15. Aug 10, 2014 at 2:24 PM
    #15
    gabo

    gabo Member

    Joined:
    Dec 29, 2013
    Member:
    #119411
    Messages:
    9
    Gender:
    Male
    Vehicle:
    01 toyota tacoma trd offroad
    I'm doing this today but having issues with the transmission radiator hoses. Can't seem to slide the hoses off the radiator. Could it be that I don't have a strong enough kung fu grip? Or is there method to loosen the hoses off.

  16. Aug 10, 2014 at 6:02 PM
    #16
    StAndrew

    StAndrew Wait for it...

    Joined:
    Feb 8, 2010
    Member:
    #30950
    Messages:
    7,212
    Gender:
    Male
    First Name:
    Chris
    Hampton Roads, Va
    Vehicle:
    SR5 4x4TRD
    Deck Plate Mod; Grey Wire Mod; 1.5" AAL; 1.75" Lift Shackles; Bilstein 5100's; Eiback Coils; LR UCA; Front Diff Drop; Tundra Brake Upgrade; Wheels Offroad Brake Lines; Rear Diff Breather Mod
    Try a heat gun/hair dryer on the hose to heat it up a bit (not for very long though). I suggest you replace the hose while you are at it, however, in which case you can cut it off.

  17. Aug 10, 2014 at 8:05 PM
    #17
    gabo

    gabo Member

    Joined:
    Dec 29, 2013
    Member:
    #119411
    Messages:
    9
    Gender:
    Male
    Vehicle:
    01 toyota tacoma trd offroad
    I got them to slide off with some wd40. Now I'm having issues with the tabs that help support the radiator while putting the bolts in. I think I might file them just a bit so it drops where I need it to be. Any suggestions on that idea before I attempt? Got to say this thread has been great help on my first major repair I do on my own.

  18. Aug 10, 2014 at 8:42 PM
    #18
    NightProwler

    NightProwler Got lux?

    Joined:
    Nov 12, 2013
    Member:
    #116470
    Messages:
    2,444
    Gender:
    Male
    First Name:
    Harlan
    Maricopa, Az
    Vehicle:
    01 3.4 ext cab prerunner
    I just took a hammer and *lightly* tapped each side a little. The metal support brackets on either side that is. Went down just enough. If you break your radiator it's not my fault tho, lol.

  19. Aug 10, 2014 at 9:19 PM
    #19
    gabo

    gabo Member

    Joined:
    Dec 29, 2013
    Member:
    #119411
    Messages:
    9
    Gender:
    Male
    Vehicle:
    01 toyota tacoma trd offroad
    After losing a bolt, and yes I checked the ground, I'm calling it a day. No need to pull an all nighter and get frustrated. Should I reuse the tranny oil that came out of the radiator?

  20. Aug 10, 2014 at 9:36 PM
    #20
    NightProwler

    NightProwler Got lux?

    Joined:
    Nov 12, 2013
    Member:
    #116470
    Messages:
    2,444
    Gender:
    Male
    First Name:
    Harlan
    Maricopa, Az
    Vehicle:
    01 3.4 ext cab prerunner
    No. Just add a little if needed. I don't think I added any because it wasn't enough to put it low on the dipstick. Just have an extra quart ready. If u don't and can't get one while it's torn apart I would save it just in case tho. If it's a little low but not too low, you would be fine driving to the parts store if it's not far.
