Where's the air drain hose coming out of evap system supposed to affix to?

Discussion in '1st Gen. Tacomas (1995-2004)' started by sbuck, May 13, 2017.

  1. May 13, 2017 at 2:50 PM
    #1
    sbuck

    sbuck [OP] Member

    Joined:
    Jul 7, 2016
    Member:
    #191436
    Messages:
    23
    Vehicle:
    2001 Tacoma
    On my 2001 Tacoma the air drain hose coming out of the evap system is just flopping around. There's a rectangle flange at the end that suggests it's supposed to be affixed somewhere, like maybe a hole in the body, but I can't locate an appropriate sized hole.

    Can someone point me in the right direction?

    [​IMG]

  2. May 13, 2017 at 5:30 PM
    #2
    keakar

    keakar Well-Known Member

    Joined:
    Oct 2, 2014
    Member:
    #139537
    Messages:
    5,259
    Gender:
    Male
    First Name:
    karl
    louisiana
    Vehicle:
    2006 4runner sport 4.7L V8 (white)
    used to have - 99 2.4L I4 5 lug & 04 prerunner v6
    that grommet fits into a hole within reach of where the hose hangs at, just have to crawl under there and look

    might even go in the frame rail somewhere, you just have to figure it out but please reply when you do and show us where it goes

  3. May 13, 2017 at 6:00 PM
    #3
    tan4x4

    tan4x4 Well-Known Member

    Joined:
    Nov 30, 2011
    Member:
    #67982
    Messages:
    3,809
    Gender:
    Male
    First Name:
    Rick
    Folsom, CA
    Vehicle:
    99 Tacoma EC 4x4 2.7L Auto
    Bilsteins, OME 881's, 3-leaf AAL, Detroit TruTrac, Tundra brake swap, Michelin LTX AT2, Tranny skidplate, TC skidplate, CBI rear bumper, TG sliders, UltraGauge, PowerTank, Reverse Camera
    On my 2.7 motor (with the evap canister on the driver wheel well under the hood), there is a short rubber line from the evap port that goes straight down to a small bracket where it changes to a short hard line that also goes straight down along the wheel well to another little bracket. Then a much longer rubber line with several bends in it disappears into the horizontal surface of the driver-side frame rail.

    keakar likes this.
  4. Feb 24, 2020 at 8:18 AM
    #4
    Colchicine

    Colchicine Well-Known Member

    Joined:
    Jul 16, 2018
    Member:
    #259549
    Messages:
    160
    Gender:
    Male
    Newport News, Virginia
    Vehicle:
    | 2000 | 2.7L | 4x4 | Auto | Standard cab |

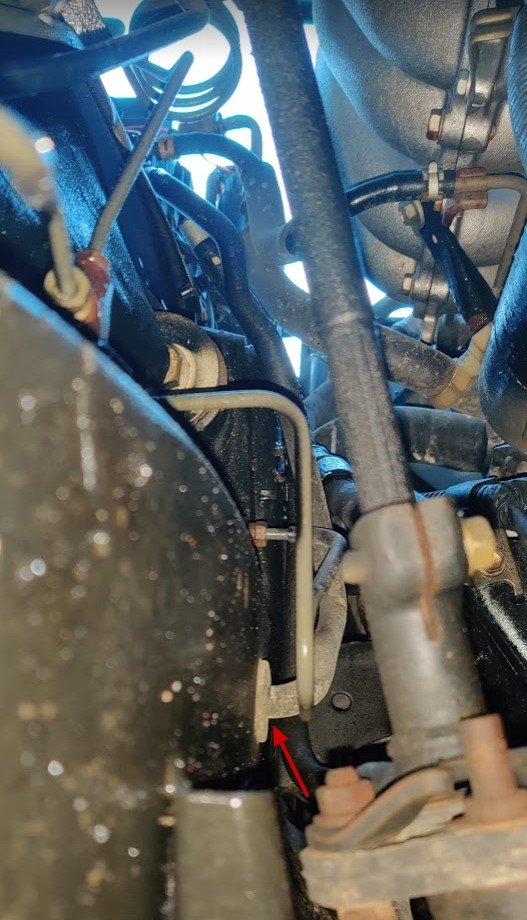

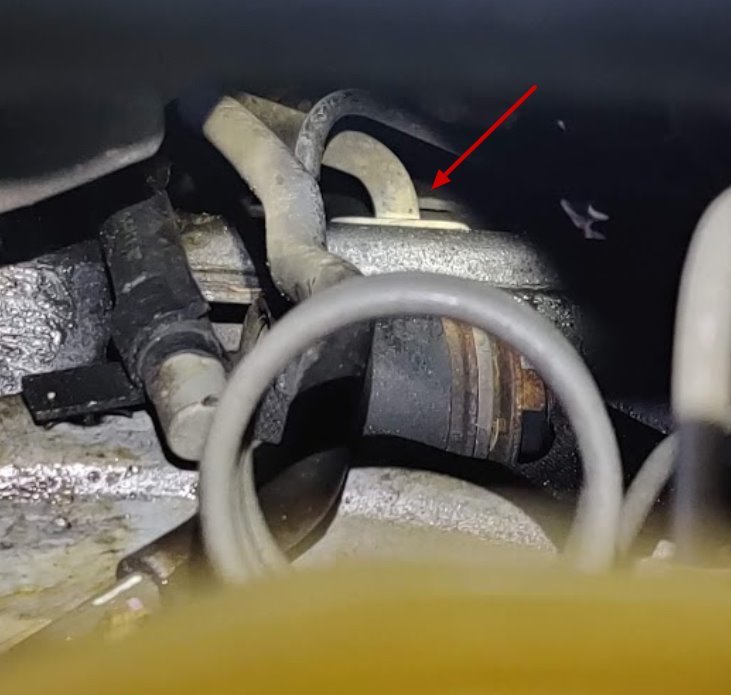

    While researching why this air drain hose goes into the frame, I found this thread. For the sake of others searching, I thought I would post the fotos of where this hose is supposed to go.

    I'd still like to know why there needs to be a drain for air, and why it needs to go into the frame.


  5. Feb 24, 2020 at 8:44 AM
    #5
    tan4x4

    tan4x4 Well-Known Member

    Joined:
    Nov 30, 2011
    Member:
    #67982
    Messages:
    3,809
    Gender:
    Male
    First Name:
    Rick
    Folsom, CA
    Vehicle:
    99 Tacoma EC 4x4 2.7L Auto
    Bilsteins, OME 881's, 3-leaf AAL, Detroit TruTrac, Tundra brake swap, Michelin LTX AT2, Tranny skidplate, TC skidplate, CBI rear bumper, TG sliders, UltraGauge, PowerTank, Reverse Camera
    ". . . I'd still like to know why there needs to be a drain for air, and why it needs to go into the frame. "

    Wild-ass guess here, but this appears to be a type of 'air' venting.
    However this 'air' likely contains gasoline vapors, and is therefore flammable.
    Inside the frame rail is the safest place (no source of ignition).

  6. Feb 24, 2020 at 8:49 AM
    #6
    sbuck

    sbuck [OP] Member

    Joined:
    Jul 7, 2016
    Member:
    #191436
    Messages:
    23
    Vehicle:
    2001 Tacoma
    Thanks for the info/photos! Glad to finally solve this mystery. :)

    Colchicine likes this.
