which transmission cooler?

Discussion in '4 Cylinder' started by themeat424, Oct 16, 2012.

  1. themeat424

    themeat424 [OP] Active Member

    Joined:
    Aug 9, 2012
    Member:
    #84452
    Messages:
    36
    Gender:
    Male
    NY
    Vehicle:
    12 Regular Cab 4x4 Auto
    I'm looking at putting together my own "tow package" and wanted to start with the transmission cooler. It seems that a lot of guys on here like the hayden coolers. I was wondering which specific model to buy? Is the Hayden 678 cooler the size to go with? Thanks!

  2. bjasper

    bjasper Well-Known Member

    Joined:
    Jan 16, 2012
    Member:
    #70798
    Messages:
    314
    Gender:
    Male
    First Name:
    Brian
    Carmel, CA
    Vehicle:
    06 TRD PreRunner
    Dad's truck, minor mods.. Saving for my own :)
    Good question. :)

  3. themeat424

    themeat424 [OP] Active Member

    Joined:
    Aug 9, 2012
    Member:
    #84452
    Messages:
    36
    Gender:
    Male
    NY
    Vehicle:
    12 Regular Cab 4x4 Auto
    Any suggestions? I live in NY and it can get pretty cold in the winter (occasional single digits), so I'm wondering if the fluid will be running too cold ( or even gel up? ) if I put in a larger cooler rated for 5000lbs. I'm also hesitant to put in a light duty cooler that's rated to 2500lbs as my taco can tow more than that. I live in a mountain area where I have a good amount of steep inclines and the 4 cyl is frequently hunting for gears, so even when not towing the tranny cooler seems like a good idea, I just can't figure out which one to go with...

  4. Rich91710

    Rich91710 Well-Known Member

    Joined:
    Feb 23, 2012
    Member:
    #73470
    Messages:
    16,498
    Gender:
    Male
    First Name:
    Rich
    Los Angeles
    Vehicle:
    08 Base
    Satoshi with FJ badge, factory cruise, factory intermittent wipers, Redline Tuning hood-lift struts, Hellwig Swaybar, Rosen DVD-Nav
    You're not going to find them at Pep Boys, but higher end coolers have a thermal bypass that diverts the fluid around the cooler until it needs cooling.

    Expect $200+

  5. themeat424

    themeat424 [OP] Active Member

    Joined:
    Aug 9, 2012
    Member:
    #84452
    Messages:
    36
    Gender:
    Male
    NY
    Vehicle:
    12 Regular Cab 4x4 Auto
    Do you think such a cooler would be necessary in cold climates? If so, can you name any brands?

  6. Rich91710

    Rich91710 Well-Known Member

    Joined:
    Feb 23, 2012
    Member:
    #73470
    Messages:
    16,498
    Gender:
    Male
    First Name:
    Rich
    Los Angeles
    Vehicle:
    08 Base
    Satoshi with FJ badge, factory cruise, factory intermittent wipers, Redline Tuning hood-lift struts, Hellwig Swaybar, Rosen DVD-Nav
    I'd recommend it in colder climates, especially if you commonly make short trips to work/class where the engine doesn't get up to temperature and maintain that level for a while.

    Here's a thread on Yotatech that seems to disagree with me:
    http://www.yotatech.com/f2/transmission-coolers-low-temps-bypass-thermostats-tests-results-200965/

    Either way, I would be looking to a higher quality cooler from B&M. They and Hayden have been in the business for a very long time, but Hayden has always been more low-end mass-sales oriented. Quick and easy installation and "okay" performance.
    I'm not fond of their typical mounting method... run a modified zip-tie through the radiator and condensor core.

  7. themeat424

    themeat424 [OP] Active Member

    Joined:
    Aug 9, 2012
    Member:
    #84452
    Messages:
    36
    Gender:
    Male
    NY
    Vehicle:
    12 Regular Cab 4x4 Auto
    Seems like the B&M is the cooler to go with.

  8. Rich91710

    Rich91710 Well-Known Member

    Joined:
    Feb 23, 2012
    Member:
    #73470
    Messages:
    16,498
    Gender:
    Male
    First Name:
    Rich
    Los Angeles
    Vehicle:
    08 Base
    Satoshi with FJ badge, factory cruise, factory intermittent wipers, Redline Tuning hood-lift struts, Hellwig Swaybar, Rosen DVD-Nav
    I used their products on my '69 Camaro and '67 Chevelle back in the 80s.
    These days, for a "shift kit", I'd go with TransGo, but B&M would be my 2nd choice if TransGo didn't make a kit for my trans.

  9. themeat424

    themeat424 [OP] Active Member

    Joined:
    Aug 9, 2012
    Member:
    #84452
    Messages:
    36
    Gender:
    Male
    NY
    Vehicle:
    12 Regular Cab 4x4 Auto
    The bypass system in the B&M seems like it will do the trick when it gets cold. I actually remember glancing over the bypass feature when I first came across the B&M coolers while reading the "towing bible". If it gets really cold to people just cover up the coolers?

  10. Rich91710

    Rich91710 Well-Known Member

    Joined:
    Feb 23, 2012
    Member:
    #73470
    Messages:
    16,498
    Gender:
    Male
    First Name:
    Rich
    Los Angeles
    Vehicle:
    08 Base
    Satoshi with FJ badge, factory cruise, factory intermittent wipers, Redline Tuning hood-lift struts, Hellwig Swaybar, Rosen DVD-Nav
    I wouldn't cover the cooler if you bypass the factory cooler.
    But yes... if you run the aftermarket inline with the OEM cooler, you can leave it covered and it'll be like you're running stock (except for the part of the radiator that will also be covered).

  11. themeat424

    themeat424 [OP] Active Member

    Joined:
    Aug 9, 2012
    Member:
    #84452
    Messages:
    36
    Gender:
    Male
    NY
    Vehicle:
    12 Regular Cab 4x4 Auto
    I appreciate the help rich. I was originally hoping you would chime in.

  12. Scott SD

    Scott SD Member

    Joined:
    Oct 24, 2012
    Member:
    #89731
    Messages:
    7
    Gender:
    Male
    I just went though this decision a couple of weeks ago. I have a 2.7 PreRunner DC and do not normally tow very much. Maybe once a year. But, in a few weeks I am going back east and will tow my trailer. Total weight will be 3000 lbs. I wanted to add the tow package, so I bought the factory hitch and wiring harness. For the trans cooler I did not like the mounting methods of anything aftermarket. I even have 3 different sized coolers in my stash in the garage, so it would have been cheap as I'd only have to buy the hose. And I could fab up some brackets, but that was way too much work for my schedule. I decide just to buy the factory cooler for the V6 model. It works fine to tow 7000 lbs (?) It was way overpriced. After figuring out what pieces to buy, it was easy to install.

  13. Mr. Pick

    Mr. Pick Well-Known Member

    Joined:
    Jun 29, 2012
    Member:
    #81609
    Messages:
    129
    Gender:
    Male
    Middle TN
    Vehicle:
    '12 AC, SR5, 2.7L, Auto
    If you don't mind, would you share the part #'s you came up with for the factory cooler install? Thanks.

  14. Eddie98

    Eddie98 Active Member

    Joined:
    Jun 13, 2012
    Member:
    #80594
    Messages:
    29
    Gender:
    Male
    Are you going to be towing a lot? I don't see the use of it if you are not towing all the time.

  15. Scott SD

    Scott SD Member

    Joined:
    Oct 24, 2012
    Member:
    #89731
    Messages:
    7
    Gender:
    Male

    I bought everything from this dealer because it was the cheapest I could find. Still way overpriced.

    http://www.villagetoyotaparts.com/s...riveline=6159&ukey_trimlevel=0&modelYear=2012

    You need to buy:

    32920
    32906
    32943
    32943A
    32921R (QTY ?, can't remember)
    90080-11371 (QTY 3)
    90119-A0056 (QTY 1)

    I didn't even have to take the grill off. Just took a little patience with the correct tools.

    Good luck.

  16. Scott SD

    Scott SD Member

    Joined:
    Oct 24, 2012
    Member:
    #89731
    Messages:
    7
    Gender:
    Male
    Forgot to mention that I did not buy 32943A. I cut the stock hose and lengthened it with some standard Gates trans cooler hose. I spliced them together with a coupler and some factory clips. It looks stock, but if I did it again I would just buy the $37 32943A hose.

  17. AlphaEcho2k5

    AlphaEcho2k5 Well-Known Member

    Joined:
    Mar 2, 2011
    Member:
    #52220
    Messages:
    1,842
    Gender:
    Male
    First Name:
    Adam
    Warren AFB, WY Originally: Spartanburg, SC
    Vehicle:
    '02 4Runner
    [​IMG]

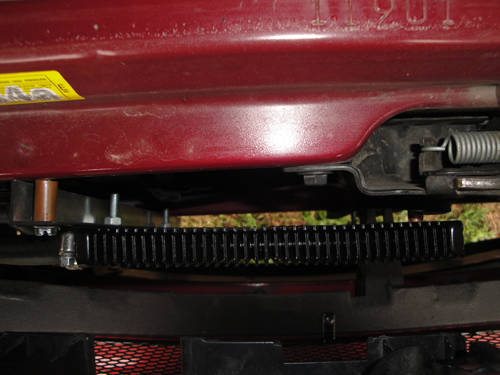

    B&M 70268 Cooler.

    [​IMG]

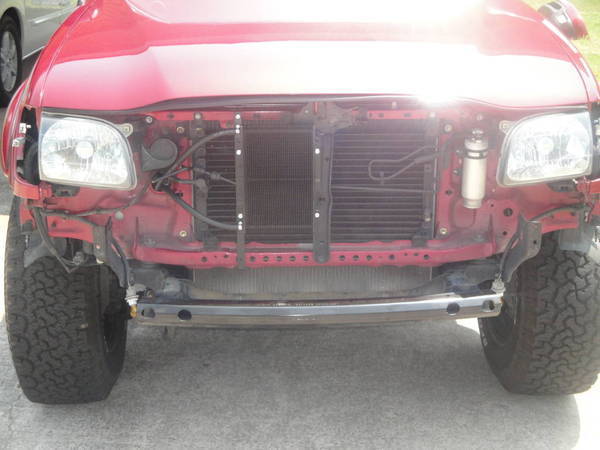

    I used some aluminum pieces to keep the cooler off the condenser.

  18. Mr. Pick

    Mr. Pick Well-Known Member

    Joined:
    Jun 29, 2012
    Member:
    #81609
    Messages:
    129
    Gender:
    Male
    Middle TN
    Vehicle:
    '12 AC, SR5, 2.7L, Auto
    Thanks Scott. You're right, that is pricey, but I like the clean factory look.

  19. TwzteD

    TwzteD Well-Known Member

    Joined:
    Mar 28, 2011
    Member:
    #53902
    Messages:
    689
    Gender:
    Male
    First Name:
    Kyle
    St Lucie Fl
    Vehicle:
    2013 4x4 reg cab Auto
    2013 4x4 reg cab, 2011 4runner sr5 rims, 265 general grabber at2's, 5100's All 4 corners with fronts at .85, De badged, Egr Rainguards, Led tail lights, Int wipers, fog lights, Trailer Hitch, POwer locks+ keyless entry, Extang Solidfold Bed Cover, WeatherTech Mats, Stubbie Antenna, Trd Skid Plate, Tint, Scanguage, Cargo net in bed, Sound Ordnance B-8PT, FULID FILM Under Coat.


    hey did you ever install the cooler? if so how did it turn out?
