Whitecloud's Expo Trailer Build

Discussion in 'Other Builds' started by Whitecloud, Aug 25, 2013.

  1. Aug 25, 2013 at 1:04 PM
    #1
    Whitecloud

    Whitecloud [OP] Cloudy-fabricator of things

    Joined:
    Feb 24, 2010
    Member:
    #32031
    Messages:
    3,061
    Gender:
    Male
    First Name:
    Johnathan
    Albuquerque, New Mexico
    Vehicle:
    Superwhite 06 DCLB
    ICON Extended travel Coilovers, Custom leaf pack, custom sliders and F&R bumpers, 295 75 17 Toyo Open Country MT's, On-Board air with F+R connectors, On-Board water with quick disconnect shower.Trimmed fenders and body mount chop. LOTS of wiring, dual battery setup, Solar charging system, with some random lights spread around here and there.
    So as some of you know Lobster13 and I have been working on a set of expo style camping trailers. We started them at roughly the same time and looking back might not have been such a good idea simply for lack of space in the garage to work. Well I guess it is finally time to post up a build thread for them. It all started with a need for more camping space for the family and me not wanting to set up the Truck Bed Tent everytime we went anywhere.

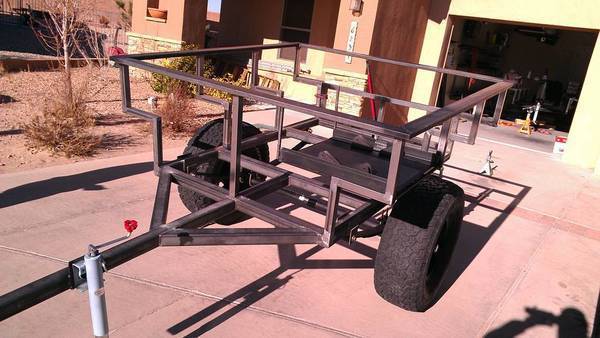

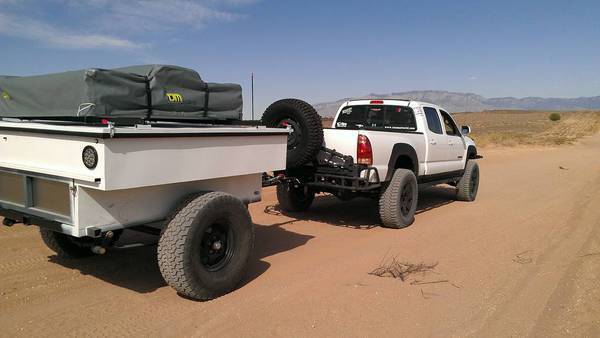

    What it sits like currently minus the shocks.....
    [​IMG]

    Figure that this will turn into more of a BS and photo thread but for mow onto the pics..........I'll do my best to keep them in order.

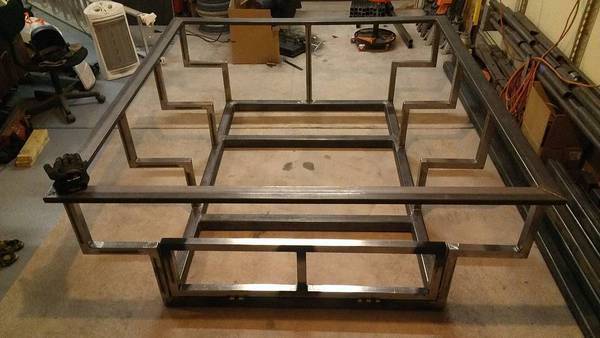

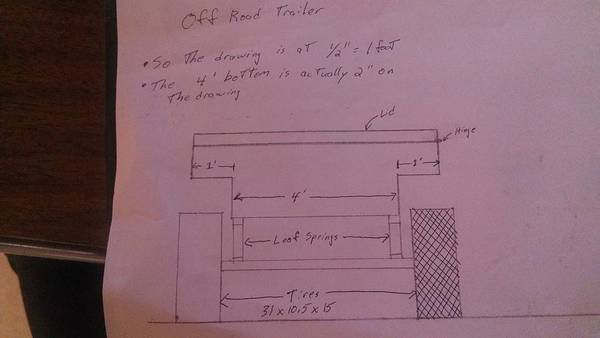

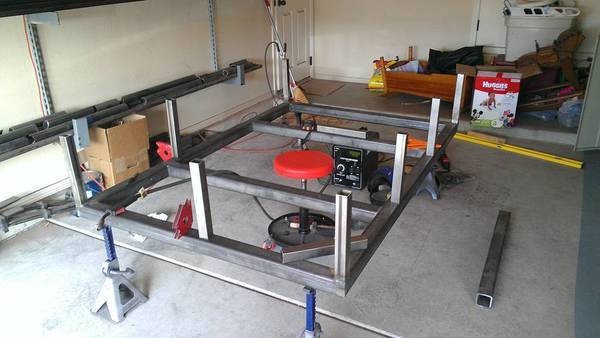

    Everything good starts with and idea and evolves from there........
    [​IMG]
    [​IMG]
    [​IMG]
    [​IMG]
    [​IMG]
    [​IMG]

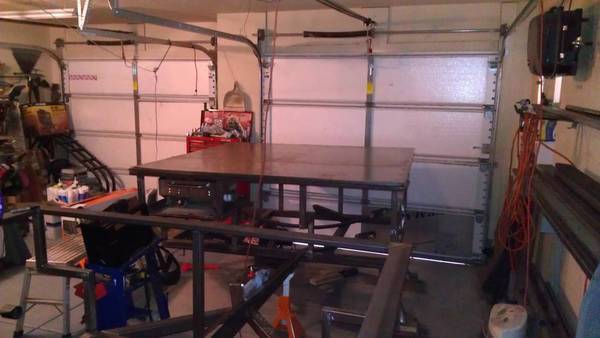

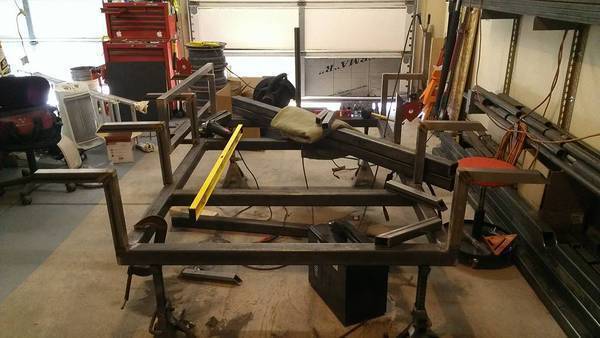

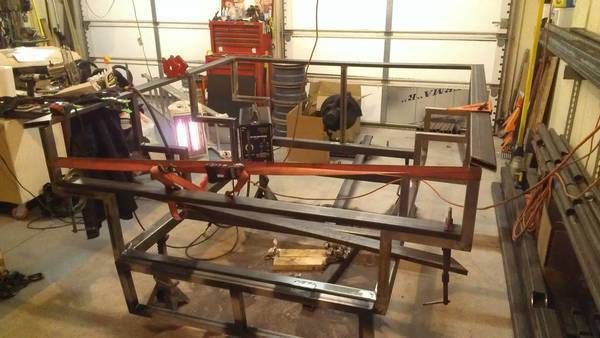

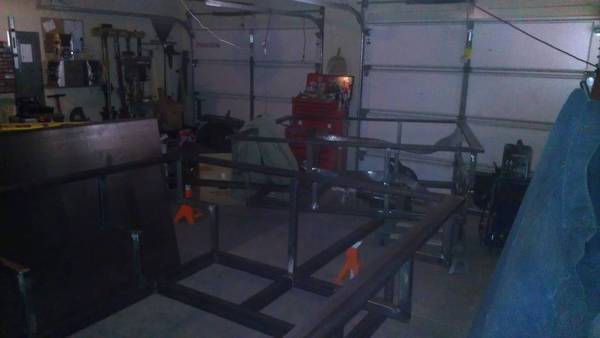

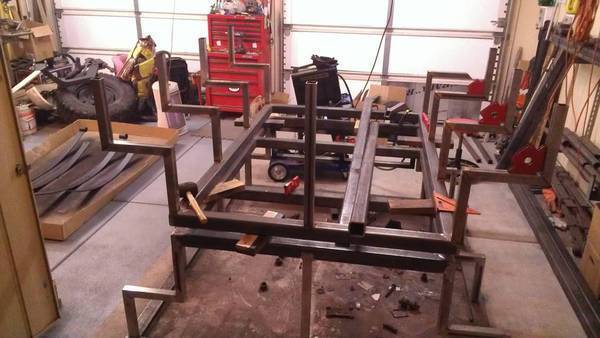

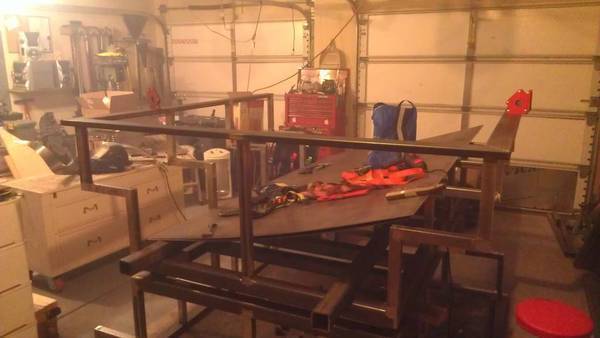

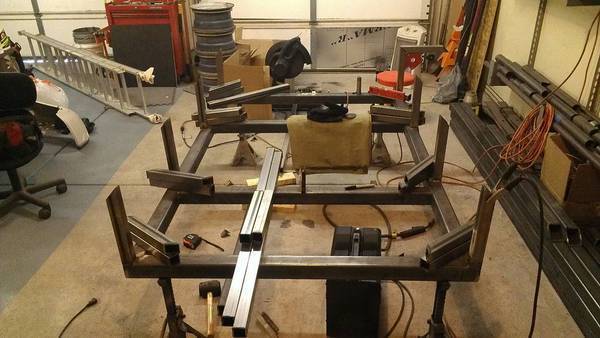

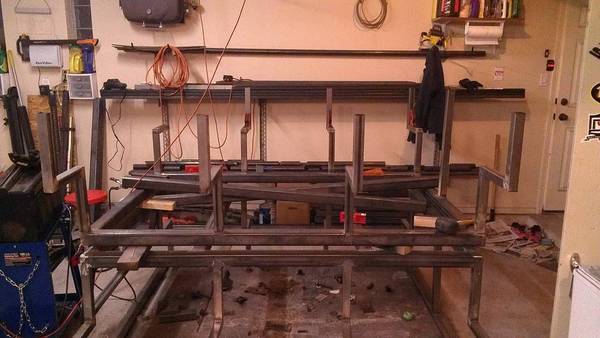

    Starting on the 2nd frame.....
    [​IMG]
    [​IMG]
    [​IMG]

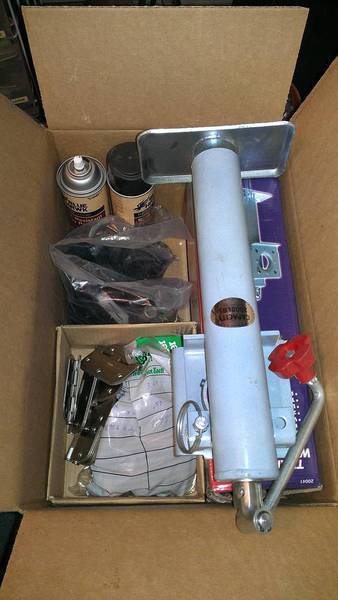

    Parts starting to show up....
    [​IMG]
    [​IMG]
    [​IMG]
    [​IMG]
    [​IMG]
    [​IMG]

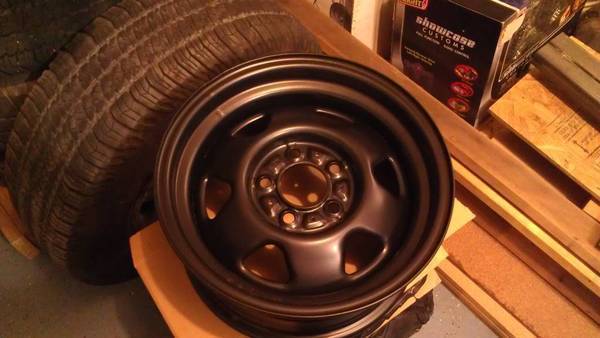

    Wheels back from powdercoat. Using a set of old steel wheels from an old Jeep project that we sent to the coater....
    [​IMG]

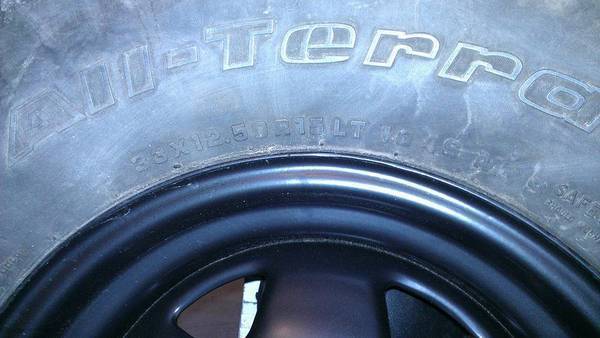

    Some tires mounted...
    [​IMG]

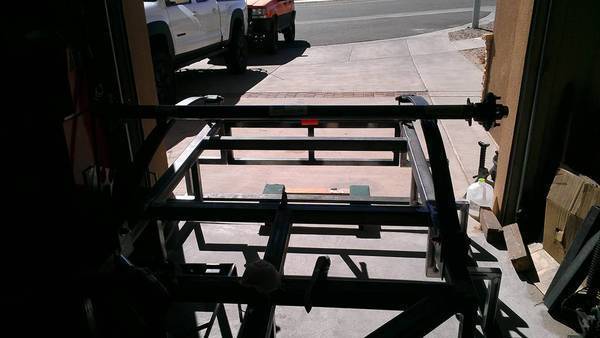

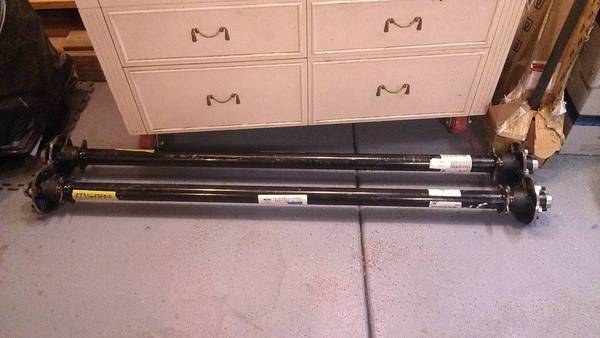

    Axles built to truck width.....
    [​IMG]

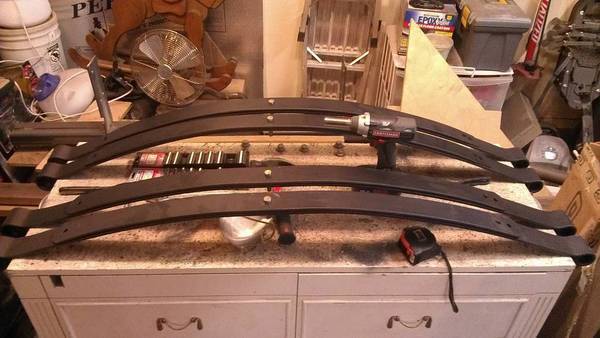

    Leaf Springs sourced from a couple of Ford Rangers from U-Pull It...
    [​IMG]

    Max Coupler Hitch
    [​IMG]

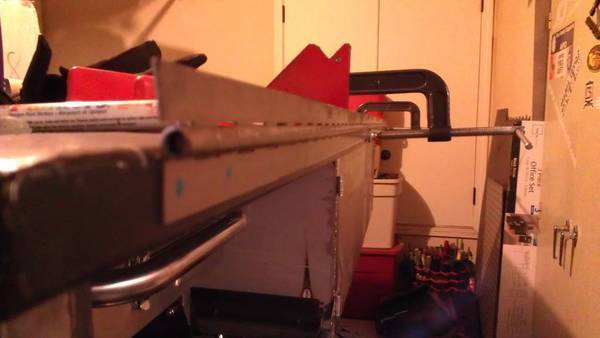

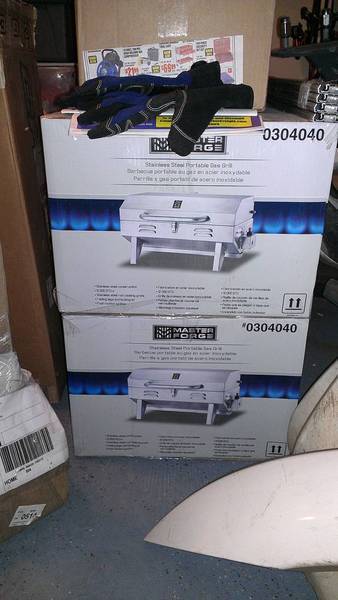

    Gas grill going on a set of drawer slides....
    [​IMG]

    Picked up some sheet for the bottom and sides...
    [​IMG]

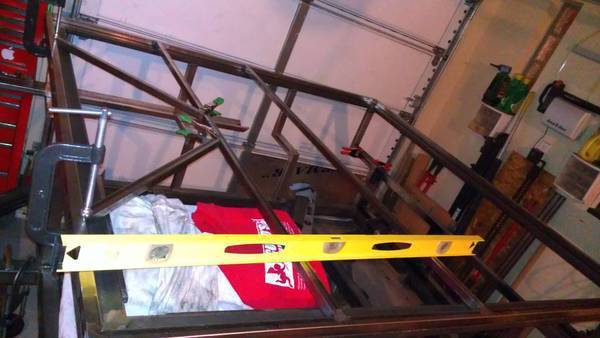

    Both frames back upright....[​IMG]

    Mock up for the Grill...
    [​IMG]

    Grill support structure for the slides...
    [​IMG]

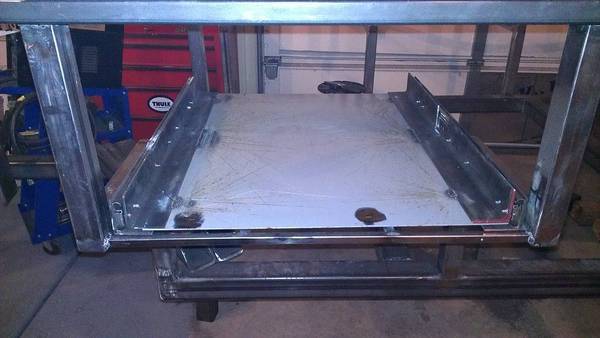

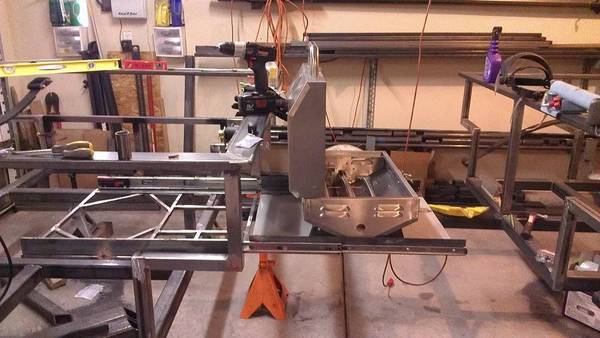

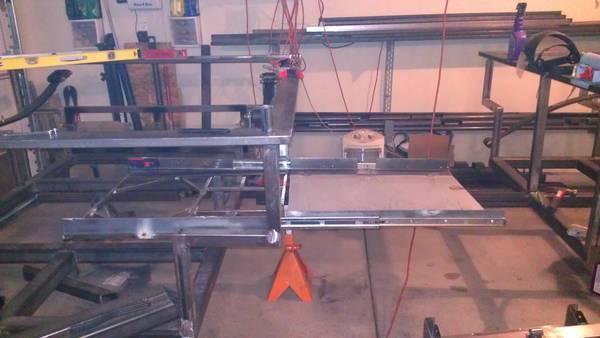

    Slides and support tray in.....
    [​IMG]

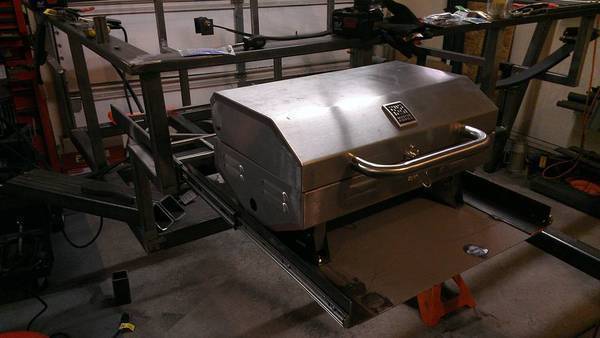

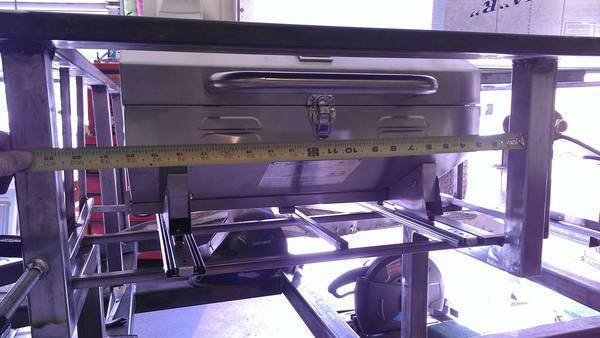

    How the grill will sit.....
    [​IMG]
    [​IMG]
    [​IMG]

    Grill door...
    [​IMG]

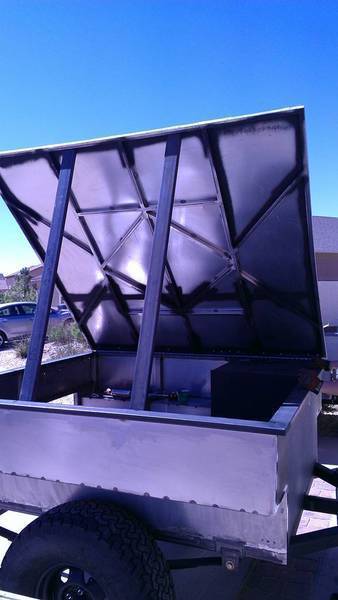

    Start to the lid...
    [​IMG]
    [​IMG]
    [​IMG]

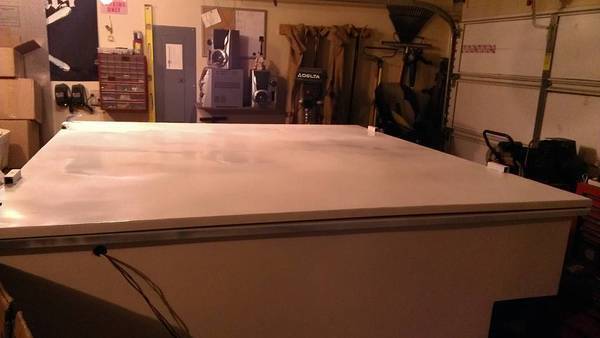

    Finished...
    [​IMG]

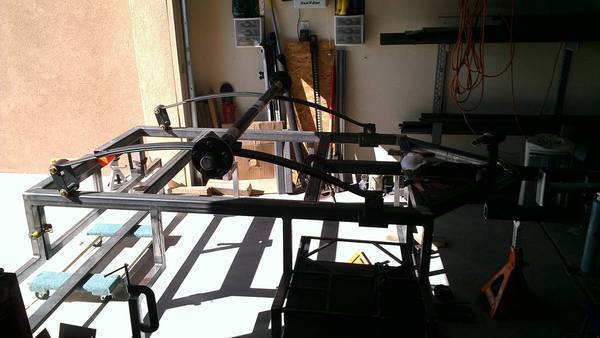

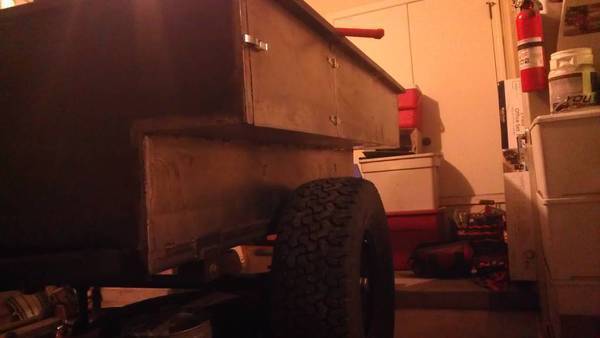

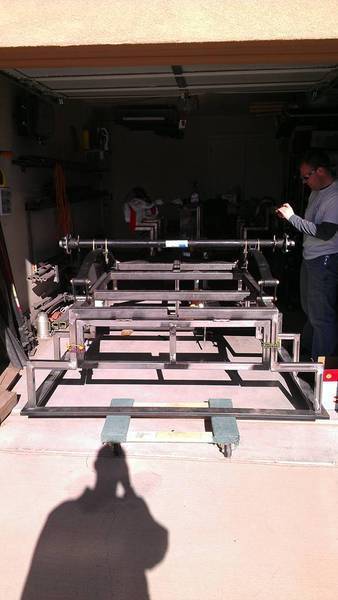

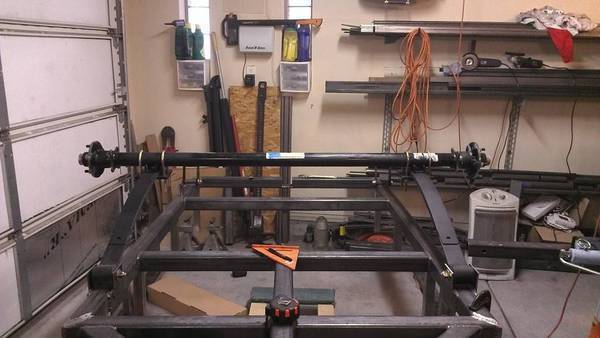

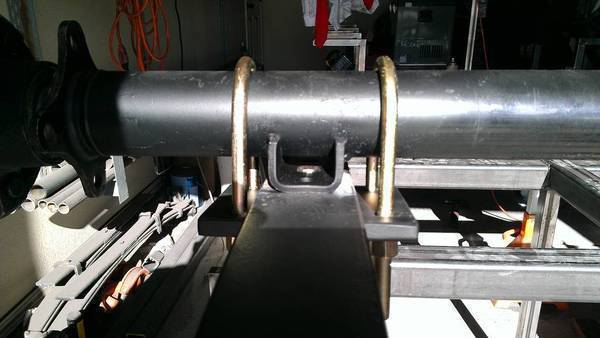

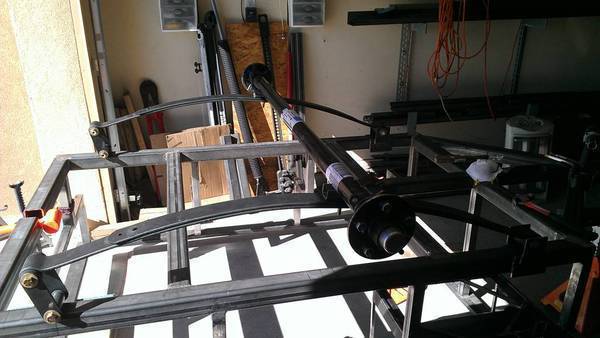

    Getting the axle mounted....
    [​IMG]
    [​IMG]
    [​IMG]
    [​IMG]
    [​IMG]
    2nd frame getting the axle...
    [​IMG]

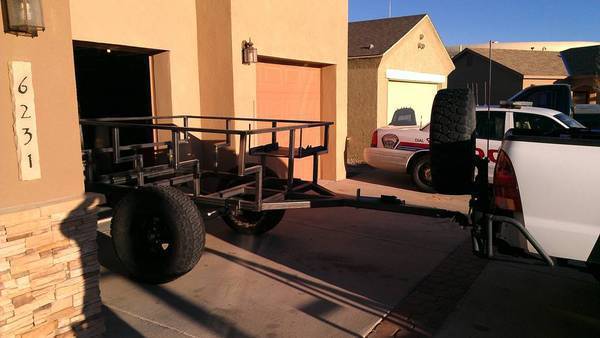

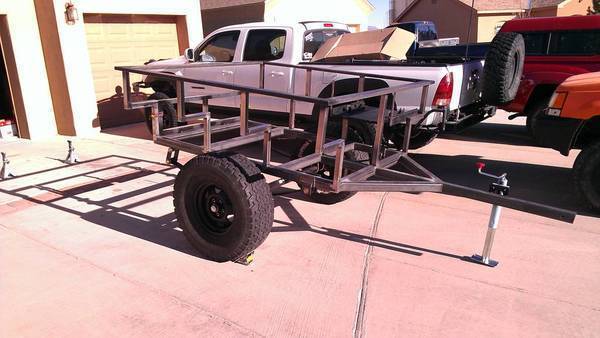

    We be rolling.....
    [​IMG]
    [​IMG]
    [​IMG]

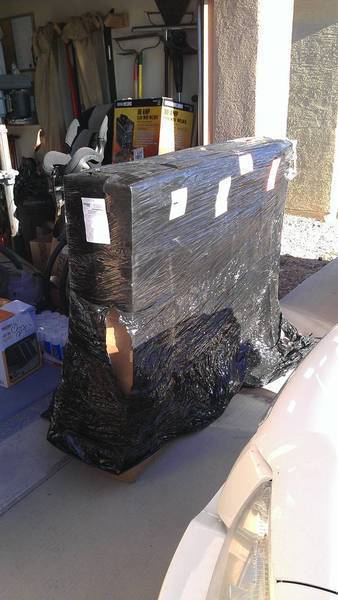

    Tent showed up....
    [​IMG]

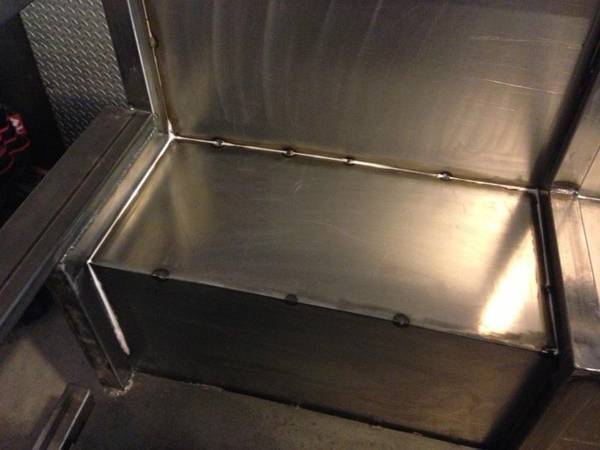

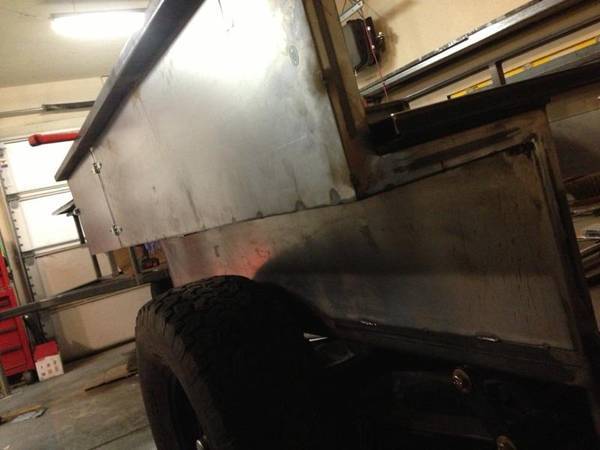

    Boxing in the grill...
    [​IMG]

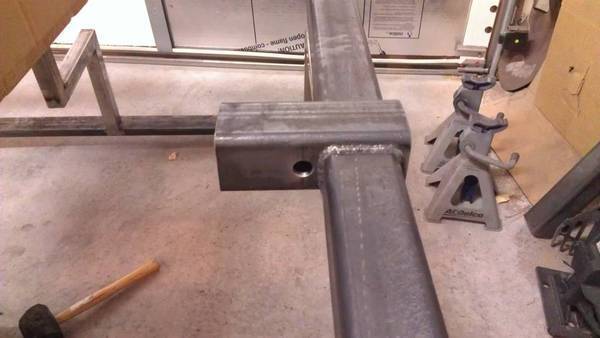

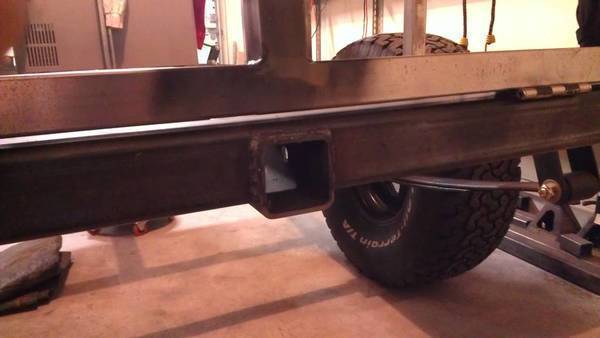

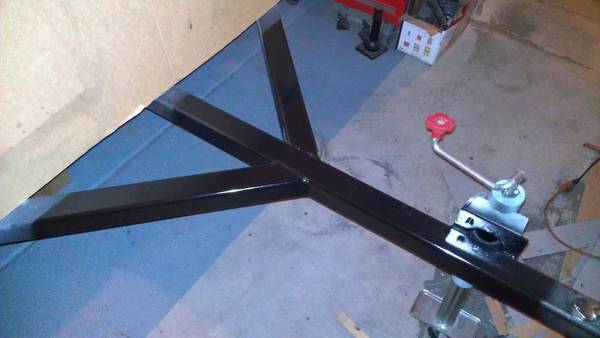

    Hitch on the back of frame....
    [​IMG]
    [​IMG]

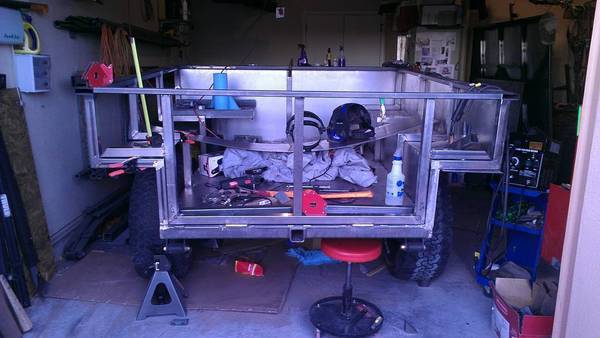

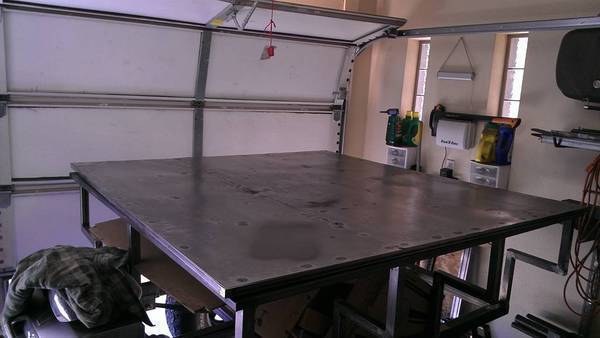

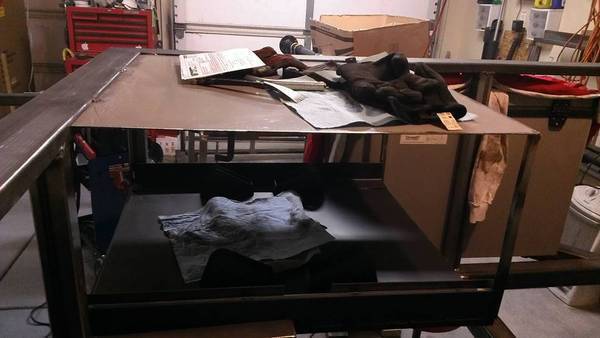

    Starting the floor...
    [​IMG]

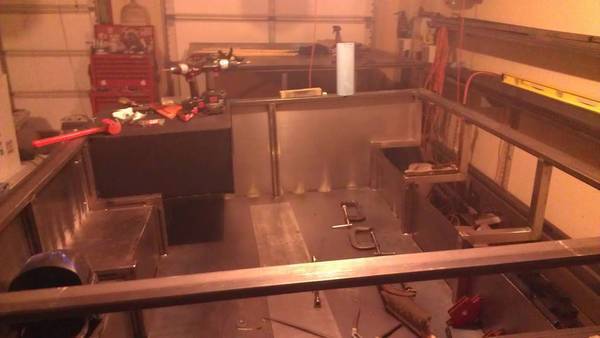

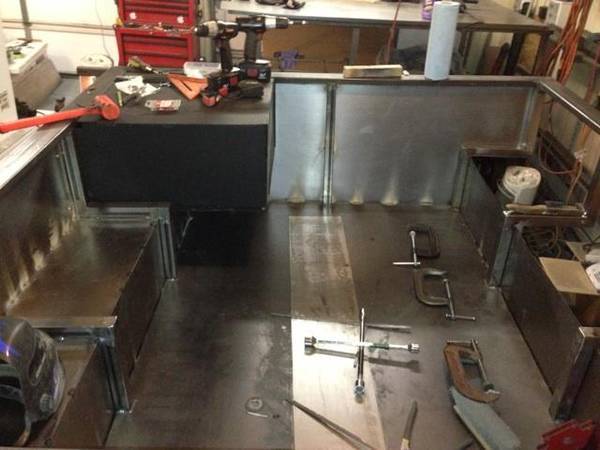

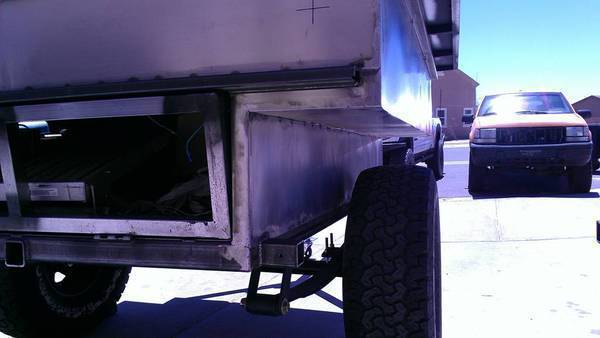

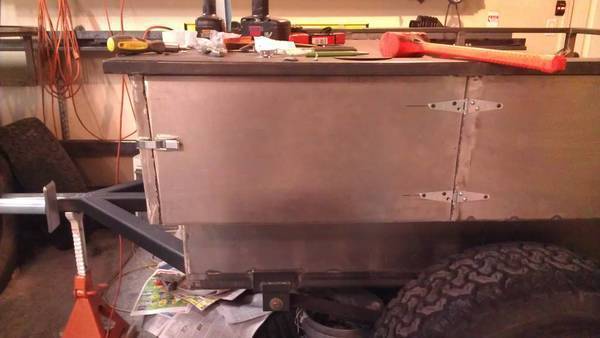

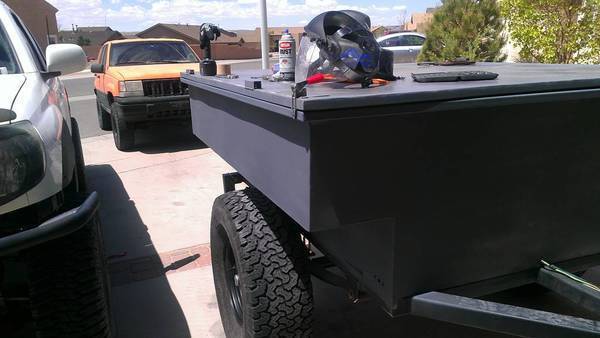

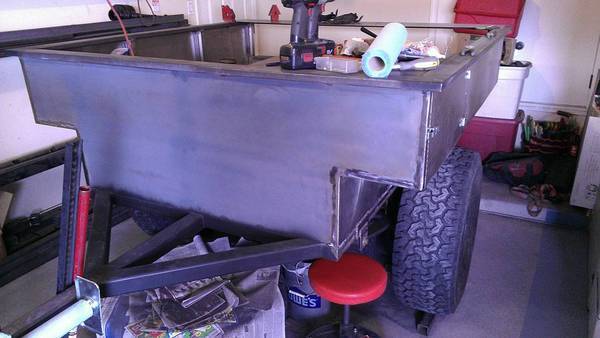

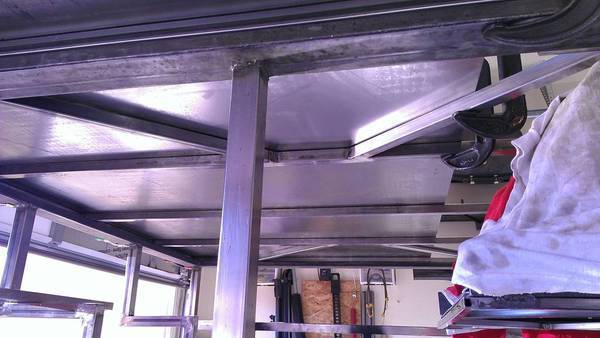

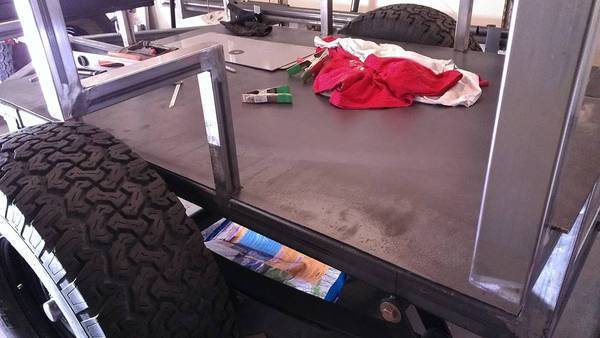

    Skinning it.....
    [​IMG]
    [​IMG]
    [​IMG]
    [​IMG]

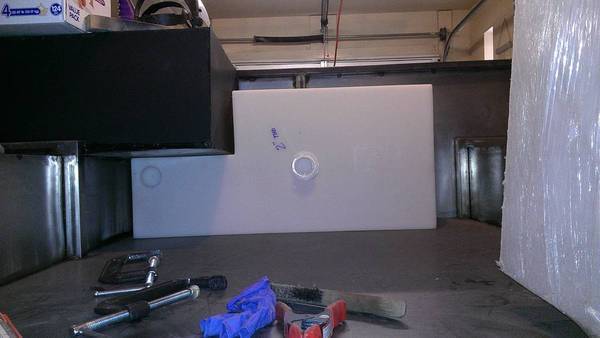

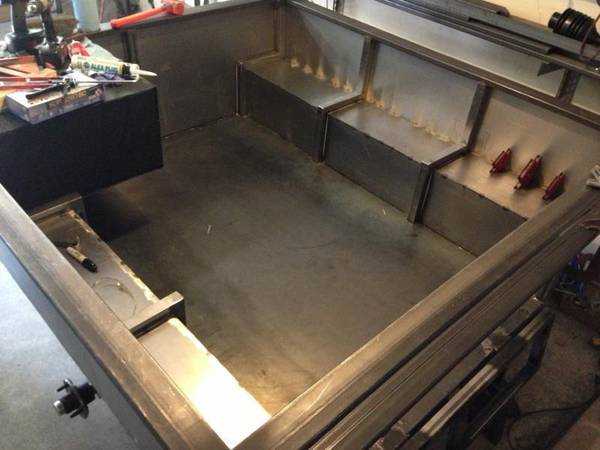

    Water tank location...Don't mind the fitting locations, the manufacturer fubared them...
    [​IMG]

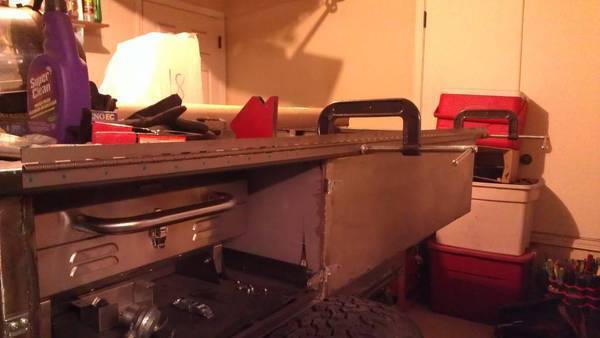

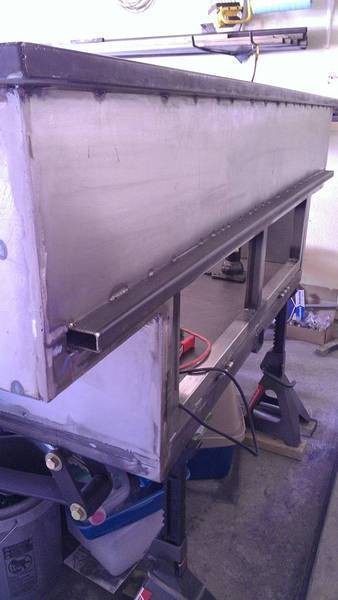

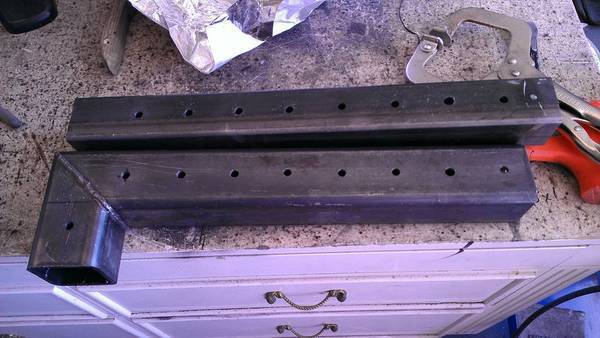

    6ft long lid Hinge that will be bolted to the lid and welded to the tub...
    [​IMG]
    [​IMG]

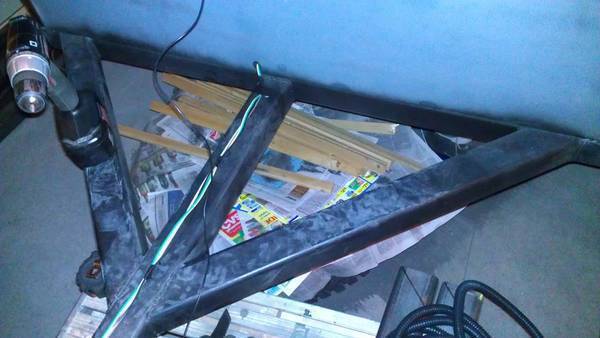

    Wiring template laid out to be put in after the spray on liner....
    [​IMG]
    [​IMG]

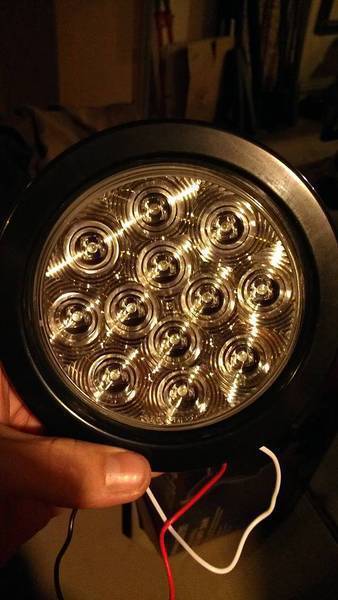

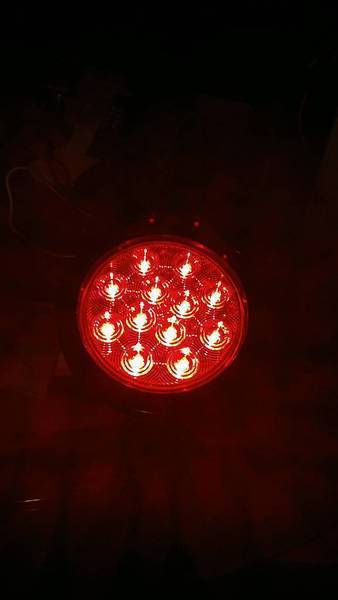

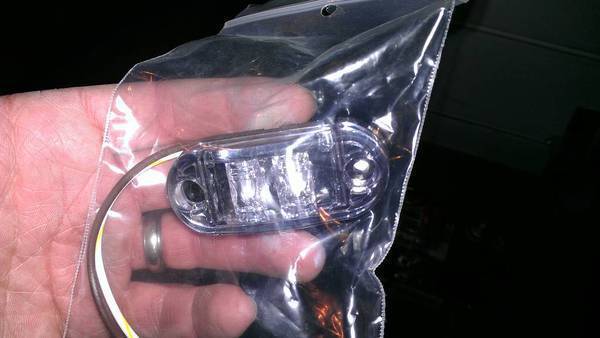

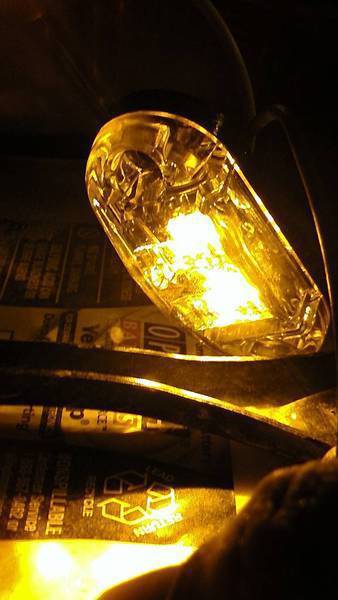

    Reverse lights...
    [​IMG]

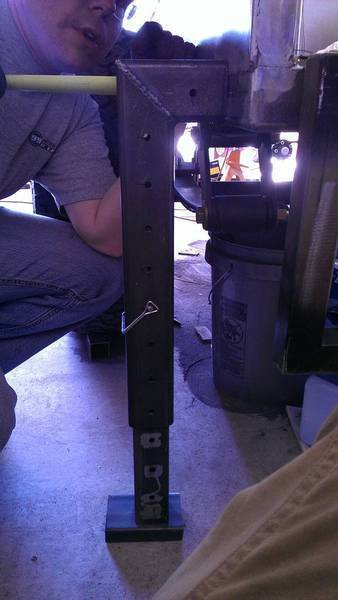

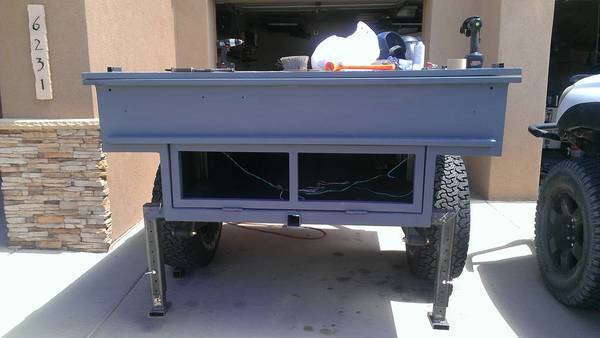

    Rear adjustable supports...
    [​IMG]
    [​IMG]

    Skining the 2nd one and tailgate...
    [​IMG]


    Both of them catching some sun while the garage gets rearranged...
    [​IMG]
    [​IMG]
    Pretty straight so far...
    [​IMG]

    Temporary lid holders...:D
    [​IMG]
    [​IMG]

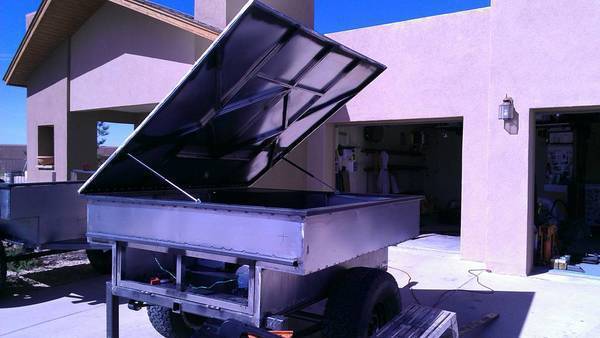

    Struts are in.......These needed to be changed from 150lb to 200 lb ones once the RTT was mounted...
    [​IMG]

    Time for some primer and some color.....
    [​IMG]
    [​IMG]
    [​IMG]
    COLOR!!!!!!!!!!!!:eek::D:D
    [​IMG]
    [​IMG]

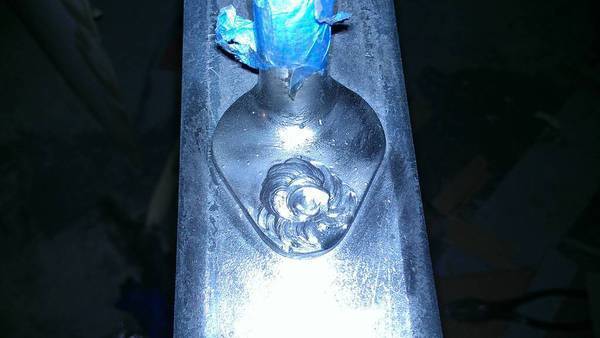

    Not half bad looking weld for just a flux core welder........:cool::cool:
    [​IMG]
    [​IMG]

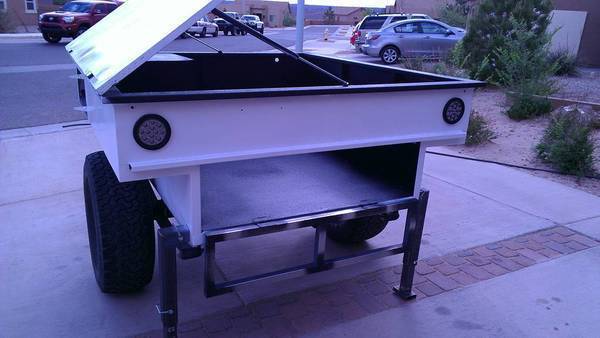

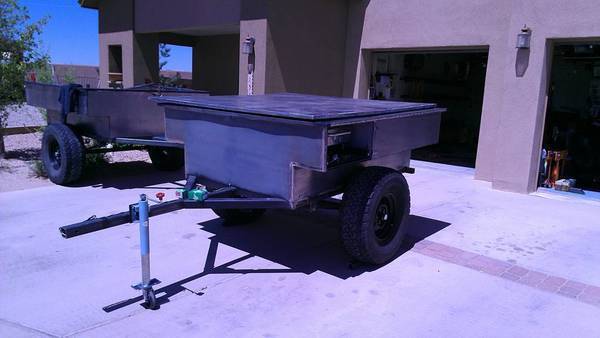

    Done for the most part....
    [​IMG]

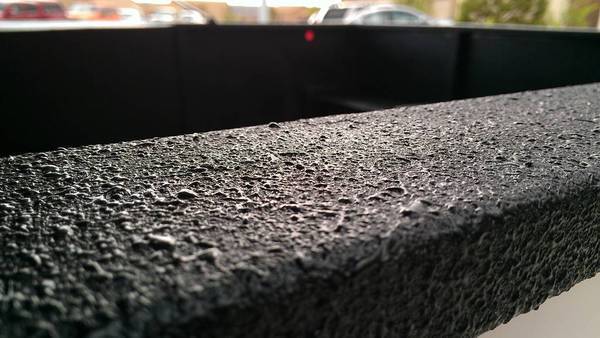

    Raptor liner...
    [​IMG]

    Of course my 2 year old twins had to sign it.........for their moral support contribution:D
    [​IMG]
    [​IMG]

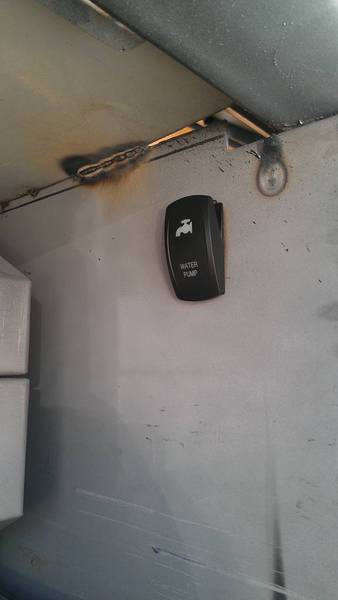

    Water pump switch...
    [​IMG]

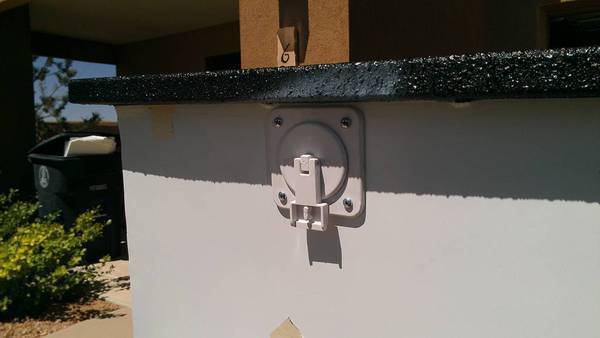

    Water tank fill...
    [​IMG]

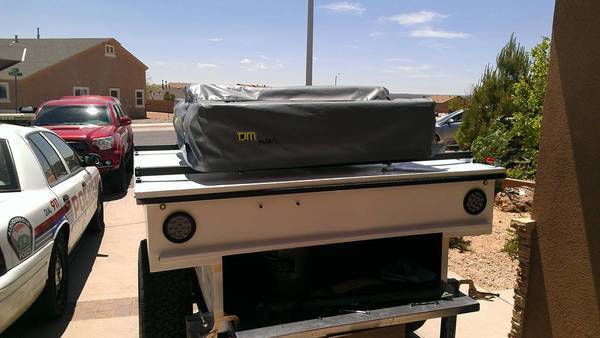

    Tent mounted up...
    [​IMG]

    That's it for now. More pics tonight......:D

    Last edited: Aug 8, 2014
    TheBlackTaco likes this.
  2. Aug 25, 2013 at 1:04 PM
    #2
    Whitecloud

    Whitecloud [OP] Cloudy-fabricator of things

    Joined:
    Feb 24, 2010
    Member:
    #32031
    Messages:
    3,061
    Gender:
    Male
    First Name:
    Johnathan
    Albuquerque, New Mexico
    Vehicle:
    Superwhite 06 DCLB
    ICON Extended travel Coilovers, Custom leaf pack, custom sliders and F&R bumpers, 295 75 17 Toyo Open Country MT's, On-Board air with F+R connectors, On-Board water with quick disconnect shower.Trimmed fenders and body mount chop. LOTS of wiring, dual battery setup, Solar charging system, with some random lights spread around here and there.

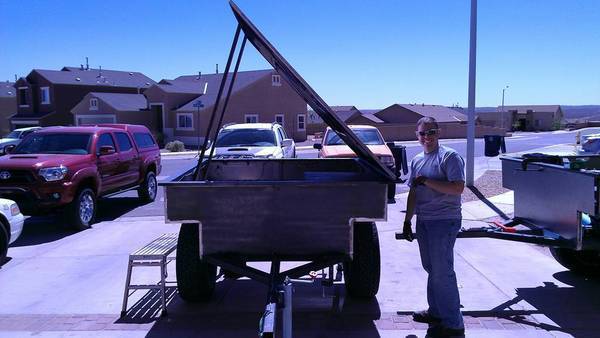

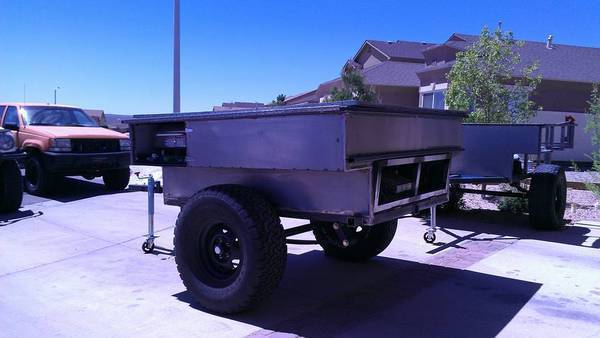

    Couple of show pics......

    [​IMG]
    [​IMG]
    [​IMG]

    Last edited: Mar 22, 2015
  3. Aug 25, 2013 at 1:05 PM
    #3
    Whitecloud

    Whitecloud [OP] Cloudy-fabricator of things

    Joined:
    Feb 24, 2010
    Member:
    #32031
    Messages:
    3,061
    Gender:
    Male
    First Name:
    Johnathan
    Albuquerque, New Mexico
    Vehicle:
    Superwhite 06 DCLB
    ICON Extended travel Coilovers, Custom leaf pack, custom sliders and F&R bumpers, 295 75 17 Toyo Open Country MT's, On-Board air with F+R connectors, On-Board water with quick disconnect shower.Trimmed fenders and body mount chop. LOTS of wiring, dual battery setup, Solar charging system, with some random lights spread around here and there.
    Lobster should be posting up some pics here shortly also.

    Some of Lobsters trailer pics.......
    [​IMG]
    [​IMG]
    [​IMG]
    [​IMG]

    Last edited: Aug 25, 2013
  4. Aug 25, 2013 at 1:08 PM
    #4
    Papa Taco

    Papa Taco HARD CAAAAAAARRRRRRRL

    Joined:
    Feb 20, 2013
    Member:
    #98004
    Messages:
    4,995
    Gender:
    Male
    First Name:
    Jared
    Orange County
    Vehicle:
    2011 Access Cab 4x4 6 Speed
    Follow the yellow brick road
    thats bad ass man! how long do you think it took you to make? and how much in materials did you spend? I love the idea of the grill and water tank

  5. Aug 25, 2013 at 1:10 PM
    #5
    Whitecloud

    Whitecloud [OP] Cloudy-fabricator of things

    Joined:
    Feb 24, 2010
    Member:
    #32031
    Messages:
    3,061
    Gender:
    Male
    First Name:
    Johnathan
    Albuquerque, New Mexico
    Vehicle:
    Superwhite 06 DCLB
    ICON Extended travel Coilovers, Custom leaf pack, custom sliders and F&R bumpers, 295 75 17 Toyo Open Country MT's, On-Board air with F+R connectors, On-Board water with quick disconnect shower.Trimmed fenders and body mount chop. LOTS of wiring, dual battery setup, Solar charging system, with some random lights spread around here and there.
    About 3-4 months. But that was Lobster and I really only working on it 1-2 days a week........Total cost was just north of 4K. We were taking about making a few more..:spy:

  6. Aug 25, 2013 at 1:16 PM
    #6
    Papa Taco

    Papa Taco HARD CAAAAAAARRRRRRRL

    Joined:
    Feb 20, 2013
    Member:
    #98004
    Messages:
    4,995
    Gender:
    Male
    First Name:
    Jared
    Orange County
    Vehicle:
    2011 Access Cab 4x4 6 Speed
    Follow the yellow brick road
    they are really freaking sweet. is that 4 a piece or total for the two?

  7. Aug 25, 2013 at 3:57 PM
    #7
    99yodataco

    99yodataco Little Taco that could

    Joined:
    Feb 18, 2010
    Member:
    #31633
    Messages:
    1,909
    Gender:
    Male
    First Name:
    Chad
    New Mexico, it's just a little bit fresher.
    Vehicle:
    99 taco 2.7l SAS
    Dana 44 front and some other useless things.
  8. Aug 25, 2013 at 6:08 PM
    #8
    Whitecloud

    Whitecloud [OP] Cloudy-fabricator of things

    Joined:
    Feb 24, 2010
    Member:
    #32031
    Messages:
    3,061
    Gender:
    Male
    First Name:
    Johnathan
    Albuquerque, New Mexico
    Vehicle:
    Superwhite 06 DCLB
    ICON Extended travel Coilovers, Custom leaf pack, custom sliders and F&R bumpers, 295 75 17 Toyo Open Country MT's, On-Board air with F+R connectors, On-Board water with quick disconnect shower.Trimmed fenders and body mount chop. LOTS of wiring, dual battery setup, Solar charging system, with some random lights spread around here and there.
    4 a piece.

  9. Aug 25, 2013 at 6:53 PM
    #9
    Whitecloud

    Whitecloud [OP] Cloudy-fabricator of things

    Joined:
    Feb 24, 2010
    Member:
    #32031
    Messages:
    3,061
    Gender:
    Male
    First Name:
    Johnathan
    Albuquerque, New Mexico
    Vehicle:
    Superwhite 06 DCLB
    ICON Extended travel Coilovers, Custom leaf pack, custom sliders and F&R bumpers, 295 75 17 Toyo Open Country MT's, On-Board air with F+R connectors, On-Board water with quick disconnect shower.Trimmed fenders and body mount chop. LOTS of wiring, dual battery setup, Solar charging system, with some random lights spread around here and there.
    More PICS>>>>>>

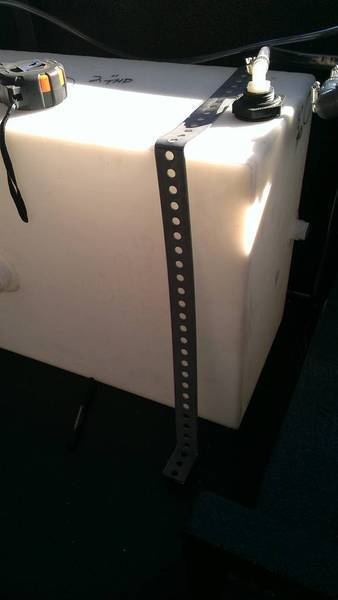

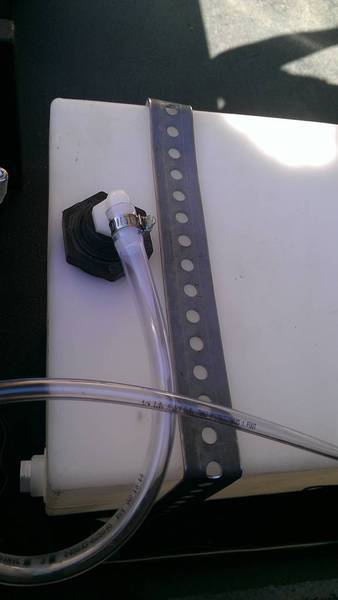

    Water tank straps....
    [​IMG]
    [​IMG]

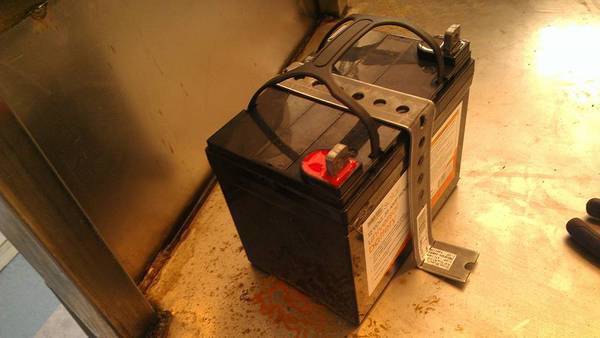

    Battery hold down strap...
    [​IMG]

    Tent opened...
    [​IMG]

  10. Aug 25, 2013 at 6:54 PM
    #10
    Papa Taco

    Papa Taco HARD CAAAAAAARRRRRRRL

    Joined:
    Feb 20, 2013
    Member:
    #98004
    Messages:
    4,995
    Gender:
    Male
    First Name:
    Jared
    Orange County
    Vehicle:
    2011 Access Cab 4x4 6 Speed
    Follow the yellow brick road
    way cool Have you had a chance to see what kind of terrain it can take?

  11. Aug 25, 2013 at 6:57 PM
    #11
    Whitecloud

    Whitecloud [OP] Cloudy-fabricator of things

    Joined:
    Feb 24, 2010
    Member:
    #32031
    Messages:
    3,061
    Gender:
    Male
    First Name:
    Johnathan
    Albuquerque, New Mexico
    Vehicle:
    Superwhite 06 DCLB
    ICON Extended travel Coilovers, Custom leaf pack, custom sliders and F&R bumpers, 295 75 17 Toyo Open Country MT's, On-Board air with F+R connectors, On-Board water with quick disconnect shower.Trimmed fenders and body mount chop. LOTS of wiring, dual battery setup, Solar charging system, with some random lights spread around here and there.
    With the Max Coupler hitch it can go anywhere that the truck can........

    <iframe width="560" height="315" src="//www.youtube.com/embed/4wb9kFUMNIA" frameborder="0" allowfullscreen></iframe>

  12. Aug 25, 2013 at 7:13 PM
    #12
    Papa Taco

    Papa Taco HARD CAAAAAAARRRRRRRL

    Joined:
    Feb 20, 2013
    Member:
    #98004
    Messages:
    4,995
    Gender:
    Male
    First Name:
    Jared
    Orange County
    Vehicle:
    2011 Access Cab 4x4 6 Speed
    Follow the yellow brick road
    thats definitely kick ass. Looks like you guys definitely did your research

  13. Aug 25, 2013 at 7:58 PM
    #13
    Whitecloud

    Whitecloud [OP] Cloudy-fabricator of things

    Joined:
    Feb 24, 2010
    Member:
    #32031
    Messages:
    3,061
    Gender:
    Male
    First Name:
    Johnathan
    Albuquerque, New Mexico
    Vehicle:
    Superwhite 06 DCLB
    ICON Extended travel Coilovers, Custom leaf pack, custom sliders and F&R bumpers, 295 75 17 Toyo Open Country MT's, On-Board air with F+R connectors, On-Board water with quick disconnect shower.Trimmed fenders and body mount chop. LOTS of wiring, dual battery setup, Solar charging system, with some random lights spread around here and there.
    Thanks.

  14. Aug 26, 2013 at 12:11 AM
    #14
    Whitecloud

    Whitecloud [OP] Cloudy-fabricator of things

    Joined:
    Feb 24, 2010
    Member:
    #32031
    Messages:
    3,061
    Gender:
    Male
    First Name:
    Johnathan
    Albuquerque, New Mexico
    Vehicle:
    Superwhite 06 DCLB
    ICON Extended travel Coilovers, Custom leaf pack, custom sliders and F&R bumpers, 295 75 17 Toyo Open Country MT's, On-Board air with F+R connectors, On-Board water with quick disconnect shower.Trimmed fenders and body mount chop. LOTS of wiring, dual battery setup, Solar charging system, with some random lights spread around here and there.

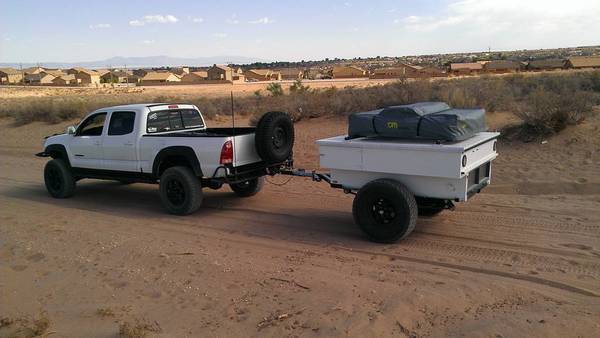

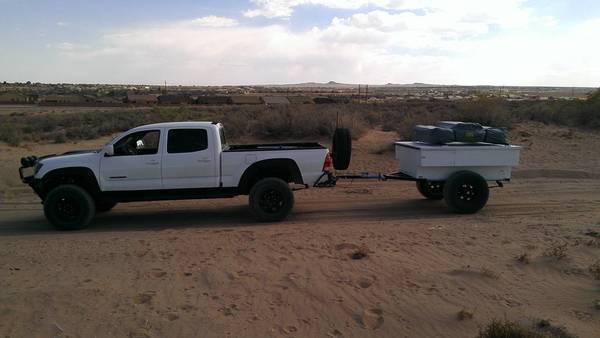

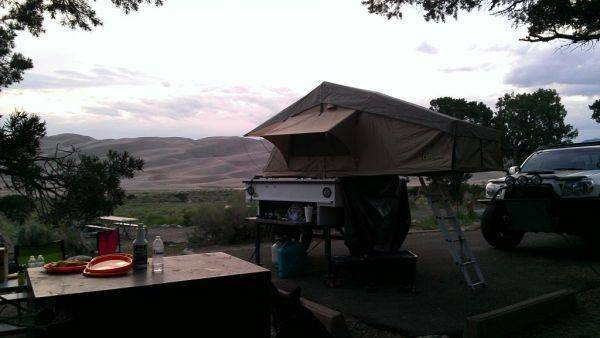

    Camping a couple weeks ago at Great Sand Dunes NP.
