Wicked brakes for 16" wheels

Discussion in '3rd Gen. Tacomas (2016+)' started by Jowett, Jun 6, 2019.

  1. Jun 6, 2019 at 2:39 PM
    #1
    Jowett

    Jowett [OP] Well-Known Member

    Joined:
    May 5, 2016
    Member:
    #186182
    Messages:
    1,022
    Gender:
    Male
    First Name:
    Brian
    North Adams, MA
    Here's a little project I'm working on that might help out those that wish to retain 16" wheels on their Taco, yet truly increase braking capabilities. While eventually things will be upsized on my ride (17" wheels), seeing what the stock calipers can do in the stock location is a nice logical step in building out. It also keeps costs down.

    As mentioned, the caliper will remain stock, by that I mean in the original mounting position with the original size 45.5mm diameter pistons. So we can neither increase brake torque through a larger diameter rotor disc, or clamping force through larger pistons. Both are ways that can improve what the system is capable of, but are not necessarily required to do so. That leaves us with managing the heat in a more efficient way.

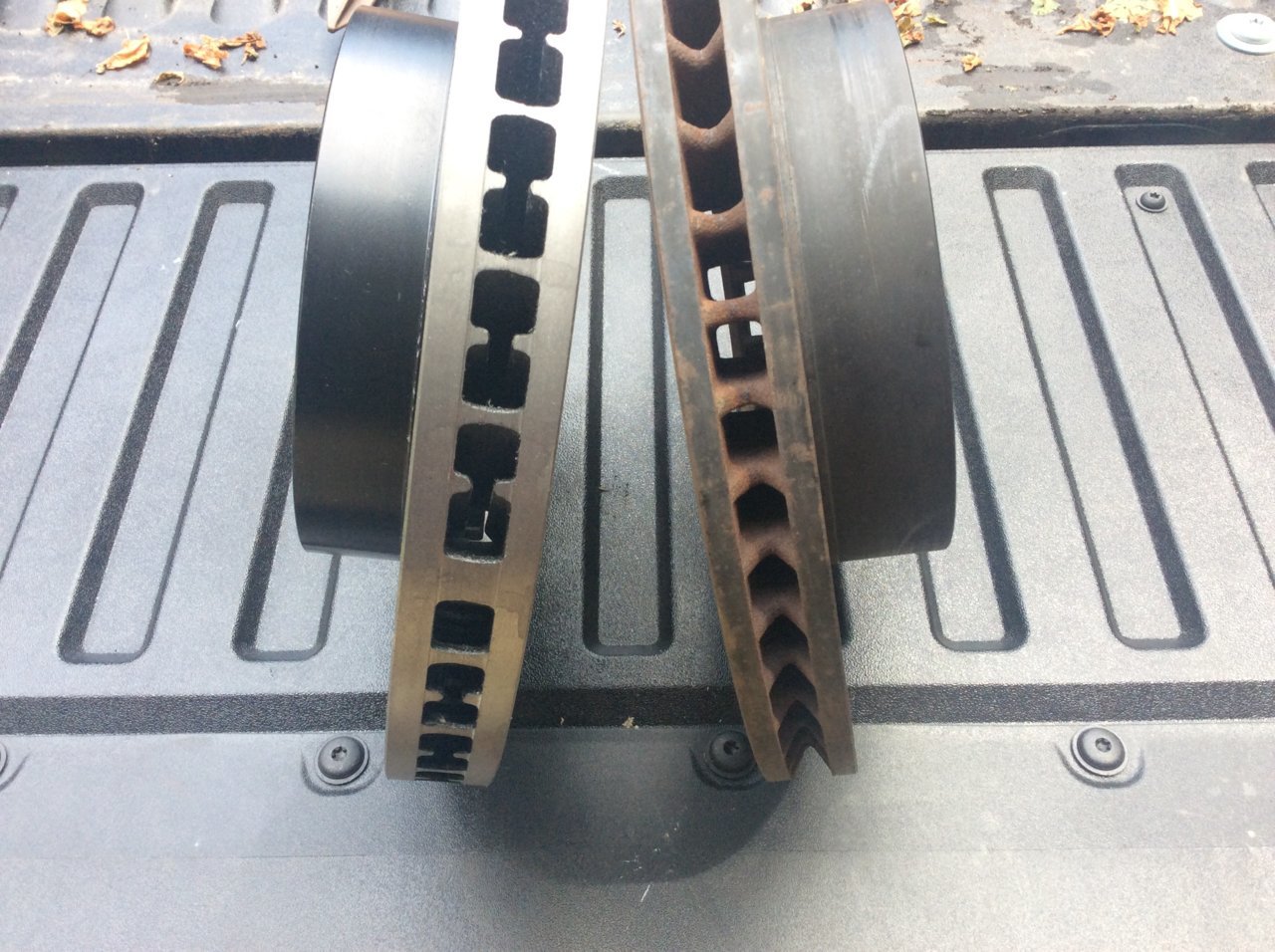

    The rotor is the main, but not the only, component to be changed here. It needs to be increased in mass and be of a better design that more quickly releases the energy that the mass absorbs. More iron mass is akin to a larger reservoir, extra room for what ever is being stored, in the case of a reservoir, more water. Eventually though, the reservoir will reach the extra capacity, and will need to be drained more quickly. That is where the increased surface area and more airflow of a better design will come in. Going wider and improving the vane design is the answer.

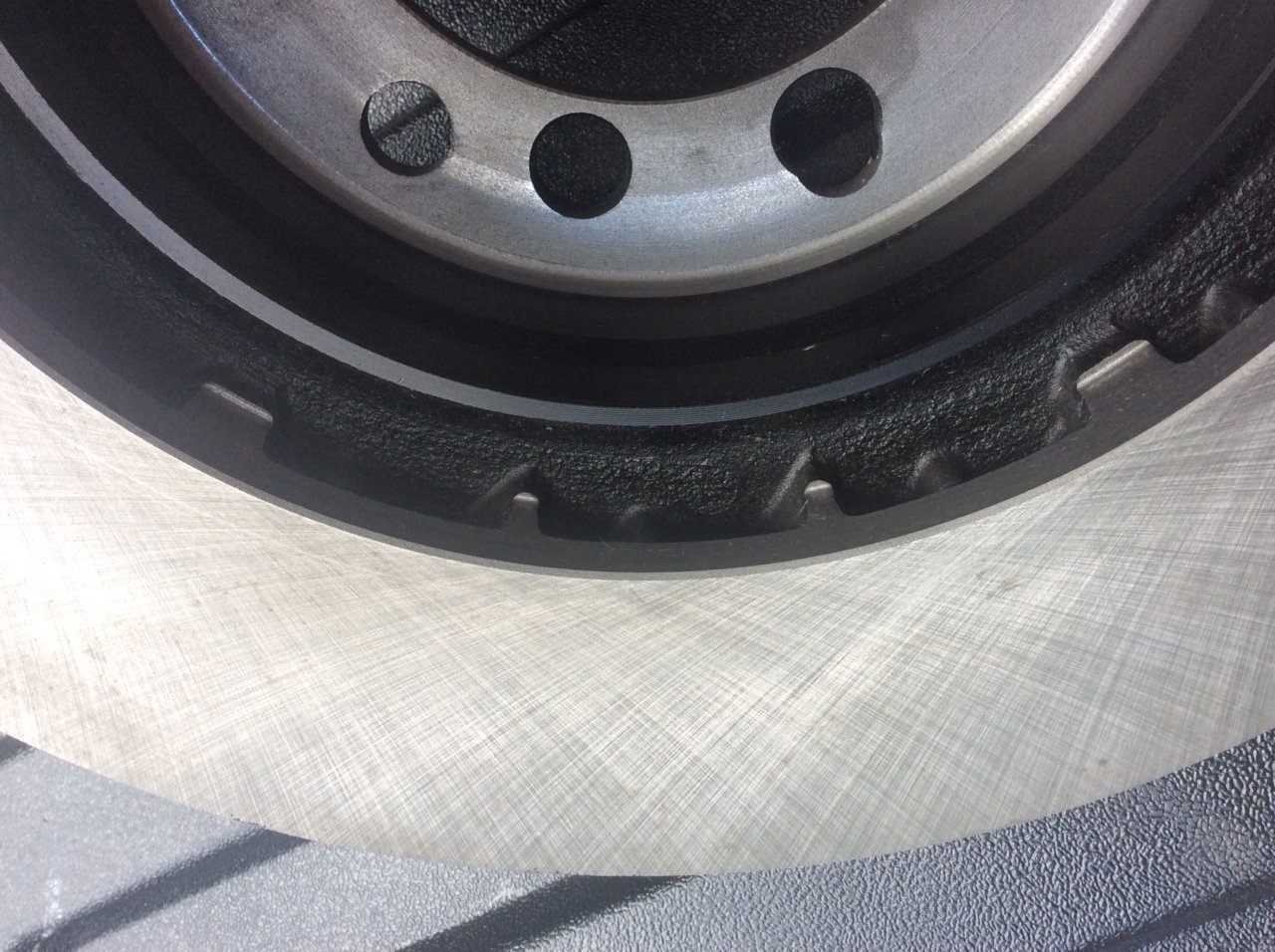

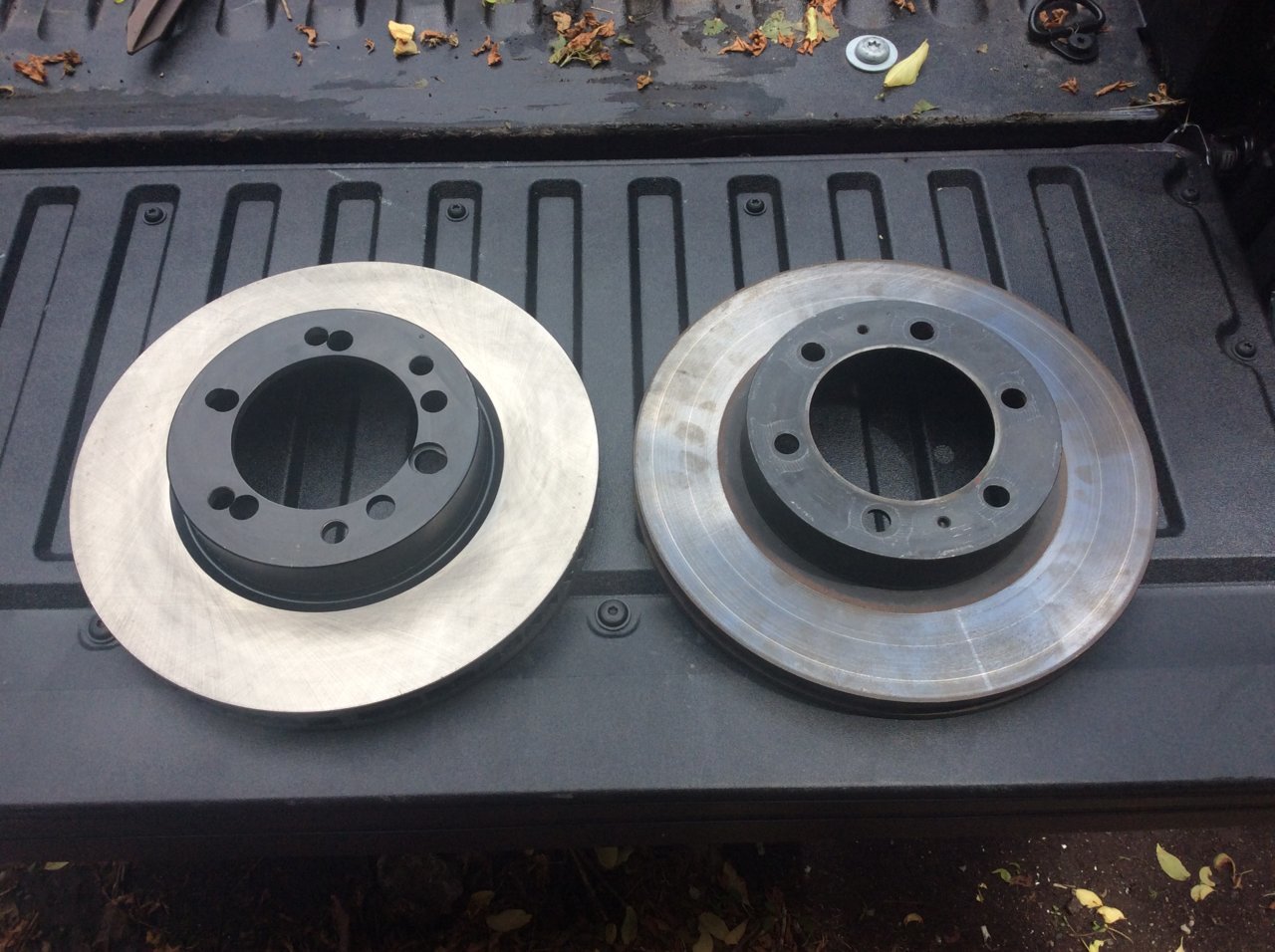

    As luck would have it, I had some rotors on the shelf from a previously owned vehicle that may fit the bill. All they needed, at least for prototyping, was a little design/measuring, and a trip to the machine shop. It measures 321mm in diameter, and 32mm wide. The stock rotor is 319 x 28. The 321 has curved directional vanes that number 55 in total, vs 45 stock. Each vane is 3" long, with every other one being split down the middle. The stock vanes are straight and 1.7" in length. Rotor weight increases by more than 3 lbs to a total weight of over 21lbs, the stock rotor is a bit under 18lbs. Most of the this additional weight is in the rotor ring and vanes. The walls of the rotor grow from roughly 6.5mm stock, to 7.5mm. The air channels between the vanes grow 2mm in width. There are other tricks in the rotor to help with flow, one is a guide that cast in on the ID that helps steer the air into the rotor.

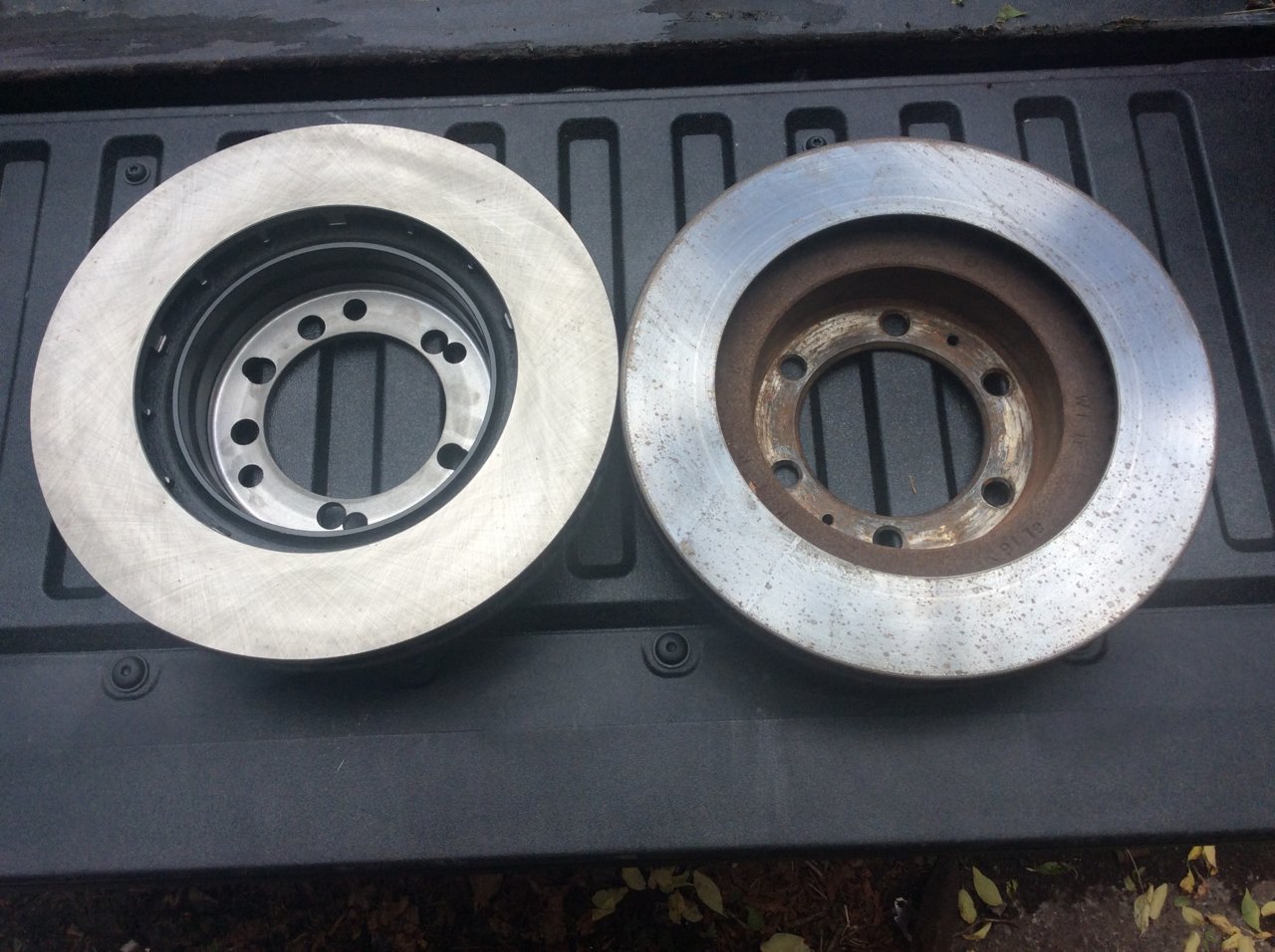

    So here we have the prototype rotor. The ugliest part is machining the new six lug pattern in... I'm sure that scares many folks... they are really only there for the studs to pass through, the rotor is centered on the hub by the bore, and clamped between it and the wheel. Ideally, one of the manufacturers will sell a batch prior to drilling the pattern... or drill it for us? Next post will the pads and then the caliper.


    mcharfauros, TXpro4X4 and Front sight like this.
  2. Jun 6, 2019 at 2:44 PM
    #2
    Jowett

    Jowett [OP] Well-Known Member

    Joined:
    May 5, 2016
    Member:
    #186182
    Messages:
    1,022
    Gender:
    Male
    First Name:
    Brian
    North Adams, MA
    Reserved

    mcharfauros likes this.
  3. Jun 6, 2019 at 7:41 PM
    #3
    Yann

    Yann Well-Known Member

    Joined:
    Oct 6, 2018
    Member:
    #268498
    Messages:
    792
    Gender:
    Male
    First Name:
    Mick
    South Carolina
    Vehicle:
    98 Base I4 4x2 / 18 SR V6 4x4
    A/C Drain Pro Grille Intermittent Wipers Blacked out Wheels Blacked out Badges Gasshole Nfab Predator Bars Tweeter Upgrade Kicker Upgrade Morimoto Amber LED Fog Lights Meso fuse box Stage 1 taillights
    Interesting

    Jowett [OP] and Comato$e like this.
  4. Jun 6, 2019 at 8:02 PM
    #4
    SpeySquatch

    SpeySquatch Function over Form

    Joined:
    Mar 6, 2018
    Member:
    #246516
    Messages:
    6,753
    Gender:
    Male
    Vehicle:
    2016 TRD OR DCSB
    C4Fab LoPro, BAMF Sliders, Adj. Ext ADS, 4.88's, OVTune

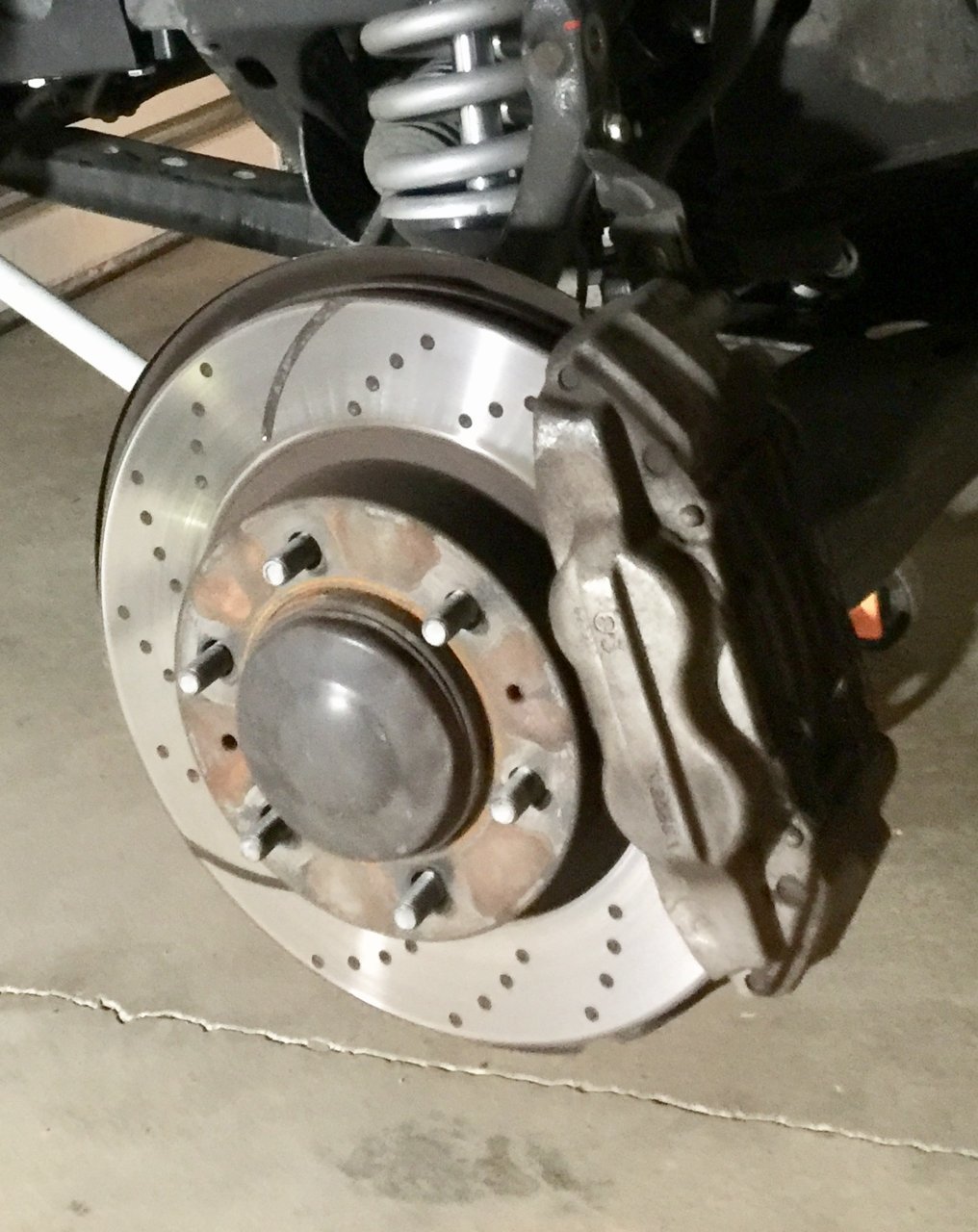

    I did the EBC vented with dimples and channels and they stop pretty darn good with the EBC green stuff pads...a little excessive on the brake dust though. Curious to know how well the ones you show will stop compared to stock.
