Wire 2 Switches to 1 set of lights? Can It be done?

Discussion in 'Lighting' started by Toyotaco1670, Jan 20, 2013.

  1. Jan 20, 2013 at 7:19 AM
    #1
    Toyotaco1670

    Toyotaco1670 [OP] Member

    Joined:
    Jan 8, 2013
    Member:
    #94763
    Messages:
    14
    Gender:
    Female
    Florida
    Vehicle:
    2010 Toyota Tacoma Prerunner Double Cab
    I have a set of lights in the back of my truck. I'd like to wire one switch in the cab and another switch in the back of the truck. Can it be done? If so how? Does anyone have a wire diagram?

  2. Jan 20, 2013 at 7:21 AM
    #2
    thegreatwall23

    thegreatwall23 Well-Known Member

    Joined:
    Feb 6, 2012
    Member:
    #72251
    Messages:
    584
    Gender:
    Male
    First Name:
    Danny
    Mt. Juliet, TN
    Vehicle:
    2009 TRD Off Road
    Armor Shrockworks front bumber Shrockworks Rock Sliders Brute Force Rear Bumper XRC8 with synthetic rope Relentless Full Skid Pack Suspension Icons 2.5 extended travel all around with King 14" 700# Springs Icon Tubular UCA's All Pro Standard Leaf Pack 3 degree axle shims Wheelers front bumpstop U bolt flip kit Timbren rear bumpstop Mods rear diff breather fog light anytime ABS Disable TPMS disable Door Chime disable Seat Belt Chime Disable Cab Mount Chop Pinch Weld Mod BHLM Other 4.56 Nitro gears FX-R Retrofit HID's with Halos PIAA fogs and driving lights Wet Okole seat covers Weather-Tech floormats Access LiteRider bed cover AMP bed extender Viair 450P-A Rocky Clutch SD mounts Pop-n-lock tailgate lock Aux rear lights Rear sliding window security bar B.A.M.F Light Bar Ultragauge 48" Hi Lift Jack with Bed Rail Mount Bushwacker Fender Flares ECGS PTFE Bushing SS Brake Lines Brembo Blanks Hawk HPS In cab winch control (12voltguy) Tint
    Yes, it can definitely be done and it's not too hard. Don't have a diagram, but I will see if I can find one.

  3. Jan 20, 2013 at 7:34 AM
    #3
    Mikey560

    Mikey560 Member

    Joined:
    Jun 13, 2012
    Member:
    #80627
    Messages:
    8
    Gender:
    Male
  4. Jan 20, 2013 at 7:37 AM
    #4
    Large

    Large Red

    Joined:
    Sep 10, 2011
    Member:
    #63268
    Messages:
    16,106
    Gender:
    Male
    You want a 3-way switch. You would need 2 DPDT switches and 2 positives running parallel between each switch.

  5. Jan 20, 2013 at 7:45 AM
    #5
    Large

    Large Red

    Joined:
    Sep 10, 2011
    Member:
    #63268
    Messages:
    16,106
    Gender:
    Male
    [​IMG]
    Pardon the crude drawing.
    You wouldn't tap in to where the switches prongs are, there would be 2 sets of them for each DPDT switch, just put them in the right spot or you will keep popping fuses.

  6. Jan 20, 2013 at 7:46 AM
    #6
    Large

    Large Red

    Joined:
    Sep 10, 2011
    Member:
    #63268
    Messages:
    16,106
    Gender:
    Male
  7. Jan 20, 2013 at 10:27 AM
    #7
    ROGU3 PR3DATOR

    ROGU3 PR3DATOR Space Shuttle Door Gunner

    Joined:
    Aug 9, 2010
    Member:
    #41451
    Messages:
    1,045
    Gender:
    Male
    First Name:
    Jake
    Clearfield Utah
    Vehicle:
    MGM 2011 TRD Off-Road
    Click my Sig Pic for my build thread. Too many to list here.
    Here is how I wired mine for that exact purpose, But I also wanted the switch to illuminate with the lights in the bed as an indicator. End result with my setup is one light on my switch comes on with the headlights, the other when the bed lights are on, no matter what position the in cab switch is in. Only difference in wiring is that I tied the dash lights to the lower light and the bed lights to the upper light in the switch. That way the words illuminate with the headlights. After I did this I also discovered that tapping into the dash light circuits also ties into the dimmer.

    [​IMG]

    Bed switch:
    [​IMG]

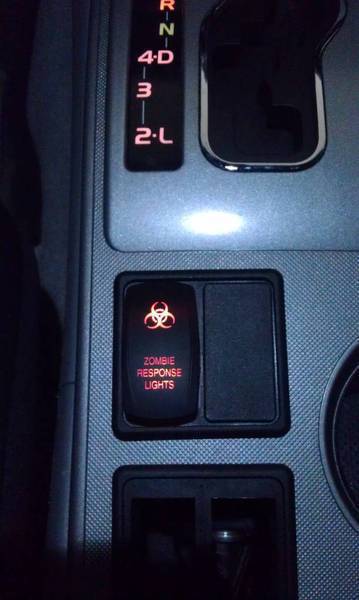

    Cab Switch:
    [​IMG]

  8. Jan 20, 2013 at 11:35 AM
    #8
    2chains

    2chains Well-Known Member

    Joined:
    May 15, 2010
    Member:
    #37210
    Messages:
    362
    Gender:
    Female
    Calgary, Alberta
    Vehicle:
    2010 Tacoma DC LB 3" Revtek lift
    3" Revtek lift, k&n 63-9025 intake, tailgate debadge, OEM Bed mat, decals gone. helo black max 6 bs 4.5 os-12,duratrac 285 70 17,smittybilt light bar, kc slimlites, pioneer pb3300 bt, window tint, weathertech digfits, raider lorider elite tonneau, at2525xl,
    Nice work ROGU3! Love that switch! Did you need a relay?

  9. Jan 20, 2013 at 11:56 AM
    #9
    ROGU3 PR3DATOR

    ROGU3 PR3DATOR Space Shuttle Door Gunner

    Joined:
    Aug 9, 2010
    Member:
    #41451
    Messages:
    1,045
    Gender:
    Male
    First Name:
    Jake
    Clearfield Utah
    Vehicle:
    MGM 2011 TRD Off-Road
    Click my Sig Pic for my build thread. Too many to list here.
    Thanks, and no, I didnt bother with a relay mainly because I didnt think it was necessary for just an led strip. That and I wanted the lights to work with the truck off. And I guess I should point out that I am not taking power directly from the battery. The circuit is fused via an Aux fuse block which is where the power comes from.

  10. Jan 20, 2013 at 11:59 AM
    #10
    staymates788

    staymates788 Well-Known Member

    Joined:
    Aug 31, 2012
    Member:
    #85931
    Messages:
    58
    Gender:
    Male
    First Name:
    SEAN
    Anaheim, CA USA
    Vehicle:
    2005 4x4 Double Cab Long Bed w/ TRD Sport
    Do you have a picture of the lights in the bed? I'm curious how the "marker" set up is.

  11. Jan 20, 2013 at 12:03 PM
    #11
    ROGU3 PR3DATOR

    ROGU3 PR3DATOR Space Shuttle Door Gunner

    Joined:
    Aug 9, 2010
    Member:
    #41451
    Messages:
    1,045
    Gender:
    Male
    First Name:
    Jake
    Clearfield Utah
    Vehicle:
    MGM 2011 TRD Off-Road
    Click my Sig Pic for my build thread. Too many to list here.
    Not sure what you mean by marker set up, but here are the photos:

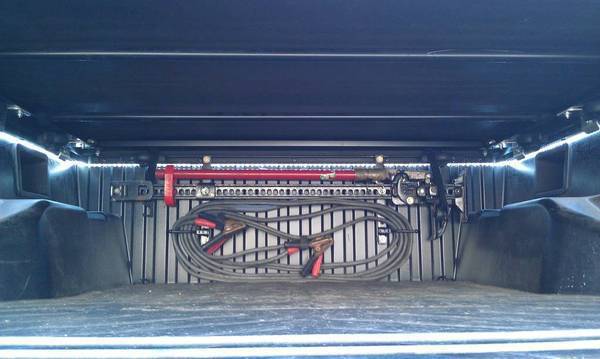

    Daytime:
    [​IMG]

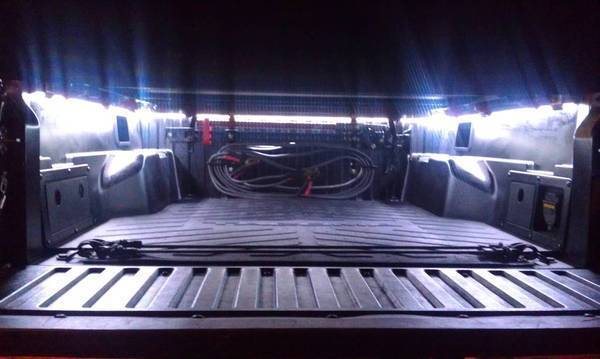

    Nighttime:
    [​IMG]

  12. Jan 20, 2013 at 12:20 PM
    #12
    staymates788

    staymates788 Well-Known Member

    Joined:
    Aug 31, 2012
    Member:
    #85931
    Messages:
    58
    Gender:
    Male
    First Name:
    SEAN
    Anaheim, CA USA
    Vehicle:
    2005 4x4 Double Cab Long Bed w/ TRD Sport
    ^^ I read that wrong, my bad.

    That's a awesome set up... Putting it on my To-Do list!

  13. Jan 20, 2013 at 12:31 PM
    #13
    claymore

    claymore Well-Known Member

    Joined:
    Aug 4, 2012
    Member:
    #84090
    Messages:
    352
    Gender:
    Male
    First Name:
    Clay
    ABQ New Mexico
    Vehicle:
    2012 Offroad
    TRD cat back exhaust, console vault(for my little friend),Pop and Lock, Bak Flip G2, Weather Tech window covers, LED inside and out, DTRL Anytime, Grillcraft Grill, BAMF Light Bar with Hella 500s and Blitzpro 15D, Eibach with 5100's all around set at .85 and top plate spacers, LR UCA's, toytec 2" add a leaf, Duratrack 285 75 16, ABS kill switch, Aux reverse lights, Blue Sea Aux fuse block, ImMrYo Bracket, LED Bedlights, Ultra Gauge,
    How do you have the high lift and cables attached up there? Looks good!

  14. Jan 20, 2013 at 12:34 PM
    #14
    claymore

    claymore Well-Known Member

    Joined:
    Aug 4, 2012
    Member:
    #84090
    Messages:
    352
    Gender:
    Male
    First Name:
    Clay
    ABQ New Mexico
    Vehicle:
    2012 Offroad
    TRD cat back exhaust, console vault(for my little friend),Pop and Lock, Bak Flip G2, Weather Tech window covers, LED inside and out, DTRL Anytime, Grillcraft Grill, BAMF Light Bar with Hella 500s and Blitzpro 15D, Eibach with 5100's all around set at .85 and top plate spacers, LR UCA's, toytec 2" add a leaf, Duratrack 285 75 16, ABS kill switch, Aux reverse lights, Blue Sea Aux fuse block, ImMrYo Bracket, LED Bedlights, Ultra Gauge,
    Never mind....saw it in your build. I like it.

  15. Jan 20, 2013 at 12:54 PM
    #15
    Rich91710

    Rich91710 Well-Known Member

    Joined:
    Feb 23, 2012
    Member:
    #73470
    Messages:
    16,477
    Gender:
    Male
    First Name:
    Rich
    Los Angeles
    Vehicle:
    08 Base
    Satoshi with FJ badge, factory cruise, factory intermittent wipers, Redline Tuning hood-lift struts, Hellwig Swaybar, Rosen DVD-Nav
    Great circuit Rogu3.

    Large... Dafuk is that? :D

    Rogu3... that is a very creative way to maintain an indicator light on the dash. Most switches won't allow for that because one leg of the indicator is connected to the "output", and of course, that alternates with the 3-way switch.

    Caution to those planning this that you are going to need a specific OTTRAW switch that has isolated terminals for the indicator.
    A SPDT will work fine if that is available with the isolated lamps.

  16. Jan 20, 2013 at 12:56 PM
    #16
    TeamSarcasm

    TeamSarcasm Mr. President

    Joined:
    Feb 20, 2011
    Member:
    #51510
    Messages:
    10,115
    Gender:
    Male
    That sir is Microsoft Paint :D

    Jkjk Large, better than anything I can do and more than I have contributed to this thread :eek:

  17. Jan 20, 2013 at 12:59 PM
    #17
    Rich91710

    Rich91710 Well-Known Member

    Joined:
    Feb 23, 2012
    Member:
    #73470
    Messages:
    16,477
    Gender:
    Male
    First Name:
    Rich
    Los Angeles
    Vehicle:
    08 Base
    Satoshi with FJ badge, factory cruise, factory intermittent wipers, Redline Tuning hood-lift struts, Hellwig Swaybar, Rosen DVD-Nav
    Ya... I use paint all the time.
    I used it to make "CAD" drawings that I'd send to our San Jose office because the boss wouldn't buy a 2nd license.

    But he's got an extra wire going to the light from the left switch.

  18. Jan 20, 2013 at 6:18 PM
    #18
    ROGU3 PR3DATOR

    ROGU3 PR3DATOR Space Shuttle Door Gunner

    Joined:
    Aug 9, 2010
    Member:
    #41451
    Messages:
    1,045
    Gender:
    Male
    First Name:
    Jake
    Clearfield Utah
    Vehicle:
    MGM 2011 TRD Off-Road
    Click my Sig Pic for my build thread. Too many to list here.
    Thanks, I ended up using the switch OTRATTW offered that had two independently wired amber LEDs, but having looked for another one recently, I could not find the same switch body on their site.

    The extra wire is what provides power to the top light in the switch and acts as an indicator, but is unaffected by switch position. That way whenever the bed lights are on, so is the top portion of the switch.

  19. Jan 20, 2013 at 7:26 PM
    #19
    Toyotaco1670

    Toyotaco1670 [OP] Member

    Joined:
    Jan 8, 2013
    Member:
    #94763
    Messages:
    14
    Gender:
    Female
    Florida
    Vehicle:
    2010 Toyota Tacoma Prerunner Double Cab
    Thanks for all the great info and diagram!!

  20. Jan 20, 2013 at 8:13 PM
    #20
    Rich91710

    Rich91710 Well-Known Member

    Joined:
    Feb 23, 2012
    Member:
    #73470
    Messages:
    16,477
    Gender:
    Male
    First Name:
    Rich
    Los Angeles
    Vehicle:
    08 Base
    Satoshi with FJ badge, factory cruise, factory intermittent wipers, Redline Tuning hood-lift struts, Hellwig Swaybar, Rosen DVD-Nav
    I was referring to Large's cluster that didn't show where anything was connected to anything and showed two wires running to the light plus the ground.
    Ya, I was looking for one for a thread a while back and the only solution I could come up with was to run a separate indicator light.
    Too bad the OEM FJ Cruiser switch is a SPST... if it were a DT you could use it since the indicator is separate.
