Wire sizing / light bar amp draw question

Discussion in 'Lighting' started by ScottyR, Aug 11, 2018.

  1. Aug 11, 2018 at 8:19 PM
    #1
    ScottyR

    ScottyR [OP] Well-Known Member

    Joined:
    Dec 7, 2015
    Member:
    #171708
    Messages:
    631
    Gender:
    Male
    Vancouver BC
    Vehicle:
    2016 DCLB TRD Sport
    Hey folks. I’m looking to get my caliraised light bar wired up and I want to go ahead and use this wire 14 AWG 10 ft OZ-USA 2 Wire 12v 24v cable car truck marine boat light led bar electrical wiring industrial https://www.amazon.com/dp/B0764TSZNG/ref=cm_sw_r_cp_api_Cw6BBbRW8V5MD . The website states that the light bar has a 200 watt draw. I know that these numbers are usually inflated and may not be that high. With 14awg wire I am on the fence in wether or not I can use it. Does any one know where I could find that wire in 12 awg or is 14 awg good enough?

  2. Aug 13, 2018 at 7:22 PM
    #2
    destin_meeks

    destin_meeks I used to fix people's crappy stereos

    Joined:
    Jul 14, 2017
    Member:
    #223997
    Messages:
    2,894
    Gender:
    Male
    First Name:
    Destin
    Tuscaloosa, AL
    Vehicle:
    2017 SSM DoubleCab TRD Off-Road 4x4
    14awg is plenty for the caliraised bar in my opinion

    I might opt for 12awg if it was something like the 40” Baja designs that is BLASTING some light output, but the Cali probably isn’t (given its price)

    I have Cali ditch pods and love them! I think I’m using 16awg for them because I have a 500ft spool of it in the shop

  3. Aug 13, 2018 at 7:26 PM
    #3
    destin_meeks

    destin_meeks I used to fix people's crappy stereos

    Joined:
    Jul 14, 2017
    Member:
    #223997
    Messages:
    2,894
    Gender:
    Male
    First Name:
    Destin
    Tuscaloosa, AL
    Vehicle:
    2017 SSM DoubleCab TRD Off-Road 4x4
    I always use the Blue Seas chart, and most aux electrical items on our trucks fall on the “non-critical” side 0521BD81-FDBD-42B6-97C5-6AA3B684C205.jpg

    PNWTacoma and Sandman614 like this.
  4. Aug 13, 2018 at 7:35 PM
    #4
    ScottyR

    ScottyR [OP] Well-Known Member

    Joined:
    Dec 7, 2015
    Member:
    #171708
    Messages:
    631
    Gender:
    Male
    Vancouver BC
    Vehicle:
    2016 DCLB TRD Sport
    Thank you for your input. My meter only did up to 10 amps DC and it pinned the analog gauge. I have decided to go with 14 awg just because it’s a super short run.

  5. Aug 13, 2018 at 7:59 PM
    #5
    Sandman614

    Sandman614 Snarky TWSS elf, Travis #hotsavannahdotcom, LRGRNR

    Joined:
    Oct 26, 2010
    Member:
    #45273
    Messages:
    34,465
    Gender:
    Male
    First Name:
    Tim
    Garner, NC/Boone, NC
    Vehicle:
    '06 SR5 Off Road
    ARB Front Bumper, Projector Headlights w/Slimcubby 4300K HID's, Oznium LED's, LED taillights, DIY Washable Cabin Moose Filter, Sockmonkey SR5 Off Road, Aux Audio plug, OME 886x, OME Nitrochargers, Wheelers 3 Leaf Progressive AAL, ImMrYo Rear-View Mirror Lift Bracket, Dodge D-Rings
    An important note.. The wire length is the total run, positive and negative.

    Quoted because this should be in every electrical wire size thread! Ampacity, voltage drop, and proper connectors are super important!

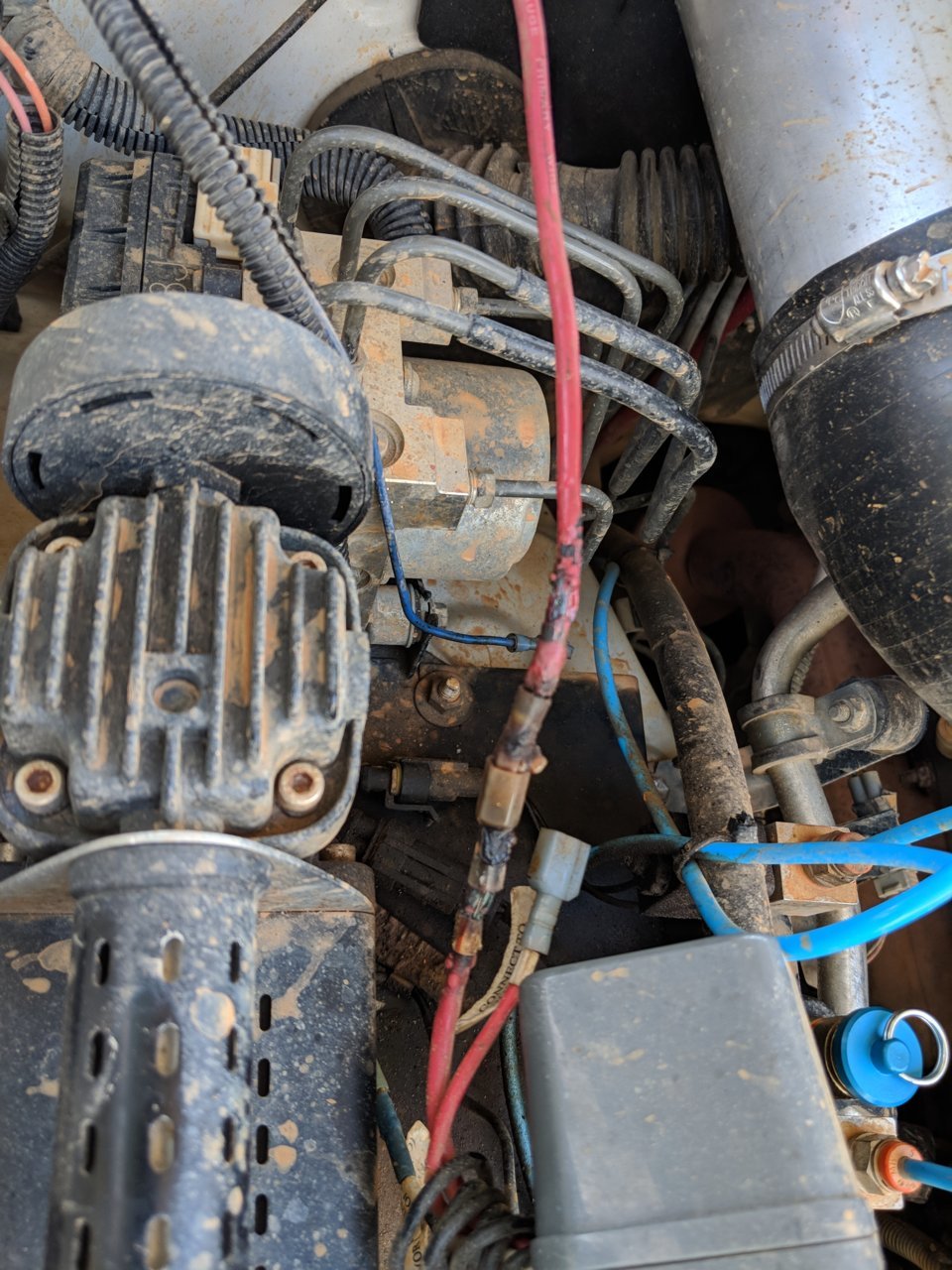

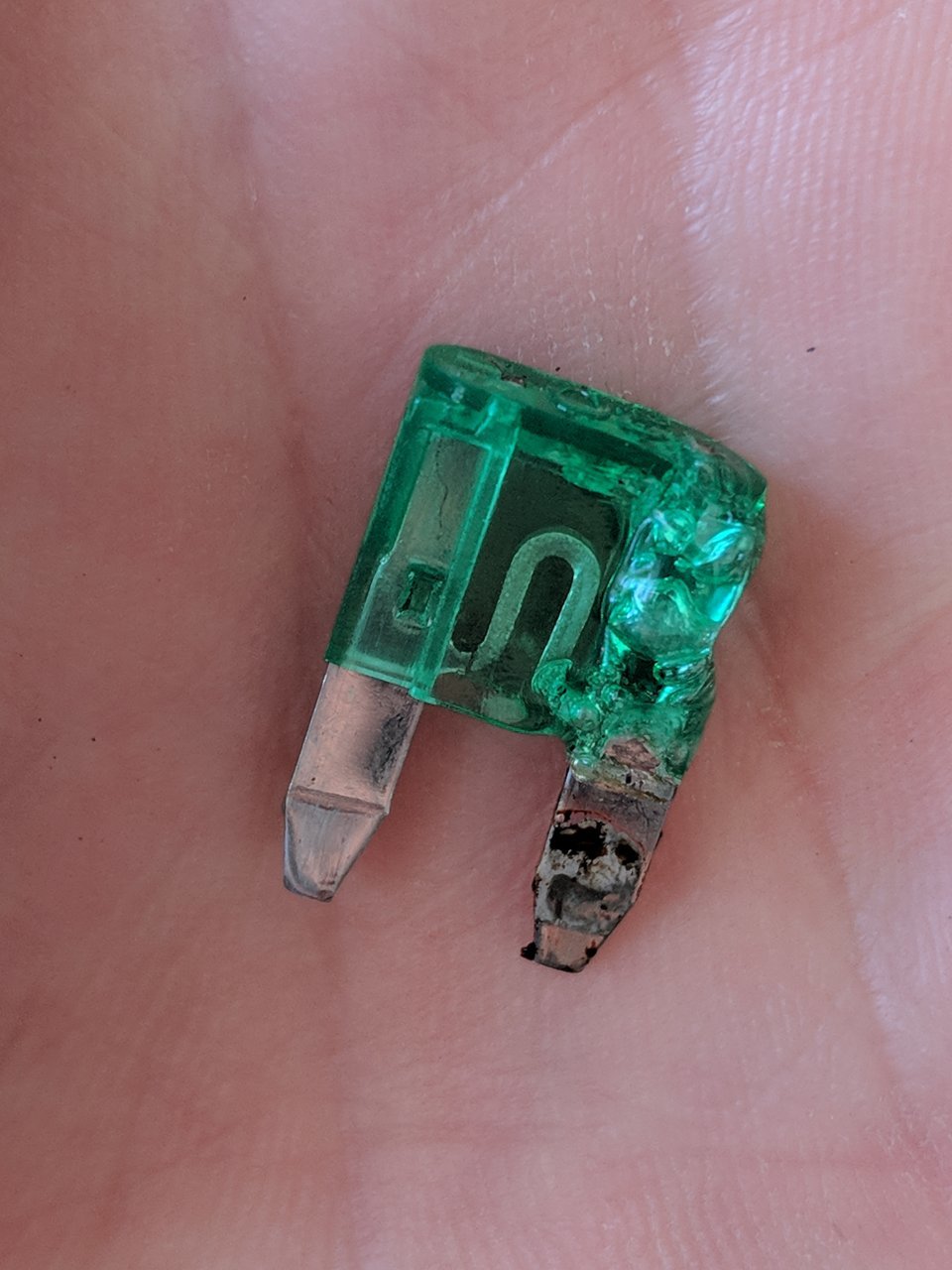

    I had an issue with spade quick connectors loosening up from heat cycles, which increased resistance. Resistance = more heat. The wiring and fuse are sized appropriately.. I'm glad I caught this when i did..


    Last edited: Aug 13, 2018
  6. Aug 13, 2018 at 8:01 PM
    #6
    Sandman614

    Sandman614 Snarky TWSS elf, Travis #hotsavannahdotcom, LRGRNR

    Joined:
    Oct 26, 2010
    Member:
    #45273
    Messages:
    34,465
    Gender:
    Male
    First Name:
    Tim
    Garner, NC/Boone, NC
    Vehicle:
    '06 SR5 Off Road
    ARB Front Bumper, Projector Headlights w/Slimcubby 4300K HID's, Oznium LED's, LED taillights, DIY Washable Cabin Moose Filter, Sockmonkey SR5 Off Road, Aux Audio plug, OME 886x, OME Nitrochargers, Wheelers 3 Leaf Progressive AAL, ImMrYo Rear-View Mirror Lift Bracket, Dodge D-Rings
    Testing amperage that's out of range for your meter is a good way to fry your meter.

    [​IMG]


  7. Aug 14, 2018 at 7:35 AM
    #7
    ScottyR

    ScottyR [OP] Well-Known Member

    Joined:
    Dec 7, 2015
    Member:
    #171708
    Messages:
    631
    Gender:
    Male
    Vancouver BC
    Vehicle:
    2016 DCLB TRD Sport
    Agreed. The only reason I tested it is because most manufacturers lie about their light bars output. I honestly didn’t think that my light bar would pull more then 10 amps.

  8. Aug 14, 2018 at 7:37 AM
    #8
    ScottyR

    ScottyR [OP] Well-Known Member

    Joined:
    Dec 7, 2015
    Member:
    #171708
    Messages:
    631
    Gender:
    Male
    Vancouver BC
    Vehicle:
    2016 DCLB TRD Sport
    So if the light bar is 6 ft away from your battery it would be a total of a 12ft run?

    Btw that is shocking that your fuse did not blow.

    Sandman614 likes this.
  9. Aug 14, 2018 at 7:38 AM
    #9
    Sandman614

    Sandman614 Snarky TWSS elf, Travis #hotsavannahdotcom, LRGRNR

    Joined:
    Oct 26, 2010
    Member:
    #45273
    Messages:
    34,465
    Gender:
    Male
    First Name:
    Tim
    Garner, NC/Boone, NC
    Vehicle:
    '06 SR5 Off Road
    ARB Front Bumper, Projector Headlights w/Slimcubby 4300K HID's, Oznium LED's, LED taillights, DIY Washable Cabin Moose Filter, Sockmonkey SR5 Off Road, Aux Audio plug, OME 886x, OME Nitrochargers, Wheelers 3 Leaf Progressive AAL, ImMrYo Rear-View Mirror Lift Bracket, Dodge D-Rings
    It's better to be safe than blindly test. Power ratings when referring to wattage of a 12v system are generally posted a little high so there is room for margin. Power(wattage) is not to be confused with light output lumens. Here is the meter I just recently picked up, it's inexpensive and can handle up to 100A AC and DC.
    https://www.amazon.com/gp/product/B077ZVQY9G/

  10. Aug 14, 2018 at 7:39 AM
    #10
    Sandman614

    Sandman614 Snarky TWSS elf, Travis #hotsavannahdotcom, LRGRNR

    Joined:
    Oct 26, 2010
    Member:
    #45273
    Messages:
    34,465
    Gender:
    Male
    First Name:
    Tim
    Garner, NC/Boone, NC
    Vehicle:
    '06 SR5 Off Road
    ARB Front Bumper, Projector Headlights w/Slimcubby 4300K HID's, Oznium LED's, LED taillights, DIY Washable Cabin Moose Filter, Sockmonkey SR5 Off Road, Aux Audio plug, OME 886x, OME Nitrochargers, Wheelers 3 Leaf Progressive AAL, ImMrYo Rear-View Mirror Lift Bracket, Dodge D-Rings
    Yep 12ft. Haha yea, the circuit is only pulling 23amps at it's highest so that's the reason it didn't blow. It just got too hot for it's own good.

  11. Aug 14, 2018 at 7:41 AM
    #11
    ScottyR

    ScottyR [OP] Well-Known Member

    Joined:
    Dec 7, 2015
    Member:
    #171708
    Messages:
    631
    Gender:
    Male
    Vancouver BC
    Vehicle:
    2016 DCLB TRD Sport
    Will deffiently be picking up a meter that reads DC amps for future diagnosis. I didn’t care that my meter only read up to 10 amps because it had a 10 amp fuse built in that could easily be replaced if necessary.

  12. Aug 14, 2018 at 7:42 AM
    #12
    ScottyR

    ScottyR [OP] Well-Known Member

    Joined:
    Dec 7, 2015
    Member:
    #171708
    Messages:
    631
    Gender:
    Male
    Vancouver BC
    Vehicle:
    2016 DCLB TRD Sport
    Makes you want to check your aftermarket electrical often. Mind you I have never had good luck with spade connectors

  13. Aug 14, 2018 at 7:43 AM
    #13
    Sandman614

    Sandman614 Snarky TWSS elf, Travis #hotsavannahdotcom, LRGRNR

    Joined:
    Oct 26, 2010
    Member:
    #45273
    Messages:
    34,465
    Gender:
    Male
    First Name:
    Tim
    Garner, NC/Boone, NC
    Vehicle:
    '06 SR5 Off Road
    ARB Front Bumper, Projector Headlights w/Slimcubby 4300K HID's, Oznium LED's, LED taillights, DIY Washable Cabin Moose Filter, Sockmonkey SR5 Off Road, Aux Audio plug, OME 886x, OME Nitrochargers, Wheelers 3 Leaf Progressive AAL, ImMrYo Rear-View Mirror Lift Bracket, Dodge D-Rings
    These have worked fine for the last 3 years but with the many heat cycles they have loosened up. The new Anderson connectors I installed are rated for 45amps.

  14. Aug 18, 2018 at 6:17 AM
    #14
    n0rlf

    n0rlf Living the good life

    Joined:
    Sep 6, 2014
    Member:
    #137707
    Messages:
    63
    Gender:
    Male
    First Name:
    Mike
    Easy central Tenn. Bledsoe County
    Vehicle:
    17 YRS Sport DCSB 2WD. Pretty stock
    Best rulle of thumb in wiring: Think you have the right size wire? Go up two steps! Better to spend a little more now than risk disaster later.

    I am anal about these things so I always over engineer. Then again i almost never have issues so I guess it pays off in the end. Make it right and make it neat the first time as you will most likely not ever get time to make it right or neat.

  15. Aug 19, 2018 at 11:45 AM
    #15
    Sandman614

    Sandman614 Snarky TWSS elf, Travis #hotsavannahdotcom, LRGRNR

    Joined:
    Oct 26, 2010
    Member:
    #45273
    Messages:
    34,465
    Gender:
    Male
    First Name:
    Tim
    Garner, NC/Boone, NC
    Vehicle:
    '06 SR5 Off Road
    ARB Front Bumper, Projector Headlights w/Slimcubby 4300K HID's, Oznium LED's, LED taillights, DIY Washable Cabin Moose Filter, Sockmonkey SR5 Off Road, Aux Audio plug, OME 886x, OME Nitrochargers, Wheelers 3 Leaf Progressive AAL, ImMrYo Rear-View Mirror Lift Bracket, Dodge D-Rings
    o_O :anonymous:
    Yo I want to run an indicator led, what size wire do I need....

    [​IMG]

    Aw9d likes this.
  16. Aug 24, 2018 at 11:43 AM
    #16
    n0rlf

    n0rlf Living the good life

    Joined:
    Sep 6, 2014
    Member:
    #137707
    Messages:
    63
    Gender:
    Male
    First Name:
    Mike
    Easy central Tenn. Bledsoe County
    Vehicle:
    17 YRS Sport DCSB 2WD. Pretty stock
    I said over engineer not get ridiculous. On the other hand it would never fail! LOL

  17. Sep 21, 2018 at 7:57 AM
    #17
    MoonKnight

    MoonKnight Well-Known Member

    Joined:
    Nov 26, 2016
    Member:
    #203345
    Messages:
    742
    Gender:
    Male
    First Name:
    chris
    Oromocto New Brunswick
    Vehicle:
    White 2011 Toyota Tacoma TRD off road 4x4 V6 ACLB
    Have a question with wiring lights

    I want to buy pods for mine and I wanted to wire the pods into my fog light switch is it possible? Or could I tap into the already existing Wires

  18. Sep 21, 2018 at 8:01 AM
    #18
    lanceputnam

    lanceputnam Well-Known Member

    Joined:
    Mar 5, 2018
    Member:
    #246394
    Messages:
    229
    Gender:
    Male

    You can run the factory switch without issue as long as you use it to "activate" the relay on the trigger pin. The full current and load of the lamps will go through the relay, not the switch. Essentially you will be running a wire parallel (spliced into) to the current "trigger" wire for your factory fogs and then connecting that splice to the switch leg on your relay for your pods. The factory switch will only be handling enough current to trigger both of the "accessory" relays that run your factory fogs and your pods. Both of these combined will not be anywhere close to enough to hit the limit of the switch.

  19. Sep 21, 2018 at 8:04 AM
    #19
    MoonKnight

    MoonKnight Well-Known Member

    Joined:
    Nov 26, 2016
    Member:
    #203345
    Messages:
    742
    Gender:
    Male
    First Name:
    chris
    Oromocto New Brunswick
    Vehicle:
    White 2011 Toyota Tacoma TRD off road 4x4 V6 ACLB
    So I guess it would just be easier to get another switch

  20. Sep 21, 2018 at 8:13 AM
    #20
    lanceputnam

    lanceputnam Well-Known Member

    Joined:
    Mar 5, 2018
    Member:
    #246394
    Messages:
    229
    Gender:
    Male
    Yes and no. If you have space for another switch, then go for it. I personally like having all of my light switches on independent circuits for diagnostic and performance reasons. But, switches are $20. All you need to do is find out which wire coming out of the back of your factory fog switch is the "trigger" wire. IE: When you push the switch, which wire sends current to the factory relays located under the hood in order to power the relay coil inside the tiny black box of a relay and activate the switch inside of the tiny black box which allows the switch gate to close and power to pass through to the lights.

    Glaese likes this.
