wired harness actuator tacoma 2001 standard extracab

Discussion in '1st Gen. Tacomas (1995-2004)' started by Franklin2020tacoma, Jun 30, 2020.

  1. Jun 30, 2020 at 8:26 AM
    #1
    Franklin2020tacoma

    Franklin2020tacoma [OP] Member

    Joined:
    Jun 28, 2020
    Member:
    #332796
    Messages:
    10
    Gender:
    Male
    First Name:
    Franklin
    Vehicle:
    Tacoma 2001 TRD SPORT

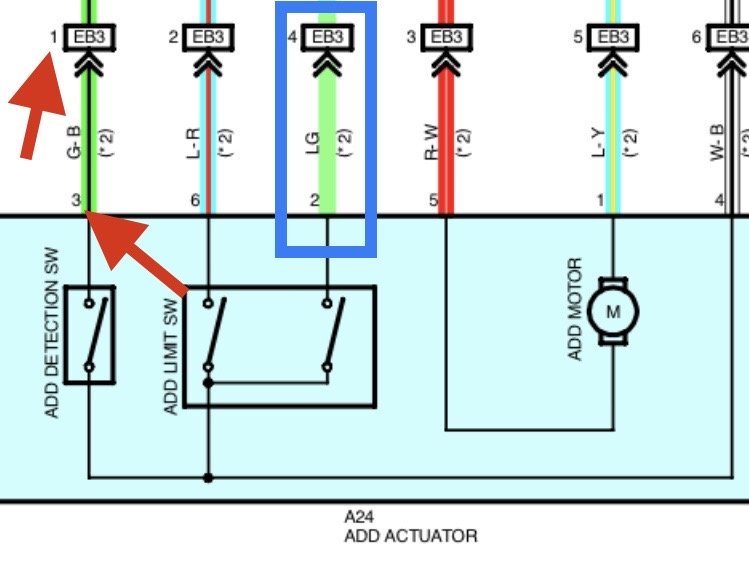

    Good morning, excuse the question, a member of this group sent me the actuator wiring manual, but I do not understand how to connect the cables with respect to the pin number of the connector and the actuator goes each cable, if someone can help me in that aspect, I would really appreciate it, I am attaching an image of the numbers with an arrow in the diagram, I am new to interpret the diagrams.
    What little did I understand from the diagram, is that if the EB3 connector has the number 4 it corresponds to pin "4" and that cable goes to pin 2 of the A24 connector? or to the actuator pin? blue closure the example



  2. Jun 30, 2020 at 8:45 AM
    #2
    Wyoming09

    Wyoming09 Well-Known Member

    Joined:
    Apr 24, 2015
    Member:
    #153833
    Messages:
    9,526
    Gender:
    Male
    New Tripoli Pa
    Vehicle:
    2000 Work truck 5 speed 4x4 3.4
    Super Springs
    What are you trying to do??

    The junction connector all the wire colors match

    The ADD plug without seeing the pin lay out A meter should be able to figure things out

  3. Jun 30, 2020 at 8:56 AM
    #3
    Franklin2020tacoma

    Franklin2020tacoma [OP] Member

    Joined:
    Jun 28, 2020
    Member:
    #332796
    Messages:
    10
    Gender:
    Male
    First Name:
    Franklin
    Vehicle:
    Tacoma 2001 TRD SPORT

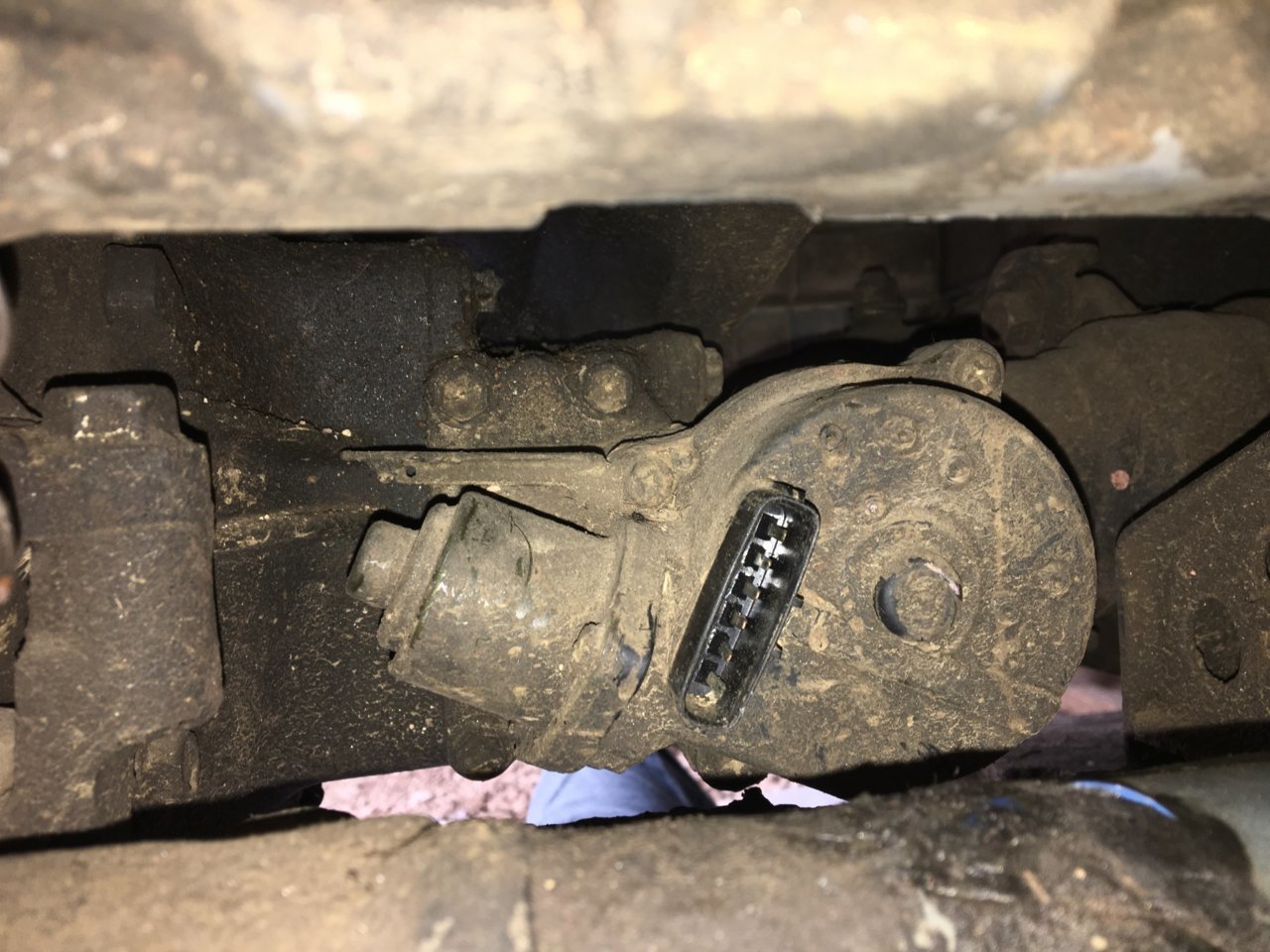

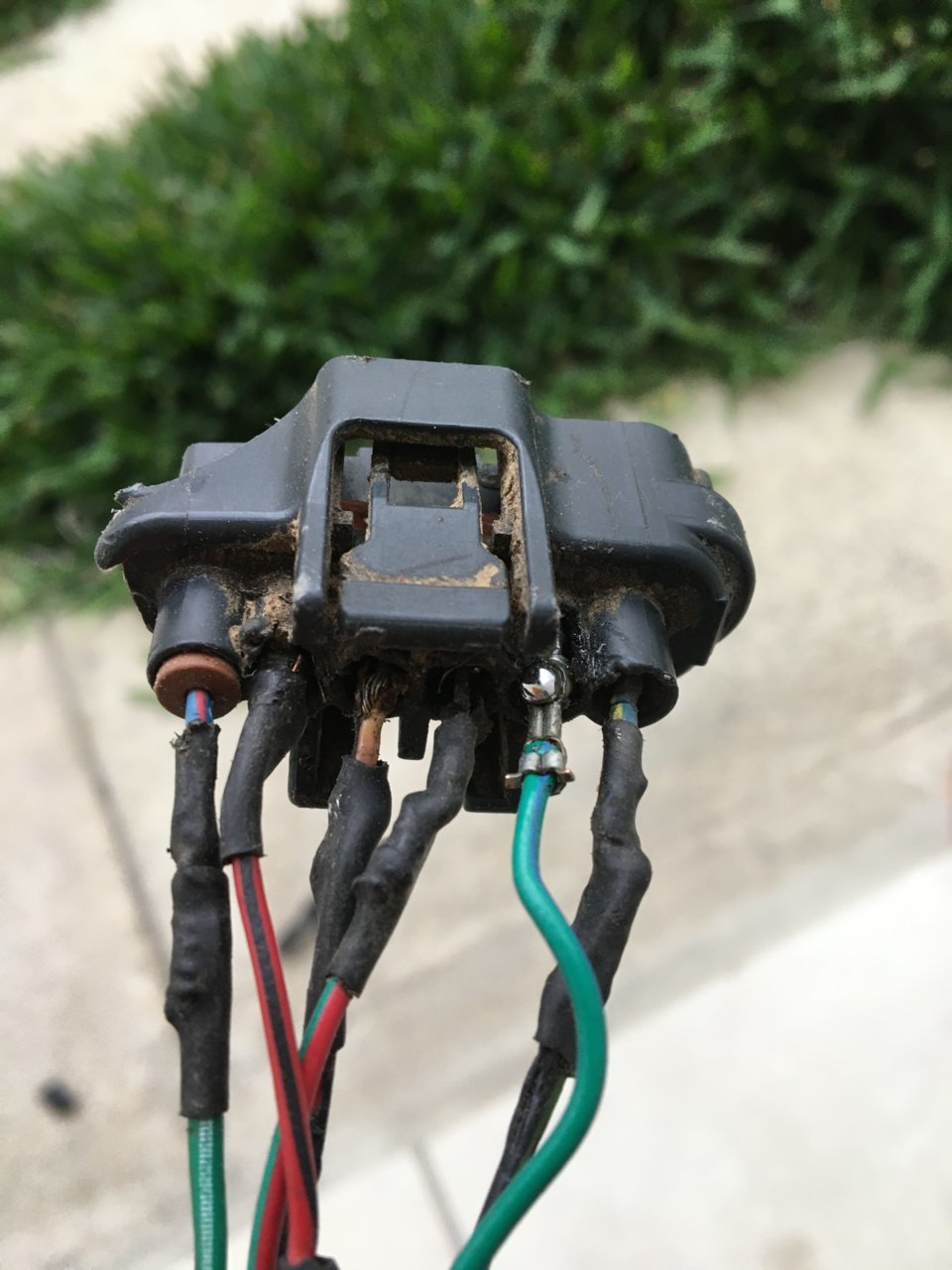

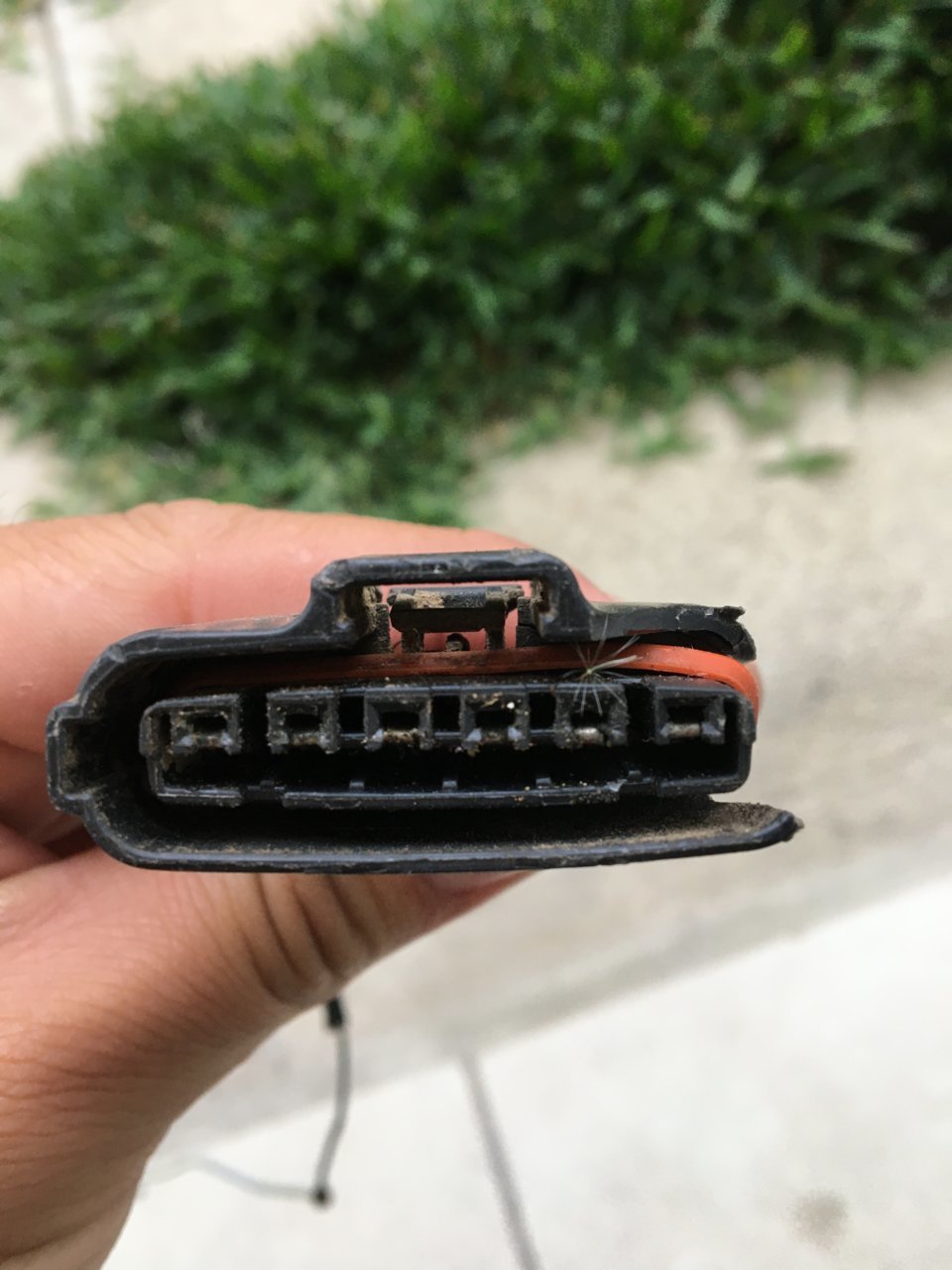

    excuse me I am missing commenting that the connector broke, as all the cables have broken and the few that were left do not match the color of the diagram, I do not know if it is that diagram specific to my truck. attached photos of the connector that goes to the actuator and the actuator


  4. Jun 30, 2020 at 12:23 PM
    #4
    mechanicjon

    mechanicjon They call me "Jonny Stubs"

    Joined:
    Dec 2, 2016
    Member:
    #203828
    Messages:
    8,989
    Gender:
    Male
    First Name:
    Jon
    Scottsdale Arizona
    Vehicle:
    04 Tacoma 4dr SR5 TRD Prerunner
    Fabtech AAL, Billie's wrapped with 880's , Tundra big brake conversion, bully bars and Pioneer DDin Stereo/dvd with exterrnal usb ports. 240K and going strong.
  5. Jun 30, 2020 at 12:24 PM
    #5
    mechanicjon

    mechanicjon They call me "Jonny Stubs"

    Joined:
    Dec 2, 2016
    Member:
    #203828
    Messages:
    8,989
    Gender:
    Male
    First Name:
    Jon
    Scottsdale Arizona
    Vehicle:
    04 Tacoma 4dr SR5 TRD Prerunner
    Fabtech AAL, Billie's wrapped with 880's , Tundra big brake conversion, bully bars and Pioneer DDin Stereo/dvd with exterrnal usb ports. 240K and going strong.
    correct

  6. Jun 30, 2020 at 12:27 PM
    #6
    mechanicjon

    mechanicjon They call me "Jonny Stubs"

    Joined:
    Dec 2, 2016
    Member:
    #203828
    Messages:
    8,989
    Gender:
    Male
    First Name:
    Jon
    Scottsdale Arizona
    Vehicle:
    04 Tacoma 4dr SR5 TRD Prerunner
    Fabtech AAL, Billie's wrapped with 880's , Tundra big brake conversion, bully bars and Pioneer DDin Stereo/dvd with exterrnal usb ports. 240K and going strong.
    Here's the part number for a new plastic housing for the plug.
    90980–11858
    And new terminal part number x6
    82998–12440

  7. Jun 30, 2020 at 12:49 PM
    #7
    Franklin2020tacoma

    Franklin2020tacoma [OP] Member

    Joined:
    Jun 28, 2020
    Member:
    #332796
    Messages:
    10
    Gender:
    Male
    First Name:
    Franklin
    Vehicle:
    Tacoma 2001 TRD SPORT

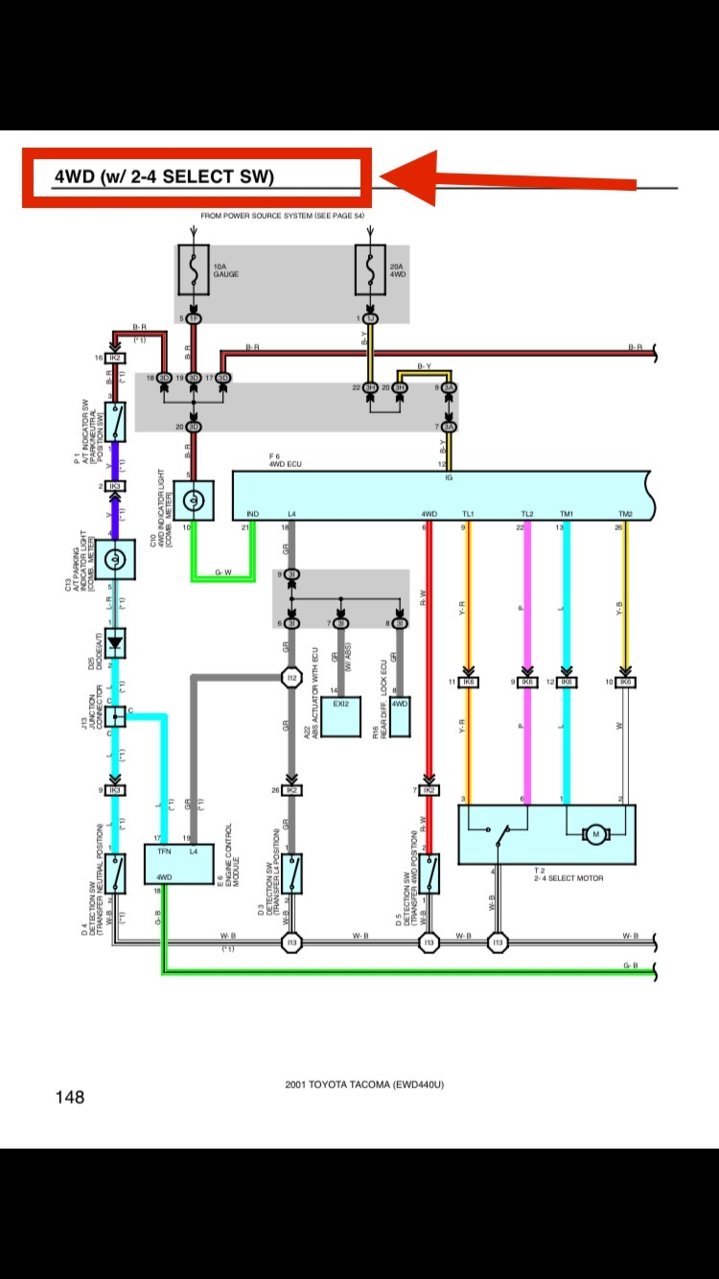

    Thanks mechanicjon I have connected the cables as the diagram, (well I have tried), but the dash light is activated for a moment when I pass it to H4 and when I put the L4, the indicator on the board does not light up. Must I have connected a wrong cable? or is the diagram not that of my truck? I enclose photos of the diagram from which I was guided in the black box, but I do not know if it is the 4WD diagram (w / 2-4 select SW) or the other 4WD diagram (w / or 2-4 select SW) my tacoma is an extracab 2001 4x4 3RZ-FE


    Attached Files:

  8. Jul 1, 2020 at 1:26 AM
    #8
    mechanicjon

    mechanicjon They call me "Jonny Stubs"

    Joined:
    Dec 2, 2016
    Member:
    #203828
    Messages:
    8,989
    Gender:
    Male
    First Name:
    Jon
    Scottsdale Arizona
    Vehicle:
    04 Tacoma 4dr SR5 TRD Prerunner
    Fabtech AAL, Billie's wrapped with 880's , Tundra big brake conversion, bully bars and Pioneer DDin Stereo/dvd with exterrnal usb ports. 240K and going strong.
    Yours is w/o 2-4 select switch. see attached file.


    Attached Files:

  9. Jul 1, 2020 at 1:29 AM
    #9
    mechanicjon

    mechanicjon They call me "Jonny Stubs"

    Joined:
    Dec 2, 2016
    Member:
    #203828
    Messages:
    8,989
    Gender:
    Male
    First Name:
    Jon
    Scottsdale Arizona
    Vehicle:
    04 Tacoma 4dr SR5 TRD Prerunner
    Fabtech AAL, Billie's wrapped with 880's , Tundra big brake conversion, bully bars and Pioneer DDin Stereo/dvd with exterrnal usb ports. 240K and going strong.
    Might have a bad 4lo switch in transfer case. switch D3 on my diagram

  10. Jul 1, 2020 at 9:26 AM
    #10
    Franklin2020tacoma

    Franklin2020tacoma [OP] Member

    Joined:
    Jun 28, 2020
    Member:
    #332796
    Messages:
    10
    Gender:
    Male
    First Name:
    Franklin
    Vehicle:
    Tacoma 2001 TRD SPORT
    good morning friend mechanicjon...

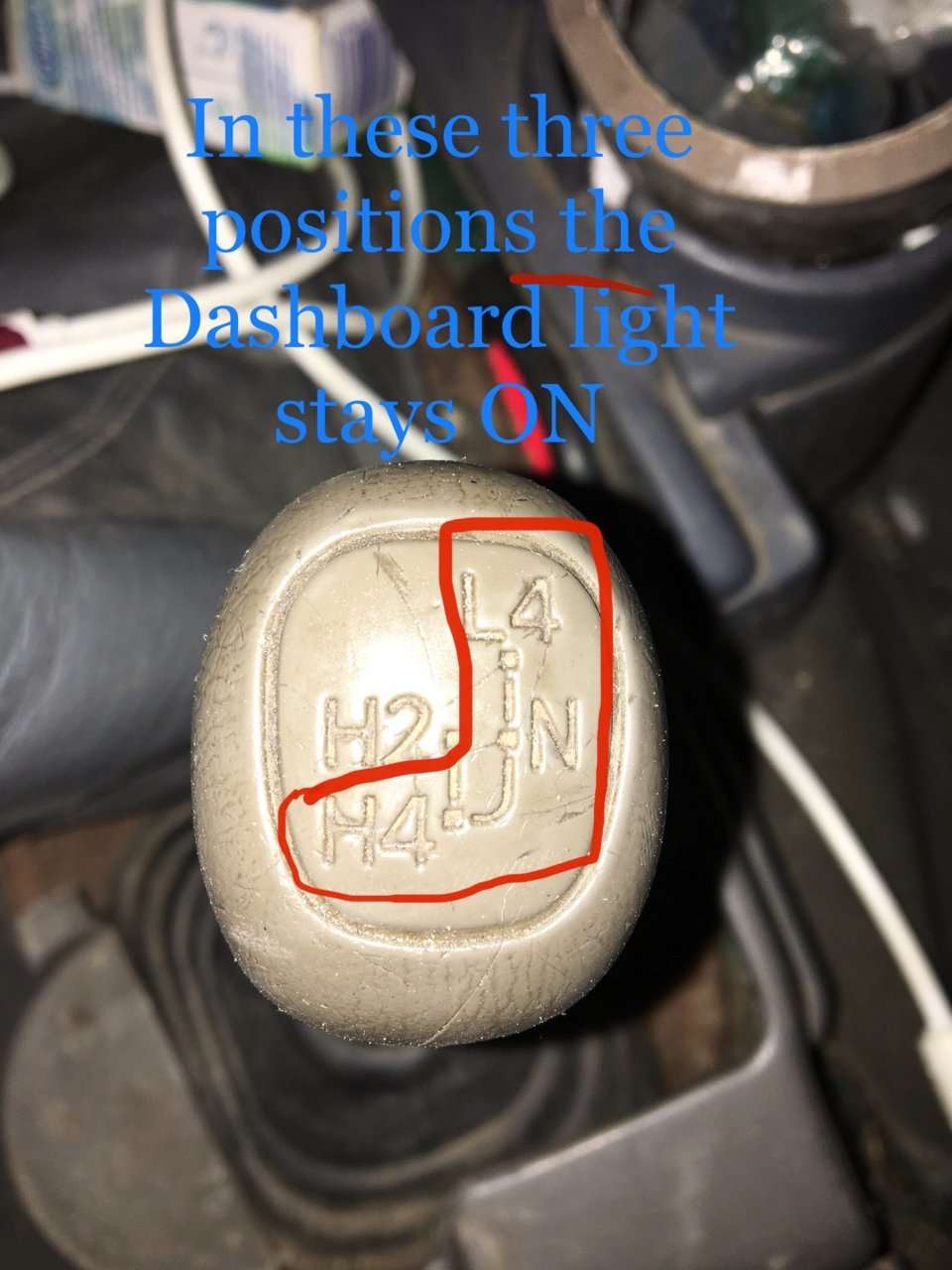

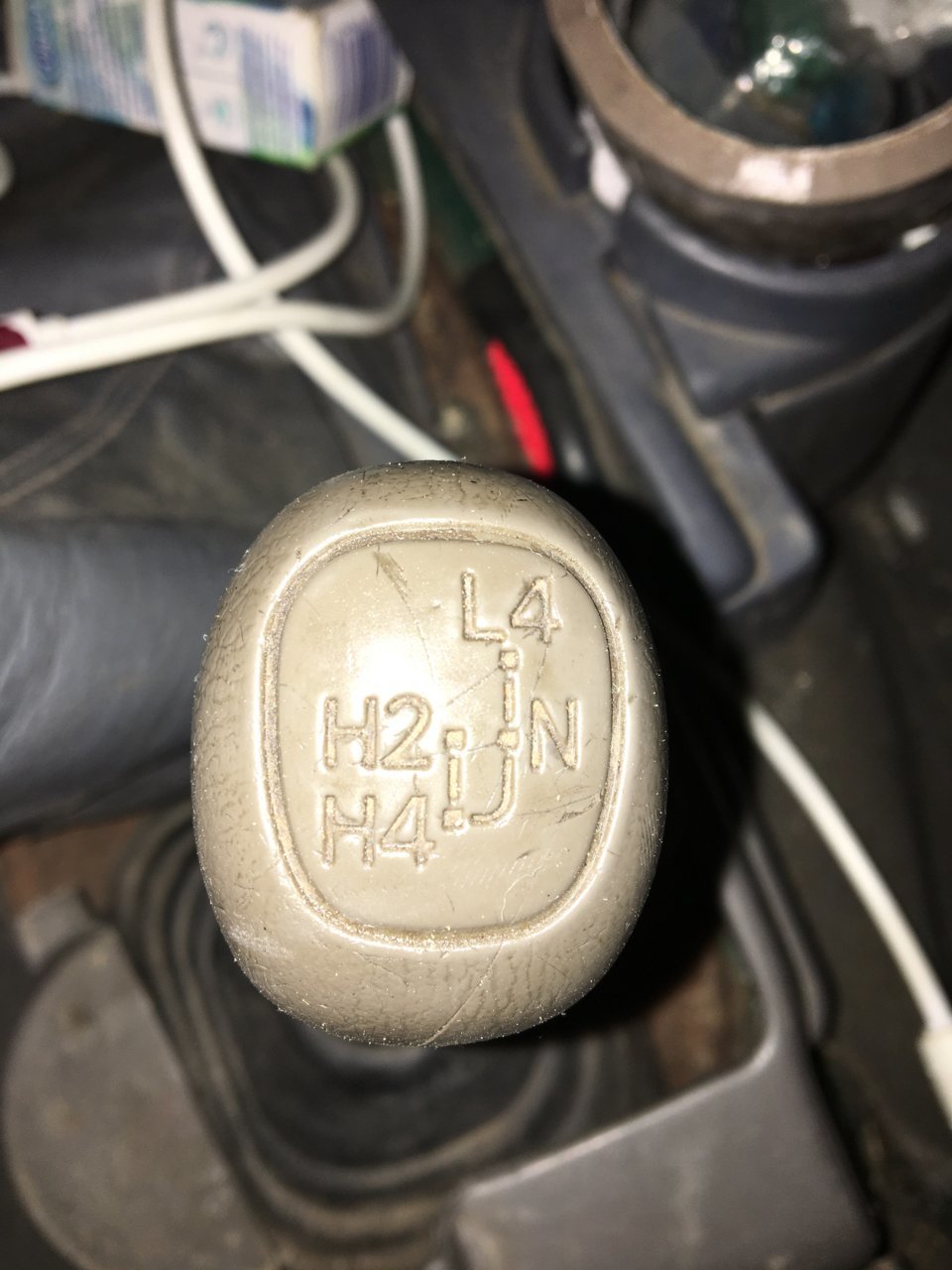

    what do you think? I did the procedure with your diagram and it worked for me, now lowering the lever to H4 activates the dash light, in N and L4 the light is also on. is it normal for N to stay on? Thank you very much for your great help and your answers to my questions.

    mechanicjon likes this.
  11. Jul 1, 2020 at 9:28 AM
    #11
    Franklin2020tacoma

    Franklin2020tacoma [OP] Member

    Joined:
    Jun 28, 2020
    Member:
    #332796
    Messages:
    10
    Gender:
    Male
    First Name:
    Franklin
    Vehicle:
    Tacoma 2001 TRD SPORT
  12. Jul 1, 2020 at 12:08 PM
    #12
    mechanicjon

    mechanicjon They call me "Jonny Stubs"

    Joined:
    Dec 2, 2016
    Member:
    #203828
    Messages:
    8,989
    Gender:
    Male
    First Name:
    Jon
    Scottsdale Arizona
    Vehicle:
    04 Tacoma 4dr SR5 TRD Prerunner
    Fabtech AAL, Billie's wrapped with 880's , Tundra big brake conversion, bully bars and Pioneer DDin Stereo/dvd with exterrnal usb ports. 240K and going strong.
    I don't own a 4x4 at the moment. Some else will have to answer that question.

  13. Jul 1, 2020 at 2:28 PM
    #13
    Franklin2020tacoma

    Franklin2020tacoma [OP] Member

    Joined:
    Jun 28, 2020
    Member:
    #332796
    Messages:
    10
    Gender:
    Male
    First Name:
    Franklin
    Vehicle:
    Tacoma 2001 TRD SPORT
    thanks friend mechanicjon, I am totally grateful for helping me with my problem with my truck, for the moment it has left it like this, and he satisfied with my question thanks to “mechanicjon” for helping him, now I will wait for someone to tell me if it is normal for me to turn on the light in the "N" position. Should I close this thread of my doubts or what should I do?

  14. Jul 1, 2020 at 3:21 PM
    #14
    Abeyancer

    Abeyancer Well-Known Member

    Joined:
    Mar 28, 2019
    Member:
    #288326
    Messages:
    565
    Gender:
    Male
    Vehicle:
    98 4x4 ex cab tacoma 3rz
    Just went out to my truck on break, I have a the same style transfer case. My light stayed on in all three of the same positions

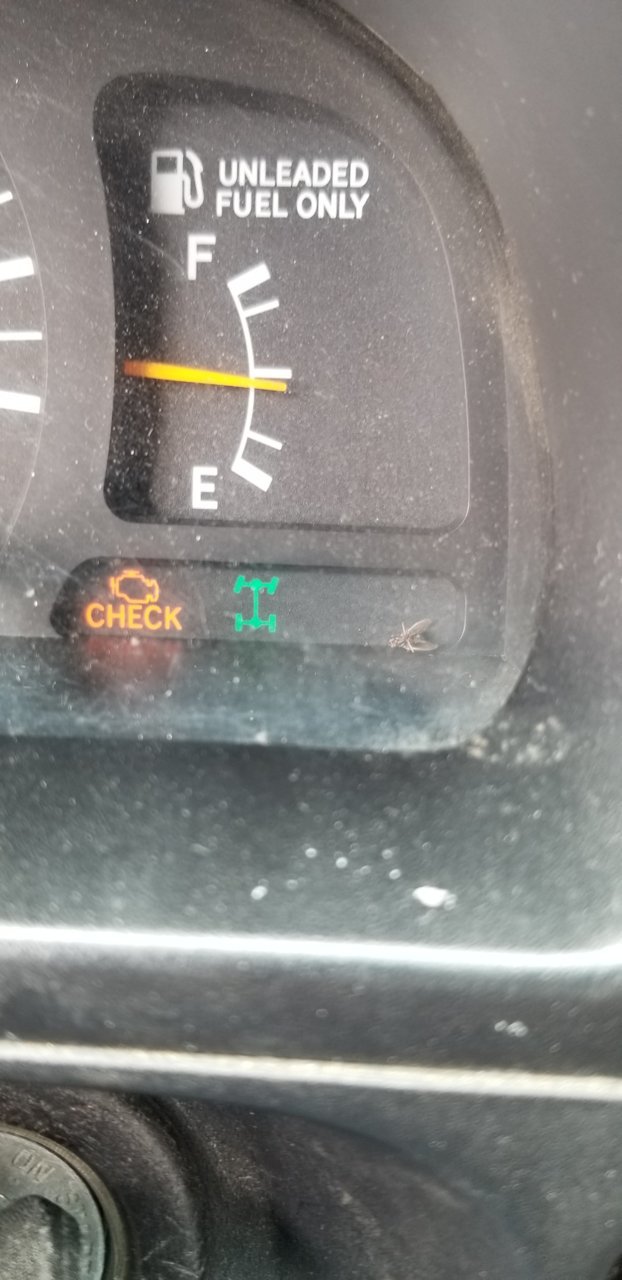

    You do mean this green 4x4 light correct?


  15. Jul 1, 2020 at 3:57 PM
    #15
    Franklin2020tacoma

    Franklin2020tacoma [OP] Member

    Joined:
    Jun 28, 2020
    Member:
    #332796
    Messages:
    10
    Gender:
    Male
    First Name:
    Franklin
    Vehicle:
    Tacoma 2001 TRD SPORT
    Thank you very much “ebeyancer “for the photo, I had that question, if in the 3 positions turn on the light, therefore, if it is fine as it appears in my truck

    Abeyancer likes this.
