Wires Through The Firewall - The Right Way!

Discussion in '2nd Gen. Tacomas (2005-2015)' started by webdr, Feb 1, 2018.

  1. Feb 1, 2018 at 8:33 AM
    #1
    webdr

    webdr [OP] www.gunnphotoservices.com

    Joined:
    Apr 15, 2013
    Member:
    #102157
    Messages:
    1,411
    Gender:
    Male
    Rocky River, OH
    Vehicle:
    2013 DCLB TRD
    OME 886 & Dakars. 35" Mickey Thompson Baja Boss
    Kind of an arrogant thread title, right? I mean, who am I to judge!? Regardless, I was looking for a clean way to push an expanding bundle of wires through the firewall without stabbing holes through the existing rubber boot. Why am I against this easy method? Punching a single hole in the OEM boot works fine, but as your wiring needs grow, so do the random holes in the boot.

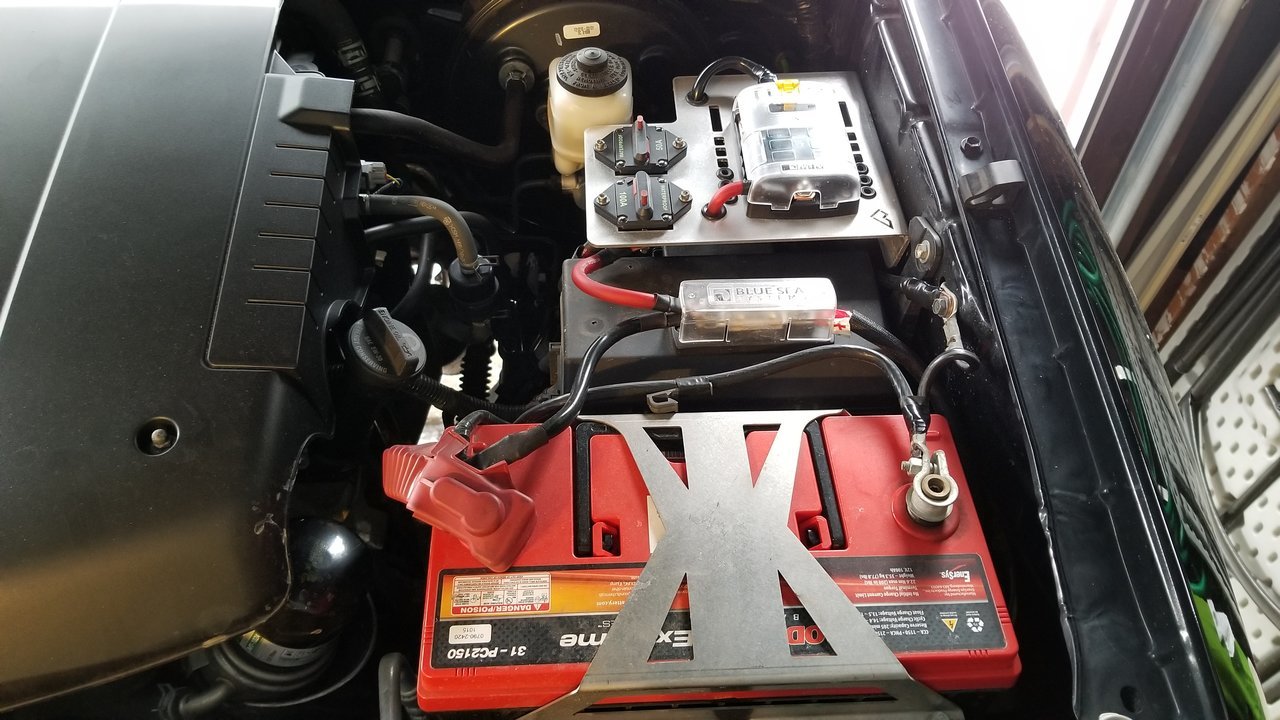

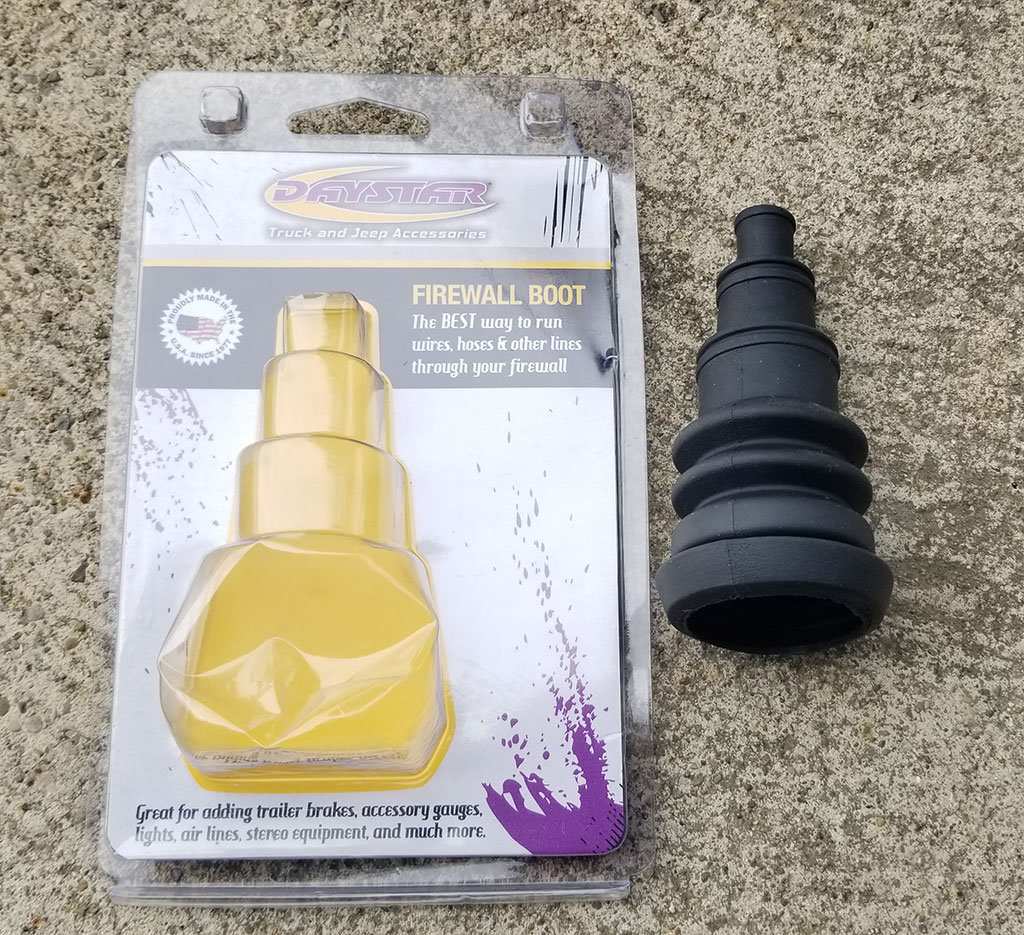

    The Daystar Firewall Boot:

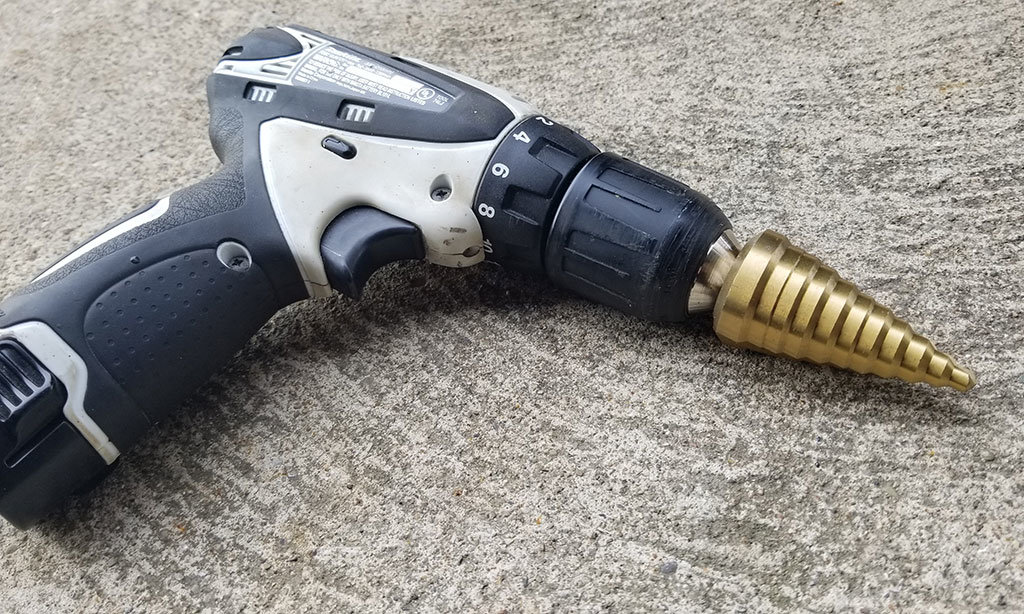

    Harbor Freight Stepped Bit:

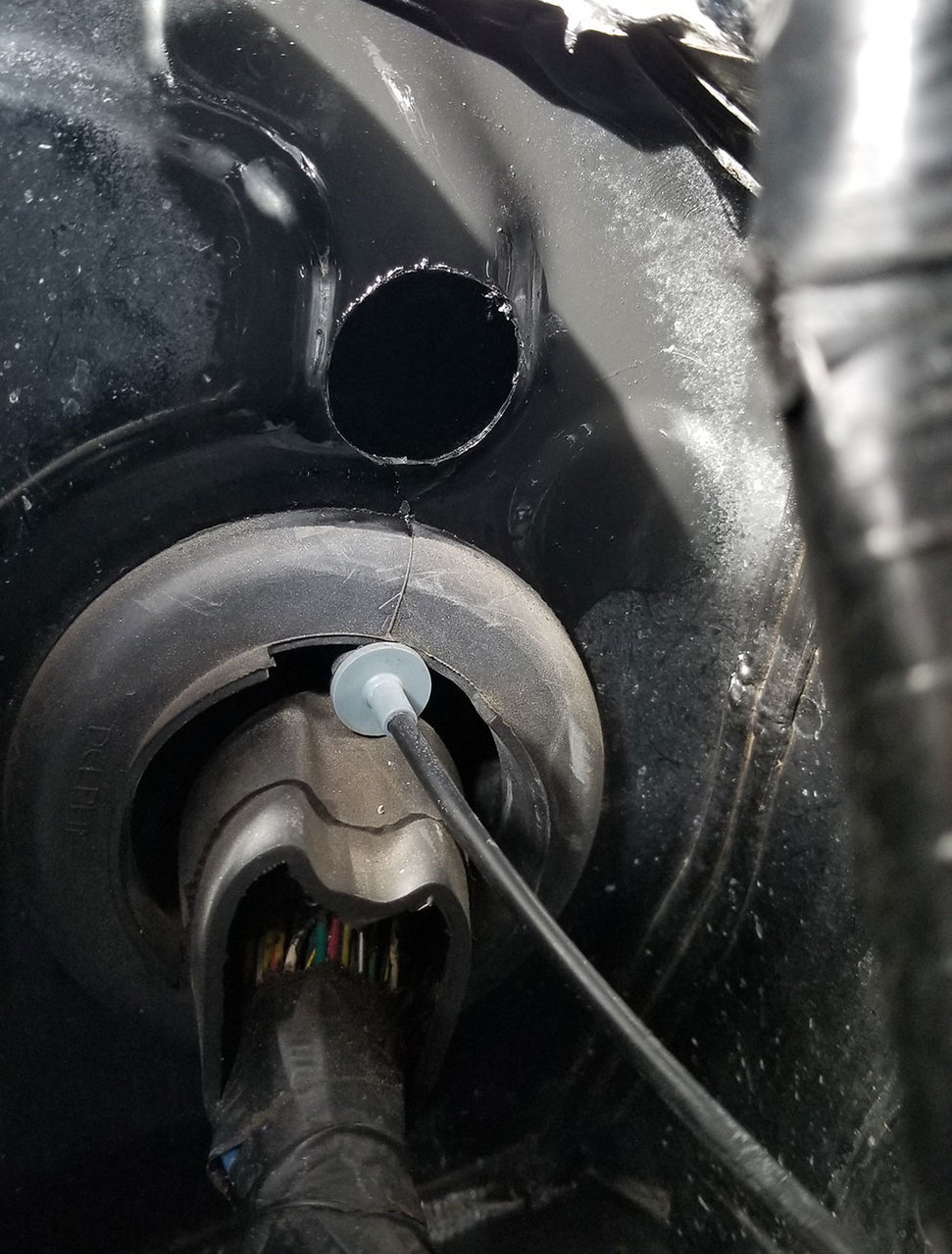

    I purchased the Daystar Firewall Boot for around $16, and a large stepped drill bit from Harbor freight. There's a great spot above the OEM rubber boot, just to its 1 o'clock if you're looking at it head on from the engine bay.

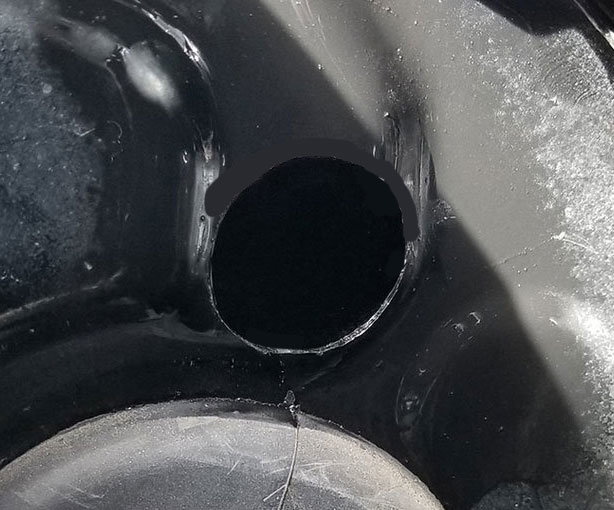

    1" hole drilled. You can go up to 1 1/4" for the boot:


    Drill a small pilot hole, then use the large stepped bit to open the hole up to any size between 1" and 1 1/4". The only thing behind this spot is some loose carpeting. I popped the bare metal around the hole with some Rustoleum.

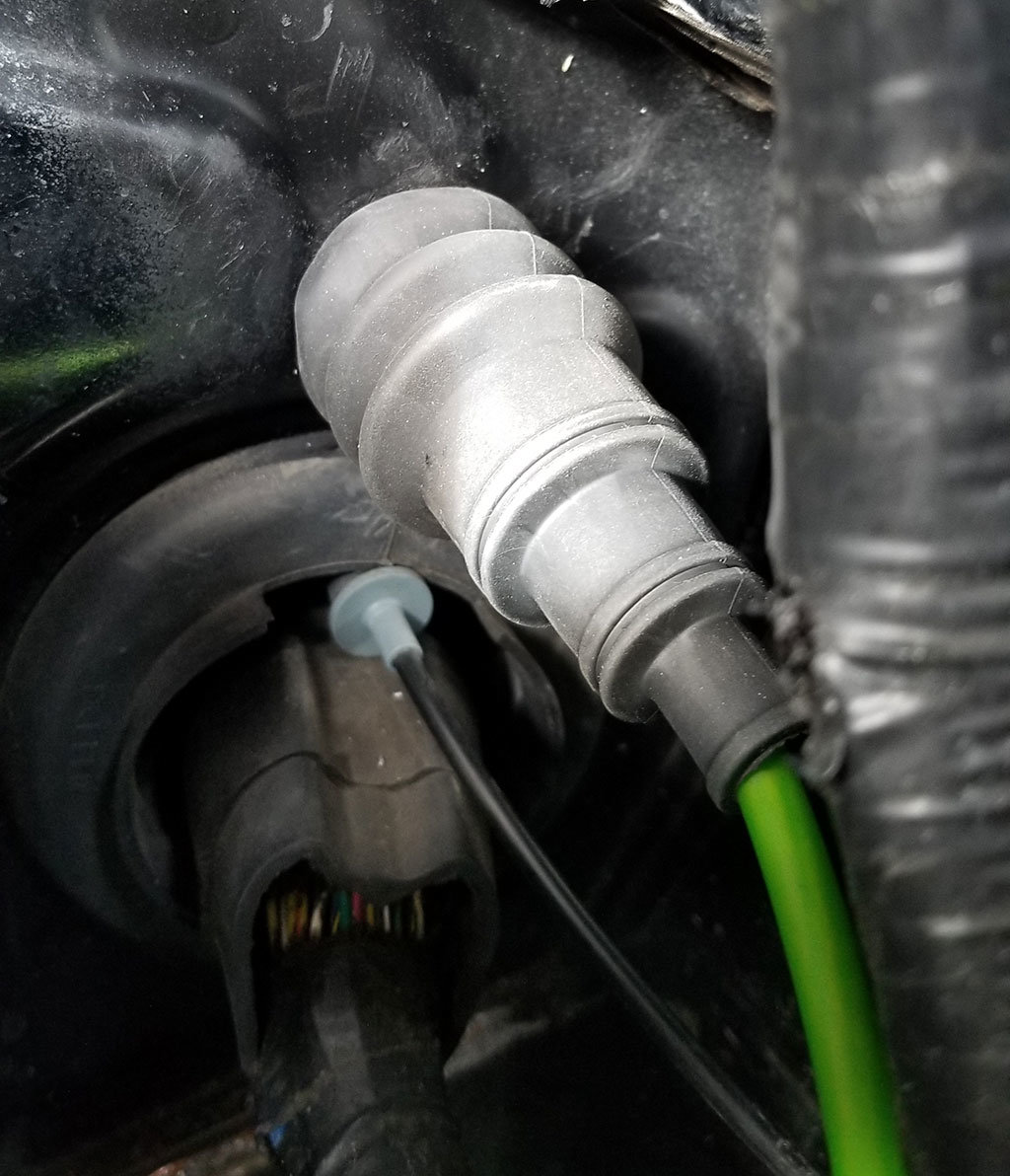

    Daystar Boot installed and ready for more wiring:

    The good thing about the Daystar boot is that you can cut away the stepped rubber as your wiring increases, and just ziptie it closed to prevent any water from entering (if you're the stream crossing type). I hope this helps you 2nd gen owners. Not sure if the firewall location is the same on a 3rd gen, but I'm sure the Daystar boot can be made to work.

    Now it's time to get wiring!
