Wiring a single led pod for reverse light

Discussion in '2nd Gen. Tacomas (2005-2015)' started by GreyDongle, Mar 19, 2020.

  1. Mar 19, 2020 at 4:27 PM
    #1
    GreyDongle

    GreyDongle [OP] Active Member

    Joined:
    Jul 24, 2019
    Member:
    #300179
    Messages:
    43
    Gender:
    Male
    Vehicle:
    2008 Indigo Ink PreRunner SR5
    I have a single 15watt pod I'd like to add as a reverse light as the tint on the windows and my camper make it hard to see. Im wondering if 15 watts is too much to splice into the stock reverse lights, or if it is if it's possible to take it to the 7pin trailer harness thanks for any help

  2. Mar 19, 2020 at 5:04 PM
    #2
    redtaco2007

    redtaco2007 Well-Known Member

    Joined:
    Jan 17, 2018
    Member:
    #241498
    Messages:
    191
    Gender:
    Male
    First Name:
    John
    Vehicle:
    2007 Red Tacoma - TRD Off Road DCSB
    not much yet!
    We bought a trailer harness and wired them up on my buddies truck to the reverse pin output. Worked great. Has them mounted on his Salter for when he is out blowing and backing up across lots

  3. Mar 19, 2020 at 5:29 PM
    #3
    GreyDongle

    GreyDongle [OP] Active Member

    Joined:
    Jul 24, 2019
    Member:
    #300179
    Messages:
    43
    Gender:
    Male
    Vehicle:
    2008 Indigo Ink PreRunner SR5
    Im thinking of splicing into the wire behind the trailer connector rather than plugging into it, I'm just curious how much amperage that harness can handle

  4. Mar 19, 2020 at 5:37 PM
    #4
    Muddinfun

    Muddinfun Well-Known Member

    Joined:
    Apr 17, 2017
    Member:
    #216500
    Messages:
    6,076
    Put some decent bulbs in it and see if you still need more light. Deauto LEDs or HIRs.

  5. Mar 19, 2020 at 5:39 PM
    #5
    redtaco2007

    redtaco2007 Well-Known Member

    Joined:
    Jan 17, 2018
    Member:
    #241498
    Messages:
    191
    Gender:
    Male
    First Name:
    John
    Vehicle:
    2007 Red Tacoma - TRD Off Road DCSB
    not much yet!

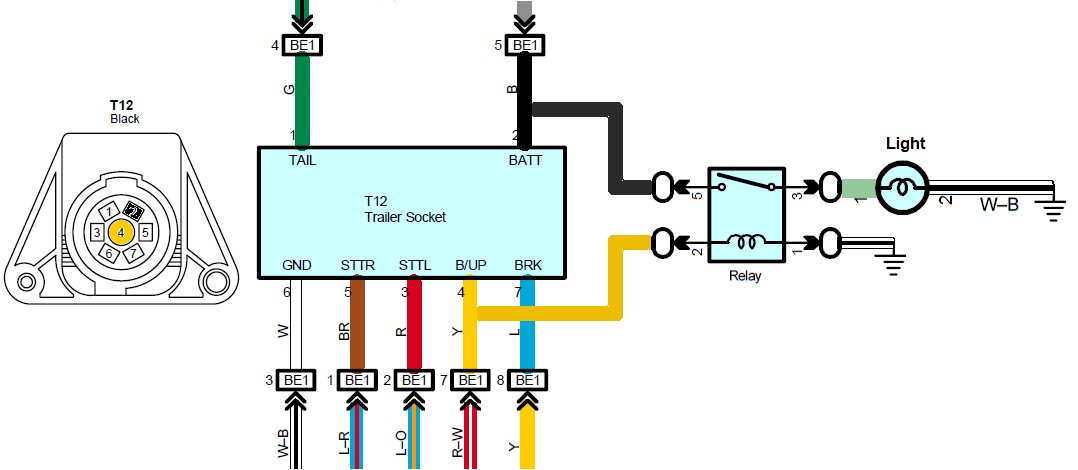

    It would be a bit of a pain, but, you could get a water proof relay and mount it back there. Use the reverse from the trailer harness as a trigger wire and run a new lead (with inline fuse) from the battery and use that to power the light

    Shaggs likes this.
  6. Mar 19, 2020 at 5:47 PM
    #6
    GreyDongle

    GreyDongle [OP] Active Member

    Joined:
    Jul 24, 2019
    Member:
    #300179
    Messages:
    43
    Gender:
    Male
    Vehicle:
    2008 Indigo Ink PreRunner SR5
    Ive got led tail lights already way too dim at night

  7. Mar 19, 2020 at 5:59 PM
    #7
    Muddinfun

    Muddinfun Well-Known Member

    Joined:
    Apr 17, 2017
    Member:
    #216500
    Messages:
    6,076
    You mean reverse lights? What brand?

  8. Mar 19, 2020 at 6:02 PM
    #8
    GreyDongle

    GreyDongle [OP] Active Member

    Joined:
    Jul 24, 2019
    Member:
    #300179
    Messages:
    43
    Gender:
    Male
    Vehicle:
    2008 Indigo Ink PreRunner SR5
    I meant tail light assembly, it's a sealed unit, not sure the brand

  9. Mar 19, 2020 at 6:05 PM
    #9
    Muddinfun

    Muddinfun Well-Known Member

    Joined:
    Apr 17, 2017
    Member:
    #216500
    Messages:
    6,076
    So, it's some aftermarket light with non replaceable reverse light bulbs?

    FWIW, I have OEM tail lights with Deauto LED reverse lights and there's plenty of light when in reverse.

  10. Mar 19, 2020 at 6:20 PM
    #10
    08TacoTrD

    08TacoTrD Well-Known Member

    Joined:
    Oct 30, 2008
    Member:
    #10385
    Messages:
    1,484
    Gender:
    Male
    Vehicle:
    08 TRD Offroad
    5100's and 883 OME Coils TRD Exhaust Deaver 1.5" AAL Rear Differential Breather Extension, 4WD Light, Tailgate Pipe clamp, Fog lights on while High Beams on, Carrier Bearing flip
    I'd go this route. Really simple to wire and no need to worry about overloading the existing wires since the draw will be on the new wire from the battery.

    Shaggs likes this.
  11. Mar 19, 2020 at 6:23 PM
    #11
    caribe makaira

    caribe makaira Well-Known Member

    Joined:
    Feb 13, 2011
    Member:
    #51121
    Messages:
    3,179
    Gender:
    Male
    Caribbean, Puerto Rico
    Vehicle:
    05 PreRunner TRD Offroad AutoTrans
    Hood Struts, My version Fogs always ON, Map & Overhead Light Mod,

  12. Mar 19, 2020 at 6:29 PM
    #12
    Muddinfun

    Muddinfun Well-Known Member

    Joined:
    Apr 17, 2017
    Member:
    #216500
    Messages:
    6,076
    Assuming the 7 way trailer connector is made to power 2 whatever reverse lights on a trailer, 15 watts is nothing, and if you already have LED reverse lights in the tail lights, a 15 watt pod is really nothing.

  13. Mar 20, 2020 at 1:30 PM
    #13
    Slum Lord

    Slum Lord Well-Known Member

    Joined:
    Jan 2, 2020
    Member:
    #314975
    Messages:
    53
    Gender:
    Male
    My vote...wire it right to the stock circuit. No relay needed for that small of draw. You are hovering at 1 amp more.

    Best place is to unplug the trailer connector and tap in on the short harness between the trailer plug and where it goes to the frame rail connector location.

    You can put it on the bench, solder or splice it, then dress it with tape and jam it back in there without F'n with the vehicle harness itself.

    Muddinfun likes this.
  14. Mar 20, 2020 at 1:37 PM
    #14
    Babybluetaco

    Babybluetaco Well-Known Member

    Joined:
    Dec 9, 2018
    Member:
    #275343
    Messages:
    1,416
    Gender:
    Male
    First Name:
    Austin
    Monroe, North Carolina
    Vehicle:
    09 5 lug
    Tapped mine right into the reverse light wiring


    Skyway likes this.
  15. Mar 20, 2020 at 3:02 PM
    #15
    caribe makaira

    caribe makaira Well-Known Member

    Joined:
    Feb 13, 2011
    Member:
    #51121
    Messages:
    3,179
    Gender:
    Male
    Caribbean, Puerto Rico
    Vehicle:
    05 PreRunner TRD Offroad AutoTrans
    Hood Struts, My version Fogs always ON, Map & Overhead Light Mod,
    Just because you could doesn't mean you should...

    Larzzzz and 08TacoTrD like this.
  16. Mar 20, 2020 at 3:40 PM
    #16
    Larzzzz

    Larzzzz Grande' Ricardo

    Joined:
    Aug 23, 2009
    Member:
    #21609
    Messages:
    1,770
    Gender:
    Male
    First Name:
    Larry
    MA
    Vehicle:
    '06 dclb 300+ kmiles
    Aux back up lights, Bed lights, Re-located trailer plug, Good dooby, a.k.a. jumper cable mod, Heated seats, back up camera,
    That's quite a list.

    As for the light, it's just over an amp load on the circuit. As @caribe makaira pointed out, the circuit feeding the back up lights already has a lot of stuff on it.

  17. Mar 21, 2020 at 9:00 AM
    #17
    Sxottie

    Sxottie Member

    Joined:
    Feb 18, 2020
    Member:
    #319670
    Messages:
    21
    Gender:
    Male
    First Name:
    Scott
    Mystic, CT
    Vehicle:
    2015 Silver 4X4 Regular Cab 2.7L 5-speed
    Biltseins X4, Moog 80820 sway bar bushing kit, Kenwood DMX906S, Kenwood 8 inch powered sub, Polk Audio Component door speakers, Kilmat sound deadening material throughout, bed cover, back up camera, Hilux Driver's side mirror, tailgate anti-theft clamp, Calais 921 912 LED Reverse Light Bulbs, K&N air filter and charcoal secondary filter removal. I think I'm done.
    I installed these backup bulbs. Problem solved.

    https://www.amazon.com/dp/B073PZ86GR/ref=cm_sw_r_other_taa_BMJDEbVCYBHBE

  18. Mar 26, 2020 at 4:13 PM
    #18
    Freeheelbillie

    Freeheelbillie Well-Known Member

    Joined:
    Mar 18, 2018
    Member:
    #247669
    Messages:
    772
    Gender:
    Male
    First Name:
    Billie
    Vehicle:
    07 Tacoma
    Details?

  19. Mar 26, 2020 at 4:14 PM
    #19
    Freeheelbillie

    Freeheelbillie Well-Known Member

    Joined:
    Mar 18, 2018
    Member:
    #247669
    Messages:
    772
    Gender:
    Male
    First Name:
    Billie
    Vehicle:
    07 Tacoma
  20. Mar 26, 2020 at 4:26 PM
    #20
    crashnburn80

    crashnburn80 Vehicle Design Engineer

    Joined:
    Jun 6, 2015
    Member:
    #156893
    Messages:
    9,333
    Gender:
    Male
    Kirkland, WA
    Vehicle:
    2015 DCSB TRD OR MGM
    Go Hawks!
    This really eliminates the need to hack up a bumper to mount pods:
    https://www.tacomaworld.com/threads/gy6-35-hir-921-reverse-light-upgrade-vs-high-power-leds.474996/

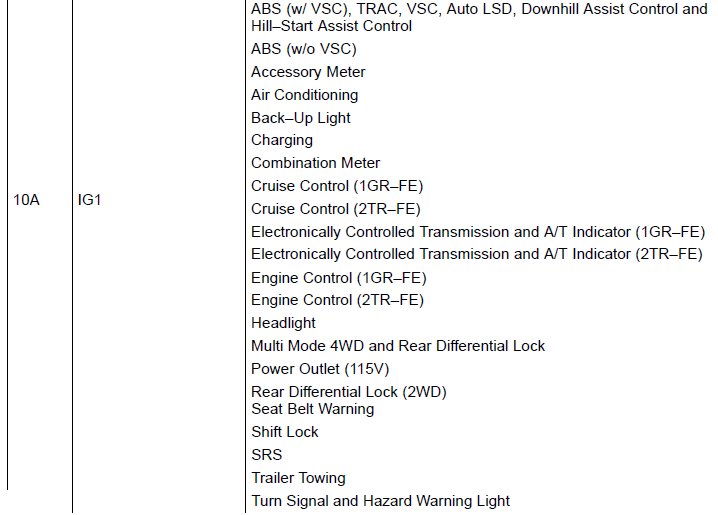

    But in short an additional 15w is fine on the stock circuit. The stock reverse lights draw 38w (18w x 2), my HIRs are drawing 70w (35w x 2). Note that the circuit is shared with the tow circuit, so anything you add reduces the capacity of what is available to the trailer should you tow one.
