Wiring ARE Cap Break Light - Need Help Identifying Plug

Discussion in 'Tonneau Covers, Caps and Shells' started by Coarch, Jun 9, 2020.

  1. Jun 9, 2020 at 12:38 PM
    #1
    Coarch

    Coarch [OP] Member

    Joined:
    Jun 9, 2020
    Member:
    #330889
    Messages:
    10

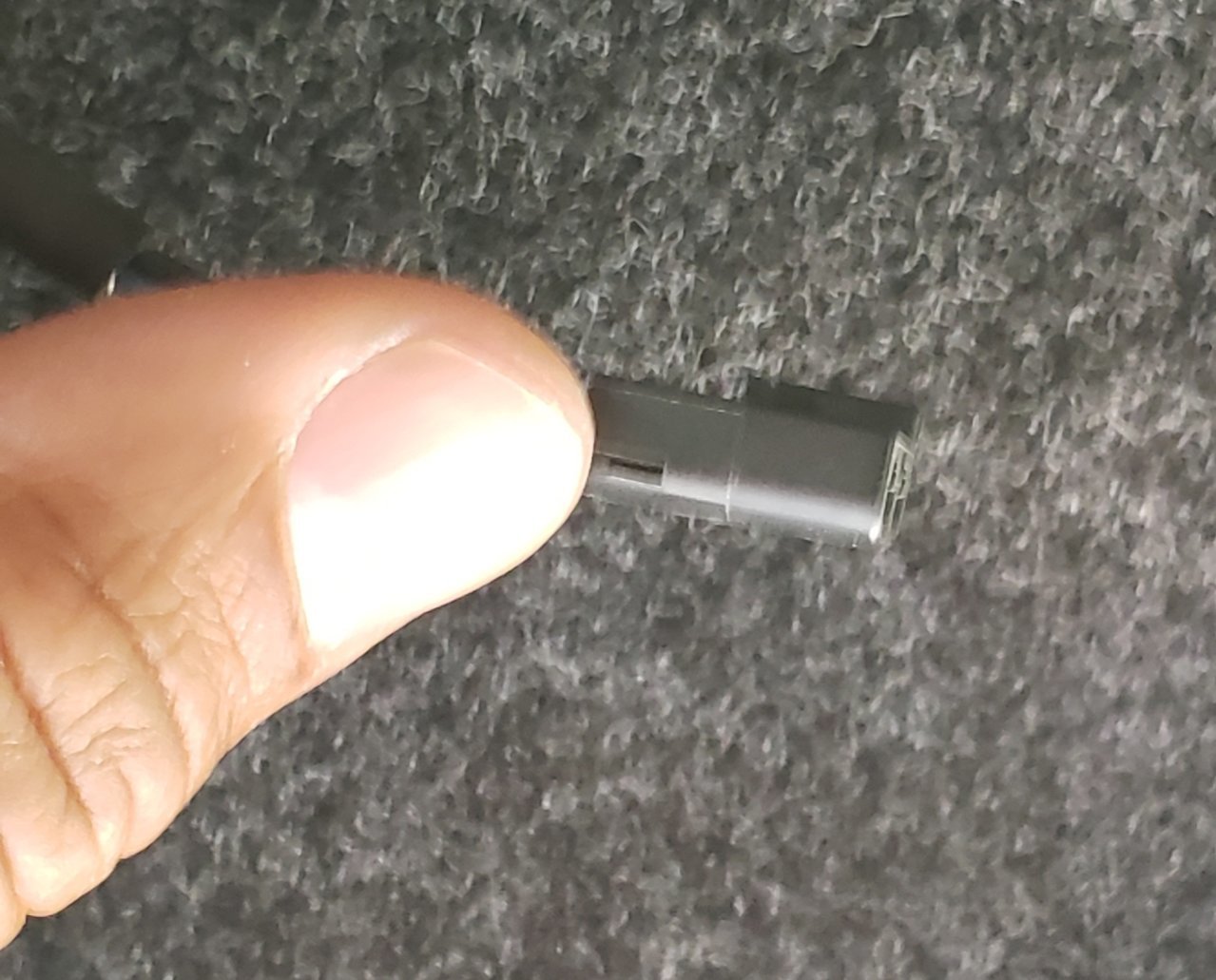

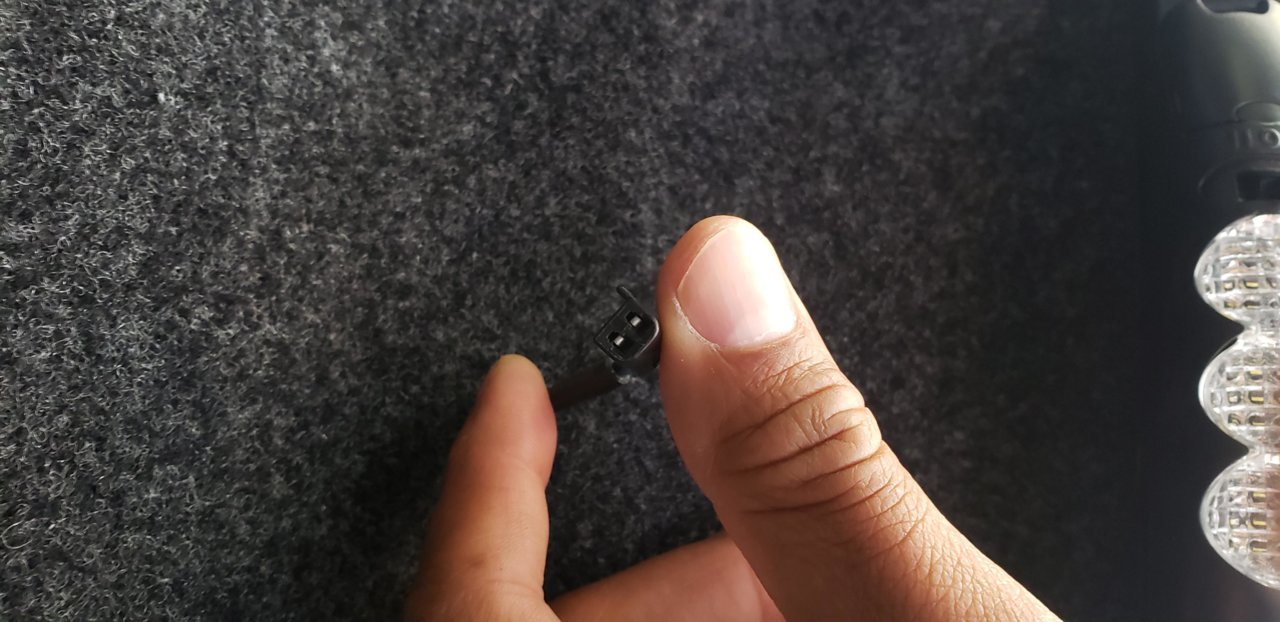

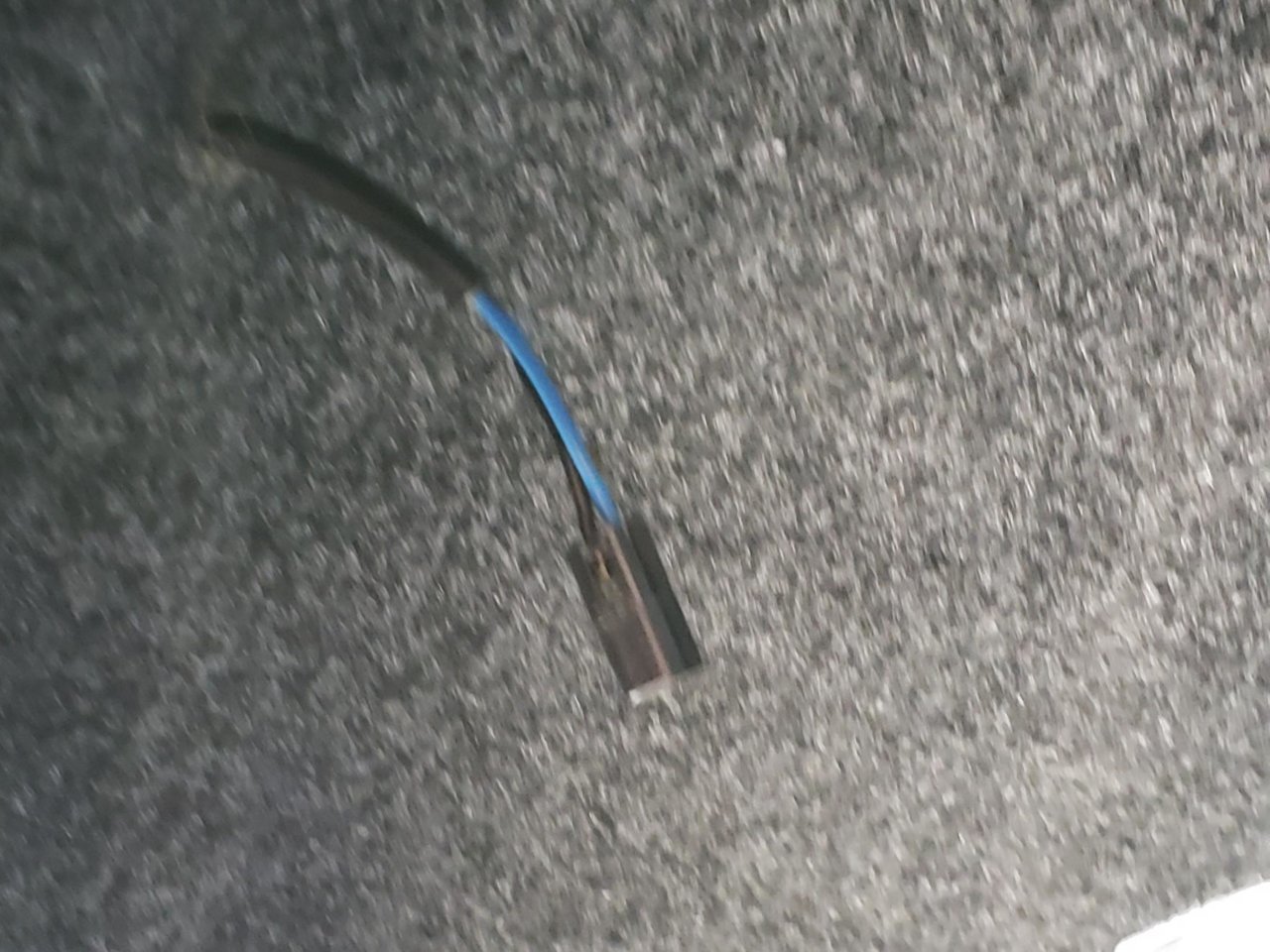

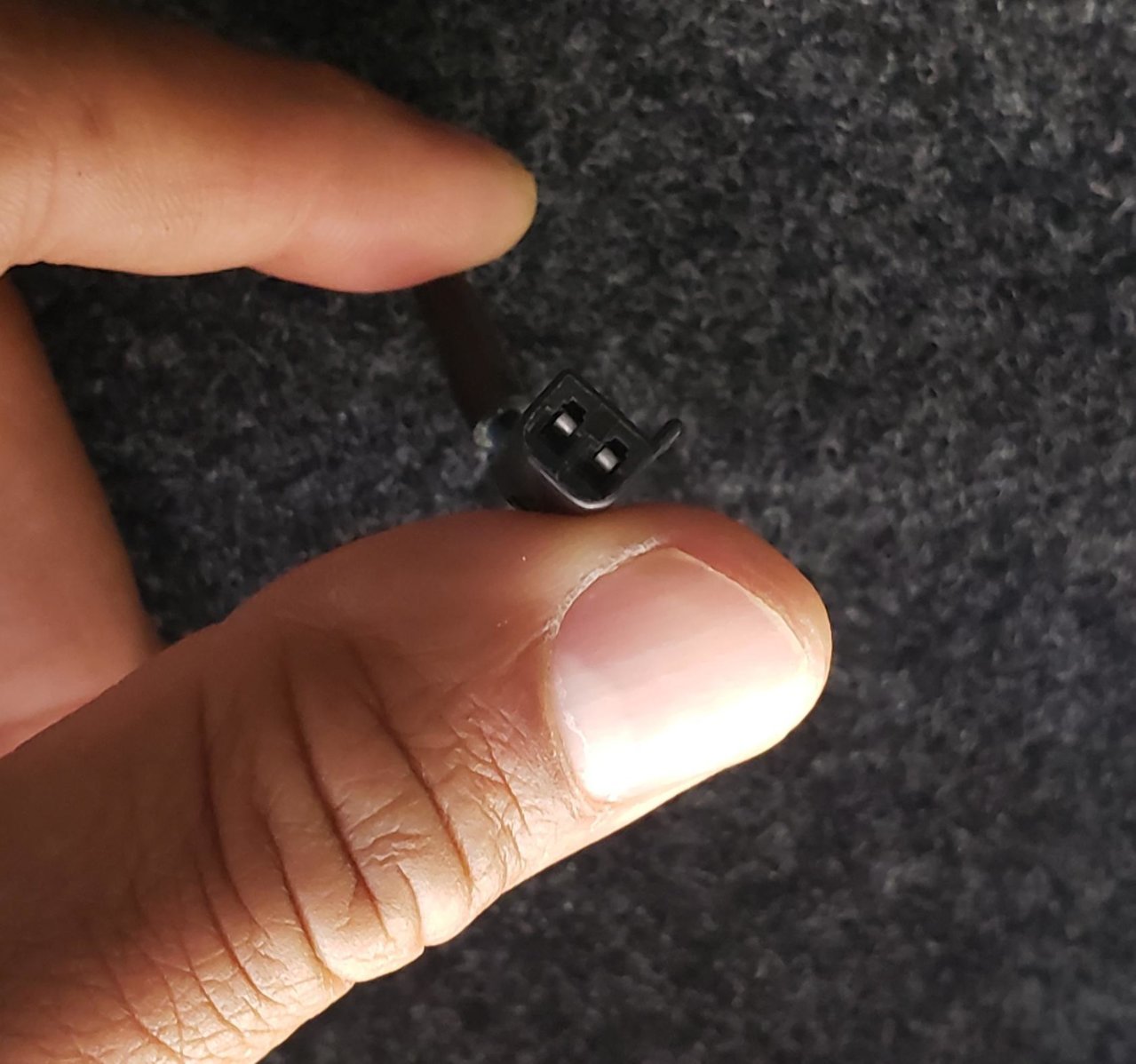

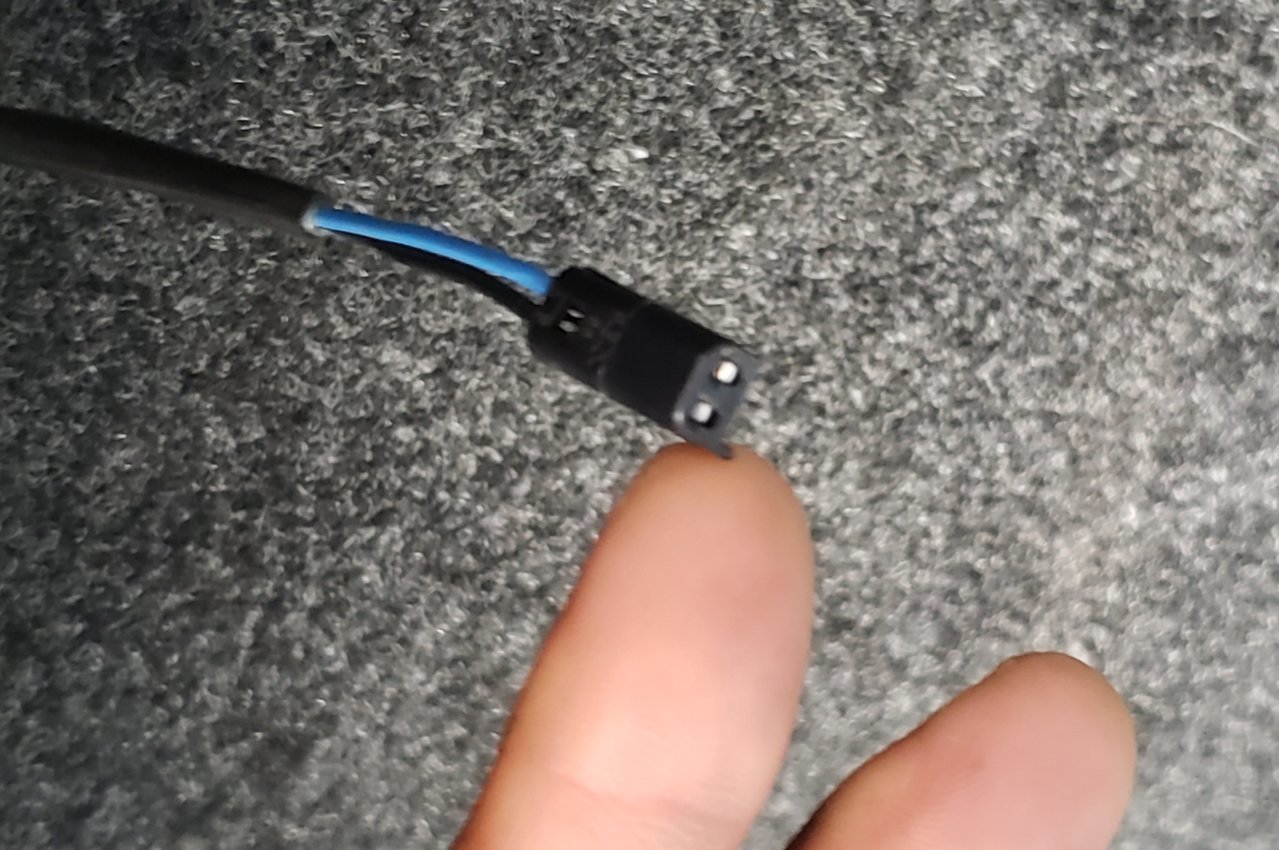

    What type of power plug is this. I'm trying to wire this to my break lights but I'm completely unfamiliar with this plug type.


  2. Jun 9, 2020 at 1:09 PM
    #2
    TacoEspecial

    TacoEspecial Well-Known Member

    Joined:
    Jul 19, 2017
    Member:
    #224500
    Messages:
    594
    Gender:
    Male
    First Name:
    Mark
    Sacramento
    Vehicle:
    13 Sliver TRD AC
    Bilstein 5100 885 AAL BAMF ARE MX Toyo MT 255/85x16
    Looks the same as mine.
    I have a new ARE.
    Looks like the wires tap into the left tail light.
    You might check with ARE on a matching plug.

  3. Jun 9, 2020 at 4:05 PM
    #3
    Tacman19

    Tacman19 Well-Known Member

    Joined:
    Jan 18, 2020
    Member:
    #316444
    Messages:
    1,591
    Gender:
    Male
    First Name:
    Dave
    Mid Missouri
    Vehicle:
    19 Tacoma
    As many as my wallet will allow
    Positive and negative if coming from the light. Ground it, get a test light, find the brake feed in the light socket, attach. Rinse and repeat.
    Zim

  4. Jun 9, 2020 at 6:50 PM
    #4
    Coarch

    Coarch [OP] Member

    Joined:
    Jun 9, 2020
    Member:
    #330889
    Messages:
    10
    I'm trying to figure out what male plug to buy so I can plug power to it.

  5. Jun 9, 2020 at 9:56 PM
    #5
    Tacman19

    Tacman19 Well-Known Member

    Joined:
    Jan 18, 2020
    Member:
    #316444
    Messages:
    1,591
    Gender:
    Male
    First Name:
    Dave
    Mid Missouri
    Vehicle:
    19 Tacoma
    As many as my wallet will allow
    Unless you go back to ARE you may not find it. For less than $10, you can cut that off and wire in your own male and female. There are at least 10,000 available on Amazon.
    Zim
    If you're interested here's a link to one
    https://www.amazon.com/HIGHROCK-Wat...connectors&qid=1591764879&s=automotive&sr=1-6

    TacoEspecial likes this.
  6. Jun 10, 2020 at 7:39 AM
    #6
    Coarch

    Coarch [OP] Member

    Joined:
    Jun 9, 2020
    Member:
    #330889
    Messages:
    10
    I notice these in other forum posts and they seem like a good idea. I was hoping there was a convenient plug I could buy. That pig tail is short. Wish me luck.

  7. Jun 10, 2020 at 7:43 AM
    #7
    fredgoodsell

    fredgoodsell Well-Known Member

    Joined:
    Jan 14, 2015
    Member:
    #146389
    Messages:
    1,901
    Gender:
    Male
    First Name:
    Matt
    Salt Lake, UT
    Vehicle:
    2017 DC TRD OR
    I've never seen that plug before, and I don't see it at any of the topper parts places online. I would try an A.R.E. dealer or two if you're planning on sticking with that plug. Otherwise I think @Tacman19 is right, removing it and replacing it with a more generic two-wire plug would be easy and cheap.

    This sae style plug is pretty readily available:
    https://socalcamperparts.com/shop?olsPage=products/quick-disconnect-kit-2-way
    https://www.amazon.com/Coast-PTQDBL-12-1-Disconnect-Harness-Connector/dp/B00MYDR15I/

    Tacman19 likes this.
  8. Jun 10, 2020 at 7:50 AM
    #8
    megillet

    megillet Resident Badass

    Joined:
    May 20, 2010
    Member:
    #37521
    Messages:
    1,017
    Gender:
    Male
    First Name:
    Mark
    Atlanta, GA
    Vehicle:
    2010 4x4 TRD Sport DCSB MGM 6sp
    On my ARE, that plugs into the dome light there, which is wired to a control board over on the side of the topper. I wouldn’t cut it.

  9. Jun 10, 2020 at 7:52 AM
    #9
    fredgoodsell

    fredgoodsell Well-Known Member

    Joined:
    Jan 14, 2015
    Member:
    #146389
    Messages:
    1,901
    Gender:
    Male
    First Name:
    Matt
    Salt Lake, UT
    Vehicle:
    2017 DC TRD OR
    I agree with this. I'm not sure how old the topper is, but double check that the plug you're working with is to power the brake light rather than a dome light. A lot of the newer ones have a fuse box that all the wiring runs through like @megillet mentioned.

  10. Jun 10, 2020 at 4:27 PM
    #10
    Coarch

    Coarch [OP] Member

    Joined:
    Jun 9, 2020
    Member:
    #330889
    Messages:
    10

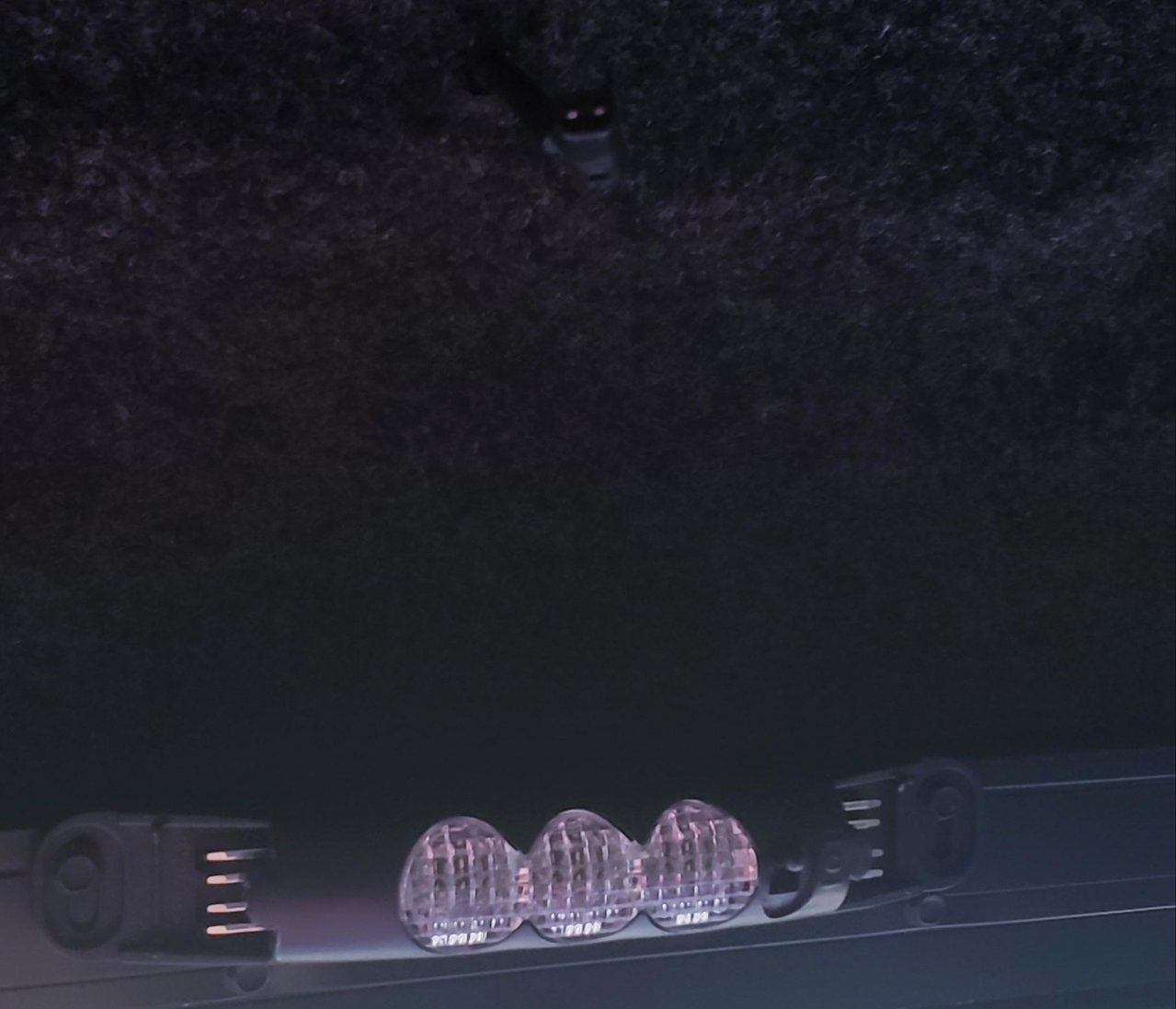

    I don't see a fuse box anywhere and the break light doesn't appear to be plugged into anything.


  11. Jun 12, 2020 at 9:08 AM
    #11
    Coarch

    Coarch [OP] Member

    Joined:
    Jun 9, 2020
    Member:
    #330889
    Messages:
    10
    This is an ARE MX cap. I don't see a control board anywhere. I drove over to an ARE dealer but they wanted me to pay to have it wired. Had no interest in helping me identify the plug. I've sent an email to the ARE website contact. Can someone post a pic of their control board so I can see what they look like?

  12. Jun 12, 2020 at 10:20 AM
    #12
    megillet

    megillet Resident Badass

    Joined:
    May 20, 2010
    Member:
    #37521
    Messages:
    1,017
    Gender:
    Male
    First Name:
    Mark
    Atlanta, GA
    Vehicle:
    2010 4x4 TRD Sport DCSB MGM 6sp

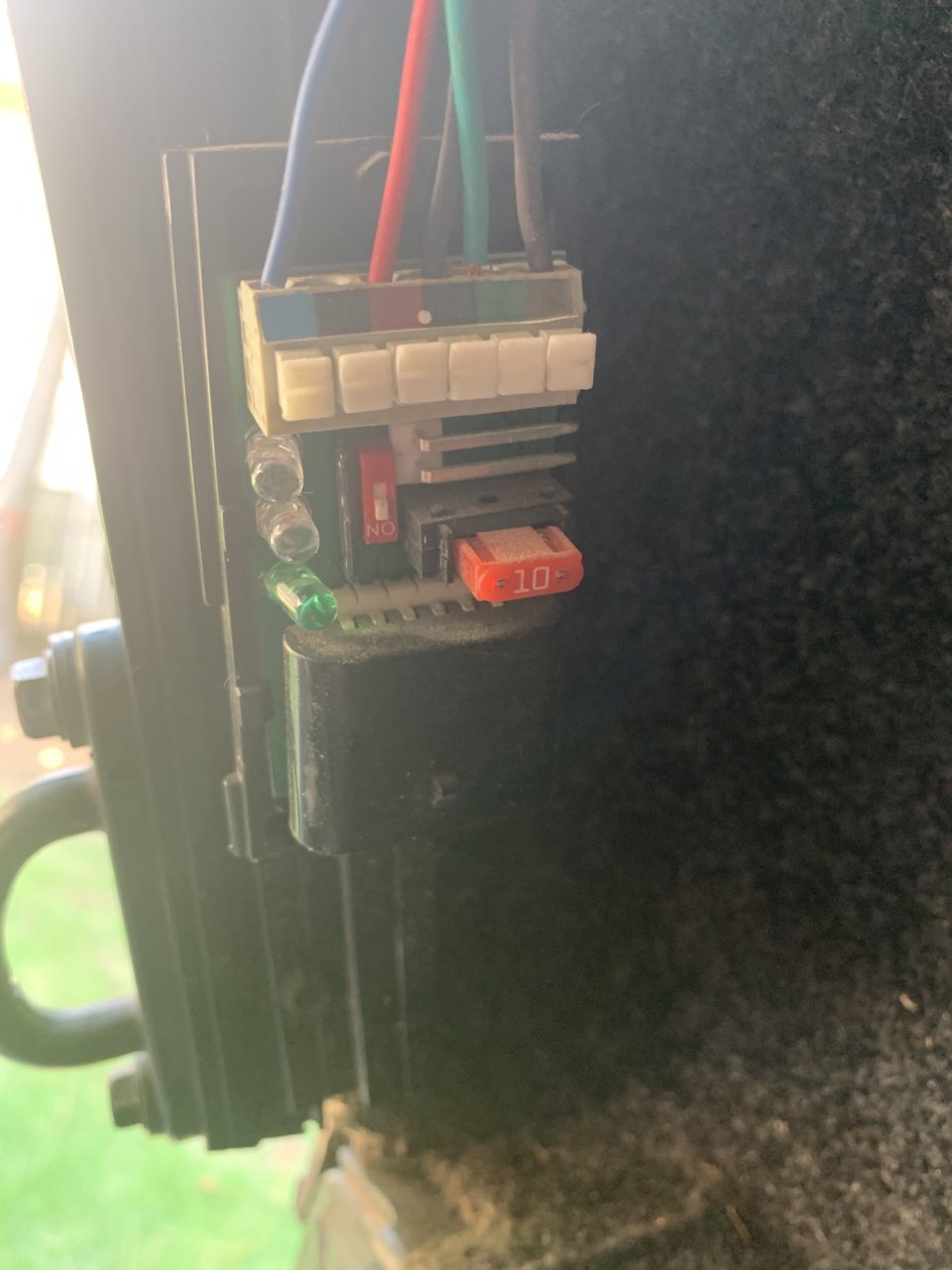

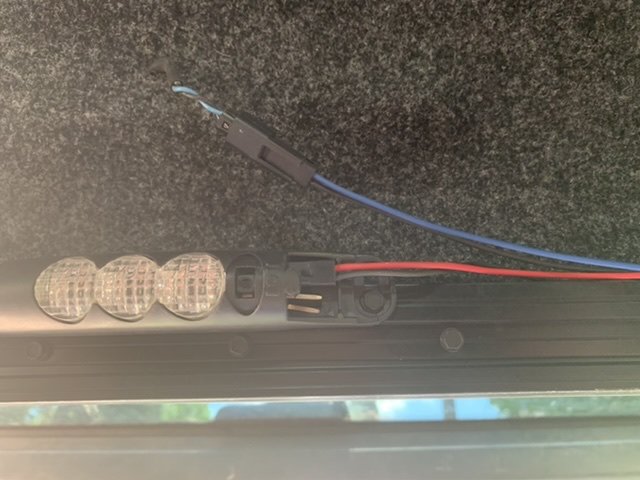

    6D148914-07C0-46A0-A137-DC7EFA07C463.jpg 82FDDF8F-2CC2-4D93-B993-43F18F2C11A8.jpg Admittedly, I’ve had my cap for 5 years and still haven’t wired it in...

    :anonymous:

    I didn’t want the installer to hack my truck’s wiring.

  13. Jun 12, 2020 at 11:39 AM
    #13
    Coarch

    Coarch [OP] Member

    Joined:
    Jun 9, 2020
    Member:
    #330889
    Messages:
    10
    Good news, ARE got back to me and said I'm missing the bellow part. It's a delphi connector. This company did good by me.

    19383 66" Brake Lt. Wire w/Single Terminal (used on every non e-lock brake lt.)

    Last edited: Jun 12, 2020
  14. Jun 13, 2020 at 2:53 PM
    #14
    TacoEspecial

    TacoEspecial Well-Known Member

    Joined:
    Jul 19, 2017
    Member:
    #224500
    Messages:
    594
    Gender:
    Male
    First Name:
    Mark
    Sacramento
    Vehicle:
    13 Sliver TRD AC
    Bilstein 5100 885 AAL BAMF ARE MX Toyo MT 255/85x16
    Kool.
    I didn't see a controller on mine.
    Was thinking it could we behind the left tail ight.
    That's where my wires go.
    I'll check it out when I put my new bumper on.
