Wiring Diagram for Rear View Mirror?

Discussion in '2nd Gen. Tacomas' started by dragnet, Feb 17, 2013.

  1. Feb 17, 2013 at 2:41 PM
    #1
    dragnet

    dragnet [OP] Member

    Joined:
    Oct 22, 2012
    Member:
    #89531
    Messages:
    11
    Gender:
    Male
    First Name:
    Tim
    Vehicle:
    '11 Prerunner Sport Barcelona Red
    Hi all,

    I recently obtained a Blend Mount to hang my radar detector underneath my rear view mirror. Installing the mount was simple; however, I am having quite a bit of difficulty tapping into the power from the rear view mirror.

    I have an '11 Tacoma Prerunner with a back up camera in the mirror.

    According to the Blend Mount instructions, I need to plug the black MTPC clip into the ground wire and the red MTPC clip into the 12 volt wire. The instructions are generic and do not specify which color to use.

    I have tried searching and have been unable to find the diagram, anyone know which is which?


  2. Feb 17, 2013 at 5:36 PM
    #2
    Agro

    Agro Well-Known Member

    Joined:
    Jan 10, 2013
    Member:
    #94915
    Messages:
    422
    Gender:
    Male
    San Diego
    Vehicle:
    2015 Ford F-150 XLT 3.5L Ecoboost!
    I unplugged it and put wire in the holes and used a volt meter to determine the +12v. I listed it in the Valentine One thread. Couldn't remember what wires now. Also on my iPhone. Search and you'll see.

  3. Jul 29, 2013 at 11:48 PM
    #3
    dragnet

    dragnet [OP] Member

    Joined:
    Oct 22, 2012
    Member:
    #89531
    Messages:
    11
    Gender:
    Male
    First Name:
    Tim
    Vehicle:
    '11 Prerunner Sport Barcelona Red
    Follow up.

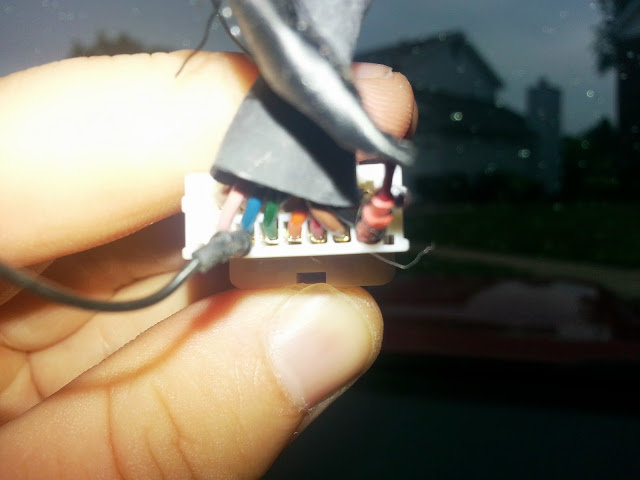

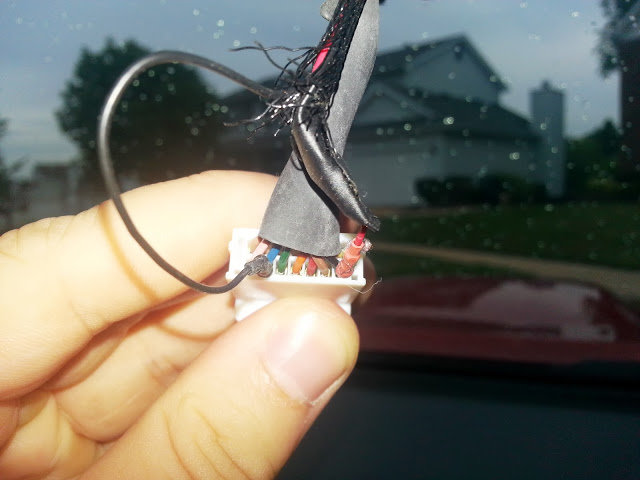

    Here are pictures (after some trial and error) of the wires I plugged into.

    Radar detector comes on/off with key turn of the ignition.

    [​IMG]

    [​IMG]

    [​IMG]

    Last edited: Jul 30, 2013
  4. Feb 7, 2014 at 9:54 AM
    #4
    bluebird1717

    bluebird1717 Member

    Joined:
    Nov 12, 2013
    Member:
    #116427
    Messages:
    5
    Gender:
    Male
    Jacksonville, Florida
    Vehicle:
    12' Access Cab V6 TRD
    How did you determine which wire/hole to insert the mirrortaps ground wire into? Arent most of them grounded?

  5. Feb 8, 2014 at 3:24 PM
    #5
    dragnet

    dragnet [OP] Member

    Joined:
    Oct 22, 2012
    Member:
    #89531
    Messages:
    11
    Gender:
    Male
    First Name:
    Tim
    Vehicle:
    '11 Prerunner Sport Barcelona Red
    To be honest, rather unscientifically.

    Trail and error.
