Wiring Diagram

Discussion in 'Audio & Video' started by Abumarf, May 16, 2019.

  1. May 16, 2019 at 11:12 AM
    #1
    Abumarf

    Abumarf [OP] Meep meep

    Joined:
    Dec 12, 2018
    Member:
    #275666
    Messages:
    215
    Gender:
    Male
    First Name:
    Hamza
    Tampa, FL
    Vehicle:
    2018 BR Wolfpack Edition
    So I got all the parts I needed (front speakers, rear speakers, sub box, sub, 5 channel amp, and the ********* sound processor wiring harness). I've done a couple installs before, but I am completely stumped. It would really help me if someone could give me a wiring diagram.

  2. May 16, 2019 at 5:55 PM
    #2
    dolbytone

    dolbytone Well-Known Member

    Joined:
    May 14, 2010
    Member:
    #37165
    Messages:
    943
    Gender:
    Male
    South Carolina
    Vehicle:
    09 TRD Off Road
    Not sure what you're asking about, but this seemed most likely. Went to the ********* website and this information is there. If you are looking for something else, might be helpful to specify.

    https://*********.com/shop/toyota-t...acoma-plug-play-amp-harness-installation-kit/

    "MALE HARNESS: This harness plugs INTO your stock head unit. This is the signal that provides signal to your amp. These wires will connect to our INPUT side of your amp. These wires are thinner 18 gauge.

    FEMALE HARNESS: This harness plugs INTO your stock wiring (that you removed from your head unit). This will connect to the OUTPUT (amplified) side of your amplifier. The wires are thicker 16 gauge.
    "


    Abumarf [OP] likes this.
  3. May 16, 2019 at 10:24 PM
    #3
    Fattypack

    Fattypack Well-Known Member

    Joined:
    Feb 15, 2019
    Member:
    #283187
    Messages:
    120
    Gender:
    Male
    Waipahu
    Vehicle:
    2018 Cement Grey TRDORDCLB 4x4
    I will be adding an amp to my car speakers also. I have both the dsp harness and add an amp harness from *********. By looking at both harnesses, I think the add an amp will be the correct one to use. The male end is the input, which will be going to my lc7i and then the female end will be the output which will be coming out of my amp. I won’t be pushing much to my doors since the kenwood is rated at 60watts rms x 4 at 4 ohms. My sub will be installed later since the box being made by Mr.marv.

  4. May 17, 2019 at 11:42 PM
    #4
    Abumarf

    Abumarf [OP] Meep meep

    Joined:
    Dec 12, 2018
    Member:
    #275666
    Messages:
    215
    Gender:
    Male
    First Name:
    Hamza
    Tampa, FL
    Vehicle:
    2018 BR Wolfpack Edition
    Okay, let me ask it this way. Has anyone installed aftermarket speakers and a sub using a 5 channel amp and the ********* sound processor wiring kit? I would like some clarification on how the wiring kit ties the whole thing together and how the sub plays into the whole thing

  5. May 18, 2019 at 5:10 AM
    #5
    dolbytone

    dolbytone Well-Known Member

    Joined:
    May 14, 2010
    Member:
    #37165
    Messages:
    943
    Gender:
    Male
    South Carolina
    Vehicle:
    09 TRD Off Road
    Links to what you bought would help.

    Abumarf [OP] likes this.
  6. May 18, 2019 at 6:33 AM
    #6
    Abumarf

    Abumarf [OP] Meep meep

    Joined:
    Dec 12, 2018
    Member:
    #275666
    Messages:
    215
    Gender:
    Male
    First Name:
    Hamza
    Tampa, FL
    Vehicle:
    2018 BR Wolfpack Edition
  7. May 18, 2019 at 7:02 AM
    #7
    destin_meeks

    destin_meeks I used to fix people's crappy stereos

    Joined:
    Jul 14, 2017
    Member:
    #223997
    Messages:
    2,734
    Gender:
    Male
    First Name:
    Destin
    Tuscaloosa, AL
    Vehicle:
    2017 SSM DoubleCab TRD Off-Road 4x4
    If you got the sound processor wiring, you don’t need a diagram. That harness contains all the inputs and outputs

    The wiring will go from the factory radio, out to the inputs of your amp, then the outputs of your amp will go to the other part of the wiring, which will route it back into the factory wiring and out to the speakers.

    Luckily that amp comes with speaker wire to RCA connectors that will just need to be spliced on.

  8. May 18, 2019 at 7:05 AM
    #8
    destin_meeks

    destin_meeks I used to fix people's crappy stereos

    Joined:
    Jul 14, 2017
    Member:
    #223997
    Messages:
    2,734
    Gender:
    Male
    First Name:
    Destin
    Tuscaloosa, AL
    Vehicle:
    2017 SSM DoubleCab TRD Off-Road 4x4

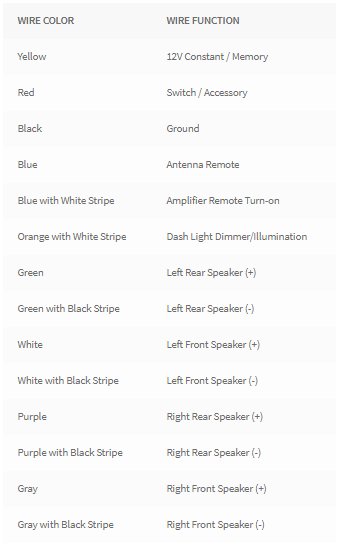

    All of the wiring is standard wire colors for car stereo so no crazy random colors to deal with
