Wiring Diagrams

Discussion in 'Audio & Video' started by BradleyJ33, Jun 20, 2009.

  1. Jun 20, 2009 at 5:48 AM
    #1
    BradleyJ33

    BradleyJ33 [OP] Geaux Tigers

    Joined:
    Jun 17, 2009
    Member:
    #18594
    Messages:
    494
    Gender:
    Male
    First Name:
    Brad
    Brandon, MS
    Vehicle:
    2010 TRD Sport 4x4 DCSB S/C'd
    TRD Supercharger with URD 2.825" Pulley, Toytec Ultimate Lift, LR UCAs, BFG All Terrain 275/70R17s on Procomp 7089 17" wheels, BAMF rock sliders, Viper 5902 alarm/remote start with smartstart, Pioneer Avic-Z110BT dvd/navi head unit, 2 Pioneer 7" monitors in headrests, 2 Rockford Fosgate Shallow-mount 10" subs pushed by RF Punch 500.2 amp, RF 5.25 components (front doors) and 5.25 full range (back doors) pushed by RF Power 400.4 amp, sound deadened, Whistler pro remote radar detector, scangauge II, debadged, Sockmonkey decals, blacked headlights with FX-R projectors, DDM Tuning HID fogs, Grillcraft upper and lower MX grill with Hella 500ffs converted to HIDs behind, AFE Stage 2 Cold Air Intake, Walbro 255 Fuel Pump upgrade, Dynomax Super Turbo muffler, Bestop Supertop, Wet Okole seat covers, Weathertech floor liners, Pop & Lock tailgate handle, Lighted 4x4 switch mod, 2 110v AC outlets in cab mod, Always at 400W mod, Maplights on with dome light mod, homelink in headliner mod, foglight
    Does anyone know of any good websites that would have different wiring schematics for audio systems, i.e. 2 amps and a crossover with 4 speakers and subs, one amp and subs, etc etc. Thanks in advance.

  2. Jun 20, 2009 at 6:37 AM
    #2
    sooner07

    sooner07 1/2 man 1/2 amazing

    Joined:
    Feb 17, 2008
    Member:
    #4783
    Messages:
    1,393
    Gender:
    Male
    First Name:
    A A Ron
    Killeen, Texas
    Vehicle:
    Debadged 2008 Rugged Trail
    Always working on the stereo, painted the front skid plate black to match the truck, debadged , toy tech ultimate lift kit, light racing UCAs, ARB bumper Looking into a supercharger and new exhaust.
    No, but I can sketch them up for you.

  3. Jun 20, 2009 at 1:30 PM
    #3
    BradleyJ33

    BradleyJ33 [OP] Geaux Tigers

    Joined:
    Jun 17, 2009
    Member:
    #18594
    Messages:
    494
    Gender:
    Male
    First Name:
    Brad
    Brandon, MS
    Vehicle:
    2010 TRD Sport 4x4 DCSB S/C'd
    TRD Supercharger with URD 2.825" Pulley, Toytec Ultimate Lift, LR UCAs, BFG All Terrain 275/70R17s on Procomp 7089 17" wheels, BAMF rock sliders, Viper 5902 alarm/remote start with smartstart, Pioneer Avic-Z110BT dvd/navi head unit, 2 Pioneer 7" monitors in headrests, 2 Rockford Fosgate Shallow-mount 10" subs pushed by RF Punch 500.2 amp, RF 5.25 components (front doors) and 5.25 full range (back doors) pushed by RF Power 400.4 amp, sound deadened, Whistler pro remote radar detector, scangauge II, debadged, Sockmonkey decals, blacked headlights with FX-R projectors, DDM Tuning HID fogs, Grillcraft upper and lower MX grill with Hella 500ffs converted to HIDs behind, AFE Stage 2 Cold Air Intake, Walbro 255 Fuel Pump upgrade, Dynomax Super Turbo muffler, Bestop Supertop, Wet Okole seat covers, Weathertech floor liners, Pop & Lock tailgate handle, Lighted 4x4 switch mod, 2 110v AC outlets in cab mod, Always at 400W mod, Maplights on with dome light mod, homelink in headliner mod, foglight
    That would be great...I'm likely going to have my system with the 4 door speakers hooked up on one amp and 2 subs on the other...mainly I was just unclear about whether I just run speaker wire from the amp, or if I somehow tap into the factory wires, and if I even had to have the factory wires hooked up to the head unit at all if I was going through an amp...Thanks so much!

  4. Jun 20, 2009 at 3:19 PM
    #4
    Evil Monkey

    Evil Monkey There's an evil monkey in my truck

    Joined:
    Aug 8, 2007
    Member:
    #2352
    Messages:
    8,376
    Gender:
    Male
    First Name:
    Robert
    Escondido, CA
    Vehicle:
    07 4x4 DC SR5 TRD Off-road
    Weathertech front & rear mats, rear suspension TSB, Toytec AAL for TSB, Hi-Lift Jack, Bilstein 5100 & Toytec Adjustable coilovers, Built Right UCAs, KMC XD 795 Hoss Wheels, Definity Dakota MTs 285/75R16, Leer XR, Thule Tracker II & Thule MOAB basket
  5. Jun 20, 2009 at 4:20 PM
    #5
    sooner07

    sooner07 1/2 man 1/2 amazing

    Joined:
    Feb 17, 2008
    Member:
    #4783
    Messages:
    1,393
    Gender:
    Male
    First Name:
    A A Ron
    Killeen, Texas
    Vehicle:
    Debadged 2008 Rugged Trail
    Always working on the stereo, painted the front skid plate black to match the truck, debadged , toy tech ultimate lift kit, light racing UCAs, ARB bumper Looking into a supercharger and new exhaust.
    Just let me know what you have as far as devices and I'll do a little circuit layout, scan it in, and email it to you.

  6. Jun 20, 2009 at 6:34 PM
    #6
    BradleyJ33

    BradleyJ33 [OP] Geaux Tigers

    Joined:
    Jun 17, 2009
    Member:
    #18594
    Messages:
    494
    Gender:
    Male
    First Name:
    Brad
    Brandon, MS
    Vehicle:
    2010 TRD Sport 4x4 DCSB S/C'd
    TRD Supercharger with URD 2.825" Pulley, Toytec Ultimate Lift, LR UCAs, BFG All Terrain 275/70R17s on Procomp 7089 17" wheels, BAMF rock sliders, Viper 5902 alarm/remote start with smartstart, Pioneer Avic-Z110BT dvd/navi head unit, 2 Pioneer 7" monitors in headrests, 2 Rockford Fosgate Shallow-mount 10" subs pushed by RF Punch 500.2 amp, RF 5.25 components (front doors) and 5.25 full range (back doors) pushed by RF Power 400.4 amp, sound deadened, Whistler pro remote radar detector, scangauge II, debadged, Sockmonkey decals, blacked headlights with FX-R projectors, DDM Tuning HID fogs, Grillcraft upper and lower MX grill with Hella 500ffs converted to HIDs behind, AFE Stage 2 Cold Air Intake, Walbro 255 Fuel Pump upgrade, Dynomax Super Turbo muffler, Bestop Supertop, Wet Okole seat covers, Weathertech floor liners, Pop & Lock tailgate handle, Lighted 4x4 switch mod, 2 110v AC outlets in cab mod, Always at 400W mod, Maplights on with dome light mod, homelink in headliner mod, foglight
    I'm putting in 4 6 1/2" speakers on one amp, and 2 12" 4ohm subs on another amp. I'll probably just leave the tweeters powered by the head unit. That's pretty much it...I appreciate the help!

  7. Jun 20, 2009 at 7:06 PM
    #7
    sooner07

    sooner07 1/2 man 1/2 amazing

    Joined:
    Feb 17, 2008
    Member:
    #4783
    Messages:
    1,393
    Gender:
    Male
    First Name:
    A A Ron
    Killeen, Texas
    Vehicle:
    Debadged 2008 Rugged Trail
    Always working on the stereo, painted the front skid plate black to match the truck, debadged , toy tech ultimate lift kit, light racing UCAs, ARB bumper Looking into a supercharger and new exhaust.
    The tweets and the 6 1/2"s, are they a component set?

  8. Jun 20, 2009 at 7:09 PM
    #8
    BradleyJ33

    BradleyJ33 [OP] Geaux Tigers

    Joined:
    Jun 17, 2009
    Member:
    #18594
    Messages:
    494
    Gender:
    Male
    First Name:
    Brad
    Brandon, MS
    Vehicle:
    2010 TRD Sport 4x4 DCSB S/C'd
    TRD Supercharger with URD 2.825" Pulley, Toytec Ultimate Lift, LR UCAs, BFG All Terrain 275/70R17s on Procomp 7089 17" wheels, BAMF rock sliders, Viper 5902 alarm/remote start with smartstart, Pioneer Avic-Z110BT dvd/navi head unit, 2 Pioneer 7" monitors in headrests, 2 Rockford Fosgate Shallow-mount 10" subs pushed by RF Punch 500.2 amp, RF 5.25 components (front doors) and 5.25 full range (back doors) pushed by RF Power 400.4 amp, sound deadened, Whistler pro remote radar detector, scangauge II, debadged, Sockmonkey decals, blacked headlights with FX-R projectors, DDM Tuning HID fogs, Grillcraft upper and lower MX grill with Hella 500ffs converted to HIDs behind, AFE Stage 2 Cold Air Intake, Walbro 255 Fuel Pump upgrade, Dynomax Super Turbo muffler, Bestop Supertop, Wet Okole seat covers, Weathertech floor liners, Pop & Lock tailgate handle, Lighted 4x4 switch mod, 2 110v AC outlets in cab mod, Always at 400W mod, Maplights on with dome light mod, homelink in headliner mod, foglight
    Yeah, it's a JL Audio component set in the front, and just another set of JL 6.5s for the back doors. Does that change the set-up? Sorry if these are dumb questions, I'm new at installing amps on my replacement speakers!

  9. Jun 20, 2009 at 7:25 PM
    #9
    sooner07

    sooner07 1/2 man 1/2 amazing

    Joined:
    Feb 17, 2008
    Member:
    #4783
    Messages:
    1,393
    Gender:
    Male
    First Name:
    A A Ron
    Killeen, Texas
    Vehicle:
    Debadged 2008 Rugged Trail
    Always working on the stereo, painted the front skid plate black to match the truck, debadged , toy tech ultimate lift kit, light racing UCAs, ARB bumper Looking into a supercharger and new exhaust.
    If the JL set came with a crossovers, then you should use it. The tweeters will be unprotected from low frequency signals, which is bad for them.

    So, let me see if I have your setup straight. Aftermarket H/U, set of JL component speakers, JL coax speakers, 2 subs, 1 4 channel amp and 1 2 channel amp (for subs)?

    How many RCA outputs does the headunit have? Should be 2 or 3 (front, rear, maybe sub).

    It would be helpful if you posted the model numbers, just so I can be sure to give you the best information.

  10. Jun 20, 2009 at 7:29 PM
    #10
    BradleyJ33

    BradleyJ33 [OP] Geaux Tigers

    Joined:
    Jun 17, 2009
    Member:
    #18594
    Messages:
    494
    Gender:
    Male
    First Name:
    Brad
    Brandon, MS
    Vehicle:
    2010 TRD Sport 4x4 DCSB S/C'd
    TRD Supercharger with URD 2.825" Pulley, Toytec Ultimate Lift, LR UCAs, BFG All Terrain 275/70R17s on Procomp 7089 17" wheels, BAMF rock sliders, Viper 5902 alarm/remote start with smartstart, Pioneer Avic-Z110BT dvd/navi head unit, 2 Pioneer 7" monitors in headrests, 2 Rockford Fosgate Shallow-mount 10" subs pushed by RF Punch 500.2 amp, RF 5.25 components (front doors) and 5.25 full range (back doors) pushed by RF Power 400.4 amp, sound deadened, Whistler pro remote radar detector, scangauge II, debadged, Sockmonkey decals, blacked headlights with FX-R projectors, DDM Tuning HID fogs, Grillcraft upper and lower MX grill with Hella 500ffs converted to HIDs behind, AFE Stage 2 Cold Air Intake, Walbro 255 Fuel Pump upgrade, Dynomax Super Turbo muffler, Bestop Supertop, Wet Okole seat covers, Weathertech floor liners, Pop & Lock tailgate handle, Lighted 4x4 switch mod, 2 110v AC outlets in cab mod, Always at 400W mod, Maplights on with dome light mod, homelink in headliner mod, foglight
    Ok, that makes sense on the tweeters...The HU has 3 preamp outputs, and is the pioneer Avic-Z3. The amps are rockford fosgate R300-4 for the speakers and P400-2 for the subs. Thanks again for the help, I really appreciate it!

  11. Jun 21, 2009 at 7:17 PM
    #11
    sooner07

    sooner07 1/2 man 1/2 amazing

    Joined:
    Feb 17, 2008
    Member:
    #4783
    Messages:
    1,393
    Gender:
    Male
    First Name:
    A A Ron
    Killeen, Texas
    Vehicle:
    Debadged 2008 Rugged Trail
    Always working on the stereo, painted the front skid plate black to match the truck, debadged , toy tech ultimate lift kit, light racing UCAs, ARB bumper Looking into a supercharger and new exhaust.

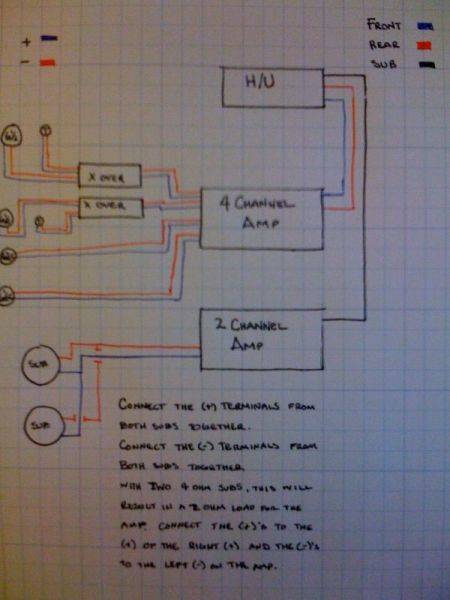

    Hope this helps. If you need a clearer view, let me know and I'll actually scan it in instead of being lazy and taking a picture of it.
