Wiring expert help with led sider markers

Discussion in 'Lighting' started by knine00, Jun 17, 2012.

  1. Jun 17, 2012 at 3:03 PM
    #1
    knine00

    knine00 [OP] Well-Known Member

    Joined:
    Oct 31, 2011
    Member:
    #66179
    Messages:
    1,327
    Gender:
    Male
    Pikeville, NC
    Vehicle:
    12 PreRunner DC TRD Sport
    Stock for now
    I am trying to install three 3/4" led side markers. I want to wire them to a switch and not the turning signals. Will this require a relay?

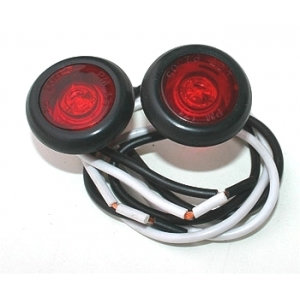

    I am installing these:
    [​IMG]

  2. Jun 17, 2012 at 3:04 PM
    #2
    Forster46

    Forster46 Very nice how much?

    Joined:
    Jul 20, 2010
    Member:
    #40487
    Messages:
    3,368
    Gender:
    Male
    First Name:
    Nick
    Mount Vernon, WA
    Vehicle:
    The doritos locos taco
    6000k HID's, AUX Reverse Lights, 3" Rough Country Suspension Lift, Pioneer AVH-P4200 Double Din, Underglow and footwell Lights, Camo Seat Covers, Duralast Tool Box, Blacked Out Badges, Grill, Front Emblem, Midland CB Radio, Amber Strobes, POWER REAR WINDOW, cup holder LED's, Firestik 3' in bed, console divider, Ultragauge.
  3. Jun 17, 2012 at 3:05 PM
    #3
    nfs257

    nfs257 Well-Known Member

    Joined:
    Jun 22, 2011
    Member:
    #58691
    Messages:
    5,892
    Gender:
    Male
    First Name:
    Chris
    San Diego
    Vehicle:
    09 DCLB PreRunner MGM SR5 Debadged
    Trac Performance built Prerunner
    What is the amp draw? If switch is rated enough should be fine... what are you going to use them for?

    I use relays for everything... lol

  4. Jun 17, 2012 at 3:08 PM
    #4
    knine00

    knine00 [OP] Well-Known Member

    Joined:
    Oct 31, 2011
    Member:
    #66179
    Messages:
    1,327
    Gender:
    Male
    Pikeville, NC
    Vehicle:
    12 PreRunner DC TRD Sport
    Stock for now
    Kinda like the raptor setup! I have Contura v switches

  5. Jun 17, 2012 at 3:14 PM
    #5
    Forster46

    Forster46 Very nice how much?

    Joined:
    Jul 20, 2010
    Member:
    #40487
    Messages:
    3,368
    Gender:
    Male
    First Name:
    Nick
    Mount Vernon, WA
    Vehicle:
    The doritos locos taco
    6000k HID's, AUX Reverse Lights, 3" Rough Country Suspension Lift, Pioneer AVH-P4200 Double Din, Underglow and footwell Lights, Camo Seat Covers, Duralast Tool Box, Blacked Out Badges, Grill, Front Emblem, Midland CB Radio, Amber Strobes, POWER REAR WINDOW, cup holder LED's, Firestik 3' in bed, console divider, Ultragauge.
    So only two red lights in the front? Or did you buy two sets?

  6. Jun 17, 2012 at 3:17 PM
    #6
    knine00

    knine00 [OP] Well-Known Member

    Joined:
    Oct 31, 2011
    Member:
    #66179
    Messages:
    1,327
    Gender:
    Male
    Pikeville, NC
    Vehicle:
    12 PreRunner DC TRD Sport
    Stock for now
    No, I am doing three white ones. I bought them from led warehouse.

  7. Jun 17, 2012 at 3:24 PM
    #7
    nfs257

    nfs257 Well-Known Member

    Joined:
    Jun 22, 2011
    Member:
    #58691
    Messages:
    5,892
    Gender:
    Male
    First Name:
    Chris
    San Diego
    Vehicle:
    09 DCLB PreRunner MGM SR5 Debadged
    Trac Performance built Prerunner
    3 leds should be fine in one switch. If you want to protect the dwight use a relay. Not much more work at all.

  8. Jun 17, 2012 at 3:31 PM
    #8
    Forster46

    Forster46 Very nice how much?

    Joined:
    Jul 20, 2010
    Member:
    #40487
    Messages:
    3,368
    Gender:
    Male
    First Name:
    Nick
    Mount Vernon, WA
    Vehicle:
    The doritos locos taco
    6000k HID's, AUX Reverse Lights, 3" Rough Country Suspension Lift, Pioneer AVH-P4200 Double Din, Underglow and footwell Lights, Camo Seat Covers, Duralast Tool Box, Blacked Out Badges, Grill, Front Emblem, Midland CB Radio, Amber Strobes, POWER REAR WINDOW, cup holder LED's, Firestik 3' in bed, console divider, Ultragauge.
    Ohh okay. Cool

  9. Jun 17, 2012 at 3:31 PM
    #9
    knine00

    knine00 [OP] Well-Known Member

    Joined:
    Oct 31, 2011
    Member:
    #66179
    Messages:
    1,327
    Gender:
    Male
    Pikeville, NC
    Vehicle:
    12 PreRunner DC TRD Sport
    Stock for now
    Where is a good place to get a relay online? Is there a certain type?

  10. Jun 17, 2012 at 3:41 PM
    #10
    nfs257

    nfs257 Well-Known Member

    Joined:
    Jun 22, 2011
    Member:
    #58691
    Messages:
    5,892
    Gender:
    Male
    First Name:
    Chris
    San Diego
    Vehicle:
    09 DCLB PreRunner MGM SR5 Debadged
    Trac Performance built Prerunner
    Radio shack or oznium.com

    A 4 pole will work most are 5 pole and you use only 4 poles...

  11. Jun 17, 2012 at 3:43 PM
    #11
    knine00

    knine00 [OP] Well-Known Member

    Joined:
    Oct 31, 2011
    Member:
    #66179
    Messages:
    1,327
    Gender:
    Male
    Pikeville, NC
    Vehicle:
    12 PreRunner DC TRD Sport
    Stock for now
    Do you know where I can get a wiring diagram?
    thanks for all of your help

  12. Jun 17, 2012 at 3:48 PM
    #12
    nfs257

    nfs257 Well-Known Member

    Joined:
    Jun 22, 2011
    Member:
    #58691
    Messages:
    5,892
    Gender:
    Male
    First Name:
    Chris
    San Diego
    Vehicle:
    09 DCLB PreRunner MGM SR5 Debadged
    Trac Performance built Prerunner
  13. Jun 17, 2012 at 3:48 PM
    #13
    Rich91710

    Rich91710 Well-Known Member

    Joined:
    Feb 23, 2012
    Member:
    #73470
    Messages:
    16,493
    Gender:
    Male
    First Name:
    Rich
    Los Angeles
    Vehicle:
    08 Base
    Satoshi with FJ badge, factory cruise, factory intermittent wipers, Redline Tuning hood-lift struts, Hellwig Swaybar, Rosen DVD-Nav
    Not really a "4-pole".... the contacts only have one pole.
    You have a N/O (87), common (30), and some have a N/C (87a)

    The relays are 4 or 5 PIN. Pins 85 and 86 are the coil terminals that switch the relay.

  14. Jun 17, 2012 at 3:50 PM
    #14
    nfs257

    nfs257 Well-Known Member

    Joined:
    Jun 22, 2011
    Member:
    #58691
    Messages:
    5,892
    Gender:
    Male
    First Name:
    Chris
    San Diego
    Vehicle:
    09 DCLB PreRunner MGM SR5 Debadged
    Trac Performance built Prerunner
    You are correct... sorry for the confusion.

  15. Jun 17, 2012 at 4:04 PM
    #15
    knine00

    knine00 [OP] Well-Known Member

    Joined:
    Oct 31, 2011
    Member:
    #66179
    Messages:
    1,327
    Gender:
    Male
    Pikeville, NC
    Vehicle:
    12 PreRunner DC TRD Sport
    Stock for now
    So I can use a 4 pin? That would mean its a N/O relay correct? 5 pin just gives you a choice between n/o or a n/c relay?

  16. Jun 17, 2012 at 4:13 PM
    #16
    Rich91710

    Rich91710 Well-Known Member

    Joined:
    Feb 23, 2012
    Member:
    #73470
    Messages:
    16,493
    Gender:
    Male
    First Name:
    Rich
    Los Angeles
    Vehicle:
    08 Base
    Satoshi with FJ badge, factory cruise, factory intermittent wipers, Redline Tuning hood-lift struts, Hellwig Swaybar, Rosen DVD-Nav
    Correct.

    Pin 87 is usually used as the output.
    Personally, I prefer to reverse 87 and 30 for safety reasons IF I'm using a 5-pin. Why? 87a is the NC contact. When the relay is not energized (switch off, truck off), 87a is hot... direct connection to the battery.

    This doesn't matter on the 4-pin, and really, it's not a big deal on the 5-pin as long as you put some shrink tubing over 87a.

    There are some good uses for the 5-pin relay, example, you can use the 87a output to feed a 2nd relay to automatically switch between fogs and driving lights when you switch from low to high beam.



  17. Jun 17, 2012 at 4:17 PM
    #17
    knine00

    knine00 [OP] Well-Known Member

    Joined:
    Oct 31, 2011
    Member:
    #66179
    Messages:
    1,327
    Gender:
    Male
    Pikeville, NC
    Vehicle:
    12 PreRunner DC TRD Sport
    Stock for now

    I gotcha. So a 5 pin can be used with a on/off/on 3 position switch?

  18. Jun 17, 2012 at 4:22 PM
    #18
    Rich91710

    Rich91710 Well-Known Member

    Joined:
    Feb 23, 2012
    Member:
    #73470
    Messages:
    16,493
    Gender:
    Male
    First Name:
    Rich
    Los Angeles
    Vehicle:
    08 Base
    Satoshi with FJ badge, factory cruise, factory intermittent wipers, Redline Tuning hood-lift struts, Hellwig Swaybar, Rosen DVD-Nav

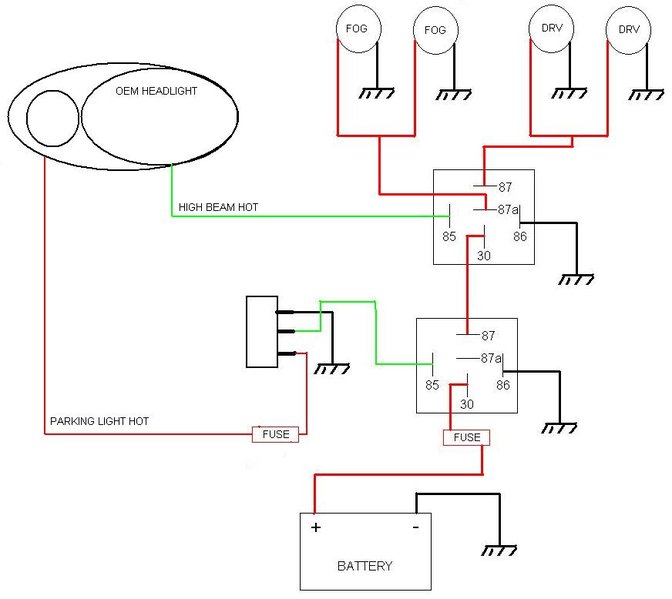

    That's actually a 2-position switch with an indicator light.
    The ground connection is the ground for the indicator.

    Switch pulls in the relay that connects the battery to the rest of the system.
    The switch gets it's power from the parking lights, so when the headlights are off, the whole system goes dark.

    Power normally flows from the 1st relay 87 to the 2nd relay pin 30, and out pin 87a to the fog lights.
    When the high beams are turned on, the hot from the high beams closes relay #2, which redirects the output of relay #1 to pin 87, to the driving lights.

  19. Jun 17, 2012 at 4:25 PM
    #19
    knine00

    knine00 [OP] Well-Known Member

    Joined:
    Oct 31, 2011
    Member:
    #66179
    Messages:
    1,327
    Gender:
    Male
    Pikeville, NC
    Vehicle:
    12 PreRunner DC TRD Sport
    Stock for now
    Awesome thanks for the info!

  20. Jun 17, 2012 at 4:53 PM
    #20
    nfs257

    nfs257 Well-Known Member

    Joined:
    Jun 22, 2011
    Member:
    #58691
    Messages:
    5,892
    Gender:
    Male
    First Name:
    Chris
    San Diego
    Vehicle:
    09 DCLB PreRunner MGM SR5 Debadged
    Trac Performance built Prerunner
    That confused me... lol

    I need to read and study that again...
