wiring factory push button switch w/Hella 700's

Discussion in 'Lighting' started by Hardscrabble, May 18, 2012.

  1. May 18, 2012 at 1:22 PM
    #1
    Hardscrabble

    Hardscrabble [OP] Well-Known Member

    Joined:
    Feb 9, 2011
    Member:
    #50838
    Messages:
    1,465
    Gender:
    Male
    First Name:
    Scott
    McDonough, GA
    Vehicle:
    Timberland Mica 4X4
    Leather seats, WeatherTech's, Access LiteRider tonneau cover, extra D-rings in bed & tailgate. Pelley lightbar with Hella 700FF's. Temp./compass O/H console.
    Ok, going to wire up my Hellas and want to make sure I've got the wire positions correct on my factory switch. I'm using the supplied Hella harness with a 4 pin relay. (30-85-86-87).

    I've got the push button Toyota p/n 84160-04010 sw. with the connector and 4ea. wire leads. Someone (I think it was Pugga) posted the correct pin position and wire locations but I couldn't find it in many searches. Here's what my feeble mind remembers.

    Looking at the switch with the connector release on the right, from the top;

    4--ground
    3--relay pin 86(yellow wire from Hella harness)
    2--sw. power for illumination(+)
    1--sw. ground(-)

    Is this correct? Can pin 4 & 1 be connected together?

    Any help is appreciated. :cheers: Have a good weekend.

  2. May 20, 2012 at 1:04 PM
    #2
    Hardscrabble

    Hardscrabble [OP] Well-Known Member

    Joined:
    Feb 9, 2011
    Member:
    #50838
    Messages:
    1,465
    Gender:
    Male
    First Name:
    Scott
    McDonough, GA
    Vehicle:
    Timberland Mica 4X4
    Leather seats, WeatherTech's, Access LiteRider tonneau cover, extra D-rings in bed & tailgate. Pelley lightbar with Hella 700FF's. Temp./compass O/H console.
    Ah nevermind. I got my meter and a couple of batteries and figured it out. I might post some pictures and post the results so the next guy/gal will have it easier.
    Nothing to it, it's just wiring. I was just being lazy and letting the internet get the answers for me.
    :cheers:

  3. May 21, 2012 at 3:26 PM
    #3
    Hardscrabble

    Hardscrabble [OP] Well-Known Member

    Joined:
    Feb 9, 2011
    Member:
    #50838
    Messages:
    1,465
    Gender:
    Male
    First Name:
    Scott
    McDonough, GA
    Vehicle:
    Timberland Mica 4X4
    Leather seats, WeatherTech's, Access LiteRider tonneau cover, extra D-rings in bed & tailgate. Pelley lightbar with Hella 700FF's. Temp./compass O/H console.

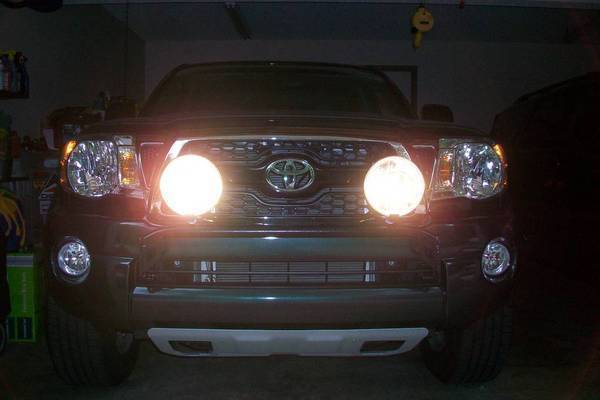

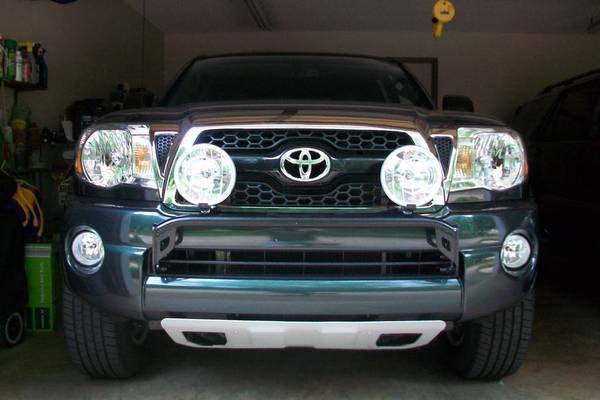

  4. May 21, 2012 at 4:09 PM
    #4
    Chris24

    Chris24 Well-Known Member

    Joined:
    Apr 19, 2012
    Member:
    #77247
    Messages:
    1,101
    Gender:
    Male
    First Name:
    Chris
    Greensboro, NC
    Vehicle:
    09 Black DCSB TRD Sport, V6, 6sp
    Anytime fog light mod Bed mat LED Map and Dome LED bed lights Red LED floor lighting in cab Westin Bull Bar Westin Side Steps Treklights 18" LED Spot bar 2 Blitzpro 6D 2 Blitzpro 6LZ as rear aux lighting Flyzeye V2 Anytime rear camera mod Extang Trifecta tonneau Extra d-rings in the bed Pop n Lock Tailgate Handle
    looks good :)

  5. May 21, 2012 at 8:20 PM
    #5
    Redgrom

    Redgrom http://www.tacomaworld.com/forum/2nd-gen-builds/29

    Joined:
    Feb 11, 2010
    Member:
    #31150
    Messages:
    1,533
    Gender:
    Male
    First Name:
    Brent
    san clemente
    Vehicle:
    4x4 taco and 96 ford bronco
    ATO front skid (need more but icon's might fail if I hang anything else from my truck) All-Pro front bumper thanks to a good deal here and a pesky encounter with a rock or 20, total chaos uppers.
    OK so was the first post correct? My new light bar will be here any day now and I plan on reusing the stock switch. Second question, what did you have to remove to acess the upper switches?

  6. May 22, 2012 at 1:07 PM
    #6
    Hardscrabble

    Hardscrabble [OP] Well-Known Member

    Joined:
    Feb 9, 2011
    Member:
    #50838
    Messages:
    1,465
    Gender:
    Male
    First Name:
    Scott
    McDonough, GA
    Vehicle:
    Timberland Mica 4X4
    Leather seats, WeatherTech's, Access LiteRider tonneau cover, extra D-rings in bed & tailgate. Pelley lightbar with Hella 700FF's. Temp./compass O/H console.

    Thanks.

  7. May 22, 2012 at 1:12 PM
    #7
    Hardscrabble

    Hardscrabble [OP] Well-Known Member

    Joined:
    Feb 9, 2011
    Member:
    #50838
    Messages:
    1,465
    Gender:
    Male
    First Name:
    Scott
    McDonough, GA
    Vehicle:
    Timberland Mica 4X4
    Leather seats, WeatherTech's, Access LiteRider tonneau cover, extra D-rings in bed & tailgate. Pelley lightbar with Hella 700FF's. Temp./compass O/H console.
    Brent,
    Not quite. Me feeble mind doesn't remember so good anymore.
    http://www.fjcruiserforums.com/foru...-light-dash-inst-w-pics-fog_led_schematic.jpg

    Hopefully the above link will open. This is the correct wiring schematic for the OEM 84160-04010 switch.

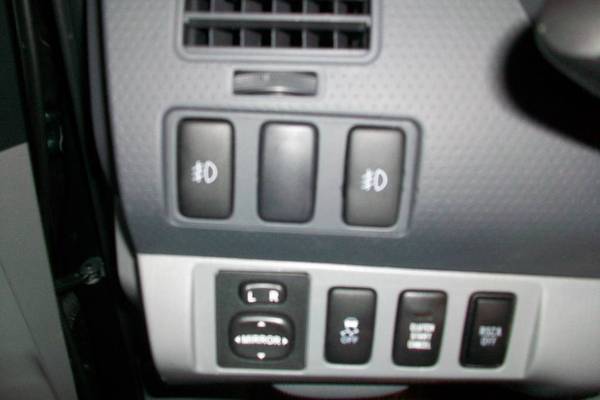

    I just removed the coin tray and the blank plug where I put the new switch for access. You'll have your head up near the pedals for a little while but it's not too bad to run a couple of wires.

    Good luck.

  8. Jul 22, 2012 at 8:01 PM
    #8
    Canes58

    Canes58 Well-Known Member

    Joined:
    Apr 5, 2012
    Member:
    #76337
    Messages:
    483
    Gender:
    Male
    Pensacola
    Vehicle:
    09 RC 4x 5spd
    magnaflow - k&n - fact alum wheels - back up mirror - intermit wipers - JVC 800 w/focal 165's - oem fogs - 5100's fr & rear.
  9. Jul 26, 2012 at 6:49 PM
    #9
    Redtaco704

    Redtaco704 Well-Known Member

    Joined:
    Jul 7, 2012
    Member:
    #82140
    Messages:
    46
    Gender:
    Male
    First Name:
    Jon
    Charlotte, NC
    Vehicle:
    05 DCSB 4x4
    Bilstein 5100's all around, Pro-Comp AAL, Pioneer in Dash DVD, Image Dynamics Component speakers, Custom 10" sub enclosure
    Which light bar is this? Looks good!

  10. Jul 28, 2012 at 10:12 AM
    #10
    Canes58

    Canes58 Well-Known Member

    Joined:
    Apr 5, 2012
    Member:
    #76337
    Messages:
    483
    Gender:
    Male
    Pensacola
    Vehicle:
    09 RC 4x 5spd
    magnaflow - k&n - fact alum wheels - back up mirror - intermit wipers - JVC 800 w/focal 165's - oem fogs - 5100's fr & rear.
    I've got this same switch and would like to hook up fogs. Single cab not wired. Can you give me some clue where I can get power for the top wire, 12v in and the third one, 12v illuminated? Thank you.
