wiring Hella 500 lights and switch compatibility

Discussion in 'Lighting' started by Alex352, Dec 20, 2009.

  1. Alex352

    Alex352 [OP] Well-Known Member

    Joined:
    Oct 20, 2008
    Member:
    #10115
    Messages:
    223
    Gender:
    Male
    First Name:
    Alex
    Oregon
    Vehicle:
    07 Tacoma Dbl Cab
    http://www.tacomaworld.com/forum/2nd-gen-builds/281569-alex352s-build-thread.html
    hey guys i have 4 hella 500s that i want to wire and i want to bypass the high beam wiring so i can turn them on anytime. can this be done? If so does anyone have a diagram of the instructions?

    The switches that come with the hellas look kinda cheesy so i did some research and found some nice rocker switches on www.OTTRATTW.com. Does anyone know if these switches would fit in the empty aux slots to the left of the gauges? thanks in advance

  2. WhatThePho?

    WhatThePho? Greg Graffin 2016

    Joined:
    Jun 30, 2009
    Member:
    #19096
    Messages:
    5,497
    Gender:
    Male
    First Name:
    Andre
    HCMC, VN
    Vehicle:
    2006 STi
    The things required to pull bitches
    I'm not sure if the switch would fit, Make sure the switch can handle the amp going through them

    Amp = watts/volts.

    4 lights is 220/12 = 18 amps.

    I used 10 gauge on all the wires.

    Wiring them is pretty much straight foward.

    A line from the battery to the relay
    a line from the battery to the switch to the relay to activate the relay
    one from the relay to a ground
    one from the relay to the lights.

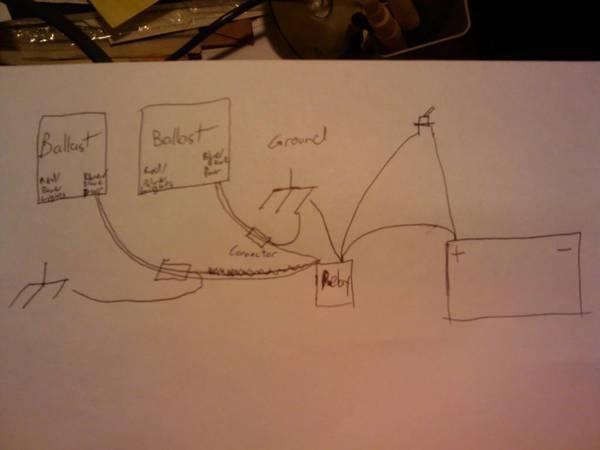

    heres a half assed diagram i drew [​IMG]

  3. Alex352

    Alex352 [OP] Well-Known Member

    Joined:
    Oct 20, 2008
    Member:
    #10115
    Messages:
    223
    Gender:
    Male
    First Name:
    Alex
    Oregon
    Vehicle:
    07 Tacoma Dbl Cab
    http://www.tacomaworld.com/forum/2nd-gen-builds/281569-alex352s-build-thread.html
    Ok thanks. The size of the switch if .830x1.45 inches if that helps. im just in love with these switches.

  4. WhatThePho?

    WhatThePho? Greg Graffin 2016

    Joined:
    Jun 30, 2009
    Member:
    #19096
    Messages:
    5,497
    Gender:
    Male
    First Name:
    Andre
    HCMC, VN
    Vehicle:
    2006 STi
    The things required to pull bitches
    I'm not sure about the switch I got a first gen, I know 05 prerunner found some switches for his 2nd gen they fit in really well they are rocker switches as well.
    I'm not sure which rocker switch you're looking at there's a lot on there.
    Pm him

    http://www.tacomaworld.com/forum/members/05prerunner.html

  5. Alex352

    Alex352 [OP] Well-Known Member

    Joined:
    Oct 20, 2008
    Member:
    #10115
    Messages:
    223
    Gender:
    Male
    First Name:
    Alex
    Oregon
    Vehicle:
    07 Tacoma Dbl Cab
    http://www.tacomaworld.com/forum/2nd-gen-builds/281569-alex352s-build-thread.html
    ok thanks for all the help man I appreciate it. + rep

  6. another gsxr 1k

    another gsxr 1k Active Member

    Joined:
    Mar 27, 2009
    Member:
    #15207
    Messages:
    31
    Gender:
    Male
    Jax, Florida
    Vehicle:
    03 DCab PreRunner
    Tonneau cover, Fog and dual purpose backup / warning lights, tinted windows, stereo upgrade vent shades
    Yes, you can bypass the headlight side of the relay so you can turn them on at will. Install them as per the instructions from Hella with the exception of tapping into the headlight circuit. What you want to do is to tap into the cigarette lighter circuit. Once you do that, you can turn them on and off when you feel like it.

    Doing it that way will give you lights any time you want them and they will turn off when you shut the ignition off, so it won't kill your battery if you leave them on.

  7. Zombie Runner

    Zombie Runner Are these black helicopters for me?

    Joined:
    Mar 13, 2008
    Member:
    #5246
    Messages:
    15,109
    Gender:
    Male
    First Name:
    Kevin
    Wichita Falls, TX
    Vehicle:
    Tundra, double cab.
    LED interior lights, stubby antenna, Pioneer in dash screen

    x2

    I used the battery for my power though.

  8. Evil Monkey

    Evil Monkey There's an evil monkey in my truck

    Joined:
    Aug 8, 2007
    Member:
    #2352
    Messages:
    8,388
    Gender:
    Male
    First Name:
    Robert
    Escondido, CA
    Vehicle:
    07 4x4 DC SR5 TRD Off-road
    Weathertech front & rear mats, rear suspension TSB, Toytec AAL for TSB, Hi-Lift Jack, Bilstein 5100 & Toytec Adjustable coilovers, Built Right UCAs, KMC XD 795 Hoss Wheels, Definity Dakota MTs 285/75R16, Leer XR, Thule Tracker II & Thule MOAB basket
    Just to be clear, the switch doesn't need to handle 18 amps or use 10 gauge wires. It just needs to handle enough current to activate the relay (which is minimal). That's the point of using the relay, so you don't have to run all that power through the switch.

  9. jward2331

    jward2331 Well-Known Member

    Joined:
    Dec 5, 2008
    Member:
    #11313
    Messages:
    540
    Gender:
    Male
    First Name:
    John
    Fleming Island, Fl
    Vehicle:
    '08 PreRunner SR5 TRD Sport
    Debadged, tinted windows, upper/lower Grillcraft (horns relocated), Hella 500's with HID Mod (55W 5000) behind grill, shorty antenna, WeatherTech side window deflectors, suspension TSB, Westin Signature Nerf bars, JVC KD A-615 Head Unit with Sirius Direct tuner, Blacked out headlights, DTDL Mod (Switch for on/off), Hard Wired GPS, NOKYA Arctic Hyper Yellow Fog lights, Fog lights on anytime Mod, Michelin LTX M/S2 (P265/65R17), Powder coated OEM wheels. LED ANZO tail lights, Weather Tech FloorLiners.
    As far as the right switch, go to a Toyota Dealer and order a 00550-35976 I think it was $14 it will work. I used it for my 500 Hella lights. I had to trim just a very little bit but they are tight and work/look great.
