wiring help! is this safe???

Discussion in 'Lighting' started by kinkrider101, Mar 19, 2011.

  1. Mar 22, 2011 at 6:15 PM
    #61
    larryde09

    larryde09 Well-Known Member

    Joined:
    Jul 3, 2010
    Member:
    #39759
    Messages:
    561
    Gender:
    Male
    First Name:
    Larry
    Rochester, NY
    Vehicle:
    (Traded-in) 06 2.7L 5-spd SR5 4x4
    K&N Intake, Magnaflow Cat-back Exhaust, Altezza Tail Lights, Pop&Lock Tailgate Lock, Extang Trifecta Tonneau Cover, PIAA foglights with stock switch, DrawTite Hitch, OBX Shift Knob, Hood Protector, Vent Visors, DIY step bars/sliders/running boards, DIY Bed Lights, DIY Running Board/Ground Lights, DIY Tailgate Electrical Box (12V socket, voltage and current gauges), DIY Internal Lighting (coming soon), Aftermarket switches in stock dash blanks, Sony Head Unit, Illuminated 4x4 switch mod
    Alright, I'll hook you up to clear up any confusion. Remember, this is a reference...I take no responsibility for your actions.

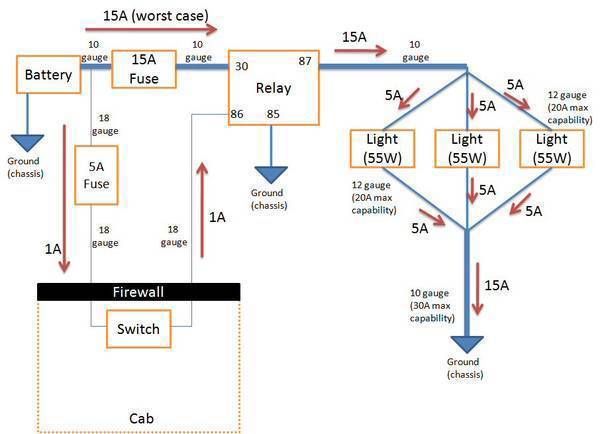

    The red arrows represent the actual worst case current draw. I also labeled each wire as I understand it from your plans and descriptions. I'm also assuming that you aren't tapping power from a fog light or something inside the cab, so you'll have to run another wire from the battery. Typically you shouldn't do anything smaller than an 18 gauge wire for the relay control. Since this line is low current, a 5A fuse is readily available and sufficient for this line.

    [​IMG]

  2. Mar 22, 2011 at 8:14 PM
    #62
    kinkrider101

    kinkrider101 [OP] Well-Known Member

    Joined:
    Sep 29, 2009
    Member:
    #23497
    Messages:
    2,698
    Gender:
    Male
    santa barbara
    Vehicle:
    2007 cummins/2007 tacoma
    wheels and tires
    Thanks!i got all the wiring done! I used all 10 and 12g wire with two 25a fuses and A relay

  3. Mar 23, 2011 at 5:15 PM
    #63
    larryde09

    larryde09 Well-Known Member

    Joined:
    Jul 3, 2010
    Member:
    #39759
    Messages:
    561
    Gender:
    Male
    First Name:
    Larry
    Rochester, NY
    Vehicle:
    (Traded-in) 06 2.7L 5-spd SR5 4x4
    K&N Intake, Magnaflow Cat-back Exhaust, Altezza Tail Lights, Pop&Lock Tailgate Lock, Extang Trifecta Tonneau Cover, PIAA foglights with stock switch, DrawTite Hitch, OBX Shift Knob, Hood Protector, Vent Visors, DIY step bars/sliders/running boards, DIY Bed Lights, DIY Running Board/Ground Lights, DIY Tailgate Electrical Box (12V socket, voltage and current gauges), DIY Internal Lighting (coming soon), Aftermarket switches in stock dash blanks, Sony Head Unit, Illuminated 4x4 switch mod
    Just a reminder, if you're using a 25A fuse to protect a 12g wire, just be sure it's quality wire that can handle it.

  4. Mar 24, 2011 at 3:48 PM
    #64
    kinkrider101

    kinkrider101 [OP] Well-Known Member

    Joined:
    Sep 29, 2009
    Member:
    #23497
    Messages:
    2,698
    Gender:
    Male
    santa barbara
    Vehicle:
    2007 cummins/2007 tacoma
    wheels and tires
    I used the 25a fuses on the 10g wire

  5. Mar 24, 2011 at 6:00 PM
    #65
    caribe makaira

    caribe makaira Lurker No More

    Joined:
    Feb 13, 2011
    Member:
    #51121
    Messages:
    485
    Gender:
    Male
    Caribbean, Puerto Rico
    Vehicle:
    05 PreRunner TRD Offroad
    Hood Struts, My version Fogs always ON, Map & Overhead Light Mod,
    Can you take a picture of the overbuilded install?

  6. Mar 25, 2011 at 6:10 PM
    #66
    kinkrider101

    kinkrider101 [OP] Well-Known Member

    Joined:
    Sep 29, 2009
    Member:
    #23497
    Messages:
    2,698
    Gender:
    Male
    santa barbara
    Vehicle:
    2007 cummins/2007 tacoma
    wheels and tires
    over build?
