Wiring help please!

Discussion in '1st Gen. Tacomas (1995-2004)' started by madmax700r, Dec 30, 2017.

  1. Dec 30, 2017 at 7:03 PM
    #1
    madmax700r

    madmax700r [OP] Well-Known Member

    Joined:
    Dec 13, 2017
    Member:
    #238392
    Messages:
    316
    Gender:
    Male
    Washington
    Vehicle:
    98 4bt swapped on tons and 43’s

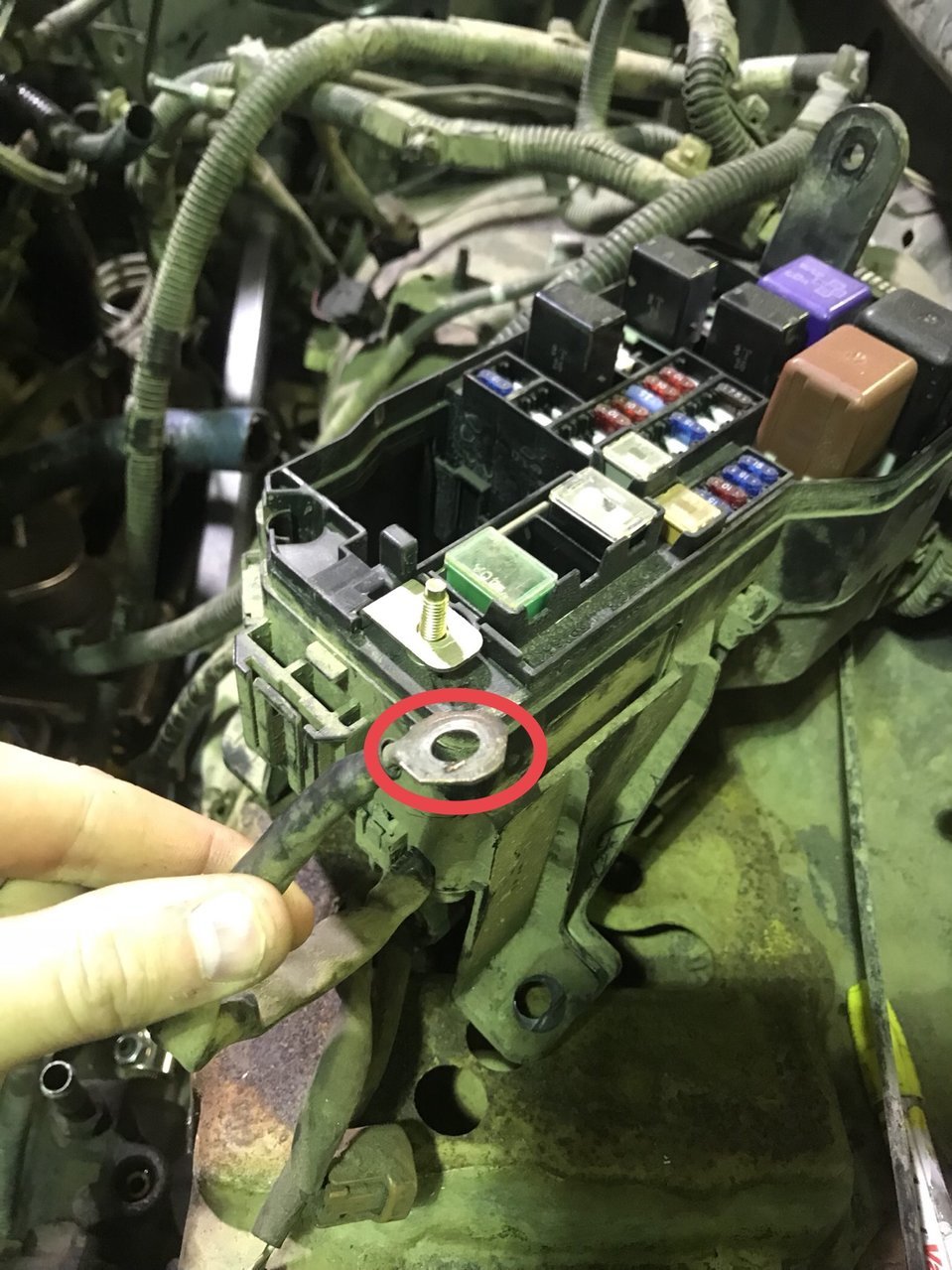

    wish I would have taken pictures before I pulled all this apart but can anyone tell me if the wire circled in red goes to the fuse box power stud??? 2D8FB6EF-C3C4-4E59-864F-577DCF1C2D2E.jpg

    And second what is plugged into these?? Can’t find any good info anywhere
    By any chance can someone take a picture for me please


  2. Dec 31, 2017 at 10:40 AM
    #2
    madmax700r

    madmax700r [OP] Well-Known Member

    Joined:
    Dec 13, 2017
    Member:
    #238392
    Messages:
    316
    Gender:
    Male
    Washington
    Vehicle:
    98 4bt swapped on tons and 43’s
    Anyone help a brother out??...

  3. Dec 31, 2017 at 12:29 PM
    #3
    Dirty Pool

    Dirty Pool NEW DELHI FREIGHT TRAIN

    Joined:
    Mar 24, 2013
    Member:
    #100471
    Messages:
    2,064
    Gender:
    Male
    59.4 Miles, 56.67° NE Of Moab
    Vehicle:
    99 XCAB V6 MT TRD
    Dirty Pool rear bumper/air tank with integrated spare CV shaft storage, DP customized TJM front bumper, 8000 lb Ramsey/Technora rope, E-locked, Extended breathers with front diff catch can, PCV catch can, SAWs with DP heim joint seals, DP custom 6 leaf rear springs/Billies, DP custom skids, 2lo, Gray wire, Cap, Bed Rug, Black steelies, 01 Center console, Map lights, Disraeli gears

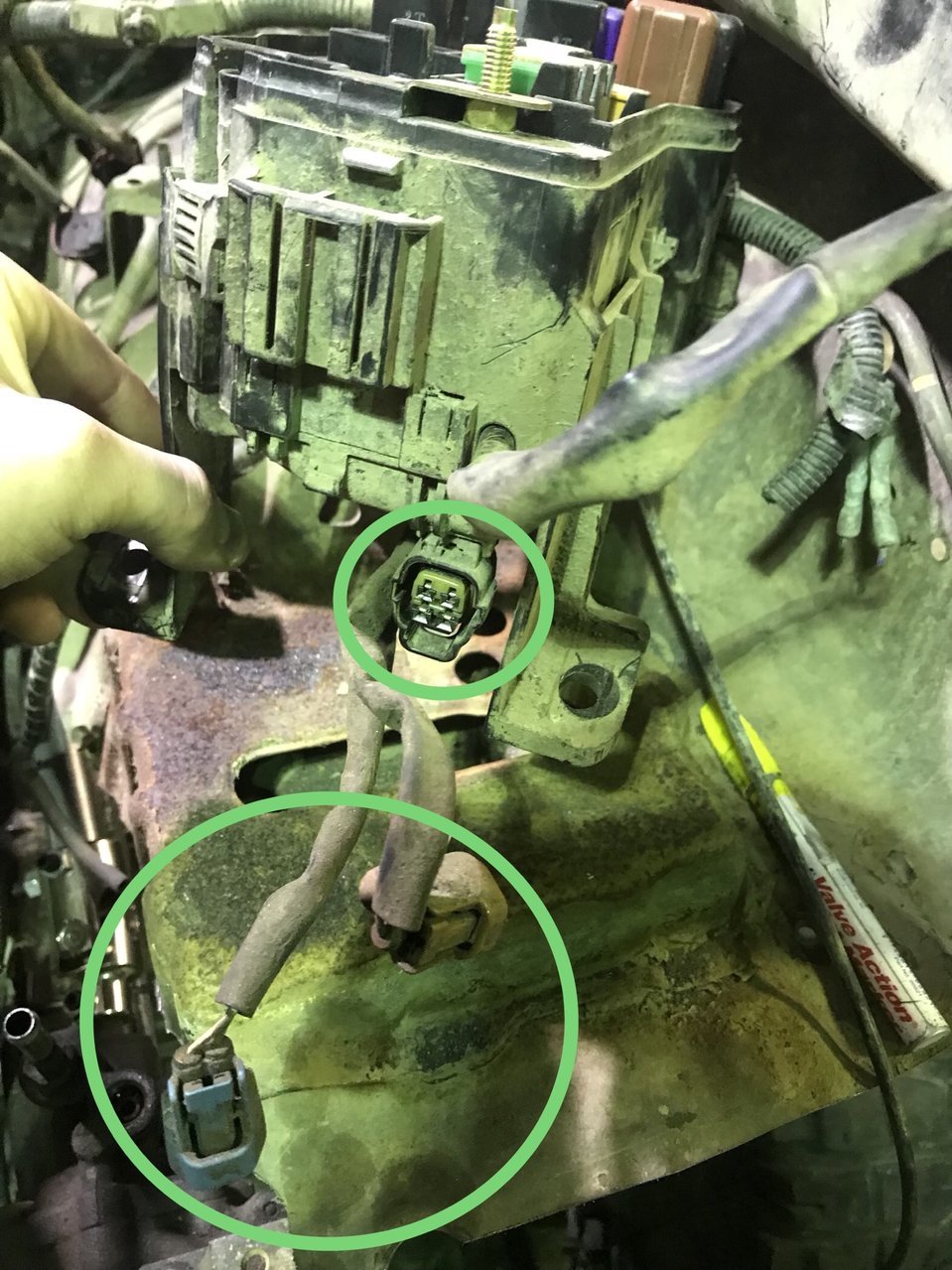

    First pic, that wire goes to the + battery terminal. "Feed" for the fuse box. Should be one more from the alternator/starter harness on that empty stud on the fuse box.
    Second pic, small circle. Alternator "control" wires also from alt/starter harness. Large circle, the 2 ADD VSV's. Reddish plug on the froward VSV blue to the rear.

  4. Dec 31, 2017 at 12:57 PM
    #4
    BartMaster1234

    BartMaster1234 American Auto Horns

    Joined:
    Aug 21, 2016
    Member:
    #195197
    Messages:
    40,945
    Gender:
    Male
    First Name:
    Tyler
    San Francisco, California
    Vehicle:
    1998 PreRunner 4x4 2.7l Supercharged
    Flux Capacitor
    Yup. I asked the same two questions about those two connectors under the fuse box and they're for the 4WD system VSV's.

  5. Dec 31, 2017 at 1:15 PM
    #5
    madmax700r

    madmax700r [OP] Well-Known Member

    Joined:
    Dec 13, 2017
    Member:
    #238392
    Messages:
    316
    Gender:
    Male
    Washington
    Vehicle:
    98 4bt swapped on tons and 43’s
    Awesome thank you guys! Hopefully I can get rid of the gauge cluster and have everything still work. Need to get some wiring diagrams. Just wasn’t sure if I could get rid of those VSV plugs or not. Appreciate it guys!
    Going to start wiring my truck here soon and try to get the lights/everything working with this 4bt.

  6. Dec 31, 2017 at 1:31 PM
    #6
    BartMaster1234

    BartMaster1234 American Auto Horns

    Joined:
    Aug 21, 2016
    Member:
    #195197
    Messages:
    40,945
    Gender:
    Male
    First Name:
    Tyler
    San Francisco, California
    Vehicle:
    1998 PreRunner 4x4 2.7l Supercharged
    Flux Capacitor
    What wiring diagrams do you need? There's a post stickied to the top of this forum with 75% of all the Toyota FSM's for the first gen.

  7. Dec 31, 2017 at 2:48 PM
    #7
    madmax700r

    madmax700r [OP] Well-Known Member

    Joined:
    Dec 13, 2017
    Member:
    #238392
    Messages:
    316
    Gender:
    Male
    Washington
    Vehicle:
    98 4bt swapped on tons and 43’s
    I just grabbed a Haynes manual for like $20 so I have all the ones I need. I think..

    I looked at the sticky but the link won’t work for me for some reason.

    Just trying to get the heater, lights and radio to work. That’s really all I need

  8. Dec 31, 2017 at 2:52 PM
    #8
    Dirty Pool

    Dirty Pool NEW DELHI FREIGHT TRAIN

    Joined:
    Mar 24, 2013
    Member:
    #100471
    Messages:
    2,064
    Gender:
    Male
    59.4 Miles, 56.67° NE Of Moab
    Vehicle:
    99 XCAB V6 MT TRD
    Dirty Pool rear bumper/air tank with integrated spare CV shaft storage, DP customized TJM front bumper, 8000 lb Ramsey/Technora rope, E-locked, Extended breathers with front diff catch can, PCV catch can, SAWs with DP heim joint seals, DP custom 6 leaf rear springs/Billies, DP custom skids, 2lo, Gray wire, Cap, Bed Rug, Black steelies, 01 Center console, Map lights, Disraeli gears
    Not sure where/how/what you are going to interface in the swap but here's some more stuff, I'm a little bored.

    ADD VSV's connected.
    [​IMG]

    Alternator plug "EA1"
    [​IMG]

    Fuse box feed.
    [​IMG]

    Charging diagram from 03, same as 99/98 except for value of main "ALT" fuse.

    [​IMG]

    Pin out for "EA1"
    [​IMG]

    Some location info.
    [​IMG]

  9. Dec 31, 2017 at 3:01 PM
    #9
    madmax700r

    madmax700r [OP] Well-Known Member

    Joined:
    Dec 13, 2017
    Member:
    #238392
    Messages:
    316
    Gender:
    Male
    Washington
    Vehicle:
    98 4bt swapped on tons and 43’s
    Perfect!! Thank you

    The only thing I’d like to interface is my start circuit and charge curcuit because that’s the only thing my engine needs to run. I need to figure out if I can eliminate the gauge cluster without affecting my turn signals and headlights along with make sure my heater controls and everything else works independently.

  10. Dec 31, 2017 at 3:17 PM
    #10
    Dirty Pool

    Dirty Pool NEW DELHI FREIGHT TRAIN

    Joined:
    Mar 24, 2013
    Member:
    #100471
    Messages:
    2,064
    Gender:
    Male
    59.4 Miles, 56.67° NE Of Moab
    Vehicle:
    99 XCAB V6 MT TRD
    Dirty Pool rear bumper/air tank with integrated spare CV shaft storage, DP customized TJM front bumper, 8000 lb Ramsey/Technora rope, E-locked, Extended breathers with front diff catch can, PCV catch can, SAWs with DP heim joint seals, DP custom 6 leaf rear springs/Billies, DP custom skids, 2lo, Gray wire, Cap, Bed Rug, Black steelies, 01 Center console, Map lights, Disraeli gears
    More goodies along those lines.

    [​IMG]

    2 of 2
    [​IMG]
    [​IMG]

  11. Dec 31, 2017 at 3:29 PM
    #11
    madmax700r

    madmax700r [OP] Well-Known Member

    Joined:
    Dec 13, 2017
    Member:
    #238392
    Messages:
    316
    Gender:
    Male
    Washington
    Vehicle:
    98 4bt swapped on tons and 43’s
    Problem is I have no ecm anymore so going to have to figure out how to make everything trigger without it.
    I’ll see if I can wire the clutch start cancel to work still.

  12. Dec 31, 2017 at 3:31 PM
    #12
    BartMaster1234

    BartMaster1234 American Auto Horns

    Joined:
    Aug 21, 2016
    Member:
    #195197
    Messages:
    40,945
    Gender:
    Male
    First Name:
    Tyler
    San Francisco, California
    Vehicle:
    1998 PreRunner 4x4 2.7l Supercharged
    Flux Capacitor
    Oh man... the Haynes manual is about 10% as helpful as the factory service manual. For comparison this is how a Toyota wiring diagram looks like.

    The Toyota electrical FSM is like having a Lamborghini, and the Haynes wiring diagram is like a 1982 Trabant. Lol.


    Attached Files:

  13. Dec 31, 2017 at 3:36 PM
    #13
    madmax700r

    madmax700r [OP] Well-Known Member

    Joined:
    Dec 13, 2017
    Member:
    #238392
    Messages:
    316
    Gender:
    Male
    Washington
    Vehicle:
    98 4bt swapped on tons and 43’s
    Wow alright. I noticed that. Haynes sucks need the manual to wire this thing.
    Thanks for the info guys!

  14. Dec 31, 2017 at 3:37 PM
    #14
    madmax700r

    madmax700r [OP] Well-Known Member

    Joined:
    Dec 13, 2017
    Member:
    #238392
    Messages:
    316
    Gender:
    Male
    Washington
    Vehicle:
    98 4bt swapped on tons and 43’s
    Basically I need to wire the truck to make everything work while the engine, trans and ecm arent there... that’s how I have to wire it.

  15. Dec 31, 2017 at 3:41 PM
    #15
    BartMaster1234

    BartMaster1234 American Auto Horns

    Joined:
    Aug 21, 2016
    Member:
    #195197
    Messages:
    40,945
    Gender:
    Male
    First Name:
    Tyler
    San Francisco, California
    Vehicle:
    1998 PreRunner 4x4 2.7l Supercharged
    Flux Capacitor
    Tell me what year FSM you need and I can email it to you.

  16. Dec 31, 2017 at 3:45 PM
    #16
    madmax700r

    madmax700r [OP] Well-Known Member

    Joined:
    Dec 13, 2017
    Member:
    #238392
    Messages:
    316
    Gender:
    Male
    Washington
    Vehicle:
    98 4bt swapped on tons and 43’s
    Need one for a 1998 sr5 4x4.
    Found out when I pulled the rear axle out of it the truck was custom ordered cause on the door it has a ? Where the gear ratio code should be.

  17. Dec 31, 2017 at 3:46 PM
    #17
    BartMaster1234

    BartMaster1234 American Auto Horns

    Joined:
    Aug 21, 2016
    Member:
    #195197
    Messages:
    40,945
    Gender:
    Male
    First Name:
    Tyler
    San Francisco, California
    Vehicle:
    1998 PreRunner 4x4 2.7l Supercharged
    Flux Capacitor
    Really? Take a pic. That's rare

  18. Dec 31, 2017 at 4:12 PM
    #18
    madmax700r

    madmax700r [OP] Well-Known Member

    Joined:
    Dec 13, 2017
    Member:
    #238392
    Messages:
    316
    Gender:
    Male
    Washington
    Vehicle:
    98 4bt swapped on tons and 43’s
    Have a picture actually

  19. Jan 2, 2018 at 8:59 AM
    #19
    mechanicjon

    mechanicjon They call me "Jonny Stubs"

    Joined:
    Dec 2, 2016
    Member:
    #203828
    Messages:
    9,335
    Gender:
    Male
    First Name:
    Jon
    Scottsdale Arizona
    Vehicle:
    04 Taco SC 4dr SR5 TRD Prerunner
    Supercharged, AEM FIC/6, Meth Inj, ION Alloy's, Radio & Phone steering Wheel controls,Fabtech AAL, Billie's wrapped with 880's , Tundra big brake conversion, bully bars and Pioneer DDin Stereo/dvd with exterrnal usb ports. 290K and going strong.
    Dirty Pool that truck is entirely to clean!!
