Wishbone Runner's Build

Discussion in '4Runners' started by Wishbone Runner, Sep 12, 2012.

  1. Feb 3, 2014 at 3:41 PM
    #101
    nimrod712

    nimrod712 Well-Known Member

    Joined:
    Jul 28, 2011
    Member:
    #60691
    Messages:
    389
    Gender:
    Male
    First Name:
    Jonathan
    Hot Springs, AR
    Vehicle:
    '08 Taco TRD
    It's definitely a solid investment. I have the same machine and have no complaints. I use it so much, I find myself wondering at times what I did before I had one lol.

  2. Feb 3, 2014 at 6:33 PM
    #102
    Wishbone Runner

    Wishbone Runner [OP] Because 4R

    Joined:
    Sep 9, 2012
    Member:
    #86546
    Messages:
    6,242
    Gender:
    Male
    First Name:
    James
    CO
    Vehicle:
    04 SR5 4Runner
    King/Dirt King
    Good to hear, i think I am going to feel the same way.

  3. Feb 19, 2014 at 6:38 PM
    #103
    Wishbone Runner

    Wishbone Runner [OP] Because 4R

    Joined:
    Sep 9, 2012
    Member:
    #86546
    Messages:
    6,242
    Gender:
    Male
    First Name:
    James
    CO
    Vehicle:
    04 SR5 4Runner
    King/Dirt King

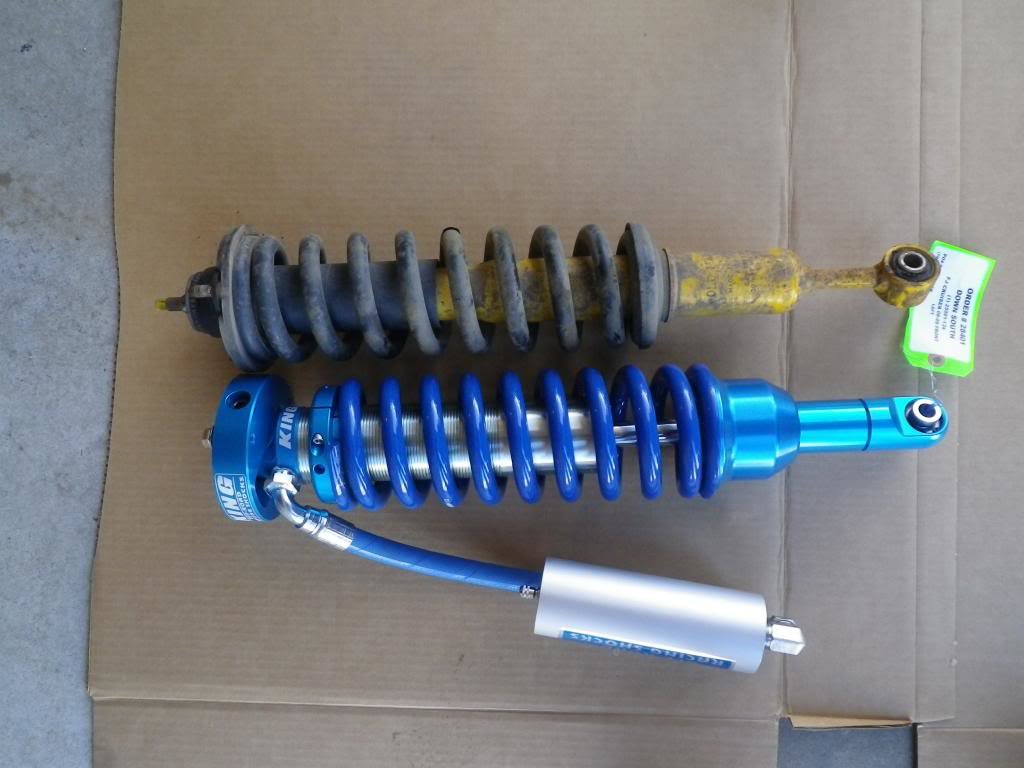

    A few projects in the works, currently building a rear HC bumper, and new suspension all around. Went with King, Camburg UCA and TC spindle gussets. Got the King and Camburg installed, still need to weld up the spindles.




  4. Feb 19, 2014 at 6:47 PM
    #104
    Wishbone Runner

    Wishbone Runner [OP] Because 4R

    Joined:
    Sep 9, 2012
    Member:
    #86546
    Messages:
    6,242
    Gender:
    Male
    First Name:
    James
    CO
    Vehicle:
    04 SR5 4Runner
    King/Dirt King

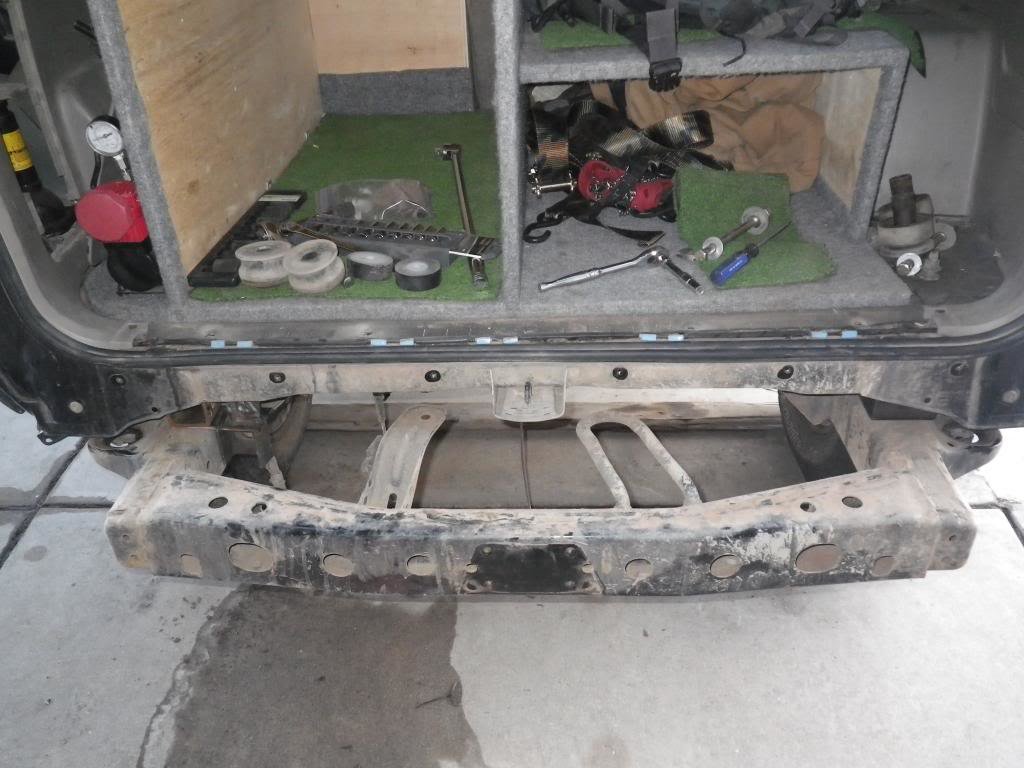

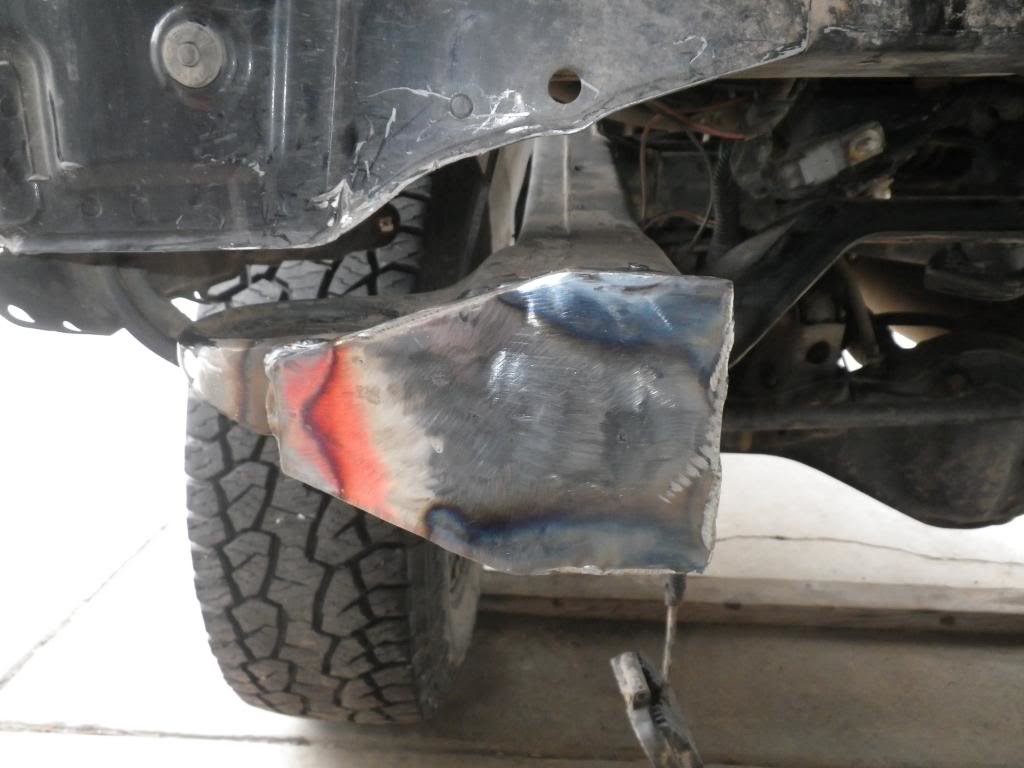

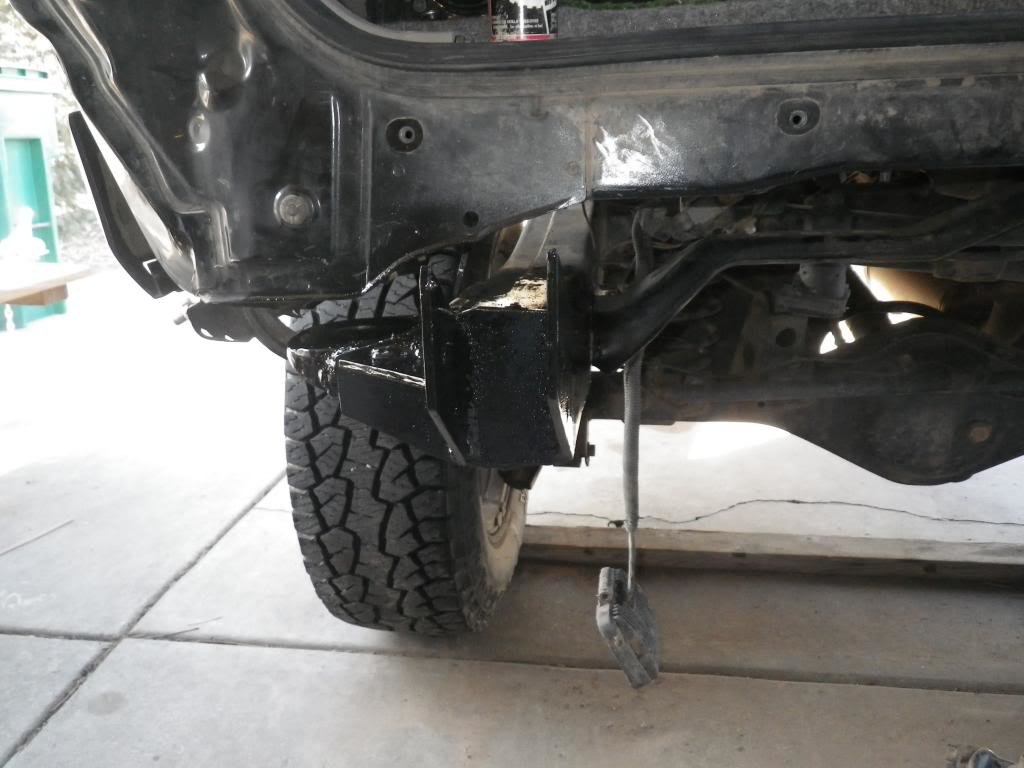

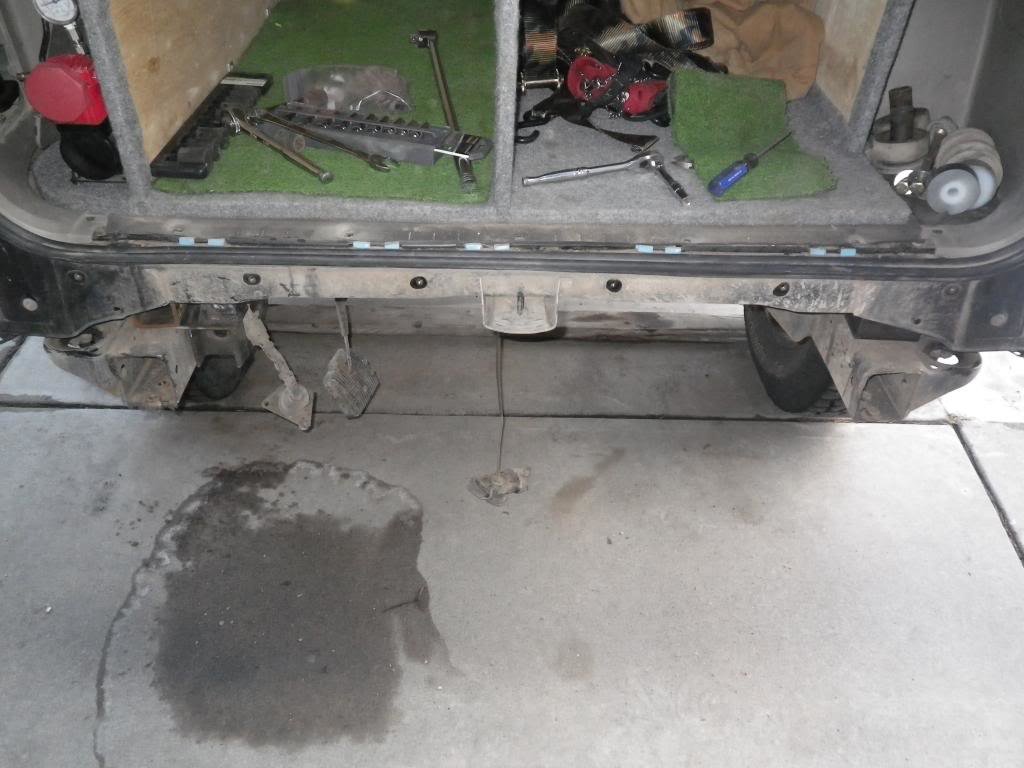

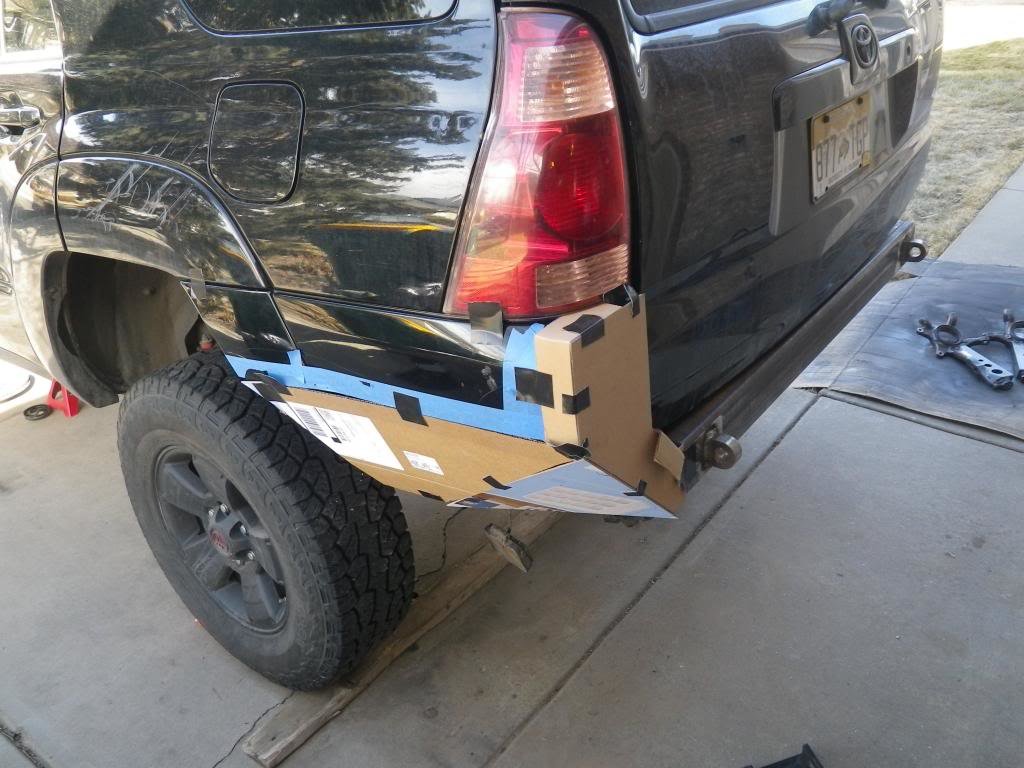

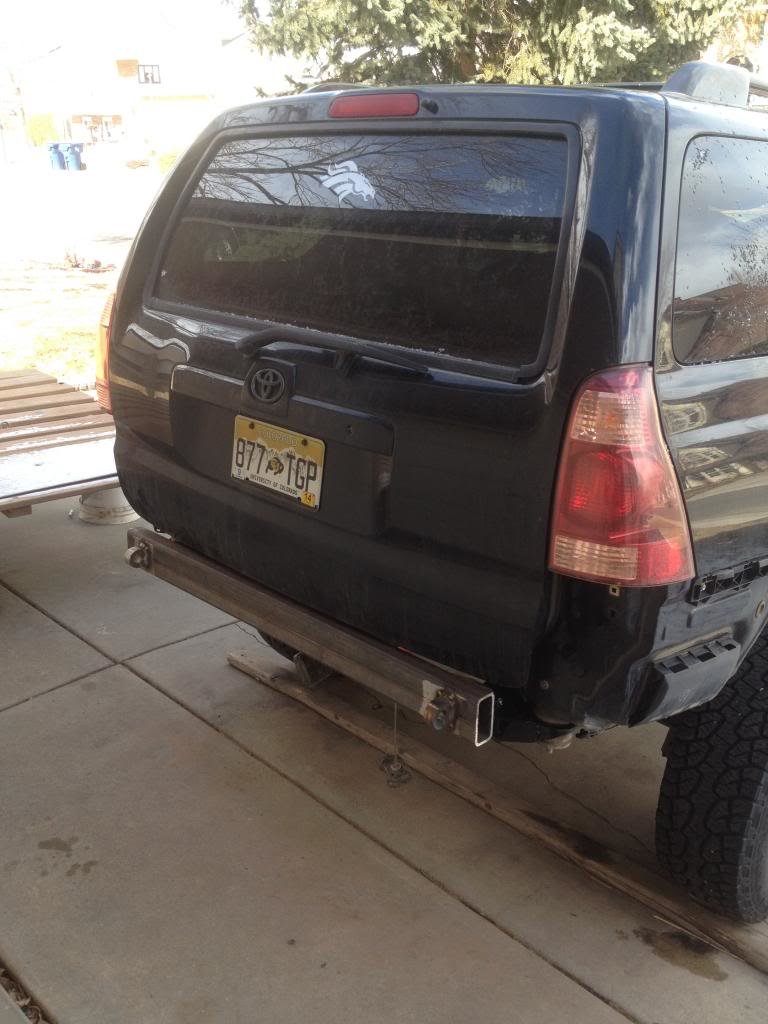

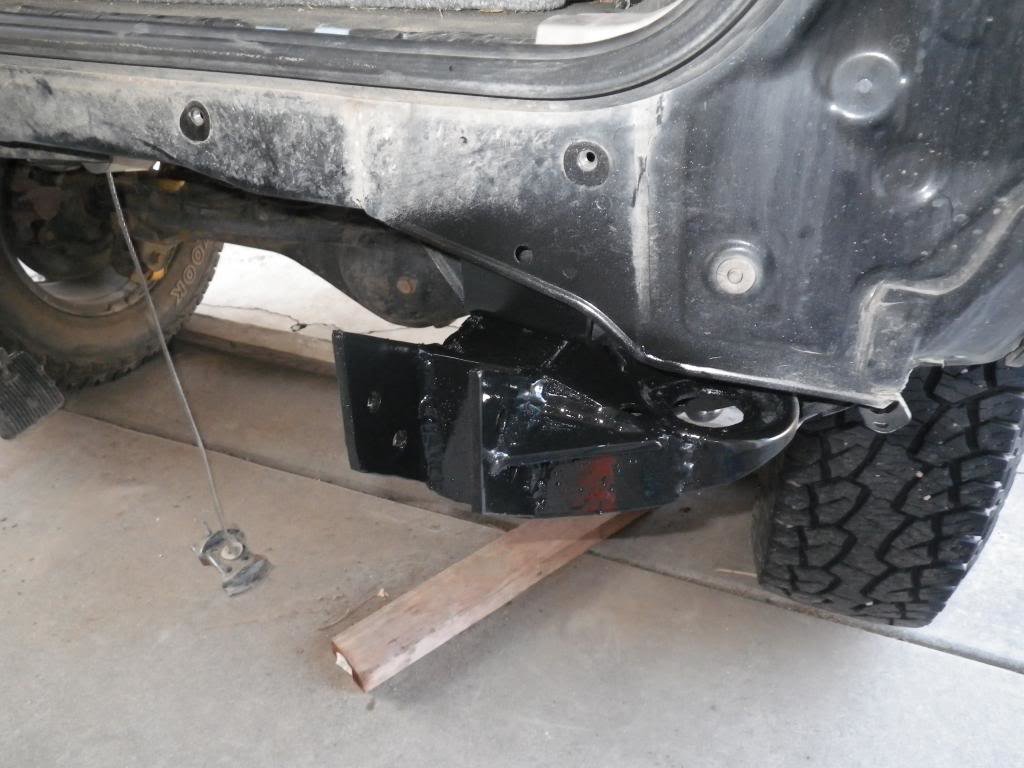

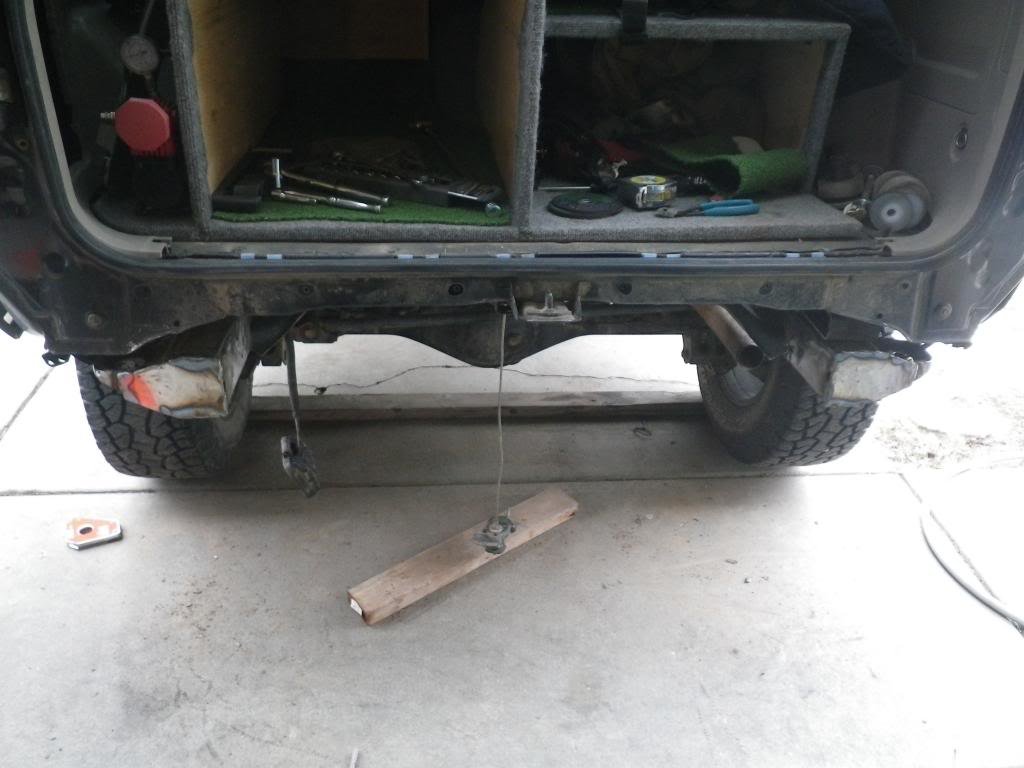

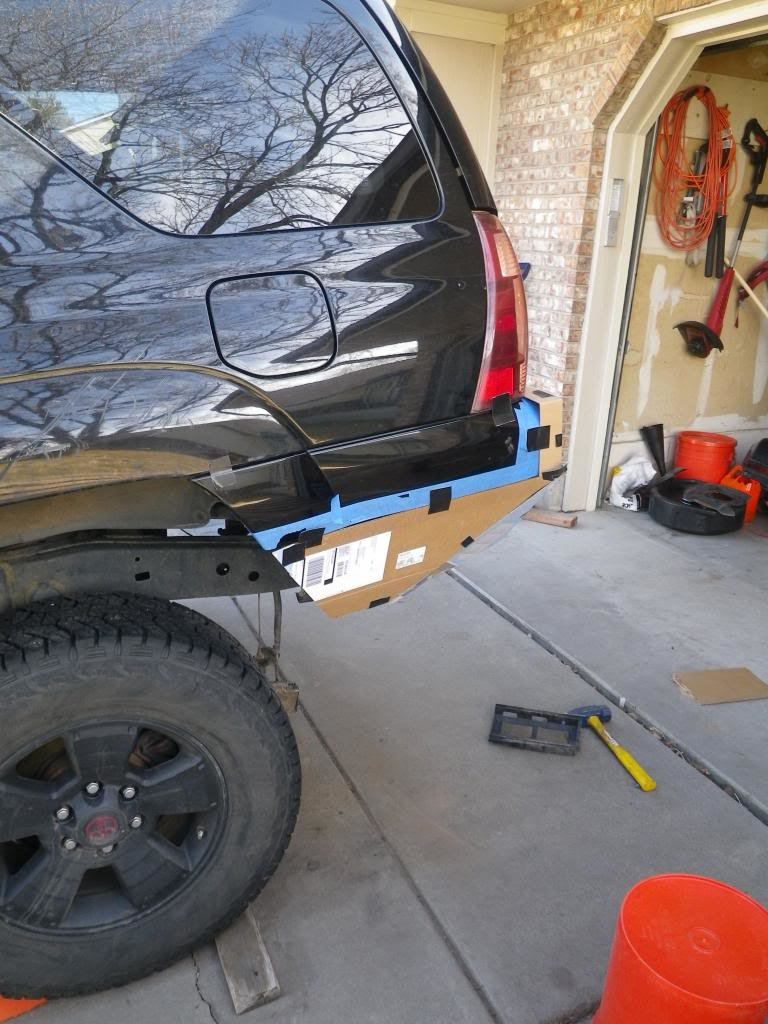

    Here is the current process on the bumper. Cut the crossmember which moved the bumper up about 4 inches and tucked it in a few as well, this will come in very helpful. Fully welded through recovery points and held on with 4 grade bolts, all mounts and crossmember are 1/4", an I will do the wrap around in 10 ga. I hope to get it near to fully welded up this next weekend, still need to design the side covers, I plan to cut a lot of the extra hanging sheet metal off to get it as tight as possible for optimum clearance. I will also cut out some of the wheel well for better tire stuffage.








  5. Feb 19, 2014 at 9:47 PM
    #105
    Squeaky Penguin

    Squeaky Penguin Nothing Ventured, Nothing Gained

    Joined:
    Apr 5, 2012
    Member:
    #76340
    Messages:
    9,893
    Gender:
    Male
    First Name:
    Brett
    Steamboat Springs, Colorado
    Vehicle:
    '01 4WD, SR5, TRD & '13 TRDOR AC
    Lots of dust and custom dents, Check Build

    :drool:


    In all my seraching into different coils for more lift, I though about coil-overs. Just can't swing them right now. You change anything in the back too?

    Anyways, curious to see how this bumper works out :popcorn:

  6. Feb 19, 2014 at 10:11 PM
    #106
    Wishbone Runner

    Wishbone Runner [OP] Because 4R

    Joined:
    Sep 9, 2012
    Member:
    #86546
    Messages:
    6,242
    Gender:
    Male
    First Name:
    James
    CO
    Vehicle:
    04 SR5 4Runner
    King/Dirt King
    No change to the rear yet, but I will be adding Metal Tech ET springs and MT speced Icon ET shocks. I planned to do the rear suspension first, the MT springs are stiffer for the additional bumper weight, but DSM gave me a great deal on the Kings and Camburg, so I pulled the trigger. I have some new lower links to put together as well, and will be redoing my chewed up lower link mounts.

    Then, I will get to the front bumper, and then . . . fix up the skids.

    And then . . .

    It wil be summer and time to wheel the piss out of it!

  7. Feb 19, 2014 at 10:14 PM
    #107
    Wishbone Runner

    Wishbone Runner [OP] Because 4R

    Joined:
    Sep 9, 2012
    Member:
    #86546
    Messages:
    6,242
    Gender:
    Male
    First Name:
    James
    CO
    Vehicle:
    04 SR5 4Runner
    King/Dirt King

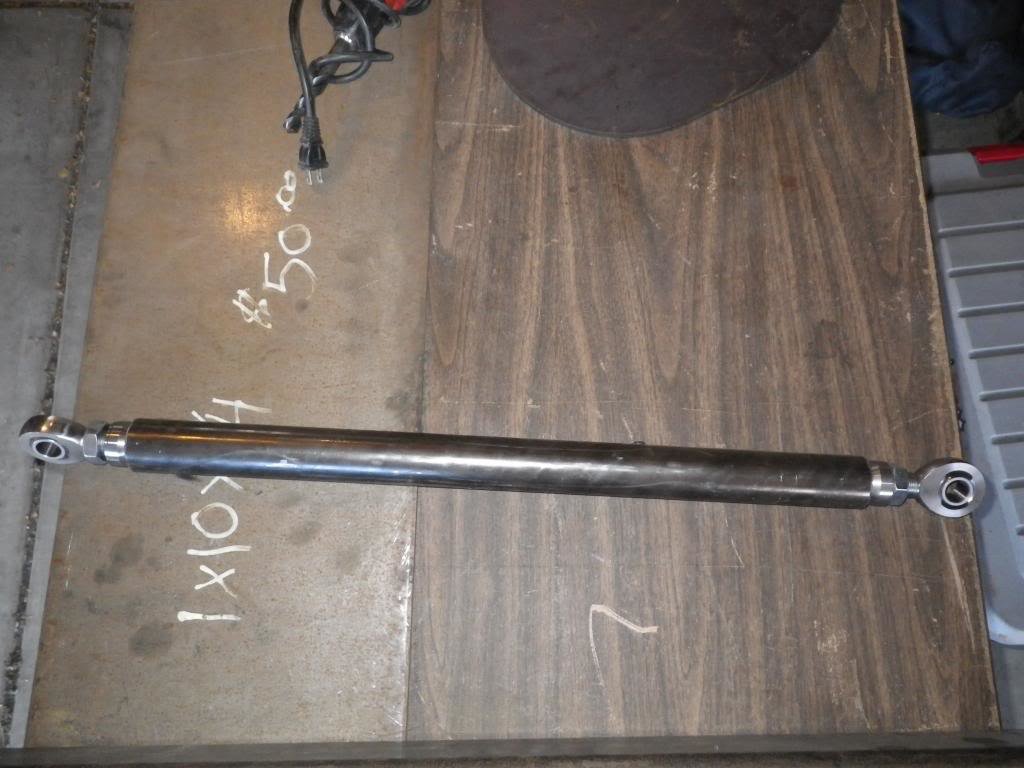

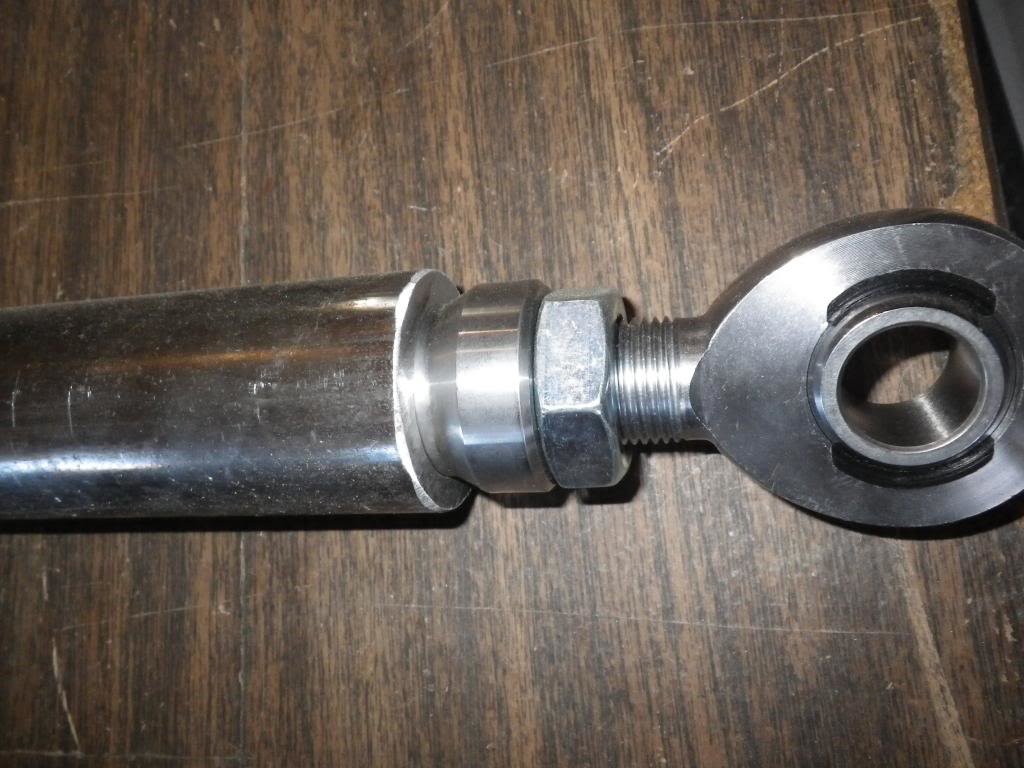

    Here are the links, just need to weld em up and paint them. 1.75" DOM, .25 wall, 7/8 x 3/4" heims.



  8. Feb 19, 2014 at 10:17 PM
    #108
    Wishbone Runner

    Wishbone Runner [OP] Because 4R

    Joined:
    Sep 9, 2012
    Member:
    #86546
    Messages:
    6,242
    Gender:
    Male
    First Name:
    James
    CO
    Vehicle:
    04 SR5 4Runner
    King/Dirt King
    And that oval is 3/8" for the mounts, that is going to be a bitch to cut with the angle grinder.

  9. Feb 20, 2014 at 8:06 AM
    #109
    LoadedTaco

    LoadedTaco Kick A$$ Member

    Joined:
    Aug 21, 2012
    Member:
    #85218
    Messages:
    2,837
    Gender:
    Male
    First Name:
    Peter
    Burr Ridge Il
    Vehicle:
    2012 Red Baja
    Lots of cool stuff happening in here!!

  10. Feb 20, 2014 at 8:24 AM
    #110
    Wishbone Runner

    Wishbone Runner [OP] Because 4R

    Joined:
    Sep 9, 2012
    Member:
    #86546
    Messages:
    6,242
    Gender:
    Male
    First Name:
    James
    CO
    Vehicle:
    04 SR5 4Runner
    King/Dirt King
    Hehe :wave:

    Gettin ready for some serious wheelin this summer. I spent too much time workin on the truck last summer when I could have been on the trail, so trying to get as much done and prepared as possible ahead of time. Look forward to seeing you in Moab!

  11. Feb 20, 2014 at 11:28 AM
    #111
    Wishbone Runner

    Wishbone Runner [OP] Because 4R

    Joined:
    Sep 9, 2012
    Member:
    #86546
    Messages:
    6,242
    Gender:
    Male
    First Name:
    James
    CO
    Vehicle:
    04 SR5 4Runner
    King/Dirt King
  12. Feb 23, 2014 at 6:06 PM
    #112
    Wishbone Runner

    Wishbone Runner [OP] Because 4R

    Joined:
    Sep 9, 2012
    Member:
    #86546
    Messages:
    6,242
    Gender:
    Male
    First Name:
    James
    CO
    Vehicle:
    04 SR5 4Runner
    King/Dirt King

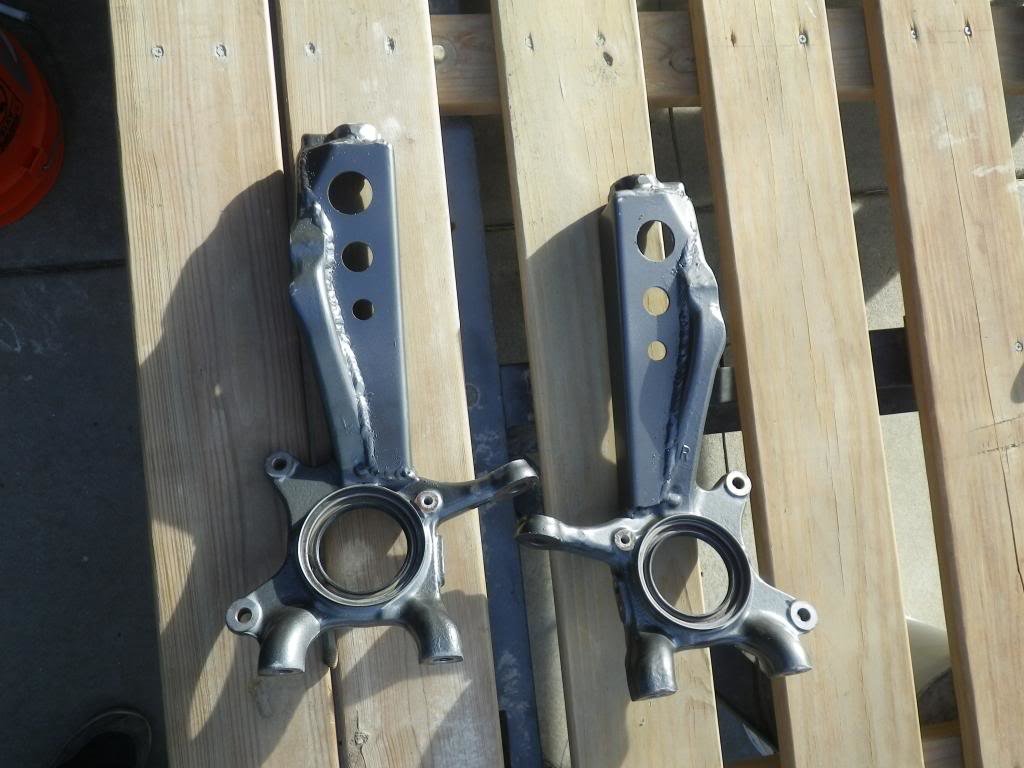

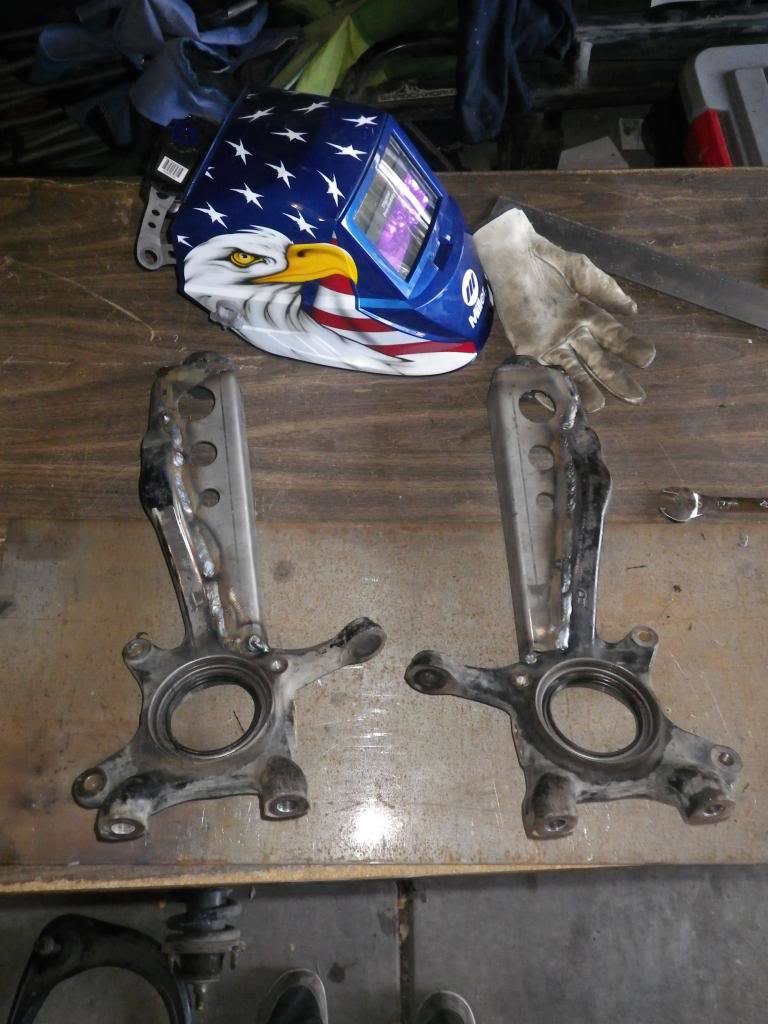

    Got quite a bit done this weekend, first off was finishing up the front end. Welded up my spindles with the TC gussets and painted them same color that I have my wheels and eventually my bumpers and sliders will be.



  13. Feb 23, 2014 at 6:15 PM
    #113
    Wishbone Runner

    Wishbone Runner [OP] Because 4R

    Joined:
    Sep 9, 2012
    Member:
    #86546
    Messages:
    6,242
    Gender:
    Male
    First Name:
    James
    CO
    Vehicle:
    04 SR5 4Runner
    King/Dirt King

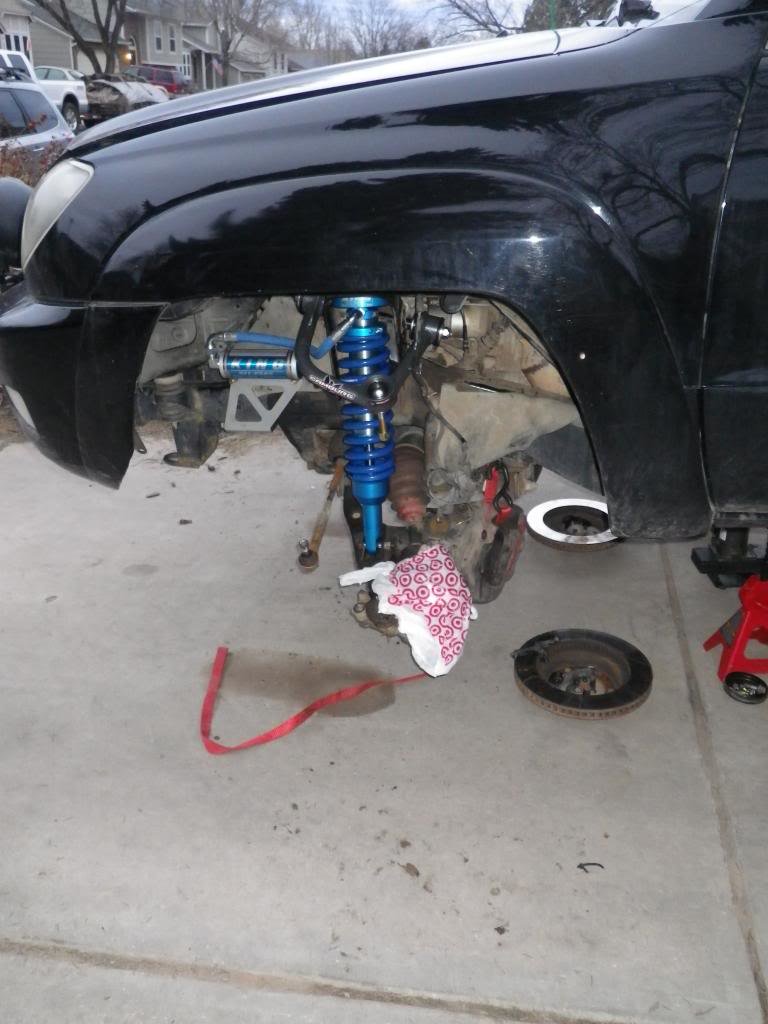

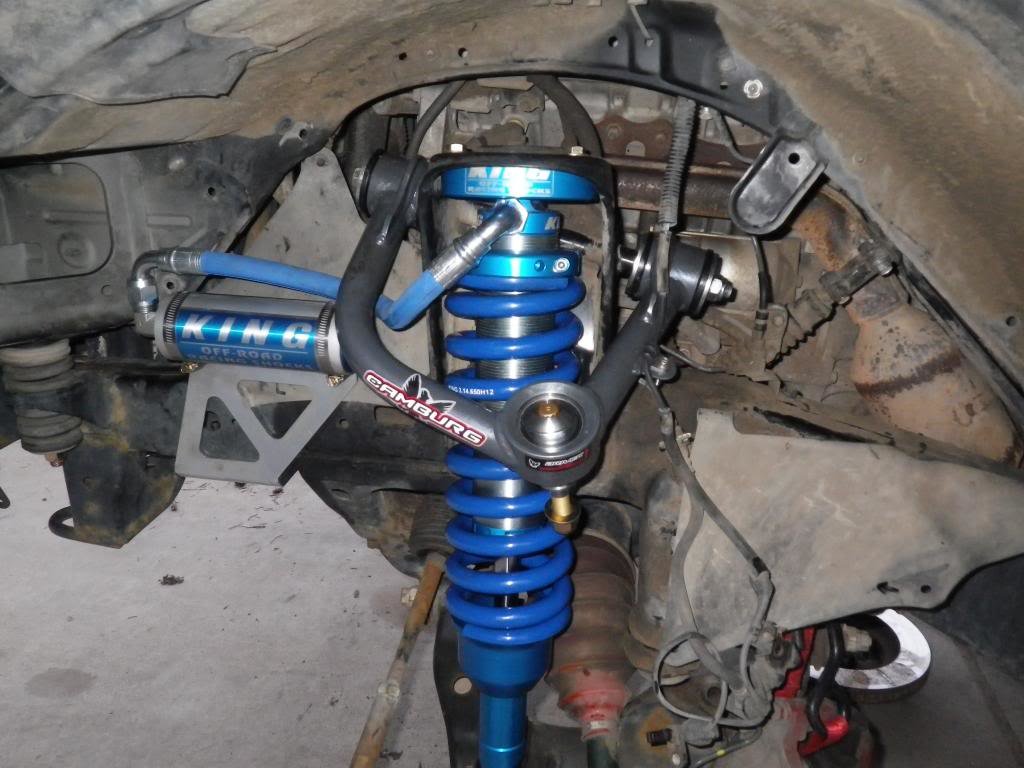

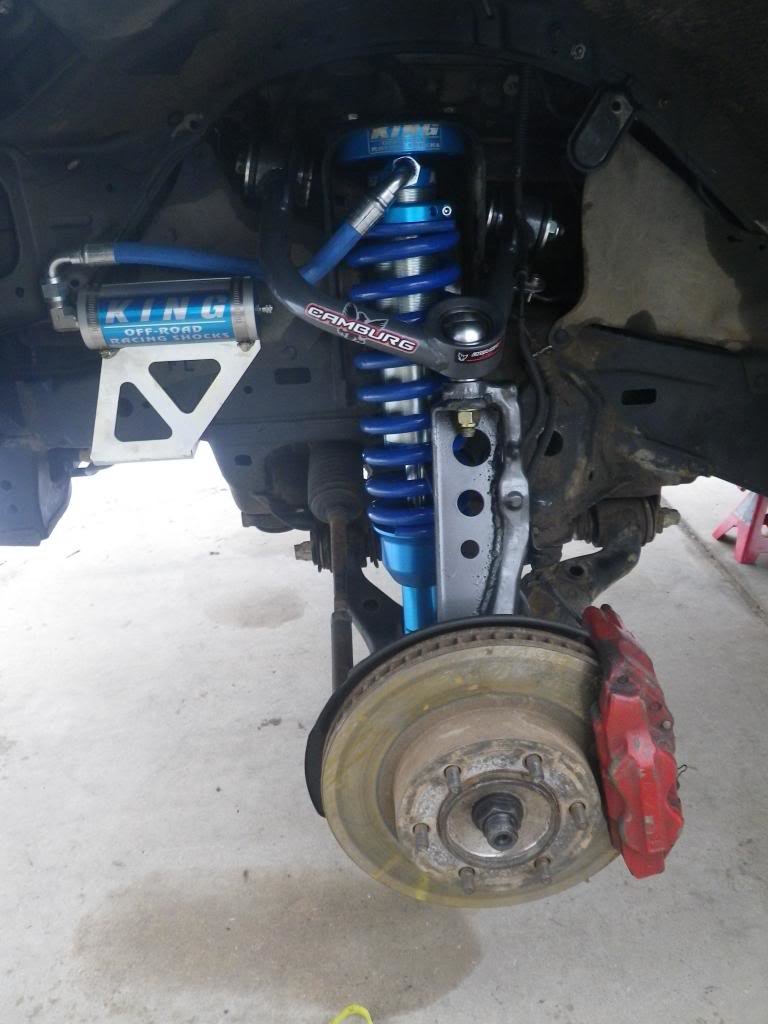

    Mounted up and front end back together. I now have replaced everything on the front end other than the LCAs and bushings.

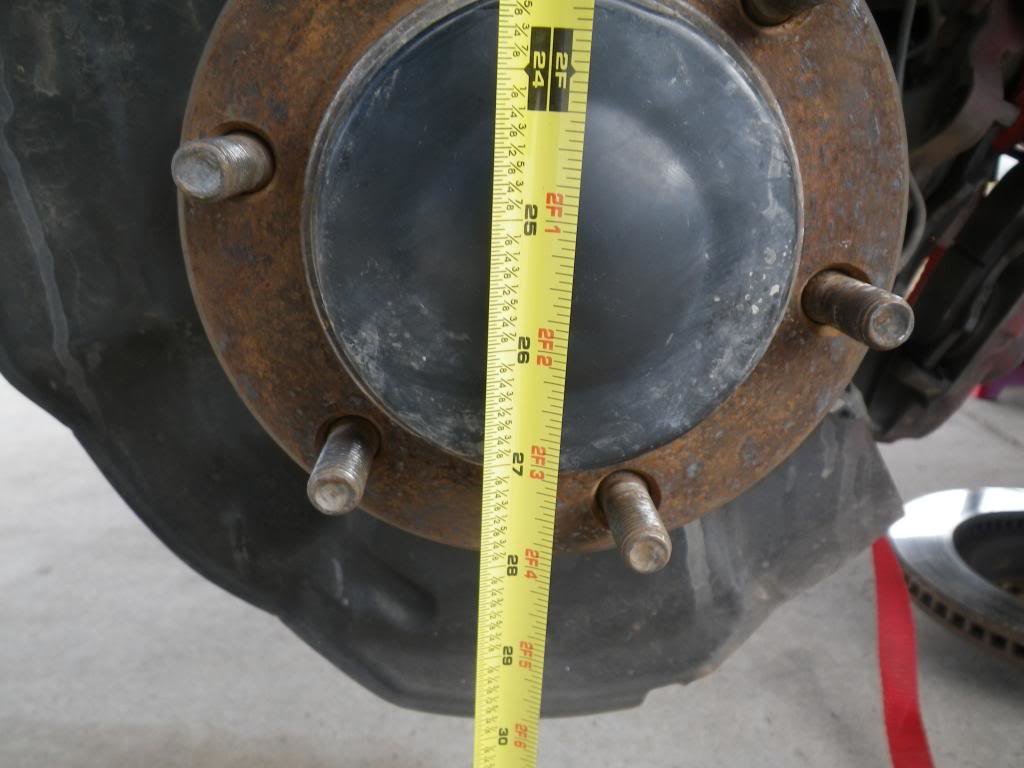

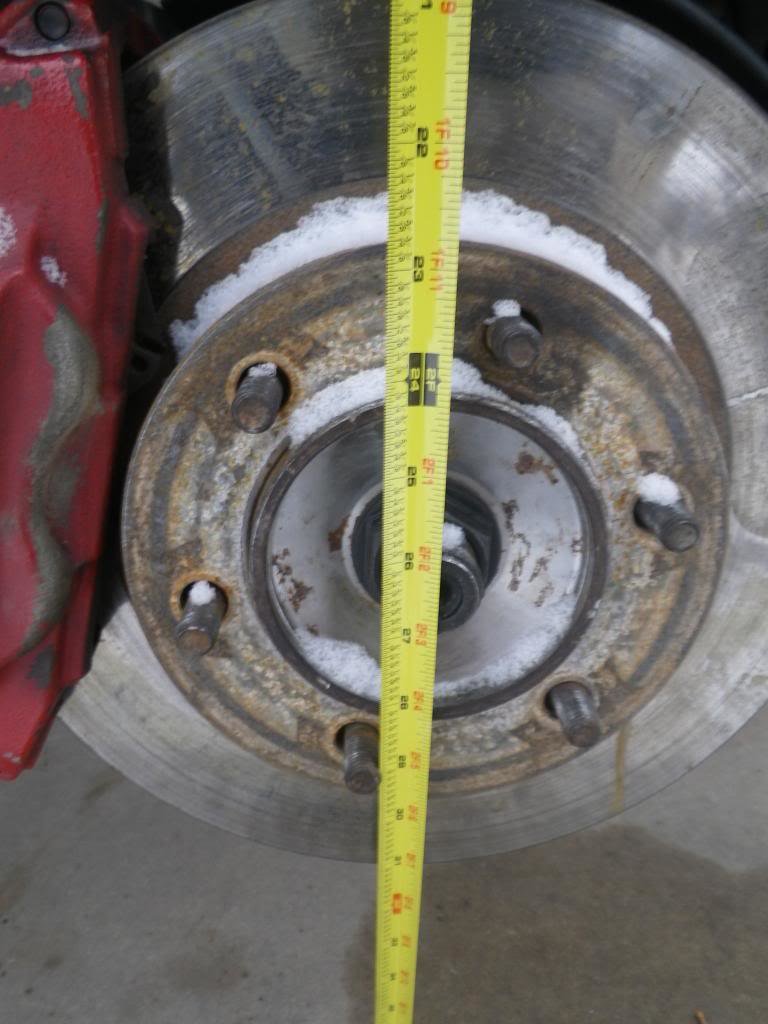

    Gained 1.25" droop from OME and stock UCAs, measured from fender to bottom of the axle nut cover.



  14. Feb 23, 2014 at 6:23 PM
    #114
    Wishbone Runner

    Wishbone Runner [OP] Because 4R

    Joined:
    Sep 9, 2012
    Member:
    #86546
    Messages:
    6,242
    Gender:
    Male
    First Name:
    James
    CO
    Vehicle:
    04 SR5 4Runner
    King/Dirt King

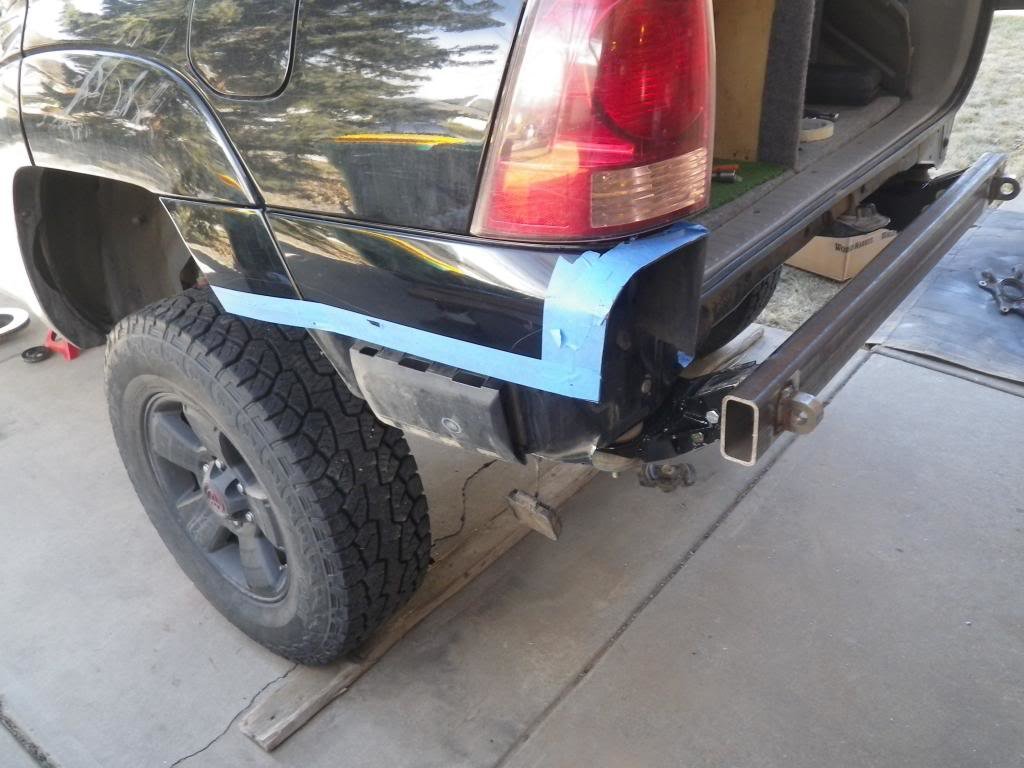

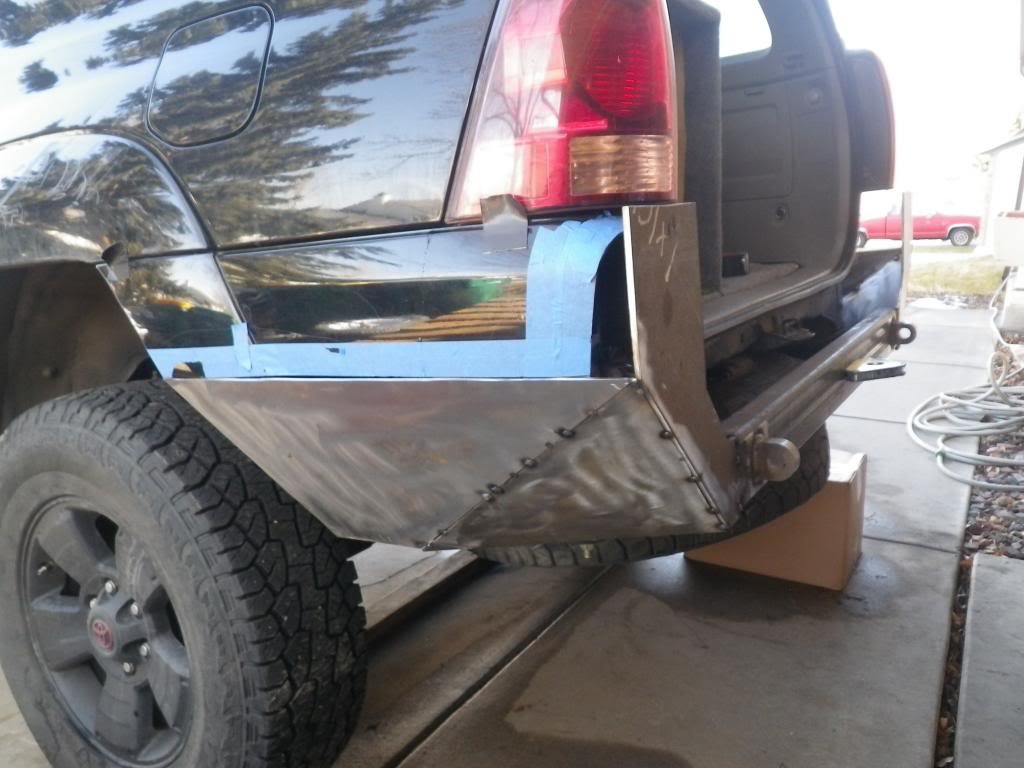

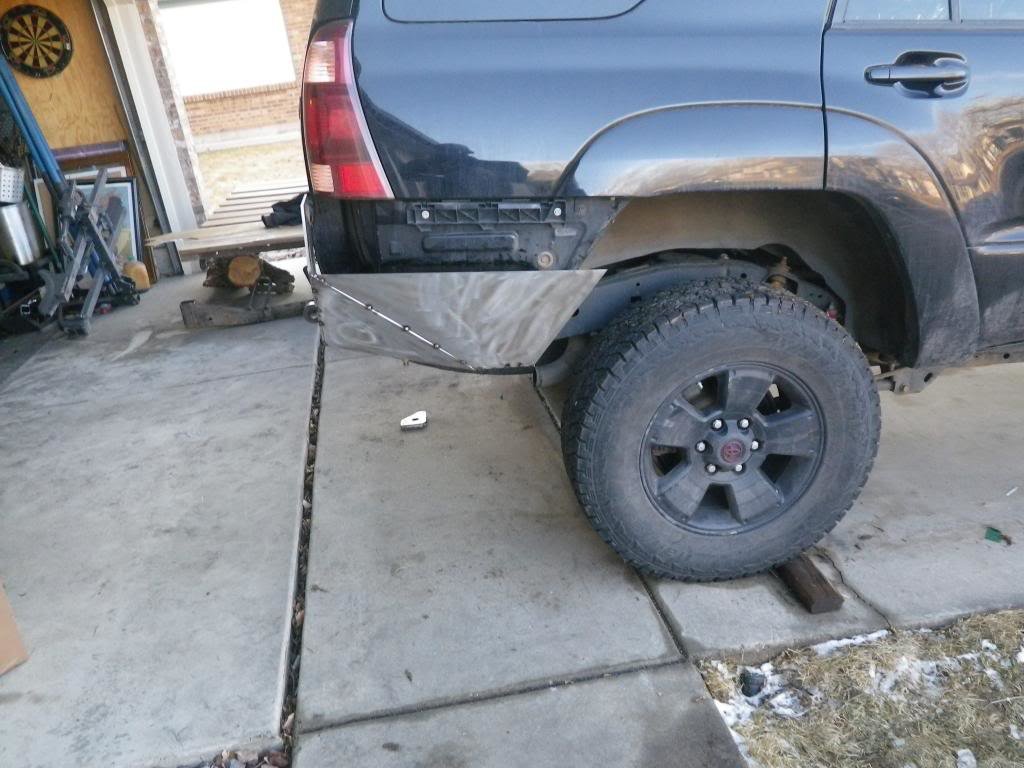

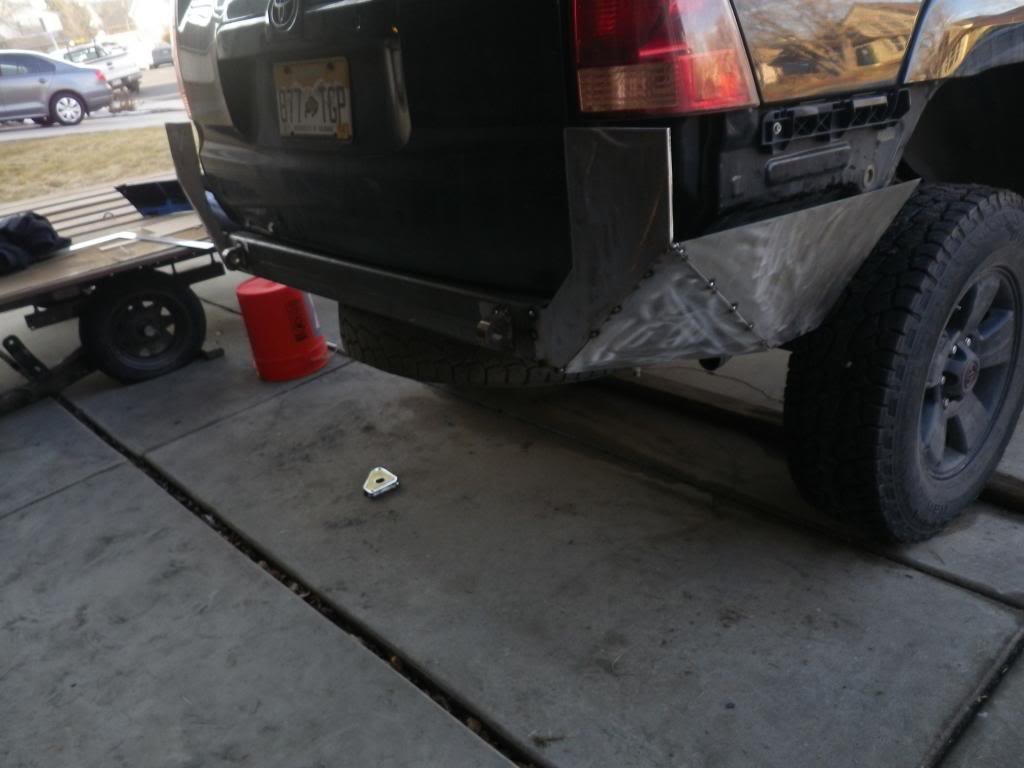

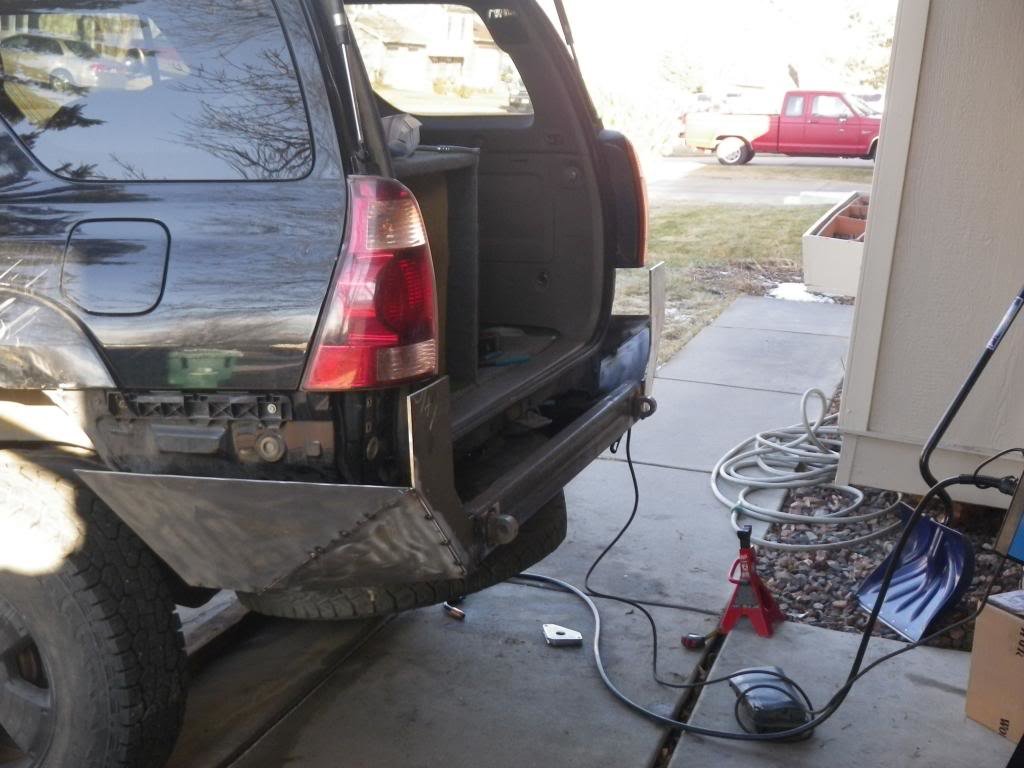

    Also made some significant progress on the rear bumper, still undecided on how I want to finish up incorporating the stock fender pieces and the section under the tail lights. I will add backup lights below the tails eventually, as well as a swing out tire carrier, but probably not this go around, too much else to get done first.








  15. Feb 23, 2014 at 7:50 PM
    #115
    BigFishAllDay

    BigFishAllDay And then?

    Joined:
    Oct 3, 2012
    Member:
    #88250
    Messages:
    897
    Gender:
    Male
    First Name:
    Nick
    ABQ, NM, USA
    Vehicle:
    I have too many Toyotas...
    Everything... and a bag of Cheetos.
    Daaaaayum, James. Nice front suspension you've got there. You aren't messing around anymore are you?

    That rear bumper is coming together nicely, too. Are you using 1/4" on that thing??? :eek:

  16. Feb 23, 2014 at 7:59 PM
    #116
    Wishbone Runner

    Wishbone Runner [OP] Because 4R

    Joined:
    Sep 9, 2012
    Member:
    #86546
    Messages:
    6,242
    Gender:
    Male
    First Name:
    James
    CO
    Vehicle:
    04 SR5 4Runner
    King/Dirt King
    Thanks man, bit the bullet and manned up for a proper setup.

    Combo of 1/4 and 10 ga. The 4x2 and attachments that bolt to the frame, all pieces welded to the frame and and the pieces that attach directly to the 4x2 under the tails are 1/4, the rest will be 10 ga. I think it will be a decent combo of stoutness where needed and light weight for the rest.

  17. Feb 23, 2014 at 8:13 PM
    #117
    RockyMtnTRD

    RockyMtnTRD Wanderlust.

    Joined:
    May 4, 2011
    Member:
    #56088
    Messages:
    6,557
    Gender:
    Male
    First Name:
    Noah
    Colorado
    Vehicle:
    '11 TRD OR
    hack job
    Damn James nice fabrication skills man! :jellydance: that bumper is gonna be badass!

  18. Feb 23, 2014 at 8:18 PM
    #118
    BigFishAllDay

    BigFishAllDay And then?

    Joined:
    Oct 3, 2012
    Member:
    #88250
    Messages:
    897
    Gender:
    Male
    First Name:
    Nick
    ABQ, NM, USA
    Vehicle:
    I have too many Toyotas...
    Everything... and a bag of Cheetos.
    Right on, I just saw those pieces under the tails and I could tell they were thicker than 3/16" (been working with lots of that lately). If you used 1/4" for the whole thing that would be a heavy mofo. The combo of 1/4" and 10ga sounds like a solid plan to me.

  19. Feb 23, 2014 at 9:09 PM
    #119
    Wishbone Runner

    Wishbone Runner [OP] Because 4R

    Joined:
    Sep 9, 2012
    Member:
    #86546
    Messages:
    6,242
    Gender:
    Male
    First Name:
    James
    CO
    Vehicle:
    04 SR5 4Runner
    King/Dirt King
    Thanks Noah!

    Yeah, I was torn on what to use and this seemed like a good combo. I am going to do my rear LCA mounts in 3/8 for indestructibility. Are your mounts welded in, or bolt on?

  20. Feb 23, 2014 at 10:00 PM
    #120
    BigFishAllDay

    BigFishAllDay And then?

    Joined:
    Oct 3, 2012
    Member:
    #88250
    Messages:
    897
    Gender:
    Male
    First Name:
    Nick
    ABQ, NM, USA
    Vehicle:
    I have too many Toyotas...
    Everything... and a bag of Cheetos.
    The skids I built for the LCAM's are made of 3/16" and they're bolt on. The 3rd gens have a convenient place to pass a 1/2" bolt through the LCAM. The ones that are commercially avail are made of 1/4" I believe, but IMO 3/16" is plenty. 3/8" would definitely be indestructable, but if you plated your LCAM's with steel that thick, I'd be worried about them tearing right off the frame with a hard enough hit because the welds/frame would be the new weak point.
