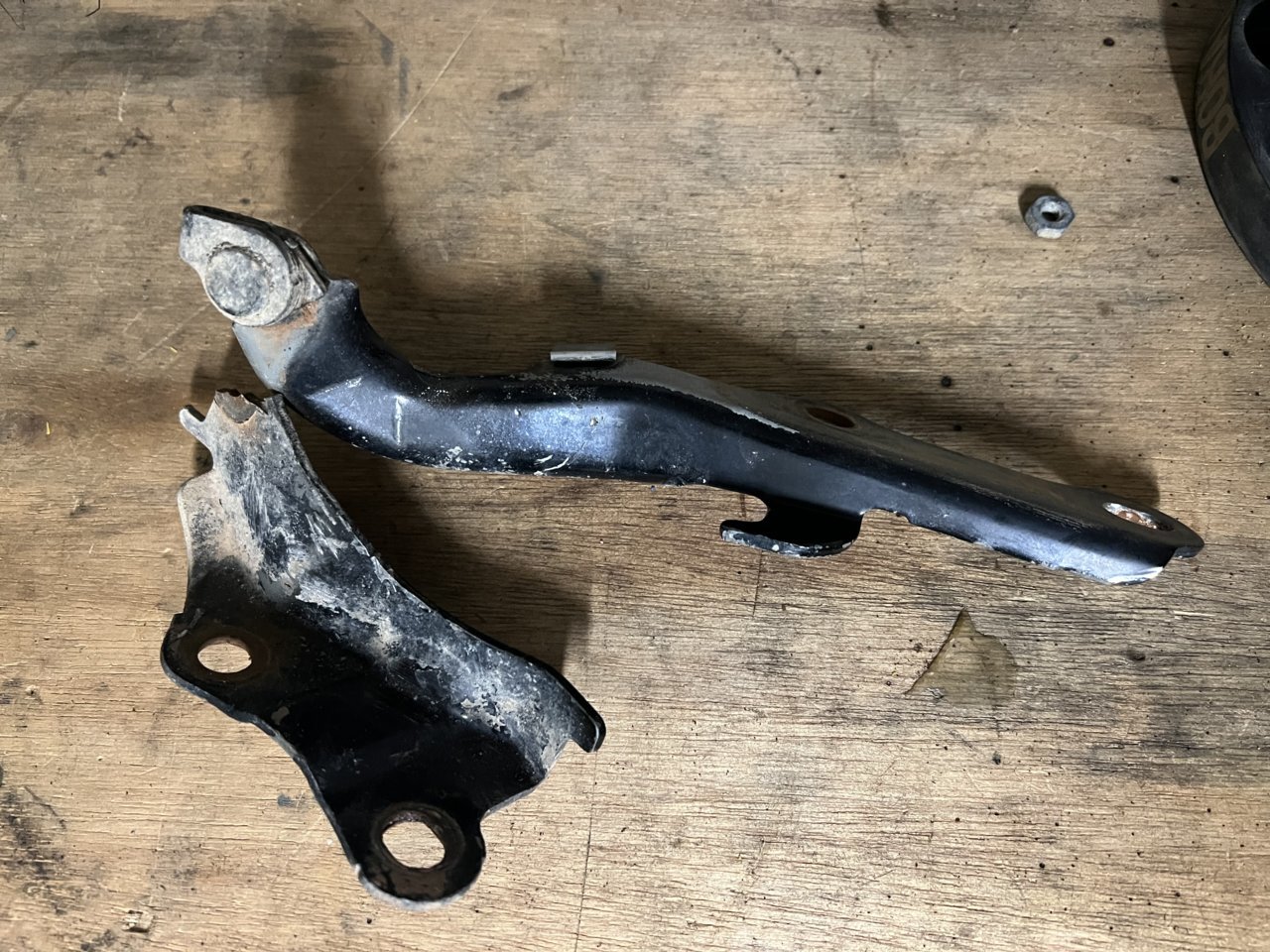

    Then after finishing airing up my hood wouldn’t close and line up with the hood pins, and couldn’t see anything wrong. I was worried the front had taken a major hit and was badly bent as the hood was no where near aligned with the headlights, but after some more poking around found that the passenger hood hinge had broken. WTF?


    TMFF likes this.
  2. Jul 19, 2022 at 7:36 AM
    #1462
    Wishbone Runner

    Wishbone Runner [OP] Because 4R

    Joined:
    Sep 9, 2012
    Member:
    #86546
    Messages:
    6,237
    Gender:
    Male
    First Name:
    James
    CO
    Vehicle:
    04 SR5 4Runner
    King/Dirt King
    Got new parts on order and will be back at it this weekend.



    RockiesTaco, NYCO, jubei and 9 others like this.
  3. Jul 20, 2022 at 6:46 AM
    #1463
    Wishbone Runner

    Wishbone Runner [OP] Because 4R

    Joined:
    Sep 9, 2012
    Member:
    #86546
    Messages:
    6,237
    Gender:
    Male
    First Name:
    James
    CO
    Vehicle:
    04 SR5 4Runner
    King/Dirt King
    You can tell it’s a shit box because of the way it is :bananadead:

    Swapping out the tire I found another crack on the axle leaking oil on the other side of the same upper link mount fixed last year. FML.


    w.adventures, 10tacotrooper and TMFF like this.
  4. Apr 13, 2023 at 8:55 AM
    #1464
    Slk406

    Slk406 Member

    Joined:
    Oct 23, 2022
    Member:
    #408695
    Messages:
    9
    Gender:
    Male
    First Name:
    Shilo
    Vehicle:
    2021 tacoma trd sport
    None
    Thanks for the advice on the atlas transfer case will definitely be going the same route, will make a thread when it's time to start building.

    Really enjoyed the thread. Skipped through and read all your post on here

    Wishbone Runner[OP] likes this.
  5. Apr 13, 2023 at 9:12 AM
    #1465
    xtremewlr

    xtremewlr Well-Known Member

    Joined:
    Oct 25, 2018
    Member:
    #270626
    Messages:
    8,310
    Gender:
    Male
    First Name:
    Todd
    Tucson, AZ
    Vehicle:
    2003 4Runner V8 Limited
    4th gen T4R with a few mods
    Might be time for an axle upgrade.

  6. Apr 13, 2023 at 11:57 AM
    #1466
    Wishbone Runner

    Wishbone Runner [OP] Because 4R

    Joined:
    Sep 9, 2012
    Member:
    #86546
    Messages:
    6,237
    Gender:
    Male
    First Name:
    James
    CO
    Vehicle:
    04 SR5 4Runner
    King/Dirt King
    Indeed.


  7. Apr 13, 2023 at 11:59 AM
    #1467
    Wishbone Runner

    Wishbone Runner [OP] Because 4R

    Joined:
    Sep 9, 2012
    Member:
    #86546
    Messages:
    6,237
    Gender:
    Male
    First Name:
    James
    CO
    Vehicle:
    04 SR5 4Runner
    King/Dirt King
    Awesome, it was a lot of work, but we’ll worth it imo, one of my favorite things I’ve done to the truck.

  8. Apr 13, 2023 at 12:02 PM
    #1468
    xtremewlr

    xtremewlr Well-Known Member

    Joined:
    Oct 25, 2018
    Member:
    #270626
    Messages:
    8,310
    Gender:
    Male
    First Name:
    Todd
    Tucson, AZ
    Vehicle:
    2003 4Runner V8 Limited
    4th gen T4R with a few mods
    What's the plan here?

  9. Apr 13, 2023 at 1:14 PM
    #1469
    Wishbone Runner

    Wishbone Runner [OP] Because 4R

    Joined:
    Sep 9, 2012
    Member:
    #86546
    Messages:
    6,237
    Gender:
    Male
    First Name:
    James
    CO
    Vehicle:
    04 SR5 4Runner
    King/Dirt King

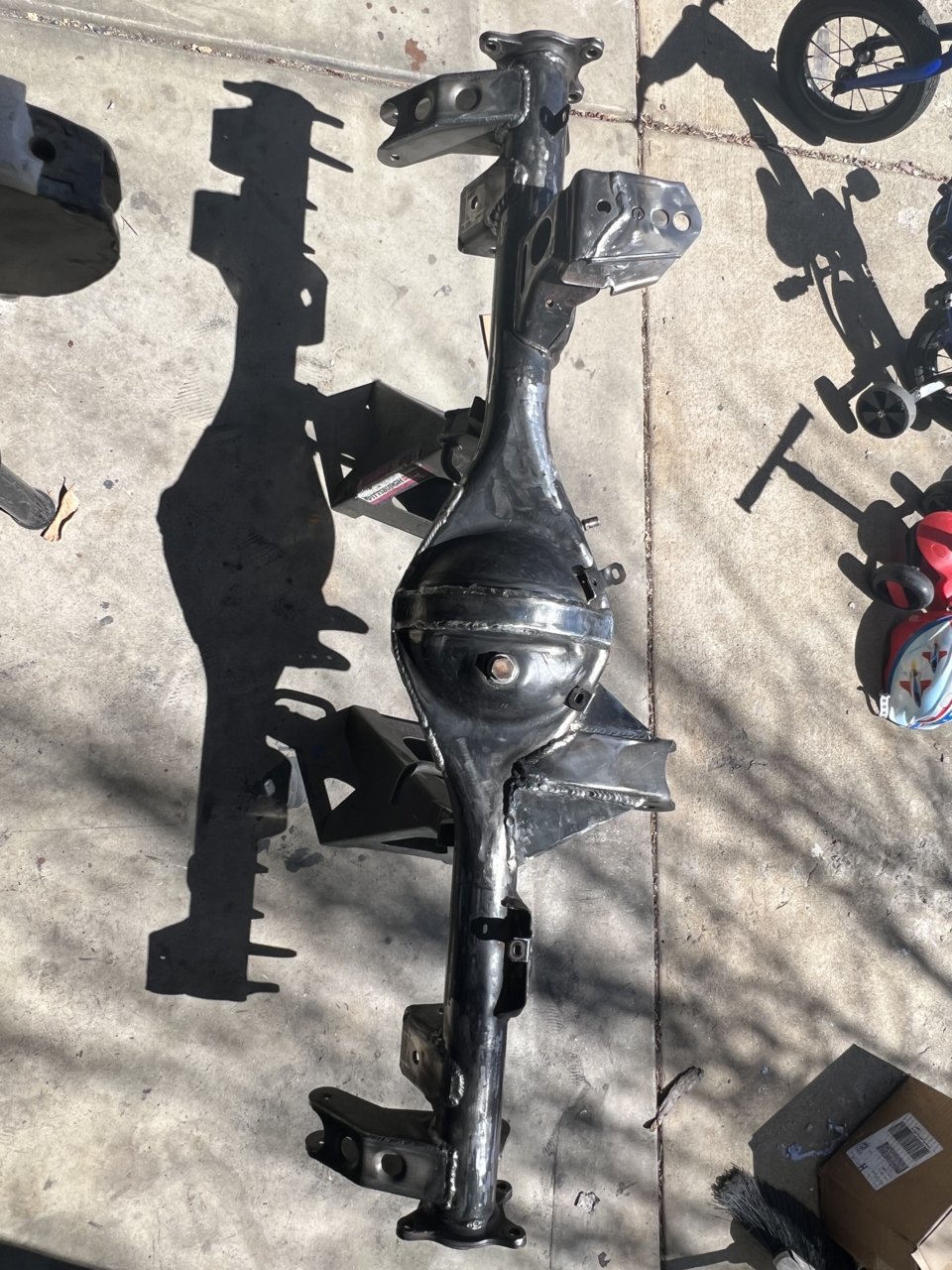

    Three link with a gas tank lift, getting close to finished. New used housing, completely new diff/gears/locker as my old one blew up after the ring gear bolts came loose, new used axles, new bearings/seals etc. Sticking with the same shock mounting positions and 12" shocks. Cycles waaaaay better than the stock link setup, no upper link binding on the gas tank and better pinion angle through travel. Lower links are ~ 34" and upper is ~28", pan hard stayed the same length but used and @eimkeith bracket to level it out. Cut off the drain plug and welded it shut, then added 1/8" to the bottom and 3/16" to the ring gear stickout on the back of the housing. Should be pretty bomber setup.

    Gas tank came up ~1.5", I think this is going to make a huuuge difference as that is what I was always getting hung up on before.

  10. Apr 13, 2023 at 2:52 PM
    #1470
    xtremewlr

    xtremewlr Well-Known Member

    Joined:
    Oct 25, 2018
    Member:
    #270626
    Messages:
    8,310
    Gender:
    Male
    First Name:
    Todd
    Tucson, AZ
    Vehicle:
    2003 4Runner V8 Limited
    4th gen T4R with a few mods
    Can't wait to see pics of all this. Would love to lift my gas tank up and ditch the stock upper links on the rear axle for a single one. I've already got a 1" body lift so have some extra room to move the gas tank into. Curious how you went about lifting it.

    MI-FLoffroader likes this.
  11. Apr 17, 2023 at 7:48 AM
    #1471
    Wishbone Runner

    Wishbone Runner [OP] Because 4R

    Joined:
    Sep 9, 2012
    Member:
    #86546
    Messages:
    6,237
    Gender:
    Male
    First Name:
    James
    CO
    Vehicle:
    04 SR5 4Runner
    King/Dirt King

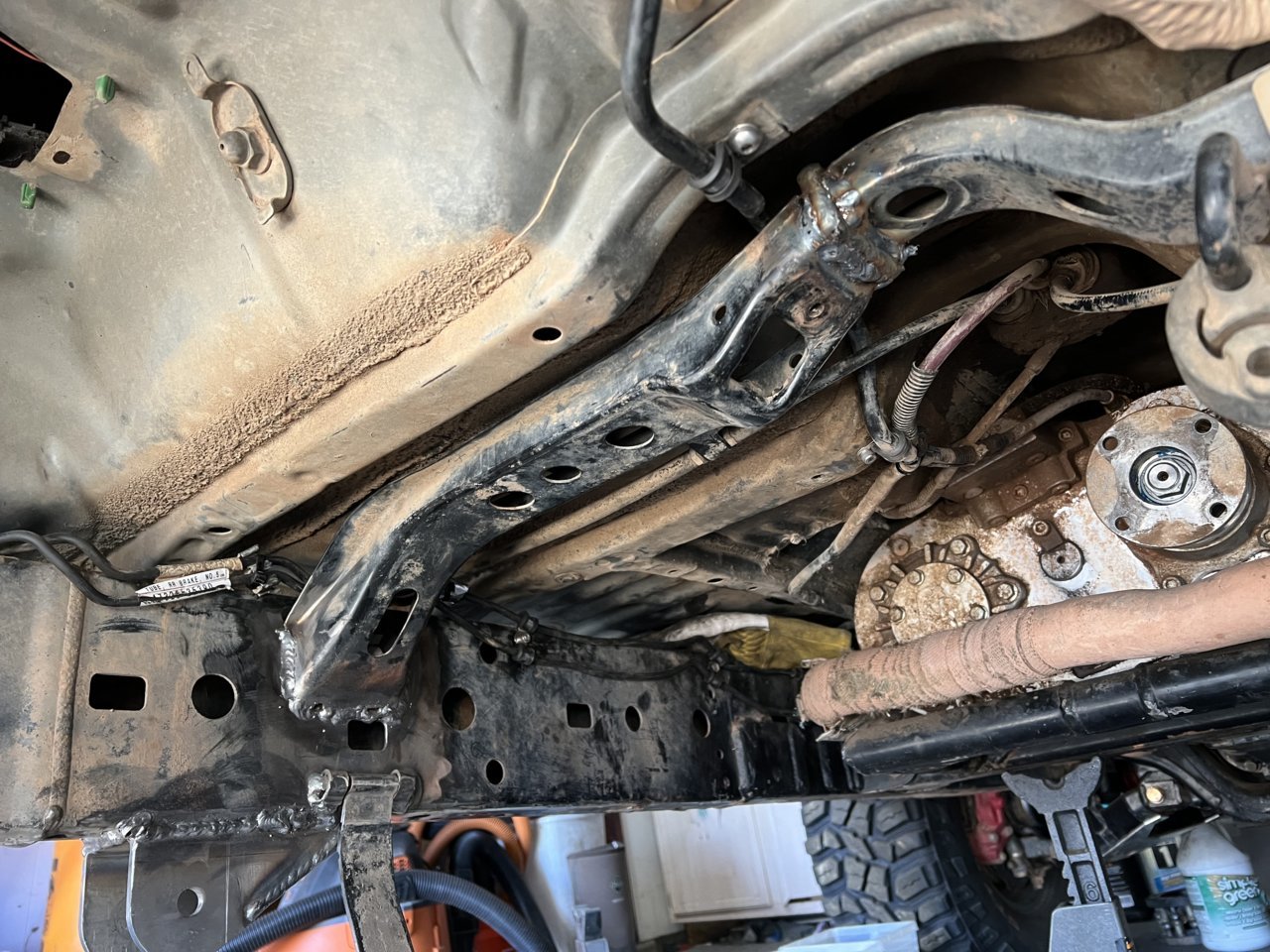

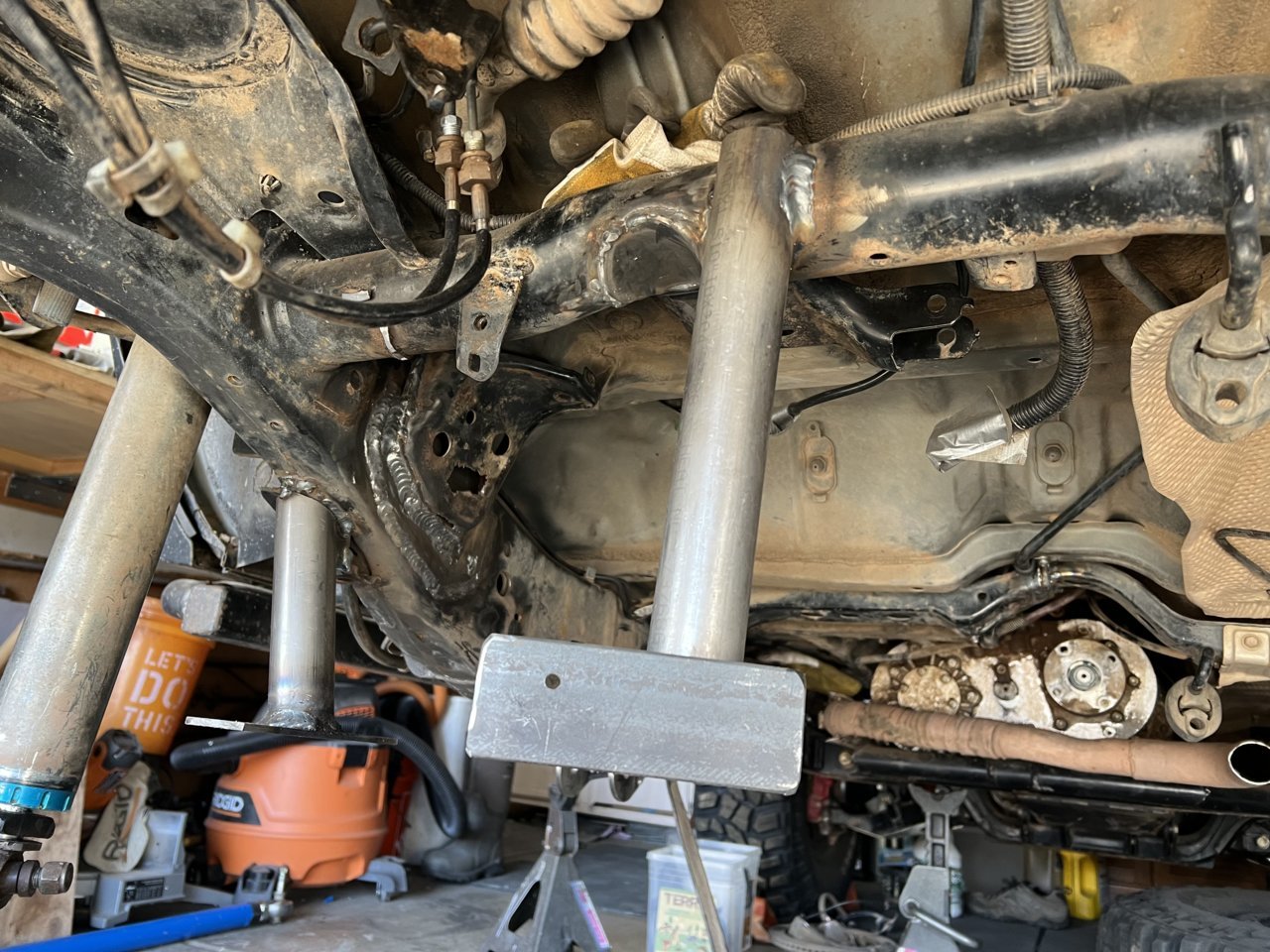

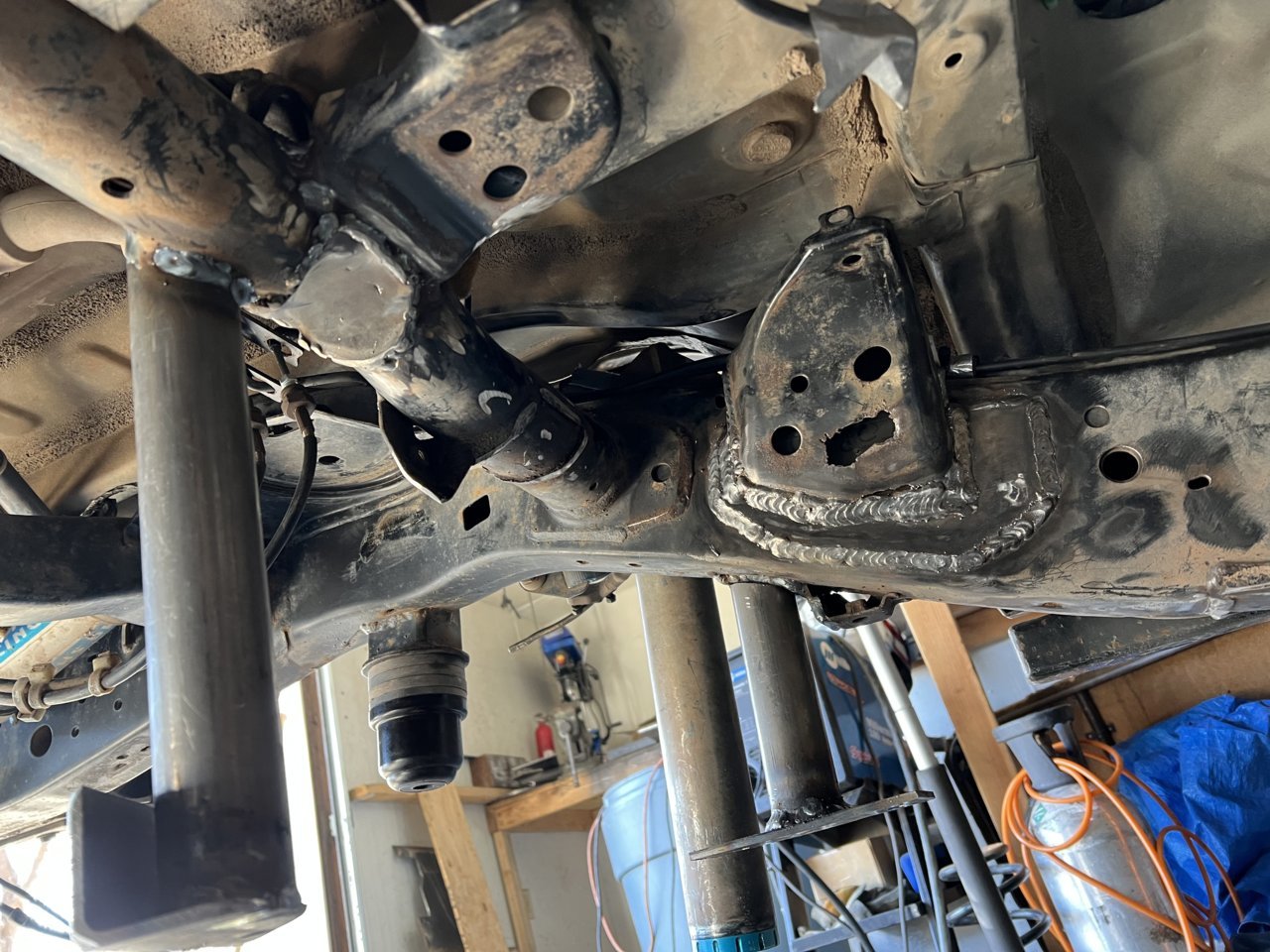

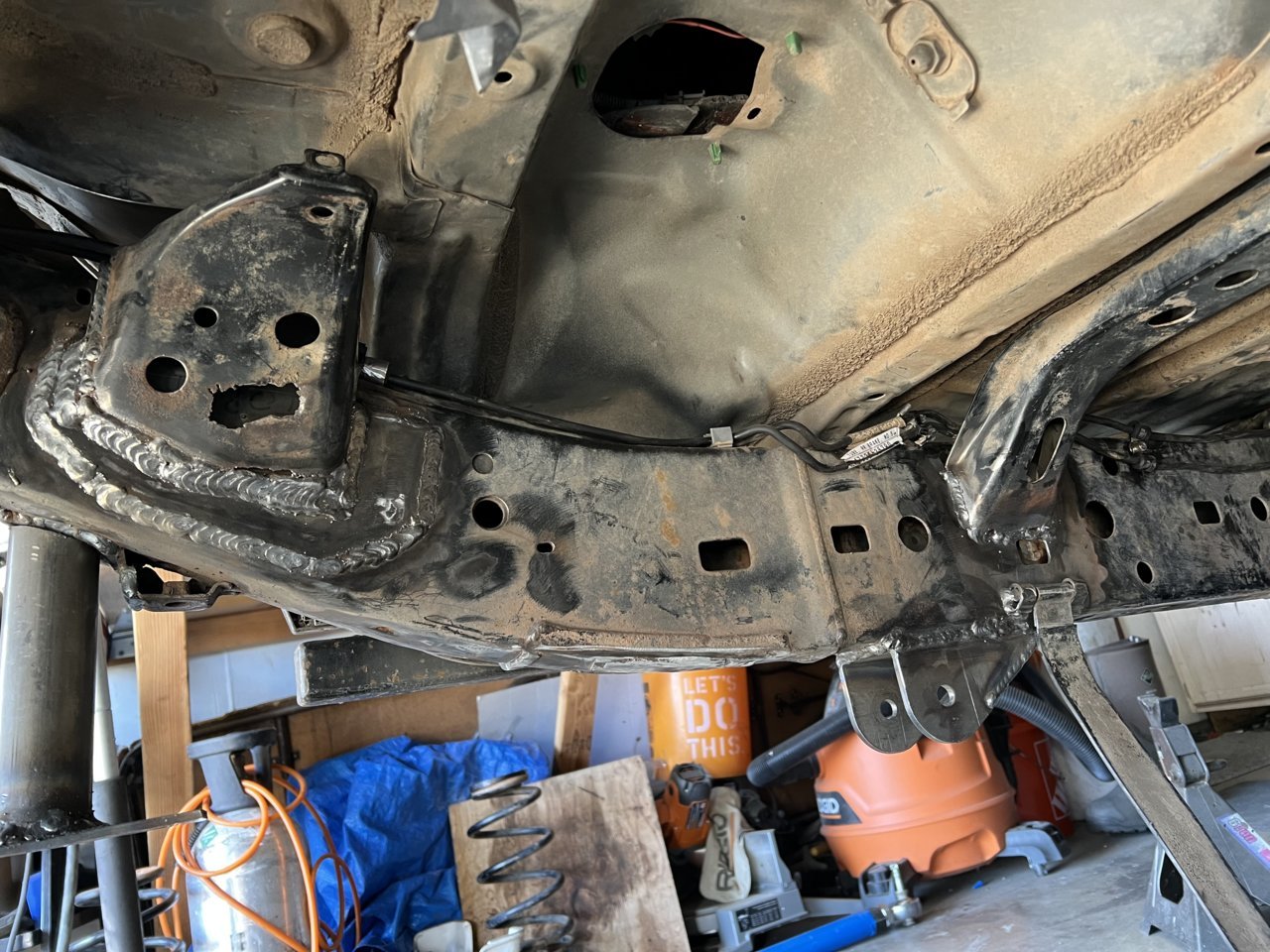

    Here is how the gas tank was lifted, cut the three brackets off the frame, raise and reweld. I was a giant pain in the ass.

    You can also see the notch in the crossmember for the filler, rear supports for the skid welded to the crossmember, and the forward strap cut welded to the frame


    RockiesTaco, eimkeith, jubei and 5 others like this.
  12. Apr 17, 2023 at 4:37 PM
    #1472
    w.adventures

    w.adventures Adventure is out there

    Joined:
    Nov 28, 2013
    Member:
    #117482
    Messages:
    11,101
    Gender:
    Male
    Nowheresville, SC
    Vehicle:
    2005 Lexus GX470 Family Hauler
    How much lift do you think you got?

  13. Apr 17, 2023 at 5:06 PM
    #1473
    Wishbone Runner

    Wishbone Runner [OP] Because 4R

    Joined:
    Sep 9, 2012
    Member:
    #86546
    Messages:
    6,237
    Gender:
    Male
    First Name:
    James
    CO
    Vehicle:
    04 SR5 4Runner
    King/Dirt King
    Based on the height of the old skid below the frame to where the new one will be, 1.5-2" in the front and over 2" in the rear, though maybe 1/2" of that is due to the skid being tucked tighter to the tank.

    w.adventures[QUOTED] likes this.
  14. Apr 30, 2023 at 6:53 PM
    #1474
    Wishbone Runner

    Wishbone Runner [OP] Because 4R

    Joined:
    Sep 9, 2012
    Member:
    #86546
    Messages:
    6,237
    Gender:
    Male
    First Name:
    James
    CO
    Vehicle:
    04 SR5 4Runner
    King/Dirt King

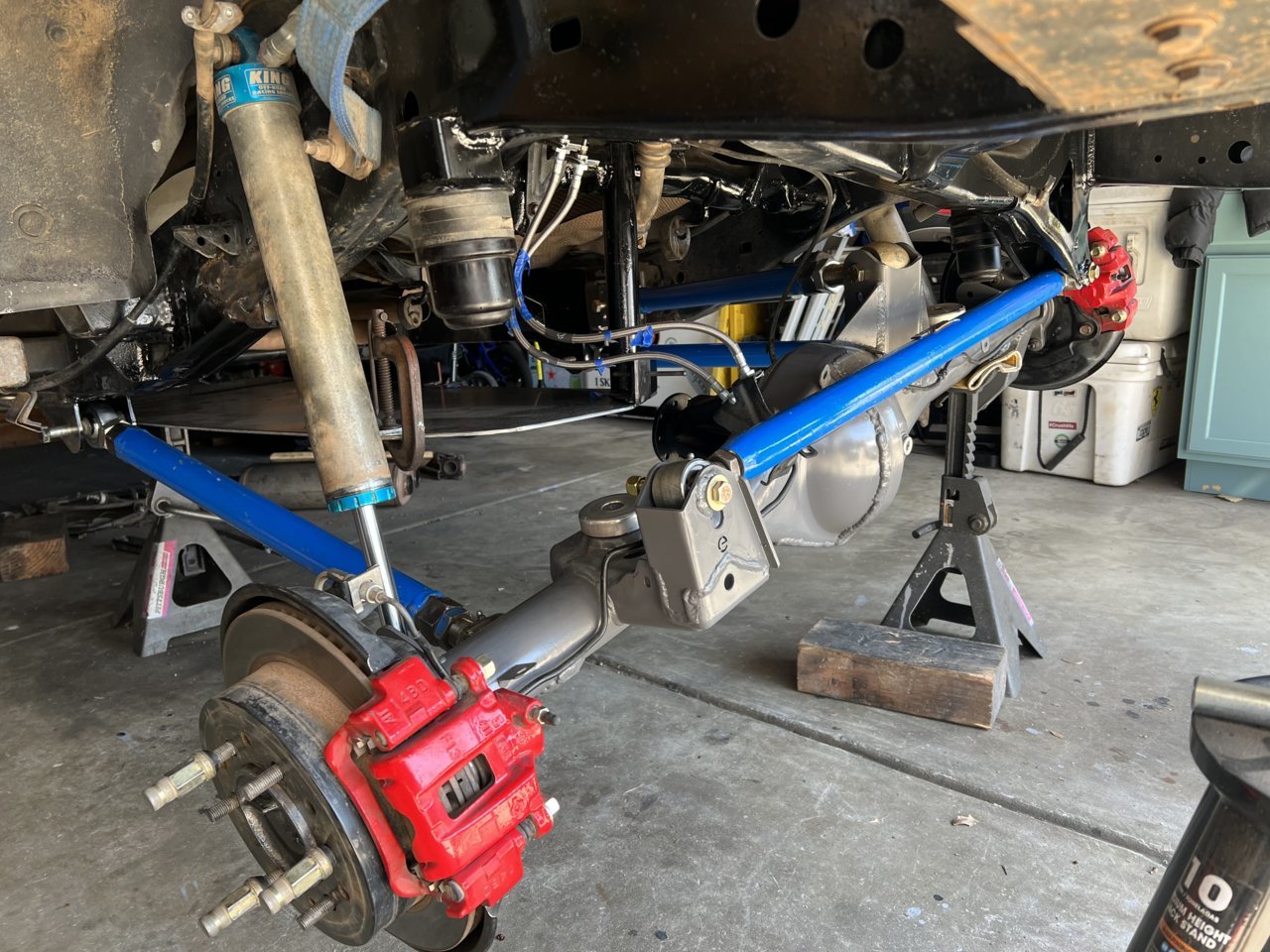

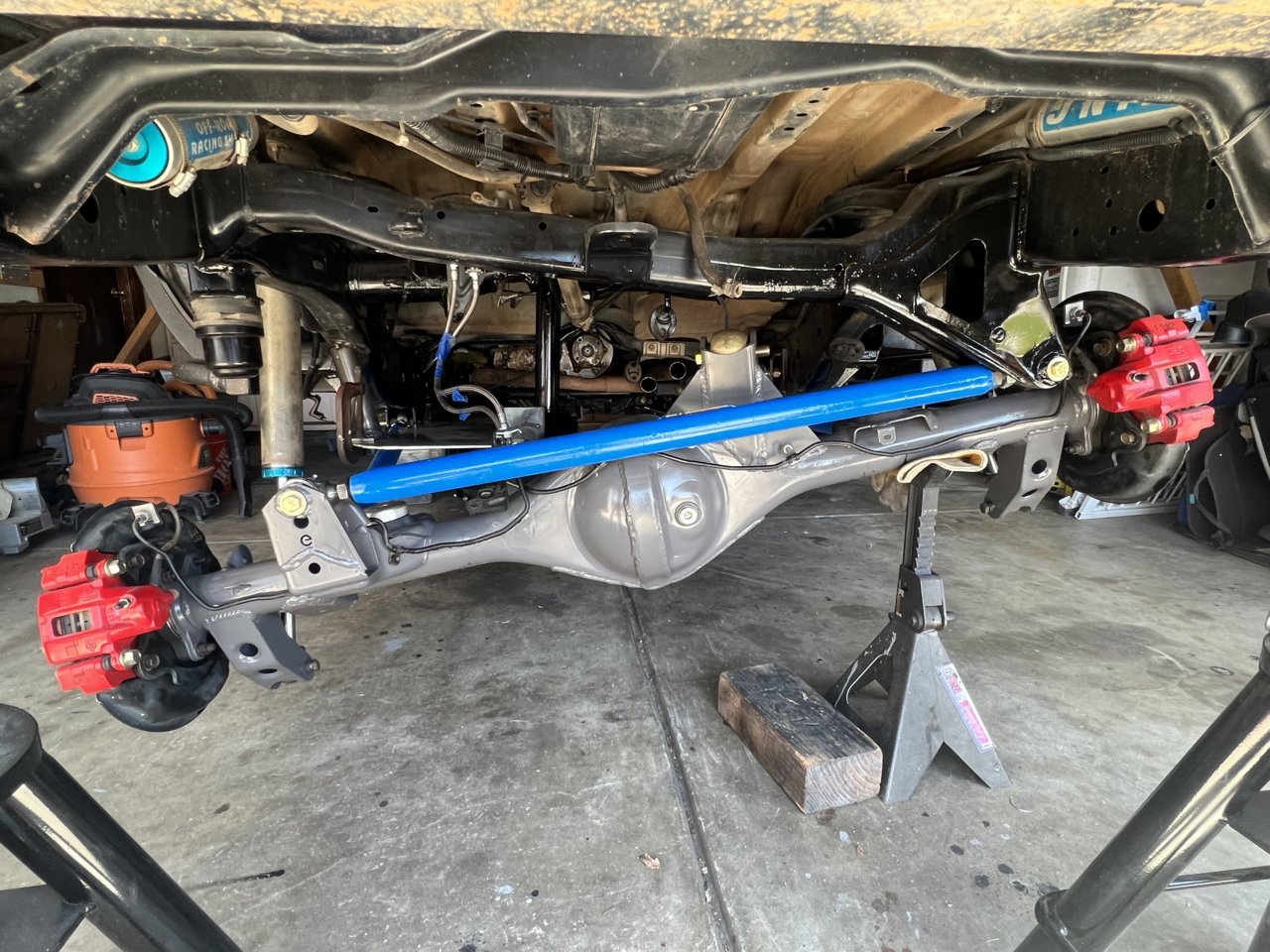

    Getting closer spent way too long getting the parking brakes back together and making extenders for the lines to the frame. I’d guess I have another 2-3” of droop over the “stock” suspension setup I was running previously as the parking brake was no where near reaching without moving all the brackets. Can’t wait for a test rally to see how it feels.
    IMG_2590.jpg IMG_2589.jpg

    RockiesTaco, Littles, jubei and 5 others like this.
  15. Apr 30, 2023 at 6:55 PM
    #1475
    Wishbone Runner

    Wishbone Runner [OP] Because 4R

    Joined:
    Sep 9, 2012
    Member:
    #86546
    Messages:
    6,237
    Gender:
    Male
    First Name:
    James
    CO
    Vehicle:
    04 SR5 4Runner
    King/Dirt King
    Putting the gas tank back in, then finishing up the skid is about all that is left to do. Still can’t decide if I want to drop a new fuel pump in while everything is out, if those fuckers were a little cheaper it would be a no brained, but for $400 I’m not sure . . .

  16. May 4, 2023 at 12:50 PM
    #1476
    Night Eagle

    Night Eagle Aka Mountain Goat or mr. Clean

    Joined:
    Mar 22, 2014
    Member:
    #125893
    Messages:
    2,709
    Gender:
    Male
    First Name:
    Leo
    Steamboat Springs, Co
    Vehicle:
    2014 TDR Off Road
    Enough to make it a lot of fun!
    Rear suspension and new axle look great bud. That fuel pump is a little pricey.

    Wishbone Runner[OP] likes this.
  17. May 26, 2023 at 4:27 PM
    #1477
    NYCO

    NYCO go explore...

    Joined:
    Jul 27, 2010
    Member:
    #40842
    Messages:
    19,121
    Gender:
    Male
    First Name:
    bOb
    Colorado
    Vehicle:
    Blue Betty - '06 TRD OR
    dents & scratches
    swap over for aftermarket? walbro setup?

  18. May 26, 2023 at 6:25 PM
    #1478
    Wishbone Runner

    Wishbone Runner [OP] Because 4R

    Joined:
    Sep 9, 2012
    Member:
    #86546
    Messages:
    6,237
    Gender:
    Male
    First Name:
    James
    CO
    Vehicle:
    04 SR5 4Runner
    King/Dirt King
    Fuel pump? I put it back together as is, started right up and going to leave it for now.

  19. May 27, 2023 at 6:49 AM
    #1479
    NYCO

    NYCO go explore...

    Joined:
    Jul 27, 2010
    Member:
    #40842
    Messages:
    19,121
    Gender:
    Male
    First Name:
    bOb
    Colorado
    Vehicle:
    Blue Betty - '06 TRD OR
    dents & scratches
    Yup. Urd has kits to mod your oem pump housing to work with them. Usually done to get a higher flow pump in the for boosted applications but the pumps are much cheaper than oem

    https://urdusa.com/fuel-pumps/

  20. May 27, 2023 at 7:32 AM
    #1480
    Wishbone Runner

    Wishbone Runner [OP] Because 4R

    Joined:
    Sep 9, 2012
    Member:
    #86546
    Messages:
    6,237
    Gender:
    Male
    First Name:
    James
    CO
    Vehicle:
    04 SR5 4Runner
    King/Dirt King
    Dang, wish I knew about this before I had everything back together! Oh well, if it takes a shit, I know where to turn to now, thanks!
