Write-Up: Torque APP OBD2 Reader

Discussion in 'Performance and Tuning' started by BrokenTusk, Oct 20, 2011.

  1. Oct 20, 2011 at 6:03 PM
    #21
    MowTaco

    MowTaco Well-Known Member

    Joined:
    Sep 9, 2009
    Member:
    #22530
    Messages:
    3,797
    Gender:
    Male
    First Name:
    Matt
    Kansas/Iowa/South Dakota
    Vehicle:
    04 5 Lug Xtracab
    Fabtech 3" Spindles, 2" Beefed Shackles, Front light bar with 4 7" HIDs mounted, Magnaflow Exhaust, and "Taco" Badges

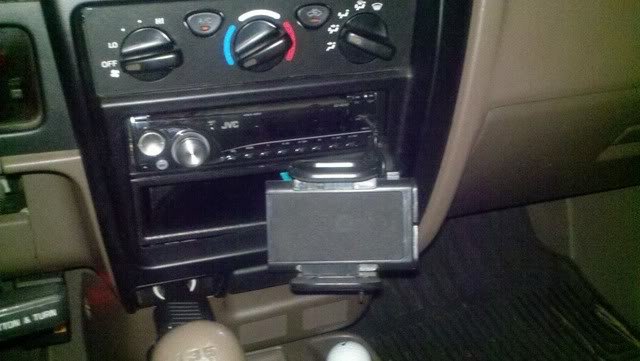

    Well I forgot to take my old phone when I went to dinner to check what readings we get. I took a picture of the mount though...

    [​IMG]

    Next time I drive my truck I'll check everything (Marcel if you hit add display and start scrolling through all the options under gauge it'll have a star next to everything that has a signal)

  2. Oct 20, 2011 at 6:41 PM
    #22
    novanut21

    novanut21 Well-Known Member

    Joined:
    May 12, 2009
    Member:
    #17127
    Messages:
    857
    Gender:
    Male
    First Name:
    Brent
    North Central,WV
    Vehicle:
    2009 TRD SPORT
    AFE CAI, Magnaflow cat-back exhaust, TRD S/C, Silverstars for headlights foglights and reverse lights, 5% tint, TRD Quickshifter, URD Fuel Pump Kit, Wet Okoles Front&Rear, WeatherTech Mats, Sockmonkey Decals, GrillCraft Grill, JBA "shorty" headers, URD Y-Pipe, TTC Oil Catch Can, Lotek Dual Apillar gauge pod w/ Autometer Phantom II AFR & Vac/Boost, URD "Stealth" Pulley.
  3. Oct 20, 2011 at 6:52 PM
    #23
    BrokenTusk

    BrokenTusk [OP] I support a velociraptor free workplace.

    Joined:
    May 5, 2010
    Member:
    #36607
    Messages:
    32,102
    Gender:
    Female
    First Name:
    Marcelasaurus
    AB, Canada
    Vehicle:
    The Scarlett Whore
    Check Build Thread!!
    Verified on a 2011 V6 Auto Tranny Tacoma, the taco's have no transmission temp sensors

    Get a droid :thumbsup:
    I want to see a pic of that
    Yes, actually it reads 2 AFR values, the "measured" value (aka, the actual value) and the "commanded" value from the ecu. :D

  4. Oct 20, 2011 at 7:07 PM
    #24
    RenoTacoma

    RenoTacoma Petrol head

    Joined:
    Jun 1, 2010
    Member:
    #38185
    Messages:
    869
    Gender:
    Male
    First Name:
    Sloan
    Reno, nevada
    Vehicle:
    09 Base 4x4 Tacoma
    Mid-travel soon
    My at and t contract just ended in august, is droid a os or an actual phone?

  5. Oct 20, 2011 at 7:15 PM
    #25
    BrokenTusk

    BrokenTusk [OP] I support a velociraptor free workplace.

    Joined:
    May 5, 2010
    Member:
    #36607
    Messages:
    32,102
    Gender:
    Female
    First Name:
    Marcelasaurus
    AB, Canada
    Vehicle:
    The Scarlett Whore
    Check Build Thread!!
    Android is the OS, my phone is actually the "Samsung Galaxy S2" on the Bell Network. Me and 3 other of my friends all have the same S2 phones because we think they beyond kick ass

  6. Oct 20, 2011 at 7:17 PM
    #26
    Burgman

    Burgman I KEEEEEL YOU

    Joined:
    Apr 16, 2009
    Member:
    #16072
    Messages:
    26,738
    Gender:
    Male
    First Name:
    Stephen
    Ric VA
    Vehicle:
    08 PreRunner TRD sport Silver
    K&N intake, Boston Acoustic SL 60 6.5 components up front, Rockford Power T16 6.5 in rear, Pioneer P4100 HU, Soon to be Pioneer Prs 4200f
    Bought the obd2 bluetooth off of amazon, for free had points

  7. Oct 20, 2011 at 7:24 PM
    #27
    BrokenTusk

    BrokenTusk [OP] I support a velociraptor free workplace.

    Joined:
    May 5, 2010
    Member:
    #36607
    Messages:
    32,102
    Gender:
    Female
    First Name:
    Marcelasaurus
    AB, Canada
    Vehicle:
    The Scarlett Whore
    Check Build Thread!!
    Thats what she said :D

  8. Oct 20, 2011 at 9:29 PM
    #28
    Blasphemous

    Blasphemous Well-Known Member

    Joined:
    Apr 9, 2011
    Member:
    #54632
    Messages:
    642
    Gender:
    Male
    First Name:
    Mike
    San Fernando Valley, CA
    Vehicle:
    2012 TRD Sport DC 4x4
    TRD SC, Stealth Pulley, DTLT Headers, URD MK3 Catback Exhaust, AFE II Intake
    Would the actual value be suitable for using for tuning?

  9. Oct 21, 2011 at 1:45 AM
    #29
    BrokenTusk

    BrokenTusk [OP] I support a velociraptor free workplace.

    Joined:
    May 5, 2010
    Member:
    #36607
    Messages:
    32,102
    Gender:
    Female
    First Name:
    Marcelasaurus
    AB, Canada
    Vehicle:
    The Scarlett Whore
    Check Build Thread!!
    I think so yes I'm kinda still learning to..

  10. Oct 21, 2011 at 3:23 AM
    #30
    95SLE

    95SLE Getting Ready for Summer

    Joined:
    Aug 5, 2009
    Member:
    #20718
    Messages:
    11,621
    Gender:
    Male
    First Name:
    Tom
    Maryland
    Vehicle:
    09 RWD Access Cab
    Custom XM Install, Window Tint, Intermittant Wiper Install, AVS Bug Deflector, Bed Mat, TRS FX-R retrofits, CIBIE fog and spot lamps, PIAA 510 lamps, Acess LE cover, Weathertech Digital floorr mats, LED interior lighting, Pioneer AVH-2300BT HU, Boston Acoustics speakers, JL Audio Amp, shorty antenna, leather wrap steering wheel cover, Viper security system.
    If that happens it will make HP Tuners and others very mad. LOL

    But I like the way you are thinking.

  11. Oct 21, 2011 at 7:16 AM
    #31
    BrokenTusk

    BrokenTusk [OP] I support a velociraptor free workplace.

    Joined:
    May 5, 2010
    Member:
    #36607
    Messages:
    32,102
    Gender:
    Female
    First Name:
    Marcelasaurus
    AB, Canada
    Vehicle:
    The Scarlett Whore
    Check Build Thread!!
    I believe it can be used for it, I just started pouring through the Gadget (URD's resident techy) Tuning reference manuals. Meaning I found them online and now gotta find the time to go through em. I really have no idea how to tune I think I know less then basics on tuning ATM.

    But I'm learnin :D

  12. Oct 21, 2011 at 7:34 AM
    #32
    95SLE

    95SLE Getting Ready for Summer

    Joined:
    Aug 5, 2009
    Member:
    #20718
    Messages:
    11,621
    Gender:
    Male
    First Name:
    Tom
    Maryland
    Vehicle:
    09 RWD Access Cab
    Custom XM Install, Window Tint, Intermittant Wiper Install, AVS Bug Deflector, Bed Mat, TRS FX-R retrofits, CIBIE fog and spot lamps, PIAA 510 lamps, Acess LE cover, Weathertech Digital floorr mats, LED interior lighting, Pioneer AVH-2300BT HU, Boston Acoustics speakers, JL Audio Amp, shorty antenna, leather wrap steering wheel cover, Viper security system.
    I doubt that Torque will be able to go into the PCM and change the different values. I think that reading and manipulating the data to produce other performance data will be it's strong suite.

    All in all it is very hard to beat at a less than $30 price point.

    FWIW there are not too many posters on this forum that are really interested in performance data and how to tune the Tacoma to obtain greater HP output. That is understandable considering the rear end gear ratios do not lend themselves for racing performance other than in a 1/4 mile.

  13. Oct 21, 2011 at 7:40 AM
    #33
    BrokenTusk

    BrokenTusk [OP] I support a velociraptor free workplace.

    Joined:
    May 5, 2010
    Member:
    #36607
    Messages:
    32,102
    Gender:
    Female
    First Name:
    Marcelasaurus
    AB, Canada
    Vehicle:
    The Scarlett Whore
    Check Build Thread!!
    True, which is why I also frequent xr-u.com :D

  14. Oct 21, 2011 at 1:07 PM
    #34
    novanut21

    novanut21 Well-Known Member

    Joined:
    May 12, 2009
    Member:
    #17127
    Messages:
    857
    Gender:
    Male
    First Name:
    Brent
    North Central,WV
    Vehicle:
    2009 TRD SPORT
    AFE CAI, Magnaflow cat-back exhaust, TRD S/C, Silverstars for headlights foglights and reverse lights, 5% tint, TRD Quickshifter, URD Fuel Pump Kit, Wet Okoles Front&Rear, WeatherTech Mats, Sockmonkey Decals, GrillCraft Grill, JBA "shorty" headers, URD Y-Pipe, TTC Oil Catch Can, Lotek Dual Apillar gauge pod w/ Autometer Phantom II AFR & Vac/Boost, URD "Stealth" Pulley.
    Downloaded the Torque App and just bought the ELM 327 off amazon. Can't wait to try it out!

  15. Oct 21, 2011 at 5:07 PM
    #35
    Blasphemous

    Blasphemous Well-Known Member

    Joined:
    Apr 9, 2011
    Member:
    #54632
    Messages:
    642
    Gender:
    Male
    First Name:
    Mike
    San Fernando Valley, CA
    Vehicle:
    2012 TRD Sport DC 4x4
    TRD SC, Stealth Pulley, DTLT Headers, URD MK3 Catback Exhaust, AFE II Intake
    I always thought that you had to install an 02 sensor and get some wideband reading equipment.

    I should post this question up on XRU. Or ask Gadget.

    Either way, I am excited.

  16. Oct 21, 2011 at 6:19 PM
    #36
    BrokenTusk

    BrokenTusk [OP] I support a velociraptor free workplace.

    Joined:
    May 5, 2010
    Member:
    #36607
    Messages:
    32,102
    Gender:
    Female
    First Name:
    Marcelasaurus
    AB, Canada
    Vehicle:
    The Scarlett Whore
    Check Build Thread!!
    x2, you want the link to the Xr-u.com torque thread??

  17. Nov 1, 2011 at 6:34 AM
    #37
    LGE RAW

    LGE RAW Well-Known Member

    Joined:
    Mar 9, 2011
    Member:
    #52716
    Messages:
    236
    Gender:
    Male
    First Name:
    Rob
    Dothan
    Vehicle:
    PreRunner SR5 TRD Sport
    Bull bar, wet suit seat covers, Assesory meter repair, Fog Lights with stick on.
    Torque's latest update came with a new custom PID called Transmission Temperature(Method 3) that loaded with what appears to be an accurate temp for the transmission fluid. I wouldn't mind a bit more info from them on how to set up custom PID using Torque. Anyone have any tips for setting up custom PIDs?

  18. Nov 1, 2011 at 7:02 AM
    #38
    BrokenTusk

    BrokenTusk [OP] I support a velociraptor free workplace.

    Joined:
    May 5, 2010
    Member:
    #36607
    Messages:
    32,102
    Gender:
    Female
    First Name:
    Marcelasaurus
    AB, Canada
    Vehicle:
    The Scarlett Whore
    Check Build Thread!!
    Define what you mean by PID???
    And i checked out an auto 2011 v6 and never received a transmission temp reading

  19. Nov 1, 2011 at 7:17 AM
    #39
    LGE RAW

    LGE RAW Well-Known Member

    Joined:
    Mar 9, 2011
    Member:
    #52716
    Messages:
    236
    Gender:
    Male
    First Name:
    Rob
    Dothan
    Vehicle:
    PreRunner SR5 TRD Sport
    Bull bar, wet suit seat covers, Assesory meter repair, Fog Lights with stick on.
    PID is Parameter ID

    All info below has been worked out after page 8. Look there for info on programing PIDs for Torque for 05-09 and 10+ Tacomas.

    I found this info on Ian's forum for crossing Scanguage to Torque:

    Link: http://torque-bhp.com/forums/?wpforumaction=viewtopic&t=352.0

    We need to fill in the following fields on Torque
    OBD2 PID
    Long Name
    Short Name
    Min Value
    Max Value
    Scale Factor
    Unit Type
    Equation
    with the following from SGII
    GAUGE
    TXD
    RXF
    RXD
    MTH
    NAM
    NOTES
    As we go through the tutorial I will use the following for an example
    Engine Oil Temperature 07E0221310 046245130610 3010 00090005F05F EOT Degrees F
    OBD2 PID
    This field comes from the TXD of the SGII file. There are 2 flavors, CAN (controller Area Network) and the rest of the older OBD2 protocols. If it is CAN, you want to use all the characters after “07DF” or “07E0”. If it is “07E1”, then Torque will likely not work for this gauge as the ELM327 may need specific instructions to communicate the transmission control module.
    For all the other protocols, you want to use all the characters after the “F1”.
    Our example: 221310
    Long Name
    Take this value from the GAUGE field
    Our example: Engine Oil Temperature
    Short Name
    Take this value from the NAM field
    Our Example: EOT
    MIN/MAX
    These are really determined by the data you are gathering and can be set up after you have your equation. Torque does a pretty good job of rescaling gauges if the data over steps the range.
    Scale Factor
    I always leave this as 1 because we can scale in the equation if we need to. However, SGII may do some prescaling that you should be aware of before you implement your equation.
    Unit Type
    Take this value for the notes field
    Our example: F
    Equation
    Now for the most complicated part.
    First look at the RXD field. Don’t worry about the first 2 characters. If the second 2 characters are “08”, then you have 1 byte of data and you will only need an “A” in your equation. If the second 2 characters are “10”, then you have 2 bytes of data and you will need to start off your equation like ((A*256)+B). Don’t ask why. This isn’t a lesson in hexadecimal.
    Our example: “10”-> ((A*256)+B)
    Now look at the MTH field. It is separated in 3 sections. It may look like this 00090005F05F. The first 4 characters (0009 in our example) are the multiplier. These values are in hex so you must convert them to decimal. Open up the windows calculator and makes sure it is set to scientific view. Click the hex circle and enter in the first 4 characters. Then click the decimal circle. The value displayed is what you want to use in torque. Repeat this step for the second 4 characters (0005 in our example) and you will have the divisor. The final four are the trickiest. If you have an F,E,D,C,B,A,9,8 as the first character as we do in our example, then this will be a negative number. To calculate this use windows calculator and set it to HEX. Enter the value and click XOR and enter “FFFE”. Click “=”, then click the decimal circle and you will see what value you have to subtract from the equation. If there isn’t, then we will be adding this value. And you proceed the same as with the multiply and divide to the value.
    Our example: 9/5-4001
    The final thing to pay attn to is the RXF field. Which may look like 046245130610. Pay close attn to 0462->4-5130610. If you see a 4 here, then your data must be multiplied by 100. If you see an 8, then your data must be multiplied by 10. If it is 0, then don’t worry about this part.
    Our example: *100
    Final equation: ((A*256)+B)*100*(9/5)-4001
    This is only a guide and not a bible. If you can’t get data for a PID it can me two things, you entered it wrong or your car doesn’t support it. Just b/c your car as a certain sensor it does NOT mean your vehicle will support the PID to get that data.

  20. Nov 2, 2011 at 8:46 AM
    #40
    Burgman

    Burgman I KEEEEEL YOU

    Joined:
    Apr 16, 2009
    Member:
    #16072
    Messages:
    26,738
    Gender:
    Male
    First Name:
    Stephen
    Ric VA
    Vehicle:
    08 PreRunner TRD sport Silver
    K&N intake, Boston Acoustic SL 60 6.5 components up front, Rockford Power T16 6.5 in rear, Pioneer P4100 HU, Soon to be Pioneer Prs 4200f
    Just got my ELM 327 in the mail, it does not have the bluetooth symbol on it and it has a permanent usb wire connected to it. Want to be sure that this will not work before returning it... is there something special i need to do to get it to connect to my phone?
