Wrong Section, PELASE REMOVE - 3rd Member Differential Assembly - 4.10 - Non-Elocker - $250

Discussion in '1st Gen Tacomas For Sale (1995-2004)' started by Cattywampus, Mar 10, 2021.

  1. Mar 10, 2021 at 12:22 PM
    #1
    Cattywampus

    Cattywampus [OP] Splitter of CV Boots

    Joined:
    Nov 7, 2017
    Member:
    #235284
    Messages:
    180
    Gender:
    Male
    First Name:
    Mark
    Baltimore, MD
    Vehicle:
    2004 Tacoma 4WD TRD Ext Cab
    FS: Toyota 7.5" 3rd Member Differential - 4.10 - Non E-Locker
    Asking Price: $250
    Location: Baltimore, MD
    Pickup Preferred

    Selling a Toyota 8" 3rd Member differential. This came out of a 2001 Toyota 4Runner, Axle Code A03A, 4.10 Gearing. It is an open differential. The 4Runner had 191k miles when it was removed. No known issues with this differential and I did NOT attempt to take apart anything on the inside.

    I'm aware this is a Tacoma forum, but I do not meet the minimum number of posts on the 4Runner sites, so you all get first dibs :thumbsup:. This should fit 96-02 4Runners (3rd Gen) and 96-04 Tacomas, assuming it is a non-elocker axle.

    I was originally planning to just refinish the Rear Axle Housing/3rd member on the stock 4Runner housing, however I later decided to swap for a E-Locking 3rd member instead. The housing had some surface rust forming on the exterior only. The housing is quite thick so its strength is not compromised. The loose rust was knocked off with a wire wheel and wire brush, the rust converted with rust-oleum rust reformer, and top coated with enamel. You can see evidence of pitting on the top surface, approx. 1/16" deep.

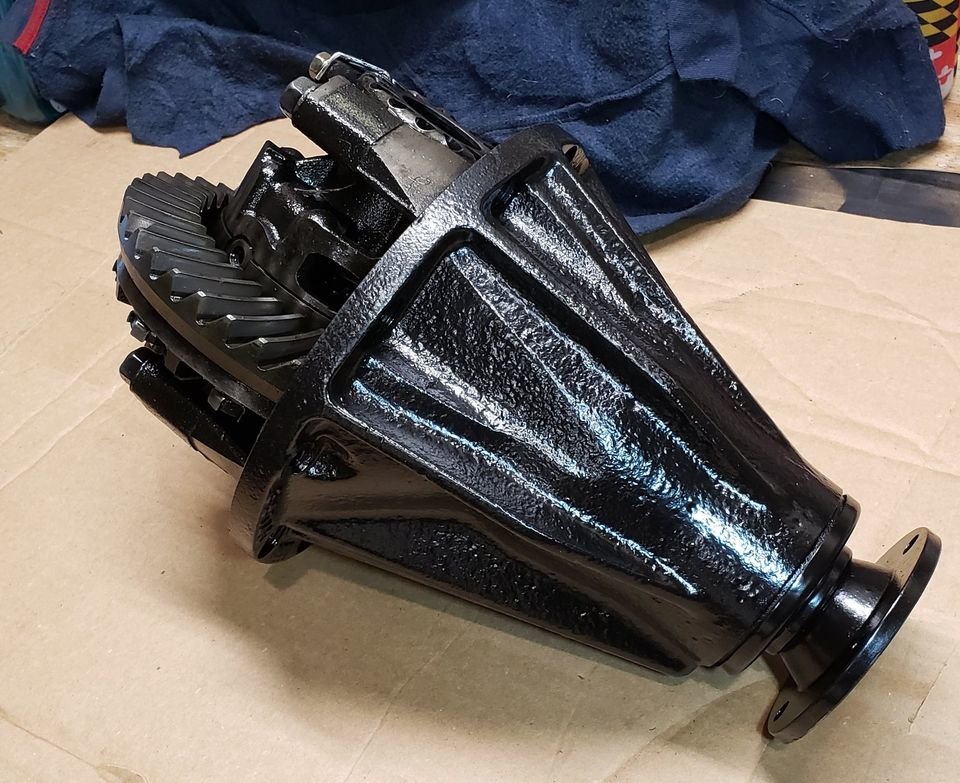

    143774434_10158072244638321_141486198751_fc20bee47c31bfac85f54b31e5e240bbd6651e14.jpg

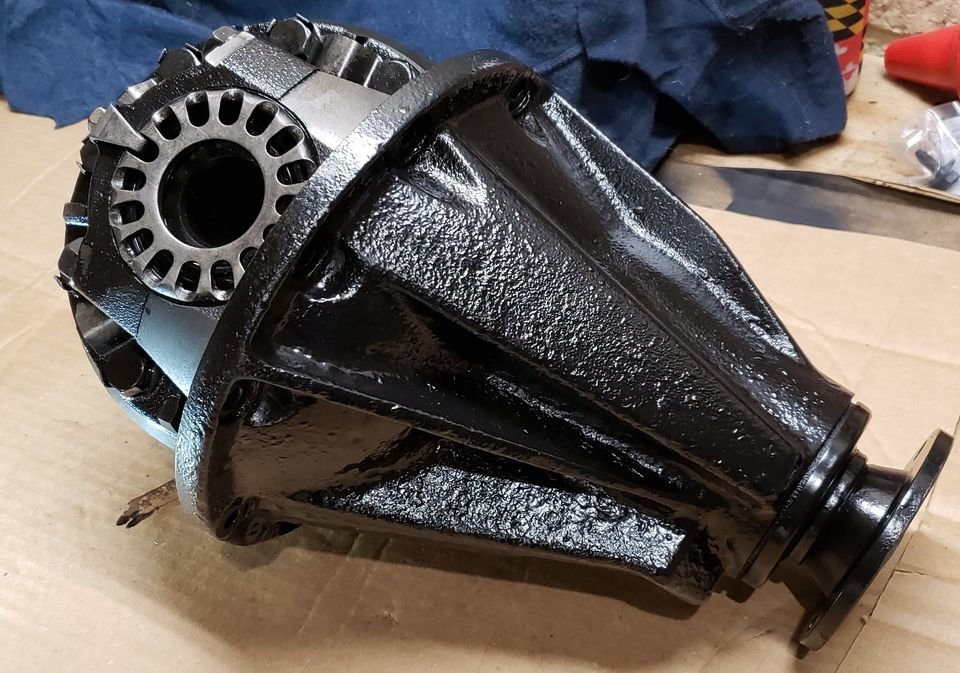

    145617763_10158072244598321_348919343273_3b39c23efad715157ec078fb71f21191f5f10f16.jpg

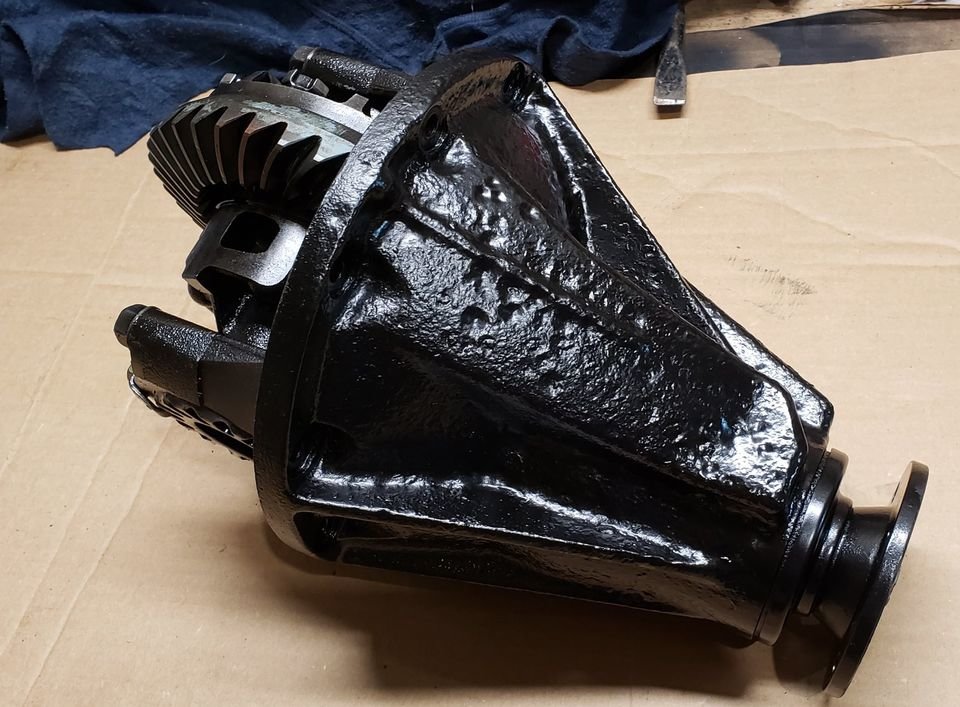

    145050291_10158072244873321_605738946744_28863a4a0b9a8932bcdcdd5cc1563a20067a3c59.jpg

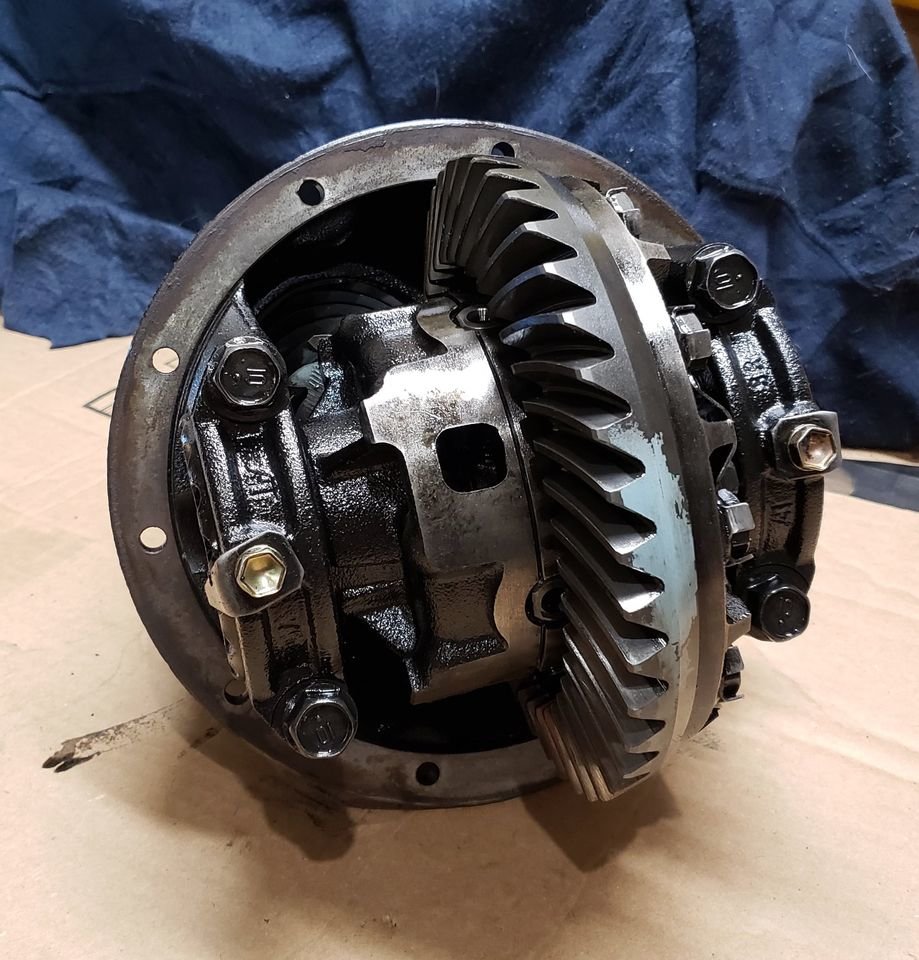

    144589327_10158072244863321_221529131302_fc07e77e79bddfa2983db234ca748462eb5798ac.jpg

  2. Mar 10, 2021 at 8:23 PM
    #2
    02hilux

    02hilux Go where the few dares to travel

    Joined:
    Sep 14, 2016
    Member:
    #197244
    Messages:
    1,928
    Planet: EARTH
    Vehicle:
    point and GO
    Wrong section BTW...

    Hope you're aware, tacoma do not use 8" open rear end like the 4r. Tacoma have either 8.4" or 8" elock. The 8" open will not work with a 8" elock housing.

  3. Mar 11, 2021 at 8:38 AM
    #3
    Cattywampus

    Cattywampus [OP] Splitter of CV Boots

    Joined:
    Nov 7, 2017
    Member:
    #235284
    Messages:
    180
    Gender:
    Male
    First Name:
    Mark
    Baltimore, MD
    Vehicle:
    2004 Tacoma 4WD TRD Ext Cab
    Did some research, and yes you are correct. My apologies to everyone who I may have confused. Thanks for catching that! I guess I thought they would be the same since I swapped an elocking Tacoma diff into the 4R Axle housing with some modification. The 3rd gen 4runner and 1st gen Tacoma had the same E-Locker Diff, but the open diffs between the 1st Gen Tacoma and 3rd Gen are not compatible. I will move the post.

    It seems that the open diff of the 4R may be interchangeable between the earlier Toyota Pickups and 4Runners ('86-'95) and referred to as the 'Toyota V6/Turbo 8" 3rd'. Do you know if that is true?
