Yakima Blockhead Installation Instructions

Discussion in '3rd Gen. Tacomas (2016+)' started by Woodsan, Oct 15, 2017.

  1. Oct 15, 2017 at 6:33 PM
    #1
    Woodsan

    Woodsan [OP] Member

    Joined:
    Feb 6, 2017
    Member:
    #209843
    Messages:
    20
    Gender:
    Male
    Vehicle:
    2017 Tacoma DCSB TRD Off-Road
    Here's a good locking setup for anyone looking for ideas.
    Instructions to follow...


    Last edited: Oct 15, 2017
  2. Oct 15, 2017 at 6:40 PM
    #2
    Woodsan

    Woodsan [OP] Member

    Joined:
    Feb 6, 2017
    Member:
    #209843
    Messages:
    20
    Gender:
    Male
    Vehicle:
    2017 Tacoma DCSB TRD Off-Road
    Stuff you need to order:
    * (1x) Toyota Truck Bed Header Rail (Part# PT278-35100-BH)
    * (2x) Yakima Blockhead locking fork mounts (lock cores included)
    * (4x) Yakima Accessory Locks (lock cores not included)
    * (4x or 6x) Yakima SKS Lock Keys & Cores
    - NOTE: The Accessory locks don't come with cores, so you need at least 4. If you want all of your keys to be the same, order 6.

    02A - Bedrail Screenshot.jpg

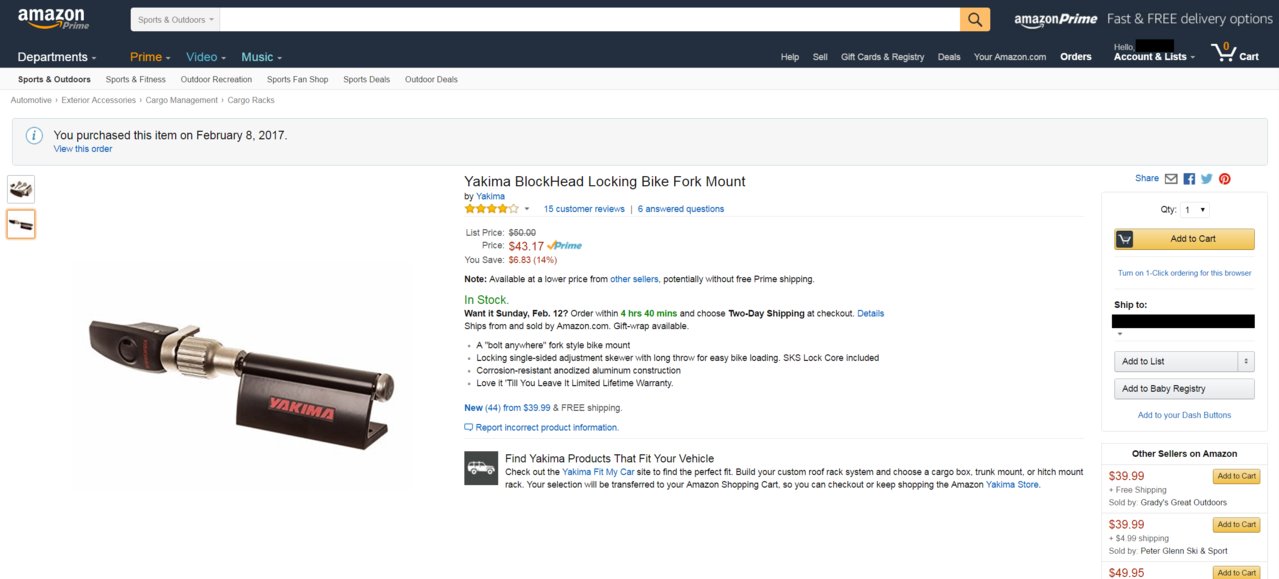

    02B - Yakima Blockhead.jpg

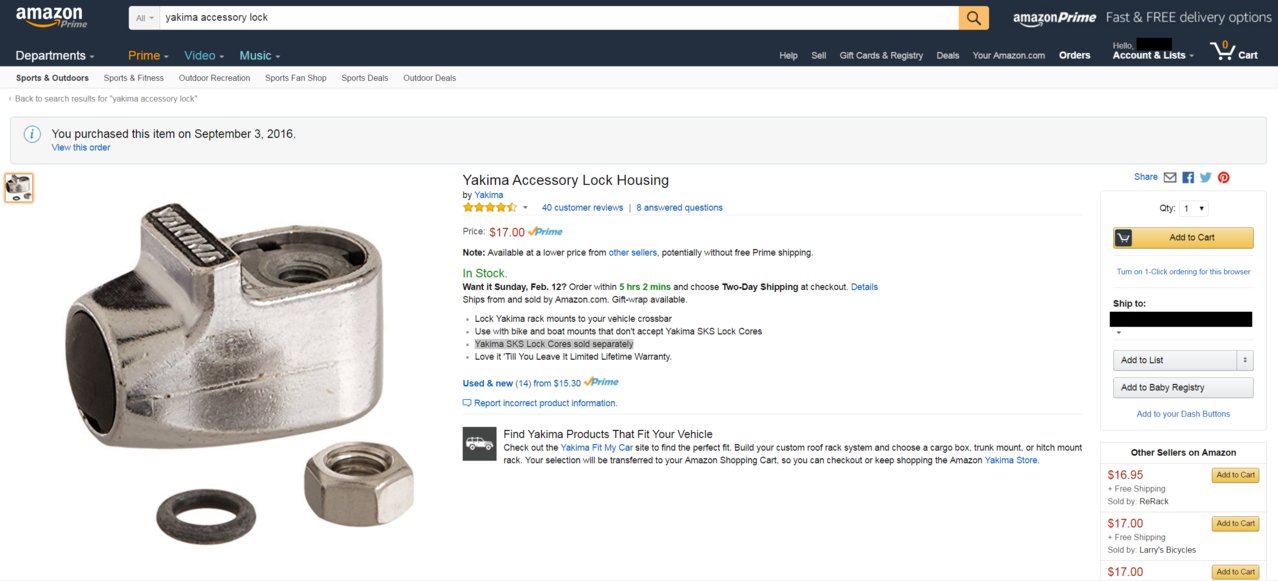

    02C - Lock Housing.jpg

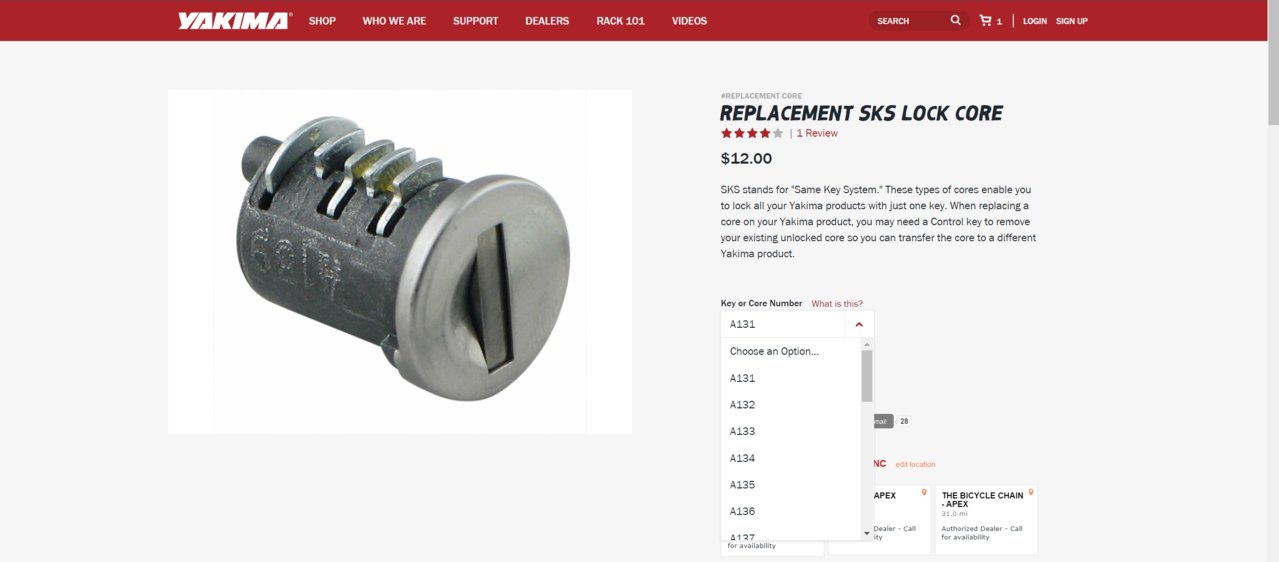

    02D - Lock Cores.jpg

    Admiral_Akbar likes this.
  3. Oct 15, 2017 at 6:47 PM
    #3
    DFA1

    DFA1 Well-Known Member

    Joined:
    Dec 30, 2016
    Member:
    #206044
    Messages:
    195
    Gender:
    Male
    First Name:
    Brett
    Looks good, thanks for posting everything that's needed

    Woodsan [OP] likes this.
  4. Oct 15, 2017 at 6:50 PM
    #4
    Woodsan

    Woodsan [OP] Member

    Joined:
    Feb 6, 2017
    Member:
    #209843
    Messages:
    20
    Gender:
    Male
    Vehicle:
    2017 Tacoma DCSB TRD Off-Road
    Now for a trip to the hardware store:

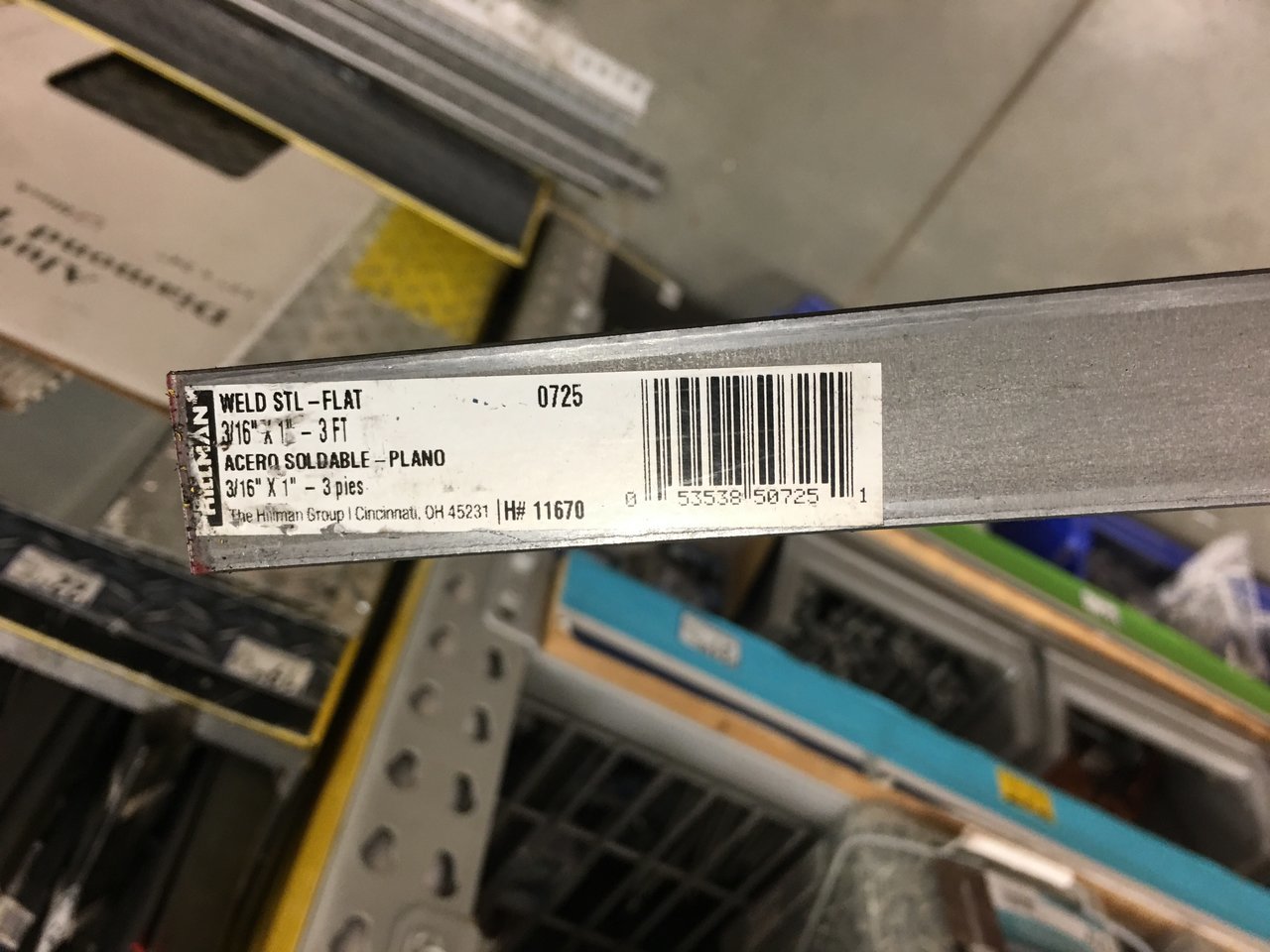

    * (1x) 3/16" x 1" x 3' piece of flat steel

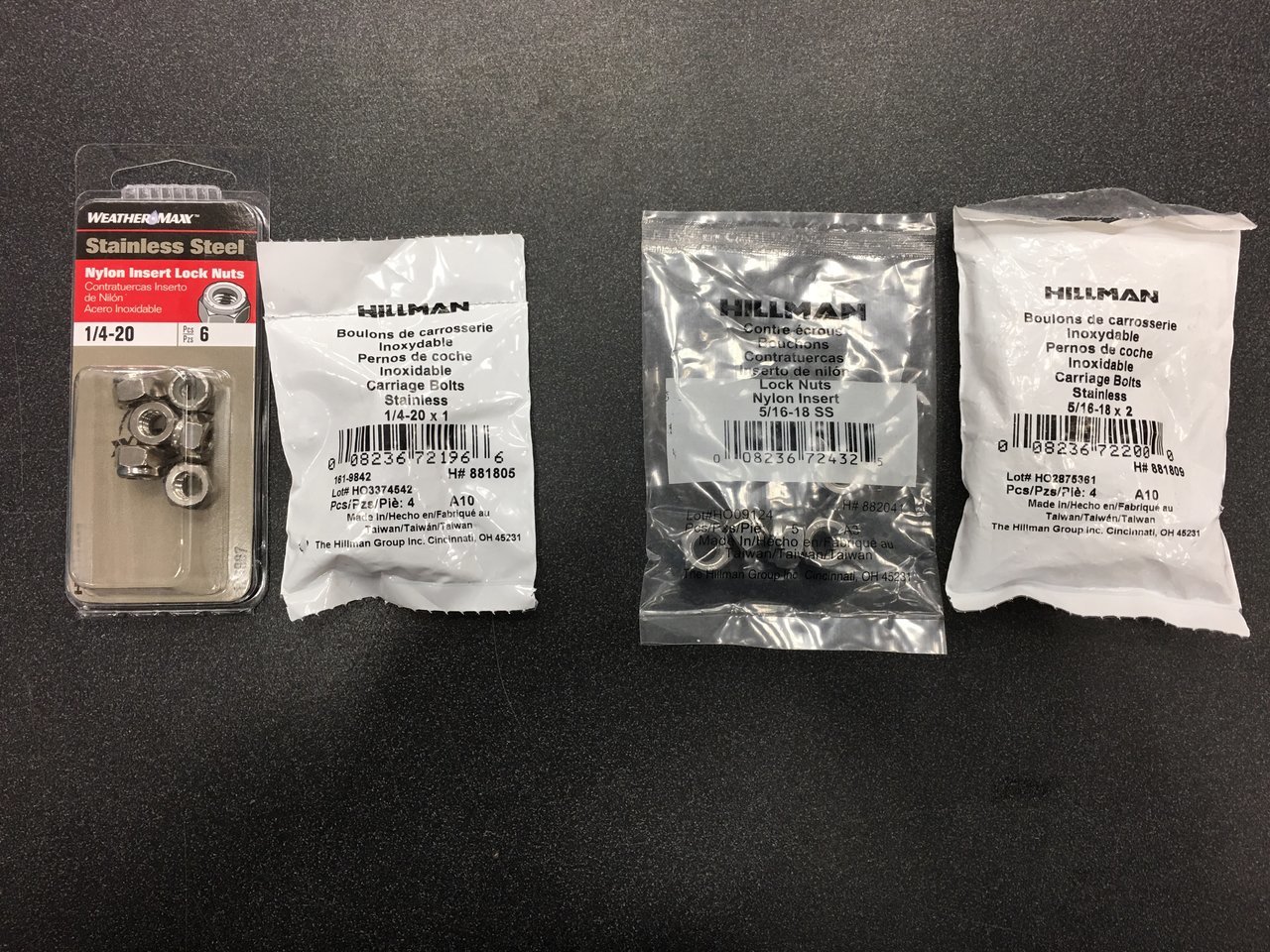

    * (4x) 1/4"-20 stainless steel locking nuts
    * (4x) 1/4"-20 x1" stainless steel carriage bolts
    * (4x) 5/16"-18 stainless steel locking nuts
    * (4x) 5/16"-18 x2" stainless steel carriage bolts
    * (1x) Can of black (or whatever) spray paint

    04A - Steel.jpg
    04B - Nuts and Bolts.jpg
    04C - Can of Paint.jpg

  5. Oct 15, 2017 at 7:00 PM
    #5
    Woodsan

    Woodsan [OP] Member

    Joined:
    Feb 6, 2017
    Member:
    #209843
    Messages:
    20
    Gender:
    Male
    Vehicle:
    2017 Tacoma DCSB TRD Off-Road

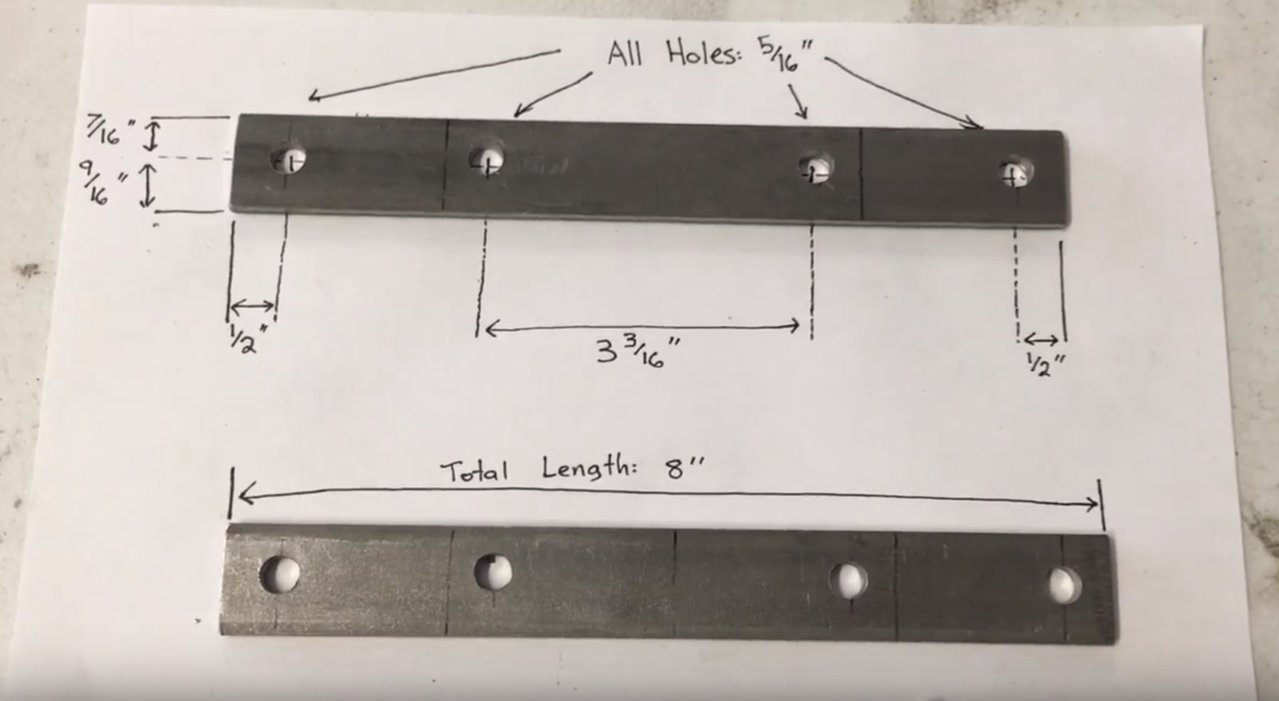

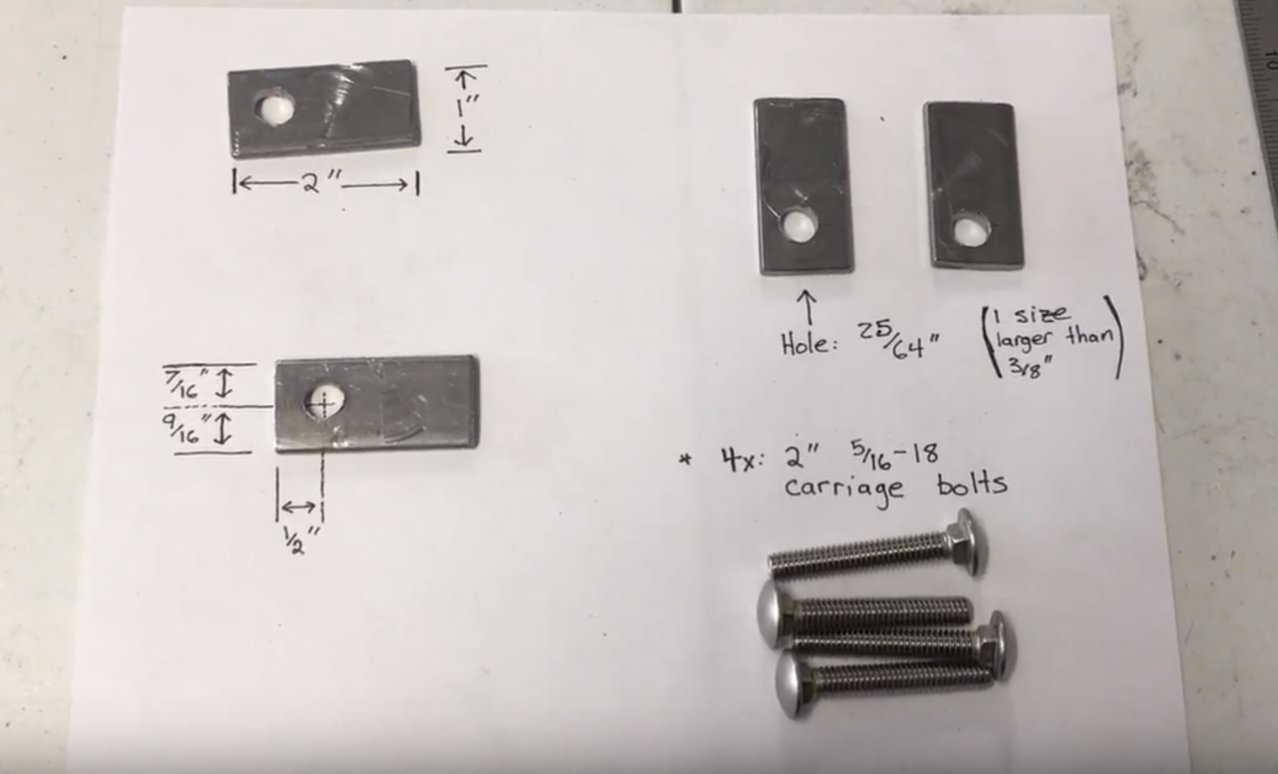

    Here are some shady screenshots of what you will need to fabricate out of the metal that you bought from the hardware store...
    (4x) 2" pieces
    (2x) 8" pieces


    Last edited: Oct 16, 2017
  6. Oct 15, 2017 at 7:22 PM
    #6
    Woodsan

    Woodsan [OP] Member

    Joined:
    Feb 6, 2017
    Member:
    #209843
    Messages:
    20
    Gender:
    Male
    Vehicle:
    2017 Tacoma DCSB TRD Off-Road
    I'm working to put together a YouTube video of the actual installation steps that I took to ensure this thing is locked down really well. If you're pretty crafty, you can probably figure it out based on the parts list and pictures I have provided already.

    Give me a bit and I'll get the rest out there!

  7. Oct 15, 2017 at 9:02 PM
    #7
    Victory

    Victory Well-Known Member

    Joined:
    Mar 13, 2016
    Member:
    #181167
    Messages:
    882
    Gender:
    Male
    St. Pete, FL
    Vehicle:
    2016 White Tacoma TRD Off Road
    Looks good, I just added some to my truck this weekend as well.

    I have one locking mount left over I'm selling that mounts to our Taco rails directly without having to do all this work (Rockymount LoBall Track) it didn't work with my almost 50 year old bike, but does work with modern bikes.

    I can appreciate the work you put into this.

    Woodsan [OP] likes this.
