Yakima Skyline Towers and LockNLoad platform

Discussion in '3rd Gen. Tacomas (2016+)' started by ssd2k2, Jun 19, 2020.

  1. Jun 19, 2020 at 4:47 PM
    #1
    ssd2k2

    ssd2k2 [OP] Well-Known Member

    Joined:
    May 27, 2020
    Member:
    #329548
    Messages:
    355
    First Name:
    Ketih
    Minnesota
    Vehicle:
    2019 Tacoma TRD Sport M/T
    EDIT: Here is the info on the platform Yakima Skyline Towers and LockNLoad platform

    I know most people on here go with the heavy duty off road racks but if you wanted a light duty and easily removable rack Yakima just came out with new landing pads for the 3rd gen Tacos. That way you don't have to use the ones that wrap around the doors, you can the Skyline system that screws into the factory roof mounts.

    I had a Skyline system left over from my wife's previous car and didn't want to invest $700 in a Prinsu rack. Plus all my bike racks, which I have 6 of, are for Yakima round bars. And yes I've used all 6 at once going on a family vacation.

    Mounting the Yakima rack was easy, took about an hour to do and the only drilling you have to do is in the removable roof molding strip. The wind noise with a fairing is not that bad but I have lost about 0.5 mpg since installing.


    IMG_20200529_114021.jpg IMG_20200619_180523.jpg

    Last edited: Mar 6, 2021
  2. Jun 20, 2020 at 7:21 AM
    #2
    Nine Mile Taco

    Nine Mile Taco New Member

    Joined:
    Jun 19, 2020
    Member:
    #331956
    Messages:
    2
    Gender:
    Male
    First Name:
    Dan
    Vehicle:
    2020 Tacoma Off Road - Magnetic Grey
    Nice! I didn’t realize Yakima had a setup to mount to the factory mounting holes. I too have all Yakima round bar bike, kayak, etc. accessories and have been trying to figure out how to make it work. Someday I’ll have a canopy with a rack, but that is a few years out.

    Does your setup use the “landing pad 24” with the skyline towers? I can’t find very good photos or instructions on Yakima’s website.

  3. Jun 20, 2020 at 8:24 AM
    #3
    ssd2k2

    ssd2k2 [OP] Well-Known Member

    Joined:
    May 27, 2020
    Member:
    #329548
    Messages:
    355
    First Name:
    Ketih
    Minnesota
    Vehicle:
    2019 Tacoma TRD Sport M/T
    Yes, landing pad 24. It's all pretty simple to do if you have installed a rack before, the directions that came with the pads are pretty good.
    They show you which holes to use and how to mark the holes on the weather stripping.
    How to drill the roof molding, it has a metal band on the underside you have to cut with diagonal cutters and then it's just a rubber strip you drill straight through.
    It comes with gasket sealant to make sure the bolts won't leak into the cab.
    The only specialty tool you might need is small torque wrench because the pads only require 2 N-m (18 in lbf). I talked to a tech at Yakima and he told me the testing they did 2 N-m was all that was needed and to much torque could damage the factory mounts. I have 1,500 miles so far since installing the rack and had no issues. It's hauled two 30 lb bikes on the interstate (@80mph) with some bad crosswind with no problems.
    I'd say the hardest part is installing the towers and bars, it's a pain trying to line them up by yourself, but it is doable.

    Or if you aren't comfortable doing it yourself a rack shop should only charge around $50 to install it for you.

    Taco-Grinder likes this.
  4. Jun 25, 2020 at 5:50 PM
    #4
    garrilla

    garrilla New Member

    Joined:
    Apr 30, 2020
    Member:
    #326410
    Messages:
    4
    Gender:
    Male
    Thanks OP

  5. Jul 20, 2020 at 4:23 PM
    #5
    E.J.

    E.J. Well-Known Member

    Joined:
    Jul 10, 2019
    Member:
    #298824
    Messages:
    429
    First Name:
    Josh
    NWA
    Vehicle:
    2017 White Tacoma TRD Off Road
    Looks good OP, what is the crossbar spacing on this set up?

  6. Jul 20, 2020 at 7:11 PM
    #6
    ssd2k2

    ssd2k2 [OP] Well-Known Member

    Joined:
    May 27, 2020
    Member:
    #329548
    Messages:
    355
    First Name:
    Ketih
    Minnesota
    Vehicle:
    2019 Tacoma TRD Sport M/T
    I used 58" bars and the spacing is about 41" outside edge to outside edge.

    E.J. likes this.
  7. Sep 10, 2020 at 3:07 PM
    #7
    trika101

    trika101 New Member

    Joined:
    Sep 10, 2020
    Member:
    #340404
    Messages:
    1
    Gender:
    Female
    Vehicle:
    2020 Tacoma TRD sport
    We are in the same boat— have old skyline system and want to mount it to the 2020 Tacoma roof. Some sites say it’s compatible, but a rack install place said no. How can I determine where the mounts are on a “naked roof“ once I have the landing padS?

  8. Jan 27, 2021 at 1:28 PM
    #8
    HotBodHen

    HotBodHen Member

    Joined:
    Jan 22, 2021
    Member:
    #353634
    Messages:
    16
    Vehicle:
    2021 Voodoo Blue TRD Sport DCLB
    If for some reason you get rid of the landing pad 24s let me know! The entire world is out of stock!

    JK likes this.
  9. Jan 27, 2021 at 3:16 PM
    #9
    ssd2k2

    ssd2k2 [OP] Well-Known Member

    Joined:
    May 27, 2020
    Member:
    #329548
    Messages:
    355
    First Name:
    Ketih
    Minnesota
    Vehicle:
    2019 Tacoma TRD Sport M/T
    Not a chance, I love my Yakima rack. Have you emailed Yakima directly to see when they plan on restocking?

  10. Jan 27, 2021 at 4:13 PM
    #10
    HotBodHen

    HotBodHen Member

    Joined:
    Jan 22, 2021
    Member:
    #353634
    Messages:
    16
    Vehicle:
    2021 Voodoo Blue TRD Sport DCLB
    I don't blame you haha! Love Yakima as a brand. I've emailed them a couple of times and called every rack supplier in the United States and Canada and none of them have it in stock, it's crazy. They always say they hope to have it within 30 days but hasn't been the case so far. I guess all you can do is hope and keep checking!

  11. Jan 27, 2021 at 4:38 PM
    #11
    Unresolved Taco Issues

    Unresolved Taco Issues Well-Known Member

    Joined:
    Oct 12, 2020
    Member:
    #343635
    Messages:
    58
    Gender:
    Male
    First Name:
    Jeff
    FINALLY off the island!
    Vehicle:
    2020 Gray Tacoma Access Cab
    Do you know if all models of Tacoma have the factory mounts under the weatherstripping? I have a 2020 SR Access Cab and was looking at the weatherstripping the other day. I see how it could probably be removed to check, but I wasn’t sure what the proper removal method is? I’m just nervous I would pull it off and not be able to reattach it because I just started peeling!

    I’ve got round bars, a fairing, and locks. I will have to buy the skyrise towers, landing pad 24(if I can find them), and the round bar adapters for the skyline. My q-towers are obsolete for newer vehicles. Thanks!

  12. Jan 27, 2021 at 5:42 PM
    #12
    ssd2k2

    ssd2k2 [OP] Well-Known Member

    Joined:
    May 27, 2020
    Member:
    #329548
    Messages:
    355
    First Name:
    Ketih
    Minnesota
    Vehicle:
    2019 Tacoma TRD Sport M/T
    I would assume access cabs have mounts under the weather strip, seeing as Prinsu makes a rack for the access cab.

    And I believe the weather strip is 3 parts. 2 end pieces that curve down the roof line to the windshield/rear window which are held on by double sided tape. The center part is just press fit into the roof channel and kinda clips into the end pieces, it might have some double stick tape on it I can't remember off the top of my head.

    So you can take the center strip off without hurting anything.

    To take it off I started at the back where the center strip meets the piece that wraps down to the window.
    Using a trim removal tool, so you don't hurt the paint, just pry up on it and it will separate. Slowly pull it off working towards the front.
    Once it's off if there are a couple sections of paint matched tape about 3 inches long those are the factory holes. Don't puncture the tape until you are ready to install the roof rack. The factory holes under that tape are directly open to the cabin and if you don't seal them up properly you can have leaks inside the cab.
    The Yakima landing pads come with pretty good instructions telling you what to do and include RTV silicone to seal the bolts when you install them.

    And after you put it back together go through a car wash with air dryers, that way you can make sure nothing leaks and if anything is loose it will blow off inside the wash and not on the freeway.

    Last edited: Jan 27, 2021
  13. Jan 29, 2021 at 4:33 PM
    #13
    Unresolved Taco Issues

    Unresolved Taco Issues Well-Known Member

    Joined:
    Oct 12, 2020
    Member:
    #343635
    Messages:
    58
    Gender:
    Male
    First Name:
    Jeff
    FINALLY off the island!
    Vehicle:
    2020 Gray Tacoma Access Cab
    Thanks for the detail! I’ve been looking for the landing pad 24, but like others I’ve had no luck. Guess I’ll start buying all the other parts first and HOPE the landing pads are back in stock by Spring.

  14. Jan 29, 2021 at 5:30 PM
    #14
    ssd2k2

    ssd2k2 [OP] Well-Known Member

    Joined:
    May 27, 2020
    Member:
    #329548
    Messages:
    355
    First Name:
    Ketih
    Minnesota
    Vehicle:
    2019 Tacoma TRD Sport M/T
    If you can, wait until May when REI has their big anniversary sale, Yakima is usually 20% off.

  15. Jan 30, 2021 at 12:15 AM
    #15
    47 North

    47 North Well-Known Member

    Joined:
    Feb 19, 2020
    Member:
    #319777
    Messages:
    67
    Gender:
    Male
    First Name:
    Tom
    San Francisco
    Vehicle:
    2020 MGM TRD OR Access Cab
    Still in progress...

    Access cabs do not have the predrilled holes, unfortunately. There are some posts on this site that detail how they can be attached, but they will involve removing the headliner, and drilling and waterproofing holes.

  16. Feb 17, 2021 at 12:26 PM
    #16
    o30mike

    o30mike New Member

    Joined:
    Feb 17, 2021
    Member:
    #356456
    Messages:
    3
    Gender:
    Male
    First Name:
    Mike
    Vehicle:
    2021 Tacoma Off Road Access Cab
    Yakima Overhaul Racks
    Oh No!!! - I just bought the Landing Pad 24's for my access cab - I did not have any trouble sourcing these at an outdoors store near Dallas - is it truly confirmed AC's do NOT have the mounting holes - Comments appreciated

  17. Feb 17, 2021 at 12:30 PM
    #17
    HotBodHen

    HotBodHen Member

    Joined:
    Jan 22, 2021
    Member:
    #353634
    Messages:
    16
    Vehicle:
    2021 Voodoo Blue TRD Sport DCLB
    Well if your AC doesn't have holes I'll buy them from you plus shipping! I'll even buy you a cheesecake or a puppy as a kicker. What was the name of the outdoor store near Dallas that had them?

    JK likes this.
  18. Feb 17, 2021 at 3:33 PM
    #18
    o30mike

    o30mike New Member

    Joined:
    Feb 17, 2021
    Member:
    #356456
    Messages:
    3
    Gender:
    Male
    First Name:
    Mike
    Vehicle:
    2021 Tacoma Off Road Access Cab
    Yakima Overhaul Racks
    Hi - It was Mountain Sports in Arlington Tx, But I think I just bought the last one they had there. I've Looked for hours today and cannot find proof that the AC's do not have mounting holes from the factory. If you can show me definitely that the 2021 tacoma AC's do NOT have factory mounting holes like the DC's - I'll sell you mine (+ a New York Style Cheese Cake and a doberman puppy...)

  19. Feb 17, 2021 at 3:44 PM
    #19
    o30mike

    o30mike New Member

    Joined:
    Feb 17, 2021
    Member:
    #356456
    Messages:
    3
    Gender:
    Male
    First Name:
    Mike
    Vehicle:
    2021 Tacoma Off Road Access Cab
    Yakima Overhaul Racks

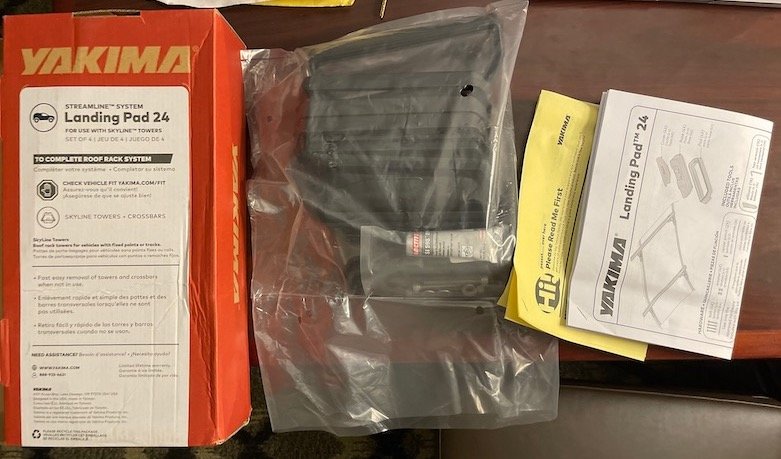

    New in Box...


  20. Feb 17, 2021 at 4:11 PM
    #20
    HotBodHen

    HotBodHen Member

    Joined:
    Jan 22, 2021
    Member:
    #353634
    Messages:
    16
    Vehicle:
    2021 Voodoo Blue TRD Sport DCLB
    So from everything I've researched and known about all 3rd gen AC's is that they don't come with the pre drilled holes. On Yakima's vehicle configuration tool and installation notes, they list only the BaseLine System as the only compatible roof rack system and not the Landing Pads. I was reading a forum post from Victory 4x4 earlier saying that their rack works on AC's but you have to drill also.

    "BaseLine System – Yakima" https://yakima.com/products/baselin...56.1694217511.1613606085-779941899.1613606085

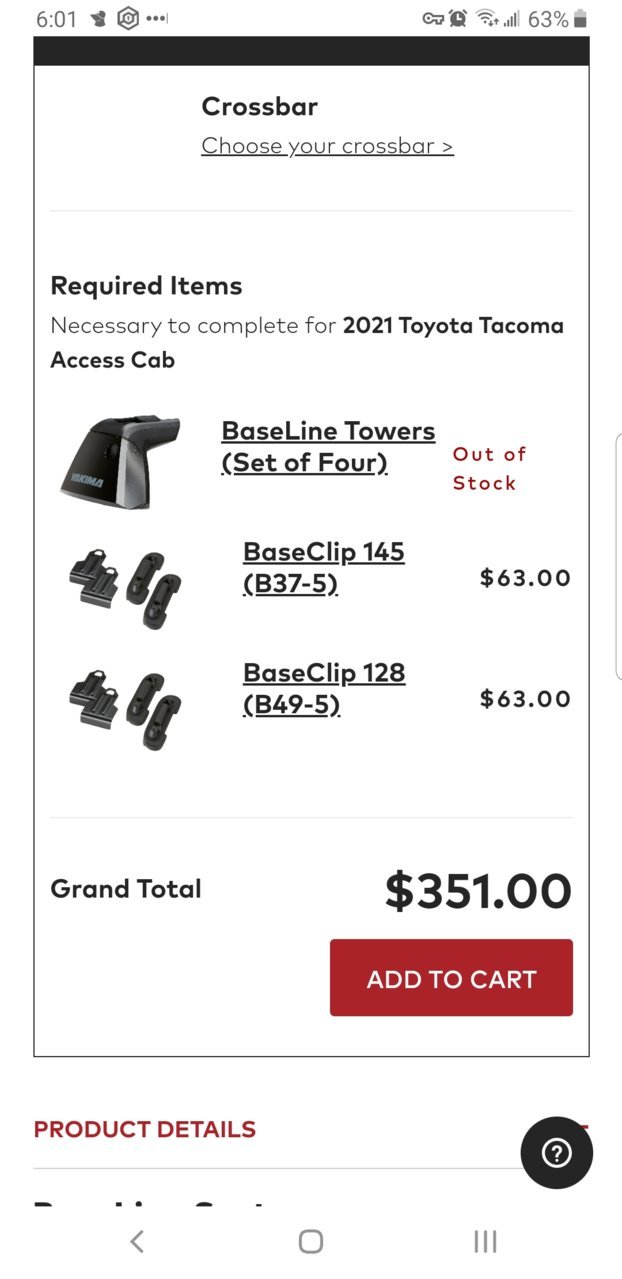

    I've attached a screenshot of what Yakima says works with a 2021 Tacoma AC. I'll keep doing some digging but just wanted to pass that information from now.
