09 Always-On Rear View Camera Wiring diagram (check my work)

Discussion in 'Technical Chat' started by Crom, Aug 10, 2011.

  1. Aug 10, 2011 at 11:00 AM
    #1
    Crom

    Crom [OP] Time is precious; use it wisely

    Joined:
    Jun 22, 2009
    Member:
    #18782
    Messages:
    4,084
    Gender:
    Male
    First Name:
    Mr. Sir
    San Diego, CA
    Vehicle:
    2009 Double Cab 4x4 Off Road
    A.R.E. MX Shell & Yakima Rack, Stubbs HD-SKO Rock Sliders, JBA UCA's & OME 885 Coils and nitrochargers, Flat BajaRack, Kenwood VHF/UHF Radio, Aux Battery, Solar Panels, L-Track everywhere, Goodyear Duratracs, Four-Leaf pack, Secured tailgate, 7-pin relocation, Inverter 400W all time, In-cab 110v outlets, Rear-seat 12v outlets., Steering shaft TSB, anytime fogs, DTRL toggle switch, aux turn signals, Diff Breather, ImMrYo mirror bracket, ABS Kill switch, (2) Kid Car Seats, and a Glock 23 with night sights.
    I want to do the anytime camera mod but I don't want to install the switch at the mirror, I want the switch on the dash. I researched the wire map and I think I found the wire under the dash. Please check my work.

    Is this correct? If I were to install a switch based on this diagram would this mod work? I believe it will based on this thread here: 09 Always-On Rear View Camera

    PROPOSED MODIFICATION:
    [​IMG]

    FACTORY DIAGRAM:

    [​IMG]

    If my diagram is valid, then there is no need to install the switch at the mirror, rather we can tap the fuse block with a fuse for +12v. Then we can redirect the REV wire at connector IN1 @ Pin 7 to the switch. It's right under the dash.

    [​IMG]

    Anyone agree?


    Attached Files:

  2. Aug 10, 2011 at 11:02 AM
    #2
    Crom

    Crom [OP] Time is precious; use it wisely

    Joined:
    Jun 22, 2009
    Member:
    #18782
    Messages:
    4,084
    Gender:
    Male
    First Name:
    Mr. Sir
    San Diego, CA
    Vehicle:
    2009 Double Cab 4x4 Off Road
    A.R.E. MX Shell & Yakima Rack, Stubbs HD-SKO Rock Sliders, JBA UCA's & OME 885 Coils and nitrochargers, Flat BajaRack, Kenwood VHF/UHF Radio, Aux Battery, Solar Panels, L-Track everywhere, Goodyear Duratracs, Four-Leaf pack, Secured tailgate, 7-pin relocation, Inverter 400W all time, In-cab 110v outlets, Rear-seat 12v outlets., Steering shaft TSB, anytime fogs, DTRL toggle switch, aux turn signals, Diff Breather, ImMrYo mirror bracket, ABS Kill switch, (2) Kid Car Seats, and a Glock 23 with night sights.

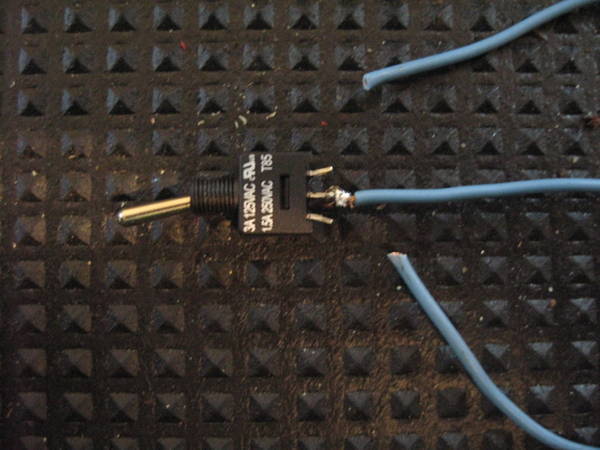

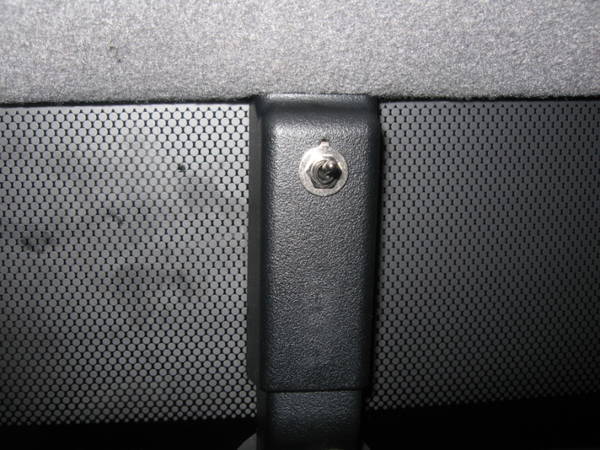

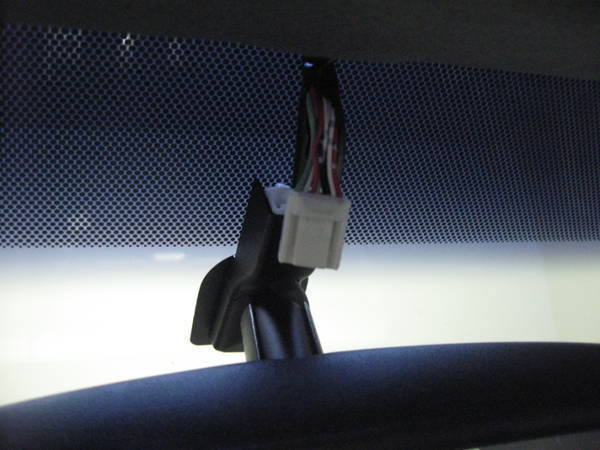

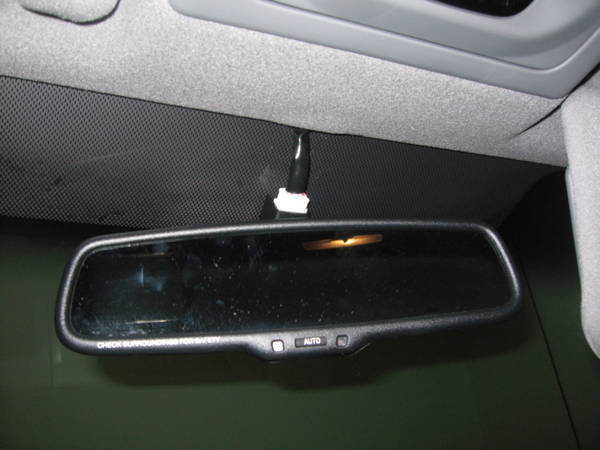

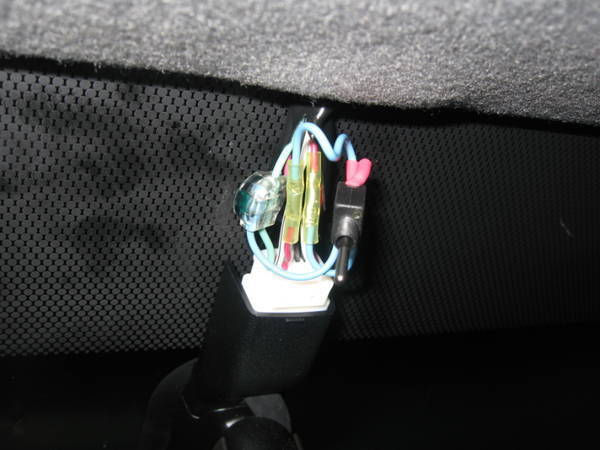

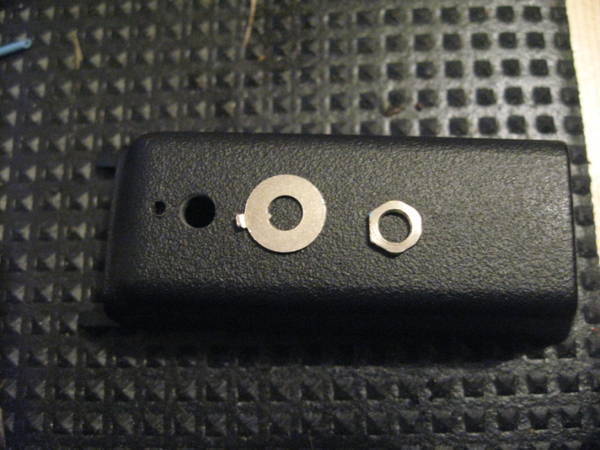

    My proposed modification is an evolution of this mod quoted here


  3. Aug 10, 2011 at 11:35 PM
    #3
    Crom

    Crom [OP] Time is precious; use it wisely

    Joined:
    Jun 22, 2009
    Member:
    #18782
    Messages:
    4,084
    Gender:
    Male
    First Name:
    Mr. Sir
    San Diego, CA
    Vehicle:
    2009 Double Cab 4x4 Off Road
    A.R.E. MX Shell & Yakima Rack, Stubbs HD-SKO Rock Sliders, JBA UCA's & OME 885 Coils and nitrochargers, Flat BajaRack, Kenwood VHF/UHF Radio, Aux Battery, Solar Panels, L-Track everywhere, Goodyear Duratracs, Four-Leaf pack, Secured tailgate, 7-pin relocation, Inverter 400W all time, In-cab 110v outlets, Rear-seat 12v outlets., Steering shaft TSB, anytime fogs, DTRL toggle switch, aux turn signals, Diff Breather, ImMrYo mirror bracket, ABS Kill switch, (2) Kid Car Seats, and a Glock 23 with night sights.
    Any EE's out there?

  4. Aug 11, 2011 at 6:44 AM
    #4
    Lurkin

    Lurkin Well-Known Member

    Joined:
    May 21, 2009
    Member:
    #17497
    Messages:
    4,396
    First Name:
    Rod
    Pearland, TX
    Vehicle:
    09 PreRunner SR5 DC
    Not a EE, but it looks right to me. You're using the switch to apply either; the stock 12v on the REV line; or 12v from a constant line for mirror on when you flip the switch. Looks reasonable to me.

  5. Aug 11, 2011 at 8:26 AM
    #5
    Crom

    Crom [OP] Time is precious; use it wisely

    Joined:
    Jun 22, 2009
    Member:
    #18782
    Messages:
    4,084
    Gender:
    Male
    First Name:
    Mr. Sir
    San Diego, CA
    Vehicle:
    2009 Double Cab 4x4 Off Road
    A.R.E. MX Shell & Yakima Rack, Stubbs HD-SKO Rock Sliders, JBA UCA's & OME 885 Coils and nitrochargers, Flat BajaRack, Kenwood VHF/UHF Radio, Aux Battery, Solar Panels, L-Track everywhere, Goodyear Duratracs, Four-Leaf pack, Secured tailgate, 7-pin relocation, Inverter 400W all time, In-cab 110v outlets, Rear-seat 12v outlets., Steering shaft TSB, anytime fogs, DTRL toggle switch, aux turn signals, Diff Breather, ImMrYo mirror bracket, ABS Kill switch, (2) Kid Car Seats, and a Glock 23 with night sights.
    Lurkin, That's right. That's how it should work. Thanks for commenting. :)

    Later tonight I'll poke around under the dash and find modular plug IN1. Once I find it. I'll probe the REV wire with a multimeter to confirm the circuit. If that checks out then I'll do the mod and install a switch and document everything in another thread.

    Thanks.

  6. Aug 11, 2011 at 4:57 PM
    #6
    caribe makaira

    caribe makaira Lurker No More

    Joined:
    Feb 13, 2011
    Member:
    #51121
    Messages:
    485
    Gender:
    Male
    Caribbean, Puerto Rico
    Vehicle:
    05 PreRunner TRD Offroad
    Hood Struts, My version Fogs always ON, Map & Overhead Light Mod,
    Looks good to me. What are the specs of the switch you gonna use? As in On-On or On -Off-On, etc.

  7. Aug 12, 2011 at 10:29 AM
    #7
    Crom

    Crom [OP] Time is precious; use it wisely

    Joined:
    Jun 22, 2009
    Member:
    #18782
    Messages:
    4,084
    Gender:
    Male
    First Name:
    Mr. Sir
    San Diego, CA
    Vehicle:
    2009 Double Cab 4x4 Off Road
    A.R.E. MX Shell & Yakima Rack, Stubbs HD-SKO Rock Sliders, JBA UCA's & OME 885 Coils and nitrochargers, Flat BajaRack, Kenwood VHF/UHF Radio, Aux Battery, Solar Panels, L-Track everywhere, Goodyear Duratracs, Four-Leaf pack, Secured tailgate, 7-pin relocation, Inverter 400W all time, In-cab 110v outlets, Rear-seat 12v outlets., Steering shaft TSB, anytime fogs, DTRL toggle switch, aux turn signals, Diff Breather, ImMrYo mirror bracket, ABS Kill switch, (2) Kid Car Seats, and a Glock 23 with night sights.
    Thanks Caribe! :)

    I was going to use the SPDT switch. I believe it's on-on. I never thought to use an on-off-on switch.

  8. Aug 15, 2011 at 9:20 AM
    #8
    Lurkin

    Lurkin Well-Known Member

    Joined:
    May 21, 2009
    Member:
    #17497
    Messages:
    4,396
    First Name:
    Rod
    Pearland, TX
    Vehicle:
    09 PreRunner SR5 DC
    Your going to need a SPDT switch are you not? One for the "normal" operation, one for the "I want it on" operation. You're going to need a double throw for that.

  9. Aug 15, 2011 at 9:34 AM
    #9
    Crom

    Crom [OP] Time is precious; use it wisely

    Joined:
    Jun 22, 2009
    Member:
    #18782
    Messages:
    4,084
    Gender:
    Male
    First Name:
    Mr. Sir
    San Diego, CA
    Vehicle:
    2009 Double Cab 4x4 Off Road
    A.R.E. MX Shell & Yakima Rack, Stubbs HD-SKO Rock Sliders, JBA UCA's & OME 885 Coils and nitrochargers, Flat BajaRack, Kenwood VHF/UHF Radio, Aux Battery, Solar Panels, L-Track everywhere, Goodyear Duratracs, Four-Leaf pack, Secured tailgate, 7-pin relocation, Inverter 400W all time, In-cab 110v outlets, Rear-seat 12v outlets., Steering shaft TSB, anytime fogs, DTRL toggle switch, aux turn signals, Diff Breather, ImMrYo mirror bracket, ABS Kill switch, (2) Kid Car Seats, and a Glock 23 with night sights.

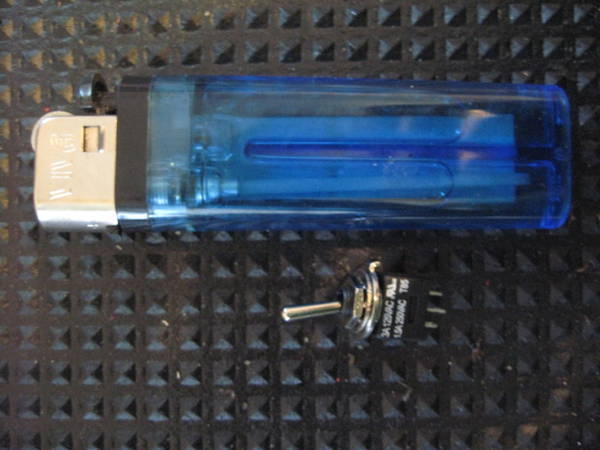

    Lurkin, Derp! You're right, I included a picture of the wrong switch. That particular switch went into my ABS kill switch project.

    <previous post edited to eliminate future confusion>

  10. Aug 15, 2011 at 9:43 AM
    #10
    fbconvert

    fbconvert It works if you work it.

    Joined:
    Apr 25, 2011
    Member:
    #55535
    Messages:
    358
    Gender:
    Male
    First Name:
    Brian
    Portland, OR
    Vehicle:
    2005 Tacoma Double Cab TRD Sport
    Bought as a wrecked vehicle almost done repairing it. It is my daily driver
    Just an FYI, A good place to find sweet switches is www.te.com. You can make up a company profile and then request samples. The will send you almost any switch for free. Its pretty awesome. They also sale factory harnesses although they have different part numbers then toyota so they can be a PITA to find.

  11. Aug 15, 2011 at 9:45 AM
    #11
    Crom

    Crom [OP] Time is precious; use it wisely

    Joined:
    Jun 22, 2009
    Member:
    #18782
    Messages:
    4,084
    Gender:
    Male
    First Name:
    Mr. Sir
    San Diego, CA
    Vehicle:
    2009 Double Cab 4x4 Off Road
    A.R.E. MX Shell & Yakima Rack, Stubbs HD-SKO Rock Sliders, JBA UCA's & OME 885 Coils and nitrochargers, Flat BajaRack, Kenwood VHF/UHF Radio, Aux Battery, Solar Panels, L-Track everywhere, Goodyear Duratracs, Four-Leaf pack, Secured tailgate, 7-pin relocation, Inverter 400W all time, In-cab 110v outlets, Rear-seat 12v outlets., Steering shaft TSB, anytime fogs, DTRL toggle switch, aux turn signals, Diff Breather, ImMrYo mirror bracket, ABS Kill switch, (2) Kid Car Seats, and a Glock 23 with night sights.
    Thanks FBC, it's nice to know about additional resources. :)

  12. Aug 15, 2011 at 9:43 PM
    #12
    Crom

    Crom [OP] Time is precious; use it wisely

    Joined:
    Jun 22, 2009
    Member:
    #18782
    Messages:
    4,084
    Gender:
    Male
    First Name:
    Mr. Sir
    San Diego, CA
    Vehicle:
    2009 Double Cab 4x4 Off Road
    A.R.E. MX Shell & Yakima Rack, Stubbs HD-SKO Rock Sliders, JBA UCA's & OME 885 Coils and nitrochargers, Flat BajaRack, Kenwood VHF/UHF Radio, Aux Battery, Solar Panels, L-Track everywhere, Goodyear Duratracs, Four-Leaf pack, Secured tailgate, 7-pin relocation, Inverter 400W all time, In-cab 110v outlets, Rear-seat 12v outlets., Steering shaft TSB, anytime fogs, DTRL toggle switch, aux turn signals, Diff Breather, ImMrYo mirror bracket, ABS Kill switch, (2) Kid Car Seats, and a Glock 23 with night sights.

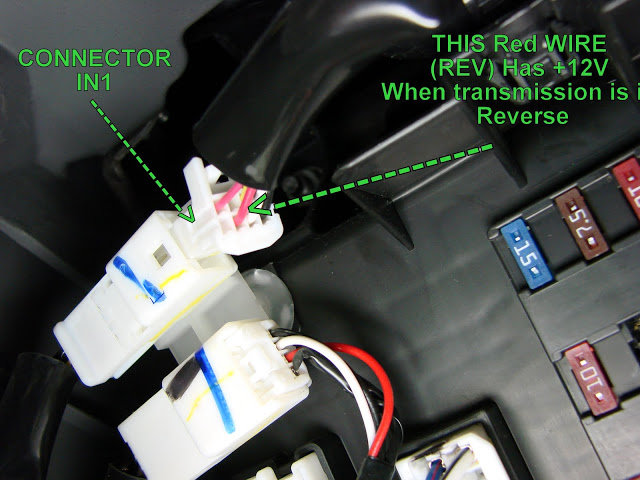

    Tonight I poked around and I have found the REV wire. It was very simple.

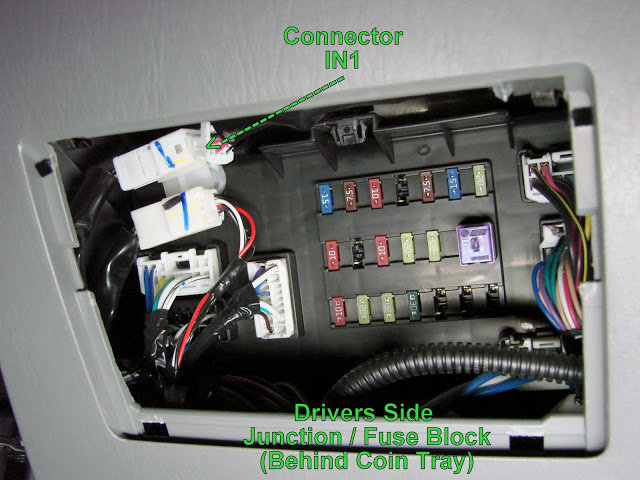

    Remove the coin tray to find connector IN1 mounted to the front top left of the fuse block. I used a small wire to back probe the REV wire. I used my multimeter to confirm that 12+ volts is only there when the transmission is in reverse.

    It's important to note that it's the left side of the junction that connects to the camera, when the wire is snipped the left side should then be connected to the "common" pole (T2) on the switch. The right side of the junction is sending the +12v when the tranny is in reverse, this side can go to either T1 or T3 of the switch.

    All I have to do now is build my switch with harness and install it. Picked up the add-a-circuit a few days ago.

    [​IMG]

    [​IMG]

  13. Sep 5, 2011 at 6:23 PM
    #13
    Murman

    Murman Well-Known Member

    Joined:
    Aug 25, 2011
    Member:
    #62369
    Messages:
    510
    Gender:
    Male
    North Carolina
    Vehicle:
    2011 Prerunner SR5 Access Cab 4cyl auto
    Undercover hard tonneau WeatherTech Floor Liners
    Any update on this mod? Were you able to get it wired correctly from under the dash? I want to do this mod but, like you, I'd like the switch to be in the dash.

  14. Sep 13, 2011 at 1:49 PM
    #14
    ChamYota

    ChamYota AKA Crash Bandicoot

    Joined:
    Jul 6, 2011
    Member:
    #59431
    Messages:
    8,208
    Gender:
    Male
    First Name:
    Cam
    Clemson,South Carolina
    Vehicle:
    05 PreRunner AND 82' Toyota P/U 4wd
    H1 Morimoto projector with XB35 4300K bulbs with Mini-gatling gun shrouds, BHLM. Debadged,OEM roof rack,TW sticker,Sockmonkey Beside decals,265/70/16 Nitto terra grapplers with dick cepek DC'2 wheels,weathertech floor liners(front/back),USA Spec Ipod reader,Scanguage II,Bestop Supertopper and more in the works...
    Bump! any updates?

    I plan on buying a backup camera and this would be a nice mod.

  15. Sep 23, 2011 at 1:33 AM
    #15
    khx73

    khx73 Well-Known Member

    Joined:
    Sep 22, 2011
    Member:
    #63950
    Messages:
    609
    Gender:
    Male
    Saint John NB, CAN
    Vehicle:
    11 MGM DCLB TRD Sport +leather
    Rear camera anytime switch, 4x4 Illuminated Switch (from rcbs204) , rear view mirror lift bracket (from ImMrYo), 75 cent tailgate anti-theft. Technically not mods but give me a break I'm trying to fill space here... OEM Leather pkg, keyless unlock & ACC chime silence, BakFlip G2, Ultra Gauge EM, WeatherTech floor mats, OEM roof rack
    Also interested in any updates!

  16. Sep 23, 2011 at 10:37 AM
    #16
    Crom

    Crom [OP] Time is precious; use it wisely

    Joined:
    Jun 22, 2009
    Member:
    #18782
    Messages:
    4,084
    Gender:
    Male
    First Name:
    Mr. Sir
    San Diego, CA
    Vehicle:
    2009 Double Cab 4x4 Off Road
    A.R.E. MX Shell & Yakima Rack, Stubbs HD-SKO Rock Sliders, JBA UCA's & OME 885 Coils and nitrochargers, Flat BajaRack, Kenwood VHF/UHF Radio, Aux Battery, Solar Panels, L-Track everywhere, Goodyear Duratracs, Four-Leaf pack, Secured tailgate, 7-pin relocation, Inverter 400W all time, In-cab 110v outlets, Rear-seat 12v outlets., Steering shaft TSB, anytime fogs, DTRL toggle switch, aux turn signals, Diff Breather, ImMrYo mirror bracket, ABS Kill switch, (2) Kid Car Seats, and a Glock 23 with night sights.
    I'll to do it this weekend and write it up. I estimate about 20 minutes to do this mod. I'm really surprised nobody read this thread and beat me to it. All the leg work has already been done.

  17. Sep 23, 2011 at 3:04 PM
    #17
    khx73

    khx73 Well-Known Member

    Joined:
    Sep 22, 2011
    Member:
    #63950
    Messages:
    609
    Gender:
    Male
    Saint John NB, CAN
    Vehicle:
    11 MGM DCLB TRD Sport +leather
    Rear camera anytime switch, 4x4 Illuminated Switch (from rcbs204) , rear view mirror lift bracket (from ImMrYo), 75 cent tailgate anti-theft. Technically not mods but give me a break I'm trying to fill space here... OEM Leather pkg, keyless unlock & ACC chime silence, BakFlip G2, Ultra Gauge EM, WeatherTech floor mats, OEM roof rack
    I was snooping around and planning it out based on your drawings and pictures. The connector that plugs into IN1 on mine has only two wires - red and yellow. The red operates as you said, showing 12v when in reverse. I've got a switch all soldered up ready to go. Just need to locate a spot to tie it in to +12v. There is a blank button hole just above the fuse panel for mounting... couldn't be more ideal.

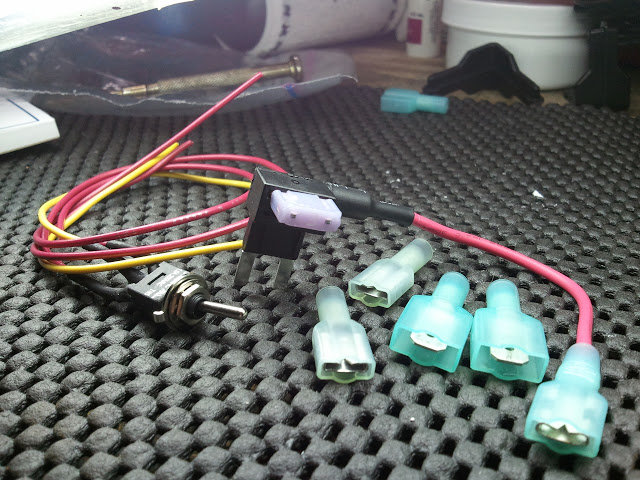

    One of those Add-a-circuit rigs would be perfect if I can find one around here.
    I'll be interested to see your write up, Crom. Particularly where you selected to tap for power.
    I'll send up pics when I get this done as well.

  18. Sep 23, 2011 at 5:57 PM
    #18
    stretch85

    stretch85 Active Member

    Joined:
    Aug 11, 2011
    Member:
    #61560
    Messages:
    33
    Gender:
    Male
    Raleigh-Durham, NC
    Vehicle:
    2011 V6 4x4 TRD Sport
    I'm in the same situation: two wires to my IN1 connector (a 2011 double cab). This is the first automotive electronics project I've ever undertaken, and I'm trying to decide how best to splice into the red wire. Simply cut it and add two butt splices to connect to the switch, or is there a better way I've overlooked?

  19. Sep 23, 2011 at 6:27 PM
    #19
    khx73

    khx73 Well-Known Member

    Joined:
    Sep 22, 2011
    Member:
    #63950
    Messages:
    609
    Gender:
    Male
    Saint John NB, CAN
    Vehicle:
    11 MGM DCLB TRD Sport +leather
    Rear camera anytime switch, 4x4 Illuminated Switch (from rcbs204) , rear view mirror lift bracket (from ImMrYo), 75 cent tailgate anti-theft. Technically not mods but give me a break I'm trying to fill space here... OEM Leather pkg, keyless unlock & ACC chime silence, BakFlip G2, Ultra Gauge EM, WeatherTech floor mats, OEM roof rack
    We have the same truck (long bed?). What you should do is get one of those Add-a-circuit rigs (FHM200BP is one), and tap into one of the fuses on the block. This will be your new fused constant 12v source to your switch. That involves no cutting of any factory wiring. The one cut you will have to make is of the red wire coming off IN1 (the plug with just the yellow and red). The two sides of this cut will feed the center and one outside terminal of the switch.
    So you end up with:

    Terminal 1 - red, from IN1
    Terminal 2 - red, from rear view mirror
    Terminal 3 - new 12v source

    Switch in position 1-2 = normal camera operation: reverse only.
    Switch in position 2-3 = camera on.

    I'll be hooking this up here in the next day or two, and will post some pics. Couldn't find an add-a-circuit here for MINI size fuses, just the big ones. I may have to go with an in-line glass fuse holder since I have lots of those fuses around anyway. Same difference, but I will have to tap in somewhere else for the 12v source.:confused:

  20. Sep 23, 2011 at 9:18 PM
    #20
    Crom

    Crom [OP] Time is precious; use it wisely

    Joined:
    Jun 22, 2009
    Member:
    #18782
    Messages:
    4,084
    Gender:
    Male
    First Name:
    Mr. Sir
    San Diego, CA
    Vehicle:
    2009 Double Cab 4x4 Off Road
    A.R.E. MX Shell & Yakima Rack, Stubbs HD-SKO Rock Sliders, JBA UCA's & OME 885 Coils and nitrochargers, Flat BajaRack, Kenwood VHF/UHF Radio, Aux Battery, Solar Panels, L-Track everywhere, Goodyear Duratracs, Four-Leaf pack, Secured tailgate, 7-pin relocation, Inverter 400W all time, In-cab 110v outlets, Rear-seat 12v outlets., Steering shaft TSB, anytime fogs, DTRL toggle switch, aux turn signals, Diff Breather, ImMrYo mirror bracket, ABS Kill switch, (2) Kid Car Seats, and a Glock 23 with night sights.
    Nothing wrong with butt splices, they'll work just fine. However if you have some telephone taps, they are the next best thing short of soldering with heat shrink.

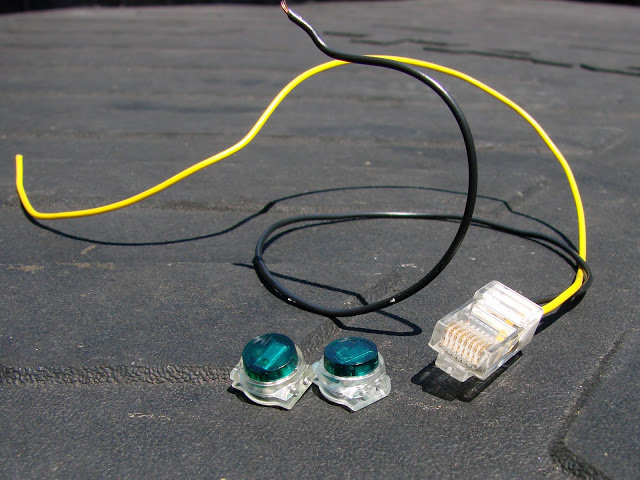

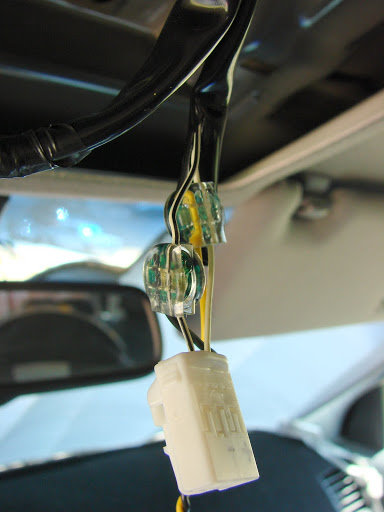

    Here are a couple pictures of some telephone taps I used in another project. They are filled with a gel that makes the bond water tight when the gel cures. They are perfect for tapping these small wires in the truck. The taps are made to use for telephone equipment that is exposed to the elements. This website sells them for $0.10 each here
    [​IMG]

    [​IMG]

    I picked up a pack of four at Radio Shack and they were a lot more than $0.10 each. :mad:

    Too bad you can't find the mini-add-a fuse... Maybe order one over the Interweb if you can't source it locally? :notsure:
