1GR-FE F/I Mods and Dyno's

Discussion in 'Performance and Tuning' started by Torspd, Dec 15, 2016.

  1. Dec 15, 2016 at 12:11 PM
    #1
    Torspd

    Torspd [OP] Tor-nication

    Joined:
    Sep 18, 2009
    Member:
    #22958
    Messages:
    22,085
    Gender:
    Male
    First Name:
    Tor
    The Great America!
    Vehicle:
    MMVI 4.4L 4x4 Access Cab
    Torspd Custom Turbo kit [] Borg Warner 9180EFR Turbo [] Haltech Elite 2500 [] TiAL Q BOV [] TiAL V44 Wastegate @ 15psi [] CP Pistons [] CP Carrillo Rods [] ARP Head studs [] ARP Main Studs [] ARP Header - Head Studs [] Ported Heads w/ 1mm oversized valves intake/exhaust [] Brian Crower Forged Stroker Crank [] Darton M.I.D. Sleeved Block [] Kelford Camshafts [] Torspd 160* T-stat mod [] APR Large Fuel Rail [] Walbro 460 LPH E85 Fuel Pump [] FueLab FPR [] APR T56 Conversion Kit [] KP RACING Built T56 [] McLeod Racing Custom Twin Disk Clutch [] One Piece Aluminum Driveshaft [] MGW Shifter [] Custom lowering kit [] Ohlins Front Coilovers [] QA1rear shocks [] Custom Ron Davis Radiator [] Dual SPAL Electric Fans []
    Here is a additional link to the N/A Dyno thread -

    http://www.tacomaworld.com/forum/performance-tuning/229882-n-power-gains-dynos-w-mods.html

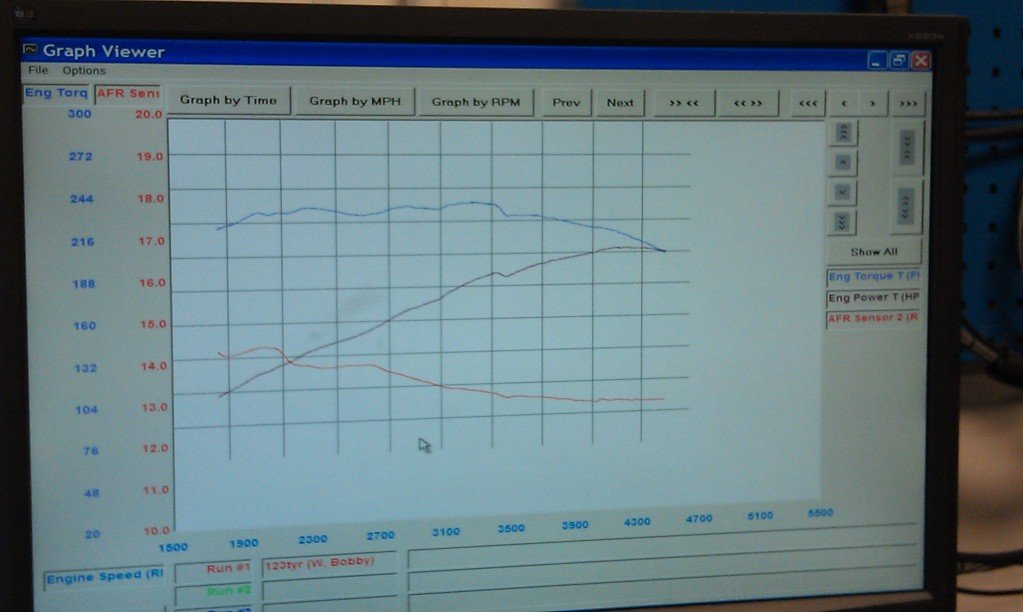

    To start this thread, I will first start with base dyno graphs. All to be a point or average reference.

    here is a base dyno, for point of reference:


    Stock XR - 191.7 WHP 231.6 WTQ


    (base dyno from Scoutdeed69):
    http://www.xr-underground.com/vb3/showthread.php?t=49762


    This image has been resized. Click this bar to view the full image. The original image is sized 1023x612 and weights 138KB.IMAG0072_a9d07c9e3ab94f5a8f80359bad0a71f244a15adf.jpg

    [​IMG]This image has been resized. Click this bar to view the full image. The original image is sized 1023x612 and weights 192KB.IMAG0073_48286cec4c45995fa5b8cc96396a26e83f38cde1.jpg

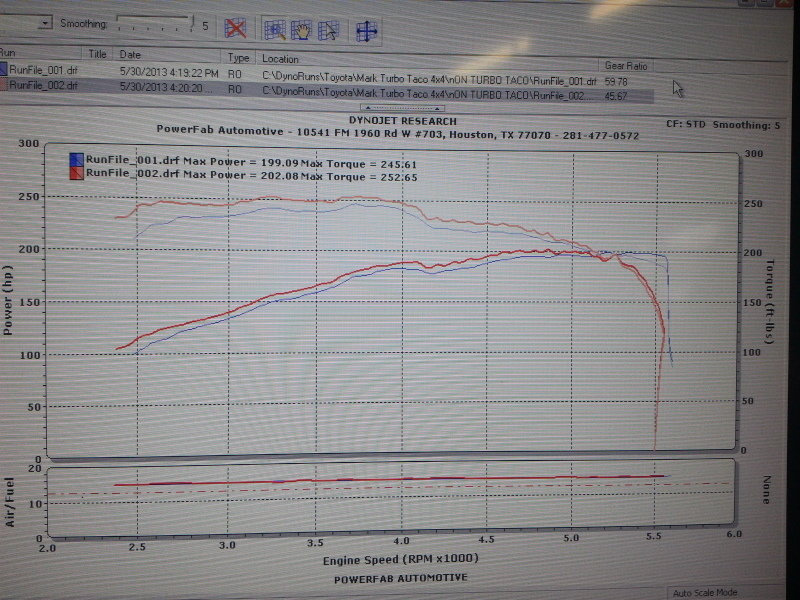

    I will add mine in as well. Although let it be noted that my dyno on a stock engine, and a slightly modified N/A setup, had an intercooler in inline with the intake (as part of my modular N/A to turbo setup), and a T56 transmission.


    You can still see how similar the numbers are, despite different locations, dynos, etc....


    Note that this is the same dyno chart as above, but with the STD Correction factor. It shows a percentage increase in outputs.



    Last edited: May 9, 2017
  2. Dec 15, 2016 at 12:17 PM
    #2
    Torspd

    Torspd [OP] Tor-nication

    Joined:
    Sep 18, 2009
    Member:
    #22958
    Messages:
    22,085
    Gender:
    Male
    First Name:
    Tor
    The Great America!
    Vehicle:
    MMVI 4.4L 4x4 Access Cab
    Torspd Custom Turbo kit [] Borg Warner 9180EFR Turbo [] Haltech Elite 2500 [] TiAL Q BOV [] TiAL V44 Wastegate @ 15psi [] CP Pistons [] CP Carrillo Rods [] ARP Head studs [] ARP Main Studs [] ARP Header - Head Studs [] Ported Heads w/ 1mm oversized valves intake/exhaust [] Brian Crower Forged Stroker Crank [] Darton M.I.D. Sleeved Block [] Kelford Camshafts [] Torspd 160* T-stat mod [] APR Large Fuel Rail [] Walbro 460 LPH E85 Fuel Pump [] FueLab FPR [] APR T56 Conversion Kit [] KP RACING Built T56 [] McLeod Racing Custom Twin Disk Clutch [] One Piece Aluminum Driveshaft [] MGW Shifter [] Custom lowering kit [] Ohlins Front Coilovers [] QA1rear shocks [] Custom Ron Davis Radiator [] Dual SPAL Electric Fans []
    I have a lot more graphs to post. So stay tuned.

    If anyone has any graphs to add, please do. Make sure to include as much of this data as possible: elevation, mods, tire/wheel size, dyno type. As all of those will play a factor.

  3. Dec 16, 2016 at 8:00 AM
    #3
    Torspd

    Torspd [OP] Tor-nication

    Joined:
    Sep 18, 2009
    Member:
    #22958
    Messages:
    22,085
    Gender:
    Male
    First Name:
    Tor
    The Great America!
    Vehicle:
    MMVI 4.4L 4x4 Access Cab
    Torspd Custom Turbo kit [] Borg Warner 9180EFR Turbo [] Haltech Elite 2500 [] TiAL Q BOV [] TiAL V44 Wastegate @ 15psi [] CP Pistons [] CP Carrillo Rods [] ARP Head studs [] ARP Main Studs [] ARP Header - Head Studs [] Ported Heads w/ 1mm oversized valves intake/exhaust [] Brian Crower Forged Stroker Crank [] Darton M.I.D. Sleeved Block [] Kelford Camshafts [] Torspd 160* T-stat mod [] APR Large Fuel Rail [] Walbro 460 LPH E85 Fuel Pump [] FueLab FPR [] APR T56 Conversion Kit [] KP RACING Built T56 [] McLeod Racing Custom Twin Disk Clutch [] One Piece Aluminum Driveshaft [] MGW Shifter [] Custom lowering kit [] Ohlins Front Coilovers [] QA1rear shocks [] Custom Ron Davis Radiator [] Dual SPAL Electric Fans []
    @Coupe 's dyno. Do you know which size tire wheel combo you had at that time? Do you know the boost pressure?

    Note, STD Correction Factor.***


    TRD S/C, APR X-1, APR 7th injector, TRD CAI with added hose, DTLT Gen 2, APR Y pipe, URD 3" cat back, full set of NST pullies, URD fuel pump upgrade, 7 1/2 qt oil pan, oem oil cooler. 8 1/2 lbs of boost.

    I had "Nitto" 420S 255/50R18XL tires which are taller than stock at 28" O.D.

    354 HP/361 ft-lbs

    Last edited: Dec 17, 2016
  4. Dec 16, 2016 at 7:55 PM
    #4
    Coupe

    Coupe Well-Known Member

    Joined:
    Feb 10, 2009
    Member:
    #13485
    Messages:
    2,788
    Gender:
    Male
    Houston, Texas
    Vehicle:
    08 X-Runner
    Lots baby!
    I have records at the office. I will post up tomorrow.

  5. Dec 16, 2016 at 11:35 PM
    #5
    Torspd

    Torspd [OP] Tor-nication

    Joined:
    Sep 18, 2009
    Member:
    #22958
    Messages:
    22,085
    Gender:
    Male
    First Name:
    Tor
    The Great America!
    Vehicle:
    MMVI 4.4L 4x4 Access Cab
    Torspd Custom Turbo kit [] Borg Warner 9180EFR Turbo [] Haltech Elite 2500 [] TiAL Q BOV [] TiAL V44 Wastegate @ 15psi [] CP Pistons [] CP Carrillo Rods [] ARP Head studs [] ARP Main Studs [] ARP Header - Head Studs [] Ported Heads w/ 1mm oversized valves intake/exhaust [] Brian Crower Forged Stroker Crank [] Darton M.I.D. Sleeved Block [] Kelford Camshafts [] Torspd 160* T-stat mod [] APR Large Fuel Rail [] Walbro 460 LPH E85 Fuel Pump [] FueLab FPR [] APR T56 Conversion Kit [] KP RACING Built T56 [] McLeod Racing Custom Twin Disk Clutch [] One Piece Aluminum Driveshaft [] MGW Shifter [] Custom lowering kit [] Ohlins Front Coilovers [] QA1rear shocks [] Custom Ron Davis Radiator [] Dual SPAL Electric Fans []
    Thanks Coupe.

  6. Dec 17, 2016 at 6:10 AM
    #6
    Coupe

    Coupe Well-Known Member

    Joined:
    Feb 10, 2009
    Member:
    #13485
    Messages:
    2,788
    Gender:
    Male
    Houston, Texas
    Vehicle:
    08 X-Runner
    Lots baby!
    I was running 8 1/2 lbs of boost.

    I had "Nitto" 420S 255/50R18XL tires which are taller than stock at 28" O.D.

    Lord Helmet and Torspd [OP] like this.
  7. Dec 17, 2016 at 3:18 PM
    #7
    inwood customs

    inwood customs Roaming potato

    Joined:
    Sep 11, 2016
    Member:
    #197024
    Messages:
    4,554
    First Name:
    Dave
    Vehicle:
    2006 v6 potato bugTuRD
    K&n, flowmaster, plastidip, chipped, hids, daves
    Thank you Toe and Coupe!

  8. Dec 18, 2016 at 9:47 AM
    #8
    novanut21

    novanut21 Well-Known Member

    Joined:
    May 12, 2009
    Member:
    #17127
    Messages:
    1,059
    Gender:
    Male
    First Name:
    Brent
    North Central,WV
    Vehicle:
    2009 TRD SPORT
    AFE CAI, Magnaflow cat-back, TRD S/C, TRD Quickshifter, URD Fuel Pump Kit, Wet Okoles Front&Rear, WeatherTech Mats, Sockmonkey Decals, GrillCraft Grill, JBA "shorty" headers, URD Y-Pipe, TTC Oil Catch Can, Lotek Dual Apillar gauge pod w/ Autometer Phantom II AFR & Vac/Boost, URD Pulley.

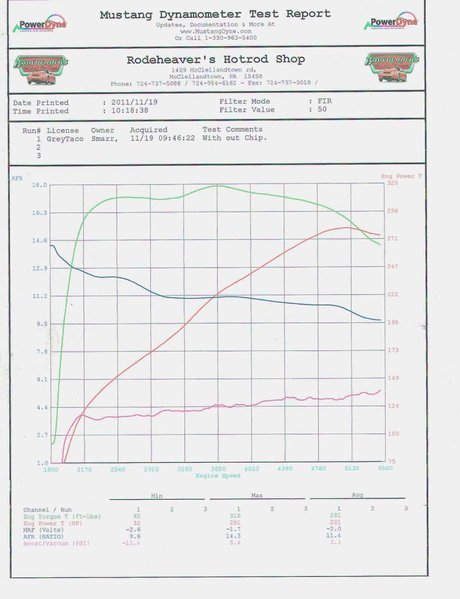

    Truck: 2009 Double Cab TRD Sport V6, Manual, 4x4

    MOD's: AFE CAI, TRD S/C w/reflash, JBA shorties, URD Y-Pipe & Fuel Pump, Magnaflow Catback.

    Boost: 5.4 psi max

    Tires: P265/65/17 Brigdestone Revo 2

    Wheels: Stock Sport 17's

    Elevation: Approx. 1,000ft above sea level

    Results: 281hp & 318lb/ft


    Last edited: May 20, 2017
  9. Dec 20, 2016 at 4:56 PM
    #9
    WOODEX M.E.

    WOODEX M.E. Well-Known Member

    Joined:
    Nov 4, 2012
    Member:
    #90445
    Messages:
    902
    Gender:
    Male
    First Name:
    Corey
    Maine
    Vehicle:
    2013 Tacoma TRD OR Pyrite Mica
    TRD Supercharger, Speedhut TRD Boost Gauge, Speedhut TRD AFR Gauge, PLX Wideband Controller W/Bosch O2 Sensor, Cravenspeed Boost Pod, AFE Pro Dri II Si Intake, Calvert Racing Caltrac Traction Bars. URD Catback Exhaust, URD 2.825" Super Grip Pulley, URD Spec-U Equal Length Headers, URD 255lph Fuel Pump, OEM FPR Mod.
    Nice to see a list here finally, instead of XRU. Also those XRs get more power to the ground so it make it harder for me to find direct comparisons.

    Torspd [OP] and Biscuits like this.
  10. Dec 20, 2016 at 5:12 PM
    #10
    inwood customs

    inwood customs Roaming potato

    Joined:
    Sep 11, 2016
    Member:
    #197024
    Messages:
    4,554
    First Name:
    Dave
    Vehicle:
    2006 v6 potato bugTuRD
    K&n, flowmaster, plastidip, chipped, hids, daves
    Do they?
    An access cab 4.0, long bed, 6spd will not has same drive train loss?

    SnozzCumber likes this.
  11. Dec 20, 2016 at 5:34 PM
    #11
    WOODEX M.E.

    WOODEX M.E. Well-Known Member

    Joined:
    Nov 4, 2012
    Member:
    #90445
    Messages:
    902
    Gender:
    Male
    First Name:
    Corey
    Maine
    Vehicle:
    2013 Tacoma TRD OR Pyrite Mica
    TRD Supercharger, Speedhut TRD Boost Gauge, Speedhut TRD AFR Gauge, PLX Wideband Controller W/Bosch O2 Sensor, Cravenspeed Boost Pod, AFE Pro Dri II Si Intake, Calvert Racing Caltrac Traction Bars. URD Catback Exhaust, URD 2.825" Super Grip Pulley, URD Spec-U Equal Length Headers, URD 255lph Fuel Pump, OEM FPR Mod.
    Thats what you would think, but from what ive seen they seem to do a little bit better. Rolling inertia and mass of the tires? They are 3" smaller i believe so should be a bit lighter and provide better mechanical advantage. Also on the street, their power goes further because of the weight advantage.

  12. Dec 20, 2016 at 5:36 PM
    #12
    WOODEX M.E.

    WOODEX M.E. Well-Known Member

    Joined:
    Nov 4, 2012
    Member:
    #90445
    Messages:
    902
    Gender:
    Male
    First Name:
    Corey
    Maine
    Vehicle:
    2013 Tacoma TRD OR Pyrite Mica
    TRD Supercharger, Speedhut TRD Boost Gauge, Speedhut TRD AFR Gauge, PLX Wideband Controller W/Bosch O2 Sensor, Cravenspeed Boost Pod, AFE Pro Dri II Si Intake, Calvert Racing Caltrac Traction Bars. URD Catback Exhaust, URD 2.825" Super Grip Pulley, URD Spec-U Equal Length Headers, URD 255lph Fuel Pump, OEM FPR Mod.
    Also not sure what the rear gears are. Probably the same 3.73 but could be the 4.10 im not sure.

  13. Dec 20, 2016 at 6:03 PM
    #13
    Torspd

    Torspd [OP] Tor-nication

    Joined:
    Sep 18, 2009
    Member:
    #22958
    Messages:
    22,085
    Gender:
    Male
    First Name:
    Tor
    The Great America!
    Vehicle:
    MMVI 4.4L 4x4 Access Cab
    Torspd Custom Turbo kit [] Borg Warner 9180EFR Turbo [] Haltech Elite 2500 [] TiAL Q BOV [] TiAL V44 Wastegate @ 15psi [] CP Pistons [] CP Carrillo Rods [] ARP Head studs [] ARP Main Studs [] ARP Header - Head Studs [] Ported Heads w/ 1mm oversized valves intake/exhaust [] Brian Crower Forged Stroker Crank [] Darton M.I.D. Sleeved Block [] Kelford Camshafts [] Torspd 160* T-stat mod [] APR Large Fuel Rail [] Walbro 460 LPH E85 Fuel Pump [] FueLab FPR [] APR T56 Conversion Kit [] KP RACING Built T56 [] McLeod Racing Custom Twin Disk Clutch [] One Piece Aluminum Driveshaft [] MGW Shifter [] Custom lowering kit [] Ohlins Front Coilovers [] QA1rear shocks [] Custom Ron Davis Radiator [] Dual SPAL Electric Fans []
    They have a 3:15 rear.

  14. Dec 20, 2016 at 6:05 PM
    #14
    WOODEX M.E.

    WOODEX M.E. Well-Known Member

    Joined:
    Nov 4, 2012
    Member:
    #90445
    Messages:
    902
    Gender:
    Male
    First Name:
    Corey
    Maine
    Vehicle:
    2013 Tacoma TRD OR Pyrite Mica
    TRD Supercharger, Speedhut TRD Boost Gauge, Speedhut TRD AFR Gauge, PLX Wideband Controller W/Bosch O2 Sensor, Cravenspeed Boost Pod, AFE Pro Dri II Si Intake, Calvert Racing Caltrac Traction Bars. URD Catback Exhaust, URD 2.825" Super Grip Pulley, URD Spec-U Equal Length Headers, URD 255lph Fuel Pump, OEM FPR Mod.
    Wow....thats tall. So whats the story Tor. Is it me, or do the XRs seem to get 10-15 whp more?

  15. Dec 20, 2016 at 6:13 PM
    #15
    Biscuits

    Biscuits Thorny Crown of Entropy

    Joined:
    Aug 8, 2010
    Member:
    #41397
    Messages:
    15,307
    Gender:
    Male
    Swiggity swangin' biggity bangin'
    What??

    Surprising.

  16. Dec 20, 2016 at 6:22 PM
    #16
    Torspd

    Torspd [OP] Tor-nication

    Joined:
    Sep 18, 2009
    Member:
    #22958
    Messages:
    22,085
    Gender:
    Male
    First Name:
    Tor
    The Great America!
    Vehicle:
    MMVI 4.4L 4x4 Access Cab
    Torspd Custom Turbo kit [] Borg Warner 9180EFR Turbo [] Haltech Elite 2500 [] TiAL Q BOV [] TiAL V44 Wastegate @ 15psi [] CP Pistons [] CP Carrillo Rods [] ARP Head studs [] ARP Main Studs [] ARP Header - Head Studs [] Ported Heads w/ 1mm oversized valves intake/exhaust [] Brian Crower Forged Stroker Crank [] Darton M.I.D. Sleeved Block [] Kelford Camshafts [] Torspd 160* T-stat mod [] APR Large Fuel Rail [] Walbro 460 LPH E85 Fuel Pump [] FueLab FPR [] APR T56 Conversion Kit [] KP RACING Built T56 [] McLeod Racing Custom Twin Disk Clutch [] One Piece Aluminum Driveshaft [] MGW Shifter [] Custom lowering kit [] Ohlins Front Coilovers [] QA1rear shocks [] Custom Ron Davis Radiator [] Dual SPAL Electric Fans []
    Stock dyno's have shown them to be in the same ballpark as non XR 1GR's. Which would be due to their overall gearing, combined with their tire/wheel size. They "feel" as if they accelerate more quickly though. They do have a higher allowed top speed as well.

    One of their upgrades, is to swap in a 3:73.

    I need to get after it and update this thread with more. I've been slacking....

    inwood customs likes this.
  17. Dec 21, 2016 at 9:46 AM
    #17
    Torspd

    Torspd [OP] Tor-nication

    Joined:
    Sep 18, 2009
    Member:
    #22958
    Messages:
    22,085
    Gender:
    Male
    First Name:
    Tor
    The Great America!
    Vehicle:
    MMVI 4.4L 4x4 Access Cab
    Torspd Custom Turbo kit [] Borg Warner 9180EFR Turbo [] Haltech Elite 2500 [] TiAL Q BOV [] TiAL V44 Wastegate @ 15psi [] CP Pistons [] CP Carrillo Rods [] ARP Head studs [] ARP Main Studs [] ARP Header - Head Studs [] Ported Heads w/ 1mm oversized valves intake/exhaust [] Brian Crower Forged Stroker Crank [] Darton M.I.D. Sleeved Block [] Kelford Camshafts [] Torspd 160* T-stat mod [] APR Large Fuel Rail [] Walbro 460 LPH E85 Fuel Pump [] FueLab FPR [] APR T56 Conversion Kit [] KP RACING Built T56 [] McLeod Racing Custom Twin Disk Clutch [] One Piece Aluminum Driveshaft [] MGW Shifter [] Custom lowering kit [] Ohlins Front Coilovers [] QA1rear shocks [] Custom Ron Davis Radiator [] Dual SPAL Electric Fans []
    @novanut21 , do you the boost pressure in that graph?

  18. Dec 21, 2016 at 9:57 AM
    #18
    Torspd

    Torspd [OP] Tor-nication

    Joined:
    Sep 18, 2009
    Member:
    #22958
    Messages:
    22,085
    Gender:
    Male
    First Name:
    Tor
    The Great America!
    Vehicle:
    MMVI 4.4L 4x4 Access Cab
    Torspd Custom Turbo kit [] Borg Warner 9180EFR Turbo [] Haltech Elite 2500 [] TiAL Q BOV [] TiAL V44 Wastegate @ 15psi [] CP Pistons [] CP Carrillo Rods [] ARP Head studs [] ARP Main Studs [] ARP Header - Head Studs [] Ported Heads w/ 1mm oversized valves intake/exhaust [] Brian Crower Forged Stroker Crank [] Darton M.I.D. Sleeved Block [] Kelford Camshafts [] Torspd 160* T-stat mod [] APR Large Fuel Rail [] Walbro 460 LPH E85 Fuel Pump [] FueLab FPR [] APR T56 Conversion Kit [] KP RACING Built T56 [] McLeod Racing Custom Twin Disk Clutch [] One Piece Aluminum Driveshaft [] MGW Shifter [] Custom lowering kit [] Ohlins Front Coilovers [] QA1rear shocks [] Custom Ron Davis Radiator [] Dual SPAL Electric Fans []
    WallasX's XR

    448 whp/406 wtq

    STD Correction Factor, on a DynoJet

    "Here is my new dyno.
    I got a new special tune from gadget last weekend.

    URD MK 2 STAGE 2 : 10 psi, Dtlh, URD y pipe and exhaust, 6000 RPM, X-1 with special tune from G man.


    Just so everyone knows, the last line the dyno makes it to is 6000 RPM."

    Click this bar to view the full image. The original image is sized 1024x576 and weights 79KB.[​IMG]

  19. Dec 21, 2016 at 10:03 AM
    #19
    Torspd

    Torspd [OP] Tor-nication

    Joined:
    Sep 18, 2009
    Member:
    #22958
    Messages:
    22,085
    Gender:
    Male
    First Name:
    Tor
    The Great America!
    Vehicle:
    MMVI 4.4L 4x4 Access Cab
    Torspd Custom Turbo kit [] Borg Warner 9180EFR Turbo [] Haltech Elite 2500 [] TiAL Q BOV [] TiAL V44 Wastegate @ 15psi [] CP Pistons [] CP Carrillo Rods [] ARP Head studs [] ARP Main Studs [] ARP Header - Head Studs [] Ported Heads w/ 1mm oversized valves intake/exhaust [] Brian Crower Forged Stroker Crank [] Darton M.I.D. Sleeved Block [] Kelford Camshafts [] Torspd 160* T-stat mod [] APR Large Fuel Rail [] Walbro 460 LPH E85 Fuel Pump [] FueLab FPR [] APR T56 Conversion Kit [] KP RACING Built T56 [] McLeod Racing Custom Twin Disk Clutch [] One Piece Aluminum Driveshaft [] MGW Shifter [] Custom lowering kit [] Ohlins Front Coilovers [] QA1rear shocks [] Custom Ron Davis Radiator [] Dual SPAL Electric Fans []

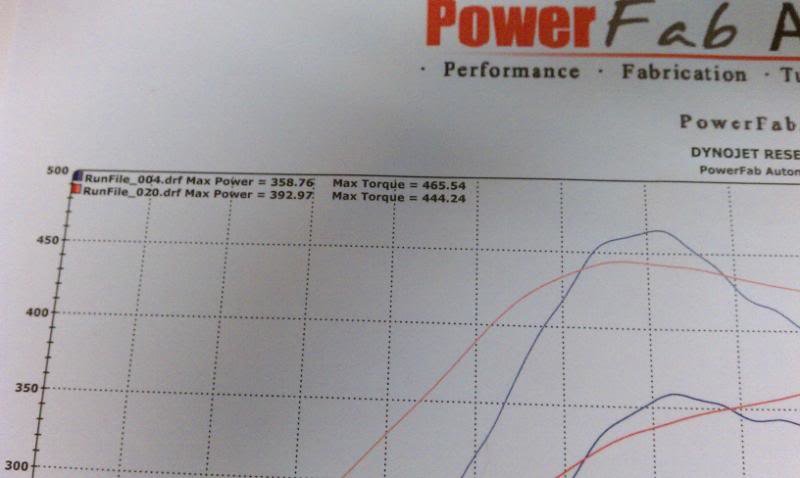

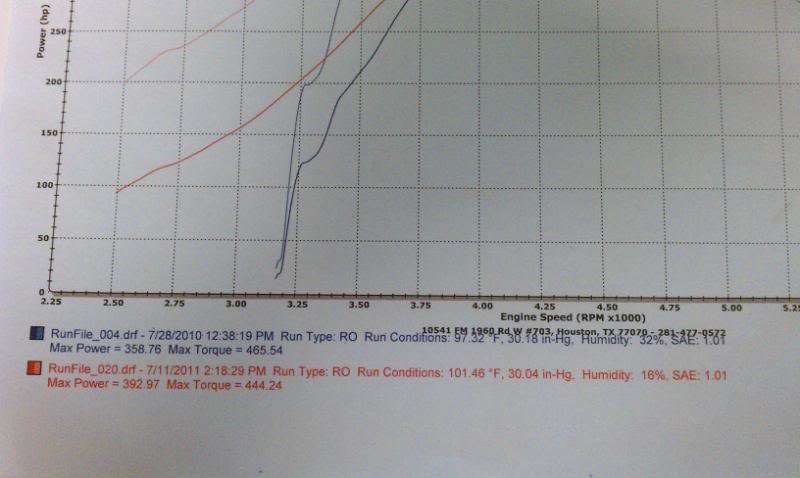

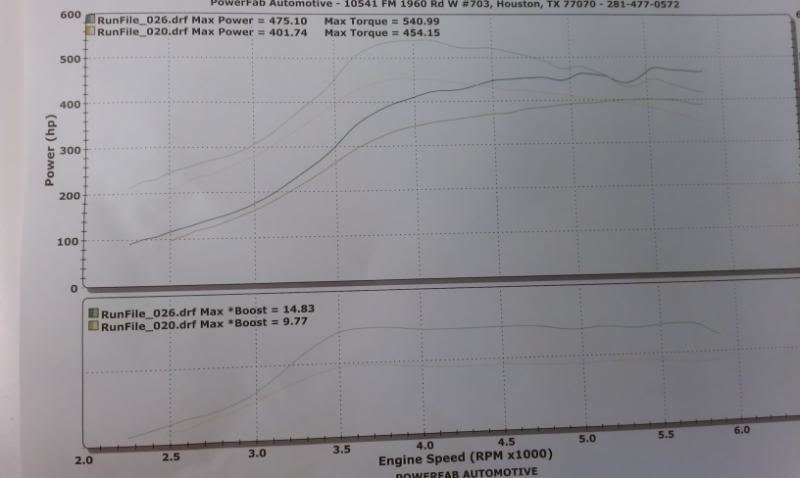

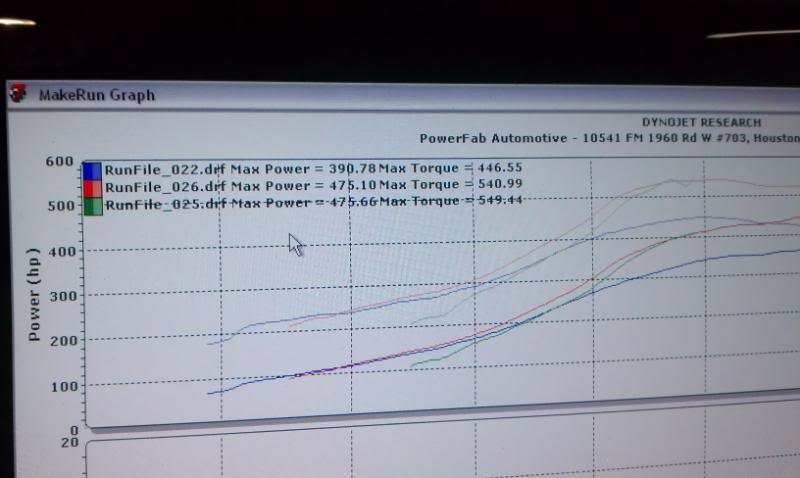

    Front mount turbo, Precision 6265 journal bearing, w/4"ported shroud inlet and 2.5" outlet on compressor, T4 .68 A/R tubine housing. (Used in both dynos shown in graph below), CP Pistons @ 9.2:1 compression, Pauter rods, ARP head studs, Cometic Head gaskets, dual valve springs w/Titanium retainers, mild port and polish, 3" down pipe, into 3.5" catback, Tuned on ProEFI Pro128. 8.7 psi, versus 10 psi on rear mount. Aeromotive 340LPH Stealth fuel pump.


    396 whp/444 wtq on Dynojet.
    SAE Correction. Sea level. 275/40 R20






    Same specs as above, except on 14.8 psi



    Last edited: Dec 21, 2016
    BassAckwards likes this.
  20. Dec 21, 2016 at 10:14 AM
    #20
    Torspd

    Torspd [OP] Tor-nication

    Joined:
    Sep 18, 2009
    Member:
    #22958
    Messages:
    22,085
    Gender:
    Male
    First Name:
    Tor
    The Great America!
    Vehicle:
    MMVI 4.4L 4x4 Access Cab
    Torspd Custom Turbo kit [] Borg Warner 9180EFR Turbo [] Haltech Elite 2500 [] TiAL Q BOV [] TiAL V44 Wastegate @ 15psi [] CP Pistons [] CP Carrillo Rods [] ARP Head studs [] ARP Main Studs [] ARP Header - Head Studs [] Ported Heads w/ 1mm oversized valves intake/exhaust [] Brian Crower Forged Stroker Crank [] Darton M.I.D. Sleeved Block [] Kelford Camshafts [] Torspd 160* T-stat mod [] APR Large Fuel Rail [] Walbro 460 LPH E85 Fuel Pump [] FueLab FPR [] APR T56 Conversion Kit [] KP RACING Built T56 [] McLeod Racing Custom Twin Disk Clutch [] One Piece Aluminum Driveshaft [] MGW Shifter [] Custom lowering kit [] Ohlins Front Coilovers [] QA1rear shocks [] Custom Ron Davis Radiator [] Dual SPAL Electric Fans []

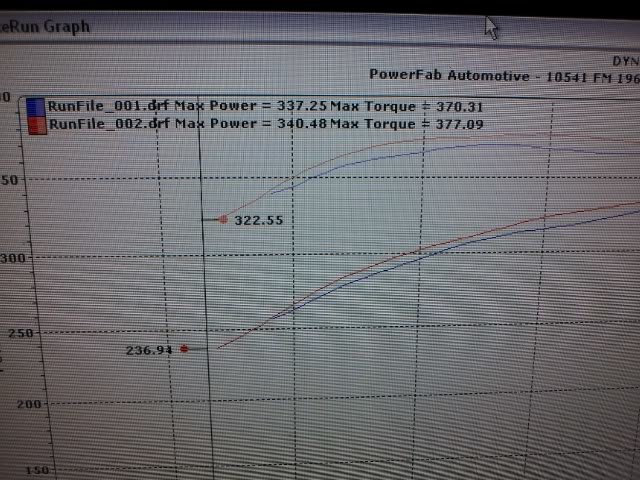

    Toon's Double Cab 2009 PreRunner Auto, as of May 16, 2012:

    Custom front mount turbo kit. Garrett GT3582R w/TiAL stainless steel turbine housing 1.09 A/R, 3" full exhaust, open wastegate, Walbro 255 LPH fuel pump.

    340 whp/ 377 wtq @ 6psi :D On TRD s/c reflash alone w/ TRD s/c injectors.
    STD Correction Factor. Sea level.

    275/40R20


    "Will tune for 8psi soon. "

    Last edited: Dec 21, 2016
