1st Gen Retrofit Walkthrough: Morimoto Mini H1

Discussion in '1st Gen. Tacomas (1995-2004)' started by Konaborne, Apr 3, 2012.

  1. Apr 3, 2012 at 3:00 AM
    #1
    Konaborne

    Konaborne [OP] Pineapples on pizza Hawaiian does not it make.

    Joined:
    Nov 21, 2010
    Member:
    #46536
    Messages:
    31,748
    Gender:
    Male
    First Name:
    Cody
    Kealakekua, Hawaii
    Vehicle:
    Lifted 00 TRD Off-Road
    fox extended travel remote resivoir coilovers, 14" eibach 600lb coils, All Pro tubular chromoly 1" uniball upper control arms, All Pro expedition leaf packs, 10" bilstein 5150 piggyback reservoir shocks 265/75r16 Goodyear wrangler MT/R kevlars wrapped around 16" Helo 791 gloss black, Mini H1 retrofits with 6000k bulbs, 18" magnaflow w/custom exhaust reroute various decals, Sockmonkey retro hood stripes
    So, decided to take a few pics of my installation process. There's a bunch of 2nd gen writeups out on the site but I wanted to make a 1st gen one; they follow the same step process, but I always find walkthroughs easier to follow if they are more similar to what I'm working with....

    I bought my projectors from member RMYC

    He was great to work with, got all of my stuff quick, with insured tracking numbers, and he helped with all my retro noob questions. If you want a budget retro he's your guy.

    (Note: it seems RMYC is no longer active on the forum. Sorry :( )

    TheRetrofitSource is another great retrofit source (aha!) that is a huge TW supporter. Their stuff is top notch, and they always have a group buy going (Group buy price avg-$202)



    So here it goes:

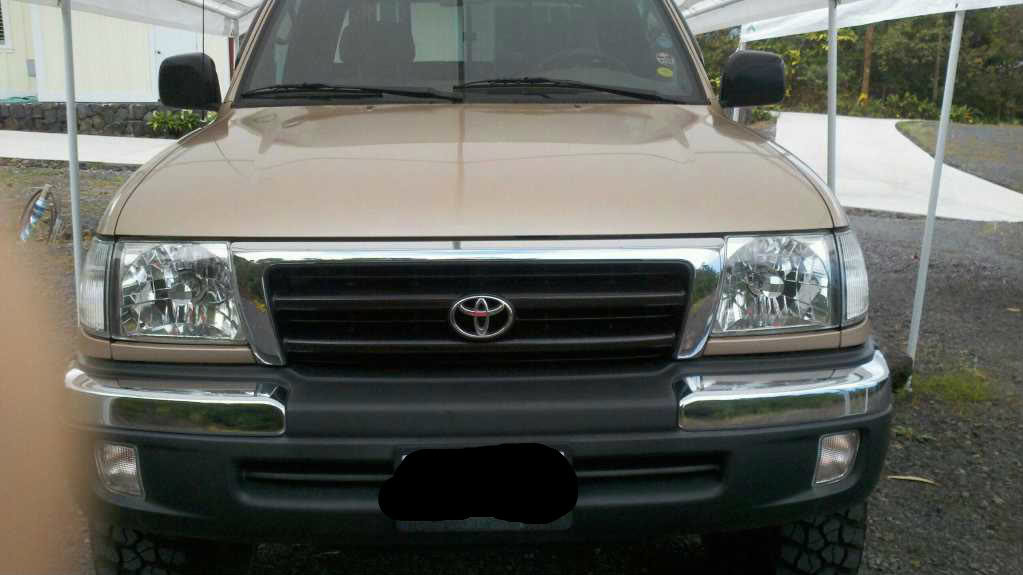

    Starting with this, save your truck from the giant finger-monster and admire how awesome your truck looks; and know that in a few hours it will totally awesome-er.

    [​IMG]


    Next, take apart the front end of your truck. I used this vid when I installed my headlights a few years ago, and puts everything into pretty easy to understand instructions.
    http://www.youtube.com/watch?v=G_4RUm_RWnk



    Just a few pics, instructions are in the video. Take off everything I'm pointing to:

    (To remove parking light, remove this screw, then pull the parking light straight out. There's a clip that holds the bottom in place that can be stubborn; I stuck a screwdriver between the headlight assembly and the parking light and wedged it out. Careful not to scratch the headlight.)
    [​IMG]

    There'll be 2 nuts here, take them off.
    [​IMG]

    This body panel is held on by the bolt facing towards the grille, take that off (As seen in the vid) the take the panel off by gently tugging from the bottom upwards. Careful not to bend the panel.
    [​IMG]

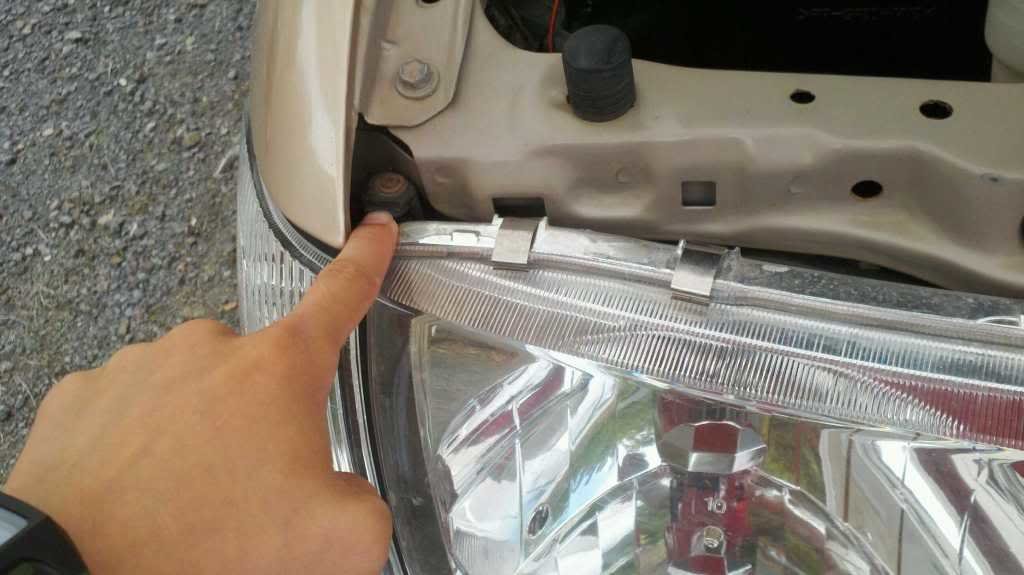

    Once the panel's off, it'll expose a bolt way on the inside here, so make sure you have an extender
    [​IMG]

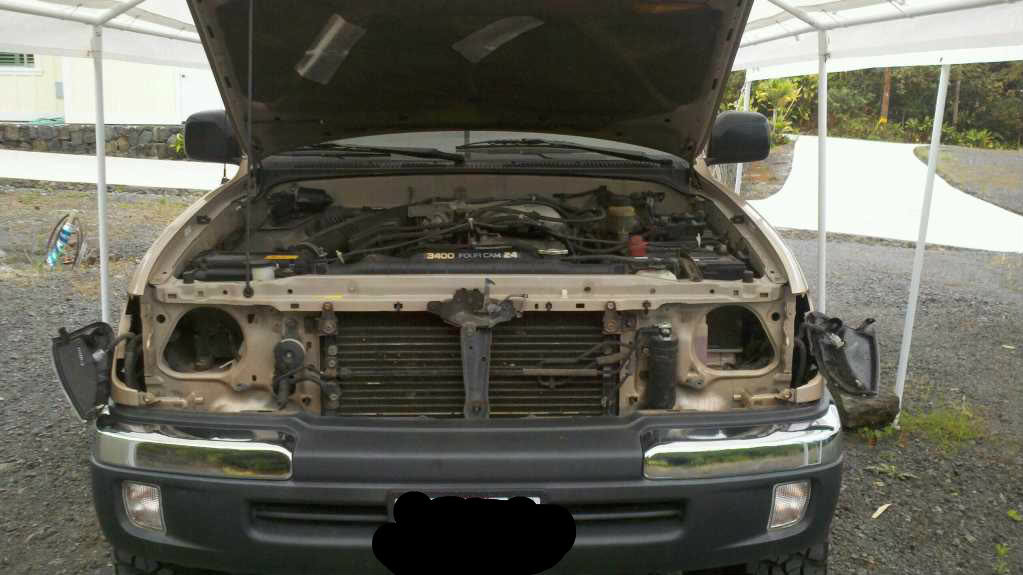

    Take the headlight assembly out, repeat the steps for the other side and realize your truck looks like a zombie.
    [​IMG]

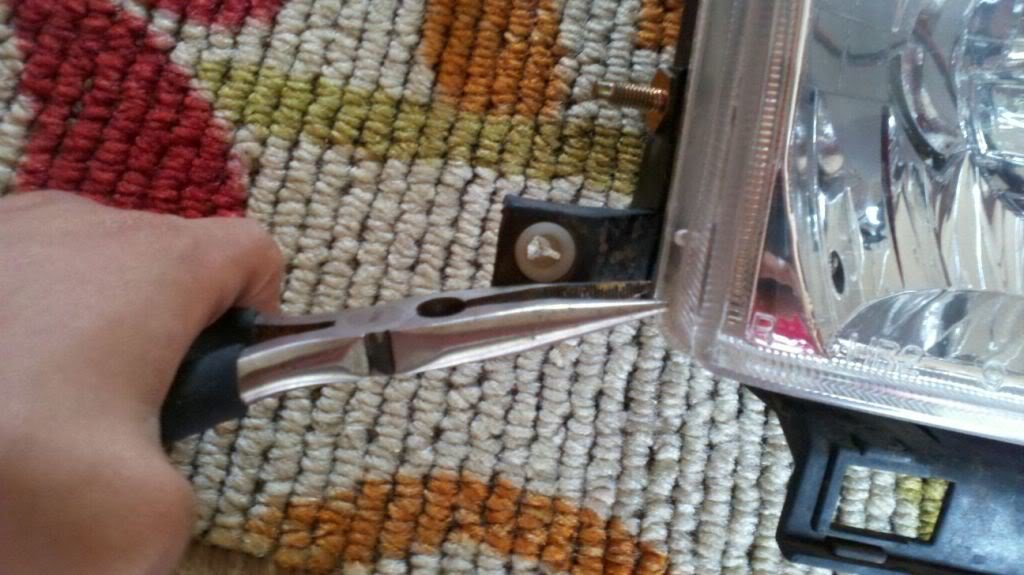

    Next, remove the clips on the headlight assembly with a flat head screwdriver
    [​IMG]


    Once theyre off, clean off your headlight assembly (mine were still muddy from going bogging a few months ago :mad:)
    and throw them in the oven, on top of some cardboard.

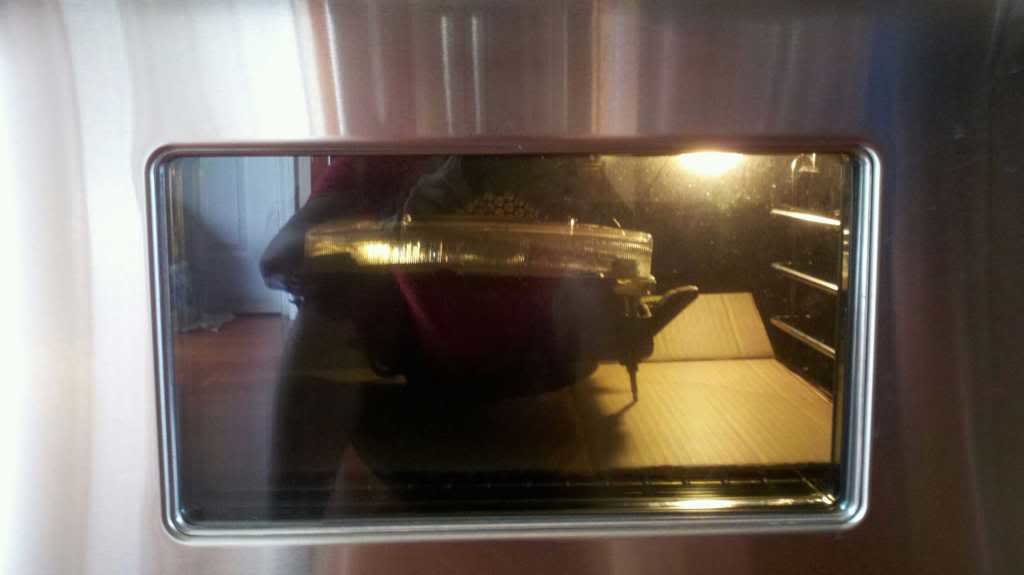

    Heat the oven to 250 (Others say to use 275, and 7 minutes. But I'm a wuss)
    Turn the heat off
    throw the headlight in there
    Take it out after 10 minutes
    [​IMG]

    Take it out of the oven quickly (watch out, it's HOT!)
    and begin prying the plastic cover off with a flat head screwdriver. I found it easiest to start at the corner and work my way around, then peeeel the cover off.

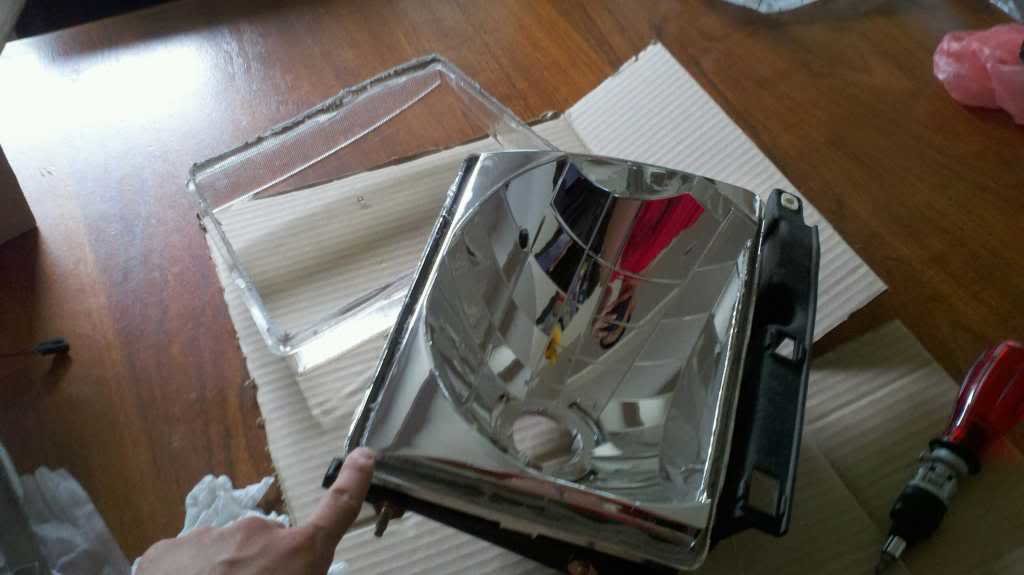

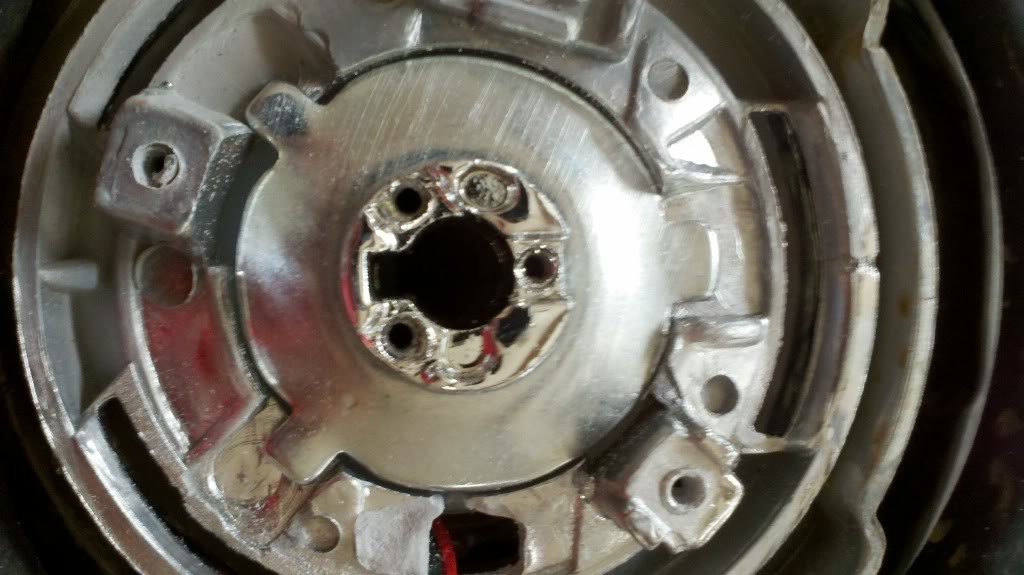

    Once the cover is off, remove all the hardware from the back of the housing, and remove the H4 bulb shield.

    [​IMG]

    After the cover was off, I began to assemble my projectors.

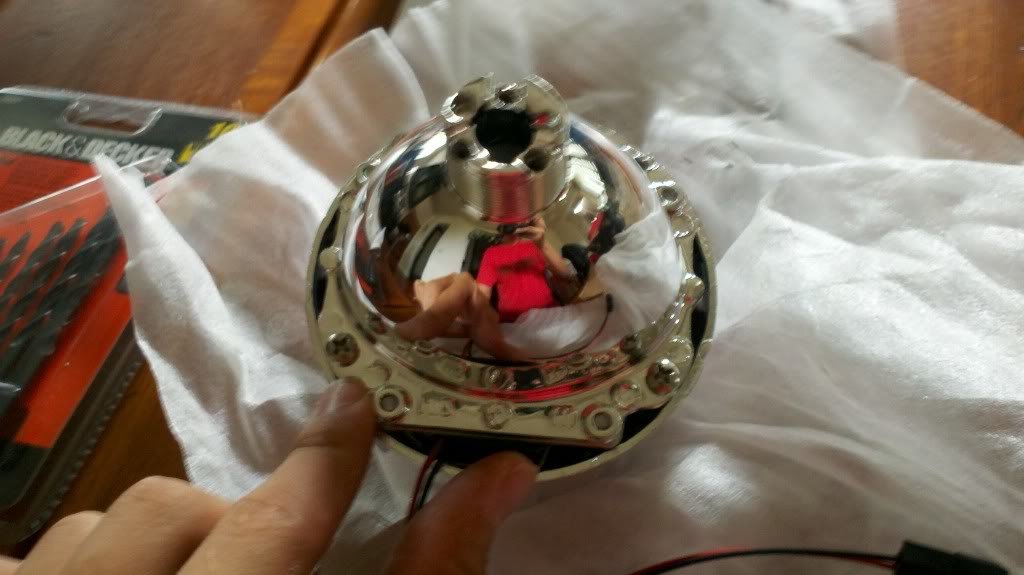

    The Gatling Gun shrouds are held on the projector by 4 screws. The shroud holes for the screws and the holes that are on the projector only line up a certain way, make sure all 4 holes line up or...they wont line up (duh?)

    Note:
    CLEAN THE PROJECTOR BEFORE ATTACHING THE SHROUD, WITH A GOOD MICROFIBER CLOTH.
    I used alcohol on tissue. Now I have tiny bits of dust on the inside of my projector. Doesnt affect light output but annoys the hell out of my OCD.
    [​IMG]

    When I was assembling my projectors, I tried pre-fitting everything to make sure I knew what to do and that I had all the hardware.

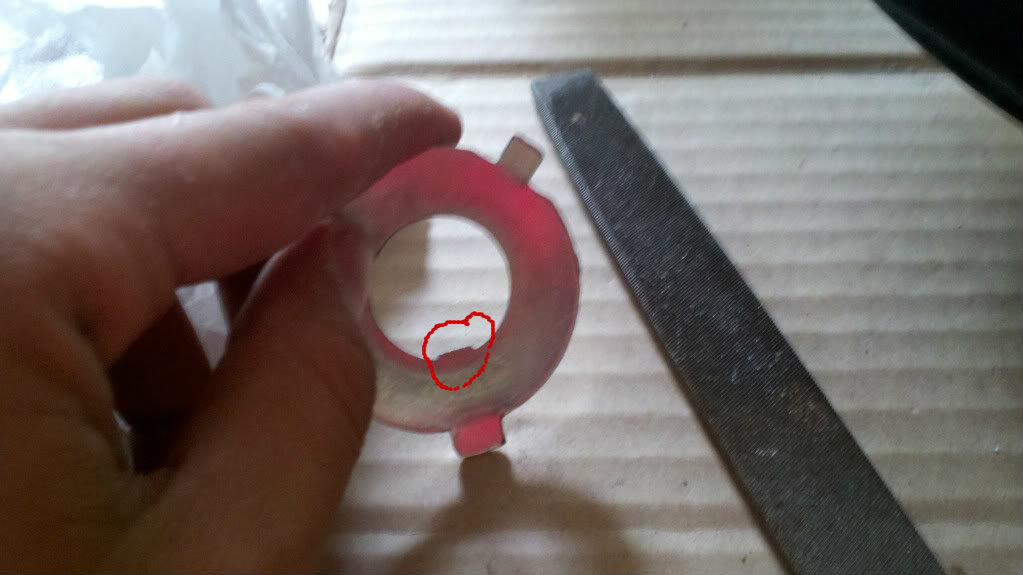

    I noticed that my h4 plate did not fit onto my projector threads; the nub (in red) that lines up with the channel on the projector was sliiiiiightly too large. There was still a tiny bit of burrs on the nub that prevented it from mating with the channel. A few minutes of filing cleared that all up
    [​IMG]

    Next, place the large silicone washer onto the projector, and slide that through the opening of the headlight assembly.


    The h4 plate only fits one way on the assembly, making it dummy proof.
    The hi-beam shield lines up on the bottom of the light, and the channel goes to the 12 o'clock position.
    To clear up any dummy confusion (I was slightly confused) the shield goes on the bottom because of the mechanics of how the lens on the projector works. Like a looking through a magnifying glass, the image that goes through the glass is flipped upside down; so the shield on the bottom shields light from shooting upwards.

    [​IMG]



    Then, I placed the small silicone washer, then the locking nut.

    Also note:

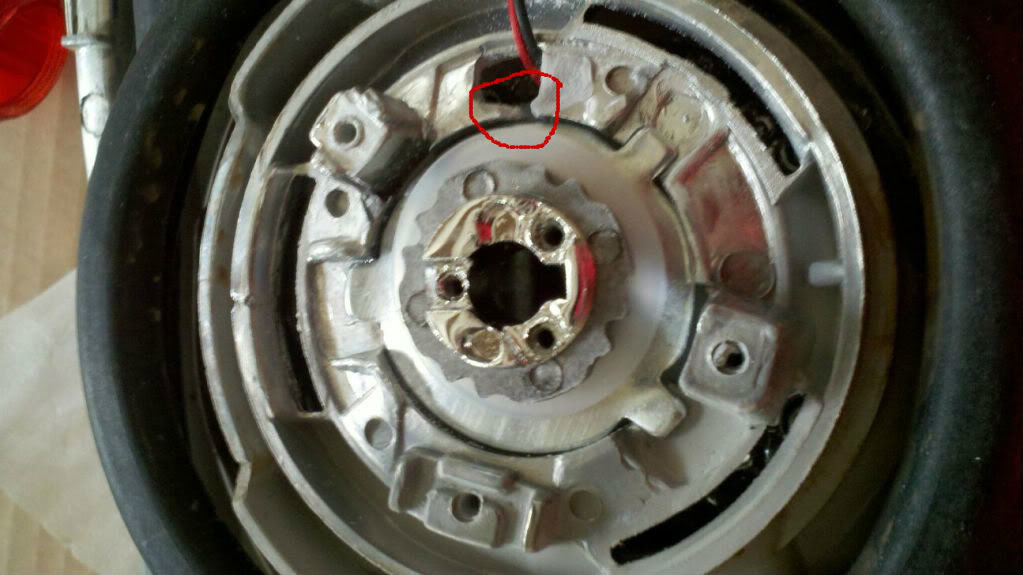

    To run the hi/lo switch cleanly through the assembly, I cut off the nub on the housing that used to hold the securing wire for the h4 bulbs, then cut a small channel into the existing hole in the housing. Then I just slipped the wires/hi/lo switch through. (Seen in red)
    If you instead choose to widen the hole be careful not to make it too wide; you can start to cut into the reflector housing on the opposite side
    [​IMG]

    After the locking nut is in place, place the clear cover lens back onto the headlight assembly in it's general original position. Gently press it into place, then throw that sucker back into the oven.

    250, off, insert light, 10 mins.
    Note:
    CLEAN THE INSIDE OF THE HOUSING BEFORE INSERTING BACK INTO OVEN. SAVE YOURSELF THE TIME!
    I forgot to clean the housing... those tiny bugs that managed to get inside and die are still there. Bastards.
    [​IMG]

    Once the glue is nice and heated again (Im a cheap ass mofo, didn't buy the extra glue; turns out I was lucky and had enough for a good seal)

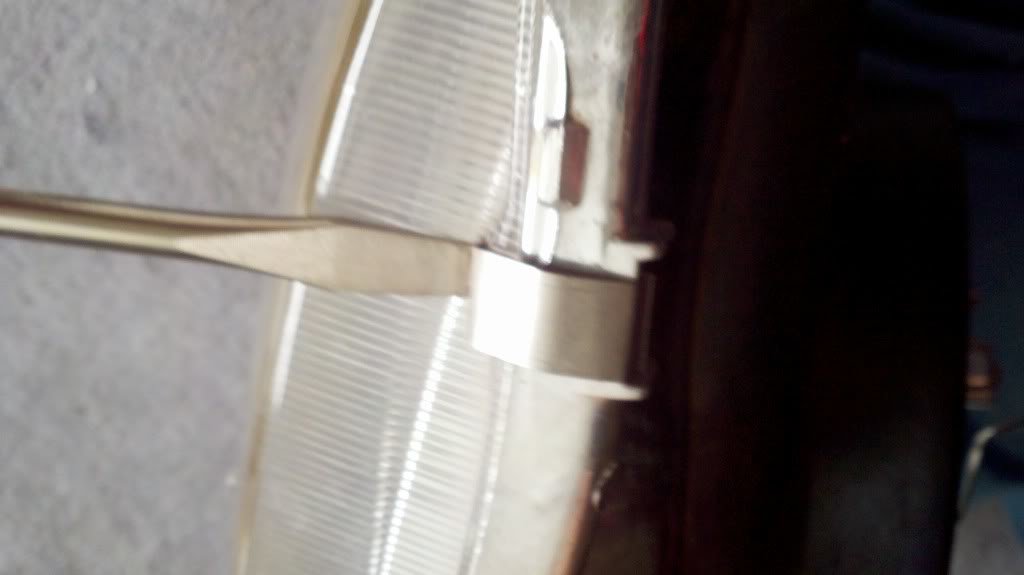

    use a pair of pliers and press the lens back into place
    [​IMG]

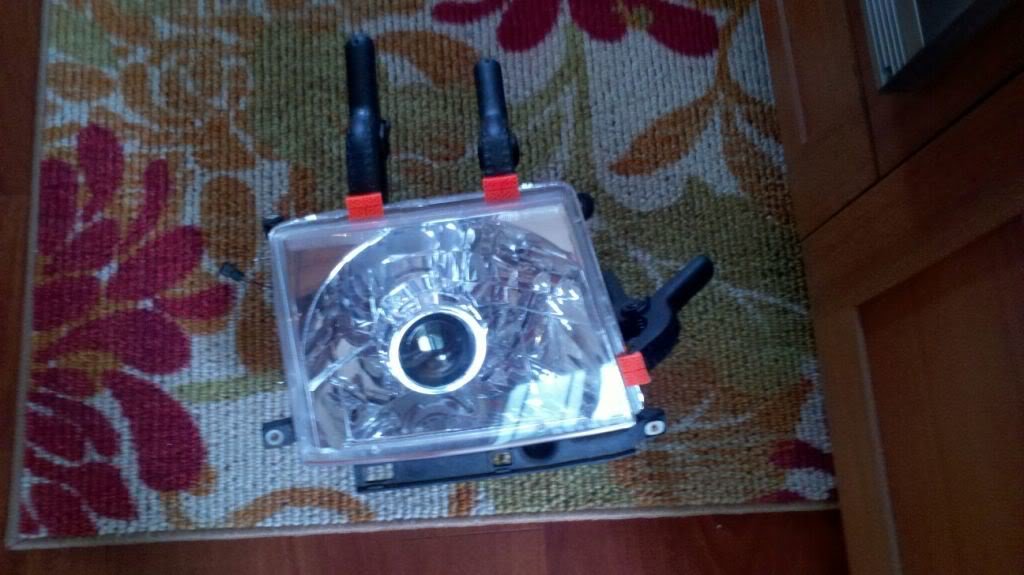

    then clamp the housing till the glue cools. I clamped them for a good 45 mins each.

    Note:
    due to the shape of these headlamps it will be difficult to find places to clamp... I squeezed the bottom corner you see without clamps, and placed weights on it (Again, no pics! sorry) but think a towel with some heavy books. You might not run into this problem if you have good clamps though, I had crappy ones, as you can see.
    [​IMG]

    Now, attach the hardware to mount the bulb (should be 3 screws, one securing wire) and you're done! Just reverse the steps you took to remove the headlight assemblies, make sure you dont lose any bolts!


    The H1 bulb is run just like any other HID; except that the hi function/switch comes from the projector itself.

    The h1 bulbs come with spade connectors and a direct power connection to the ballast. Since our trucks have no spade connectors (originally h4) and you're using a relay to power the hi/lo, just pull them from the grommet.

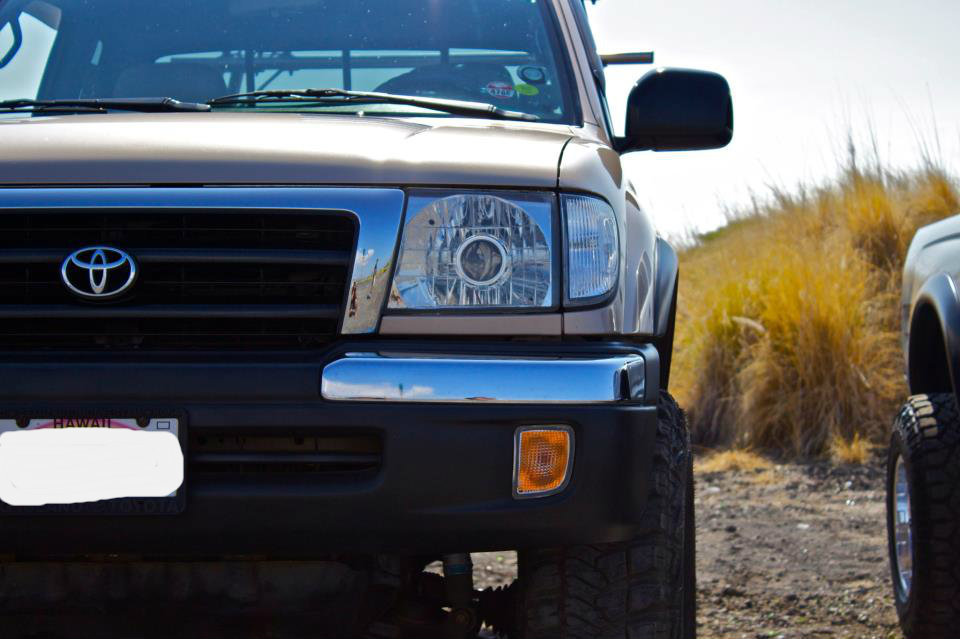

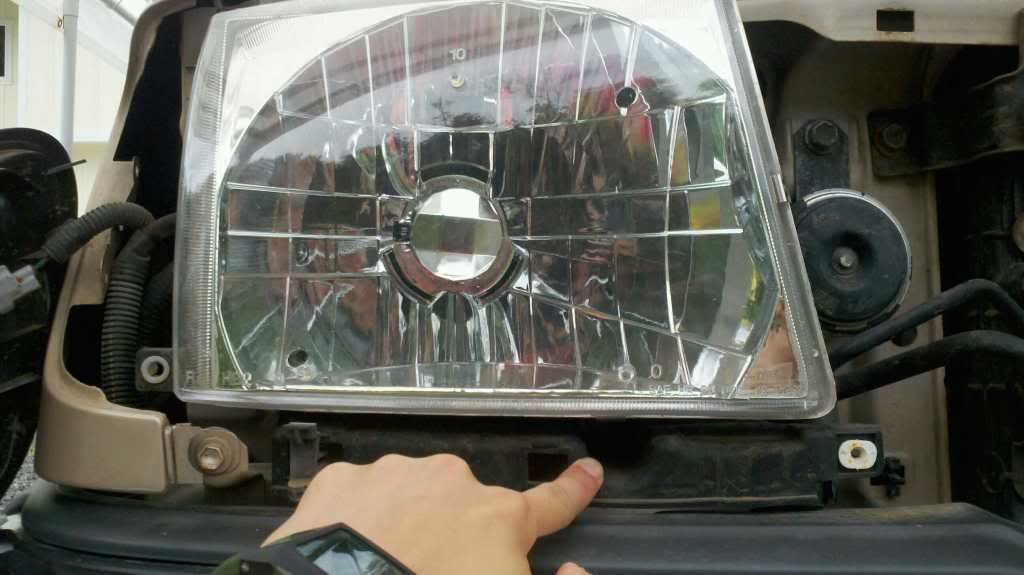

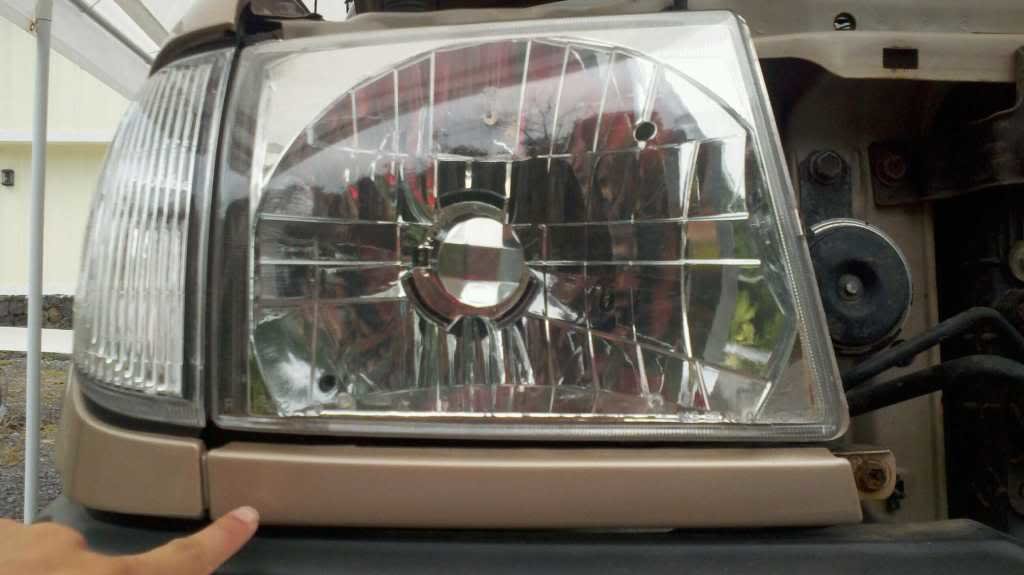

    Now, adjust your headlights and enjoy!

    [​IMG]

    [​IMG]

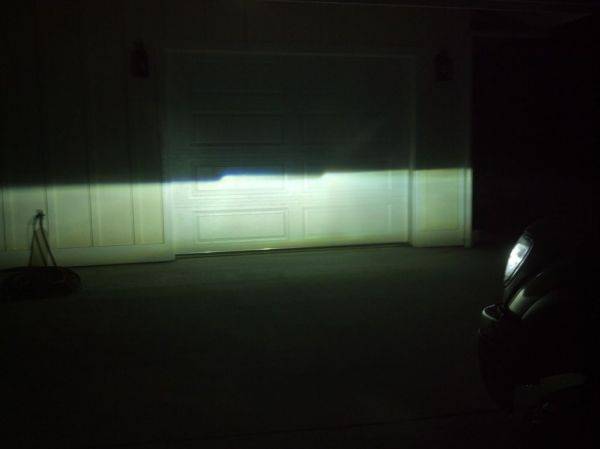

    lows w/cutoff, note the lack of light above cutoff
    [​IMG]

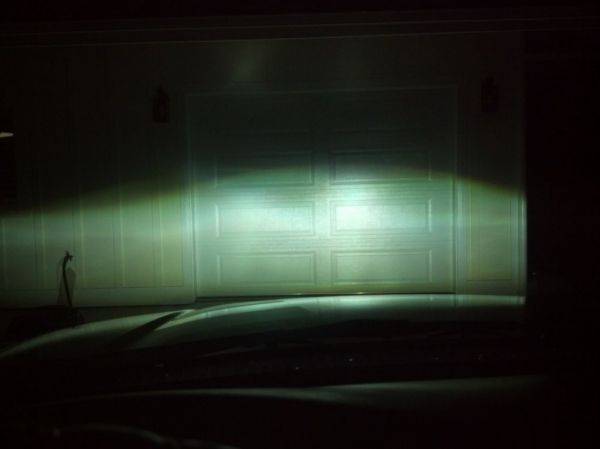

    high beams, with the shield flipped up
    [​IMG]

    (pic doesnt do them justice)
    [​IMG]



    After the install, some have found that their high beam shield is always raised when the light is on, which can cause problems driving onroad.
    If you have this problem, refer to here
    http://www.tacomaworld.com/forum/1s...lkthrough-morimoto-mini-h1-3.html#post4871514

    Switching your wires to match the diagram/picture should remedy the problem.
    (A big thanks to Snowman!)

    Last edited: Jan 14, 2015
  2. Apr 3, 2012 at 3:02 AM
    #2
    Konaborne

    Konaborne [OP] Pineapples on pizza Hawaiian does not it make.

    Joined:
    Nov 21, 2010
    Member:
    #46536
    Messages:
    31,748
    Gender:
    Male
    First Name:
    Cody
    Kealakekua, Hawaii
    Vehicle:
    Lifted 00 TRD Off-Road
    fox extended travel remote resivoir coilovers, 14" eibach 600lb coils, All Pro tubular chromoly 1" uniball upper control arms, All Pro expedition leaf packs, 10" bilstein 5150 piggyback reservoir shocks 265/75r16 Goodyear wrangler MT/R kevlars wrapped around 16" Helo 791 gloss black, Mini H1 retrofits with 6000k bulbs, 18" magnaflow w/custom exhaust reroute various decals, Sockmonkey retro hood stripes
    Reserved for dummy-proofing; HID install.

  3. Apr 3, 2012 at 3:03 AM
    #3
    Konaborne

    Konaborne [OP] Pineapples on pizza Hawaiian does not it make.

    Joined:
    Nov 21, 2010
    Member:
    #46536
    Messages:
    31,748
    Gender:
    Male
    First Name:
    Cody
    Kealakekua, Hawaii
    Vehicle:
    Lifted 00 TRD Off-Road
    fox extended travel remote resivoir coilovers, 14" eibach 600lb coils, All Pro tubular chromoly 1" uniball upper control arms, All Pro expedition leaf packs, 10" bilstein 5150 piggyback reservoir shocks 265/75r16 Goodyear wrangler MT/R kevlars wrapped around 16" Helo 791 gloss black, Mini H1 retrofits with 6000k bulbs, 18" magnaflow w/custom exhaust reroute various decals, Sockmonkey retro hood stripes
    Also, I realize I may have used the smaller silicone washer in the wrong place....

  4. Apr 3, 2012 at 8:47 AM
    #4
    hulkit

    hulkit Well-Known Member

    Joined:
    Nov 20, 2010
    Member:
    #46490
    Messages:
    73
    Gender:
    Male
    sacramento ca
    Vehicle:
    2000 tacoma 2.4l automatic
    u have done a great writeup hopefully when i get time ill be able to do this thanks alot

    so many projects so little time

  5. Apr 3, 2012 at 9:25 AM
    #5
    brianpdx

    brianpdx Well-Known Member

    Joined:
    Aug 9, 2011
    Member:
    #61415
    Messages:
    122
    Gender:
    Male
    Vehicle:
    1999 SR5 TRD 4x4
    Outstanding write-up, Kona. Thanks for your work in putting this together!

  6. Apr 3, 2012 at 9:53 AM
    #6
    bellassaiw10

    bellassaiw10 Formally afroman5015

    Joined:
    Jun 16, 2010
    Member:
    #39032
    Messages:
    5,281
    Gender:
    Male
    Currituck NC
    Vehicle:
    09 LMM 2500HD Duramax
    How do you adjust the projectors to make sure the cutoff step is correct ? always wondered ha

  7. Apr 3, 2012 at 11:08 AM
    #7
    Konaborne

    Konaborne [OP] Pineapples on pizza Hawaiian does not it make.

    Joined:
    Nov 21, 2010
    Member:
    #46536
    Messages:
    31,748
    Gender:
    Male
    First Name:
    Cody
    Kealakekua, Hawaii
    Vehicle:
    Lifted 00 TRD Off-Road
    fox extended travel remote resivoir coilovers, 14" eibach 600lb coils, All Pro tubular chromoly 1" uniball upper control arms, All Pro expedition leaf packs, 10" bilstein 5150 piggyback reservoir shocks 265/75r16 Goodyear wrangler MT/R kevlars wrapped around 16" Helo 791 gloss black, Mini H1 retrofits with 6000k bulbs, 18" magnaflow w/custom exhaust reroute various decals, Sockmonkey retro hood stripes
    Same way you adjust the normal output, using the housing adjustment screws :thumbsup:

  8. Apr 3, 2012 at 12:50 PM
    #8
    whatatoy

    whatatoy Galt/Rearden 2012

    Joined:
    Jul 13, 2011
    Member:
    #59829
    Messages:
    292
    Gender:
    Male
    SO CAL
    Vehicle:
    I like it
    This truck is a work truck - not a lot of fancy mod's here, but it's getting the job done!
    subbd

  9. Apr 3, 2012 at 12:53 PM
    #9
    Snowman

    Snowman I have a problem for your solution…

    Joined:
    Sep 8, 2010
    Member:
    #42917
    Messages:
    2,909
    First Name:
    Craig
    Somewhere in Canada
    Vehicle:
    Check out my build
    I didnt use the small one at all.
    FYI it is the exact same process for 01-04, just different shaped headlight.

  10. Apr 3, 2012 at 1:08 PM
    #10
    CliffordBRD

    CliffordBRD Well-Known Member

    Joined:
    Mar 29, 2012
    Member:
    #75835
    Messages:
    198
    Gender:
    Male
    First Name:
    Cliff
    Tampa, FL
    Vehicle:
    09 DCLB 4x4 Pyrite Mica
    Did you aim the actual projectors at all or did you just stick them in the housing and they fit and lined up right once you aimed the headlights?

    I did my bike and aiming them was a PITA, but well worth every penny, did FXRs.

    What kind of headlights did you do these with?

    Well done too!

  11. Apr 3, 2012 at 1:11 PM
    #11
    Snowman

    Snowman I have a problem for your solution…

    Joined:
    Sep 8, 2010
    Member:
    #42917
    Messages:
    2,909
    First Name:
    Craig
    Somewhere in Canada
    Vehicle:
    Check out my build
    With the minis (h1s or ds2s) they only fit one way, no aiming necessary. Just put them in, install the allignment ring, then the lock nut. They will then be centered in the housing and all you you is adjust the headlights as you would normally.

    My H1s also said "top" on the back so you couldnt really mess it up.

  12. Apr 3, 2012 at 1:24 PM
    #12
    Fiolo

    Fiolo Senior member

    Joined:
    Sep 10, 2011
    Member:
    #63227
    Messages:
    4,235
    Gender:
    Male
    Vehicle:
    98 Regular cab lifted 4wd
    Lost track many mods ago
    Great right up!, where did you buy the projectors from, thinking about doing this

  13. Apr 3, 2012 at 1:34 PM
    #13
    bellassaiw10

    bellassaiw10 Formally afroman5015

    Joined:
    Jun 16, 2010
    Member:
    #39032
    Messages:
    5,281
    Gender:
    Male
    Currituck NC
    Vehicle:
    09 LMM 2500HD Duramax
    Common vendor is theretrofitsource.com

  14. Apr 3, 2012 at 1:41 PM
    #14
    Konaborne

    Konaborne [OP] Pineapples on pizza Hawaiian does not it make.

    Joined:
    Nov 21, 2010
    Member:
    #46536
    Messages:
    31,748
    Gender:
    Male
    First Name:
    Cody
    Kealakekua, Hawaii
    Vehicle:
    Lifted 00 TRD Off-Road
    fox extended travel remote resivoir coilovers, 14" eibach 600lb coils, All Pro tubular chromoly 1" uniball upper control arms, All Pro expedition leaf packs, 10" bilstein 5150 piggyback reservoir shocks 265/75r16 Goodyear wrangler MT/R kevlars wrapped around 16" Helo 791 gloss black, Mini H1 retrofits with 6000k bulbs, 18" magnaflow w/custom exhaust reroute various decals, Sockmonkey retro hood stripes
    truth.
    all the retrofits are exactly the same, just hadn't seen one for 1st gens, and without having to remove the reflectors to do the BHLM.

    And I really didn't know where to put the small washer....so I put it there :eek:

    ^^^
    This

    Theyre pretty much centered after the install, all I did was adjust them with the housing adjusting tabs that night.

    I used egay clear headlight assemblies. :eek:

    Since I already had the relay/ballasts, and h1 bulbs are cheap, I didn't go through TRS (If anyone is thinking about converting, and need the whole shebang, jump in a TRS group buy)

    I got the projectors from this thread
    http://www.tacomaworld.com/forum/buy-sell-trade/193216-fs-morimoto-mini-h1-bi-xenon-projectors.html

    RMYC was great; good communication (even answered tard Q's from me) and shipping was fast. Also insured the shipment. Highly recommended from me.

  15. Apr 3, 2012 at 2:21 PM
    #15
    Snowman

    Snowman I have a problem for your solution…

    Joined:
    Sep 8, 2010
    Member:
    #42917
    Messages:
    2,909
    First Name:
    Craig
    Somewhere in Canada
    Vehicle:
    Check out my build
    I noticed that too. I just meant you could probably make this a "98-04 retro guide" since it is exactly the same as it was for my '04. Only difference was there was already a hole in the back of my headlight housings to run the shield wires through.

  16. Apr 3, 2012 at 2:22 PM
    #16
    Konaborne

    Konaborne [OP] Pineapples on pizza Hawaiian does not it make.

    Joined:
    Nov 21, 2010
    Member:
    #46536
    Messages:
    31,748
    Gender:
    Male
    First Name:
    Cody
    Kealakekua, Hawaii
    Vehicle:
    Lifted 00 TRD Off-Road
    fox extended travel remote resivoir coilovers, 14" eibach 600lb coils, All Pro tubular chromoly 1" uniball upper control arms, All Pro expedition leaf packs, 10" bilstein 5150 piggyback reservoir shocks 265/75r16 Goodyear wrangler MT/R kevlars wrapped around 16" Helo 791 gloss black, Mini H1 retrofits with 6000k bulbs, 18" magnaflow w/custom exhaust reroute various decals, Sockmonkey retro hood stripes
    I'll pm a red-name :spy:

  17. Apr 3, 2012 at 4:04 PM
    #17
    Fiolo

    Fiolo Senior member

    Joined:
    Sep 10, 2011
    Member:
    #63227
    Messages:
    4,235
    Gender:
    Male
    Vehicle:
    98 Regular cab lifted 4wd
    Lost track many mods ago
    How much would it be to buy the whole shebang, a rough estimate
    Relay,bulbs, everything

  18. Apr 3, 2012 at 4:08 PM
    #18
    Konaborne

    Konaborne [OP] Pineapples on pizza Hawaiian does not it make.

    Joined:
    Nov 21, 2010
    Member:
    #46536
    Messages:
    31,748
    Gender:
    Male
    First Name:
    Cody
    Kealakekua, Hawaii
    Vehicle:
    Lifted 00 TRD Off-Road
    fox extended travel remote resivoir coilovers, 14" eibach 600lb coils, All Pro tubular chromoly 1" uniball upper control arms, All Pro expedition leaf packs, 10" bilstein 5150 piggyback reservoir shocks 265/75r16 Goodyear wrangler MT/R kevlars wrapped around 16" Helo 791 gloss black, Mini H1 retrofits with 6000k bulbs, 18" magnaflow w/custom exhaust reroute various decals, Sockmonkey retro hood stripes
  19. Apr 3, 2012 at 4:59 PM
    #19
    Fiolo

    Fiolo Senior member

    Joined:
    Sep 10, 2011
    Member:
    #63227
    Messages:
    4,235
    Gender:
    Male
    Vehicle:
    98 Regular cab lifted 4wd
    Lost track many mods ago
    hmm, 202 bucks sounds pretty good, thanks

  20. Apr 3, 2012 at 6:26 PM
    #20
    Murkules

    Murkules Well-Known Member

    Joined:
    Feb 12, 2012
    Member:
    #72702
    Messages:
    176
    Gender:
    Male
    First Name:
    Dane
    Hawaii
    Vehicle:
    2016 Tacoma TRD Offroad DCSB Super White
    adding this to my list:D

To Top
