2010 replacing calipers questions

Discussion in '2nd Gen. Tacomas (2005-2015)' started by TreeFortRichard, Sep 4, 2018.

  1. Sep 4, 2018 at 12:01 PM
    #1
    TreeFortRichard

    TreeFortRichard [OP] Hmmm..$o many repairs?

    Joined:
    Jan 18, 2013
    Member:
    #95515
    Messages:
    2,944
    Gender:
    Male
    First Name:
    Brian
    Massachusetts (Central)
    Vehicle:
    '10 Access 4x4 SR5 Manual
    Hello all,
    My 2010 is in a nightmare rust situation.

    Caliper pins are seized and fused and it's jut time for new calipers. I have many questions but my main question right now is where is the compression for the banjo bolt happening? When I look at the back of the caliper where the line comes in.

    I don't see any copper washers and when I went to toyota today for the part they said there is a nut and flange to flange gasket thing the clips around both sides. The part number 47389–50020.
    This says it's a gasket for the flexible hose, so is the hard line hose to the clip on the support where this gasket goes and if you are reusing the hard line there is no gasket? very confused..

    PzTank likes this.
  2. Sep 4, 2018 at 2:46 PM
    #2
    Jimmyh

    Jimmyh Well-Known Member

    Joined:
    May 16, 2012
    Member:
    #78991
    Messages:
    11,217
    Gender:
    Male
    SC
    Vehicle:
    2012 Prerunner SR5
    There is no gasket at the hard line going into the caliper. It has a flare fitting for a seal.
    As rusty as that thing is you will probably rip up the flare fitting attempting to remove it from the caliper.

    Good luck with all that rust. Wow! :eek:

    PzTank likes this.
  3. Sep 4, 2018 at 2:53 PM
    #3
    Brianz1001

    Brianz1001 Well-Known Member

    Joined:
    Jun 12, 2012
    Member:
    #80563
    Messages:
    428
    Gender:
    Male
    First Name:
    Brian
    On my couch with a cold beer in my right
    too much to type
    Soak it first, that will come out.

    PzTank likes this.
  4. Sep 4, 2018 at 3:02 PM
    #4
    TreeFortRichard

    TreeFortRichard [OP] Hmmm..$o many repairs?

    Joined:
    Jan 18, 2013
    Member:
    #95515
    Messages:
    2,944
    Gender:
    Male
    First Name:
    Brian
    Massachusetts (Central)
    Vehicle:
    '10 Access 4x4 SR5 Manual
    Hey thanks, knowing what to search for "tacoma FLARED brake line" led me to this video which lets me see what's in there...and what will be in the caliper end.
    https://www.youtube.com/watch?v=1Prs_coIuCg


    I'll hard nylon brush it up, brake cleaner, PB blaster and pray...

    This is a helluva DIY situation in my driveway...and I haven't started the right side yet....
    Needed Wheel bearings/hubs, Calipers, Rotors, Pads...Dealer wanted $700 a wheel just for the wheel bearings...I hope I can get it all back together some day..

    Sitting around yesterday and I realized I never cleaned the ABS sensor before putting the hub on...hopefully I can get it out and clean it off.

    PzTank likes this.
  5. Sep 4, 2018 at 3:10 PM
    #5
    Wsteven

    Wsteven Well-Known Member

    Joined:
    Jul 27, 2018
    Member:
    #260806
    Messages:
    893
    Gender:
    Male
    Vehicle:
    2018 Tacoma TRD Pro
    Working on them

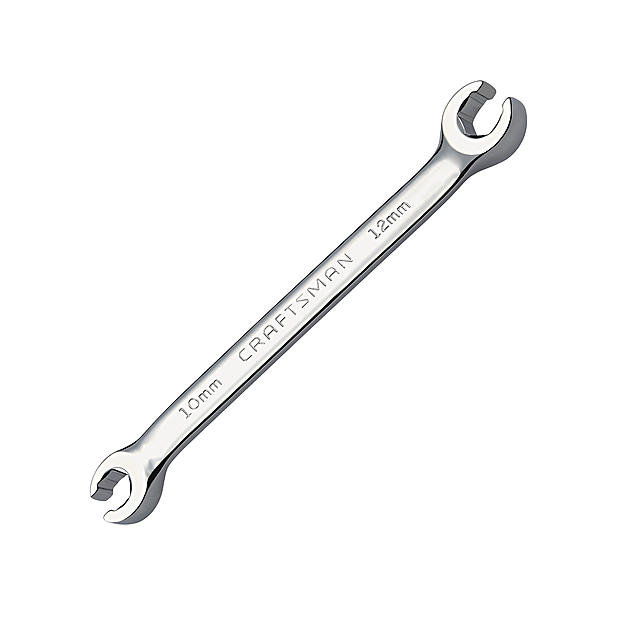

    Free All Soak it heck out of it and let it sit then come back and soak it again Also Do Not Use a Plain Wrench on it! get a Brake Line wrench or also called Flare Nut wrench as for the Calipers They might look rough but they can be cleaned up just get new pins.


  6. Sep 4, 2018 at 3:19 PM
    #6
    TreeFortRichard

    TreeFortRichard [OP] Hmmm..$o many repairs?

    Joined:
    Jan 18, 2013
    Member:
    #95515
    Messages:
    2,944
    Gender:
    Male
    First Name:
    Brian
    Massachusetts (Central)
    Vehicle:
    '10 Access 4x4 SR5 Manual
    Believe me I tried. The pins seem to be fused and I already had a Right OEM caliper and just needed a left and I think I have the usual seized right inner judging by the uneven wear on the pads.



    I dremmeled out the middle, worked a hammer, punch...cotter pin broke off in the top one and wouldn't pull out, caliper pins starting bending...They must have used something that fused the pin to the caliper and now my guess would be cut off the ends and drill it out... After 2+ hours of futile messing around I called it....Bought an new caliper for $85

    Wsteven likes this.
  7. Sep 4, 2018 at 3:32 PM
    #7
    Brianz1001

    Brianz1001 Well-Known Member

    Joined:
    Jun 12, 2012
    Member:
    #80563
    Messages:
    428
    Gender:
    Male
    First Name:
    Brian
    On my couch with a cold beer in my right
    too much to type
    PB Blaster soak...soak more, cut the pin in the middle...heat. those pins commonly rust and are a bitch.

    floodedkiwi likes this.
  8. Sep 4, 2018 at 3:34 PM
    #8
    TreeFortRichard

    TreeFortRichard [OP] Hmmm..$o many repairs?

    Joined:
    Jan 18, 2013
    Member:
    #95515
    Messages:
    2,944
    Gender:
    Male
    First Name:
    Brian
    Massachusetts (Central)
    Vehicle:
    '10 Access 4x4 SR5 Manual
    PzTank likes this.
  9. Sep 4, 2018 at 3:41 PM
    #9
    Wsteven

    Wsteven Well-Known Member

    Joined:
    Jul 27, 2018
    Member:
    #260806
    Messages:
    893
    Gender:
    Male
    Vehicle:
    2018 Tacoma TRD Pro
    Working on them
    The Pins a very common problem is the cheap one swell up and when trying to drive em out you have 3 things working against you the swelled Pins and the two Brake pads acting like a wedge, I I always install new pins, cotters and spring I just cut them up (the pins) right next to the calipers both sides in the middle then pull the pads then with good pin punch drive out the little remaining parts.

    Then this part I do Every time also when I reassemble I put a very little copper neversez in the caliper holes when the pins go.

    Oh want to keep yourself out of that kind of mess? Do clean and treat every 8 month basically a quick take down and clean and replaces those darn pins if they are rusting

  10. Sep 5, 2018 at 5:19 AM
    #10
    mbrogz3000

    mbrogz3000 Well-Known Member

    Joined:
    Oct 11, 2011
    Member:
    #65009
    Messages:
    1,088
    Gender:
    Male
    First Name:
    Matt
    Northern NJ
    Vehicle:
    2020 Toyota 4Runner Limited
    Just a couple tips to help:

    1. Use a pin-punch set and 3 pound hammer to tap out the pins while the caliper is still mounted. Make sure the front end is raised so that the steering wheel can be turned to allow hammer clearance access. Don’t use a regular nail hammer. They will come right out using pin punches and a 3 pound hammer. (That is of course after soaking the pins with a penetrant.)

    2. From experience, purchase a cheap $10 pad-spreader tool from eBay or Amazon for pressing the pistons back. Don’t use a screw driver to pry the pads back into the pistons- this promotes seized pistons. I didn’t use the tool and one of my pistons eventually became seized...and now I need to replace the caliper.

    3. The brake line fitting can be disconnected and bent slightly away from the caliper. This prevents needing to remove (and potentially breaking the bolt) from the flex hose mount. The bolt should be soaked with Aerokroil or 50/50 befor attempting to remove.

    Last edited: Sep 5, 2018
    PzTank likes this.
  11. Sep 5, 2018 at 12:02 PM
    #11
    Bebop

    Bebop Old fashion cowboy

    Joined:
    Feb 11, 2016
    Member:
    #177835
    Messages:
    4,408
    Gender:
    Male
    First Name:
    Nick
    Castle rock Colorado
    Vehicle:
    2012 Toyota Tacoma baja
    6inch lift sitting on bilstein coilovers. Lexus is300 studs in front to keep stock wheels, general grabber red letters, nfab front bumper.
    The Napa eclipse calipers have a nice coat of black paint on them and a hella good warranty.

    PzTank likes this.
  12. Sep 5, 2018 at 1:53 PM
    #12
    cj13058

    cj13058 Well-Known Member

    Joined:
    Dec 22, 2015
    Member:
    #172878
    Messages:
    350
    Gender:
    Male
    Oregon
    Vehicle:
    2005 Tacoma TRD Off-Road DCSB
    ARB 3'' lift, ARE canopy, 265/75/16 All Terrain KO2, after market stereo, ECGS differential bushing, ARB Deluxe front Bumper, Warn M8000 winch, custom winch control box install, FrontRunner Slimline canopy rack,
    It is my understanding that the pins should not be lubed. They should stay un-lubed so they are free to move when needed or allow the pads to slide back and forth. If you lube the pins that are exposed to the elements it will accumulate all kinds of road debris and grime. This is not an item that is lubed at the factory.

    PzTank likes this.
  13. Sep 5, 2018 at 2:43 PM
    #13
    BillDaCat8

    BillDaCat8 Well-Known Member

    Joined:
    Jun 25, 2017
    Member:
    #222348
    Messages:
    1,185
    Gender:
    Male
    First Name:
    Jake
    PHX
    Vehicle:
    07 4x4 Access Cab M/T
    I got a Mickey Mouse antenna ball. Does that count?
  14. Sep 5, 2018 at 3:37 PM
    #14
    TegoTaco

    TegoTaco Well-Known Member

    Joined:
    Sep 29, 2016
    Member:
    #198555
    Messages:
    3,933
    Gender:
    Male
    Ontario, Canada
    Vehicle:
    2013 Super White Tacoma DCLB TRD SPORT
    Never had an issue on any of my trucks from before including this one.

    TreeFortRichard [OP] likes this.
  15. Sep 5, 2018 at 4:10 PM
    #15
    fla_sun

    fla_sun Well-Known Member

    Joined:
    Oct 15, 2015
    Member:
    #166710
    Messages:
    295
    Gender:
    Male
    Vehicle:
    2006 SR5 4X4 AC 4.0 Auto
    I lube the pins per instructions.
    I once read on this forum that a member from way north of here disassembles the brakes and cleans and lubes twice a year. Having lived in Florida most of my life I didn’t quite understand. With those pics I do now.

  16. Sep 5, 2018 at 4:21 PM
    #16
    Tcomaboy

    Tcomaboy Well-Known Member

    Joined:
    Sep 12, 2010
    Member:
    #43160
    Messages:
    3,680
    Gender:
    Male
    Texas
    Vehicle:
    2010 DCLB TRD Sport Prerunner
    Yikes....glad I don’t live in a salt state

  17. Sep 5, 2018 at 4:55 PM
    #17
    MurderedTacoV2

    MurderedTacoV2 Booty Admirer

    Joined:
    Feb 22, 2016
    Member:
    #179098
    Messages:
    2,127
    Gender:
    Male
    First Name:
    Adam
    West Newbury, Massachusetts
    Vehicle:
    06 Black TRD OR daily driver/woods rig
    Ebay Bumper, Light Bars, Duratracs, 3" lift
    Try using an air hammer if you have access to one and use a large bit and just shake the pin up till it comes out. I had to punch out my lower pin laying on my back on the garage floor and was not happy, never thought to use my air hammer till AFTER i was done....

  18. Sep 6, 2018 at 7:18 AM
    #18
    cj13058

    cj13058 Well-Known Member

    Joined:
    Dec 22, 2015
    Member:
    #172878
    Messages:
    350
    Gender:
    Male
    Oregon
    Vehicle:
    2005 Tacoma TRD Off-Road DCSB
    ARB 3'' lift, ARE canopy, 265/75/16 All Terrain KO2, after market stereo, ECGS differential bushing, ARB Deluxe front Bumper, Warn M8000 winch, custom winch control box install, FrontRunner Slimline canopy rack,
    https://www.customtacos.com/tech.ol...06toyrm/06toypdf/06rmsrc/rm2006ta/0420011.pdf

    I don't see where it says to lube the pins. Am I missing something. Just sayin...I by no means am criticizing anyone's techniques or preferences.

  19. Sep 15, 2018 at 9:50 AM
    #19
    TreeFortRichard

    TreeFortRichard [OP] Hmmm..$o many repairs?

    Joined:
    Jan 18, 2013
    Member:
    #95515
    Messages:
    2,944
    Gender:
    Male
    First Name:
    Brian
    Massachusetts (Central)
    Vehicle:
    '10 Access 4x4 SR5 Manual
    Just bumping this up again. I got the flared steel line off the old caliper and when I screwed it into the new one it had some play and was leaking. It got me thinking that something was missing. I remembered there was a little brass thing in the box. I assume this is supposed to go on end of the flared line to help seal in the caliper when it's screwed in?

    Questions...1. This goes on the end of the line or in the threaded receptacle of the caliper right? 2. How does it go on, do I slide the thin end into the open end of the steel line and then slip it in or does it go round end into the flare and thin end towards the caliper?
    This is the after market caliper
    https://www.autozone.com/brakes-and...-reman-brake-caliper-front/198799_761937_5913

    3. I have to do the right side caliper replacement as well. That is an OEM tacoma caliper and I don't have another one of these brass fitting things. Will the OEM not need this or do I need to buy one and what is the part #?

    Thanks All...

    PzTank likes this.
  20. Sep 15, 2018 at 11:45 AM
    #20
    TreeFortRichard

    TreeFortRichard [OP] Hmmm..$o many repairs?

    Joined:
    Jan 18, 2013
    Member:
    #95515
    Messages:
    2,944
    Gender:
    Male
    First Name:
    Brian
    Massachusetts (Central)
    Vehicle:
    '10 Access 4x4 SR5 Manual
    Follow up on this...

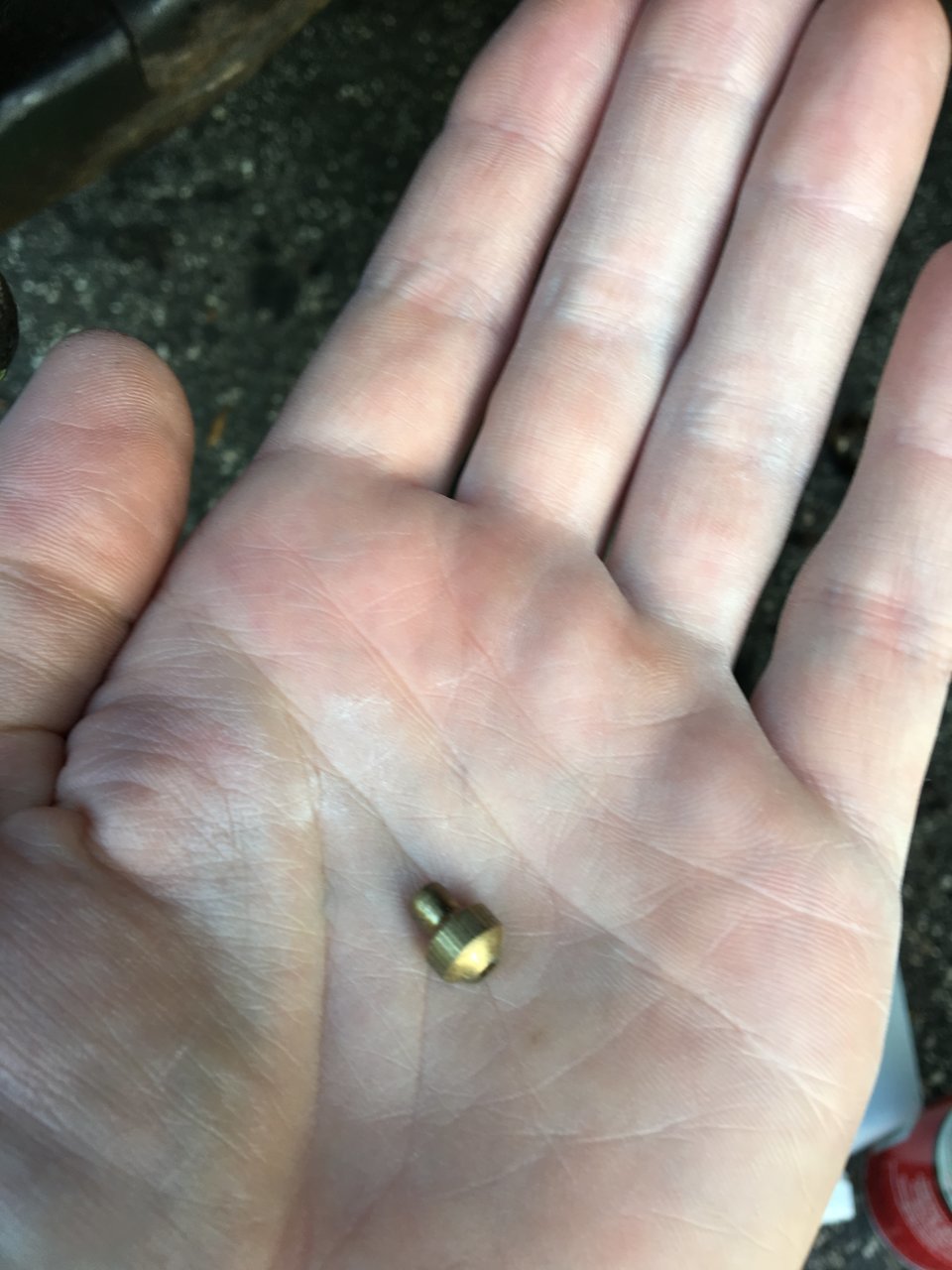

    So this piece actually just fell out of the new caliper, it's a loose piece that slides into the female threads for the stainless steel line for the caliper...I looked at the other new caliper I have and it's already in there.

    PzTank and ExpyTaco like this.
