2012 Reverse Camera Switch

Discussion in '2nd Gen. Tacomas' started by nut, Feb 13, 2012.

  1. Feb 15, 2012 at 8:27 PM
    #21
    DIVERMAN

    DIVERMAN Well-Known Member

    Joined:
    Jan 23, 2010
    Member:
    #29888
    Messages:
    460
    Gender:
    Male
    First Name:
    Cullen
    Louisiana
    Vehicle:
    2012 Pyrite Mica 4x4 TRD O/R SWB
    Tailgate theft prevention, Locking rear window, Blind spot mirrors, Fogs on anytime, Rear diff breather relocated, Bed storage locks, LEDs in/out, Relocated trailer plug(custom!), OEM bed mat, OEM running boards, OEM bed divider, Bed lights, Rev lights, Raptor lights, WeatherTech floor mats and window vents, Extra D-rings, ImMrYo Bracket, UWS low pro black toolbox, Carhartt seat covers,
    touchscreen (entune). mine is not on the mirror, it is in the radio.

  2. Feb 15, 2012 at 8:28 PM
    #22
    DIVERMAN

    DIVERMAN Well-Known Member

    Joined:
    Jan 23, 2010
    Member:
    #29888
    Messages:
    460
    Gender:
    Male
    First Name:
    Cullen
    Louisiana
    Vehicle:
    2012 Pyrite Mica 4x4 TRD O/R SWB
    Tailgate theft prevention, Locking rear window, Blind spot mirrors, Fogs on anytime, Rear diff breather relocated, Bed storage locks, LEDs in/out, Relocated trailer plug(custom!), OEM bed mat, OEM running boards, OEM bed divider, Bed lights, Rev lights, Raptor lights, WeatherTech floor mats and window vents, Extra D-rings, ImMrYo Bracket, UWS low pro black toolbox, Carhartt seat covers,

    THANK YOU, SIR!

  3. Feb 16, 2012 at 6:42 AM
    #23
    grhopper

    grhopper Well-Known Member

    Joined:
    Dec 27, 2011
    Member:
    #69470
    Messages:
    80
    Gender:
    Male
    Louisiana
    Vehicle:
    2012 DCLB TRD Sport
    Touchscreen here also. We have the same mirror as the others. It would be interesting to know how far the mirror is wired and if it would be an easy mod to have the camera displayed on both.

  4. May 7, 2012 at 11:56 PM
    #24
    Tactical Tacoma

    Tactical Tacoma Well-Known Member

    Joined:
    Aug 4, 2009
    Member:
    #20639
    Messages:
    1,064
    Gender:
    Male
    First Name:
    Seth
    McKinney, TX
    Vehicle:
    '12 MGM DCSB Sport 4WD
    ARB air compressor, ARB rear air locker, sPOD switch panel in sunglass holder, OME Front & rear shocks, 885x coils, Dakar leaf springs, Icon tubular UCA's, Flowmaster 40 Series Exhaust, aFe Pro Dry, TRD Sport wheels powder coated anthracite, FJ TRD center caps, Thule roof rack, 886 fog lights for reverse light mod, CSjumper LED DTRL's, Nokya Yellow fogs, plastidipped lower valence, Weathertechs, Wet Okoles. And MANY MORE MODS, READ BUILD!
    That's what I would like to be able to do, display on both.

  5. Aug 9, 2012 at 7:42 PM
    #25
    Tactical Tacoma

    Tactical Tacoma Well-Known Member

    Joined:
    Aug 4, 2009
    Member:
    #20639
    Messages:
    1,064
    Gender:
    Male
    First Name:
    Seth
    McKinney, TX
    Vehicle:
    '12 MGM DCSB Sport 4WD
    ARB air compressor, ARB rear air locker, sPOD switch panel in sunglass holder, OME Front & rear shocks, 885x coils, Dakar leaf springs, Icon tubular UCA's, Flowmaster 40 Series Exhaust, aFe Pro Dry, TRD Sport wheels powder coated anthracite, FJ TRD center caps, Thule roof rack, 886 fog lights for reverse light mod, CSjumper LED DTRL's, Nokya Yellow fogs, plastidipped lower valence, Weathertechs, Wet Okoles. And MANY MORE MODS, READ BUILD!
    THREAD REVIVAL!!!!

    Anybody actually done the anytime camera mod for the touchscreen Entune system? Or figured out how to route the camera image to both the Entune screen and the mirror?

  6. Apr 6, 2013 at 4:52 PM
    #26
    Drakivnsf

    Drakivnsf Dance Party Guru

    Joined:
    Apr 2, 2013
    Member:
    #101128
    Messages:
    349
    Gender:
    Male
    Socal
    Vehicle:
    '12 White Tacoma DCLB 4x4
    TRD Supercharger, URD CAI, BRP pre-axle catback, Anytime Rearview Camera mod, Power Sliding rear window, Glassworks Unlimited Front Fenders, ScS Stealth 6 wheels, Nitto Terra Grapplers 285/70/17, 3" All-Pro Std Leafs, 2.0 Fox adj. res. shocks, 2.5 Fox res. Coilovers, All-Pro +2" LT kit, Timbren Bumpstops front and rear, All-Pro U-Bolt flip kit, Pelfreybilt Hybrid front bumper, RCI IFS Skid, RCI Sliders, more to come.....
    I was going to start a new thread, but I have been on other forums for a very long time and I know better. Anyways I finally got around to cracking open my truck and tinkering around to try and do this with my entune. I got it to work and its awesome, bare with me as my truck is dirty and I kind of was figuring things out as I went since I wasn't sure if it would work or not. I did have to change the way I hooked the witch up since it wouldn't work the way the normal mirror mod was connected. Remember, TRY THIS AT YOUR OWN RISK. I am not responsible for anything that should go wrong if you attempt this. Anyways, here we go:

    First you will need to have the items listed in Crom's mod, except you can use a regular rocker switch if you want since you only need 2 terminals not 3 as it wouldn't work for me. You will need to get access to your fuse panel and route a wire from where you will add the circuit to where you will install the switch.

    [​IMG]

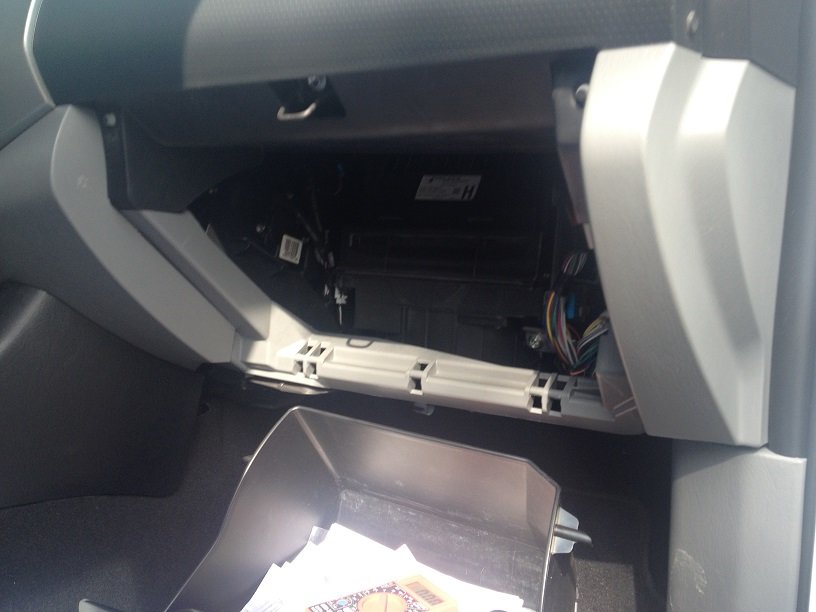

    Next you will need to remove the glove compartment, and to do this it's very easy if you have never done so. Just open it, then gently squeeze the side towards the inside of the compartment from the outside where the 2 pegs are holding it from falling and it will slide right down. Next detach the plunger/shock from its mount, it should just pop off with gentle pressure.

    [​IMG]

    Once that is done it will be hanging and now you can just pop it straight off. Now you have access to the computer wiring and such.

    [​IMG]

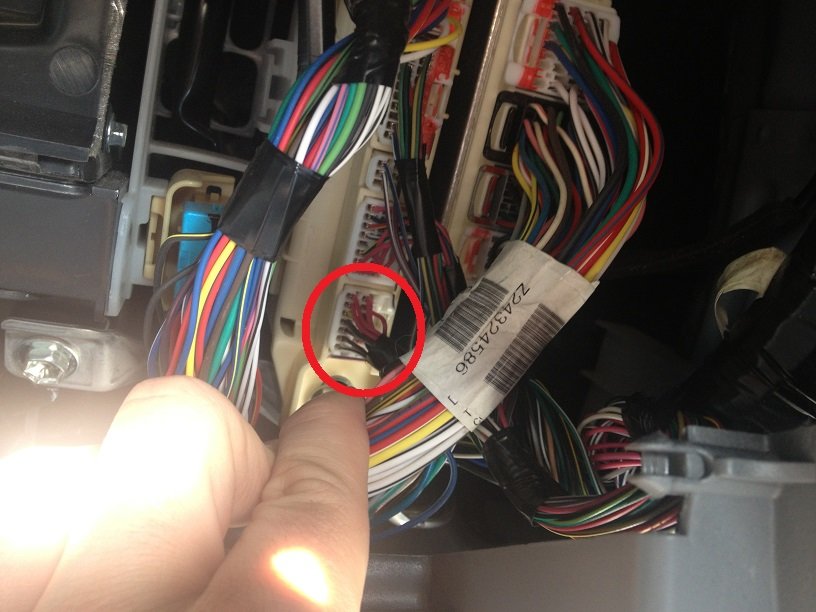

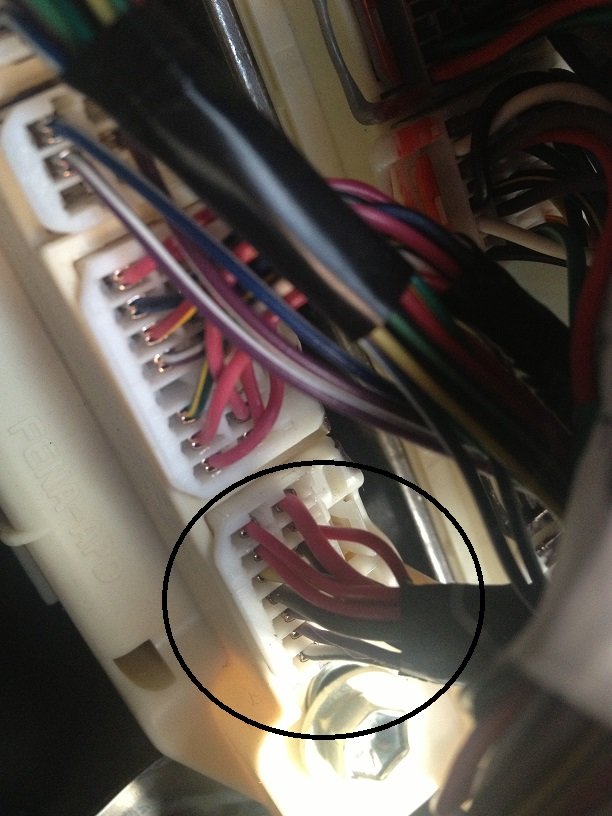

    Now looking towards the right side of where the glove compartment used to be if you are facing it, there will be loads of wiring. Don't get discouraged, it's not too hard to reach. It will be located on the most left terminal connections. And it will be at the bottom of that column.

    [​IMG]

    [​IMG]

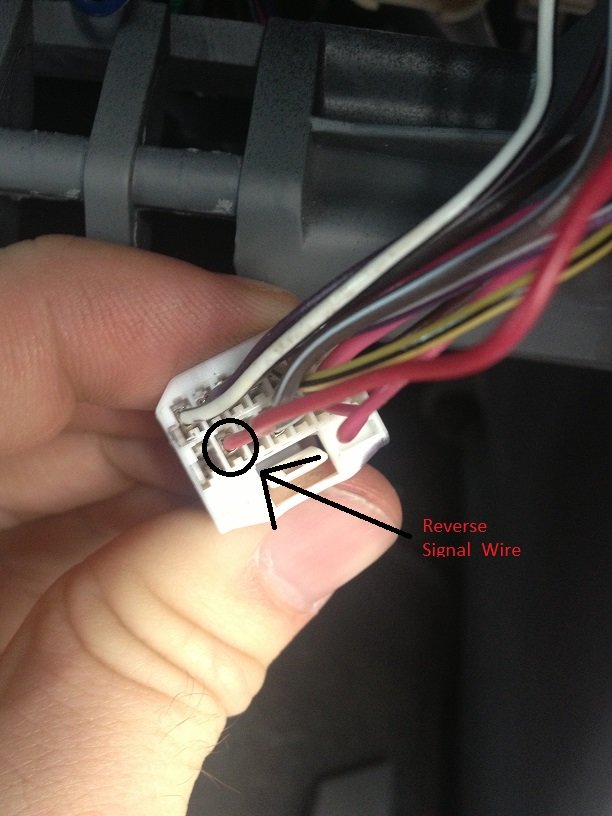

    Now before attempting anything, I suggest disconnecting the battery before you start cutting/splicing/or connecting anything just to be safe. Now, disconnect that bottom plug and the wire will be the Number 2 lead for that plug, which will be the second position up from the bottom right column if it were still plugged in.

    [​IMG]

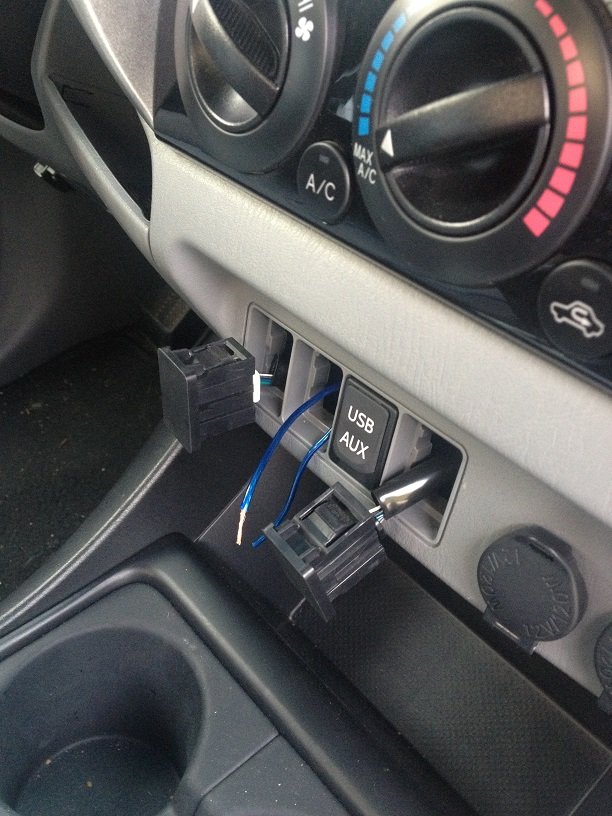

    Now you will want to route another wire from where you are going to install the switch to this location. Now you cut the wire and run 2 wires to the switch. 1 wire will be from the computer, and the other is from the entune unit.

    [​IMG]

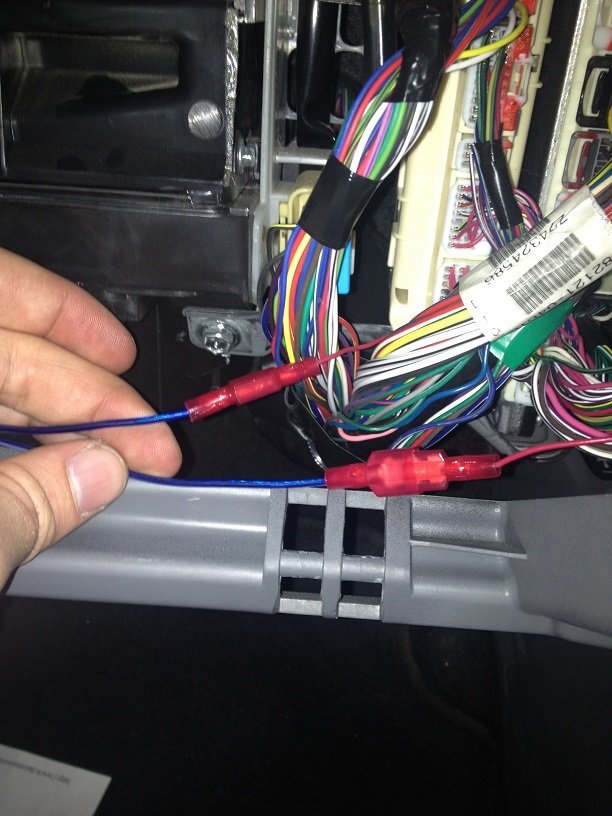

    Now the wire from the computer will connect to the COM terminal on your SPDT switch. The other wire from the entune unit will connect to the NC terminal. Then the 12v signal from your add-a-circuit will connect to your NO terminal. The video will help show you how it looks. Here is where I chose to install my switch btw:

    [​IMG]

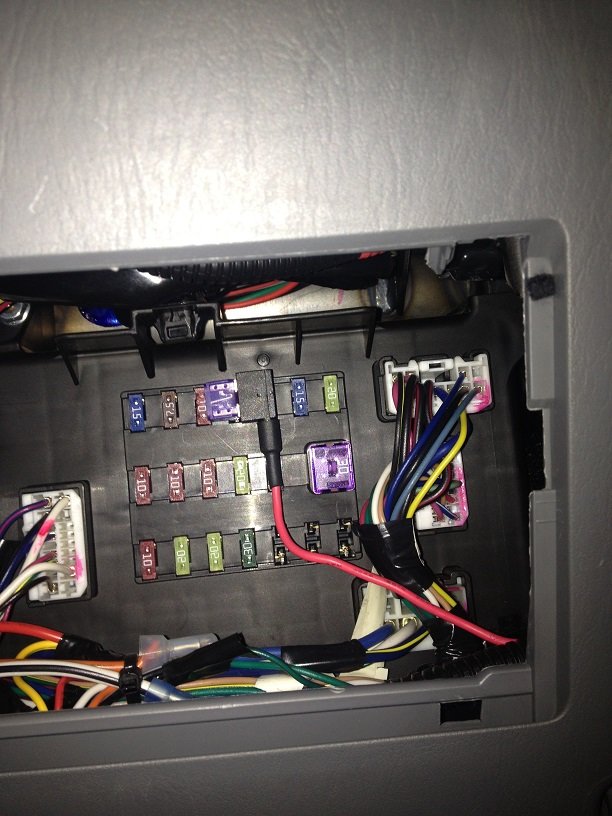

    Now for the add a circuit in your fuse box, just make sure you install it into a pre-existing fuse position lower than 10 amps. I chose the ACC position which is 7.5 amps.

    [​IMG]

    Now you can go ahead and connect the wires to your switch and that should be it. Go ahead and reconnect your battery and test the switch out to make sure it works. Once you're done testing it and its working you can button everything back up and be done with it. I hope this helps anyone that wanted to do this with your entune. If anyone has anything to add or suggest, please feel free. Enjoy!

    Last edited: Apr 10, 2013
  7. Apr 6, 2013 at 4:57 PM
    #27
    Drakivnsf

    Drakivnsf Dance Party Guru

    Joined:
    Apr 2, 2013
    Member:
    #101128
    Messages:
    349
    Gender:
    Male
    Socal
    Vehicle:
    '12 White Tacoma DCLB 4x4
    TRD Supercharger, URD CAI, BRP pre-axle catback, Anytime Rearview Camera mod, Power Sliding rear window, Glassworks Unlimited Front Fenders, ScS Stealth 6 wheels, Nitto Terra Grapplers 285/70/17, 3" All-Pro Std Leafs, 2.0 Fox adj. res. shocks, 2.5 Fox res. Coilovers, All-Pro +2" LT kit, Timbren Bumpstops front and rear, All-Pro U-Bolt flip kit, Pelfreybilt Hybrid front bumper, RCI IFS Skid, RCI Sliders, more to come.....
    Last edited: Apr 10, 2013
  8. Apr 6, 2013 at 9:15 PM
    #28
    OmegaQuest

    OmegaQuest Well-Known Member

    Joined:
    Aug 10, 2011
    Member:
    #61464
    Messages:
    190
    Gender:
    Male
    Maryland
    Vehicle:
    2013 Tacoma Limited Double Cab 4X4
    Oil Catch Can, Motorcycle Chock, WeatherTech Window Deflectors, Bilstein 5100, OEM 4 Leaf, Chrome Satoshi Grille, FX-R Stage III Retrofit, Color Match Head Light Mod, Front Hella 500 HID, Behind Grill Light Bar, Rear LED Bed Lights, Pop and Lock Tailgate, Chrome License Plate Covers, AFE Air Filter, Removed Secondary Air Filter, Paint engine cover (Red), ImMrYo Rear-View Mirror Lift Bracket, Center Console Organizer, ScanGauge 2, Firestone W217602407 Ride-Rite Kit, Firestone WR17602178 Air-Rite Dual Electric Air Command
    How is your backup cam showing in the entune HU? I have the 13 and it only shows up in the mirror and not the entune JBL Headunit....

  9. Apr 6, 2013 at 11:11 PM
    #29
    Drakivnsf

    Drakivnsf Dance Party Guru

    Joined:
    Apr 2, 2013
    Member:
    #101128
    Messages:
    349
    Gender:
    Male
    Socal
    Vehicle:
    '12 White Tacoma DCLB 4x4
    TRD Supercharger, URD CAI, BRP pre-axle catback, Anytime Rearview Camera mod, Power Sliding rear window, Glassworks Unlimited Front Fenders, ScS Stealth 6 wheels, Nitto Terra Grapplers 285/70/17, 3" All-Pro Std Leafs, 2.0 Fox adj. res. shocks, 2.5 Fox res. Coilovers, All-Pro +2" LT kit, Timbren Bumpstops front and rear, All-Pro U-Bolt flip kit, Pelfreybilt Hybrid front bumper, RCI IFS Skid, RCI Sliders, more to come.....
    I don't know what package determines where it shows up, but I think it might have something to do with the homelink package. I am going to guess you don't have homelink and therefore it shows up in the mirror. Again this is just a guess as I don't know for sure, but that seems to be the factor because my friend doesn't have the homelink and his is in the mirror, while I have homelink and its on the entune screen.

  10. Apr 7, 2013 at 1:44 AM
    #30
    Tactical Tacoma

    Tactical Tacoma Well-Known Member

    Joined:
    Aug 4, 2009
    Member:
    #20639
    Messages:
    1,064
    Gender:
    Male
    First Name:
    Seth
    McKinney, TX
    Vehicle:
    '12 MGM DCSB Sport 4WD
    ARB air compressor, ARB rear air locker, sPOD switch panel in sunglass holder, OME Front & rear shocks, 885x coils, Dakar leaf springs, Icon tubular UCA's, Flowmaster 40 Series Exhaust, aFe Pro Dry, TRD Sport wheels powder coated anthracite, FJ TRD center caps, Thule roof rack, 886 fog lights for reverse light mod, CSjumper LED DTRL's, Nokya Yellow fogs, plastidipped lower valence, Weathertechs, Wet Okoles. And MANY MORE MODS, READ BUILD!
    I have home link and mine is in the HU, but I would love to be able to have it in both and with a switch. THANKS TO YOU, I can finally have a switch though. You are the bomb. The reverse light makes me nervous though. Let us know how this works out, I'm curious what happens whey you're going 60+ and hit the switch, hopefully you don't kill the tranny. I wonder if your reverse lights come on; have you checked?

    Last edited: Apr 7, 2013
  11. Apr 7, 2013 at 2:19 AM
    #31
    Drakivnsf

    Drakivnsf Dance Party Guru

    Joined:
    Apr 2, 2013
    Member:
    #101128
    Messages:
    349
    Gender:
    Male
    Socal
    Vehicle:
    '12 White Tacoma DCLB 4x4
    TRD Supercharger, URD CAI, BRP pre-axle catback, Anytime Rearview Camera mod, Power Sliding rear window, Glassworks Unlimited Front Fenders, ScS Stealth 6 wheels, Nitto Terra Grapplers 285/70/17, 3" All-Pro Std Leafs, 2.0 Fox adj. res. shocks, 2.5 Fox res. Coilovers, All-Pro +2" LT kit, Timbren Bumpstops front and rear, All-Pro U-Bolt flip kit, Pelfreybilt Hybrid front bumper, RCI IFS Skid, RCI Sliders, more to come.....
    Im still testing, i gotta look into a couple of things and ill let you know. But so far nothing bad going 60 and flipping the switch. It seems that lead just sends a signal to everything related to putting it in reverse aside from the transmission. It turns on the reverse lights in your tails too, but it works out cause at night it lights up where your camera is looking. Funny too cause it trips people out if they are tailgating lol. But like i said i need to check a couple more things in the next couple days and i'll let you know how it goes.

  12. Apr 7, 2013 at 6:28 AM
    #32
    Glocker23

    Glocker23 Rubber Side Down

    Joined:
    Jan 12, 2008
    Member:
    #4206
    Messages:
    664
    Gender:
    Male
    CT
    Vehicle:
    2012 DCSB Sport
    Debadged, Emergency response lights, Tonneau cover, Grillcraft MX grill, OKLED 20" light bar in grill
    :thumbup:

  13. Apr 7, 2013 at 4:32 PM
    #33
    caribe makaira

    caribe makaira Lurker No More

    Joined:
    Feb 13, 2011
    Member:
    #51121
    Messages:
    495
    Gender:
    Male
    Caribbean, Puerto Rico
    Vehicle:
    05 PreRunner TRD Offroad
    Hood Struts, My version Fogs always ON, Map & Overhead Light Mod,
  14. Apr 7, 2013 at 4:34 PM
    #34
    Drakivnsf

    Drakivnsf Dance Party Guru

    Joined:
    Apr 2, 2013
    Member:
    #101128
    Messages:
    349
    Gender:
    Male
    Socal
    Vehicle:
    '12 White Tacoma DCLB 4x4
    TRD Supercharger, URD CAI, BRP pre-axle catback, Anytime Rearview Camera mod, Power Sliding rear window, Glassworks Unlimited Front Fenders, ScS Stealth 6 wheels, Nitto Terra Grapplers 285/70/17, 3" All-Pro Std Leafs, 2.0 Fox adj. res. shocks, 2.5 Fox res. Coilovers, All-Pro +2" LT kit, Timbren Bumpstops front and rear, All-Pro U-Bolt flip kit, Pelfreybilt Hybrid front bumper, RCI IFS Skid, RCI Sliders, more to come.....
    I did that and it didnt work....maybe ill look at it again and see if i missed something

  15. Apr 8, 2013 at 6:59 AM
    #35
    OmegaQuest

    OmegaQuest Well-Known Member

    Joined:
    Aug 10, 2011
    Member:
    #61464
    Messages:
    190
    Gender:
    Male
    Maryland
    Vehicle:
    2013 Tacoma Limited Double Cab 4X4
    Oil Catch Can, Motorcycle Chock, WeatherTech Window Deflectors, Bilstein 5100, OEM 4 Leaf, Chrome Satoshi Grille, FX-R Stage III Retrofit, Color Match Head Light Mod, Front Hella 500 HID, Behind Grill Light Bar, Rear LED Bed Lights, Pop and Lock Tailgate, Chrome License Plate Covers, AFE Air Filter, Removed Secondary Air Filter, Paint engine cover (Red), ImMrYo Rear-View Mirror Lift Bracket, Center Console Organizer, ScanGauge 2, Firestone W217602407 Ride-Rite Kit, Firestone WR17602178 Air-Rite Dual Electric Air Command

    I have the Homelinc system, and JBL with Entune and it only shows in the Mirror.

  16. Apr 9, 2013 at 3:54 AM
    #36
    Drakivnsf

    Drakivnsf Dance Party Guru

    Joined:
    Apr 2, 2013
    Member:
    #101128
    Messages:
    349
    Gender:
    Male
    Socal
    Vehicle:
    '12 White Tacoma DCLB 4x4
    TRD Supercharger, URD CAI, BRP pre-axle catback, Anytime Rearview Camera mod, Power Sliding rear window, Glassworks Unlimited Front Fenders, ScS Stealth 6 wheels, Nitto Terra Grapplers 285/70/17, 3" All-Pro Std Leafs, 2.0 Fox adj. res. shocks, 2.5 Fox res. Coilovers, All-Pro +2" LT kit, Timbren Bumpstops front and rear, All-Pro U-Bolt flip kit, Pelfreybilt Hybrid front bumper, RCI IFS Skid, RCI Sliders, more to come.....
    Then i have no clue what the factor is at all.

  17. Apr 10, 2013 at 12:39 PM
    #37
    Drakivnsf

    Drakivnsf Dance Party Guru

    Joined:
    Apr 2, 2013
    Member:
    #101128
    Messages:
    349
    Gender:
    Male
    Socal
    Vehicle:
    '12 White Tacoma DCLB 4x4
    TRD Supercharger, URD CAI, BRP pre-axle catback, Anytime Rearview Camera mod, Power Sliding rear window, Glassworks Unlimited Front Fenders, ScS Stealth 6 wheels, Nitto Terra Grapplers 285/70/17, 3" All-Pro Std Leafs, 2.0 Fox adj. res. shocks, 2.5 Fox res. Coilovers, All-Pro +2" LT kit, Timbren Bumpstops front and rear, All-Pro U-Bolt flip kit, Pelfreybilt Hybrid front bumper, RCI IFS Skid, RCI Sliders, more to come.....
    Ok everyone, sorry it took me so long to get back to you work can be a pain in the butt. I updated the write up and it is all corrected now. Works flawlessly, thank you caribe makaira for the advice. I updated the video post as well for anyone interested! Is there anyway of adding this to the mods list so more people can see this post?

    Last edited: Apr 10, 2013
  18. Apr 10, 2013 at 3:41 PM
    #38
    nut

    nut [OP] she'll ride

    Joined:
    Nov 6, 2011
    Member:
    #66555
    Messages:
    1,615
    Gender:
    Male
    First Name:
    Patrick
    Currently Richmond, VA
    Vehicle:
    Totaled
    TRD SKEWP DCSB 4x4 Silver Mica | URD TCAI/MAF CAL | BHLM | GrillCraft | FF Sliders | LED's All Around | 12v Constant On | EGR In Channel | 15% Tint | Trimmed mud flaps | Fog Light Anytime Mod | Debadged | Tailgate Hoseclamp | DTRL Switch | Disabled Lock Beep/Seatbelt Chime | Husky Liners | HID's | BedRug | WO Seat Covers | ABS Kill Switch | Oil Catch Can | Viper 5704 | Custom Carbon Cabin Filter | Backup Camera Anytime | 400W Anytime | In Cab Outlet W/USB | Firestone Ride Rites | Ams Oil All Around | 32" LED In Lower Grill | BlackVue DR500GW-HD |
    will this method work for NON-jbl?

  19. Apr 10, 2013 at 3:52 PM
    #39
    Jetman1979

    Jetman1979 Well-Known Member

    Joined:
    Apr 1, 2013
    Member:
    #101109
    Messages:
    122
    Gender:
    Male
    First Name:
    Michael
    North Texas
    Vehicle:
    2009 tacoma 4X4
    I am not looking to do this mod howevef I did find very usefull the pictures of were all the ECUs are located on the taco. I assume they are in the same spots for a 2009.

  20. Apr 10, 2013 at 3:56 PM
    #40
    Drakivnsf

    Drakivnsf Dance Party Guru

    Joined:
    Apr 2, 2013
    Member:
    #101128
    Messages:
    349
    Gender:
    Male
    Socal
    Vehicle:
    '12 White Tacoma DCLB 4x4
    TRD Supercharger, URD CAI, BRP pre-axle catback, Anytime Rearview Camera mod, Power Sliding rear window, Glassworks Unlimited Front Fenders, ScS Stealth 6 wheels, Nitto Terra Grapplers 285/70/17, 3" All-Pro Std Leafs, 2.0 Fox adj. res. shocks, 2.5 Fox res. Coilovers, All-Pro +2" LT kit, Timbren Bumpstops front and rear, All-Pro U-Bolt flip kit, Pelfreybilt Hybrid front bumper, RCI IFS Skid, RCI Sliders, more to come.....
    to be honest I do not know if it is the same for a non-jbl or not. I would suggest testing the wire with a volt meter on yours to see. If it is, then your golden. 12v in reverse, 0v when in park or any other position.

    I want to say yes, but my truck is a 2012 entune equipped model. So things may be located in different spots or not I do not know. Sorry I couldn't help you with this.

    Last edited: Apr 10, 2013
