2020 bed LED light wiring

Discussion in 'Lighting' started by TOOL Qc, Jan 12, 2020.

  1. Jan 12, 2020 at 4:47 PM
    #1
    TOOL Qc

    TOOL Qc [OP] Active Member

    Joined:
    Dec 17, 2019
    Member:
    #313532
    Messages:
    38
    Gender:
    Male
    Vehicle:
    2020 TRD Sport Cement grey manual
    Hi there!

    First, thank you all for all the information on this site for the past year, it made my life easier to by my first truck, a 2020 Tacoma TRD Sport manual Cement Grey.

    Subject:

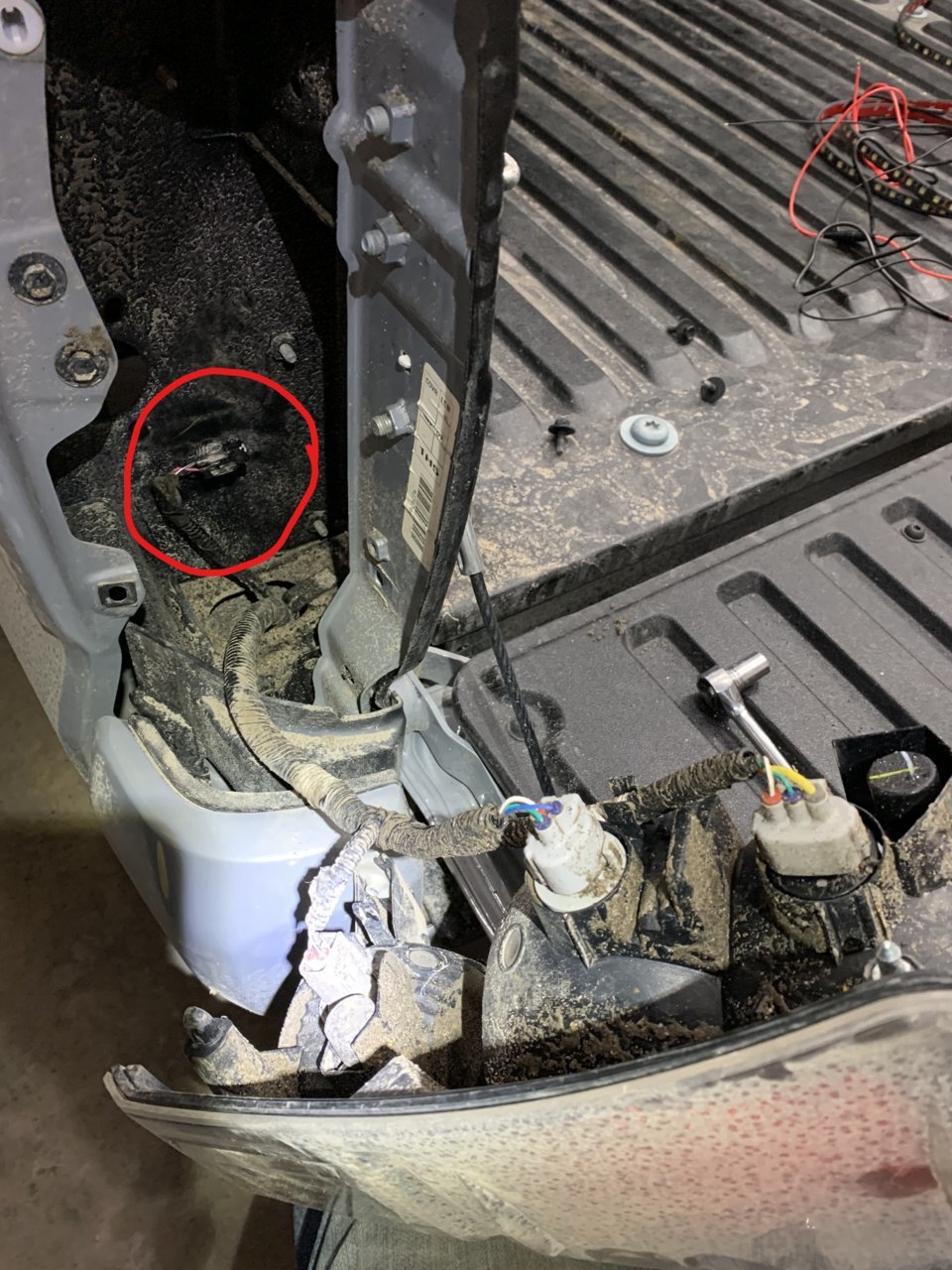

    So, I bought LED strips for my truck bed and I was going to use the switch that came with it. While looking at the best route to run my wires, I remembered that some 2020 models came with the bed side lights. When removing my tail light, I noticed 2 wires with a connector and it was plugged to a "dummy" female connector to seal it. Haven't tested it yet, but it as to be for the bed lights.

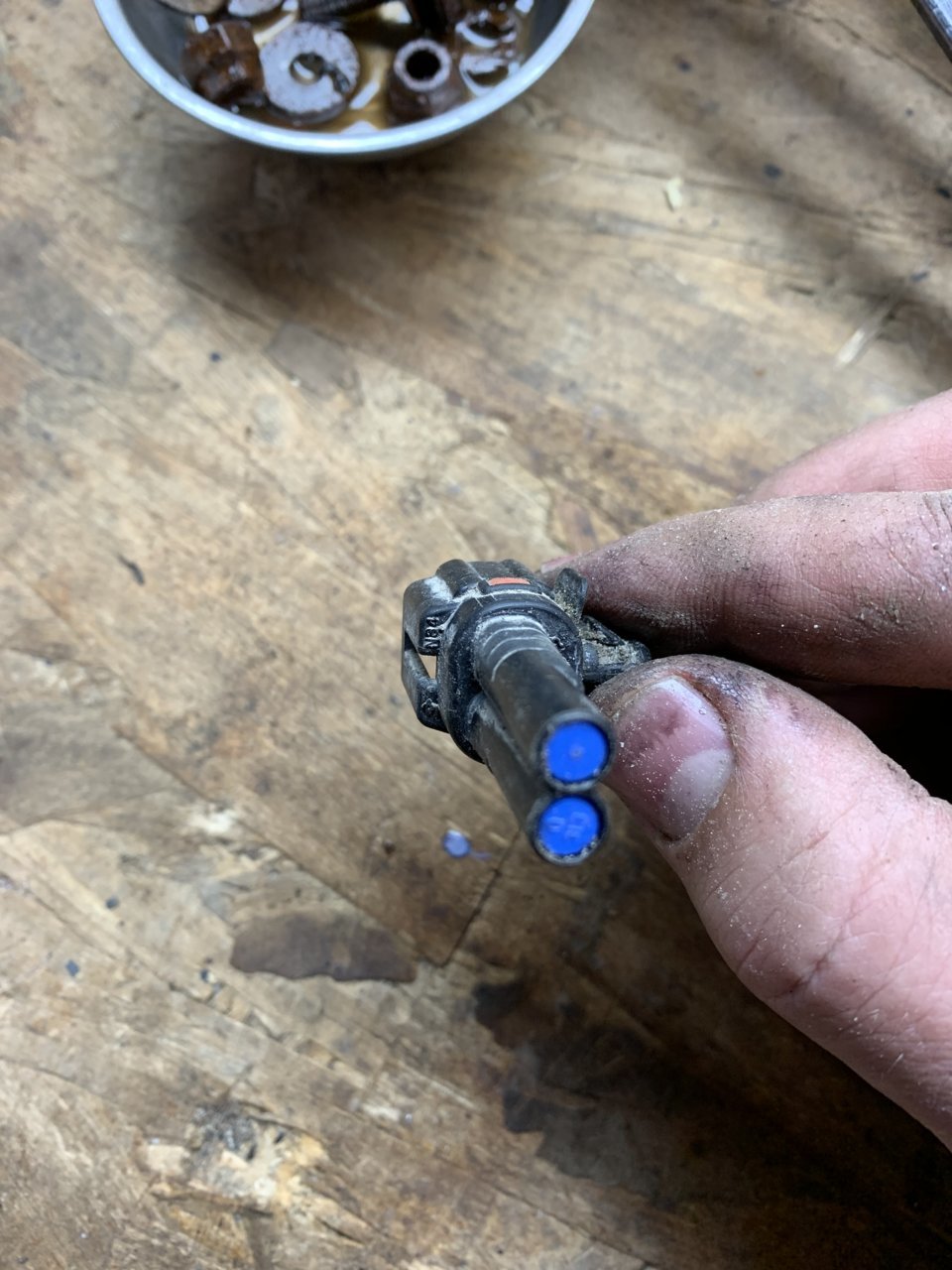

    LED light cap
    bed light cap.jpg


    LED light connector?
    Goal:
    The idea is to plug the LED strips to the factory LED bed connector to operate with the Cargo switch light.

    Questions:
    Can this "dummy" connector be used for the LED strip side in order to plug in the truck male connector?
    If yes, anyone would know how to remove those blue caps and insert the wires, etc?

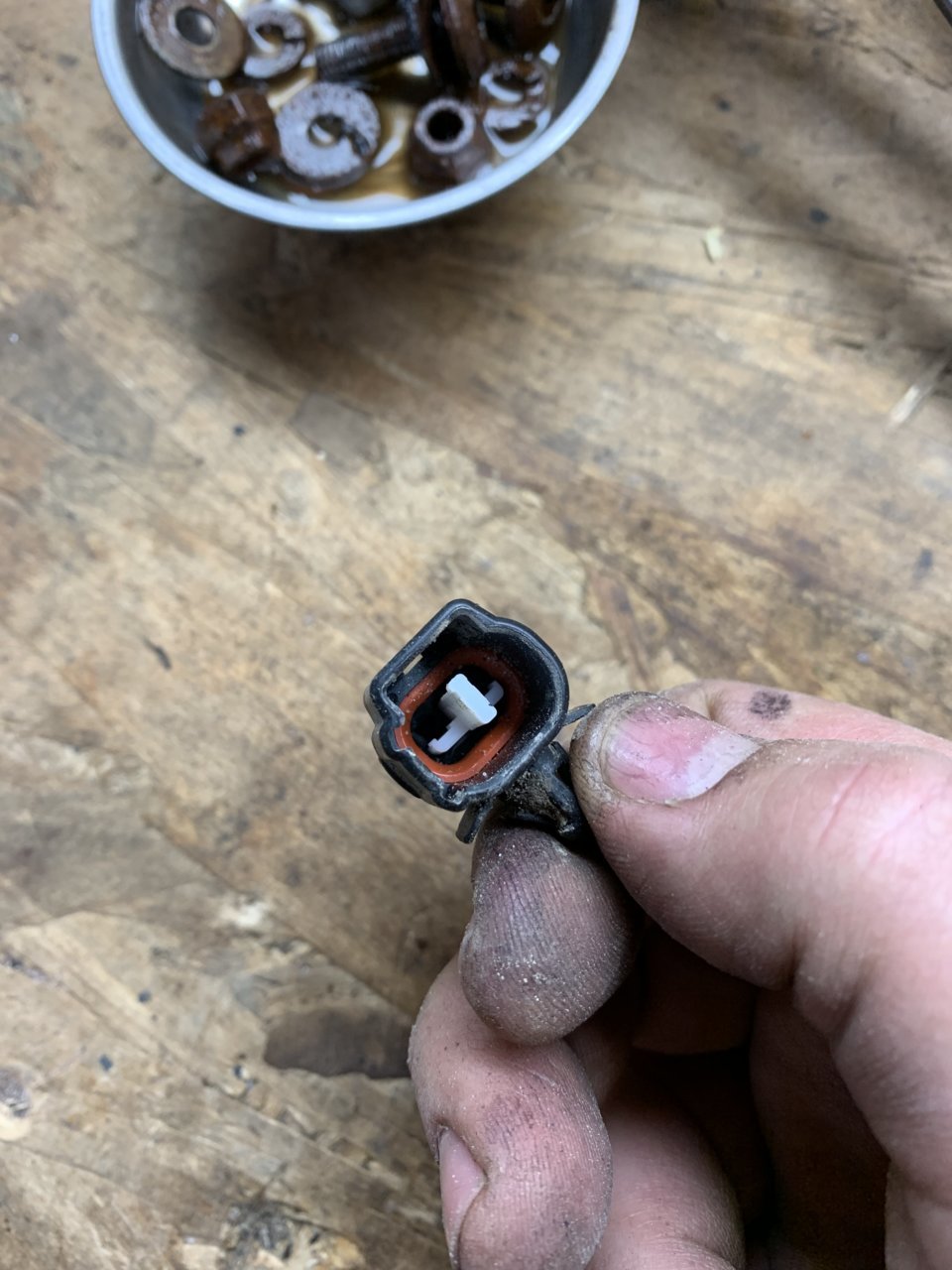

    Inside the plug, the white plastic tab can be pulled loose... not to sure what it does.

    "dummy" female connector

    otherwise I know I can snip the connector and use aftermarket ones. I just preferred not sniping anything for now.

    Any advice would be really appreciated.
    Thanks!
    TOOL

    Last edited: Jan 12, 2020
  2. Jan 15, 2020 at 7:43 PM
    #2
    TOOL Qc

    TOOL Qc [OP] Active Member

    Joined:
    Dec 17, 2019
    Member:
    #313532
    Messages:
    38
    Gender:
    Male
    Vehicle:
    2020 TRD Sport Cement grey manual
    No one knows if that connector can be used?

  3. Jan 15, 2020 at 10:12 PM
    #3
    caribe makaira

    caribe makaira Well-Known Member

    Joined:
    Feb 13, 2011
    Member:
    #51121
    Messages:
    3,511
    Gender:
    Male
    Caribbean, Puerto Rico
    Vehicle:
    05 PreRunner TRD Offroad AutoTrans
    Hood Struts, My version Fogs always ON, Map & Overhead Light Mod,
    It can...the blue plugs just push out, do it from inside. The white portion inside is the locking bar for the terminals.

  4. Jan 16, 2020 at 5:28 PM
    #4
    TOOL Qc

    TOOL Qc [OP] Active Member

    Joined:
    Dec 17, 2019
    Member:
    #313532
    Messages:
    38
    Gender:
    Male
    Vehicle:
    2020 TRD Sport Cement grey manual
  5. Jan 16, 2020 at 5:36 PM
    #5
    caribe makaira

    caribe makaira Well-Known Member

    Joined:
    Feb 13, 2011
    Member:
    #51121
    Messages:
    3,511
    Gender:
    Male
    Caribbean, Puerto Rico
    Vehicle:
    05 PreRunner TRD Offroad AutoTrans
    Hood Struts, My version Fogs always ON, Map & Overhead Light Mod,

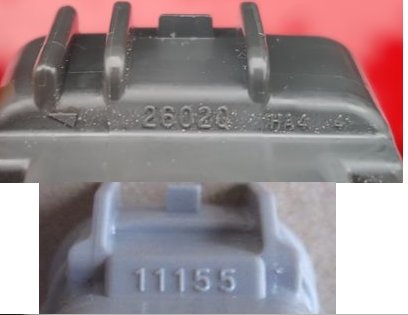

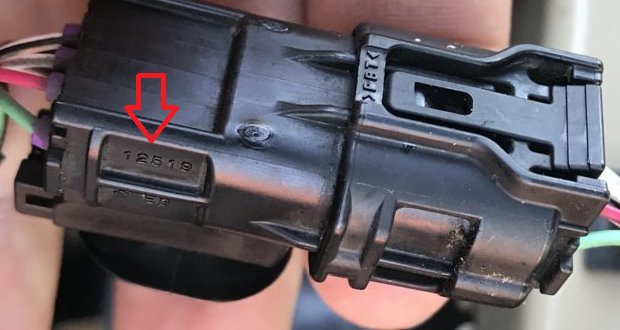

    The tailgate connector is different but might use the same terminals. Take a look carefully close, there should be some (x5) numbers on the connectors.
    Similar to this:


    Last edited: Jan 16, 2020
  6. Jan 21, 2020 at 4:37 PM
    #6
    TOOL Qc

    TOOL Qc [OP] Active Member

    Joined:
    Dec 17, 2019
    Member:
    #313532
    Messages:
    38
    Gender:
    Male
    Vehicle:
    2020 TRD Sport Cement grey manual
    thanks caribe makaira!
    the 5 digits number is not the same as the other one...

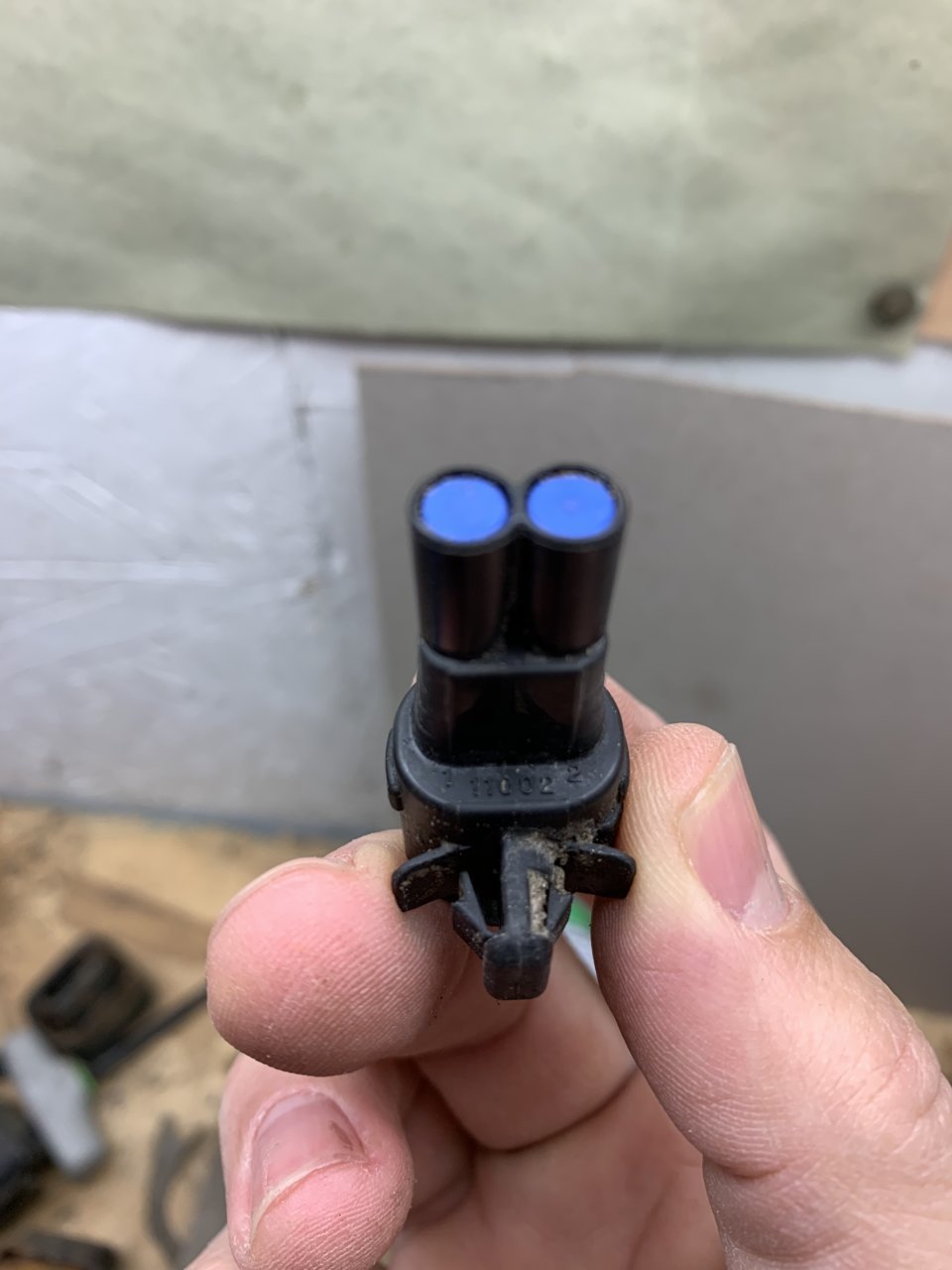

    The one I'm concern with is #11002
    I can also notice a small N34
    led connector.jpg

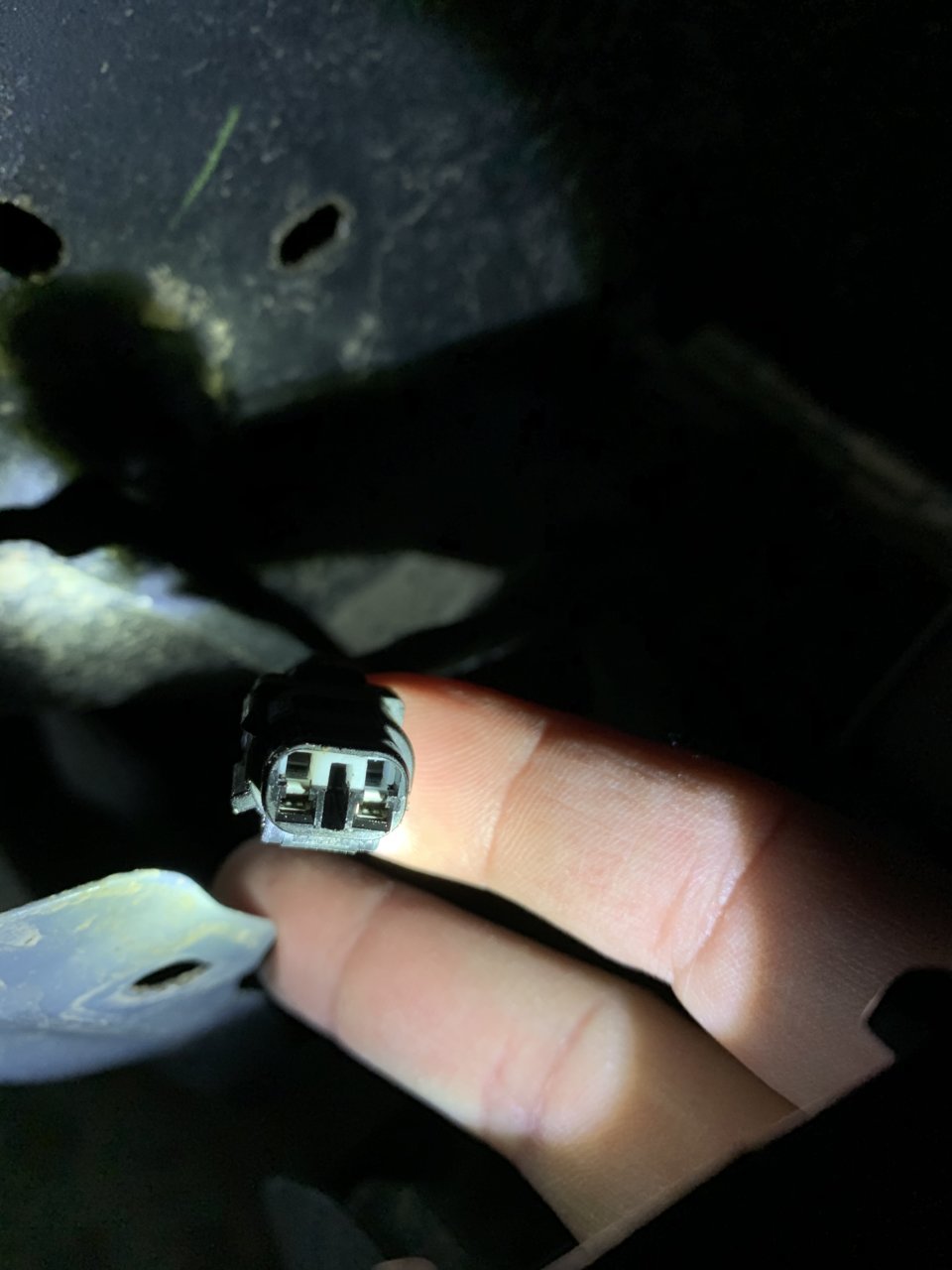

    not to sure if they use the same, but at looking at the picture of the pin for the powerlock harness and the female connector under, they don't seem to match.
    led female connector.jpg
    I just found an electronic shop around, I might drop by and ask.
    Toyota can order the pin but they come with a small wire already connected and they charge something like 15$cdn per terminals!?? lol

    If anyone have any tips, feel free to comment! :)

  7. Jan 21, 2020 at 4:47 PM
    #7
    caribe makaira

    caribe makaira Well-Known Member

    Joined:
    Feb 13, 2011
    Member:
    #51121
    Messages:
    3,511
    Gender:
    Male
    Caribbean, Puerto Rico
    Vehicle:
    05 PreRunner TRD Offroad AutoTrans
    Hood Struts, My version Fogs always ON, Map & Overhead Light Mod,

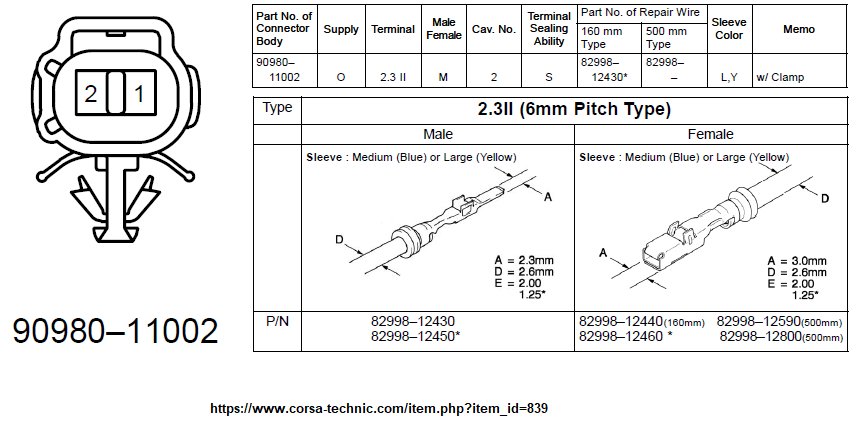

  8. Jan 21, 2020 at 4:51 PM
    #8
    TOOL Qc

    TOOL Qc [OP] Active Member

    Joined:
    Dec 17, 2019
    Member:
    #313532
    Messages:
    38
    Gender:
    Male
    Vehicle:
    2020 TRD Sport Cement grey manual
    whoaaaa... really!? not sure how you puled this, but THANK YOU!!!
    once I gather all the material I'll try to make a clean tread if anyone would like to add any lighting to their bed using the cargo switch, etc...
    Thanks again!!! :)

    buckwheeat likes this.
  9. Jan 21, 2020 at 4:56 PM
    #9
    caribe makaira

    caribe makaira Well-Known Member

    Joined:
    Feb 13, 2011
    Member:
    #51121
    Messages:
    3,511
    Gender:
    Male
    Caribbean, Puerto Rico
    Vehicle:
    05 PreRunner TRD Offroad AutoTrans
    Hood Struts, My version Fogs always ON, Map & Overhead Light Mod,

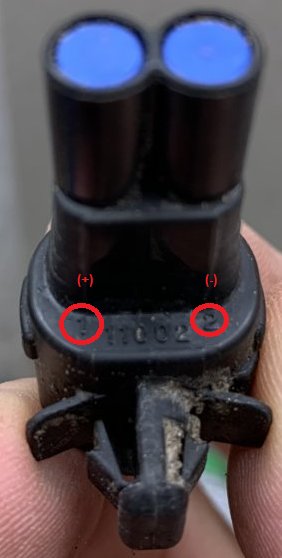

  10. Jan 21, 2020 at 4:59 PM
    #10
    caribe makaira

    caribe makaira Well-Known Member

    Joined:
    Feb 13, 2011
    Member:
    #51121
    Messages:
    3,511
    Gender:
    Male
    Caribbean, Puerto Rico
    Vehicle:
    05 PreRunner TRD Offroad AutoTrans
    Hood Struts, My version Fogs always ON, Map & Overhead Light Mod,

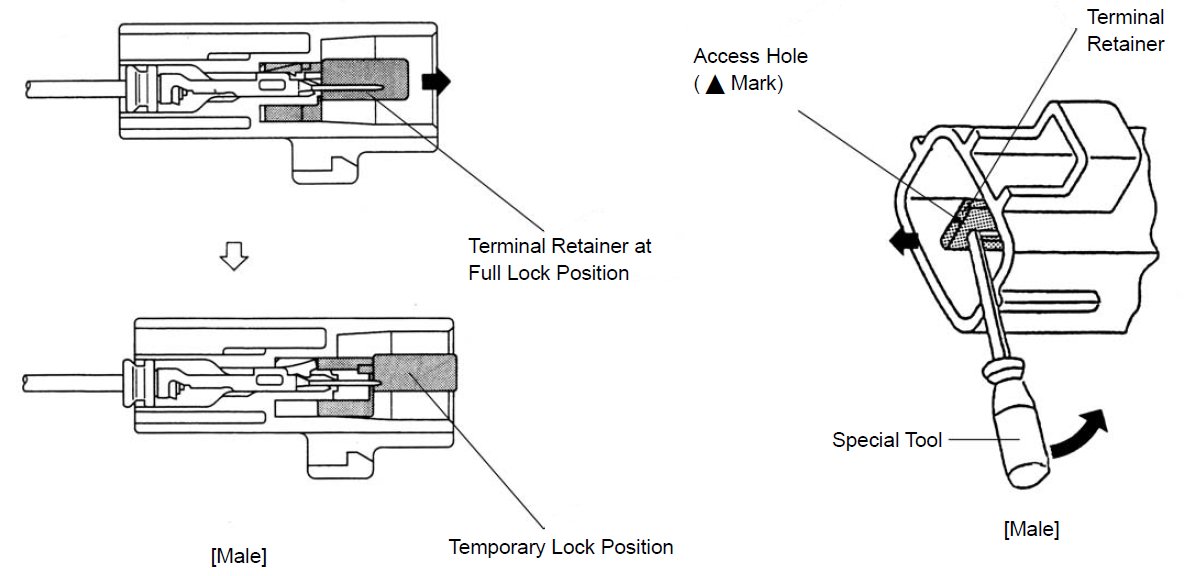

  11. Jan 21, 2020 at 5:03 PM
    #11
    caribe makaira

    caribe makaira Well-Known Member

    Joined:
    Feb 13, 2011
    Member:
    #51121
    Messages:
    3,511
    Gender:
    Male
    Caribbean, Puerto Rico
    Vehicle:
    05 PreRunner TRD Offroad AutoTrans
    Hood Struts, My version Fogs always ON, Map & Overhead Light Mod,
  12. Jan 21, 2020 at 5:14 PM
    #12
    TOOL Qc

    TOOL Qc [OP] Active Member

    Joined:
    Dec 17, 2019
    Member:
    #313532
    Messages:
    38
    Gender:
    Male
    Vehicle:
    2020 TRD Sport Cement grey manual
    oh, I would of forgot the seal I'm sure.
    looking into ordering it all, I just hope they ship to Canada...
    thanks for the above instructions!

  13. Jan 30, 2020 at 7:44 PM
    #13
    TRD Quoc

    TRD Quoc Active Member

    Joined:
    Jan 18, 2020
    Member:
    #316499
    Messages:
    26
    Gender:
    Male
    First Name:
    "Q"
    Vehicle:
    2020 Cement DCLB TRD-Offroad
    I’m commenting to follow the thread. I’m all about the OEM style plugs!

  14. Jan 31, 2020 at 3:52 AM
    #14
    TOOL Qc

    TOOL Qc [OP] Active Member

    Joined:
    Dec 17, 2019
    Member:
    #313532
    Messages:
    38
    Gender:
    Male
    Vehicle:
    2020 TRD Sport Cement grey manual
    Cool!
    Haven’t received the terminals yet. Package is in Chicago... still a couple miles from Quebec!
    I’ll see how it goes to use those plug and will report on it. Pics etc...
    Have a good one! ✌️

    buckwheeat likes this.
  15. Feb 1, 2020 at 8:31 PM
    #15
    tacograde

    tacograde Member

    Joined:
    Jan 12, 2020
    Member:
    #315879
    Messages:
    9
    Gender:
    Male
    Have you considered using the factory bed lights? I got mine for about $60 and it's plug and play. They are pretty bright and do a good job at night for illumination under the bed cover. If you don't have a bed cover it's really bright with the aft facing lights over the cab.

    NEIPA27 likes this.
  16. Feb 3, 2020 at 12:38 PM
    #16
    TOOL Qc

    TOOL Qc [OP] Active Member

    Joined:
    Dec 17, 2019
    Member:
    #313532
    Messages:
    38
    Gender:
    Male
    Vehicle:
    2020 TRD Sport Cement grey manual
    Yes... I came accross another thread where it was mentionne they were around 80$us. Meaning over 100$cdn.
    Maybe I should of check first.
    But under 30$cdn and the strip may have a better lighting under my toneau cover if the bed as a lot of stuff in it...
    I don’t know.
    Prefer the stock look and less trouble, but might like the led strip for the price.
    Terminals are still not here...

    NEIPA27 likes this.
  17. Feb 28, 2020 at 8:55 AM
    #17
    NEIPA27

    NEIPA27 Well-Known Member

    Joined:
    Nov 5, 2019
    Member:
    #309890
    Messages:
    102
    Gender:
    Male
    Florida
    Vehicle:
    2020 OR
    Did your bed lights come in yet?

  18. Feb 28, 2020 at 10:07 AM
    #18
    TOOL Qc

    TOOL Qc [OP] Active Member

    Joined:
    Dec 17, 2019
    Member:
    #313532
    Messages:
    38
    Gender:
    Male
    Vehicle:
    2020 TRD Sport Cement grey manual
  19. Feb 28, 2020 at 10:11 AM
    #19
    TOOL Qc

    TOOL Qc [OP] Active Member

    Joined:
    Dec 17, 2019
    Member:
    #313532
    Messages:
    38
    Gender:
    Male
    Vehicle:
    2020 TRD Sport Cement grey manual
    And by the way, I really like the light output from the LED strip!
    Even with the cover on and a lot of items in the bed, you can see clear all the way to the end.
    More trouble then buying the OE lights, but a different lighting for a little cheaper.

  20. Feb 28, 2020 at 10:52 AM
    #20
    TRD Quoc

    TRD Quoc Active Member

    Joined:
    Jan 18, 2020
    Member:
    #316499
    Messages:
    26
    Gender:
    Male
    First Name:
    "Q"
    Vehicle:
    2020 Cement DCLB TRD-Offroad
    FYI, for those with a 2020, just buy the bed light kit, and it comes with harnesses to attach to the existing harness. I did it in like 2 min

    NEIPA27 likes this.
