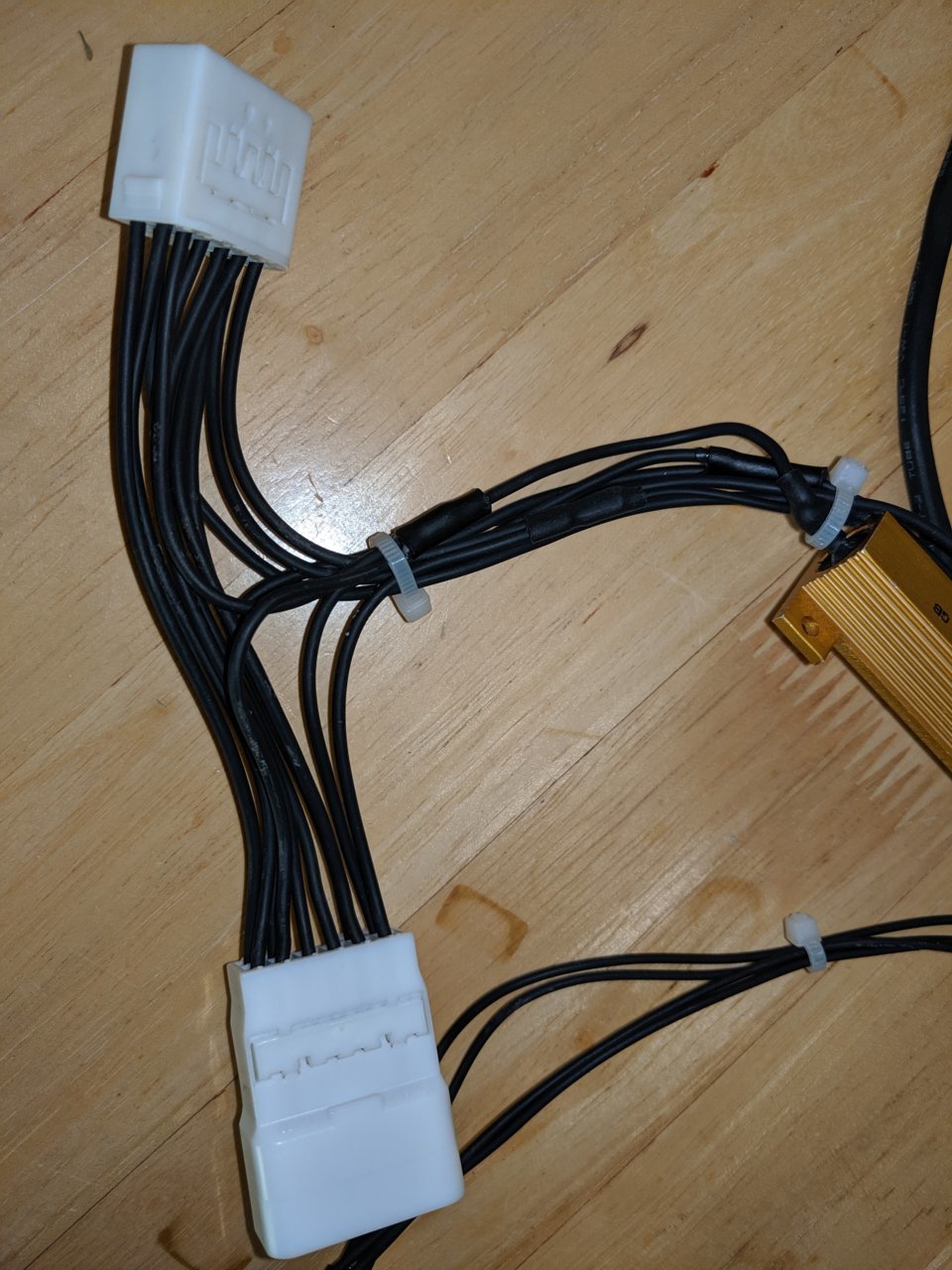

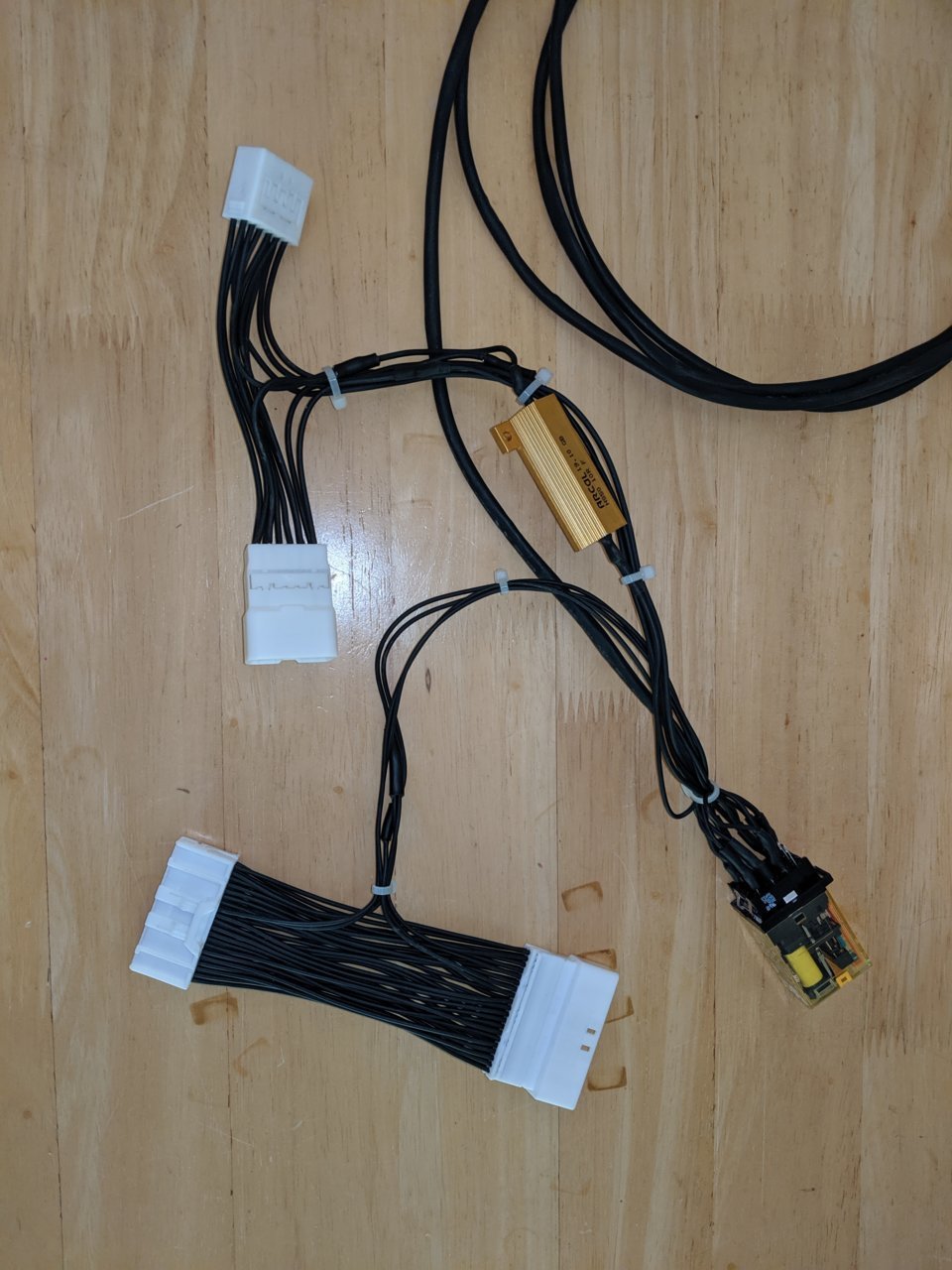

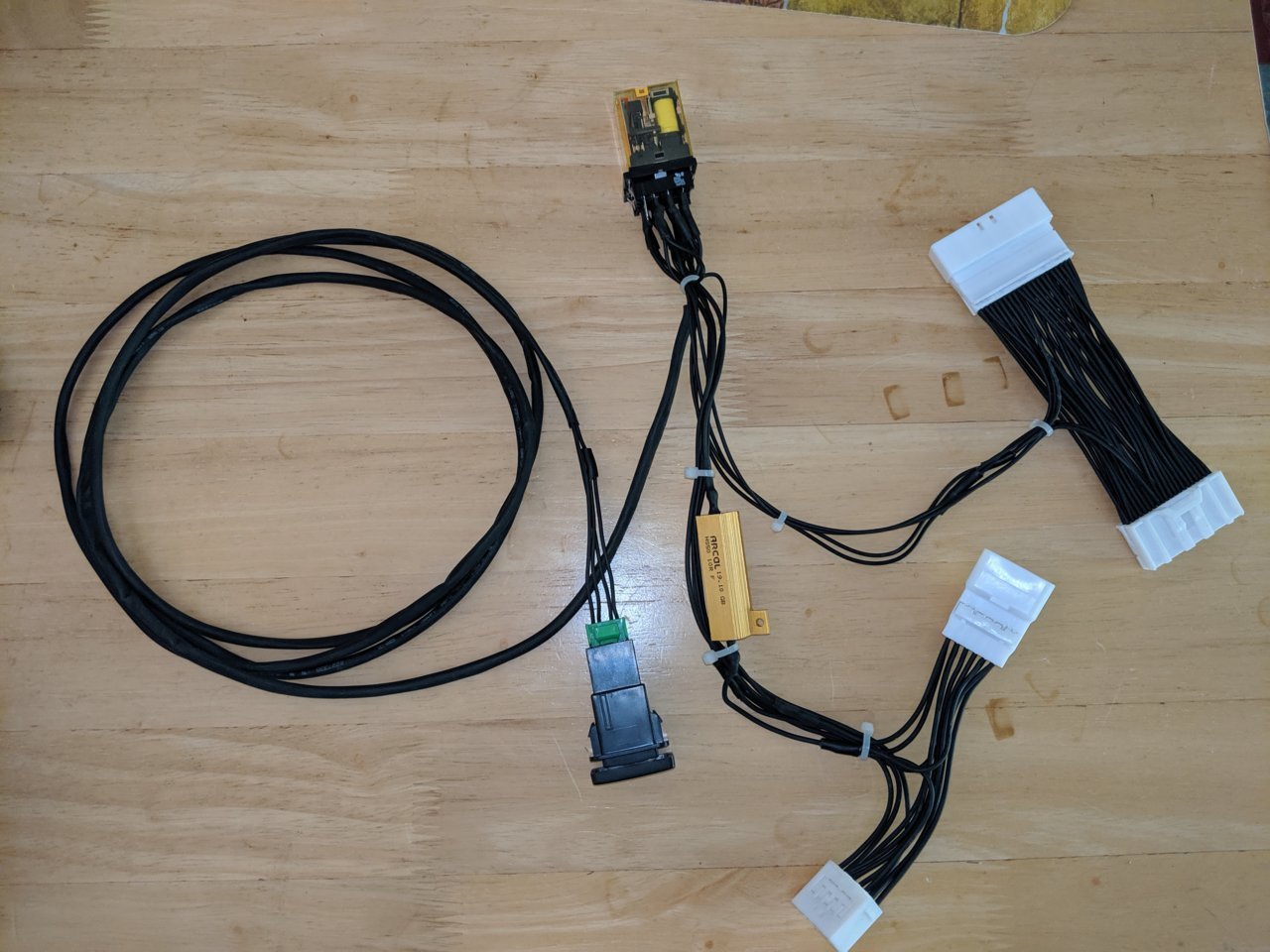

2LM PnP - Plug and play 2WD low range for the 3rd gen. Tacoma

Discussion in '3rd Gen Tacoma Parts Marketplace (2016-2023)' started by lapoltba, Jun 15, 2019.

Page 3 of 99
  1. Jun 19, 2019 at 7:07 AM
    #41
    VirusCage

    #41
    VirusCage Overwhelmed with fun

    Joined:
    Jul 5, 2017
    Member:
    #223232
    Messages:
    1,468
    Gender:
    Male
    First Name:
    Bruce
    Allison Park, PA
    Vehicle:
    2017 TRD Sport DCSB 6MT 2015 Highlander XLE
    Hood deflector, window vent visors, stainless steps, kb voodoo bedrack, bed cubby cap seals, meso ext fuse cover, meso lower switch panel, 4xhella horns, power tray aux panel, 2wd lo mod, rear FU lights, bed led lights, BPF SKID and Hook, rear view mirror usb power ports, front and rear dash cam, front and rear cam anytime mod, cherry air freshener! Anytime 400watt, inside 110v outlet, BPF Skid plate, BPF shackle mount,
    I completed the google form on Monday, but I havent received an email/invoice. I realize you are busy and only doing this in spare time, just wanted to check in here as well.

    VirusCage, Jun 19, 2019
    #41
  2. Jun 19, 2019 at 7:24 AM
    #42
    lapoltba

    #42
    lapoltba [OP] Full Bridge Rectifier

    Joined:
    Aug 28, 2014
    Member:
    #137089
    Messages:
    3,346
    Gender:
    Male
    CT - 06076
    Vehicle:
    '17 Sport, ACLB, V6,MT, 04B14 OV-Tuned

    Only pre-orders (on the list in the first post) have gotten payment info. I will be sending out info to general orders this weekend.

    I do have your info though.

    lapoltba, Jun 19, 2019
    #42
  3. Jun 19, 2019 at 7:29 AM
    #43
    VirusCage

    #43
    VirusCage Overwhelmed with fun

    Joined:
    Jul 5, 2017
    Member:
    #223232
    Messages:
    1,468
    Gender:
    Male
    First Name:
    Bruce
    Allison Park, PA
    Vehicle:
    2017 TRD Sport DCSB 6MT 2015 Highlander XLE
    Hood deflector, window vent visors, stainless steps, kb voodoo bedrack, bed cubby cap seals, meso ext fuse cover, meso lower switch panel, 4xhella horns, power tray aux panel, 2wd lo mod, rear FU lights, bed led lights, BPF SKID and Hook, rear view mirror usb power ports, front and rear dash cam, front and rear cam anytime mod, cherry air freshener! Anytime 400watt, inside 110v outlet, BPF Skid plate, BPF shackle mount,
    No problem at all. Thanks again!

    VirusCage, Jun 19, 2019
    #43
  4. Jun 19, 2019 at 5:56 PM
    #44
    jmsdad

    #44
    jmsdad New Member

    Joined:
    Jul 27, 2018
    Member:
    #260767
    Messages:
    4
    Gender:
    Male

    Question on the "small" and "large" switch...I don't have any room/open slots below the HVAC controls.

    [​IMG]


    Will your "large" switch fit here, next to the AUTO light switch?

    [​IMG]

    jmsdad, Jun 19, 2019
    #44
  5. Jun 19, 2019 at 5:58 PM
    #45
    lapoltba

    #45
    lapoltba [OP] Full Bridge Rectifier

    Joined:
    Aug 28, 2014
    Member:
    #137089
    Messages:
    3,346
    Gender:
    Male
    CT - 06076
    Vehicle:
    '17 Sport, ACLB, V6,MT, 04B14 OV-Tuned

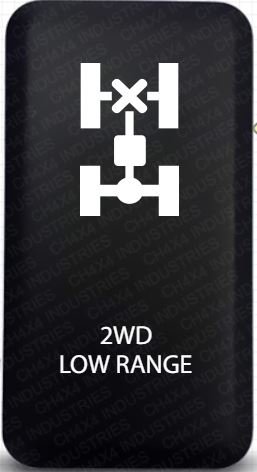

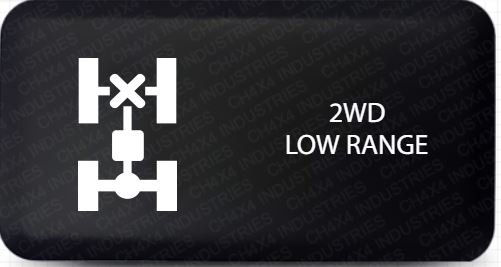

    Yep, the blank you have on the right is the "large" switch.

    lapoltba, Jun 19, 2019
    #45
  6. Jun 19, 2019 at 10:23 PM
    #46
    Shellshock

    #46
    Shellshock King Shit of Turd Island

    Joined:
    Nov 21, 2015
    Member:
    #170338
    Messages:
    23,413
    Iowa
    Vehicle:
    2019 Tundra TRD PRO / 2024 GRC Circuit
    This would be my preference as well.

    Shellshock, Jun 19, 2019
    #46
    doublethebass likes this.
  7. Jun 20, 2019 at 3:35 AM
    #47
    Ruggybuggy

    #47
    Ruggybuggy Well-Known Member

    Joined:
    Oct 11, 2015
    Member:
    #166403
    Messages:
    3,177
    Gender:
    Male
    NW ONT, CANADA
    Vehicle:
    2020 Tundra SX
    X2

    Ruggybuggy, Jun 20, 2019
    #47
    doublethebass likes this.
  8. Jun 20, 2019 at 4:14 AM
    #48
    BigWhiteTRD

    #48
    BigWhiteTRD Official thread killer (only crickets remain)

    Joined:
    May 24, 2017
    Member:
    #219848
    Messages:
    1,673
    Gender:
    Male
    First Name:
    Ted
    Treasure/Space Coast Florida
    Vehicle:
    2017 AC TRD OR Auto 4wd, 2012 AC SR5 4.0 MT 4wd

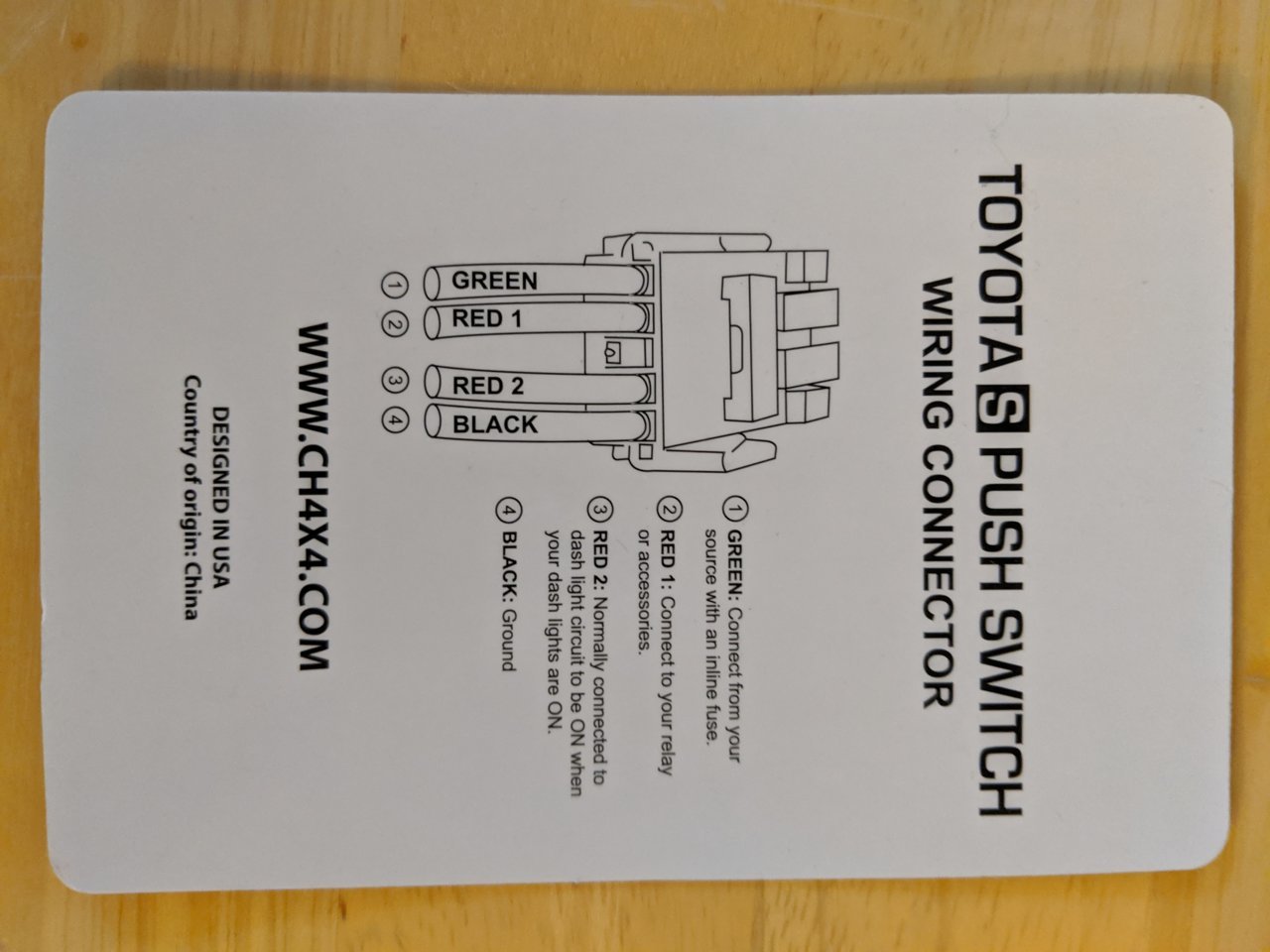

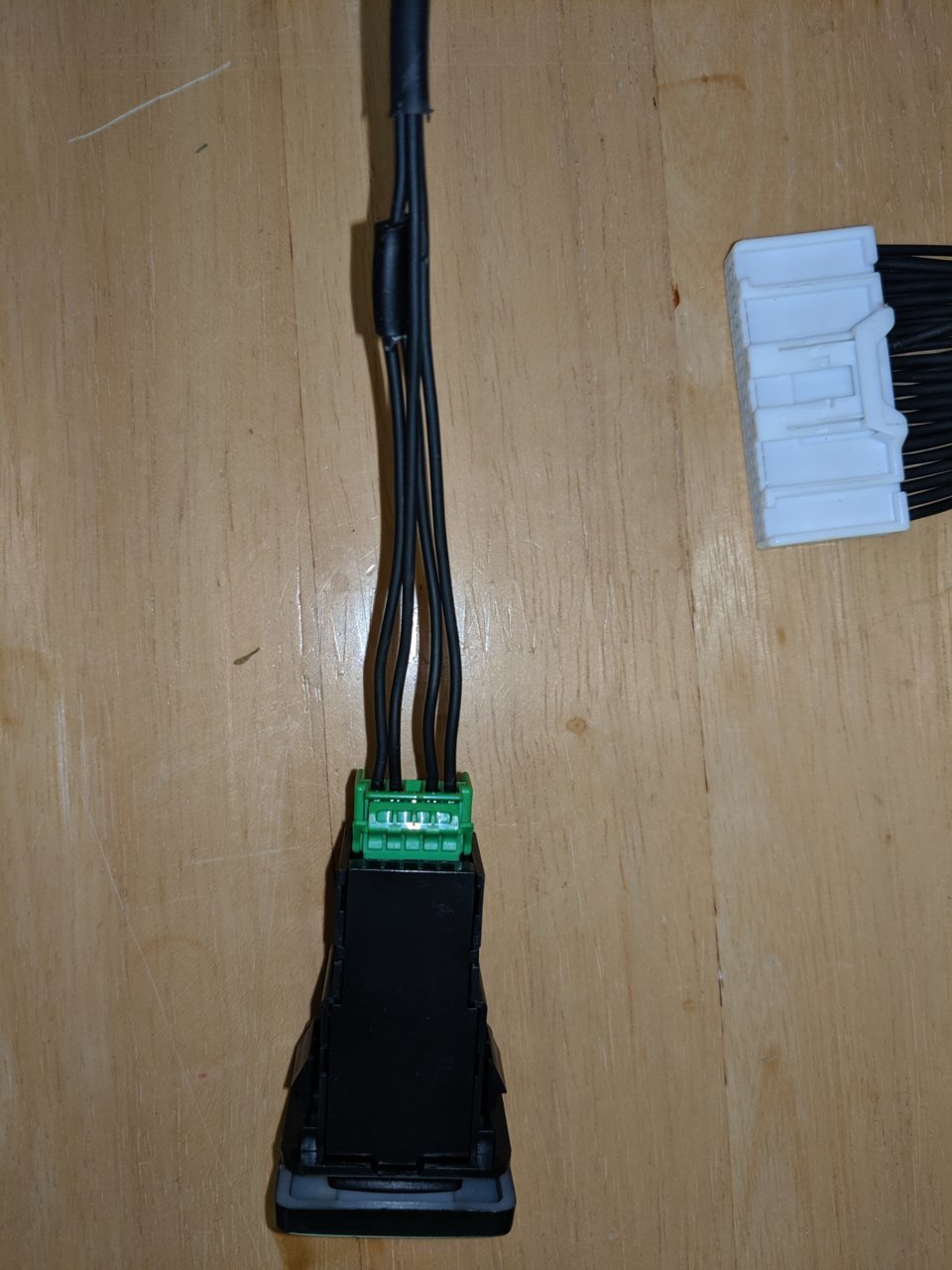

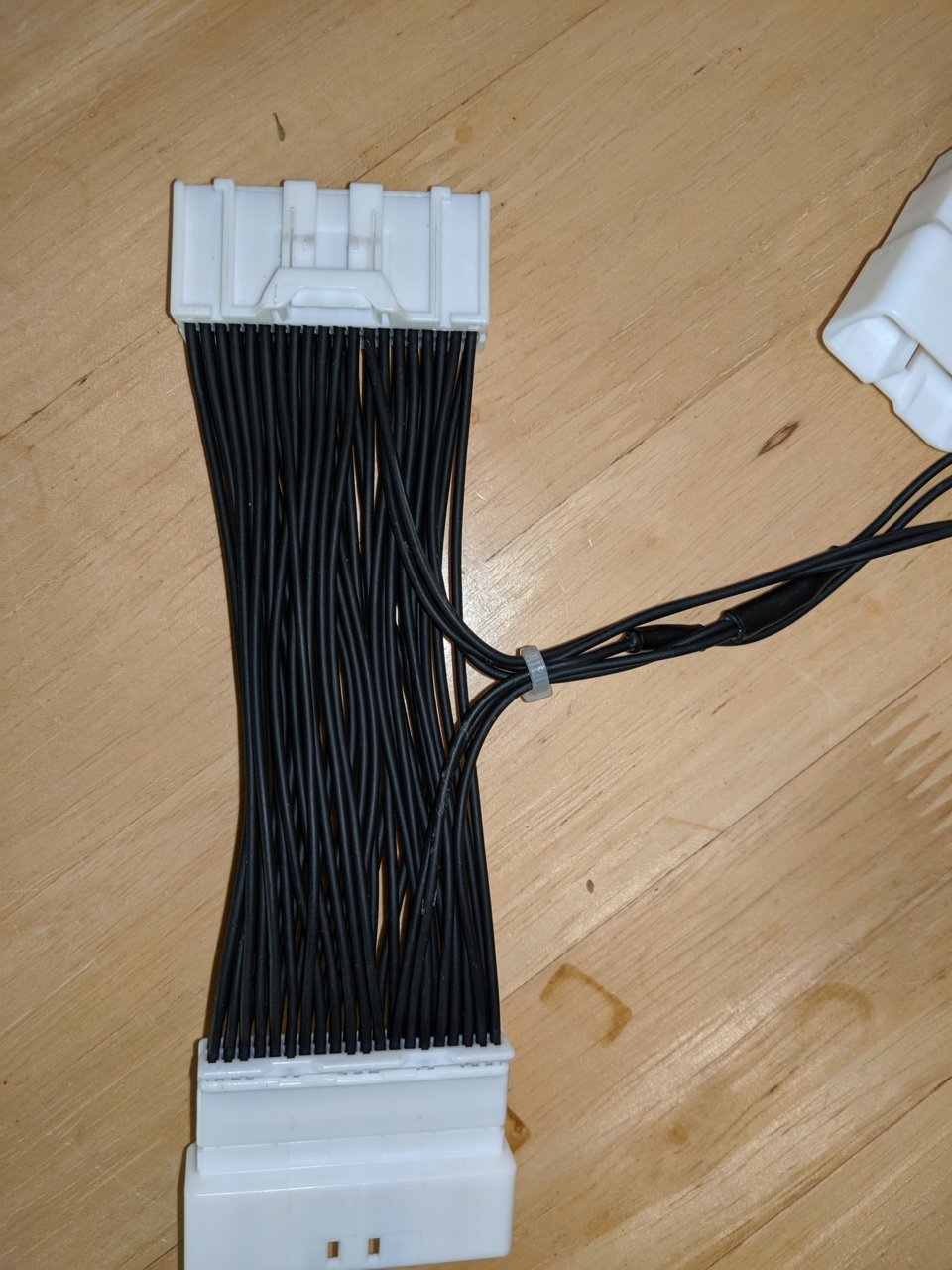

    From my notes, I believe the harness will come with a splice between the pin 1 and pin 3 to make the text always illuminate.

    To make the text never light up (but upper figure on switch will still light when active), then just cut the splice jumper and cap and stow those wires.

    To make the illumination of text and upper figure all tied to the button, remove existing splice 1 to 3 and re-splice pin 2 to pin 3 in the new harness.

    It would be a couple minute job on the bench.

    I THINK.

    BigWhiteTRD, Jun 20, 2019
    #48
    tonered likes this.
  9. Jun 20, 2019 at 4:28 AM
    #49
    Red Baron

    #49
    Red Baron Let's call it livabetes, no more die

    Joined:
    Nov 11, 2014
    Member:
    #142111
    Messages:
    5,700
    Gender:
    Male
    First Name:
    Aaron
    Lost on a roundabout
    Vehicle:
    07 Radiant Red DCSB
    Things with metal, dog hair, more metal and lights
    Red Baron, Jun 20, 2019
    #49
    johntoyota likes this.
  10. Jun 20, 2019 at 4:37 AM
    #50
    lapoltba

    #50
    lapoltba [OP] Full Bridge Rectifier

    Joined:
    Aug 28, 2014
    Member:
    #137089
    Messages:
    3,346
    Gender:
    Male
    CT - 06076
    Vehicle:
    '17 Sport, ACLB, V6,MT, 04B14 OV-Tuned

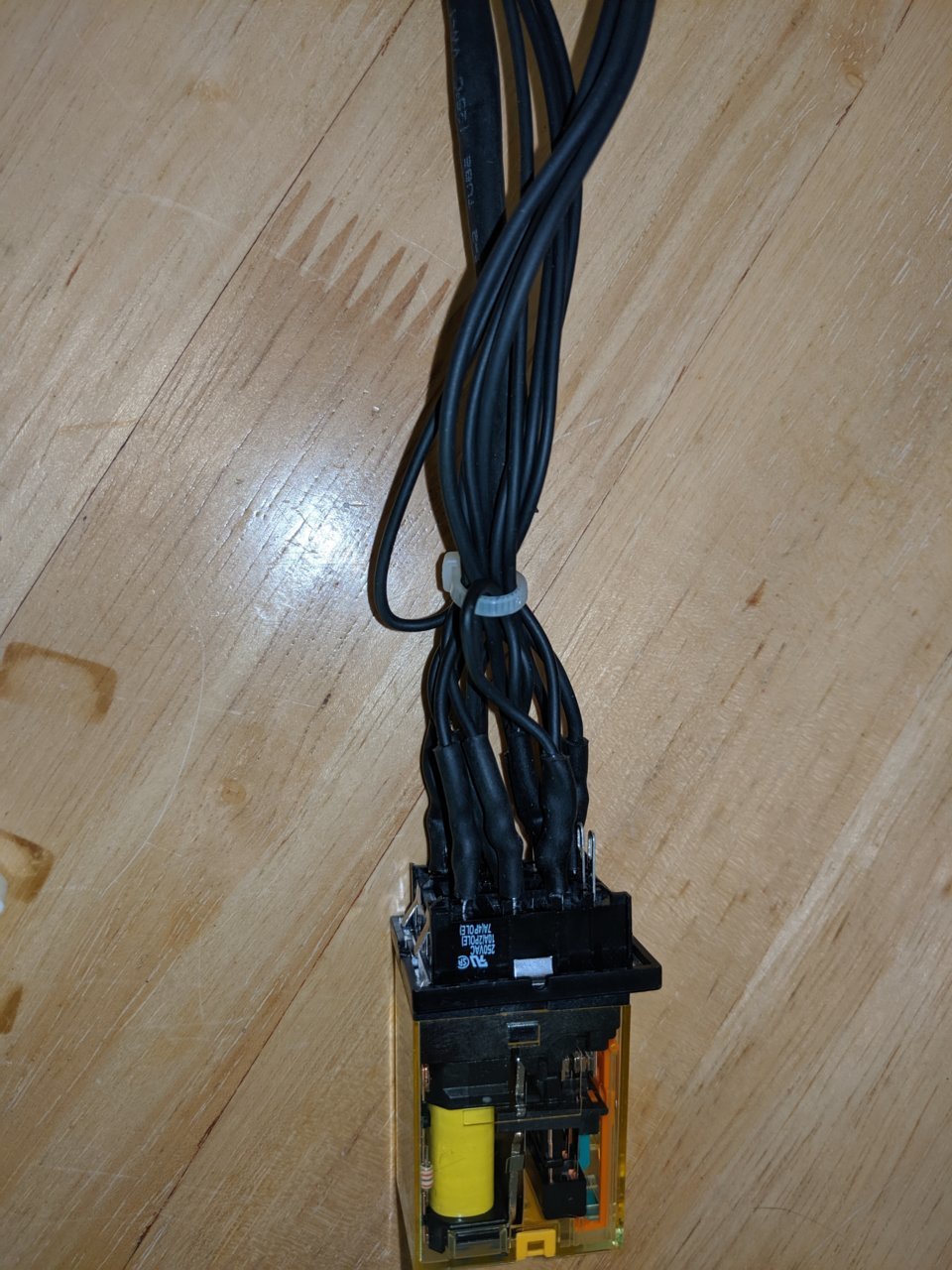

    I would have to double check, but that sounds about correct. I'll be adding it to the instructions as an optional modification for powering the LEDs. The odd thing with the way these switches are made, there is no way to get dimming of both LEDs. Only one of them is powered from the illumination pin. The other is taken directly from the +12V pin. Any clue what the minimum voltage of the IL circuit is? I was looking through the service manual and couldn't find any info. If it isn't too low, it would be possible to control the relay from it. The pickup voltage on these relays is about 9.5V and they only draw about 75mA.

    lapoltba, Jun 20, 2019
    #50
  11. Jun 20, 2019 at 6:23 AM
    #51
    BigWhiteTRD

    #51
    BigWhiteTRD Official thread killer (only crickets remain)

    Joined:
    May 24, 2017
    Member:
    #219848
    Messages:
    1,673
    Gender:
    Male
    First Name:
    Ted
    Treasure/Space Coast Florida
    Vehicle:
    2017 AC TRD OR Auto 4wd, 2012 AC SR5 4.0 MT 4wd

    Havent investigated that yet. Glancing at the schematics (at work...) leads me to think that 12V is applied to one side of the lighting circuit thru tail light relay, as soon as parking lights are on. The dimming seems to come on the ground side of the lighting circuit inside the combination meter.

    So there may be a way to work with this. (Maybe use the truck lighting ground for the new switch lighting ground? I dont know, just thinking out loud)

    Will try to post up schematic clippings of what I have found if I get a chance

    BigWhiteTRD, Jun 20, 2019
    #51
  12. Jun 20, 2019 at 6:25 AM
    #52
    pinochle

    #52
    pinochle GC8 Fanatic

    Joined:
    May 15, 2017
    Member:
    #219061
    Messages:
    1,456
    Gender:
    Male
    NNJ
    Vehicle:
    2018 TRDOR DCSB 4x4 6MT
    NFab Nerf Steps, Bakflip MX4, Profile 5500K HIDs, Kicker Tweeters, Toyota Bed Mat, XPEL Ultimate Paint Protection, Borla S-Type Catback Exhaust, ME-SO Customs Gasshole, ME-SO Customs Total Tails Stage 1, ME-SO Customs Ultimate LED Turn Signals V4, HELLA Supertones, OVTuned 2.0, 2LO Mod, 16x8 0mm Enkei RPT1 Wheels in Titanium Gold, Diode Dynamics SS3 Pro Foglights, K&N Cabin Air Filter, HPS Intake Hose, Amsoil Gear Lubes in 6MT, front and rear differentials, XPEL Prime XR Plus Tint, TRD Engine Air Filter, Pioneer Head Unit, 275/75R16 Falken Wildpeak A/T3W Tires, RallyArmor UR Flaps
    You can get rid of that "ECT" button by getting a manual transmission truck.

    PROBLEM SOLVED!!!!

    pinochle, Jun 20, 2019
    #52
    Crawler1, Spare Parts and doublethebass like this.
  13. Jun 20, 2019 at 6:25 AM
    #53
    lapoltba

    #53
    lapoltba [OP] Full Bridge Rectifier

    Joined:
    Aug 28, 2014
    Member:
    #137089
    Messages:
    3,346
    Gender:
    Male
    CT - 06076
    Vehicle:
    '17 Sport, ACLB, V6,MT, 04B14 OV-Tuned
    I thought they were doing the dimming on the ground side, but haven't verified on my truck. I know the dimming is done in the combination meter. It looks like the tail light relay gives 2 levels, while the meter likely does PWM with infinite levels? I will get a meter on my truck tonight, and possibly the scope.

    lapoltba, Jun 20, 2019
    #53
  14. Jun 20, 2019 at 6:57 AM
    #54
    BigWhiteTRD

    #54
    BigWhiteTRD Official thread killer (only crickets remain)

    Joined:
    May 24, 2017
    Member:
    #219848
    Messages:
    1,673
    Gender:
    Male
    First Name:
    Ted
    Treasure/Space Coast Florida
    Vehicle:
    2017 AC TRD OR Auto 4wd, 2012 AC SR5 4.0 MT 4wd
    Based on schematic, looks to be generally as you say. I have never metered it.

    Only thing I found on the repair manual is it says 'pulse generation' for pin C9-15 to ground, (which is the lighting negative side.)

    No example of waveform or description of min or max that I see.

    Ref RM0000012GA0CLX in the repai manual for the only real reference I see.

    BigWhiteTRD, Jun 20, 2019
    #54
  15. Jun 20, 2019 at 7:04 AM
    #55
    fatboyfirebass

    #55
    fatboyfirebass Well-Known Member

    Joined:
    Mar 24, 2018
    Member:
    #248258
    Messages:
    1,063
    Gender:
    Male
    Vehicle:
    2018 Blk TRD OR DCSB MT6 Prem/Tech Pkgs
    OV Tuned, S&B Intake, MBRP Dual black Cat-back, accumulator delete, URD SS, 2LM, SSO Hybrid bumper/Warn 10kSynthetic, Custom Car Grille, MESO Ultimate Turn Signal in KTJO Power Folding Mirrors, Genesis Dual Battery, BHLM with LED upgrade, Fog delete, Geko Bed & Underhood lighting, Rear camera anytime, Nav Block Override, 400W anytime w/ interior outlets, USB charging stations, DE-badged, TVD blackout kit, HiLux interior door handles, Hybrid SS/Delrin Shift Knob, Cali-Raised bed Stiffeners, Ultimate Tailgate Seal, "El Dorado" Dual-quad horns, Diamondback HD cover, Mobtown engine/trans skid plates, RCI control arm skids, JLT oil catch can, Meso overhead Hex rack.
    fatboyfirebass, Jun 20, 2019
    #55
    MGMSangTaco, pinochle and tonered like this.
  16. Jun 20, 2019 at 10:25 AM
    #56
    johntoyota

    #56
    johntoyota "I'm higher than you'll ever be." -Treetop

    Joined:
    Mar 11, 2016
    Member:
    #180956
    Messages:
    5,249
    Gender:
    Male
    First Name:
    John
    Down yonder in TN
    Vehicle:
    16 truck
    Thanks man! Just so happens after ripping off half my rear bumper, and subsequently my BSM system, I now have a nice place to put a new switch.

    johntoyota, Jun 20, 2019
    #56
    Shellshock, Red Baron[QUOTED] and lapoltba[OP] like this.
  17. Jun 20, 2019 at 4:09 PM
    #57
    lapoltba

    #57
    lapoltba [OP] Full Bridge Rectifier

    Joined:
    Aug 28, 2014
    Member:
    #137089
    Messages:
    3,346
    Gender:
    Male
    CT - 06076
    Vehicle:
    '17 Sport, ACLB, V6,MT, 04B14 OV-Tuned

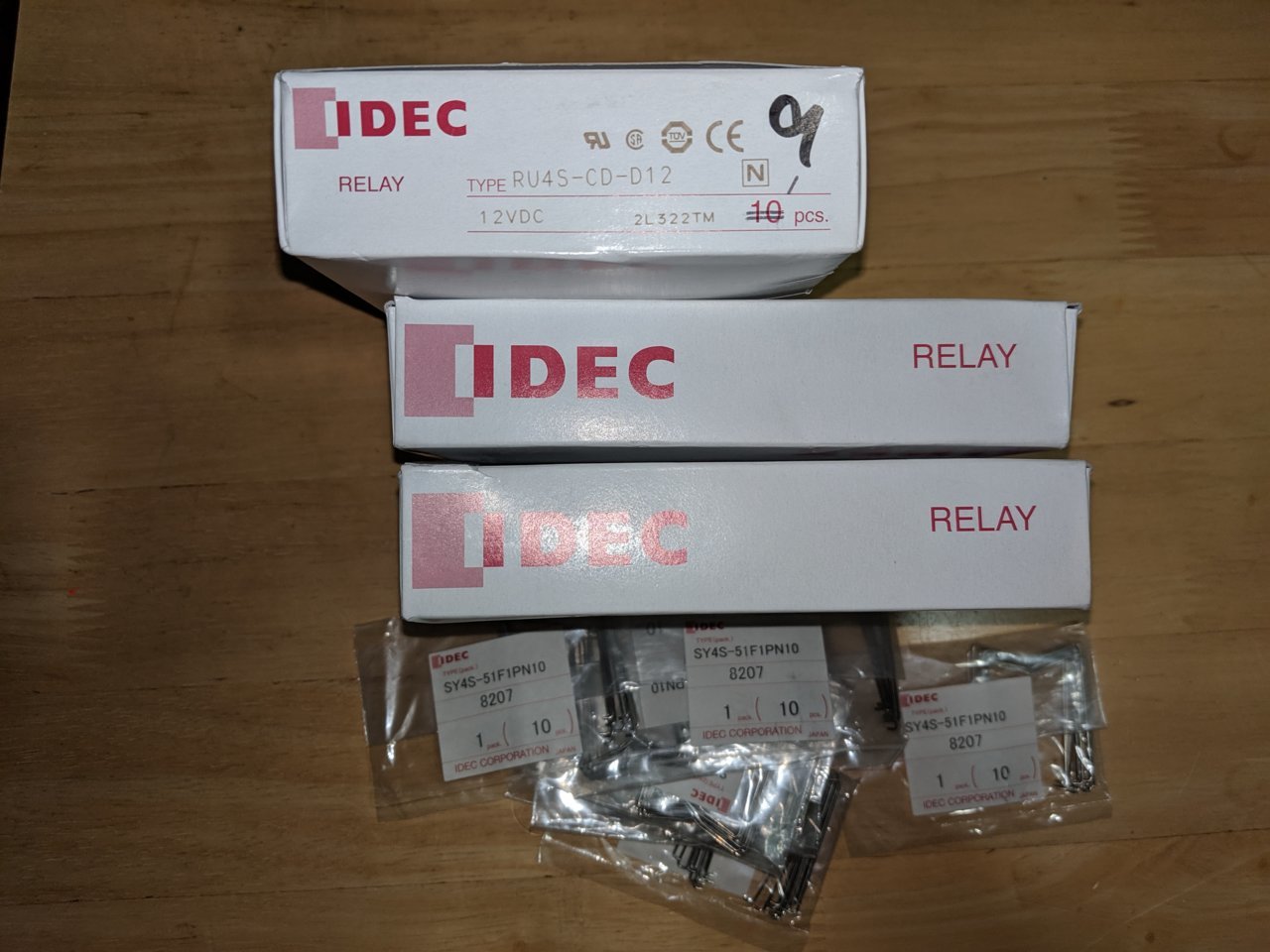

    Got about 1/4 of the relays and all the hold down clips today in the mail. The rest should be here in the next week or two.


    lapoltba, Jun 20, 2019
    #57
    pinochle, VirusCage, tonered and 2 others like this.
  18. Jun 20, 2019 at 4:25 PM
    #58
    Joe23

    #58
    Joe23 Canuckistikian

    Joined:
    Oct 5, 2015
    Member:
    #165909
    Messages:
    11,300
    Gender:
    Male
    The Great White North
    Vehicle:
    2017 TRD Off-road DCSB
    what about going to 4lo?

    Is it possible or do you need to go 2lo back to 2hi then into 4lo?
    I'm considering this as 2lo is enough for a lot of logging road type trails, nice to be in low range so easier on the tranny temps and torque but no need for the actual 4wd.
    But would be nice if you can go back and forth easily.

    Joe23, Jun 20, 2019
    #58
  19. Jun 20, 2019 at 4:29 PM
    #59
    lapoltba

    #59
    lapoltba [OP] Full Bridge Rectifier

    Joined:
    Aug 28, 2014
    Member:
    #137089
    Messages:
    3,346
    Gender:
    Male
    CT - 06076
    Vehicle:
    '17 Sport, ACLB, V6,MT, 04B14 OV-Tuned
    You do need to go back to 2hi following the steps in the FAQ. The 4x4 ecu will not shift the TC or ADD even if you turn off the 2LO switch.

    lapoltba, Jun 20, 2019
    #59
    tonered likes this.
  20. Jun 20, 2019 at 4:55 PM
    #60
    PB FAB

    #60
    PB FAB Well-Known Member

    Joined:
    Apr 11, 2017
    Member:
    #215942
    Messages:
    805
    Gender:
    Male
    Vehicle:
    2017 SR DCSB 4x4 v6
    Just checking, the small switch should fit overhead?

    I think it’s the same switch as the vsc/trac. I have one open space up there.

    I have to drive up and down nine mile canyon next week and two low would be awesome for it while pulling a trailer. Next trip up to the sequoia/sierras I’ll report back on it, lol. Can’t wait.

    PB FAB, Jun 20, 2019
    #60
