3rd Gen - AC Outlet in Cab and 400w Anytime

Discussion in '3rd Gen. Tacomas (2016+)' started by djembefola, Aug 12, 2017.

  1. Aug 12, 2017 at 9:42 PM
    #1
    djembefola

    djembefola [OP] Well-Known Member

    Joined:
    Jan 16, 2017
    Member:
    #207768
    Messages:
    76
    Gender:
    Male
    Vehicle:
    2017 Black TRD OR DCSB
    Backflip MX4 Tonneau N-Fab Nerf Steps Pro Grill Backup camera anytime 110v in Cab 400 W anytime Interior LED Hondo radio knobs Kicker Tweeters Partially debadged
    The point here is to use the factory inverter to run an AC outlet inside the cab, where one might actually use it. In the process, you can make it so the inverter stays on 400w when you shift from Park instead of kicking down to 100w as designed.

    I searched around and only found the full write-up for this on 2nd Gens. For 3rd Gens, the info was a little spread out between different threads. So for anyone trying to do this on your 3rd Gen, I hope this helps.

    My apologies if I'm stepping on any toes here. But I am really hyped about this mod and want to share in case it helps anyone else. Thanks to @mr_ash and this thread, and @kashtyaatsi and this thread for being the source of most of the info I needed when I was bouncing between 4 different threads as I did the mod.

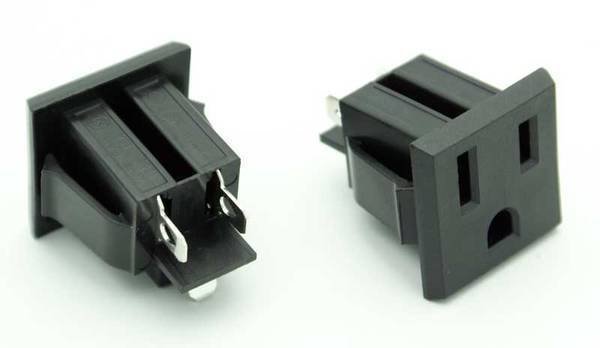

    From what I've seen, most folks who do the AC outlet mod use this guy:
    [​IMG]

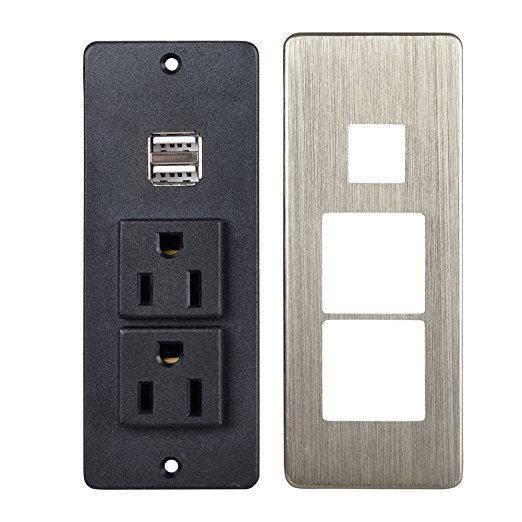

    But I picked this one up from Lowes for the extra USB outlets:
    [​IMG]

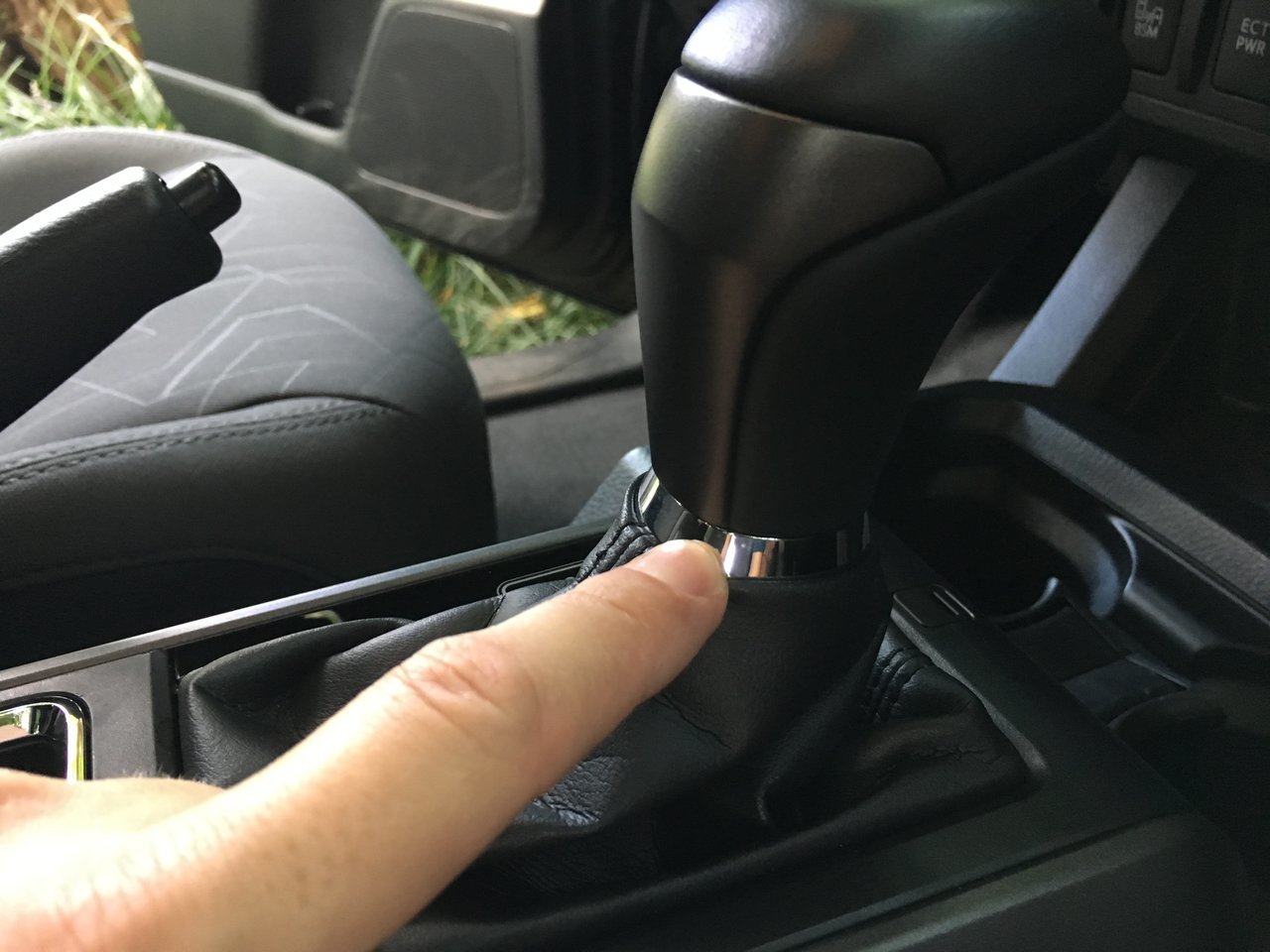

    1. Start by pushing down the chrome ring on the shifter, then twist the shifter knob to unscrew and remove. Obviously standard models will be different when it comes to removing the center console. This thread explains removal on a manual.


    2. Gently lift the console up starting at the front near the cup holders being careful not to break any clips as you pop them up. When you get to this part, you'll need to disconnect this plug on the passenger side:

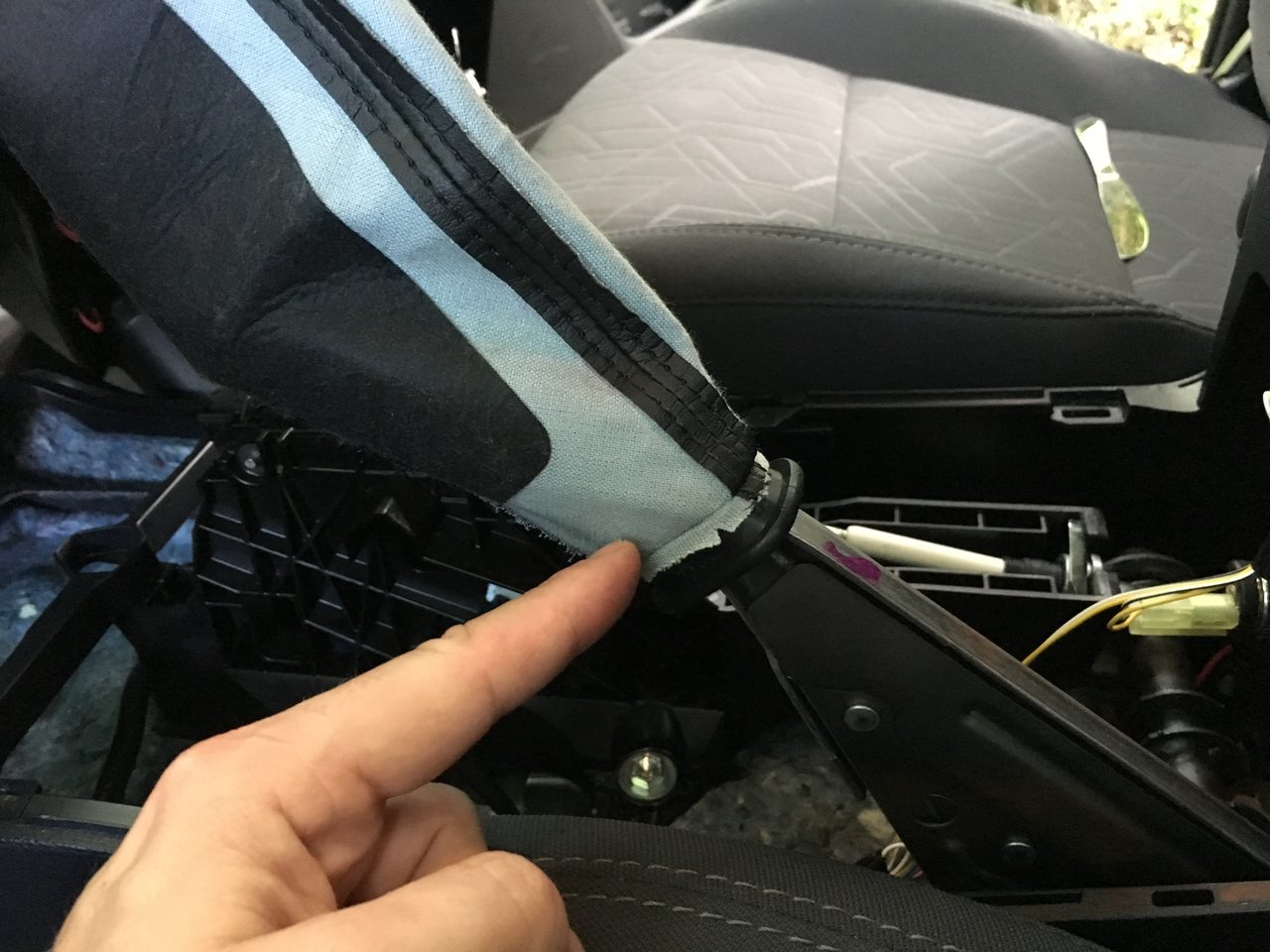

    3. As you pull up the front part of the console, you'll need to gently slide the "leather" up and over the e-brake handle. It requires some force and patience:

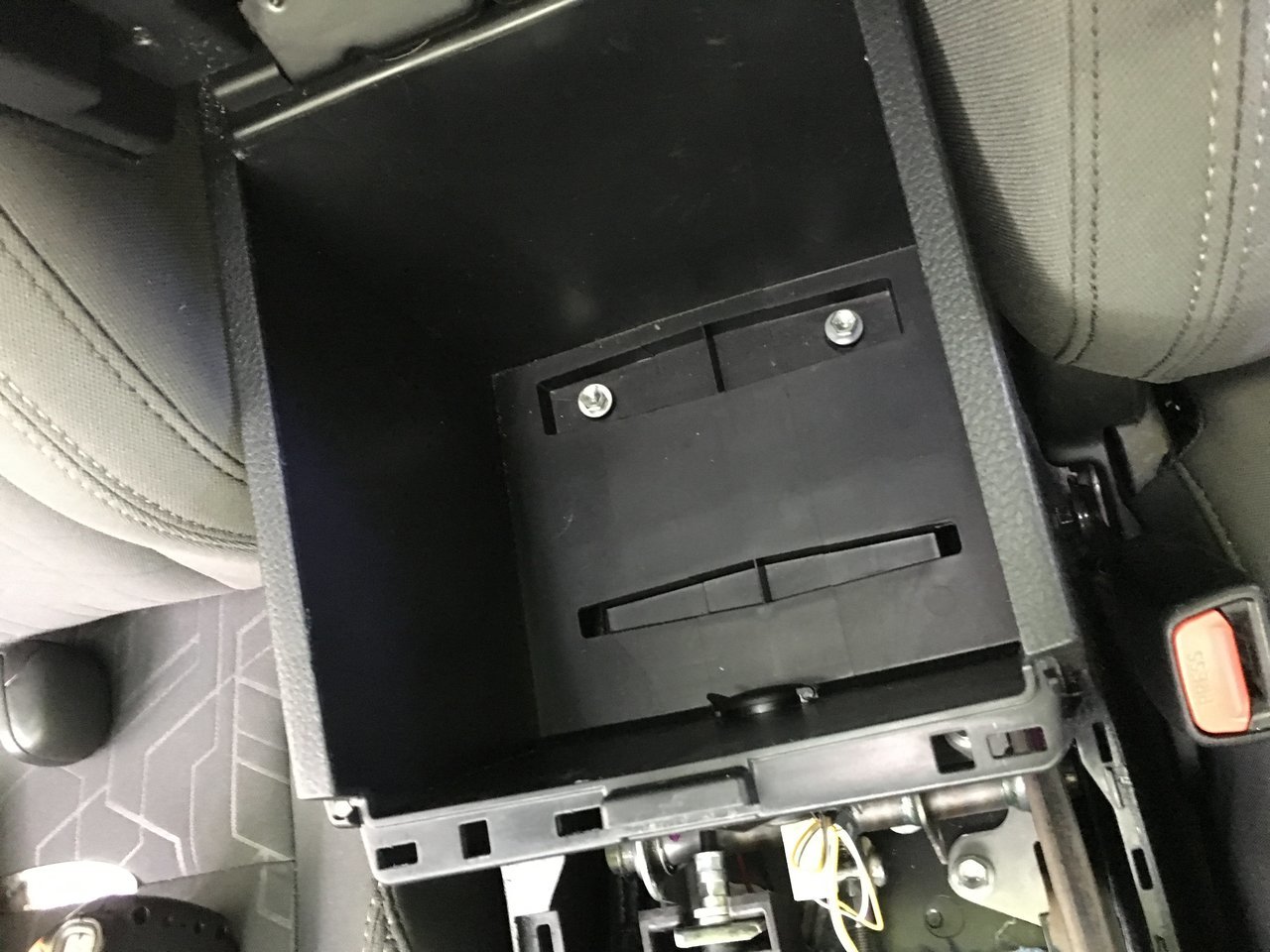

    4. To remove the back part of the console, remove the two 10mm bolts under the rug inside the compartment:

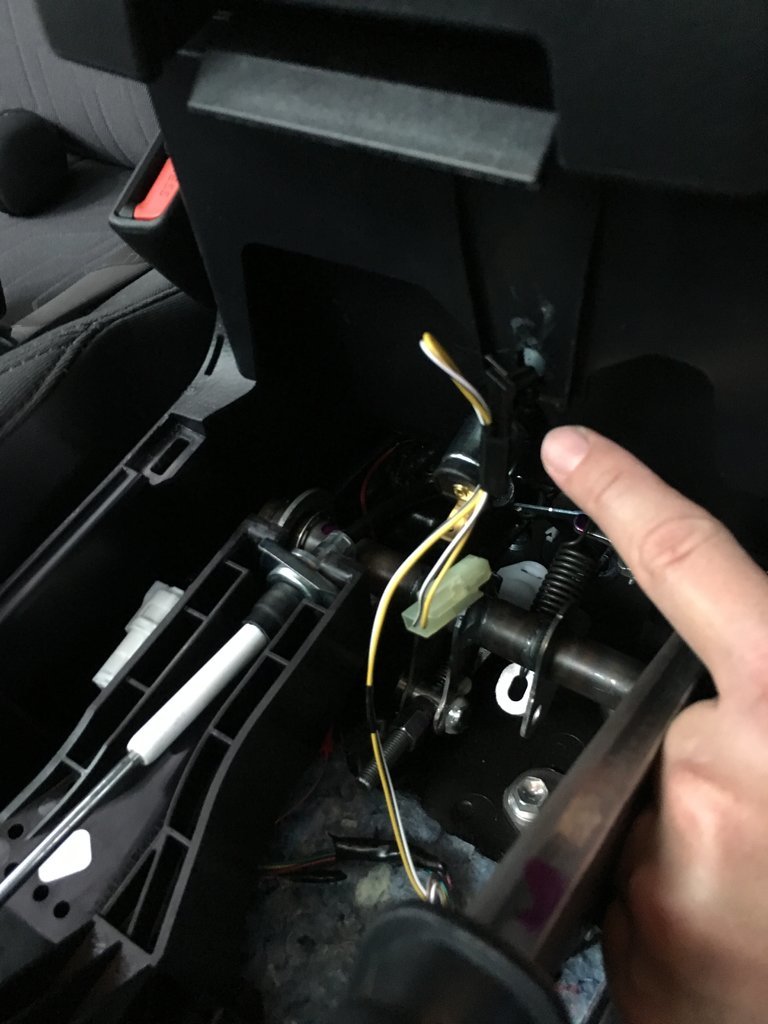

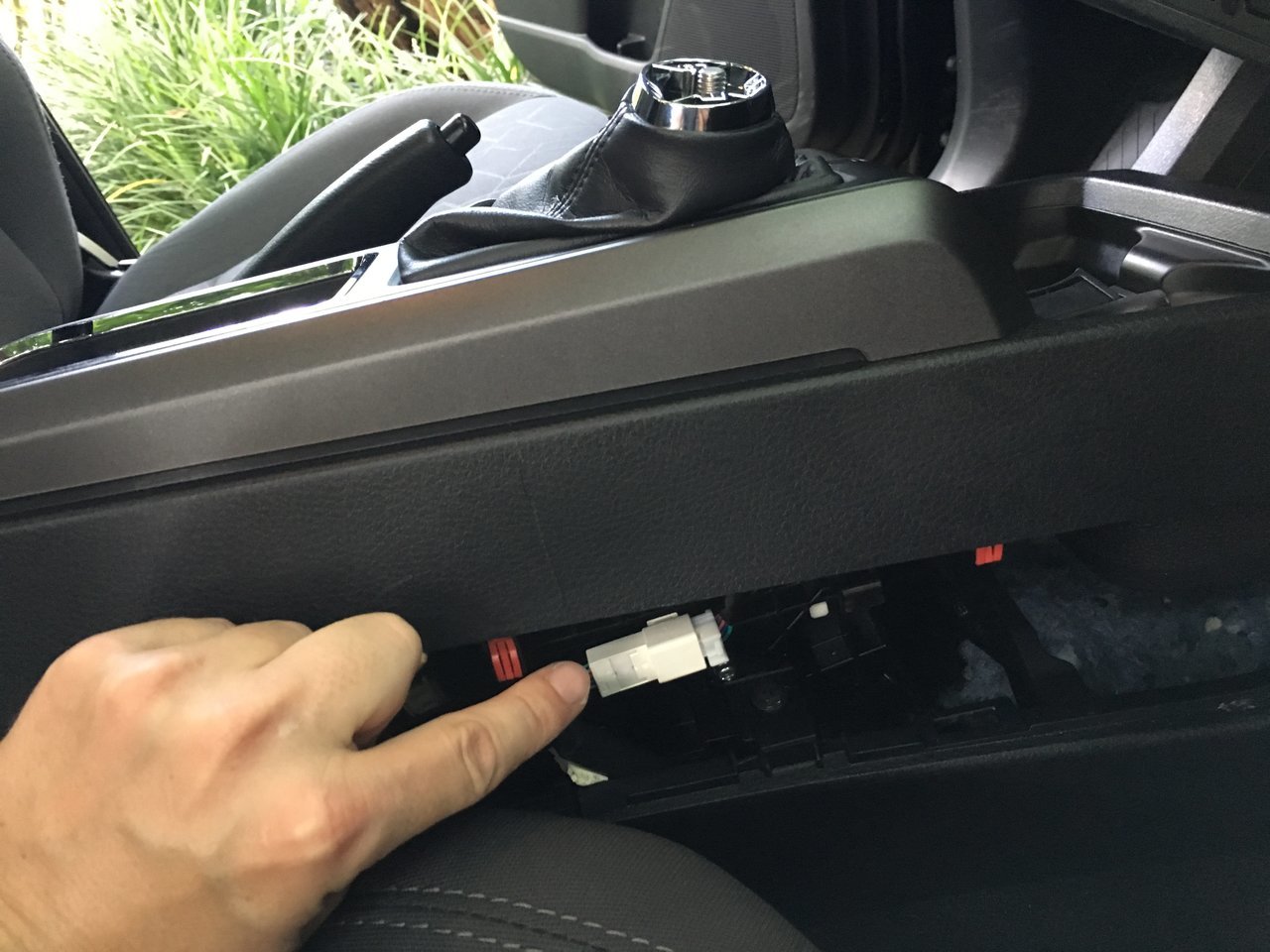

    5. Next you'll need to disconnect the 12v outlet for the compartment, and remove this little clip that holds the wires:

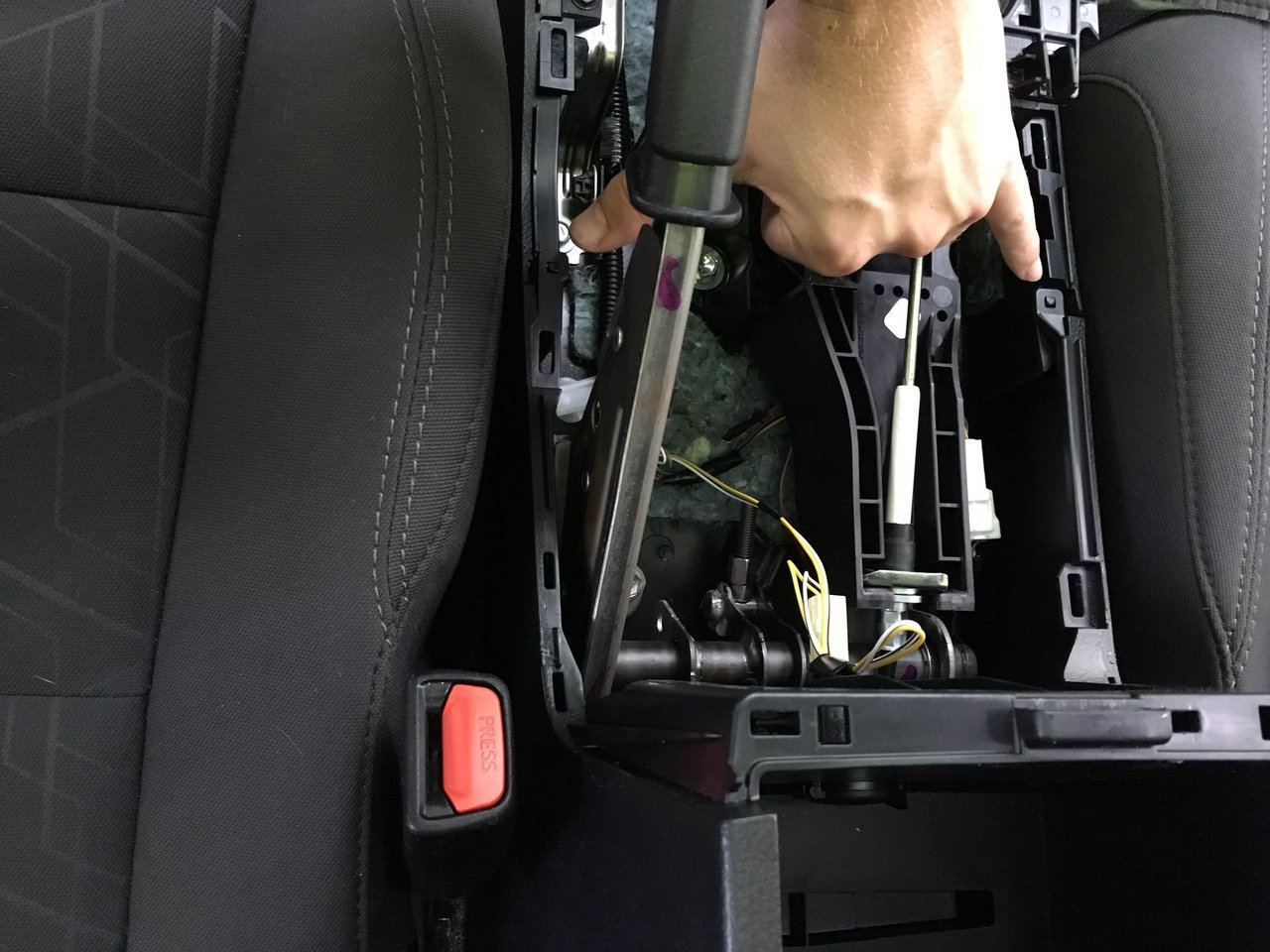

    6. As you lift up the back part of the console, you'll see that it sort-of "hinges" here. When you get it up a little, it will come right up and out:

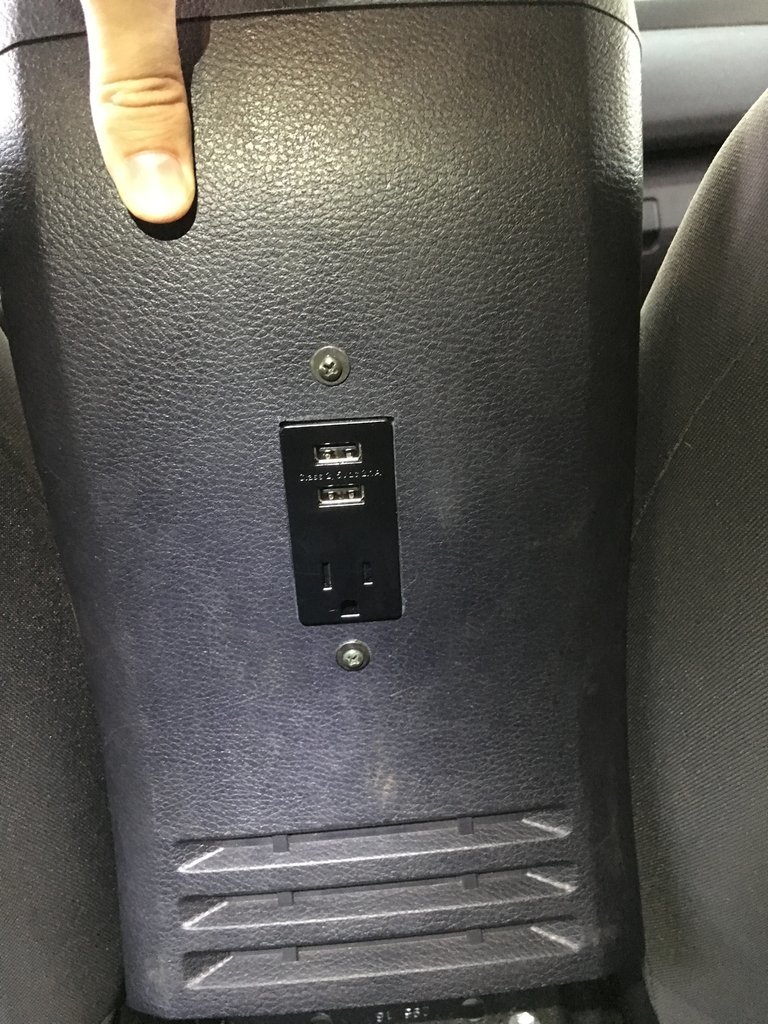

    7. To cut the hole for the outlet, I measured carefully, used a drill for the corners, then carefully and patiently cut the shape out with a Dremel. To get this to look good, you have to take your time and use fine sand paper to smooth the edges. This is why a lot of folks use the other style outlet I mentioned - it covers the edges. But because the outlet will end up down by the passenger's feet, I wasn't too concerned about the appearance. I lucked out and it turned out looking decent:

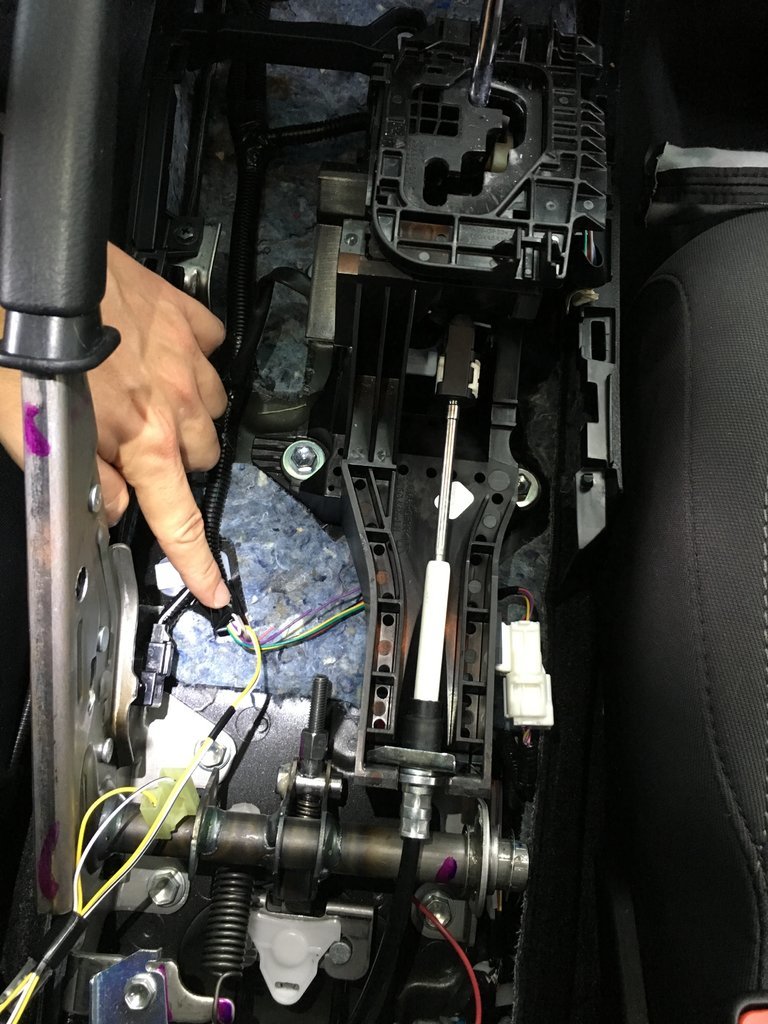

    8. For the 400w Anytime Mod, first locate these wires right below the e-brake:

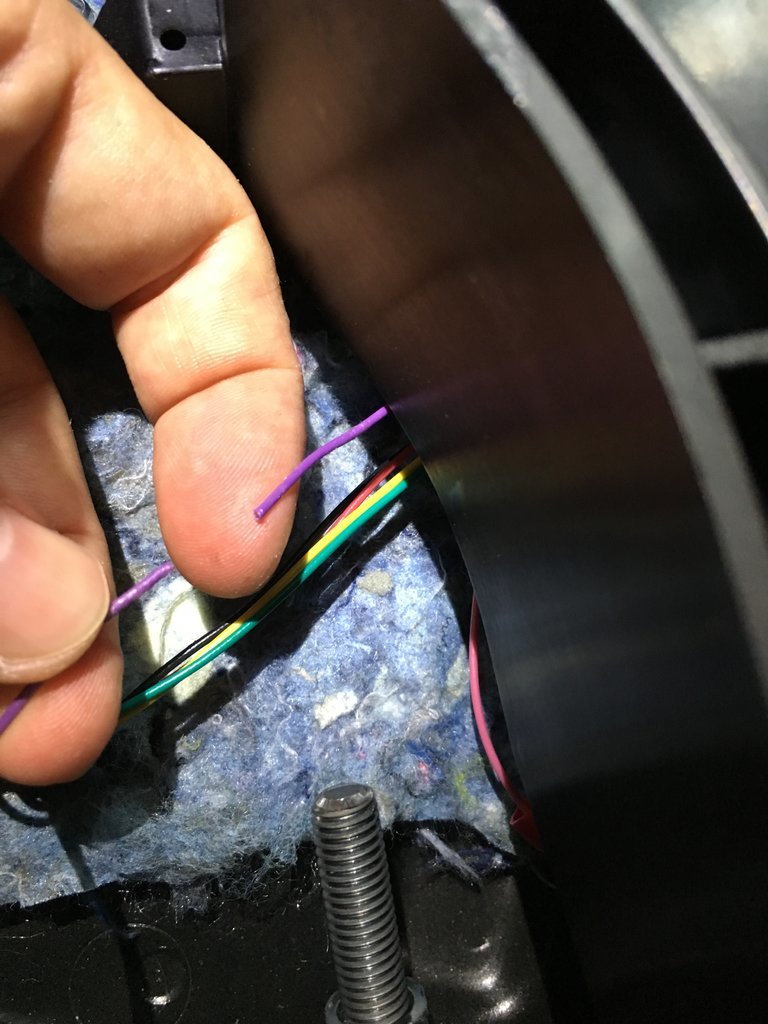

    9. Cut the PURPLE wire, and cap off both ends:


    10. Cut the PINK wire. Cap off the end that runs toward the front of the vehicle. Ground the end that runs toward the inverter:

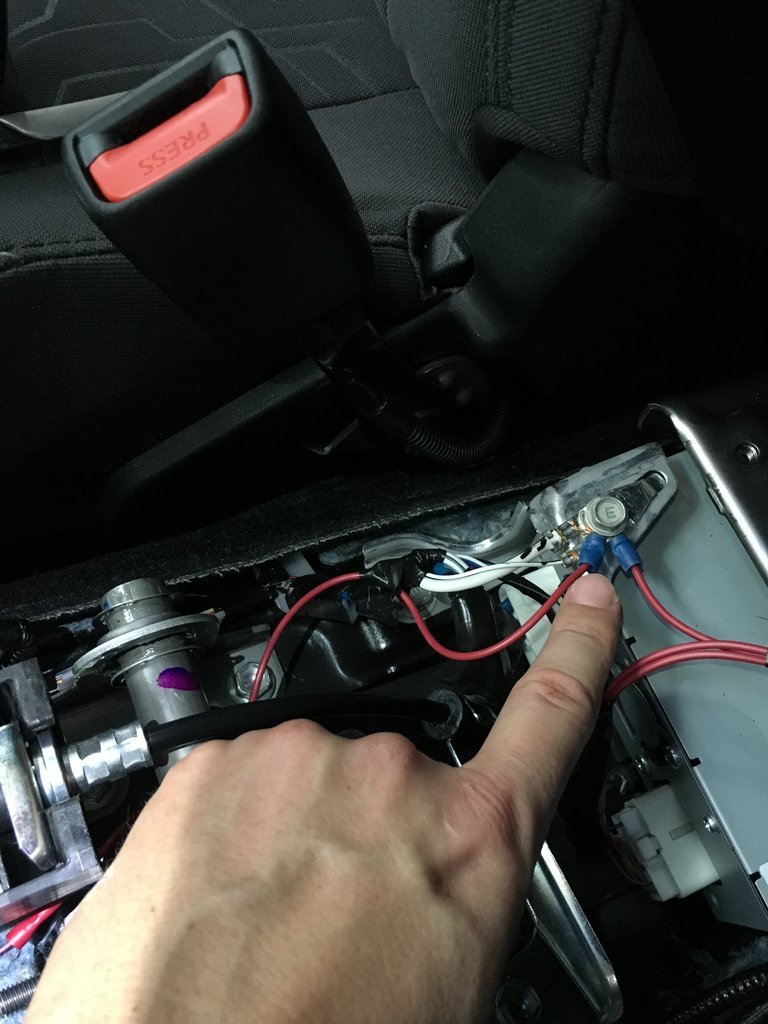

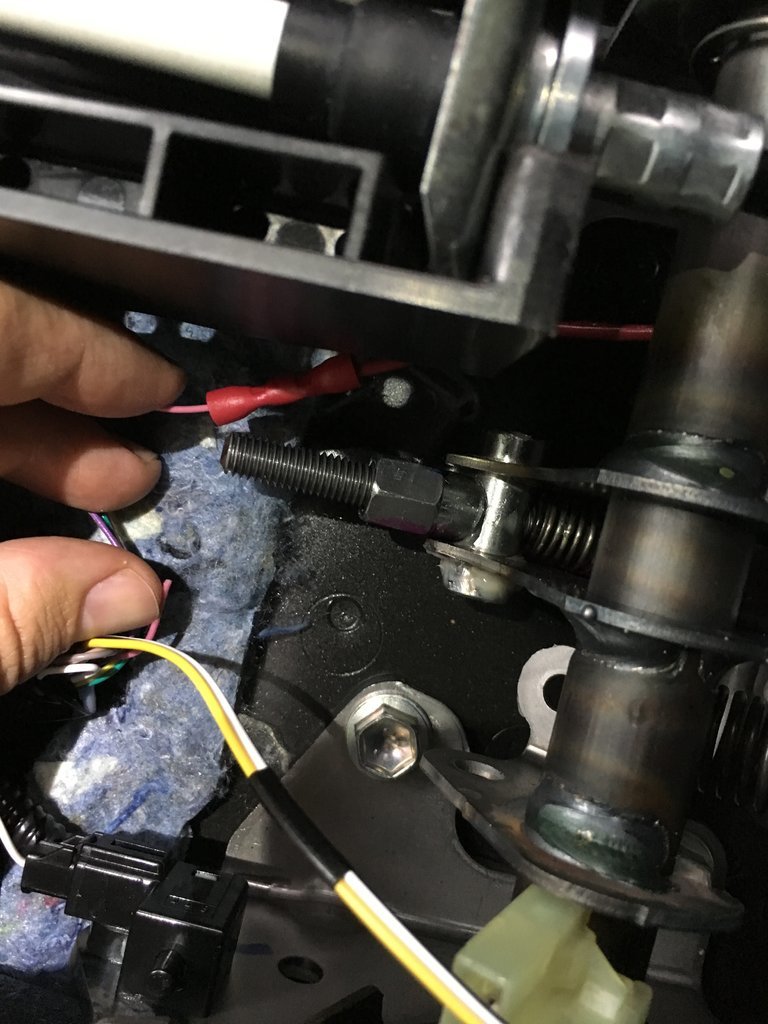

    11. Here is where I grounded the PINK wire. I also grounded the AC outlet here:

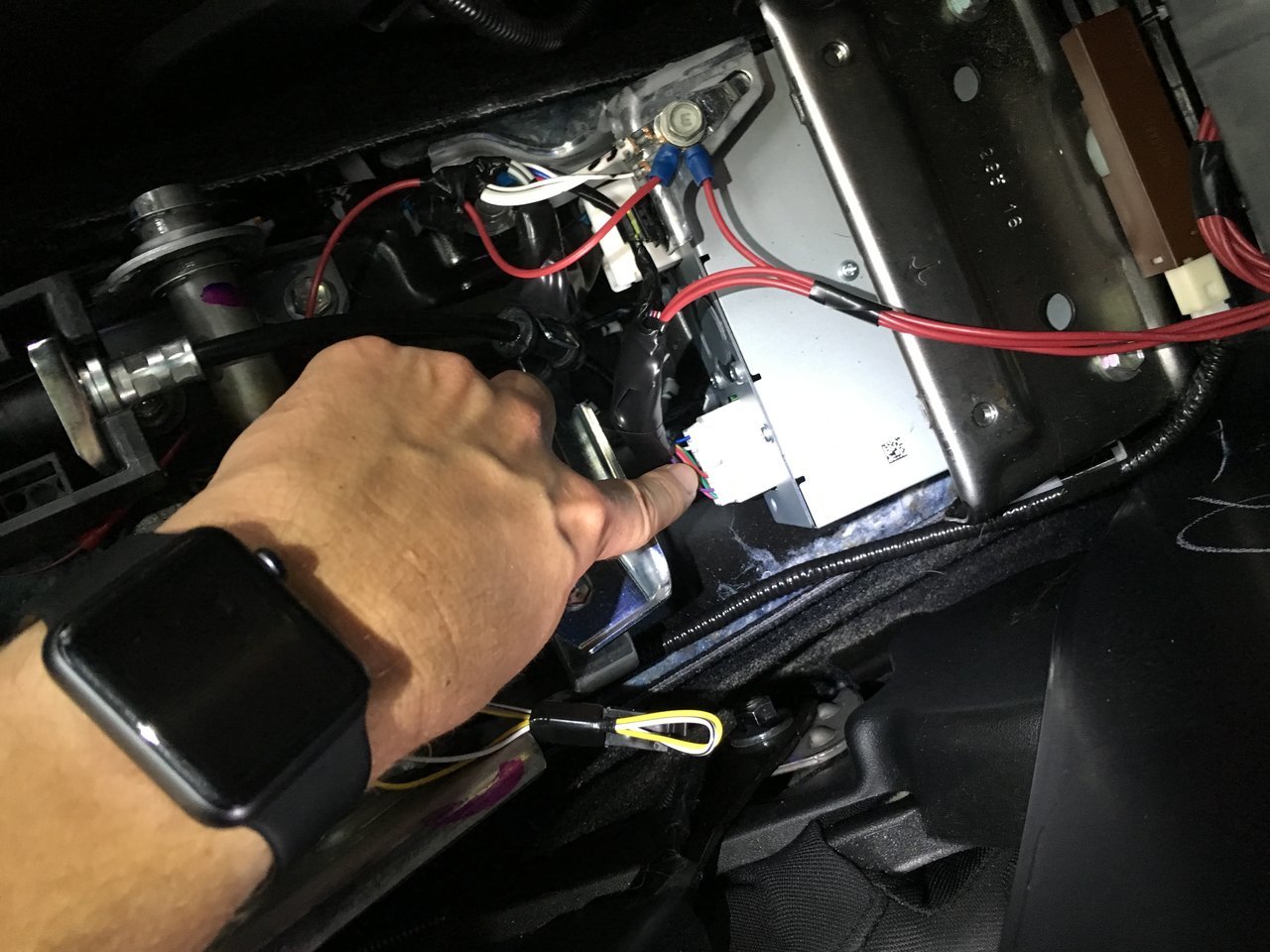

    12. Locate these wires coming from the inverter. Run the BLUE wire to the Neutral, and the WHITE to the Hot on the AC outlet. I cut the wires and used butt connectors to splice the wires to the outlet.

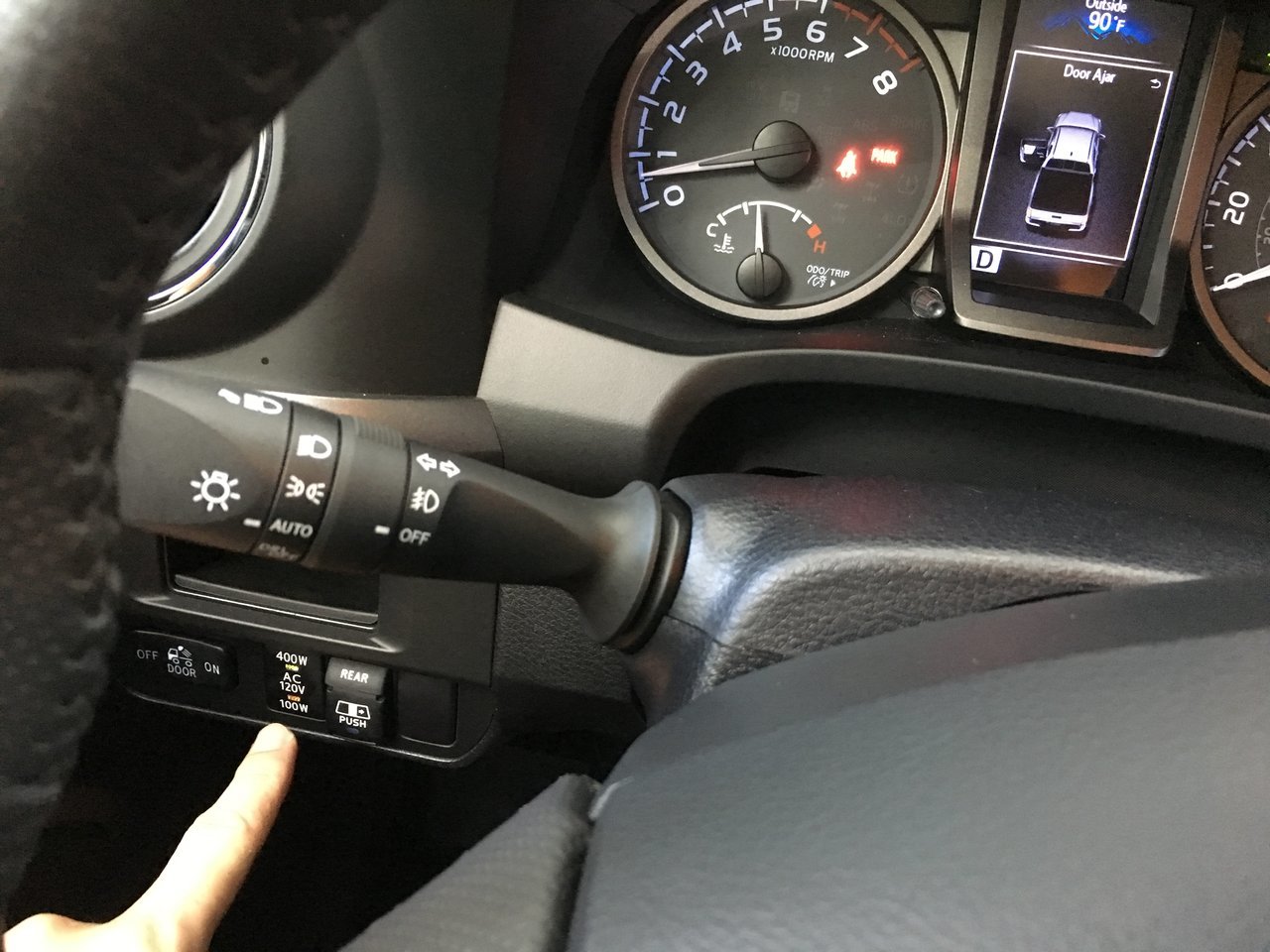

    Put everything back together. If you did everything right, you'll see that the inverter stays in 400w mode when you shift out of Park:




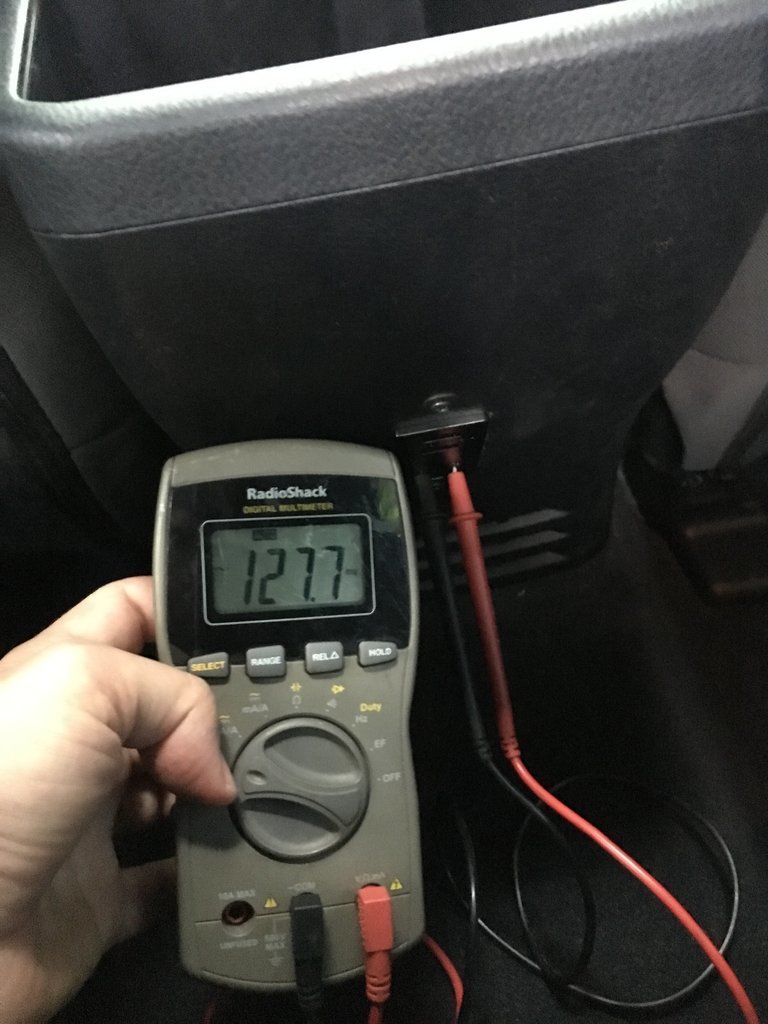

    Hope this helps you. Let me know if you have any questions or suggestions.

  2. Aug 12, 2017 at 9:50 PM
    #2
    KTJO 4x4

    KTJO 4x4 Well-Known Member

    Joined:
    Oct 10, 2016
    Member:
    #199424
    Messages:
    2,669
    Gender:
    Female
    First Name:
    Katie
    Oregon
    Vehicle:
    2017 TRD OFF-ROAD 4x4 DCSB BARCELONA RED
    Nitro 4.88 Gears OVTune 1.04R 91Oct DirtyDeeds Exhaust
    Did you use 14 Gauge Wire? I actually have been in the process myself of flipping back and forth between both threads as well. I'm also trying to install three cigarette lighters in my console instead of just the one.

    toycoma 2016 likes this.
  3. Aug 12, 2017 at 9:59 PM
    #3
    djembefola

    djembefola [OP] Well-Known Member

    Joined:
    Jan 16, 2017
    Member:
    #207768
    Messages:
    76
    Gender:
    Male
    Vehicle:
    2017 Black TRD OR DCSB
    Backflip MX4 Tonneau N-Fab Nerf Steps Pro Grill Backup camera anytime 110v in Cab 400 W anytime Interior LED Hondo radio knobs Kicker Tweeters Partially debadged
    I used 18 gauge. I'm sure you've noticed the factory wires from the inverter are smaller than you'd expect - like 22 gauge or maybe smaller.

  4. Aug 12, 2017 at 10:16 PM
    #4
    KTJO 4x4

    KTJO 4x4 Well-Known Member

    Joined:
    Oct 10, 2016
    Member:
    #199424
    Messages:
    2,669
    Gender:
    Female
    First Name:
    Katie
    Oregon
    Vehicle:
    2017 TRD OFF-ROAD 4x4 DCSB BARCELONA RED
    Nitro 4.88 Gears OVTune 1.04R 91Oct DirtyDeeds Exhaust
    Awesome. I have 18 Gauge Wire currently. I have it in all sorts of colors: Blue, Green, White, Yellow, Red, and Black. You just use a butt splice then to connect them together? Also, when you cut the wire in half, how did you cap the Wires off?

  5. Aug 12, 2017 at 10:28 PM
    #5
    djembefola

    djembefola [OP] Well-Known Member

    Joined:
    Jan 16, 2017
    Member:
    #207768
    Messages:
    76
    Gender:
    Male
    Vehicle:
    2017 Black TRD OR DCSB
    Backflip MX4 Tonneau N-Fab Nerf Steps Pro Grill Backup camera anytime 110v in Cab 400 W anytime Interior LED Hondo radio knobs Kicker Tweeters Partially debadged
    Yes, like 1 wire in 1 side of the butt connector and 2 wires out the other side. Wire Nuts to cap the cut wires.

  6. Aug 13, 2017 at 7:38 PM
    #6
    jwilson2899

    jwilson2899 Well-Known Member

    Joined:
    Apr 21, 2017
    Member:
    #216926
    Messages:
    253
    Gender:
    Male
    Front Royal, VA
    Vehicle:
    2017 Tacoma DCSB TRD OR 4x4
    Full on TRD "Proseur", 5100's, 265/70/17 Wildpeak AT3W's, HID/LED everywhere
    Great write up, thanks for putting it all in one place! If only you had done it a couple days sooner, so I could have used it yesterday :D

    djembefola [OP] likes this.
  7. Aug 13, 2017 at 7:57 PM
    #7
    flesheatingvirus

    flesheatingvirus Well-Known Member

    Joined:
    Jun 25, 2008
    Member:
    #7570
    Messages:
    340
    Gender:
    Male
    ABQ, NM
    Vehicle:
    2016 TRD-OR 4x4AT Access Cab - Magnetic Gray
    Tech Package
    Sub'd. It would really be nice if someone would come up with a mount or bracket that didn't require cutting into any interior pieces. Maybe something that mounts under the dash?

    Last edited: Aug 13, 2017
    djembefola [OP] and motorsport36 like this.
  8. Dec 2, 2017 at 1:00 PM
    #8
    02Duck

    02Duck manuals make it better

    Joined:
    Feb 18, 2013
    Member:
    #97842
    Messages:
    486
    Gender:
    Male
    Oregon
    Vehicle:
    2018 4WD TRD Off Road 6MT
    TRD Exhaust, Mobtown bolt on sliders, Reverse lights changed to yellow turn signals, LED pods added for Reverse, ADD W1 oil catch can, Total Chaos bed and tailgate reinforcements, rear diff breather to taillight mod, 12" combo led bars behind lower grill wired to high beams, Toyota led bed light kit, 400 watt anytime mod.
    I've done this on my secound gen and to avoid cutting any trim I just used a black extension cord and cut off the male end. Then cut the length I wanted and attached under the console. I keep the short cord coiled on the floor when not using it. Probably will do the same if I get a gen 3 in the next few months.

  9. Dec 2, 2017 at 1:56 PM
    #9
    Blktre

    Blktre Well-Known Member

    Joined:
    Oct 13, 2016
    Member:
    #199651
    Messages:
    673
    Gender:
    Male
    Land of Oz....
    Vehicle:
    16 Super White DCLB TRDOR: The White Goat
    Why would I want the 400w plug in the cab? For the small inkling of time I would use it is when I spend my time outside of the truck, not inside it. Great write up for those who actually find the need.

  10. Dec 2, 2017 at 4:01 PM
    #10
    nartmot

    nartmot Well-Known Member

    Joined:
    Sep 6, 2016
    Member:
    #196612
    Messages:
    152
    Gender:
    Male
    To charge laptops and a multitude of other small electronics on long trips.

    TWJLee, 02Duck, MrMattV2 and 3 others like this.
  11. Dec 2, 2017 at 7:37 PM
    #11
    jwilson2899

    jwilson2899 Well-Known Member

    Joined:
    Apr 21, 2017
    Member:
    #216926
    Messages:
    253
    Gender:
    Male
    Front Royal, VA
    Vehicle:
    2017 Tacoma DCSB TRD OR 4x4
    Full on TRD "Proseur", 5100's, 265/70/17 Wildpeak AT3W's, HID/LED everywhere
    ^^^^ this right here. It's not uncommon for my wife to want/need to use her laptop when we're going out fo town for a long weekend to wrap up some stuff and it lets her be able to plug it in.

    Bigdaddy4760 and 9TRDTCO like this.
  12. Dec 2, 2017 at 8:58 PM
    #12
    AFMurse2014

    AFMurse2014 Fighting for those who Fight for us.

    Joined:
    Nov 15, 2015
    Member:
    #169730
    Messages:
    1,793
    Gender:
    Male
    First Name:
    Devin
    SCOTTSDALE AZ
    Vehicle:
    2016 MGM Double Cab TRD OFF ROAD 6 Speed MANUAL
    Freedom, American flags and ISIS blood Morimoto 35w 5500k HID and LED fogs and highs from TRS. RCI expo rack
    Toyota, take note... you skimped out on another detail. Interior power management options... the vehicle already has an inverter, should of done this from factory... USB and power in the back is almost standard now days.

    9TRDTCO and Kooltaco like this.
  13. Dec 7, 2017 at 9:52 AM
    #13
    nartmot

    nartmot Well-Known Member

    Joined:
    Sep 6, 2016
    Member:
    #196612
    Messages:
    152
    Gender:
    Male
    For anyone interested in doing this mod, I thought I would share this slick little Ford OEM power socket I found on Amazon. It has a cover and a little LED to tell you if it is getting power. However, since this is Ford we are talking about, the quality may be questionable (just kidding). If someone beats me to installing it, please let me know where you put it. I really want easy access from the front passenger seat (wifey's seat) so the OP's mounting location is a no-go for me.

    https://www.amazon.com/dp/B0031C11DY/_encoding=UTF8?coliid=I1784GOP9RA4LR&colid=2YLXGMOC0OJDG&psc=0

    [​IMG]

  14. Dec 7, 2017 at 10:28 AM
    #14
    dilbert

    dilbert Well-Known Member

    Joined:
    Mar 14, 2016
    Member:
    #181276
    Messages:
    649
    Gender:
    Male
    Vehicle:
    2019 DCLB TRD Off-Road
    Toyota OEM (From 4-Runner I think)
    Part # 8553035050C0
    It would be nice to source some OEM connectors also.

  15. Jan 5, 2018 at 11:48 AM
    #15
    dman100

    dman100 Well-Known Member

    Joined:
    Mar 2, 2016
    Member:
    #180009
    Messages:
    1,149
    Central Coast, California
    Vehicle:
    2016 TRD OR DCSB
    Thanks @djembefola for the detailed description of the console removal ... the best one here on TW. I found pulling off the handbrake boot the hardest part. Added a 2nd 12V outlet yesterday and may add an AC outlet when I pick one up. I’m not sure I’ll bother with the 400W anytime mod ... it’s easy enough but I mostly use the inverter to charge cordless batteries and that’s well under 100W, even for my 40V charger. I was actually surprised I could cut 4x4’s (at idle, 400W) with my circular saw which is rated at 10A but now I have a cordless saw which works great for small jobs. But thanks for documenting it in case I change my mind.

    djembefola [OP] likes this.
  16. Jan 5, 2018 at 12:13 PM
    #16
    AmericanDrug

    AmericanDrug Well-Known Member

    Joined:
    Jan 30, 2017
    Member:
    #209110
    Messages:
    286
    Gender:
    Male
    First Name:
    Rod
    Columbia, SC
    Vehicle:
    2018 MT TRD OR 4x4 Ol Blue
    I need this mod in my life... one for driver too!

    djembefola [OP] likes this.
  17. Jan 6, 2018 at 9:36 PM
    #17
    Arkie Joe

    Arkie Joe Active Member

    Joined:
    Sep 17, 2017
    Member:
    #230287
    Messages:
    26
    Gender:
    Male
    Vehicle:
    17 TRD OR DCLB
    Nice work DJ. I need to add an outlet in the back and it doesn't look too bad.
    Sure would have been nice for Toyota do have already installed one.

    djembefola [OP] likes this.
  18. Jan 7, 2018 at 8:02 AM
    #18
    BigWhiteTRD

    BigWhiteTRD Well-Known Member

    Joined:
    May 24, 2017
    Member:
    #219848
    Messages:
    626
    Gender:
    Male
    First Name:
    Ted
    Treasure/Space Coast Florida
    Vehicle:
    2017 AC TRD OR Auto, 4wd w/2 whl Lo mod
    I used this one from Amazon (was only $10 when I got it) but just left off the chrome trim.
    https://www.amazon.com/Cabinet-Insert-Socket-Standard-Outlet/dp/B01N5O8GVW/
    I much prefer one that installs from the exposed surface, so that it hides the hole you cut if it isn't perfect.
    (Also has a wire on it already, so I just cut off the plug and spliced it in)

    Tharris242 likes this.
  19. Jan 13, 2018 at 1:13 PM
    #19
    cowboyup_again

    cowboyup_again Well-Known Member

    Joined:
    Oct 18, 2015
    Member:
    #166958
    Messages:
    72
    Gender:
    Male
    I am currently in the process of doing this and must ask if you know what the big 8 gauge blue wire is coming from the left plug of the converter. If that is the line going to the bed outlet then how can using 18 gauge for this mid be safe?



  20. Jan 13, 2018 at 1:22 PM
    #20
    anonymouscuban

    anonymouscuban Well-Known Member

    Joined:
    Dec 20, 2017
    Member:
    #238999
    Messages:
    246
    Gender:
    Male
    First Name:
    Alex
    Porter Ranch
    Vehicle:
    2017 MGM Off Road Double Cab Shortbox
