3rd Gen JBL upgrade - round 2

Discussion in 'Audio & Video' started by kenrickv, Aug 29, 2016.

  1. Aug 29, 2016 at 6:51 PM
    #1
    kenrickv

    #1
    kenrickv [OP] Well-Known Member

    Joined:
    Apr 24, 2016
    Member:
    #185190
    Messages:
    80
    Gender:
    Male
    TN
    Vehicle:
    2016 Inferno DCSB OR
    Too many to list
    I thought I would start my audio build thread before I actually begin. I'll add more info once I actually get started. My goal is to retain the factory HU but upgrade the speakers including a more powerful amp. I'd like to give a shout out to @JasonT87 for his excellent JBL thread and the member contributions found there in. @Mr Marv for his excellent knowledge and technical support. A special thanks to @bear263 and @1sttruckguy78 for their help in working through some issues.

    A list of threads for information and inspiration...
    https://www.tacomaworld.com/threads/the-jbl-upgrade-they-didnt-want-you-to-have.433277/
    https://www.tacomaworld.com/threads/2016-bbp-audio-build.430252/
    https://www.tacomaworld.com/threads/anyone-upgrading-their-2016-tacomas-speakers.400827/
    https://www.tacomaworld.com/threads/power-tailgate-lock.393110/

    Part of my criteria for this upgrade was to eliminate or minimize any cutting or tapping of factory wires. Needless to say if a plug-n-play solution is out there then I was not able to find it. I think ********* may have an option for the JBL system but after talking with Mr Marv I decided to work with him. Can't say enough about @Mr Marv as I'm sure plenty of members will attest to.

    From Mr Marv's group buy I ended up with Hybrid Audio Unity 6.5 components for the front and Mirus 6.5 coaxial for the rear. Hybrid Audio Clarus 10" sub with a Mr Marv special enclosure and amp rack. To power this setup I got the ARC Audio xdi-850 5 channel amp.


    I ended up with the LC8i to interface with the factory amp and sum the front door and tweeter signals for a full range front signal. I researched quite a bit before going this route. My thought process was to not cheap out on the processor and actually undo the factory applied signal processing. My short list was the Audison Bitone or the JL Fix-86 & TWk-88 setup. Both were about $750ish range but the LC8i at $150 and simplicity finally won the debate. I figure I can always upgrade later if needed.

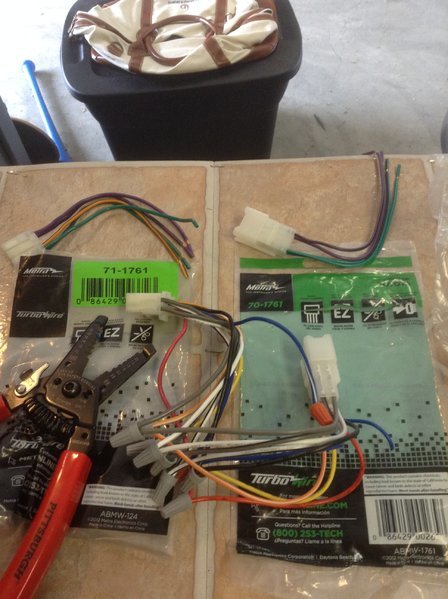

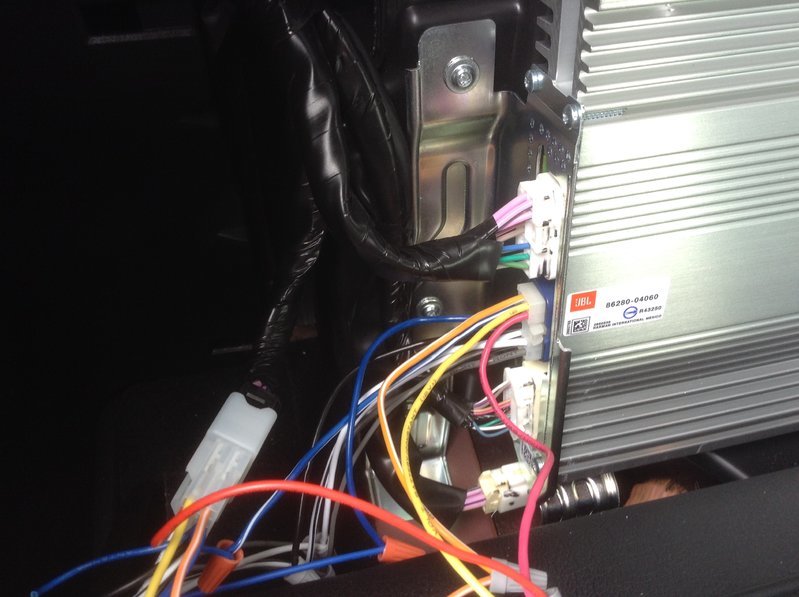

    My next focus was the harness. After learning how to depin the connectors (I forget which thread discussed this off the top of my head) and finding the female connectors from the dealership I formed a plan. The 10 and 12 pin connectors (90980-10801 and 90910803) from the dealership are reasonable at $10ish a piece. Where they get you is in the pins and wires at $8ish each. For a project that needed 20 wires this got expensive real quick. There are a couple online sources for cheaper but still it adds up. I used the Toyota generic stereo harness (
    $8 70-1761 Radio Wiring Harness For Toyota 87-Up Power 4 Speaker
    70-1761 and 71-176 from Metra) for the pins and wires and at least the 10 pin male connector to interface back into the factory harness. I created a jumper harness to test and it worked. Note that the Metra pins are a loose fit in the OEM female connectors.



    The 12 pin male connector was difficult to find. Thanks to @bear236 who pointed me to autoharnesshouse.com, I was able to find what I needed to include a 10 and 12 pin male and female . After re-pinning the connectors per the wiring diagram, my plan is to have a plug-n-play harness from the factory amp to the LC8 for signal and from the ARC amp to the factory harness out to the speakers. The custom harness will also let me use the power and ground from the factory harness to the factory amp. When /if I run new speaker wires I can break the speaker connections to the factory harness. Another option I considered was to run new power and ground and bypass the factory harness altogether.


    PIC HERE

    Since the factory amp will be relocated, I thought maybe a 24 pin jumper harness would be helpful. I had a AX-TOYCAM3 harness left over from an aftermarket HU install on a Scion FR-S that was 24 pin male and female already wired. I tested it between the factory amp and harness. It worked so I have about 12 inches to work with to relocate the factory amp. Added bonus is now I can splice the harness for the amp turn on signal (pin 12 on the 24 pin connector. You'll notice the RCA video connectors... as this harness is to retain or add a backup camera. These are connected to complete the harness. I've contacted autoharnesshouse.com to see if they have a solution.


    My plan currently is to install the sub/box and amp integrated into the factory system. Once that is working then I will work on the speakers as I get time. I'll add more info once my gear comes in and I get started.
