3rd Gen Style 7/4 Pin Trailer Plug DIY

Discussion in '2nd Gen. Tacomas (2005-2015)' started by steveo27, Apr 24, 2023.

  1. Apr 24, 2023 at 9:34 PM
    #1
    steveo27

    steveo27 [OP] Ask me about my weiner

    Joined:
    Aug 12, 2013
    Member:
    #110326
    Messages:
    5,838
    Gender:
    Male
    First Name:
    Steve
    Pittsburgh
    Vehicle:
    '11 TRD Off Road & 1992 VW GLI
    The same shit everyone else has.
    UPDATE - SEE POST #6 FOR MORE INFO/DIY.

    I’m in the process of fixing a buncha little random things on my truck….

    Like most Tacomas, my 7 pin plug is pretty beat up and damaged.

    Since I’m replacing it, I might as well upgrade it too.

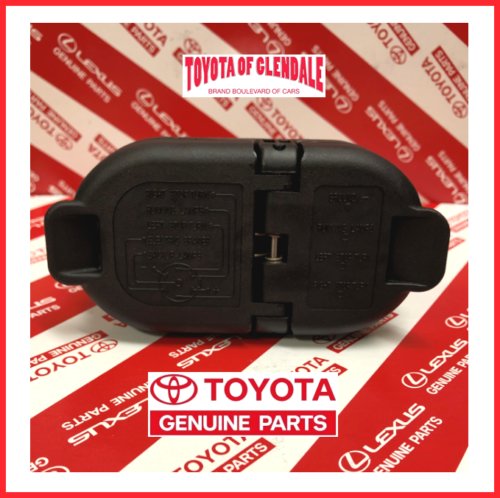

    3rd gens come with a 7 pin / 4 pin combo (see below)



    Has anyone updated their 7 pin to this new style plug?

    I’d like to relocate it up to the bumper right next to the plate like I see people do with the 7 pins.

    I’m assuming the 2nd gen male plug isn’t the same as the 3rd gen plug just because.

    Id rather not have to cut/splice the OEM hardness, but I don’t mind having to depin/repin.

    Id love to get any input from anyone who’s done this/thought about doing this.

    Thanks.


    Attached Files:

    Last edited: May 1, 2023
  2. Apr 25, 2023 at 5:15 AM
    #2
    TegoTaco

    TegoTaco Well-Known Member

    Joined:
    Sep 29, 2016
    Member:
    #198555
    Messages:
    6,559
    Gender:
    Male
    Ontario, Canada
    Vehicle:
    2013 Super White Tacoma DCLB TRD SPORT
    I’m sure it can be done. Seems pretty straight forward, just have to figure out where to mount it. Ask the 3rd gen forum for a pic of the harness.

  3. Apr 25, 2023 at 5:27 AM
    #3
    cfcarpenter

    cfcarpenter Well-Known Member

    Joined:
    May 29, 2018
    Member:
    #254913
    Messages:
    310
    Gender:
    Male
    First Name:
    Clint
    PNW
    Vehicle:
    2005 DCLB 4wd MT
    Would you need a converter box for the 4wire? The older trucks would always need a 5 to 4 wire converter for the tail/brake lights to work properly. Might be wiring in a separate harness to make that work.

  4. Apr 25, 2023 at 8:04 AM
    #4
    clenkeit

    clenkeit Well-Known Member

    Joined:
    Apr 30, 2019
    Member:
    #291841
    Messages:
    2,318
    First Name:
    Colin
    Lakewood, CA
    Vehicle:
    2010 White DCLB TRD Sport
    I too went down this rabbit hole and ended up just bailing on the idea as it wasn't immediately important. Your best bet will be to use an aftermarket 4/7 pin combo connector rather than the OEM one. The G2 and G3 Tacoma wiring for the trailer wiring use completely different style connectors and different wires/pins as well so you can't just easily re-pin it. You'll want to get generic, aftermarket parts then cut/splice into your existing wiring.

    There may be something out there but after weeks of searching for a plug n play solution I gave up.


    Here are a bunch of threads that were helpful for me:
    https://www.tacomaworld.com/threads...e-snap-some-pics-for-me.787171/#post-28167297
    https://www.tacomaworld.com/threads/7-pin-trailer-harness-plug-replacement-tip.288024/
    https://www.tacomaworld.com/threads/trailer-plug-relocation.380406/

  5. Apr 25, 2023 at 8:36 AM
    #5
    steveo27

    steveo27 [OP] Ask me about my weiner

    Joined:
    Aug 12, 2013
    Member:
    #110326
    Messages:
    5,838
    Gender:
    Male
    First Name:
    Steve
    Pittsburgh
    Vehicle:
    '11 TRD Off Road & 1992 VW GLI
    The same shit everyone else has.
  6. May 1, 2023 at 6:08 PM
    #6
    steveo27

    steveo27 [OP] Ask me about my weiner

    Joined:
    Aug 12, 2013
    Member:
    #110326
    Messages:
    5,838
    Gender:
    Male
    First Name:
    Steve
    Pittsburgh
    Vehicle:
    '11 TRD Off Road & 1992 VW GLI
    The same shit everyone else has.
    Welp, here’s my solution.

    Purchased the Hopkins 41144.

    https://www.amazon.com/gp/aw/d/B00YJGC6C6?ref=ppx_pop_mob_b_asin_title

    It’s a 7/4 pin combo that looks similar to the 3rd gen unit.

    I started by taking notes.


    Then I dissected the factory harness/plug and depinned it.



    Then I took the Hopkins plug and depinned it as well.



    Then I removed the pins/seals from the Toyota harness.


    And stripped the ends.


    Then I stripped the pins/seals off the Hopkins harness.


    I opened the pins back up and crimped them onto the Toyota harness after adding the Hopkins seals to it.


    I added a bit of solder just to be sure.


    Then I matched the Toyota wiring up to the Hopkins plug and repinned it.



    Now the aftermarket 7/4 pin trailer plug will plug into the factory harness.




    I just need to mount somewhere now.

    Hopefully this helps.
