    Quick Links: CB specifics Which One of You Boneheads Was This? Please recommend accessories DIY fix for 2GR-FKS timing cover leaks? Fog on w/ high beam using SP9100 I need pictures of your Step bars/Sliders!

3rd Gen. Tacoma Front, Rear Camera, Navigation Bypass, Homelink, Smartphone Mirroring Mod.

Discussion in '3rd Gen. Tacomas (2016-2023)' started by Hoangde, Jan 31, 2017.

Page 2 of 10
  1. Feb 26, 2017 at 3:58 PM
    #21
    memoag12

    #21
    memoag12 New Member

    Joined:
    Aug 23, 2016
    Member:
    #195347
    Messages:
    1
    Gender:
    Male
    Vehicle:
    2017 Tacoma TRD sport
    Do I need diodes for the mod to work? Hoangde doesnt mention any diodes.
    Also if I do this what happen when I switch to reverse and the toogle switch is in the front camera position will it display the front instead the rear camera?

    memoag12, Feb 26, 2017
    #21
  2. Feb 26, 2017 at 4:32 PM
    #22
    Abec23

    #22
    Abec23 Well-Known Member

    Joined:
    Oct 14, 2015
    Member:
    #166639
    Messages:
    45
    Gender:
    Male
    East Los Angeles
    Vehicle:
    2016 black Tacoma TRD Sport 4X4
    With this method you need diodes. When you switch to reverse with the front camera on nothing happen you still gone see the front camera til you switch back to off. With this method only one switch needed. Thats why I like it.

    Abec23, Feb 26, 2017
    #22
  3. Mar 8, 2017 at 5:00 AM
    #23
    TditoTRDOR?

    #23
    TditoTRDOR? Well-Known Member

    Joined:
    Nov 4, 2016
    Member:
    #201504
    Messages:
    64
    Is there a 24pin jumper wiring harness available? I'd rather not tap into the stock wiring- I already purchased a 28 pin jumper, but don't know if there is a 24 pin jumper being sold...

    TditoTRDOR?, Mar 8, 2017
    #23
  4. Mar 8, 2017 at 8:57 AM
    #24
    Hoangde

    #24
    Hoangde [OP] Well-Known Member

    Joined:
    Sep 6, 2016
    Member:
    #196593
    Messages:
    589

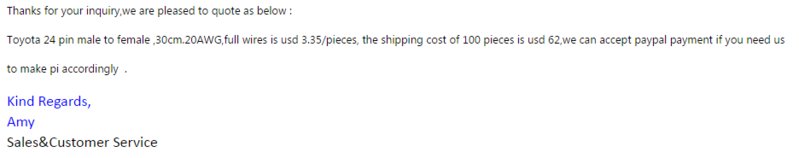

    You can order directly from China for 24 pin adapter cable (custom build) but the company required a minimum of 100 pieces.
    A total cost (included s/h) breakout to be ~$4.00/piece.
    Then from there you can resale in eBay and Amazon to recoup your cost and get a good profit.

    Last edited: Mar 8, 2017
    This site contains affiliate links for which the site may be compensated.
    Hoangde, Mar 8, 2017
    #24
  5. Mar 8, 2017 at 8:59 AM
    #25
    gpb

    #25
    gpb Well-Known Member

    Joined:
    Aug 24, 2016
    Member:
    #195408
    Messages:
    6,069
    Gender:
    Male
    Atlanta
    Vehicle:
    2017 White DCSB TRDOR 4x4
    Sounds like a job for @jshsltr methinks... :)

    gpb, Mar 8, 2017
    #25
    jshsltr likes this.
  6. Mar 8, 2017 at 10:22 AM
    #26
    Hoangde

    #26
    Hoangde [OP] Well-Known Member

    Joined:
    Sep 6, 2016
    Member:
    #196593
    Messages:
    589

    Hoangde, Mar 8, 2017
    #26
    jshsltr likes this.
  7. Mar 14, 2017 at 1:30 PM
    #27
    Arkie-Marty

    #27
    Arkie-Marty I'm not a real DIY expert, I just play one on TW.

    Joined:
    Aug 21, 2015
    Member:
    #162345
    Messages:
    105
    Gender:
    Male
    First Name:
    Marty
    Searcy, Arkansas
    Vehicle:
    2017 4x4 Sport DCSB, Magnetic Gray
    MODS COMPLETED IN MY TACOMA CAREER (2015 & 2017): WeatherTech Floor Mats, Chrome Nerf Bars, Under Hood LED Lights, Glove Box LED Lights, Cup Holder LED Lights, Center Console LED Lights, LED Bed Lights, Dual USB Port Console Install, 12v Power Outlet in Bed, 12v Power Outlet Under Hood, Gentex 177 Rearview Mirror w/Temp & Compass, @ImMrYo's Rearview Mirror Relocation Bracket Mod, Disable Lock/Unlock Beeps Mod, Under Door Projector/Puddle Lights, Behind Rear Seat Storage LED Lights.
    So, is the "near future" here yet? :D I've been trying to figure out what you're referring to....but I give up! :confused:

    Arkie-Marty, Mar 14, 2017
    #27
  8. Mar 14, 2017 at 1:38 PM
    #28
    Logan.spencer

    #28
    Logan.spencer Well-Known Member

    Joined:
    May 14, 2016
    Member:
    #186898
    Messages:
    469
    Gender:
    Male
    First Name:
    Logan
    Southern VT
    Vehicle:
    '18 TRD OR DCSB Cement Manual
    2018 TRD OR DCSB 6 Speed MT Magnaflow Catback CBI T3 Front bumper RCI Skids (front, trans, t-case) RCI Rear Bumper (custom swivel recovery points) Rocky Road SuperSliders ARE Overland cap with area lighting Rigid SRQ backup lights Rigid DSS ditch lights Baja Designes 20" single row Baja Designs squadron sport fogs Icon Stage 9 SwitchPros power system ...i may be forgetting something...
    Logan.spencer, Mar 14, 2017
    #28
    BoyDrew likes this.
  9. Mar 18, 2017 at 11:03 AM
    #29
    Arkie-Marty

    #29
    Arkie-Marty I'm not a real DIY expert, I just play one on TW.

    Joined:
    Aug 21, 2015
    Member:
    #162345
    Messages:
    105
    Gender:
    Male
    First Name:
    Marty
    Searcy, Arkansas
    Vehicle:
    2017 4x4 Sport DCSB, Magnetic Gray
    MODS COMPLETED IN MY TACOMA CAREER (2015 & 2017): WeatherTech Floor Mats, Chrome Nerf Bars, Under Hood LED Lights, Glove Box LED Lights, Cup Holder LED Lights, Center Console LED Lights, LED Bed Lights, Dual USB Port Console Install, 12v Power Outlet in Bed, 12v Power Outlet Under Hood, Gentex 177 Rearview Mirror w/Temp & Compass, @ImMrYo's Rearview Mirror Relocation Bracket Mod, Disable Lock/Unlock Beeps Mod, Under Door Projector/Puddle Lights, Behind Rear Seat Storage LED Lights.

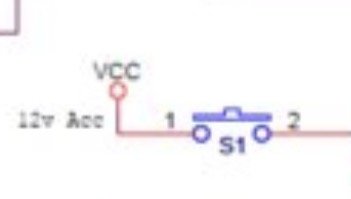

    I need clarification on this part of the schematic. Define VCC please, would this be power coming from an accessory fuse in the interior fuse panel?

    Also I'm not sure about 1 S1 2, what is that symbol. I googled but couldn't find it.

    Arkie-Marty, Mar 18, 2017
    #29
  10. Mar 18, 2017 at 11:36 AM
    #30
    Korndog1284

    #30
    Korndog1284 Well-Known Member

    Joined:
    Sep 12, 2016
    Member:
    #197125
    Messages:
    295
    Gender:
    Male
    First Name:
    J03l
    Washington
    Vehicle:
    2016 Off Road DCLB MGM
    All-Pro Raack Pack, Tepui Tent and Awning, ARB BP-51, K02 275/65/17, 4Runner Pro Wheels
    Korndog1284, Mar 18, 2017
    #30
  11. Mar 18, 2017 at 11:51 AM
    #31
    gorram

    #31
    gorram Well-Known Member

    Joined:
    Feb 22, 2017
    Member:
    #211352
    Messages:
    739
    Gender:
    Male
    Vehicle:
    2016 Limited
    VCC on a schematic is referring to V for Voltage, the next letters such as CC refer to collector off of a transistor for example. There are other letters such as EE, DD, SS etc you may see in more complex schematics like a motherboard.

    S1 is just telling you that is switch one of the diagram or cirucuit. If there were other switches they would be s2, s3...

    gorram, Mar 18, 2017
    #31
    Arkie-Marty[QUOTED] likes this.
  12. Mar 18, 2017 at 11:51 AM
    #32
    ExplorHer

    #32
    ExplorHer Question Authority

    Joined:
    May 2, 2016
    Member:
    #185889
    Messages:
    822
    Gender:
    Male
    Near Pittsburgh
    Vehicle:
    2016 4cyl, 5MT, 4x4, 2 seats, dents, & rust
    Looks to me like VCC is the wire that indicates the vehicles speed.
    And S1 looks to be a normally open switch. You would have to push the switch to close it.
    Late as usual...

    ExplorHer, Mar 18, 2017
    #32
    Arkie-Marty[QUOTED] likes this.
  13. Mar 18, 2017 at 11:59 AM
    #33
    Arkie-Marty

    #33
    Arkie-Marty I'm not a real DIY expert, I just play one on TW.

    Joined:
    Aug 21, 2015
    Member:
    #162345
    Messages:
    105
    Gender:
    Male
    First Name:
    Marty
    Searcy, Arkansas
    Vehicle:
    2017 4x4 Sport DCSB, Magnetic Gray
    MODS COMPLETED IN MY TACOMA CAREER (2015 & 2017): WeatherTech Floor Mats, Chrome Nerf Bars, Under Hood LED Lights, Glove Box LED Lights, Cup Holder LED Lights, Center Console LED Lights, LED Bed Lights, Dual USB Port Console Install, 12v Power Outlet in Bed, 12v Power Outlet Under Hood, Gentex 177 Rearview Mirror w/Temp & Compass, @ImMrYo's Rearview Mirror Relocation Bracket Mod, Disable Lock/Unlock Beeps Mod, Under Door Projector/Puddle Lights, Behind Rear Seat Storage LED Lights.
    I think I figured it out: The symbol is a push button switch, in my case it'll be the OEM looking "CAMERA" switch that'll be mounted in the dash, left of steering wheel. @Hoangde please correct me if I'm wrong.

    Arkie-Marty, Mar 18, 2017
    #33
  14. Mar 20, 2017 at 9:35 AM
    #34
    Hoangde

    #34
    Hoangde [OP] Well-Known Member

    Joined:
    Sep 6, 2016
    Member:
    #196593
    Messages:
    589

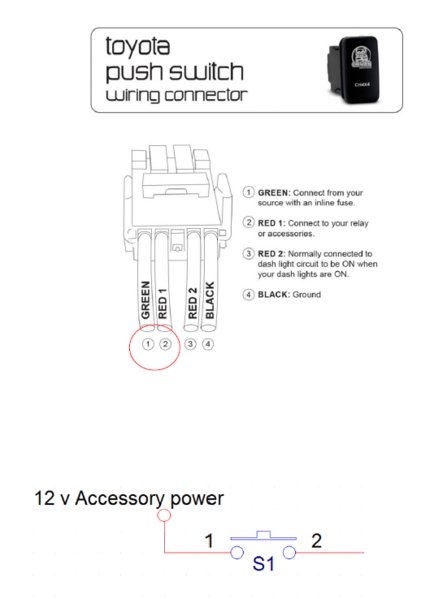

    upload_2017-3-20_9-31-45.jpgHere is the detail of S1 switch.
    1./ Green wire (1) is connect to 12 vdc Accessory power.
    2./ Red1 wire (2) is connect to relay (Pin 85 and 87) and Front Camera (+12 vdc) per schematic.

    Last edited: Mar 20, 2017
    Hoangde, Mar 20, 2017
    #34
    Arkie-Marty likes this.
  15. Mar 21, 2017 at 5:15 PM
    #35
    Arkie-Marty

    #35
    Arkie-Marty I'm not a real DIY expert, I just play one on TW.

    Joined:
    Aug 21, 2015
    Member:
    #162345
    Messages:
    105
    Gender:
    Male
    First Name:
    Marty
    Searcy, Arkansas
    Vehicle:
    2017 4x4 Sport DCSB, Magnetic Gray
    MODS COMPLETED IN MY TACOMA CAREER (2015 & 2017): WeatherTech Floor Mats, Chrome Nerf Bars, Under Hood LED Lights, Glove Box LED Lights, Cup Holder LED Lights, Center Console LED Lights, LED Bed Lights, Dual USB Port Console Install, 12v Power Outlet in Bed, 12v Power Outlet Under Hood, Gentex 177 Rearview Mirror w/Temp & Compass, @ImMrYo's Rearview Mirror Relocation Bracket Mod, Disable Lock/Unlock Beeps Mod, Under Door Projector/Puddle Lights, Behind Rear Seat Storage LED Lights.
    Ok @Hoangde one more question: Where did you mount your relay?

    Arkie-Marty, Mar 21, 2017
    #35
  16. Mar 24, 2017 at 9:47 PM
    #36
    Hoangde

    #36
    Hoangde [OP] Well-Known Member

    Joined:
    Sep 6, 2016
    Member:
    #196593
    Messages:
    589
    Zip tie behind steering wheel.

    Hoangde, Mar 24, 2017
    #36
  17. Mar 24, 2017 at 11:07 PM
    #37
    Arkie-Marty

    #37
    Arkie-Marty I'm not a real DIY expert, I just play one on TW.

    Joined:
    Aug 21, 2015
    Member:
    #162345
    Messages:
    105
    Gender:
    Male
    First Name:
    Marty
    Searcy, Arkansas
    Vehicle:
    2017 4x4 Sport DCSB, Magnetic Gray
    MODS COMPLETED IN MY TACOMA CAREER (2015 & 2017): WeatherTech Floor Mats, Chrome Nerf Bars, Under Hood LED Lights, Glove Box LED Lights, Cup Holder LED Lights, Center Console LED Lights, LED Bed Lights, Dual USB Port Console Install, 12v Power Outlet in Bed, 12v Power Outlet Under Hood, Gentex 177 Rearview Mirror w/Temp & Compass, @ImMrYo's Rearview Mirror Relocation Bracket Mod, Disable Lock/Unlock Beeps Mod, Under Door Projector/Puddle Lights, Behind Rear Seat Storage LED Lights.
    Ok, one more question again......:boink:

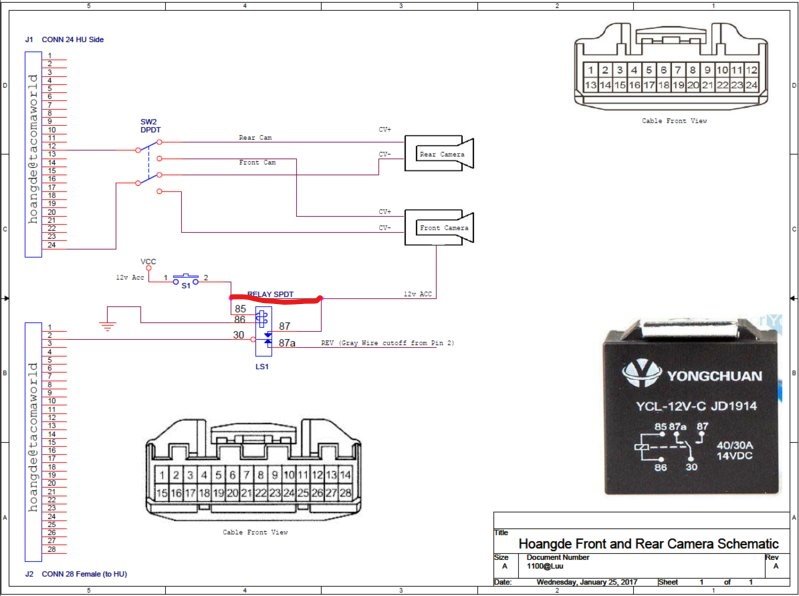

    In your schematic below I have highlighted a line in red. Is this an actual power wire running from the switch (85 wire) to the 87 wire?


    Arkie-Marty, Mar 24, 2017
    #37
  18. Mar 24, 2017 at 11:24 PM
    #38
    Dacon

    #38
    Dacon 2017 Tacoma TRD PRO Quikrete

    Joined:
    Dec 20, 2016
    Member:
    #205354
    Messages:
    2,932
    Gender:
    Male
    First Name:
    Danny
    Gilbert, Arizona.
    Vehicle:
    2017 TRD PRO DCSB. DOP 02.20.2017
    TRD PRO Cement 2017 TRD CAI and AFE Magnum Flow Dry Air Filter Camburg KINETIK Series Billet UCA Icon LCA skid plates Icon Coilover extended travel shocks with 700# springs Icon 2" rear shocks Icon RXT leaf springs full pack (new rims and tires soon)
    Front camera? Why? I have a wife.

    Dacon, Mar 24, 2017
    #38
    Beerpayzdabillz likes this.
  19. Mar 24, 2017 at 11:39 PM
    #39
    Dudeman86

    #39
    Dudeman86 Well-Known Member

    Joined:
    Jun 5, 2016
    Member:
    #188820
    Messages:
    799
    Gender:
    Male
    Scottsdale, AZ
    Vehicle:
    2016 Black DCLB OR
    I saw @Hoangde setup in person. Very nice and awesome to see the creativity of the TW community.

    Dudeman86, Mar 24, 2017
    #39
    Arkie-Marty likes this.
  20. Mar 25, 2017 at 8:26 AM
    #40
    Arkie-Marty

    #40
    Arkie-Marty I'm not a real DIY expert, I just play one on TW.

    Joined:
    Aug 21, 2015
    Member:
    #162345
    Messages:
    105
    Gender:
    Male
    First Name:
    Marty
    Searcy, Arkansas
    Vehicle:
    2017 4x4 Sport DCSB, Magnetic Gray
    MODS COMPLETED IN MY TACOMA CAREER (2015 & 2017): WeatherTech Floor Mats, Chrome Nerf Bars, Under Hood LED Lights, Glove Box LED Lights, Cup Holder LED Lights, Center Console LED Lights, LED Bed Lights, Dual USB Port Console Install, 12v Power Outlet in Bed, 12v Power Outlet Under Hood, Gentex 177 Rearview Mirror w/Temp & Compass, @ImMrYo's Rearview Mirror Relocation Bracket Mod, Disable Lock/Unlock Beeps Mod, Under Door Projector/Puddle Lights, Behind Rear Seat Storage LED Lights.
    Still need help with this. I've got everything hooked up except this one thing and my front camera isn't coming on. I'm at a standstill and don't want to reinstall the radio and dash panels until this is finished.

    Arkie-Marty, Mar 25, 2017
    #40
