4.0 Idler Pulley Replacement OEM vs Gates Reference

Discussion in '2nd Gen. Tacomas (2005-2015)' started by Bruce988jl, Oct 23, 2017.

  1. Oct 23, 2017 at 7:03 PM
    #1
    Bruce988jl

    Bruce988jl [OP] Well-Known Member

    Joined:
    Oct 29, 2015
    Member:
    #168035
    Messages:
    4,954
    Gender:
    Male
    First Name:
    Jason
    Southern NH
    Vehicle:
    08 Tacoma Dbl Cab TRD Off-Road & 05 Mitsubishi Evo
    Went through a shit show with the pulley upgrade, originally ordered a gates kit however my Idler #2 blew apart on the highway forcing me to go with OEM the night after I ordered the gates kit and needed part asap.
    Here's a quick comparison between OEM vs the Gates kit I received. Unfortunately some of the comparisons will be with used oem parts and not new ones as I needed to get the truck back on the road asap.

    Vehicle Information:
    2008 Tacoma TRD Off Road
    143xxx miles
    Automatic Trans
    Symptoms were squealing/whining from pulleys on the motor. Eventually Idler #1 failed completely

    Some people had mentioned that the Idler #1 Pulley would fit on the tensioner - this is the case for the aftermarket pulleys and NOT the OEM Idler #1 as you'll see later in this post.


    Part Numbers (OEM):
    Tensioner - 16620-31013
    Idler #1 - 16603-0P030
    Idler #2 - 16604-0P011
    Belt - Forgot to write it down

    Gates Part Numbers: (ACK070834 was the Gates kit that I purchased)
    Tensioner - 38411
    Idler #1 - 36174
    Idler #2 - 36173
    Belt - K070834

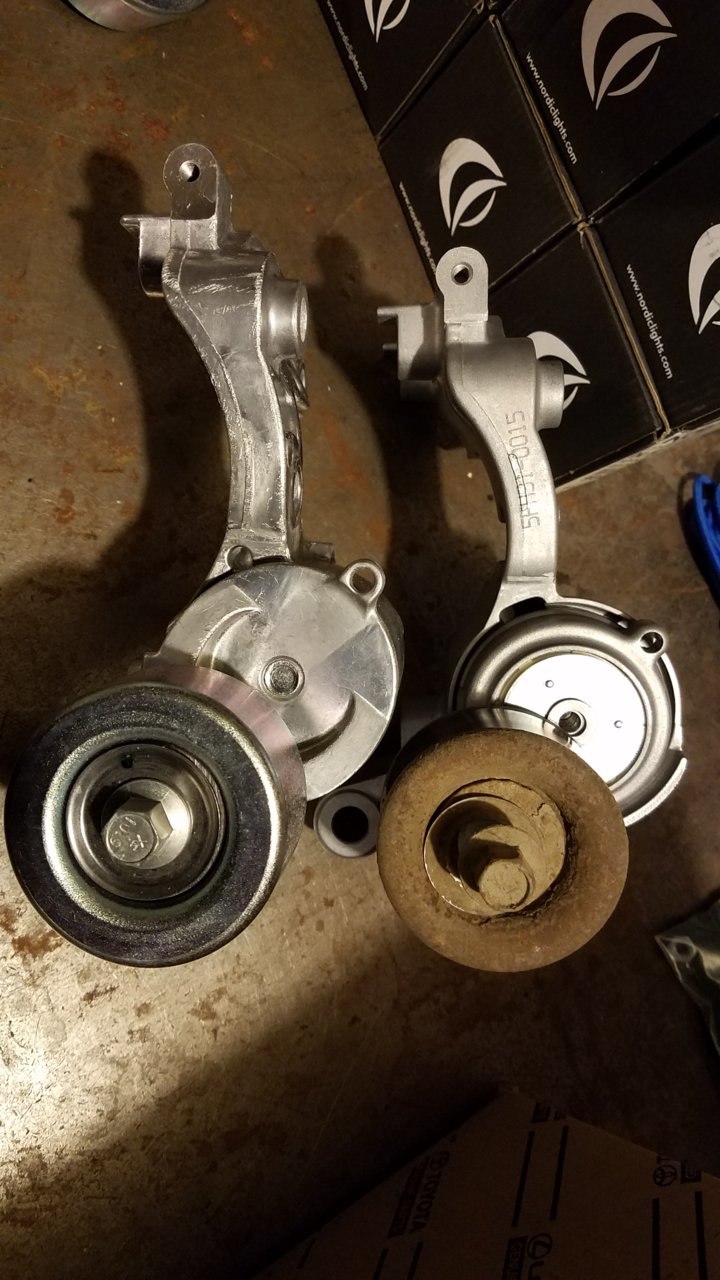

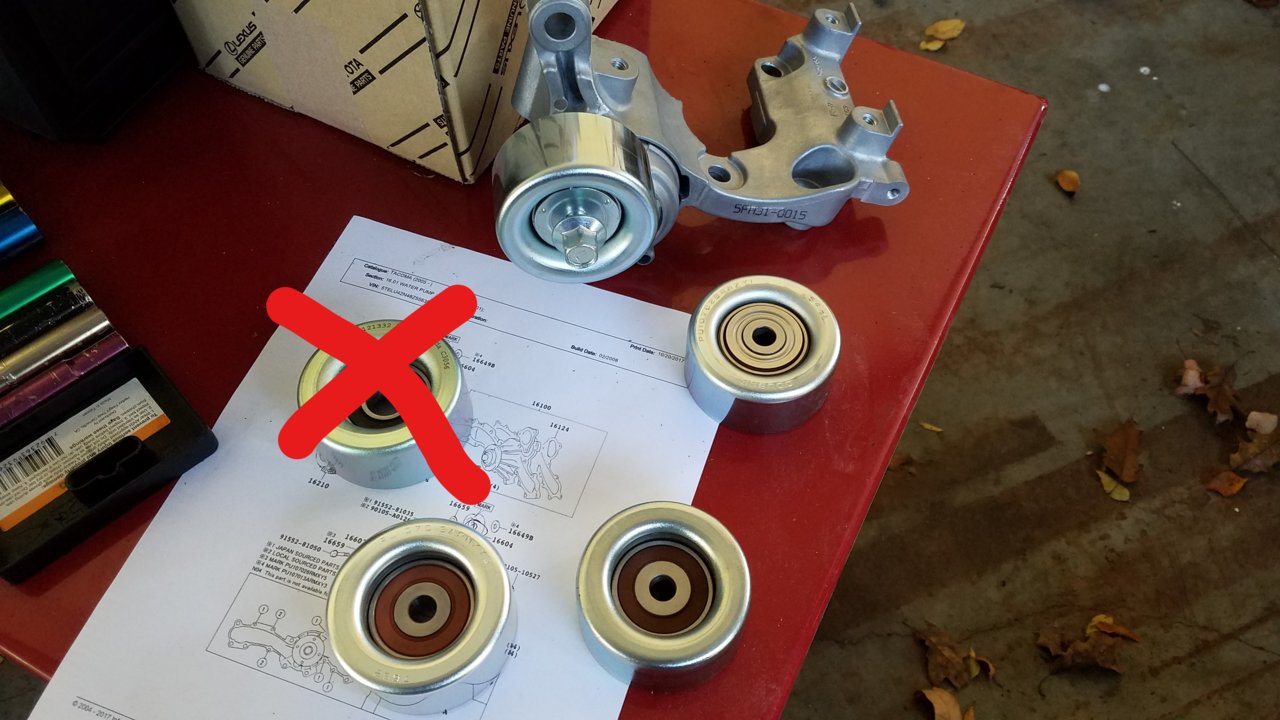

    OEM Tensioner / Idler #1 and two Idler #2's: (disregard the red x - one of the gates units was in the photo)

    For starters here's the comparison between the OEM Tensioner (with old pulley) and the Gates Tensioner (with gates pulley):

    Now for my application I was keeping my OEM Tensioner in the truck and only replacing the idler pulley so here are comparisons between the different pulleys on the OEM tensioner:

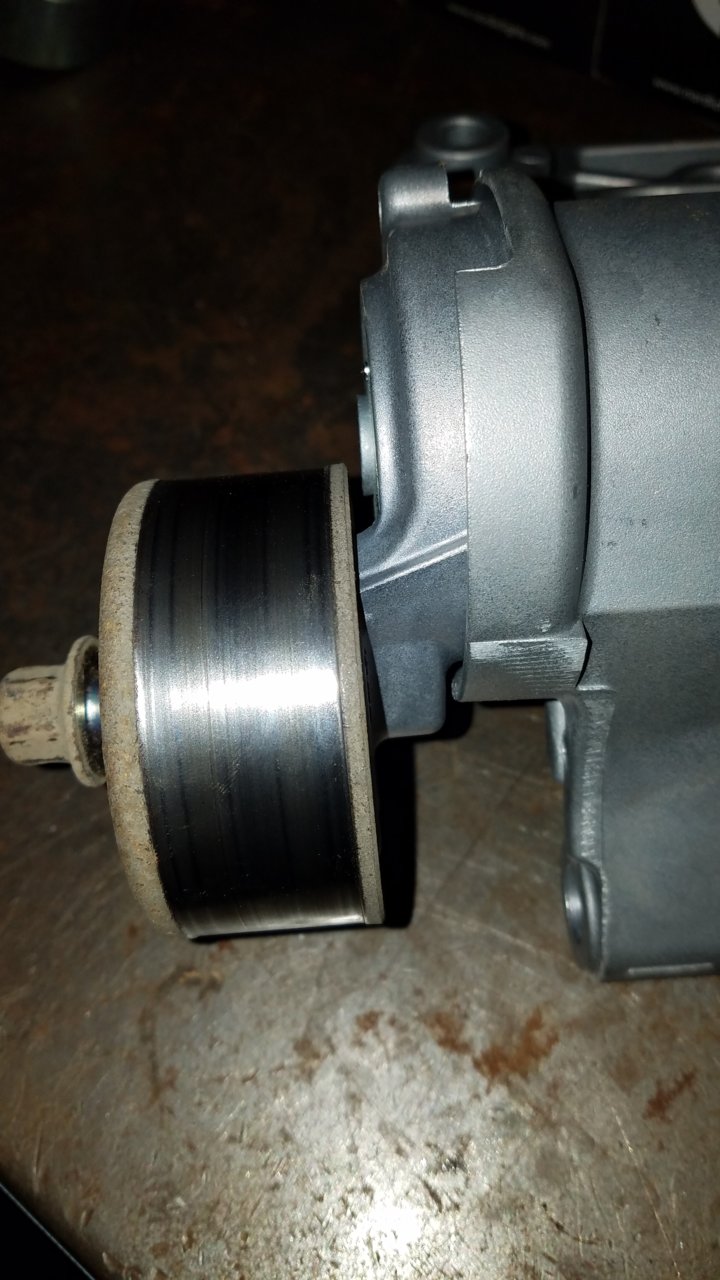

    OEM Tensioner with OEM Pulley:

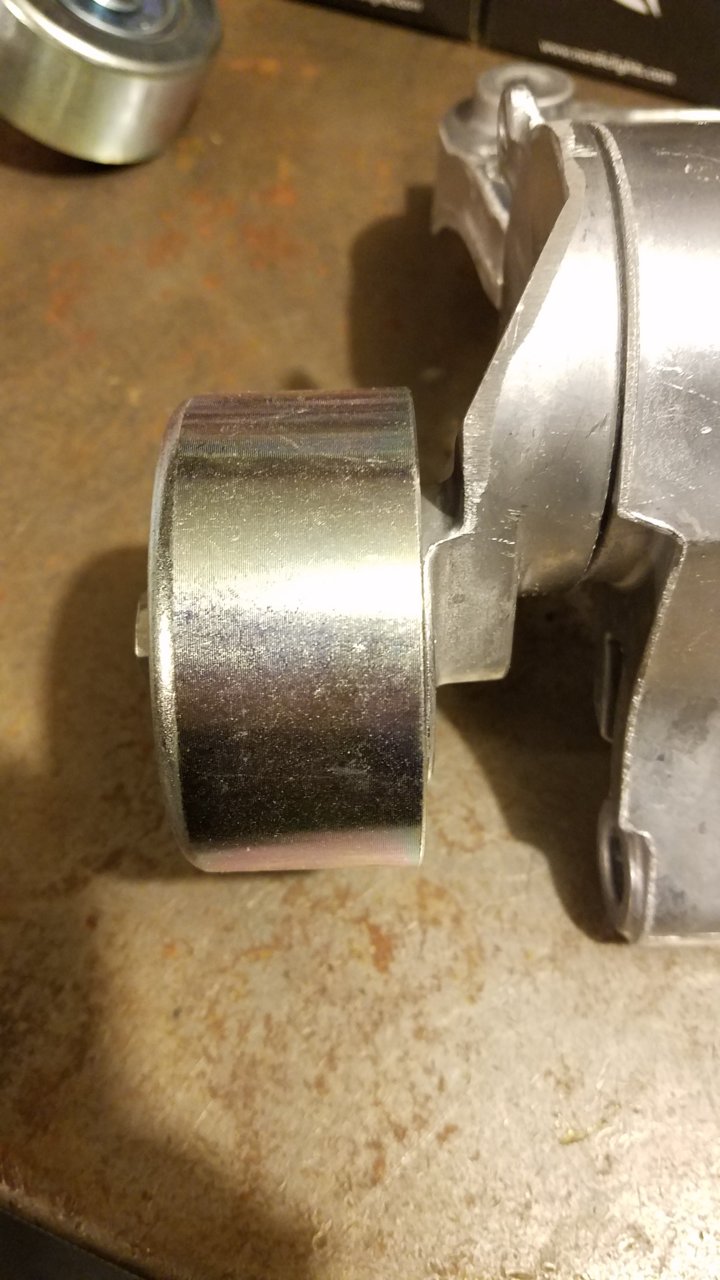

    Gates Tensioner with Gates Pulley (notice the height difference between the pulley and the tensioner compared to the OEM photo above)

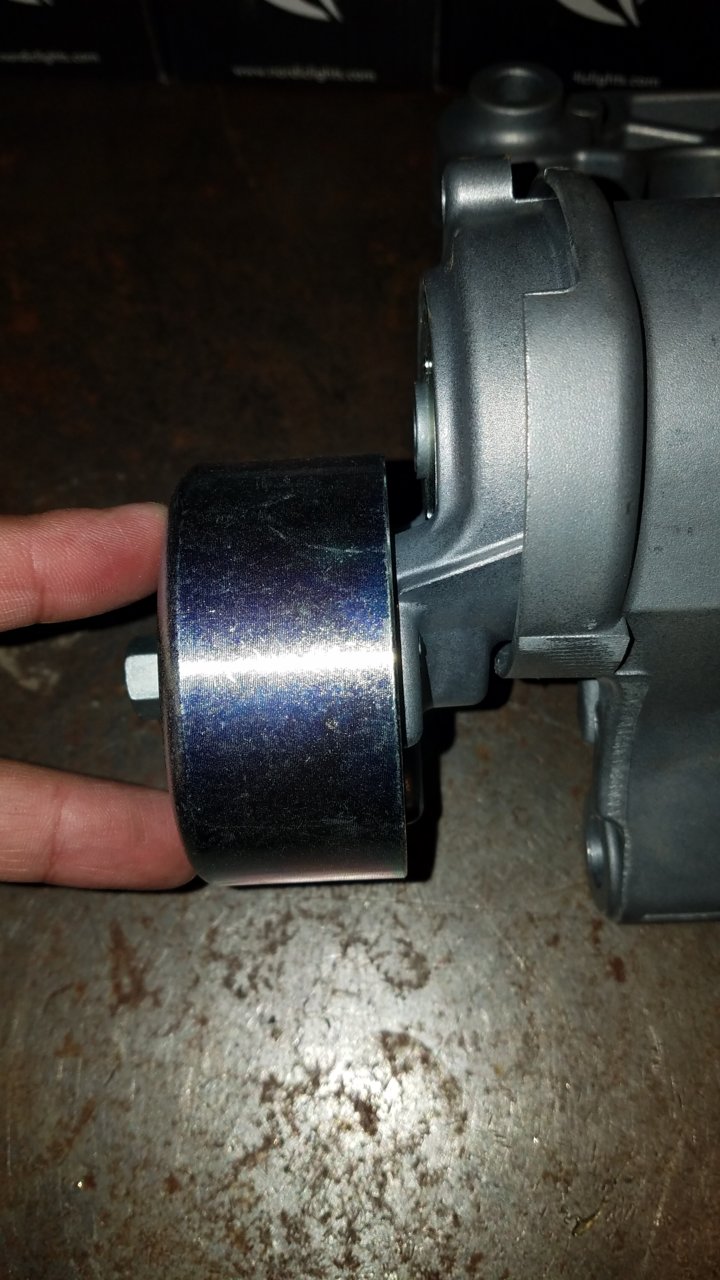

    Gates tensioner pulley on OEM Tensioner (Works fine and the Gates left-handed thread bolt works in the OEM tensioner as well - it's just a 13mm bolt instead of a 14mm bolt)

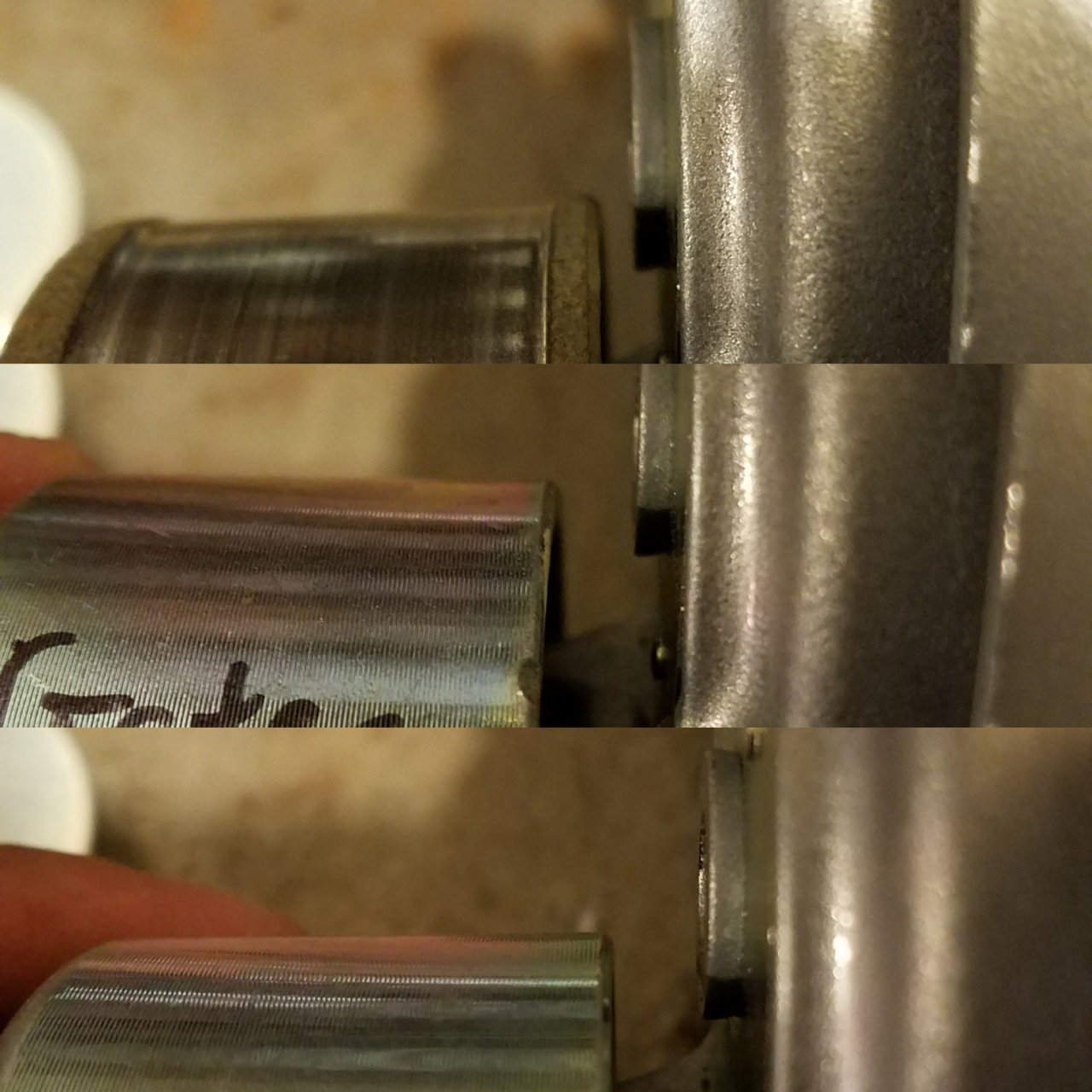

    Now for the comparison between the three pulleys on the OEM Tensioner:
    Top - OEM Tensioner Pulley - 0.075 inches gap
    Middle - Gates Tensioner Pulley - 0.200 inches gap
    Bottom - Gates Idler #1 Pulley - 0.200 inches gap

    However with that in mind - the pulley on my truck actually rode at about 0.210 inches from the tensioner so technically either the Gates Tensioner pulley and the Gates Idler #1 would work - it would just ride very close to the back of the pulley.

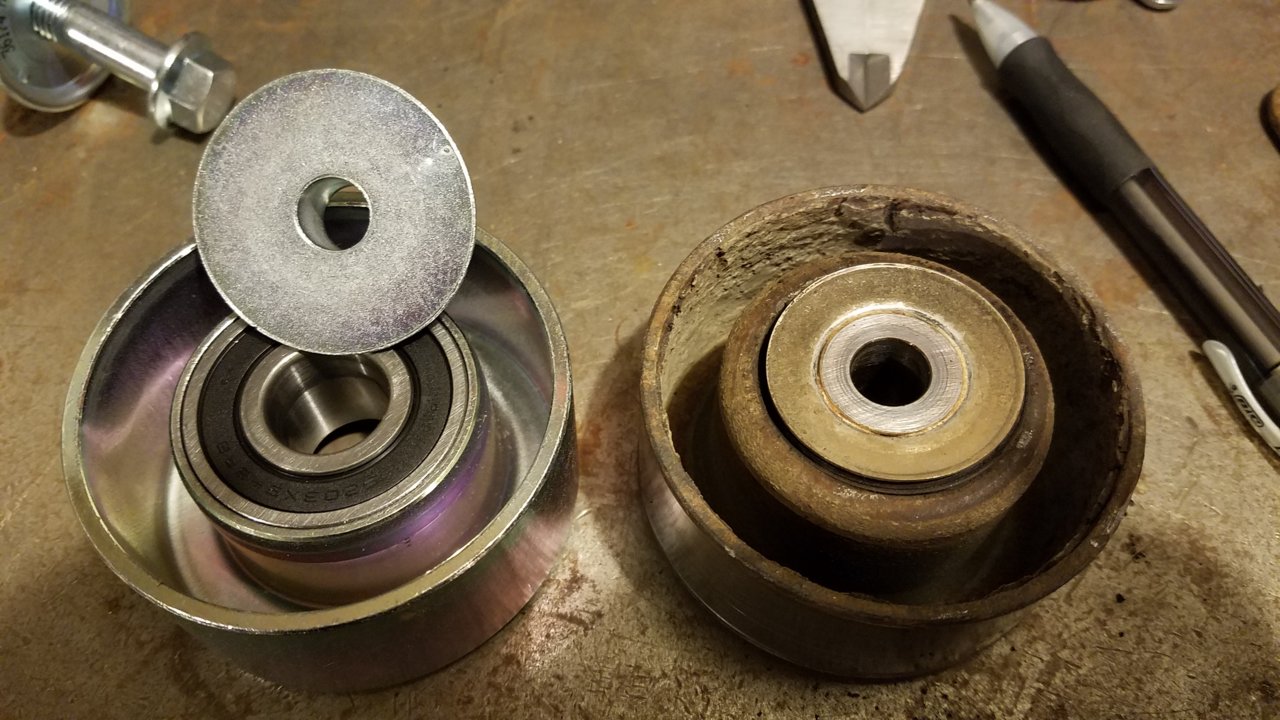

    Comparisons between the OEM Idler #1 pulley and the Gates #2 Pulley:
    Both pulleys measure in at about 2.75" in diameter. The Gates branded pulley uses a shim to size down the mounting hole to fit the stock hardware (don't mind the OEM bearing it blew apart so it's supposed to be pressed in the and not sticking out like it does)

    The difference between the Gates #1 Pulley and the Gates Tensioner pulley seems to me that it's just a matter of bearing type - both would work on the OEM Tensioner however I believe one bearing might be sealed vs another might not be?? Not entirely sure and I forgot to take photos of the part numbers on the pulleys so that will have to wait another day.

    Install:
    Install was cake after removing the skid plate. I did everything from the underside including routing the belt over the fan which was just some sort of ghetto combination of fan Ferris wheel style loading of the belt to get it around. Took about 45 minutes to do the pulley swap and that is with the left handed bolt on the tensioner giving me a hard time coming out. I had to use the new one from the OEM tensioner I bought as a donor for the reinstall. However other than that it was one of the easiest things I have done on my truck - got rid of 90% of the whine besides my alternator whine.

    Belt Routing Thanks to @Sandman614
    [​IMG]


    Hope this helps people out! Feel free to ask questions - I'll do my best to answer if I still have the parts available.
