5100's with OME 885's and Rear AAL (PICS)

Discussion in '3rd Gen. Tacomas (2016-2023)' started by sandyTrd87, Jan 2, 2016.

  1. Sep 25, 2016 at 12:08 AM
    #161
    Bajaxr201

    Bajaxr201 Well-Known Member

    Joined:
    Jun 24, 2016
    Member:
    #190407
    Messages:
    380
    Gender:
    Male
    First Name:
    Andrew
    San Diego, CA.
    Vehicle:
    2019 Off Road 4x4 DCSB
    |275/70R17 BFG KO2's | 17" Method NV Wheels| PRO Grille | CaliRaised LED bar and Ditch pods | LED interior Lighting |PlastiDipped emblems | WeatherTech Floor mats |
    This has probably been asked in other threads maybe even in this one and I missed it but I'm still wondering.... what's the advantage of running 5100's @ 0 but with a coil instead of just 5100's @ 1.75 or something??

    I left stock coil and put my 5100's at 2nd or 3rd notch... can't remember its been 3 months lol

    Anyways.... I think it's time for me to do something to my rear since I left that stock and only lifted the front.
    Doing either 5100's or 5160's ... any suggestions? and probably an AAL
    Thoughts and/or experiences?!

  2. Aug 7, 2017 at 10:23 PM
    #162
    61ragtop

    61ragtop Well-Known Member

    Joined:
    Nov 13, 2016
    Member:
    #202272
    Messages:
    182
    Gender:
    Male
    I know this is old but any more pics? And what tire size? Looks AWESOME!!!

  3. Aug 7, 2017 at 11:26 PM
    #163
    Nightscape

    Nightscape Well-Known Member

    Joined:
    Jan 13, 2017
    Member:
    #207521
    Messages:
    289
    Gender:
    Male
    SoCal
    Vehicle:
    2017 TRD Sport DCLB

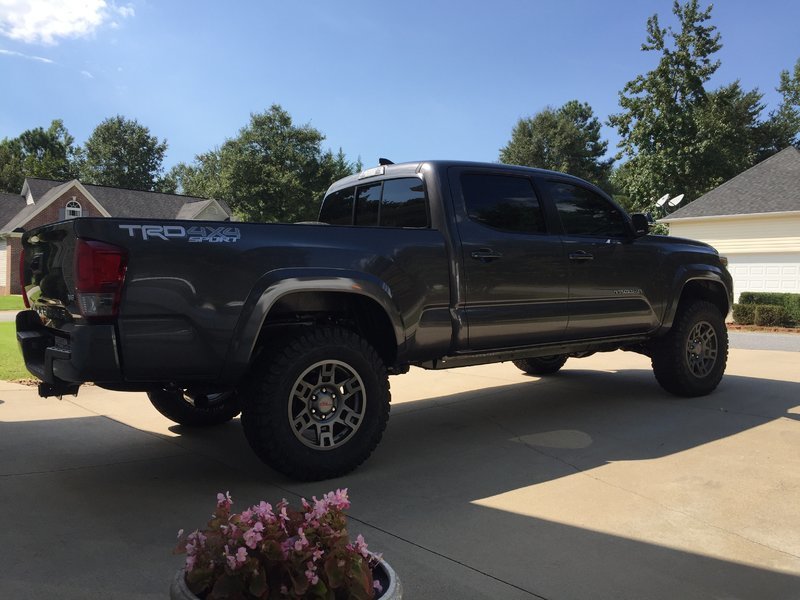

    5100s all around, front set at zero
    887 coils
    1/4" driver side top plate
    Deaver AAL for the rear
    Got 2" of lift



    trktwo, fiftyxp, 71tattooguy and 10 others like this.
  4. Aug 8, 2017 at 6:07 AM
    #164
    SteenosMT

    SteenosMT Well-Known Member

    Joined:
    Mar 29, 2016
    Member:
    #182751
    Messages:
    203
    Gender:
    Male
    First Name:
    Justin
    Vehicle:
    2022 TRD Off Road
    Stock for now.
    I just got Bilstein 5100s ome 888s and ome dakar leaf pack. Can't wait to install. Looks good.

  5. Aug 8, 2017 at 8:23 PM
    #165
    61ragtop

    61ragtop Well-Known Member

    Joined:
    Nov 13, 2016
    Member:
    #202272
    Messages:
    182
    Gender:
    Male

    Looks awesome!!!! what tire size?

  6. Aug 8, 2017 at 9:30 PM
    #166
    Nightscape

    Nightscape Well-Known Member

    Joined:
    Jan 13, 2017
    Member:
    #207521
    Messages:
    289
    Gender:
    Male
    SoCal
    Vehicle:
    2017 TRD Sport DCLB
    Thanks!
    265/70/17

    61ragtop[QUOTED] likes this.
  7. Aug 9, 2017 at 8:11 AM
    #167
    SteenosMT

    SteenosMT Well-Known Member

    Joined:
    Mar 29, 2016
    Member:
    #182751
    Messages:
    203
    Gender:
    Male
    First Name:
    Justin
    Vehicle:
    2022 TRD Off Road
    Stock for now.
    How do you like the 265's? Do you wish you had gotten 285's? The 265's look great too.

  8. Aug 9, 2017 at 8:19 AM
    #168
    Tacomamike mike

    Tacomamike mike Just that, nothing more.

    Joined:
    Sep 6, 2016
    Member:
    #196650
    Messages:
    3,960
    Gender:
    Male
    First Name:
    Michael
    Vehicle:
    2017 DCLB TRD OFFROAD 4x4
    Working on it, dissent offroad racks, shift sense pro, pedal commander , ARB twin, rigid SS dually's , dual batteries, ARB fridge , 2.5 Fox coil overs wResi , 2.5 Fox rears w resi Total chaos UCA , deaver packs , Nitto trail grappler's 33" .

    Damn Bro you forgot tho thank ME !!!

    Lmao just kidding, great write up and pics !!
    Nice job .

  9. Aug 9, 2017 at 8:24 AM
    #169
    speedtre

    speedtre Well-Known Member

    Joined:
    Dec 21, 2015
    Member:
    #172822
    Messages:
    549
    Gender:
    Male
    DirtySouth
    Vehicle:
    '17 DCLB TRD OR AT 4x4
    Disadvantage is you are getting your lift from a compressed stock spring...so you are going to have a harsher ride and less travel than stock. If you set the 5100s at 0 and use a longer coil to get the lift you will have a more compliant ride than stock with longer travel than stock and the increased height you're after.

    Last edited: Aug 25, 2017
    sandyTrd87[OP] likes this.
  10. Aug 9, 2017 at 1:07 PM
    #170
    jsinnard

    jsinnard Well-Known Member

    Joined:
    Feb 4, 2009
    Member:
    #13279
    Messages:
    6,679
    Gender:
    Male
    First Name:
    J
    Virginia
    Vehicle:
    16 QS DCLB OR 4X4
    885's up front.
    5100s at 0

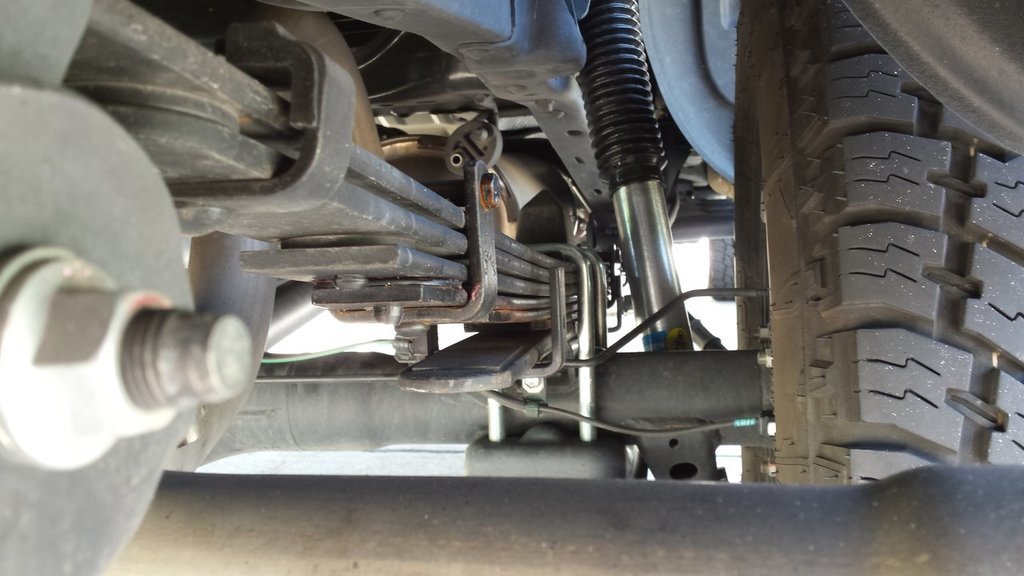

    3 leaf AAL from wheelers in the rear.
    Tires are 265/70/17 Nitto TGs

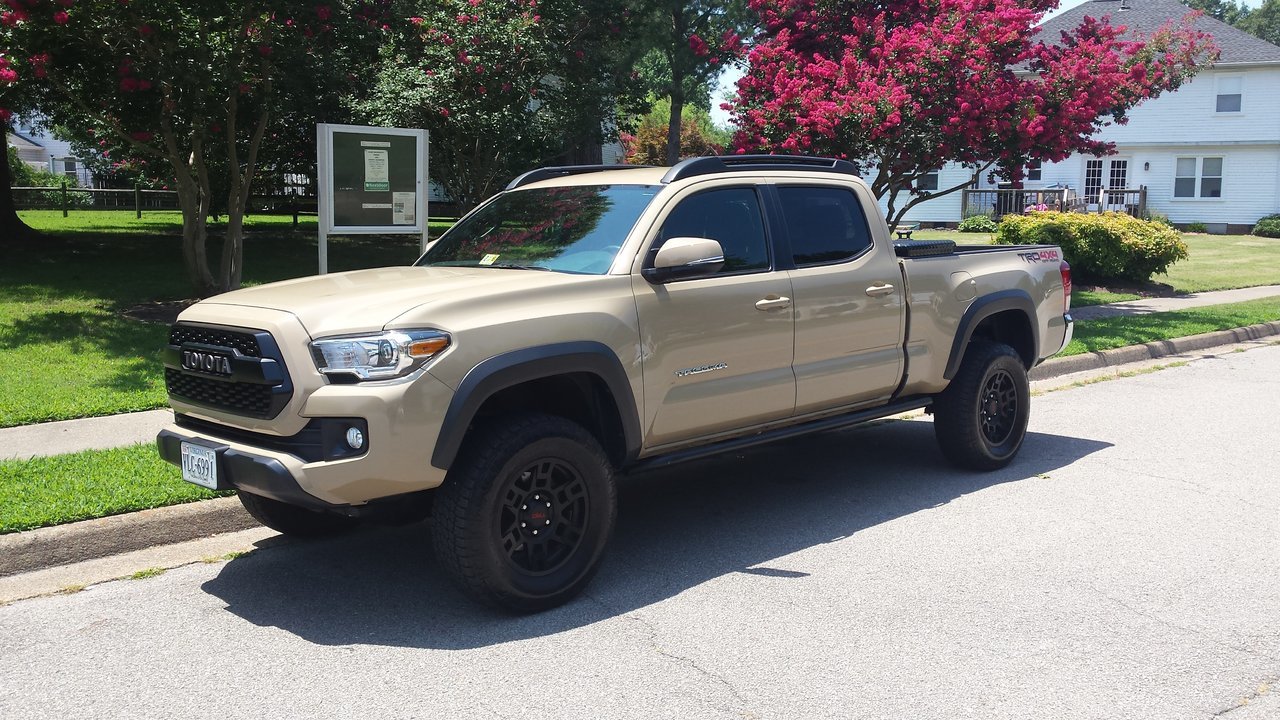

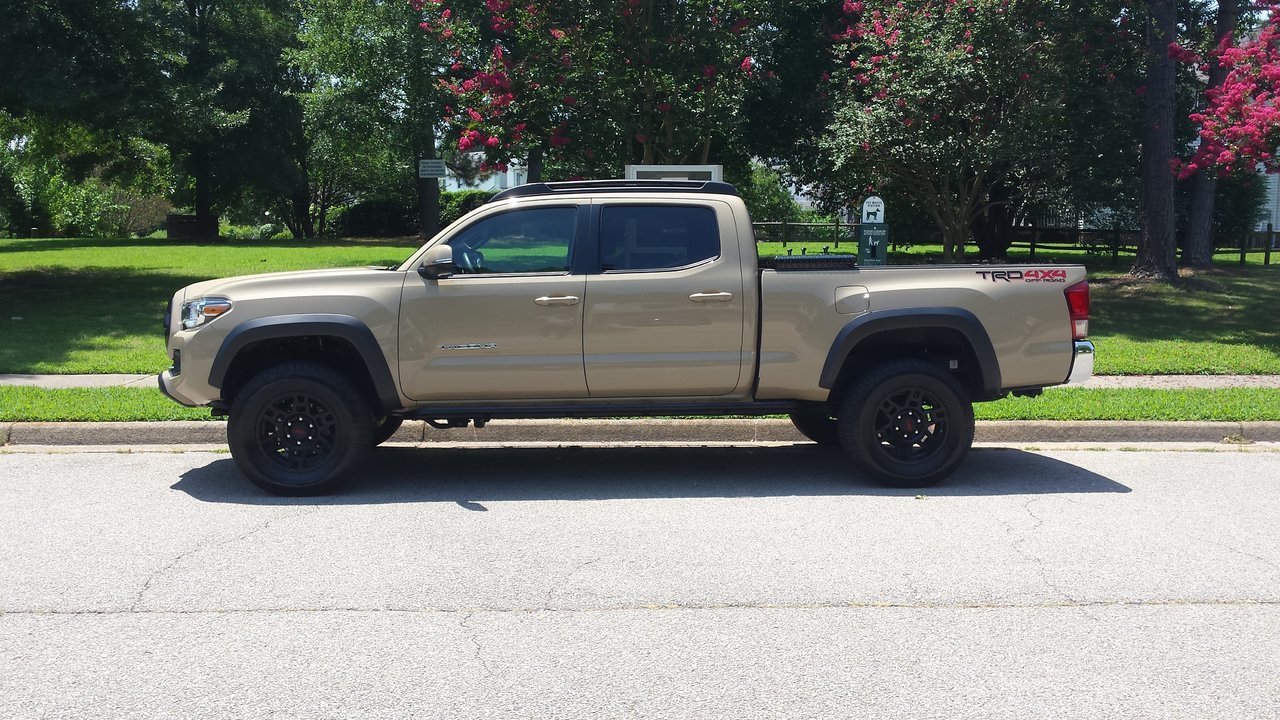

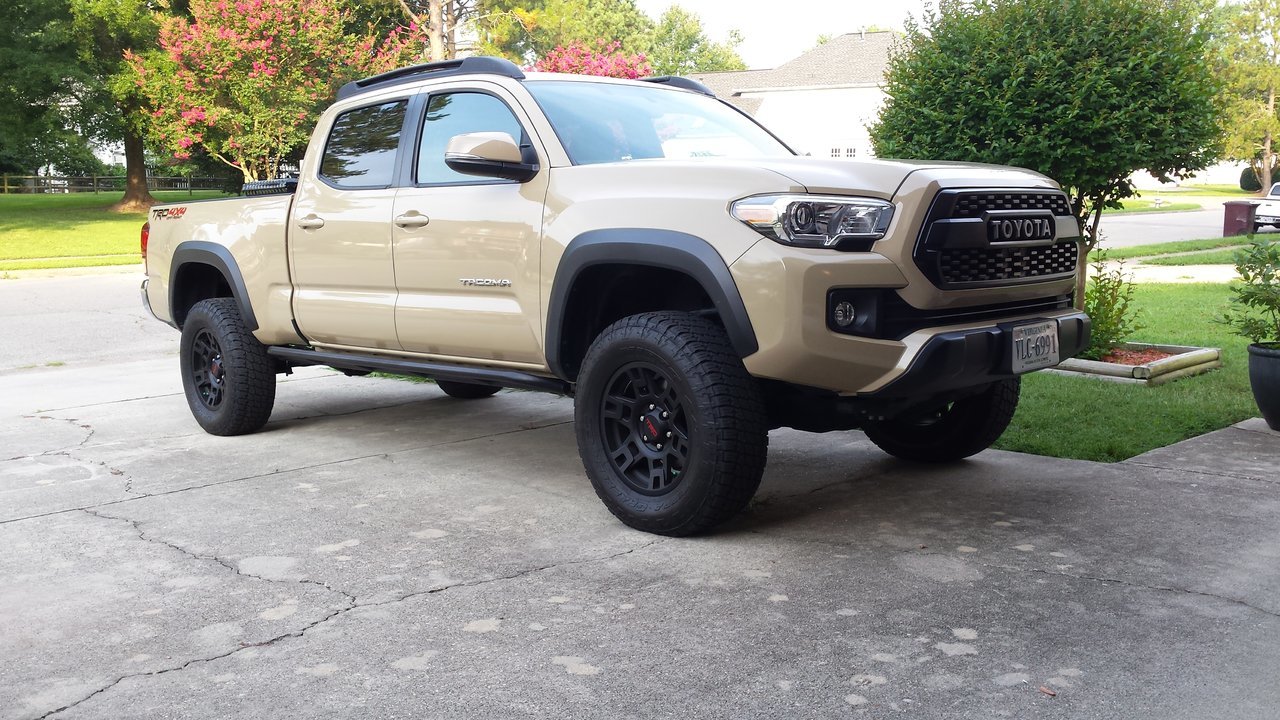

    20170722_131302.jpg 20170722_131250.jpg
    Just a shade under 2 inches front and rear, maintains the factory rake and rides just like OEM OR suspension.

    Very pleased.

  11. Aug 9, 2017 at 1:11 PM
    #171
    speedtre

    speedtre Well-Known Member

    Joined:
    Dec 21, 2015
    Member:
    #172822
    Messages:
    549
    Gender:
    Male
    DirtySouth
    Vehicle:
    '17 DCLB TRD OR AT 4x4
    Do you have any vibration at all in the front/rear? Did you install a differential drop or or ECGS bushings in the front?

  12. Aug 9, 2017 at 1:14 PM
    #172
    jsinnard

    jsinnard Well-Known Member

    Joined:
    Feb 4, 2009
    Member:
    #13279
    Messages:
    6,679
    Gender:
    Male
    First Name:
    J
    Virginia
    Vehicle:
    16 QS DCLB OR 4X4
    speedtre[QUOTED] likes this.
  13. Aug 9, 2017 at 1:21 PM
    #173
    CamShaft033

    CamShaft033 Well-Known Member

    Joined:
    Mar 29, 2017
    Member:
    #214762
    Messages:
    238
    Gender:
    Male
    First Name:
    Cameron
    Chattanooga TN
    Vehicle:
    2012 DCSB TRD Sport
    OME 887s, JBA uca, Dakars, Fox Shocks, 285/70/17 Nittos, Dual Flowmaster, ARE Camper Shell w Yakima Rack, CVT Tent, AVID Rear Bumper Guard w LED Pods, 52" Lightbar, Sportsman Seat Covers, WeatherTech Floor mats
    So you didn't get UCA's? How is the alignment? Any bump steer? I have a 3" toytec spacer with 285's and I wonder if i swap to 885's with stock UCA's my tires will clear and bump steer will diminish without having to fork out $500 for UCA's right now.

    Thanks

  14. Aug 9, 2017 at 1:24 PM
    #174
    jsinnard

    jsinnard Well-Known Member

    Joined:
    Feb 4, 2009
    Member:
    #13279
    Messages:
    6,679
    Gender:
    Male
    First Name:
    J
    Virginia
    Vehicle:
    16 QS DCLB OR 4X4
    No bump steer and no issues with alignment, front has settled to 1 and 7/8ths. Not sure if 285 will clear depending on what your wheel offset is. That's why I stayed with 265, plenty of clearance.

    CamShaft033[QUOTED] likes this.
  15. Feb 26, 2018 at 5:59 AM
    #175
    Yellowplatypuss

    Yellowplatypuss Well-Known Member

    Joined:
    Apr 17, 2014
    Member:
    #127922
    Messages:
    287
    Gender:
    Male
    First Name:
    John
    Columbia, SC
    Vehicle:
    2016 TRD Off Road
    Bilstein 5100 OME 888 & 5160 with AAL, SCS F5, Yokohama GEOLANDERS, morimoto hid and led fogs. Clazzio leather seat covers, ECGS bushing, TRD PRO Grill, Hondo Mount, Martin rack, Baja designs. Caliraised, Ov Tuned

    Old thread...but did you take out your overload spring or leave it?

  16. Feb 26, 2018 at 6:04 AM
    #176
    jsinnard

    jsinnard Well-Known Member

    Joined:
    Feb 4, 2009
    Member:
    #13279
    Messages:
    6,679
    Gender:
    Male
    First Name:
    J
    Virginia
    Vehicle:
    16 QS DCLB OR 4X4
    Left it installed.

  17. Feb 26, 2018 at 7:04 AM
    #177
    Yellowplatypuss

    Yellowplatypuss Well-Known Member

    Joined:
    Apr 17, 2014
    Member:
    #127922
    Messages:
    287
    Gender:
    Male
    First Name:
    John
    Columbia, SC
    Vehicle:
    2016 TRD Off Road
    Bilstein 5100 OME 888 & 5160 with AAL, SCS F5, Yokohama GEOLANDERS, morimoto hid and led fogs. Clazzio leather seat covers, ECGS bushing, TRD PRO Grill, Hondo Mount, Martin rack, Baja designs. Caliraised, Ov Tuned
    awesome, thanks! I’m debating about leaving mine in or not. I like the rake

  18. Feb 26, 2018 at 3:18 PM
    #178
    sandyTrd87

    sandyTrd87 [OP] Well-Known Member

    Joined:
    Sep 27, 2015
    Member:
    #165297
    Messages:
    343
    Gender:
    Male
    Socal
    Bilstien 5100's x4 Dobinson 448 springs, rear 2inch AAL
    I don’t think it hurts to leave it in, technically it helps the lift

  19. Dec 19, 2018 at 8:57 PM
    #179
    hookembevo

    hookembevo Well-Known Member

    Joined:
    Feb 11, 2016
    Member:
    #177856
    Messages:
    1,564
    Gender:
    Male
    Austin, TX
    Vehicle:
    2016 Tacoma DCSB with 6MT
    Snugtop Rebel with some options Body Armor Rock Steps Rhino Mats Weathertech Mudflaps Radar detector hardwired to rear view mirror. Stereo upgrade: Amp: Arc Audio XDI805 LOC: AudioConnect LC7i Front Speakers: Hybrid Audio Technologies Claris 6.5 Rear Speakers: Hybrid Audio Technologies Mirus 5.25 Sub: Pioneer TS-SW2502S4 Box: Pioneer Ud-SW250T Bilstein 5100s OME 885 Springs Single Add-A-Leaf BFG KO2 265/75/16
    My Truck:
    After 3 years of thinking about it, reading posts, and looking at pictures; I finally got around to installing my lift. I wanted something that would look and perform better than stock with minimal chance of buyer's remorse or hacking. The 885/ Bilstein combo fit the bill. I think this may be the perfect middle-age, don't want your wife to notice, daily driver/ weekend adventure setup.

    After 53K miles on the factory tires and 6 plugs, I finally killed them and installed my lift last night. I bought an extra set of take-offs and sold 3 which covered the cost of a matching spare and I plan to do a 5 tire rotation. The Offroad wheels are lightweight, easy to clean, perfect offset, and they don't show brake dust too bad. I'm very happy with how everything turned out. Truck drives better than new and I have no rubbing, no noises, and no regrets. Hopefully, this gives some people ideas/ points of reference when trying to navigate through all of the options.

    Weight Considerations:

    2 tires, a wheel, and 2 cases of wine in the bed. I also have a steel skid plate, Steel Rock Steps, and Snugtop Rebel. Your measurements will vary, but this should give a point of reference if you're considering going this route.

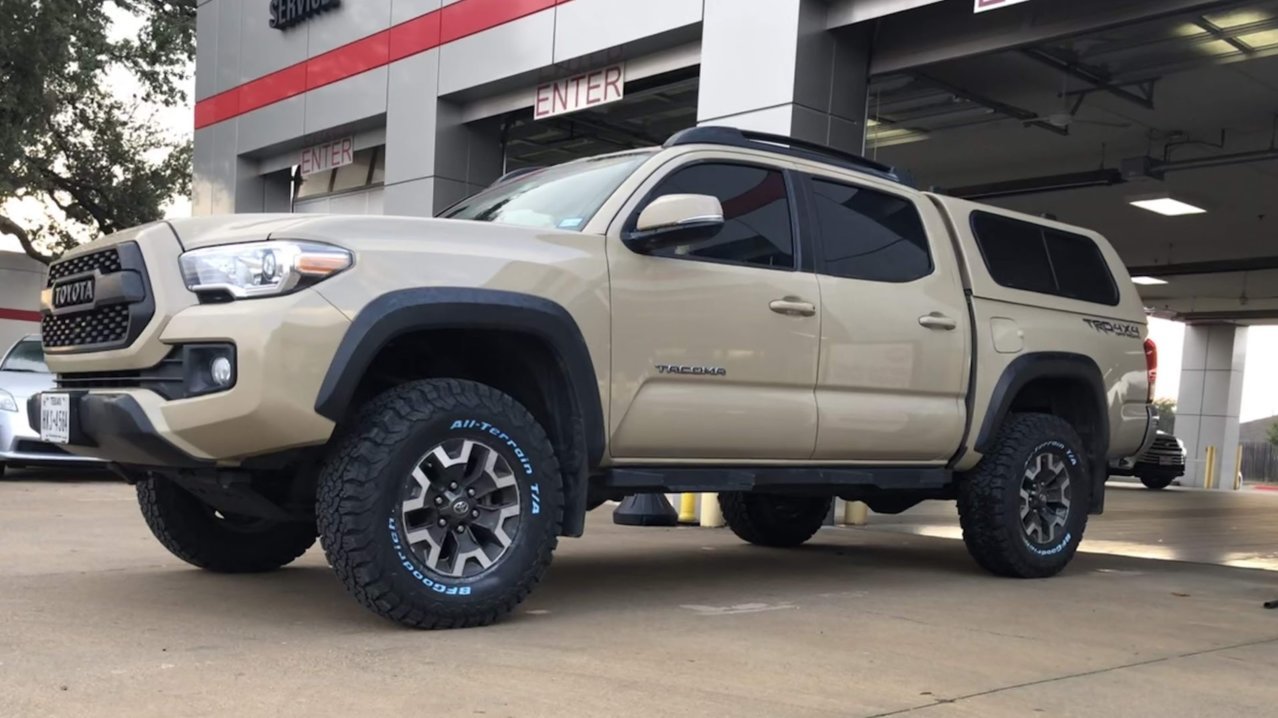

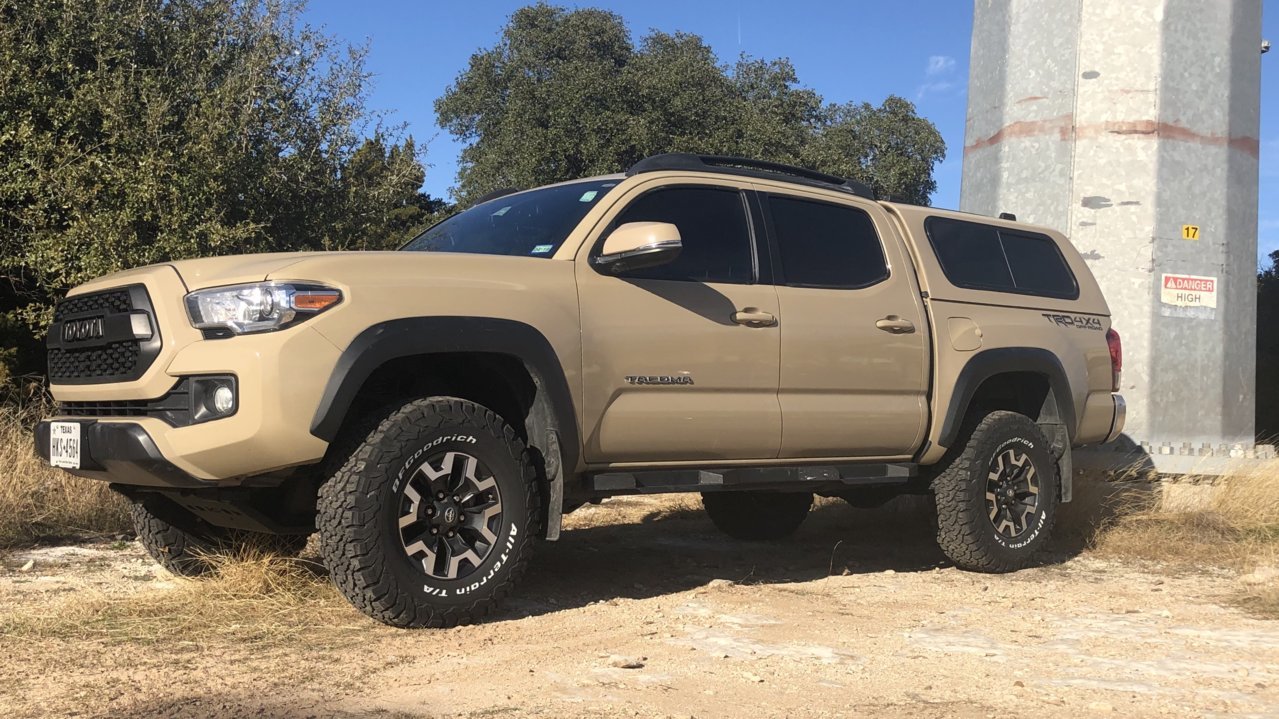

    Edit: First 2 pics after lift had quite a bit of weight in the bed. Added the 2 Offroad shots and edited rear measurements above to reflect ride height with empty bed. It came up about an inch.

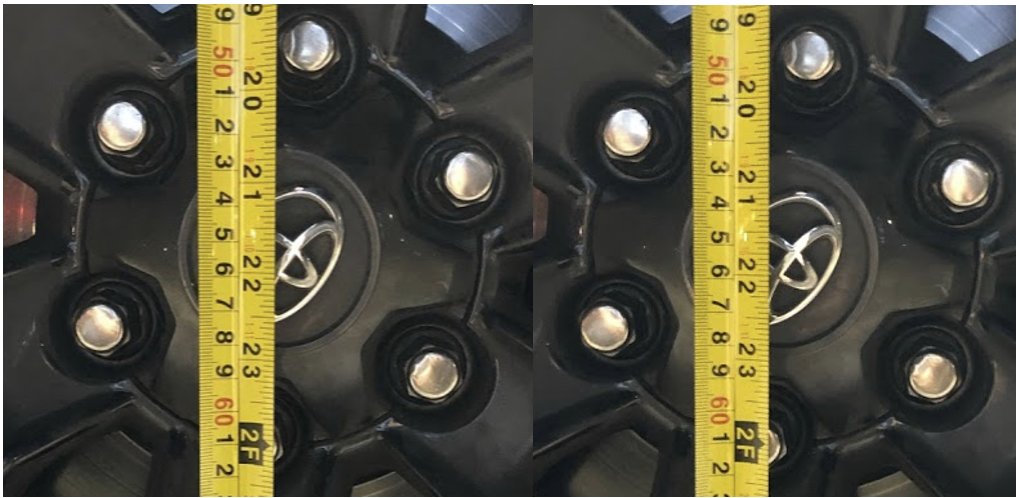

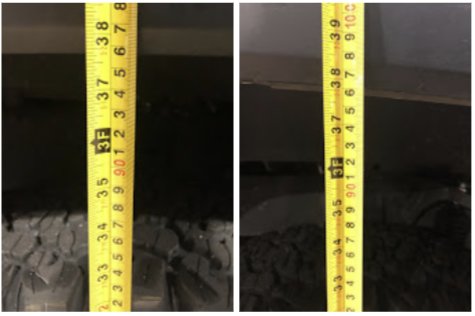

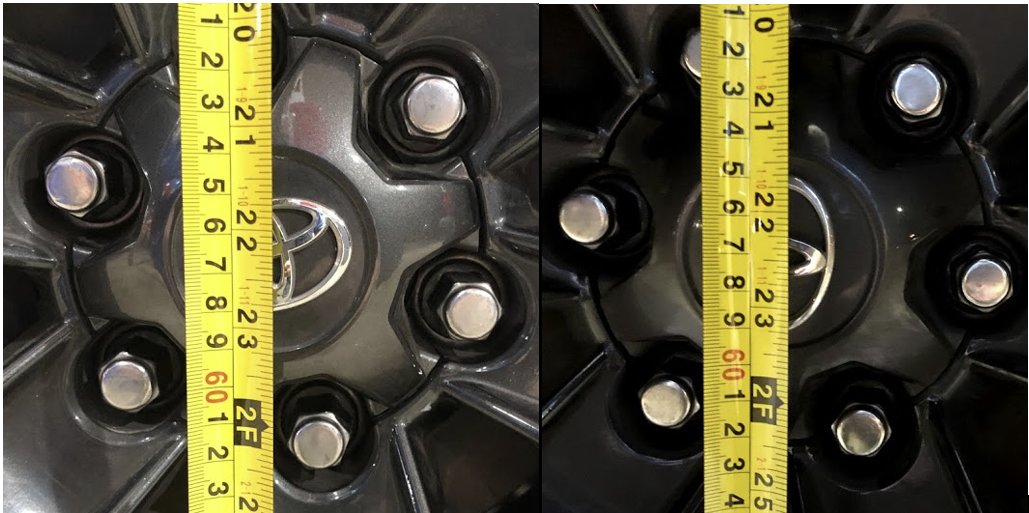

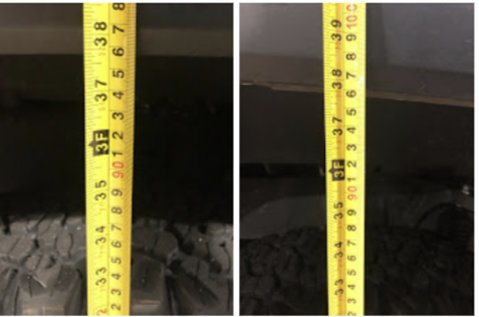

    Pre Lift
    :
    FRONT (Hub to Fender) : 19.5 ish
    REAR (Hub to Fender) : 20.5 ish

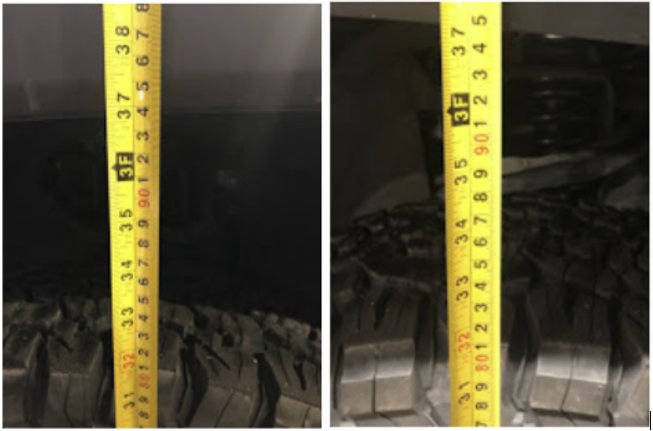

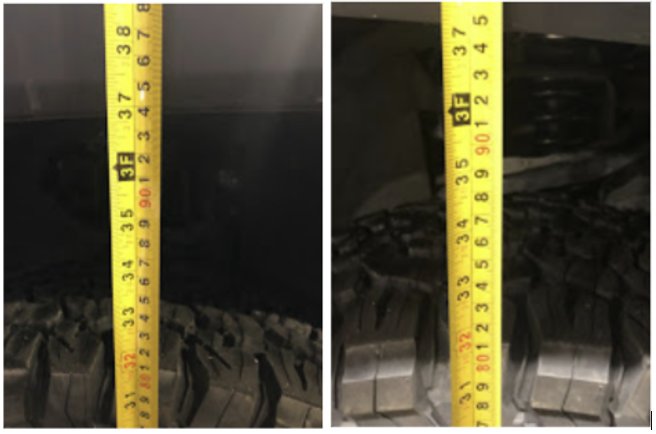

    After Lift:
    FRONT Driver: 22"
    FRONT Passenger: 22"
    REAR Driver: 23.5”
    REAR PASSENGER: 23.5"

    Details:

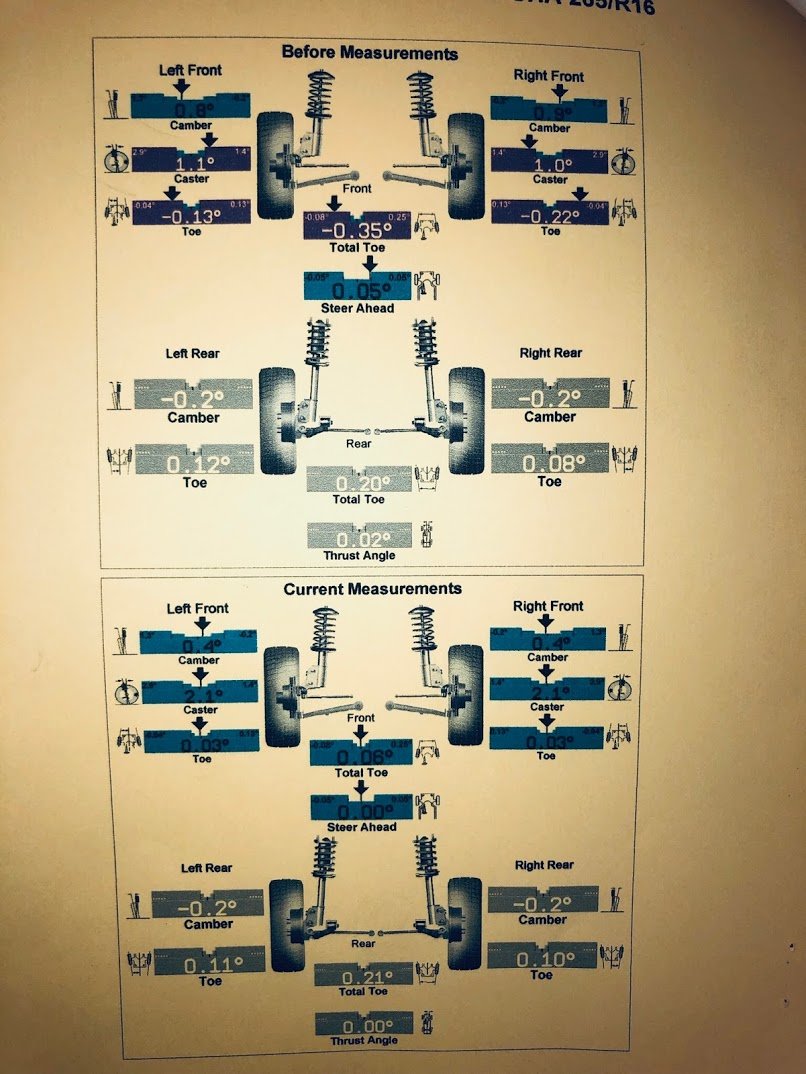

    I mistakenly thought the Bilstein prices were per pair and purchased them and the add a leaf through SDTrucksprings. I had to buy twice, and could've definitely saved a few bucks there.

    [​IMG]

    [​IMG]

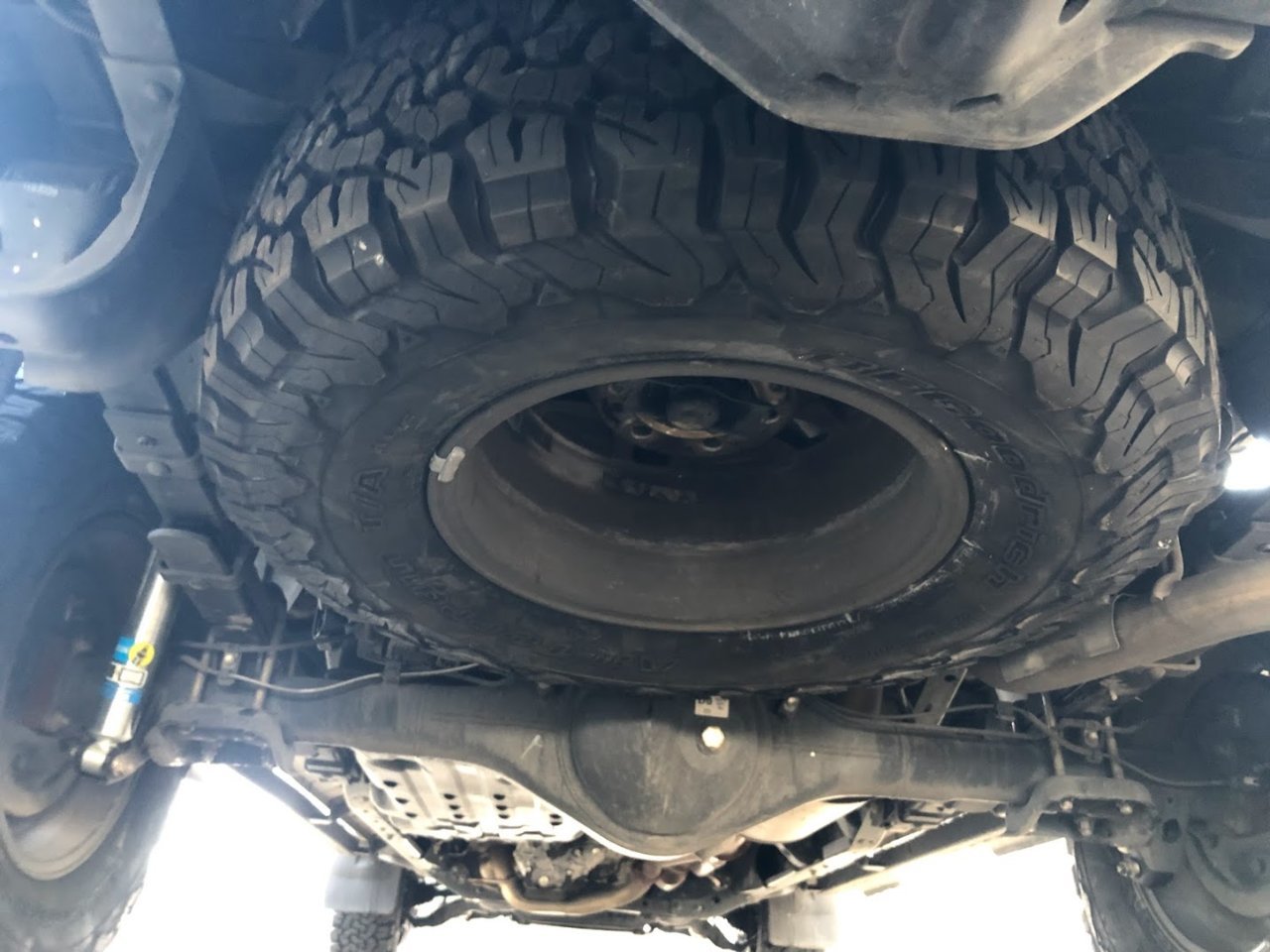

    rbNud7A0thUddVlAHQ9MtyxX35-N27v1XtbfugZh_5fc8f8944d2e4d5f63c3aa2c583ea38c814b8d41.jpg
    tk1TOVtjNnIZZ1PSe07oKH5fBDC55Oi_uLrwAisL_e4e47765d3528c1332cf956f7fee92f3994f9281.jpg

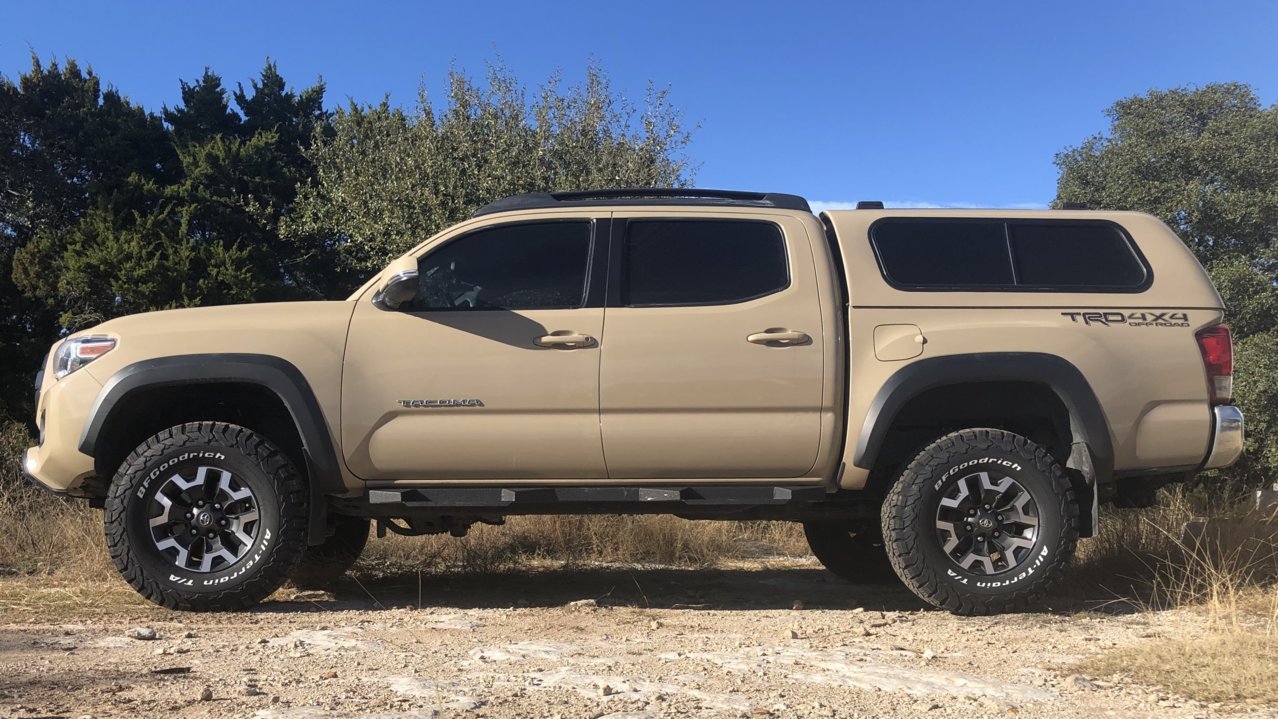

    9DAD43F3-D341-4A44-B894-02F757DC928E.jpg A455E507-FECC-43F7-AD01-FD3AE60BA6F6.jpg


    Attached Files:

    Last edited: Feb 26, 2019
  20. Dec 20, 2018 at 11:40 AM
    #180
    sandyTrd87

    sandyTrd87 [OP] Well-Known Member

    Joined:
    Sep 27, 2015
    Member:
    #165297
    Messages:
    343
    Gender:
    Male
    Socal
    Bilstien 5100's x4 Dobinson 448 springs, rear 2inch AAL







    Awesome setup! love the tires and shell ! good on ya mate!!!!!!
