6" discontinued trailmaster lift help!

Discussion in 'Suspension' started by harleygirl1413, Jan 24, 2011.

  1. Jan 24, 2011 at 4:27 PM
    #1
    harleygirl1413

    harleygirl1413 [OP] Member

    Joined:
    Jan 24, 2011
    Member:
    #49855
    Messages:
    12
    Gender:
    Female
    First Name:
    vickie
    seattle, wa
    Vehicle:
    96 tacoma, v-6
    6" trailmaster lift, 33 x 12.50 Toyo mt
    I Need help!!
    I have a 96 tacoma. had the 6" trailmaster lift put on 12 years ago. Have gone through 3 broken struts now. Went to get my 3rd one replaced, come to find out that they have discontued this lift and I cannot find a new strut for it. I believe it is the strut, its the one on the outside, closest to the tire. Does anyone know where i might find one, if not, what are my options? are there any aftermarket struts that may fit?

  2. Jan 24, 2011 at 5:48 PM
    #2
    Whitfield

    Whitfield Well-Known Member

    Joined:
    Mar 21, 2009
    Member:
    #14979
    Messages:
    313
    Gender:
    Male
    Central Virginia
    Vehicle:
    99 TRD X-cab on 35's / 96 X-cab on 33's
    Selling my 96 Tacoma to fund the FJ80 build up.
    Yes I can help. I'll try to redirect you to two threads one of which I wrote the info you are seeking yesterday.

    You are seeking a pair of 89-91 VW golf cartridge struts. Gotta be replacment cartridge style ~ not non replacment. Non replacment with the sheet metal body and lower flange for spindle bolt are the more common.

    These struts will then need to be machined to fit the upper strut bearing. At this point the strut will be abou 3/4" shorter then the TM 6" strut. Theirfore I lowered my strut bearing plate with spacers about 3/4".

    See bottom of page 3
    http://www.tacomaworld.com/forum/1st-gen-tacomas/134358-big-lift-small-tires-3.html

    See Bottom of page 1
    http://www.tacomaworld.com/forum/1st-gen-tacomas/87891-my-99-x-cab-rebuild-build-thread.html

  3. Jan 24, 2011 at 5:58 PM
    #3
    Whitfield

    Whitfield Well-Known Member

    Joined:
    Mar 21, 2009
    Member:
    #14979
    Messages:
    313
    Gender:
    Male
    Central Virginia
    Vehicle:
    99 TRD X-cab on 35's / 96 X-cab on 33's
    Selling my 96 Tacoma to fund the FJ80 build up.
  4. Jan 24, 2011 at 5:59 PM
    #4
    Matic

    Matic The "OFG" Baby!!!

    Joined:
    Sep 8, 2009
    Member:
    #22436
    Messages:
    25,411
    Gender:
    Male
    First Name:
    Tricky Dick
    Easley, SC
    Vehicle:
    1 owner 2002 TRD, SR5, DC, 2.7. Full OME suspension, STT pro's.
    OME 881 coils with OME nitrochargers shocks up front. TC UCA's OME Dakars with extra leaf in the rear. Warn 8000 winch with 80ft custom braided synth line. Custom 60ft synth extension. All pro tube bumper, Hi-lift jack, Safari Snorkel, Wilco tiregate. 2019 Jeep JLUR.
  5. Jan 24, 2011 at 6:04 PM
    #5
    Matic

    Matic The "OFG" Baby!!!

    Joined:
    Sep 8, 2009
    Member:
    #22436
    Messages:
    25,411
    Gender:
    Male
    First Name:
    Tricky Dick
    Easley, SC
    Vehicle:
    1 owner 2002 TRD, SR5, DC, 2.7. Full OME suspension, STT pro's.
    OME 881 coils with OME nitrochargers shocks up front. TC UCA's OME Dakars with extra leaf in the rear. Warn 8000 winch with 80ft custom braided synth line. Custom 60ft synth extension. All pro tube bumper, Hi-lift jack, Safari Snorkel, Wilco tiregate. 2019 Jeep JLUR.
  6. Jan 24, 2011 at 6:17 PM
    #6
    Whitfield

    Whitfield Well-Known Member

    Joined:
    Mar 21, 2009
    Member:
    #14979
    Messages:
    313
    Gender:
    Male
    Central Virginia
    Vehicle:
    99 TRD X-cab on 35's / 96 X-cab on 33's
    Selling my 96 Tacoma to fund the FJ80 build up.
    Thanks Matic ~ now that you mention it, I believe I did the inversion mod and then used spacers.

    KYB's for under $40 each ~

    Bilstien HD's for $120 ea.

    http://www.europartsdirect.com/epc-items.asp



    OR

    http://www.partsgeek.com/catalog/1989/volkswagen/golf/suspension/strut_insert.html

    Bilstein HD Strut Insert - Front

    [​IMG]
    Retail Price: $144.50
    Your Price: $97.94
    Quantity:


    Part Number: W0133-1605589
    Notes: Use with externally threaded struts.
    Product Remark: Heavy Duty
    Position: Front
    Availability: In Stock

  7. Jan 24, 2011 at 7:41 PM
    #7
    harleygirl1413

    harleygirl1413 [OP] Member

    Joined:
    Jan 24, 2011
    Member:
    #49855
    Messages:
    12
    Gender:
    Female
    First Name:
    vickie
    seattle, wa
    Vehicle:
    96 tacoma, v-6
    6" trailmaster lift, 33 x 12.50 Toyo mt
    Thanks a ton!! doesnt look to bad to fix...for a girl! lol! thanks again guys!:D

  8. Jun 18, 2016 at 6:41 PM
    #8
    Kevin2.7

    Kevin2.7 Active Member

    Joined:
    May 10, 2016
    Member:
    #186544
    Messages:
    27
    Gender:
    Male
    First Name:
    Kevin
    Vehicle:
    1999 Toyota Tacoma 4x4 TRD 2.7
    6" lift

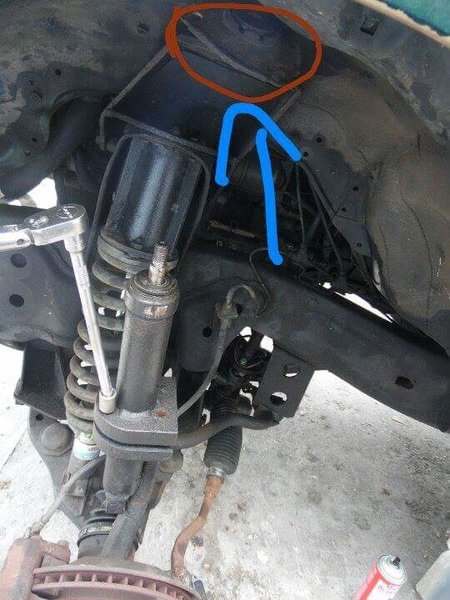

    Any bad experience with this braket here it holds the second strut


  9. May 25, 2017 at 12:28 PM
    #9
    Doubl3aron

    Doubl3aron Member

    Joined:
    May 25, 2017
    Member:
    #219907
    Messages:
    13
    Gender:
    Male
    Vehicle:
    1998 Toyota Tacoma ifs 4" trailmaster suspension ext cab 4x4 3.4L
    4" trailmaster suspension lift

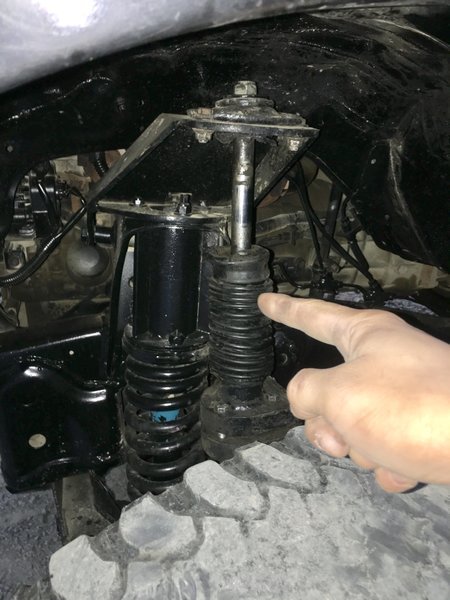

    Soo this is an old but still pretty decent Trailmaster 4" lift kit. It's on my 1998 Toyota Tacoma ext Cab 5speed manual with the 3.4L V6 4x4. I've replaced the ball joint on the driver side and the cv axle (due to the shitty ball joint). She's up and running now. Need to mess with the rack and pinion possibly the intermediate shaft. But FIRST! I need to address this dumbass "Secondary strut/upper control arm delete" and get this bullshit replaced. Unfortunately with my luck they don't manufacture or sell them anymore because they are faulty. I'm going to fix it now and play with it. But when it fails I'm swapping it. It's currently IFS but she will be SAS after my pockets get a little fuller.. anyway. I'd like to go the cheaper route of solving replacing my upper strut assembly considering I've invested quite the chunk of change so far. Shoot me a message if you know what's up! Save me! Get the yota goin'! Thanks for reading my novel. Also I just bought the 1985-1993 VW golf KYB strut inserts just need to get them machined tonight then install them would like it if you guys gave me pointers?? IMG_4462.jpg IMG_4467.jpg IMG_4469.jpg image.jpg

  10. May 29, 2017 at 10:42 PM
    #10
    Whitfield

    Whitfield Well-Known Member

    Joined:
    Mar 21, 2009
    Member:
    #14979
    Messages:
    313
    Gender:
    Male
    Central Virginia
    Vehicle:
    99 TRD X-cab on 35's / 96 X-cab on 33's
    Selling my 96 Tacoma to fund the FJ80 build up.
    Ebay ~ $3.99 ea. or not. I don't believe VW's use them.


    [​IMG]

  11. May 29, 2017 at 10:59 PM
    #11
    Doubl3aron

    Doubl3aron Member

    Joined:
    May 25, 2017
    Member:
    #219907
    Messages:
    13
    Gender:
    Male
    Vehicle:
    1998 Toyota Tacoma ifs 4" trailmaster suspension ext cab 4x4 3.4L
    4" trailmaster suspension lift
    They'd probably help keep shit out of the shock cartridge. Thanks man. Probably rock the pink ones...

  12. Jul 23, 2018 at 9:28 AM
    #12
    skiersarb

    skiersarb Active Member

    Joined:
    Jul 11, 2016
    Member:
    #191795
    Messages:
    36
    Gender:
    Male
    First Name:
    Andrew
    Vehicle:
    1997 Tacoma
    What did you end up doing with this? I am in the same boat and am really hoping not to have to replace the whole kit. The strut on mine is blown.

  13. Feb 24, 2019 at 10:36 AM
    #13
    Kstone1987

    Kstone1987 Well-Known Member

    Joined:
    Feb 21, 2019
    Member:
    #283919
    Messages:
    50
    Gender:
    Male
    First Name:
    Keith
    Vehicle:
    1996 Toyota Tacoma
    6 inch lift 33 in tires
    Hello Any answers on this subject i bought my truck two weeks ago with this lift and now it sits in my driveway with the strut laying out of the mount both struts and mounts are Shot !! Looking for some options on how to fix ? You can loosen the bolts and throw a VW strut inside of that ?

  14. Feb 25, 2019 at 12:23 PM
    #14
    skiersarb

    skiersarb Active Member

    Joined:
    Jul 11, 2016
    Member:
    #191795
    Messages:
    36
    Gender:
    Male
    First Name:
    Andrew
    Vehicle:
    1997 Tacoma
    Hey. people said it is possible to put in the vw strut. I ordered one and had a guy try to put it in but he said it didn't fit. I ended up getting a new kit for my truck. I put a lot of time into finding a cheaper solution but had no luck

  15. Feb 25, 2019 at 1:34 PM
    #15
    Kstone1987

    Kstone1987 Well-Known Member

    Joined:
    Feb 21, 2019
    Member:
    #283919
    Messages:
    50
    Gender:
    Male
    First Name:
    Keith
    Vehicle:
    1996 Toyota Tacoma
    6 inch lift 33 in tires
    I hear ya what kit did you go with?

  16. Feb 25, 2019 at 1:58 PM
    #16
    skiersarb

    skiersarb Active Member

    Joined:
    Jul 11, 2016
    Member:
    #191795
    Messages:
    36
    Gender:
    Male
    First Name:
    Andrew
    Vehicle:
    1997 Tacoma
    Fabtech

  17. Feb 25, 2019 at 1:59 PM
    #17
    skiersarb

    skiersarb Active Member

    Joined:
    Jul 11, 2016
    Member:
    #191795
    Messages:
    36
    Gender:
    Male
    First Name:
    Andrew
    Vehicle:
    1997 Tacoma
    The ride isn't great on rough roads but I couldn't find anyone to revert it back to stock and then put something else in.

  18. Feb 26, 2019 at 4:42 PM
    #18
    Kstone1987

    Kstone1987 Well-Known Member

    Joined:
    Feb 21, 2019
    Member:
    #283919
    Messages:
    50
    Gender:
    Male
    First Name:
    Keith
    Vehicle:
    1996 Toyota Tacoma
    6 inch lift 33 in tires
    What part of the strut needs to be machined ? What strut mount is it ? The vw golf 91 strut mounts look like only 2 bolt when it is a 3 bolt . .. So to install you take off the 3 or 4 top bolts from the secondary strut and insert the vw cartridge ? And then you attach the mount underneath instead of on top ? I really do appreciate the help!

  19. Apr 20, 2021 at 6:48 PM
    #19
    Mr.Clark

    Mr.Clark Member

    Joined:
    Apr 18, 2021
    Member:
    #363076
    Messages:
    13
    Gender:
    Male
    First Name:
    Kelly
    Vehicle:
    1999 Taco sr5 trd 4 by4 ext cab
    lift / air intake
    Same problem and not sure where to go?
    Replace both struts and keep replacing or convert looks like a nightmare.
    Got the VW strut info but can i put a 5100 Bilstein in on a 6" lift?
    Some one said to put a 1st gen tundra strut in?

    Please Help!

  20. Apr 20, 2021 at 6:57 PM
    #20
    skiersarb

    skiersarb Active Member

    Joined:
    Jul 11, 2016
    Member:
    #191795
    Messages:
    36
    Gender:
    Male
    First Name:
    Andrew
    Vehicle:
    1997 Tacoma
    Mr Clark.

    I went with the new Fabtech lift kit. Not Cheap but nobody was willing to return it to stock and then do something else. I did try the VW shock but it was a no go. I don't know if you can put a 5100 bilstein on it. Sorry dude, i feel your pain.
