A Few ?? about a LED Bedlight Install

Discussion in 'Lighting' started by BHP, Oct 21, 2012.

  1. Oct 21, 2012 at 11:04 AM
    #1
    BHP

    BHP [OP] Active Member

    Joined:
    Jul 29, 2012
    Member:
    #83657
    Messages:
    31
    Gender:
    Male
    Roswell, GA
    Vehicle:
    2002 Dbl Cab Prerunner
    Hi,

    I want to add lighting to my camper shell in a project similar to this one- http://www.tacomaworld.com/forum/lighting/243738-bed-lights.html . The difference is I want to add a momentary switch, activated by my liftgate, between the on/off switch and the LED strip. I'm not quite sure how this would be wired, or if I would need a relay or not.

    Any help would be greatly appreciated.

    Bill

  2. Oct 22, 2012 at 7:49 AM
    #2
    RipVanDango

    RipVanDango Active Member

    Joined:
    Nov 3, 2011
    Member:
    #66363
    Messages:
    33
    Gender:
    Male
    First Name:
    Cody
    Alaska
    Vehicle:
    '92 / 2012 TX Pro
    Leer 100XL Canopy, Home Made LED Bar, Lightforce Blitz 4300k 35W HIDs, Supertones Hella Horns, LED Bed Light,
    Did anyone help you with this yet?

  3. Oct 22, 2012 at 7:53 AM
    #3
    98tacoma27

    98tacoma27 :POOPCORN: Staff Member

    Joined:
    Dec 18, 2008
    Member:
    #11714
    Messages:
    48,163
    Gender:
    Male
    First Name:
    Ben
    Beech Creek
    Vehicle:
    05 Tundra SR5, 88 SR5 PU, 98 TRD OR (CRUSHED)
    5100's all on fours
    Why a momentary switch?

  4. Oct 22, 2012 at 8:00 AM
    #4
    Pugga

    Pugga Pasti-Dip Free 1983 - 2015... It was a good run

    Joined:
    Jun 18, 2010
    Member:
    #39131
    Messages:
    29,101
    Gender:
    Male
    First Name:
    Mike
    Massachusetts
    Vehicle:
    '13 Ford F-150 SCREW
    F-150 Mod
    Depending on how you want them wired and where you pull power from, you could most likely get away without using a relay. The circuit would need to be fuse protected whether it's got it's own fuse or you piggy back off an existing circuit. LED's typically have a very low draw so the power should be fine going through the switch.

    In stead of a momentary switch, I'd look for a door latch switch, similar to what cycles your dome light to come on when your door is opened. I'd install it so that when the tailgate is closed, the switch is in an open position meaning no power can get through. Then, when the tailgate is open, the switch closes the circuit and the light comes on.

  5. Oct 22, 2012 at 8:31 AM
    #5
    BHP

    BHP [OP] Active Member

    Joined:
    Jul 29, 2012
    Member:
    #83657
    Messages:
    31
    Gender:
    Male
    Roswell, GA
    Vehicle:
    2002 Dbl Cab Prerunner
    I was going to use an NC momentary switch to activate the bed lights when the lift glass on my Leer topper was opened.

    The door ajar switch is a good idea-I didn't think of that. I found these, I think one will work- http://www.autozone.com/autozone/parts/Door-Jamb-Switch/_/N-9ciqb

    I plan to run a wire to the cab and then into a fuse tap, so it will be fused.

    Bill

  6. Oct 22, 2012 at 8:34 AM
    #6
    98tacoma27

    98tacoma27 :POOPCORN: Staff Member

    Joined:
    Dec 18, 2008
    Member:
    #11714
    Messages:
    48,163
    Gender:
    Male
    First Name:
    Ben
    Beech Creek
    Vehicle:
    05 Tundra SR5, 88 SR5 PU, 98 TRD OR (CRUSHED)
    5100's all on fours
    Gotcha. When I hear "momentary switch" I automatically think of the push button rocker type. :eek: I'd go with the door type switch also.

  7. Oct 22, 2012 at 8:46 AM
    #7
    Pugga

    Pugga Pasti-Dip Free 1983 - 2015... It was a good run

    Joined:
    Jun 18, 2010
    Member:
    #39131
    Messages:
    29,101
    Gender:
    Male
    First Name:
    Mike
    Massachusetts
    Vehicle:
    '13 Ford F-150 SCREW
    F-150 Mod
    I believe you have the correct definition of a momentary switch, the one I mentioned is a different kind of switch. The only momentary switches I've ever heard of are resetting rocker switches or resetting push button switches but they don't really accomplish the task in this case.

    Just an option but you could try contacting Mach1Man001. He got ahold of a nice, sealed door latch style switch like the one I was talking about. It has a rubber boot and everything for a contact surface. Tell him I told you to ask and he should be able to tell you what it came out of so you can locate one.

  8. Oct 22, 2012 at 8:50 AM
    #8
    98tacoma27

    98tacoma27 :POOPCORN: Staff Member

    Joined:
    Dec 18, 2008
    Member:
    #11714
    Messages:
    48,163
    Gender:
    Male
    First Name:
    Ben
    Beech Creek
    Vehicle:
    05 Tundra SR5, 88 SR5 PU, 98 TRD OR (CRUSHED)
    5100's all on fours
    Momentary - returns to it's original state unaided

    Door switches are momentary.

  9. Oct 22, 2012 at 8:52 AM
    #9
    Pugga

    Pugga Pasti-Dip Free 1983 - 2015... It was a good run

    Joined:
    Jun 18, 2010
    Member:
    #39131
    Messages:
    29,101
    Gender:
    Male
    First Name:
    Mike
    Massachusetts
    Vehicle:
    '13 Ford F-150 SCREW
    F-150 Mod
    Dammit Ben, you're right again :shakesfist:

  10. Oct 22, 2012 at 10:10 AM
    #10
    BHP

    BHP [OP] Active Member

    Joined:
    Jul 29, 2012
    Member:
    #83657
    Messages:
    31
    Gender:
    Male
    Roswell, GA
    Vehicle:
    2002 Dbl Cab Prerunner
    OK, so I'm looking at these door switches, and I'm only seeing a few that have just two connectors. A lot have one connector or 3 connectors or
    obviously take an OEM plug. I did find these and think they'll work-
    http://www.autopartswarehouse.com/s...oc=Rear&intcmpid=Product+Listings+Best+Seller
    http://www.autopartswarehouse.com/sku/Standard/Door_Jamb_Switch/SIDS856.html .

    I did see some booted switches like this- http://www.autopartswarehouse.com/sku/Standard/Door_Jamb_Switch/SIDS857.html?loc=Front%2C+Passenger+Side --but it only has one connector.

    Bill

  11. Oct 23, 2012 at 6:39 AM
    #11
    RipVanDango

    RipVanDango Active Member

    Joined:
    Nov 3, 2011
    Member:
    #66363
    Messages:
    33
    Gender:
    Male
    First Name:
    Cody
    Alaska
    Vehicle:
    '92 / 2012 TX Pro
    Leer 100XL Canopy, Home Made LED Bar, Lightforce Blitz 4300k 35W HIDs, Supertones Hella Horns, LED Bed Light,
    Your looking for a normally closed switch, when the button is not depressed, the circuit is closed, meaning on.

  12. Oct 26, 2012 at 11:34 AM
    #12
    BHP

    BHP [OP] Active Member

    Joined:
    Jul 29, 2012
    Member:
    #83657
    Messages:
    31
    Gender:
    Male
    Roswell, GA
    Vehicle:
    2002 Dbl Cab Prerunner
    I finished my LED install on my camper shell and thought I'd post a few photos here of the installed lights and switches.

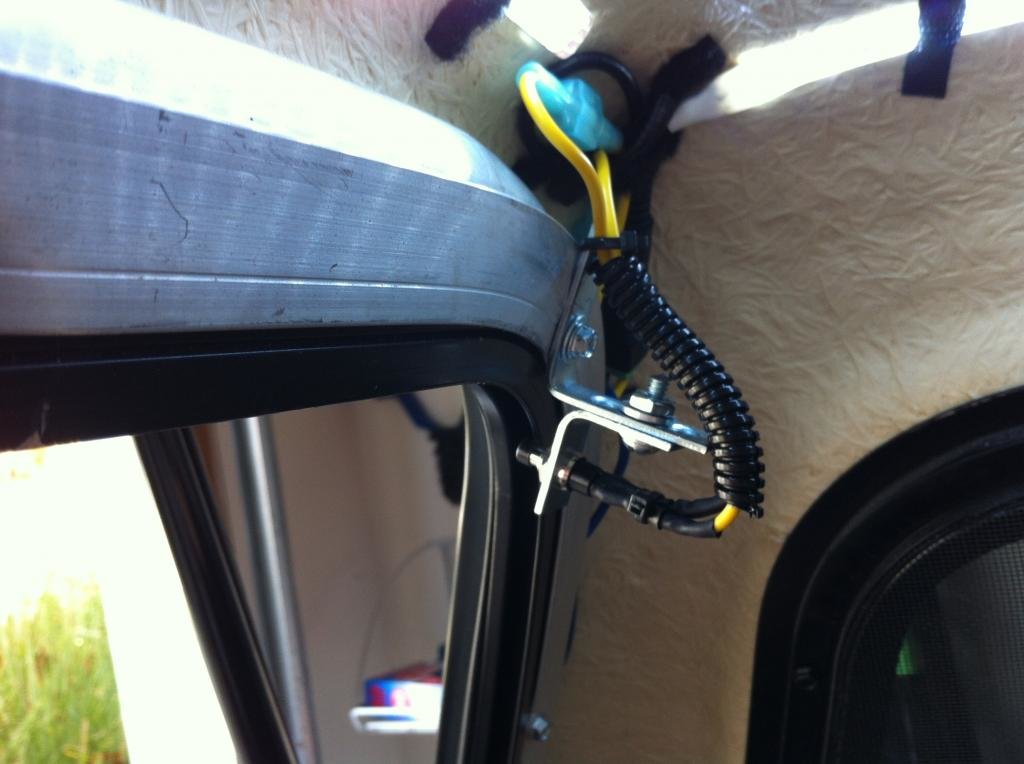

    A couple of photos of the momentary switch being used to activate the lights with the lift gate. I used angle brackets from Home Depot to configure the mount for the switch. It mounts to the window frame using an existing screw. Minor adjustments can be mad by slightly bending the mount.

    [​IMG]

    [​IMG]

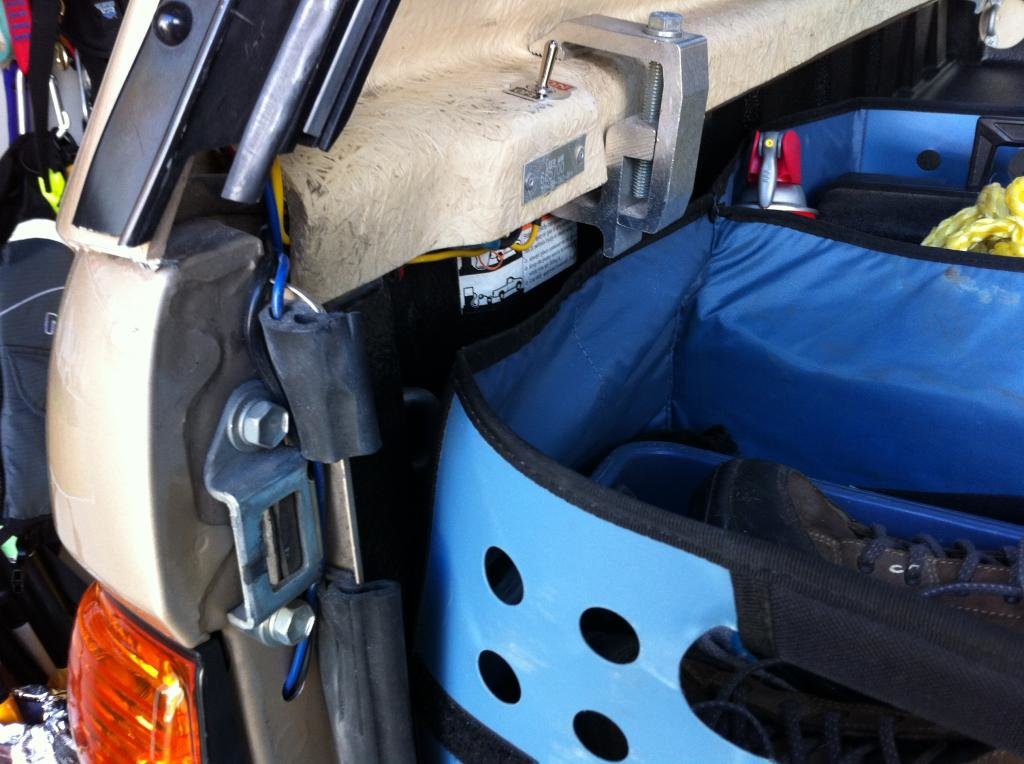

    This shows the wiring coming through an existing hole from the taillight and along the tailgate weather stripping. The ground is threaded through the weather stripping. It also shows the main cut-off switch mounted at the base of the shell.

    [​IMG]

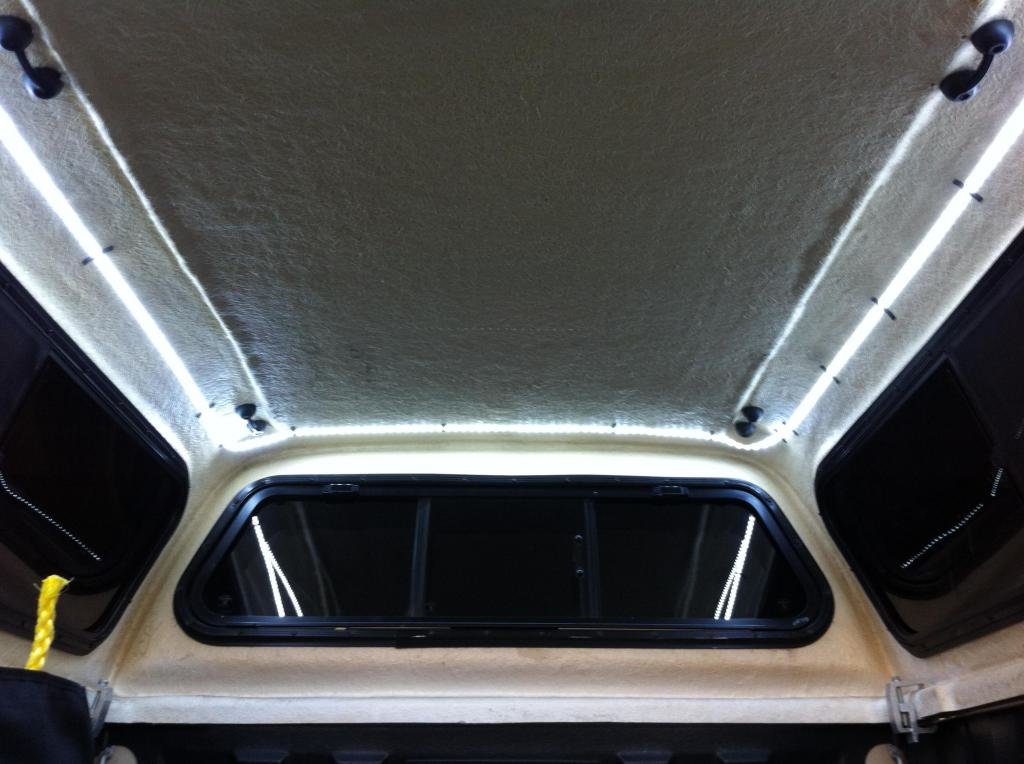

    Finally, a finished shot of the lights. I used a 16' weatherproof strip of 300 5050 LEDs. I made a full perimeter run and ended up with about 1' left over. This is a shortbed shell.

    [​IMG]

    I ran the power wire from the cab fuse box using a fuse tap and low voltage landscape wire for durability.

    All in all, a pretty easy mod, and it makes a huge difference at night when digging around in my truck bed.

    Bill

  13. Nov 21, 2012 at 5:07 PM
    #13
    markair

    markair Never A Bad Time To Ride!

    Joined:
    Dec 26, 2011
    Member:
    #69389
    Messages:
    40
    Gender:
    Male
    First Name:
    Mark
    Phoenix, AZ
    Vehicle:
    2008 Tacoma PreRunner TRD Sport
    Thule/Yakima/Inno snowboard and bike rack for the bed - K&N air filter - LED license plate lights - limo tint on rear and back windows - N-Fab light bar - PIAA driving lights - Redline Tuning hood struts - HID/LED headlamps
    Great looking project and pics. I'm not looking to put a top on my bed (yet), but I have thought about adding LED's to the bed right under the rails for lighting. This gave me some good ideas on how to install them and be able to active with the tailgate (similair to opening the doors). Thanks!

  14. Nov 29, 2012 at 7:37 AM
    #14
    fletch97

    fletch97 Professional Window Licker

    Joined:
    Oct 18, 2012
    Member:
    #89248
    Messages:
    260
    Gender:
    Male
    First Name:
    Steve
    NJ
    Vehicle:
    2013 Tacoma SR5
    Can you provide some pictures and info on how you taped into the fuse box as well as how you ran the wires from the bed into the cabin?

    I am looking to run LED bed lights soon but I am trying to do my homework before taking on such a project. My first concern is getting from the cabin switch to the bed. And my other concern is whether I can pull power from the fuse box or whether I need to run a wire to the battery? (Obviously it would be easier and cleaner to get it from the fuse box.) Also curious on how/where you grounded? (Can you ground from the fuse box too?)

    What year is your Tacoma as well? (I am working with a new 2013 here.)

    Thanks for any info you or anyone on the forum can provide!

  15. Nov 29, 2012 at 3:48 PM
    #15
    BHP

    BHP [OP] Active Member

    Joined:
    Jul 29, 2012
    Member:
    #83657
    Messages:
    31
    Gender:
    Male
    Roswell, GA
    Vehicle:
    2002 Dbl Cab Prerunner
    I used an add-a-circuit ( http://www.parts-express.com/pe/showdetl.cfm?partnumber=071-580 ) in an empty slot in my under-dash fuse block. I used a circuit tester to find a slot that was hot with the key off. The slot I'm using (2002 DCB Prerunner) is the bottom slot in the middle row.

    I used low voltage landscape wire (it has a heavy sheath) and followed the stock wiring loom to the back of the truck. Beneath the carpet under the driver's seat is the grommet that allows the wiring to enter the cab. You can also see it if you look under the truck by the driver's door-that's where I pulled the wire from the back into the cab.

    I ran the ground wire down to an existing ground I had underneath the back of my truck. In my photos above, the blue wire running into the tailgate hole is my ground.

    I don't know if that will help with your newer truck, but there it is. GL!

  16. Nov 29, 2012 at 5:30 PM
    #16
    fletch97

    fletch97 Professional Window Licker

    Joined:
    Oct 18, 2012
    Member:
    #89248
    Messages:
    260
    Gender:
    Male
    First Name:
    Steve
    NJ
    Vehicle:
    2013 Tacoma SR5
    Thanks for the info, I'll let you know how it works out.

  17. Dec 26, 2012 at 9:01 AM
    #17
    rbishopp

    rbishopp Well-Known Member

    Joined:
    Jun 26, 2011
    Member:
    #58866
    Messages:
    723
    Gender:
    Male
    First Name:
    Rich
    Webster, NY
    Vehicle:
    2009 4WD Reg cab Taco. Keepin it simple.
    So far I've added an Advance folding bed cover and since removed it. Gave it to my son in Maine, he has an 05 2wd. GT perfect fit seat covers. Weathertech floor mats and window vent visors. Waag center brush/grill guard. Hose clamp tailgate mod. Turned off the seat belt chime. Added Ultra-Gauge. Trailer hitch. Softopper. Replaced sun visors with slide out style. Toyota bed extender. Had Firestone Destinations and now Michelin LTX AT2 in stock size. More mods to come; Fog lights, locking storage in bed, intermittent wipers. Now looking for Radio/HU upgrade. and maybe a lift way down the road.
    Hey fletch how'd your light project work out ?

    My GF looked on my amazon wish list and now I have about 30 feet of LED strip to put in my truck bed and else where. I had been thinking of the bed light but now it looks like I'm going to do under door sil lights, maybe some in the engine compartment.
    I'll probably have some left over the run up the antenna too.

    So what did you do ?

  18. Dec 27, 2012 at 7:07 AM
    #18
    fletch97

    fletch97 Professional Window Licker

    Joined:
    Oct 18, 2012
    Member:
    #89248
    Messages:
    260
    Gender:
    Male
    First Name:
    Steve
    NJ
    Vehicle:
    2013 Tacoma SR5
    Unfortunately I haven't done anything yet with the lighting. There are so many things I want to do and so little time and money! I'd like to get a cover for the bed before putting in lights, but I desperately need to upgrade my crappy system first. Hoping to do the cover and lights within a few months.

    Shoot me some pictures when your done with yours, I'd love to see!
