Adding factory bed lights?

Discussion in '3rd Gen. Tacomas (2016+)' started by savin yours, Sep 22, 2018.

  1. Sep 22, 2018 at 7:20 AM
    #1
    savin yours

    savin yours [OP] Well-Known Member

    Joined:
    Sep 18, 2018
    Member:
    #266644
    Messages:
    452
    Gender:
    Male
    First Name:
    Bryan
    SE Tx
    Vehicle:
    2018 TRD Off Road
    Is this possible?

  2. Sep 22, 2018 at 7:24 AM
    #2
    Frito

    Frito Well-Known Member

    Joined:
    Dec 2, 2015
    Member:
    #171253
    Messages:
    1,374
  3. Sep 22, 2018 at 7:25 AM
    #3
    Mojlnir

    Mojlnir Well-Known Member

    Joined:
    Feb 17, 2018
    Member:
    #244752
    Messages:
    363
    Gender:
    Male
    Parker, CO
    Vehicle:
    2018 SR ACLB Utility Pkg
  4. Sep 22, 2018 at 7:29 AM
    #4
    02Duck

    02Duck manuals make it better

    Joined:
    Feb 18, 2013
    Member:
    #97842
    Messages:
    582
    Gender:
    Male
    Vehicle:
    2018 4WD TRD Off Road 6MT
    TRD Exhaust, Mobtown bolt on sliders and aluminum tailgate reinforcement, Reverse lights changed to yellow turn signals, LED pods added for reverse, ADD W1 oil catch can, Total Chaos bed reinforcement, rear diff breather to taillight mod, 12" combo led bars behind lower grill wired to high beams, Toyota led bed light kit, 400 watt anytime mod, SSO slimeline front bumper.
    I added factory bed lights and tired in my canopy light to them also. When you buy the kit it comes with directions that are easy to follow.

  5. Sep 22, 2018 at 7:47 AM
    #5
    savin yours

    savin yours [OP] Well-Known Member

    Joined:
    Sep 18, 2018
    Member:
    #266644
    Messages:
    452
    Gender:
    Male
    First Name:
    Bryan
    SE Tx
    Vehicle:
    2018 TRD Off Road
    Awesome! Any idea on the cost?

  6. Sep 22, 2018 at 7:57 AM
    #6
    roth_nj

    roth_nj Well-Known Member

    Joined:
    Sep 29, 2015
    Member:
    #165396
    Messages:
    545
    Vehicle:
    2017 DCLB trd off-road bbp
  7. Sep 22, 2018 at 9:03 AM
    #7
    mutely

    mutely Well-Known Member

    Joined:
    Feb 15, 2017
    Member:
    #210640
    Messages:
    1,263
    Vehicle:
    TRD Pro in metallic primer
    The factory kit (Amazon link) is easy to install, did mine in a few hours (but I was ainal about cable routing and length). Few people have made the mistake of not printing the PDF template at a scale of 1:1 and there for drilled the holes in the wrong place. The connectors supplied for tapping into the factory wiring are shit. But since you need to cut the wire down to size since you get about 6ft too much, just cut them off and use posi-tap's instead.

  8. Sep 22, 2018 at 9:20 AM
    #8
    Rockytaco970

    Rockytaco970 Well-Known Member

    Joined:
    Mar 17, 2018
    Member:
    #247539
    Messages:
    62
    Gender:
    Male
    Vehicle:
    2018 TRD Sport
    this would be sweet with an OE style switch that lets you toggle them to power on when doors are open or on all the time.
    [​IMG]

  9. Sep 22, 2018 at 9:47 AM
    #9
    mutely

    mutely Well-Known Member

    Joined:
    Feb 15, 2017
    Member:
    #210640
    Messages:
    1,263
    Vehicle:
    TRD Pro in metallic primer
    Follow the factory install, and that’s exactly what happens. They tap into that switch.

  10. Sep 22, 2018 at 10:25 AM
    #10
    Rockytaco970

    Rockytaco970 Well-Known Member

    Joined:
    Mar 17, 2018
    Member:
    #247539
    Messages:
    62
    Gender:
    Male
    Vehicle:
    2018 TRD Sport
    a truck that didn't come with factory bed lights didn't come with "that switch".
    the picture shown is from caliraised site, an advertisement for the switch panel only.
    the Toyota/Amazon kit suggested above doesn't come with any switch.

    from a review on the amazon listing:
    --"There is no physical switch. It is designed to hook into the dome light circuit and goes on and off with the functions that control the dome light - pressing the key fob or opening the door."

  11. Sep 22, 2018 at 10:41 AM
    #11
    mutely

    mutely Well-Known Member

    Joined:
    Feb 15, 2017
    Member:
    #210640
    Messages:
    1,263
    Vehicle:
    TRD Pro in metallic primer
    I thought you were talking about the factory bed light switchshown in the pic. The one that turns on the stock bed light that’s in the 3rd brake light.

  12. Sep 22, 2018 at 10:56 AM
    #12
    jerkwithkeyboard

    jerkwithkeyboard Well-Known Member

    Joined:
    Feb 15, 2016
    Member:
    #178231
    Messages:
    523
    Gender:
    Male
    Western suburbs Chicago, ILL
    Vehicle:
    2016 TRD Sport DCSB Inferno 4x4, loaded /JBL/Tonneau Cover/ Roof Rack
    17" Black TRD rims Tacoma Stainless Steel Rear Tailgate Letter Inserts Brake light flasher Center LED 110v and 2-3amp USB plugs mod in back seat center 400w on all the time mod SSR-610-40 SumoSprings 32 INCH 180W CREE LIGHT BAR (5D ) AUXBEAM BedStep and Pop & Lock Power Tailgate Lock Blue LED glove box light (fix no light) Bed light Blue LED's Wired to turn on when Gate is opened Tempered Glass Center Touch Screen Protector Rear Camera anytime Navigation Bypass ( a must) Rexing V1 3rd Generation Dash Cam hard wired in OXILAM 912 921 LED Reverse Light 2000 Lumens TRD Pro Grill TRD Skid plate
    I wired mine to a tail gate pin switch and it is always powered, so when i open the back , there on , and i have a over ride switch also if i need to

  13. Sep 22, 2018 at 1:54 PM
    #13
    Flash1034

    Flash1034 Well-Known Member

    Joined:
    Oct 29, 2010
    Member:
    #45429
    Messages:
    1,166
    Gender:
    Male
    Southern California
    Vehicle:
    2018 Toyota Tacoma TRD Pro, Cavalry Blue, Automatic
    DuraTrac Tires HID Headlights MESO LED Taillights ARB Recovery Point
    Can we confirm that the kit does wire to the factory bed light switch? That would be the selling point for me...

    Thanks

  14. Sep 22, 2018 at 1:55 PM
    #14
    Flash1034

    Flash1034 Well-Known Member

    Joined:
    Oct 29, 2010
    Member:
    #45429
    Messages:
    1,166
    Gender:
    Male
    Southern California
    Vehicle:
    2018 Toyota Tacoma TRD Pro, Cavalry Blue, Automatic
    DuraTrac Tires HID Headlights MESO LED Taillights ARB Recovery Point
    Can you confirm this switch will control the new bed lights when installed according The the factory instructions?

  15. Sep 22, 2018 at 2:11 PM
    #15
    mutely

    mutely Well-Known Member

    Joined:
    Feb 15, 2017
    Member:
    #210640
    Messages:
    1,263
    Vehicle:
    TRD Pro in metallic primer
    Yes, we can confirm that it DOES wire into the factory bedlight switch. That’s how mine are wired, following the install instructions posted.

  16. Sep 22, 2018 at 3:18 PM
    #16
    daveometrod

    daveometrod Well-Known Member

    Joined:
    Sep 12, 2018
    Member:
    #266025
    Messages:
    153
    Vehicle:
    18 TRD OR 4x4 DCSB Blazing Blue
    I was looking to add this to my taco. Based on my web searching,be aware that the kit offered by Southeast Toyota and the the kit offered by Toyota(now discontinued and replaced with?) differ in the wiring harness and installation directions. The bed lights themselves are the same from what I could tell.

  17. Sep 22, 2018 at 3:36 PM
    #17
    Flash1034

    Flash1034 Well-Known Member

    Joined:
    Oct 29, 2010
    Member:
    #45429
    Messages:
    1,166
    Gender:
    Male
    Southern California
    Vehicle:
    2018 Toyota Tacoma TRD Pro, Cavalry Blue, Automatic
    DuraTrac Tires HID Headlights MESO LED Taillights ARB Recovery Point
    So the kit on Amazon works off the factory bed light switch?

  18. Sep 23, 2018 at 5:53 AM
    #18
    okichewy1

    okichewy1 Just chuggin' along!

    Joined:
    Feb 16, 2018
    Member:
    #244589
    Messages:
    538
    Gender:
    Male
    First Name:
    Ken
    Kimberly, Idaho
    Vehicle:
    2018 DCSB TRD Sport Quicksand
    Ultra Flex bed cover, TRD PRO Grille, 32" LED light under grille, Pop n' Lock on tailgate, OCD organizer for center console and glove box, LED bed lights, OEM bed mat, black TACOMA tailgate letters, LED illumination light package, black vinyl overlays for badges, OEM bed step, plasti-dipped front valance and mirrors, 15% tinted windows and sun strip, vinyl letters on dash, vinyl letters on tailgate handle and door sill protectors, TRD Pro shift knob, home-link rear view mirror, mountain vinyl decal above Tacoma on door, FN FX pro wheels, AVS bug deflector, AVS in-channel window vents, front bed rail, red line hood struts, LED interior lights, TRD Pro skid plate, slim line front license plate holder, CaliRaised LED Ditch light brackets with LED lights, Bilstein 5100's, OME 888's, Dakar HD leaf springs, cubby covers, CaliRaised LED Fog light kit,
    They wire into the dome light per factory instructions. You can instead wire them into the factory looking switch that people have shown on here from Caliraisedled. That is how I have mine setup.

  19. Sep 23, 2018 at 7:27 AM
    #19
    daveometrod

    daveometrod Well-Known Member

    Joined:
    Sep 12, 2018
    Member:
    #266025
    Messages:
    153
    Vehicle:
    18 TRD OR 4x4 DCSB Blazing Blue
    As okichewy1 stated, both installation directions have you wire into the dome light circuit.

    The Southeast instructions have you using a drill bit to drill holes in the bed. The Toyota instructions have you using a hole saw.
    They have different wiring harnesses and similar but different harness routings on the official instructions. The lights themselves seem identical.

    PT948-35160 was the official Toyota part number. It shows as no longer available on the official Toyota parts website.
    00016-34089 is the official Southeast Toyota part number.

    Anyone per chance know the new Toyota part number? It still shows as an optional accessory for 2019.

  20. Sep 23, 2018 at 9:05 AM
    #20
    ChrisK7UND

    ChrisK7UND Well-Known Member

    Joined:
    Sep 14, 2016
    Member:
    #197268
    Messages:
    478
    Gender:
    Male
    First Name:
    Chris
    Colorado
    Vehicle:
    2017 Tacoma TRD Sport Double-Cab
    LED Interior Bulbs, Hondo Garage Phone Mount, Tacoma Bed Mat

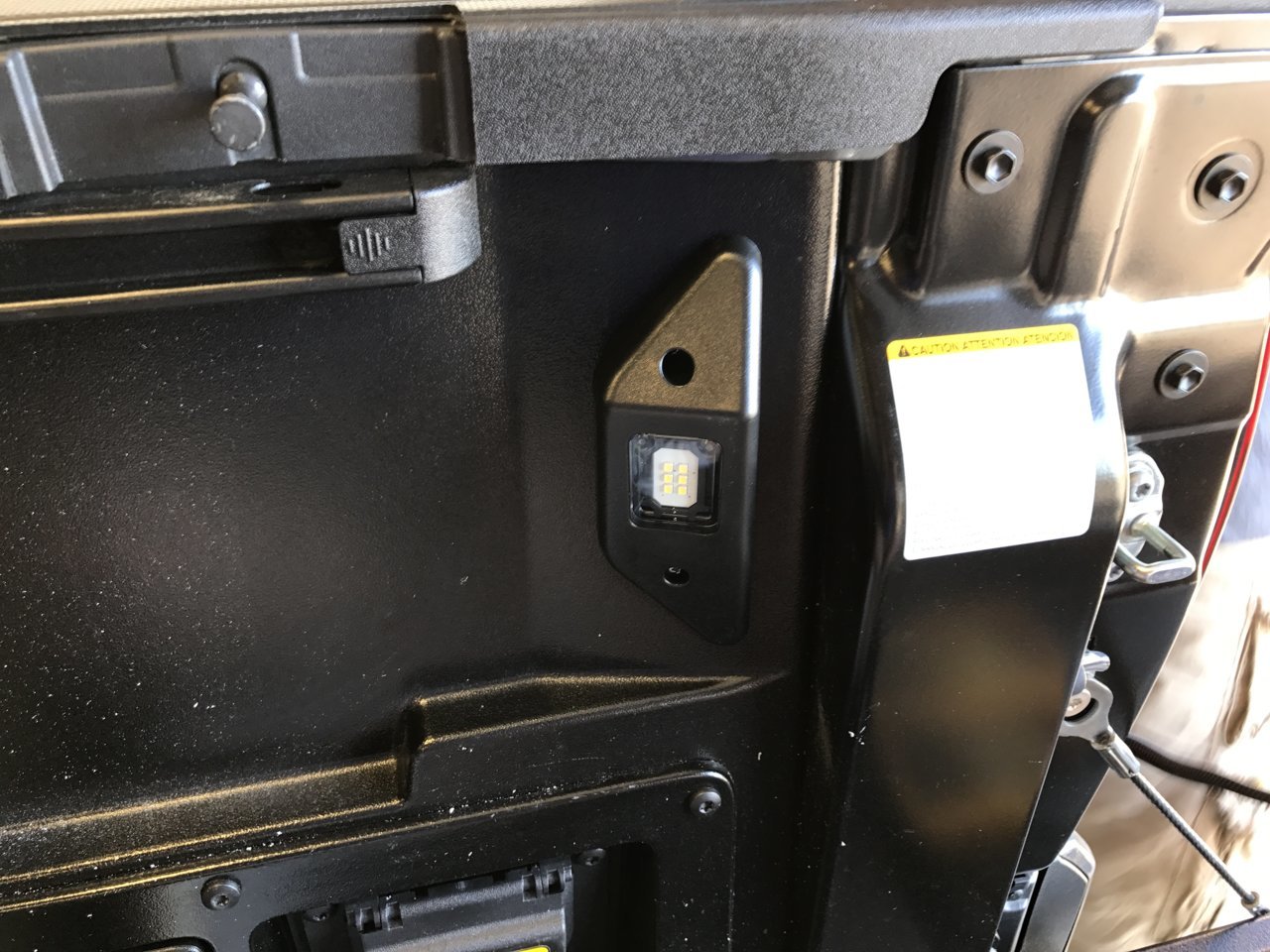

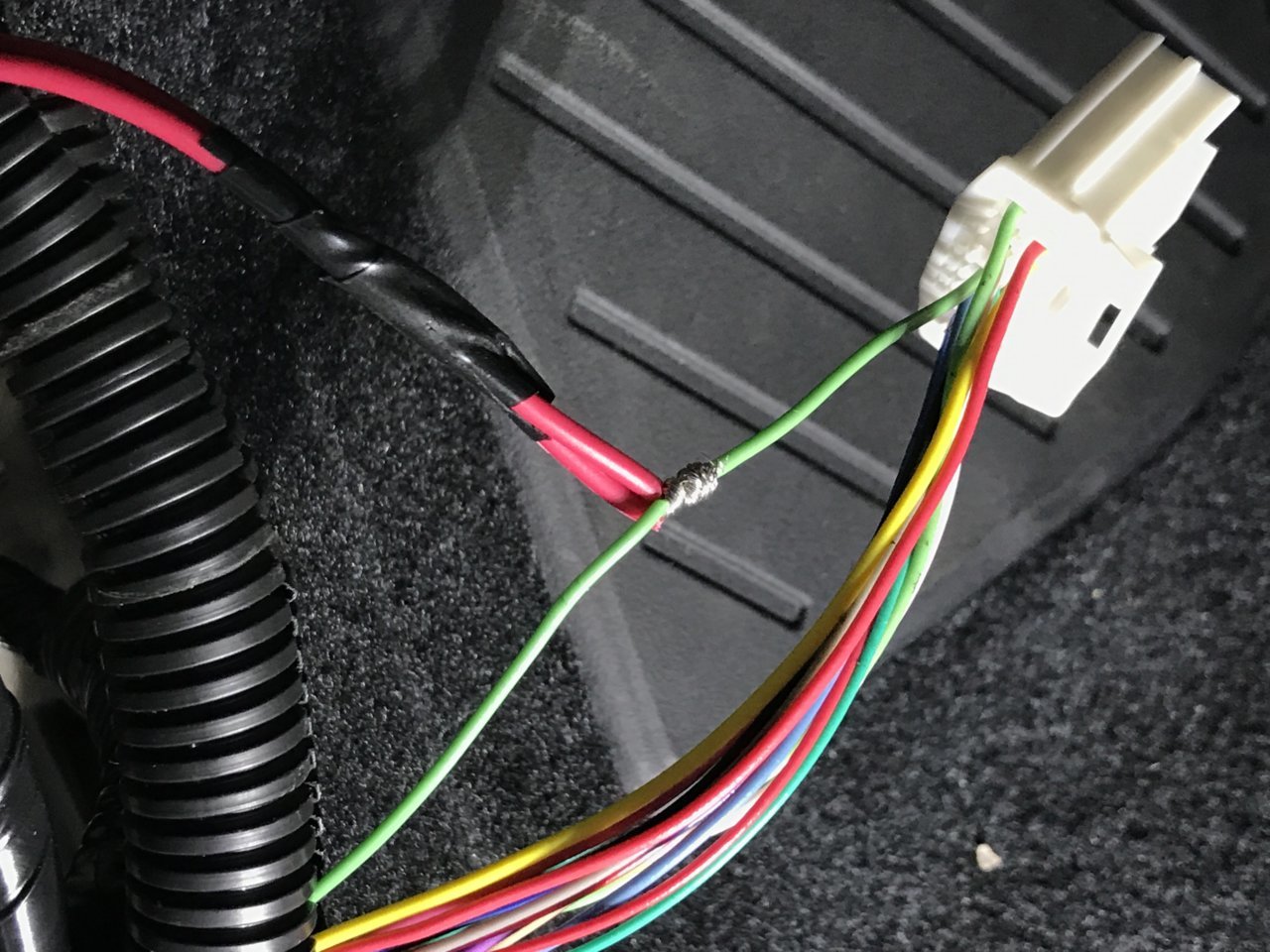

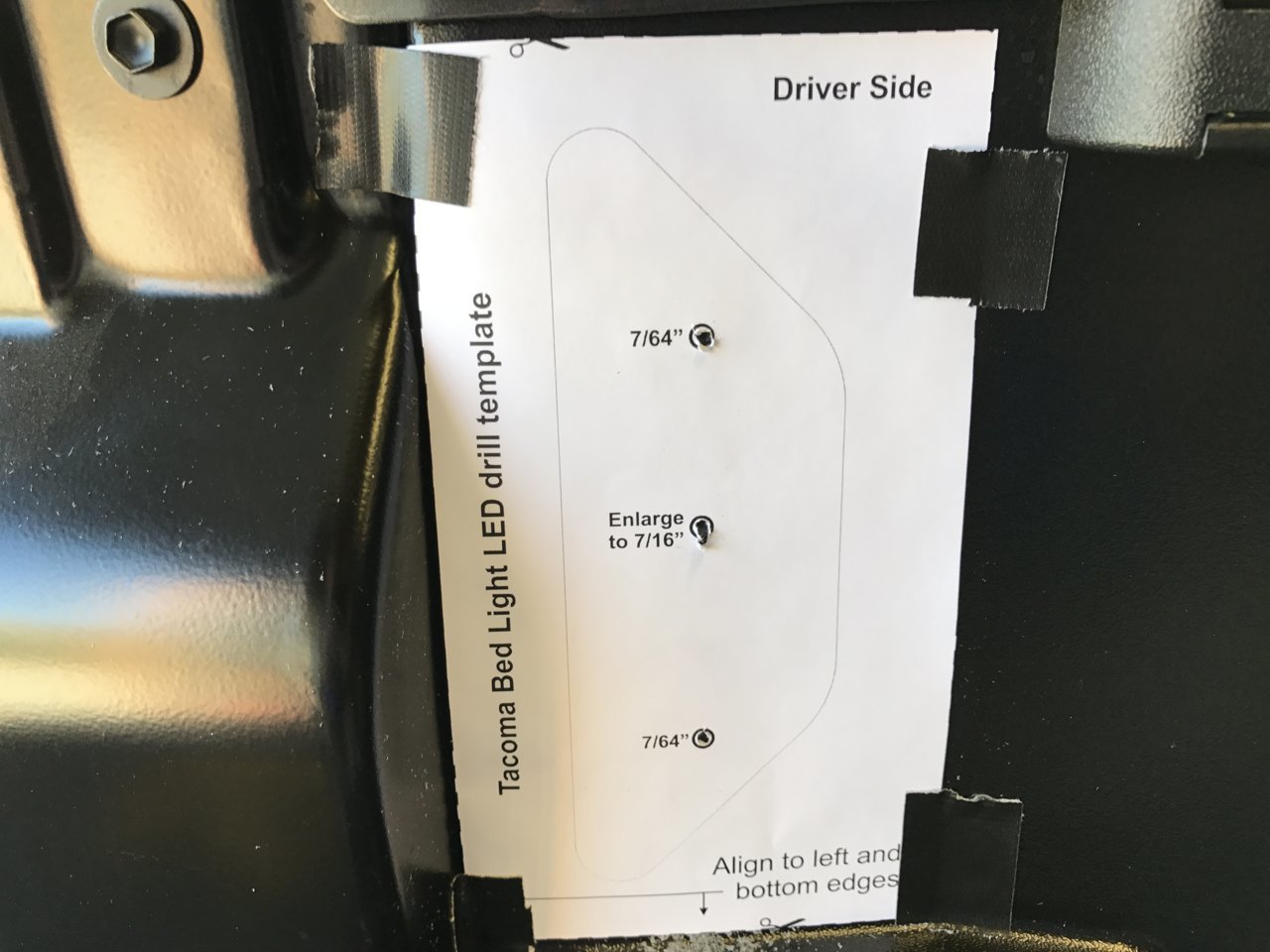

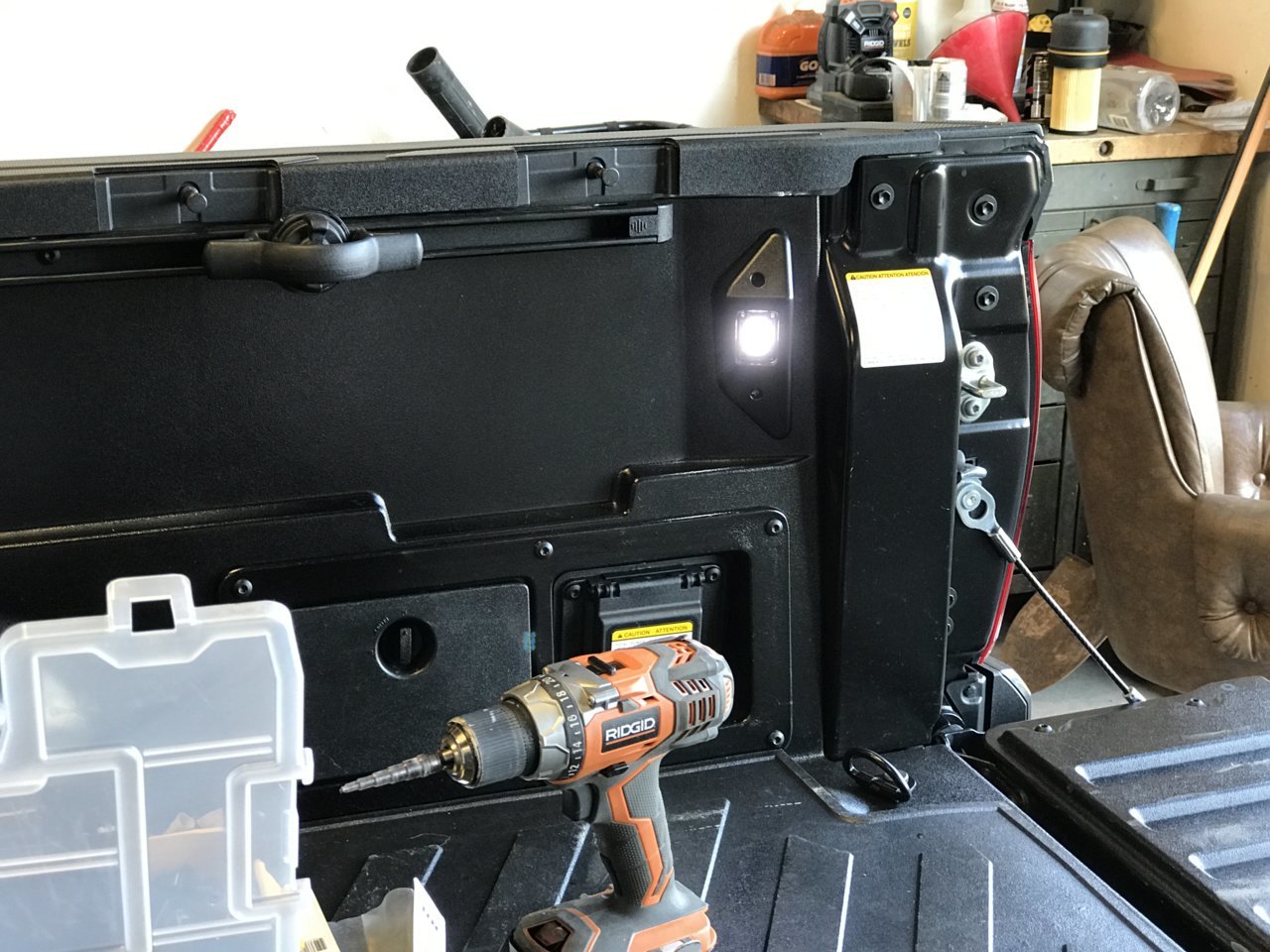

    I installed the factory kit and it was easy. If you are technically savvy you’ll be fine. I followed the directions to tie into the cargo light. They operate with the key fob and the cargo light switch. Some pics of my install:
