Airflow Snorkel Installation - Garfish307

Discussion in '2nd Gen. Tacomas (2005-2015)' started by Garfish307, Mar 19, 2017.

  1. Mar 19, 2017 at 8:46 PM
    #1
    Garfish307

    Garfish307 [OP] Well-Known Member

    Joined:
    Mar 24, 2016
    Member:
    #182243
    Messages:
    388
    Gender:
    Male
    First Name:
    Steve
    Katy, TX
    Vehicle:
    2014 Tacoma 4x4 Texas Edition
    Flux Capacitor

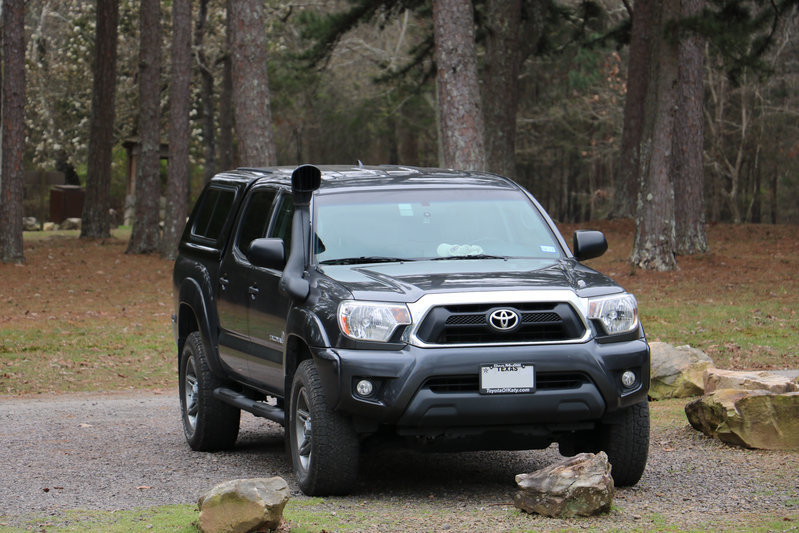

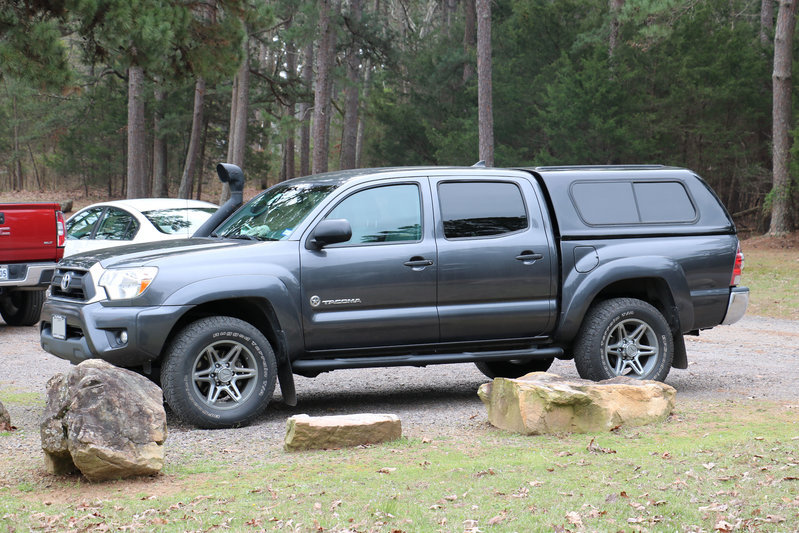

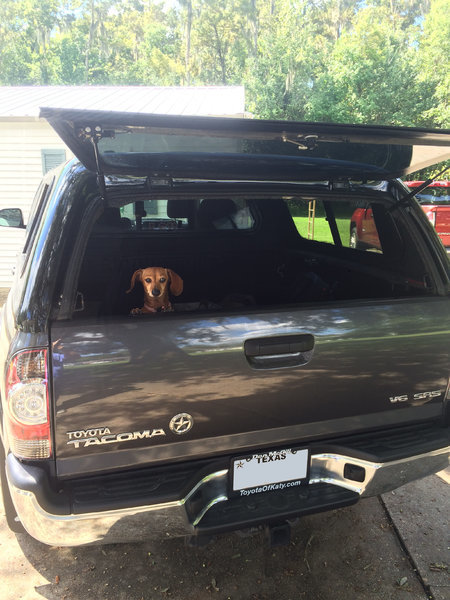

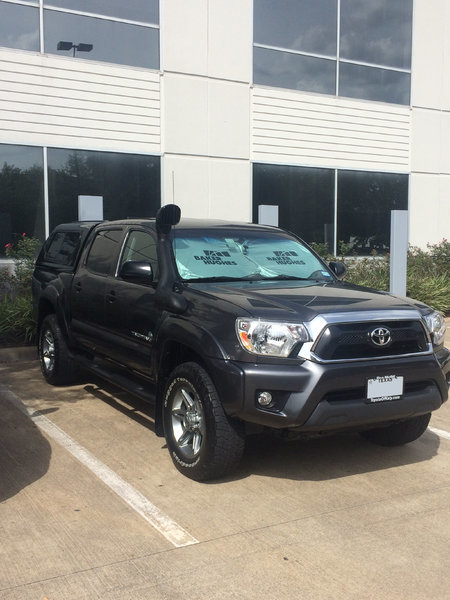

    As promised way back during the 1st Airflow group buy run by @mahaloTaco , here are my install pics. First - here are a few recent pics with my Snugtop shell at Petit Jean State Park in Arkansas - really beautiful up there.

    A little snow flurry in March:
    And hitting the trail in Kraemer, Louisiana:
    IMG_2734 - Copy.jpg

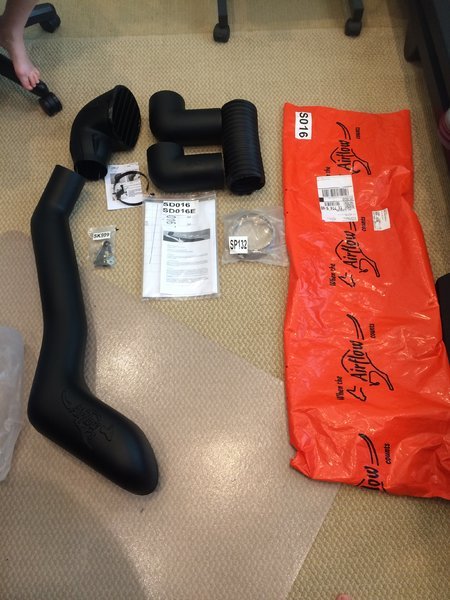

    Parts:
    I was wise enough to not ask the wife's permission to buy a snorkel and also wise enough to buy a spare fender so that I would be able to tell her this: "I can put it back just the way it was at any time". Spare fender below with painters tape to enable marking holes and protecting the paint.

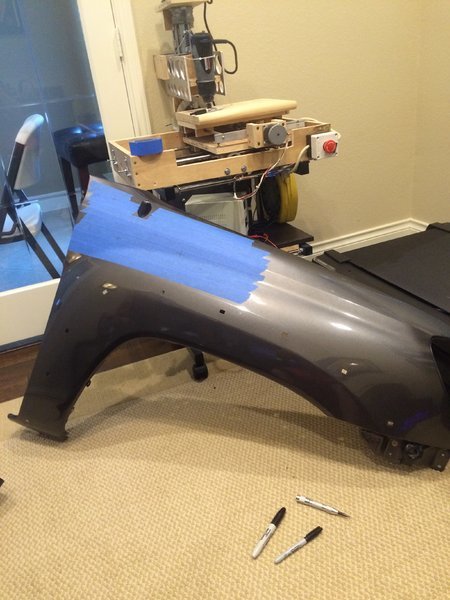

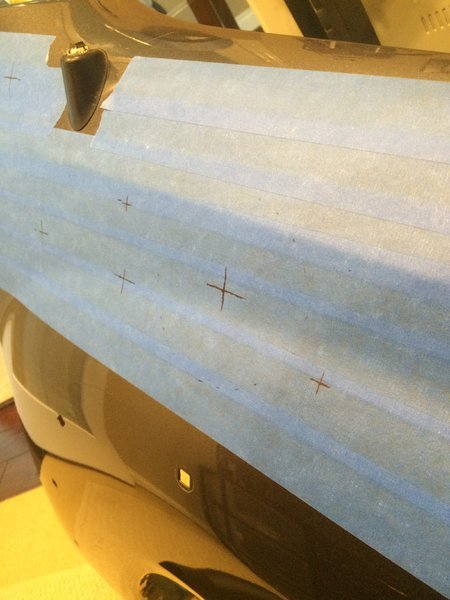

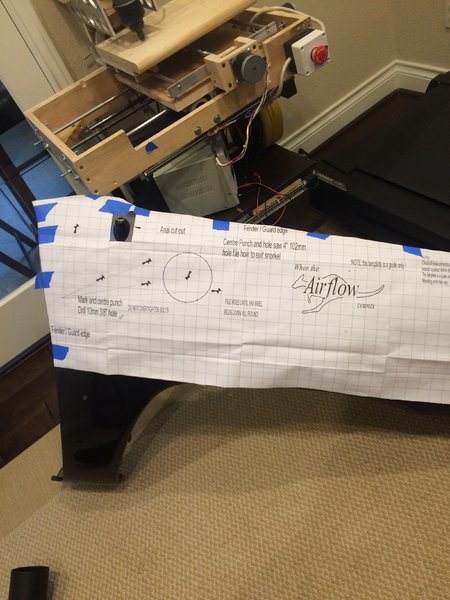

    attaching the pattern (turns out I just barely made it):

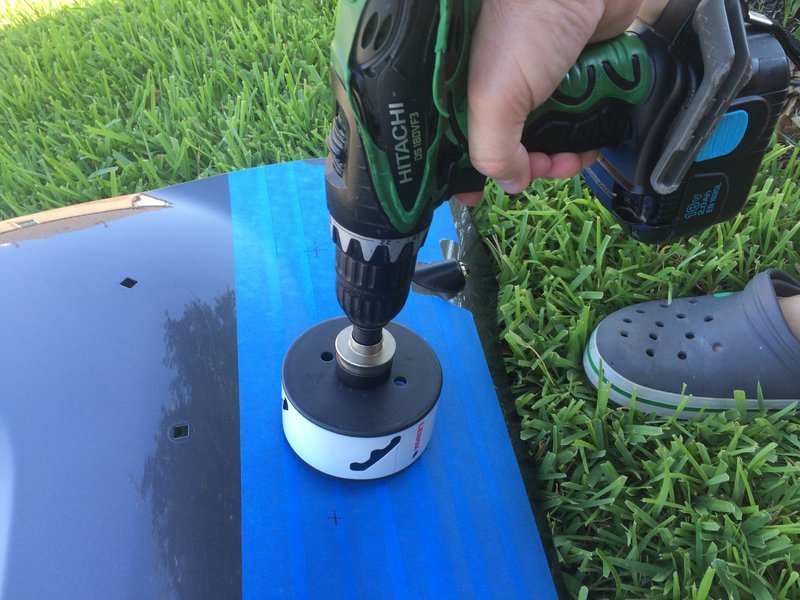

    Drilling the hole with this

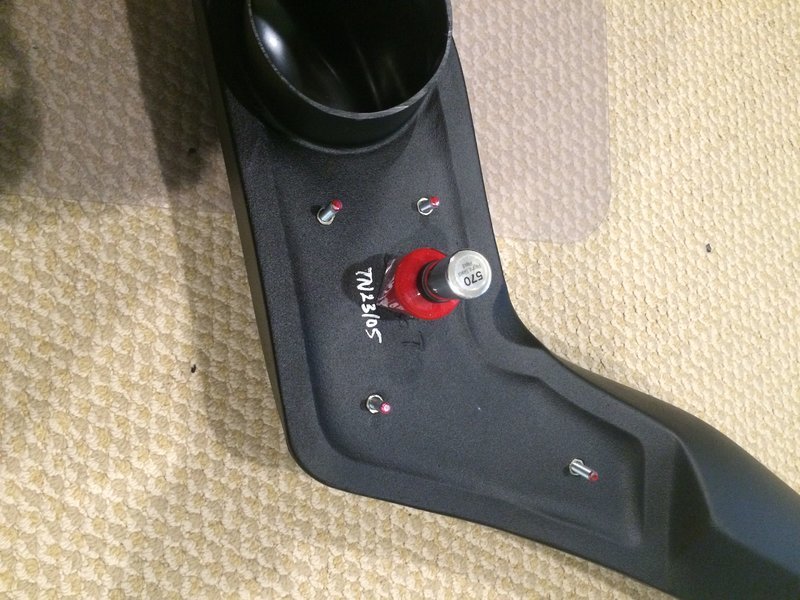

    Next, I did a first round of test fitting with the fender not installed on the truck- I must say that it did not give me a whole lot of confidence - see red fingernail polish. I decided that I needed to install the fender before drilling bolt holes (starting to get tedious).
    IMG_3011.jpg IMG_3012.jpg

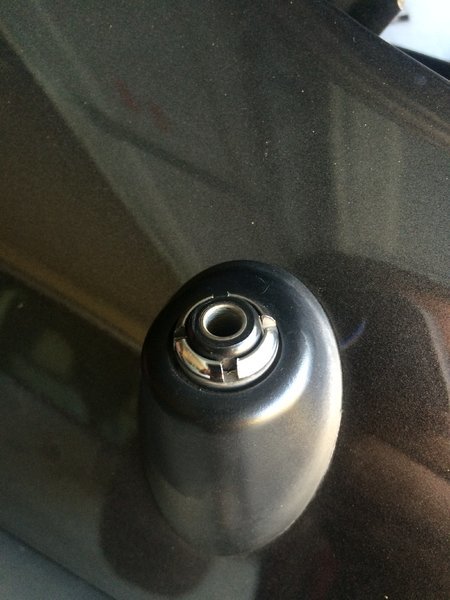

    Right off, I'd recommend that anyone attempting this to buy a wrench to remove the antenna nut - I didn't and it was a real pain.

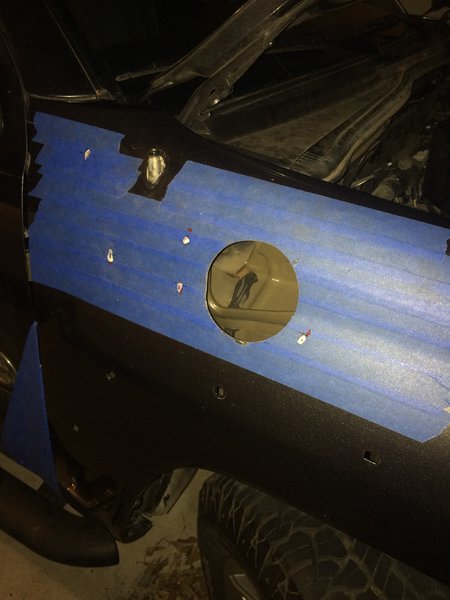

    got the fender installed and did another test fit; this time with white paint. The aligned a little better but still it didn't give me a whole lot of confidence. I was starting to believe that a test fit may not be the most accurate method due to the contours of the fender and stand-off of the bolts. I honestly can't recall where i ended up drilling the holes but I believe that I drilled according to the template location but may have cheated one or two of the holes just a hair.

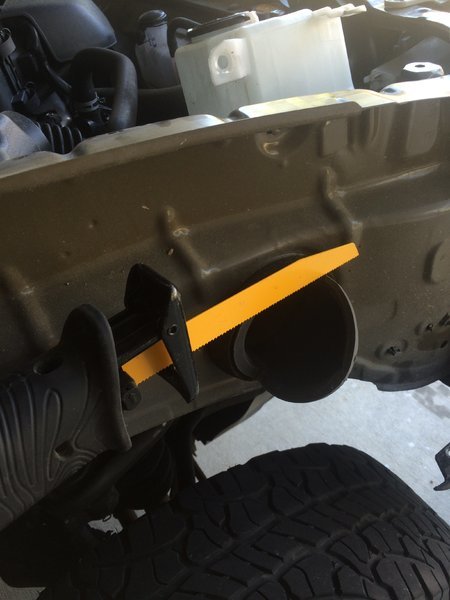

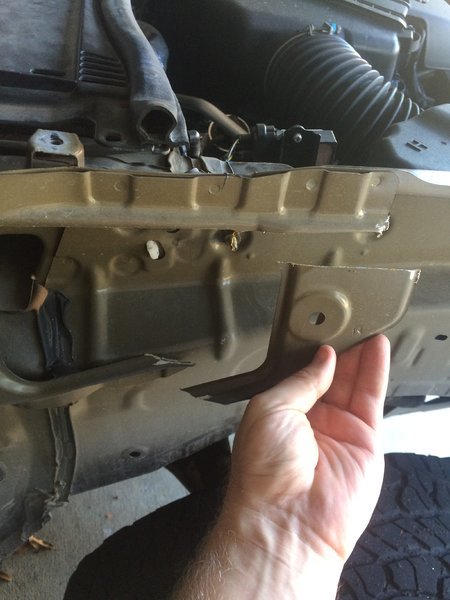

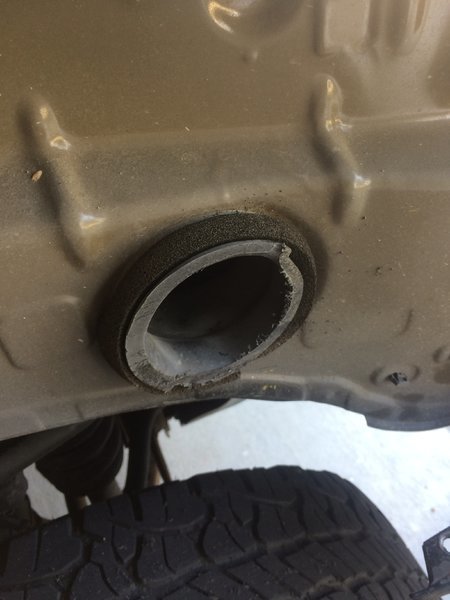

    I then removed the fender and proceeded to cut the air scoop and metal bracket
    IMG_3044.jpg IMG_3045.jpg IMG_3050.jpg

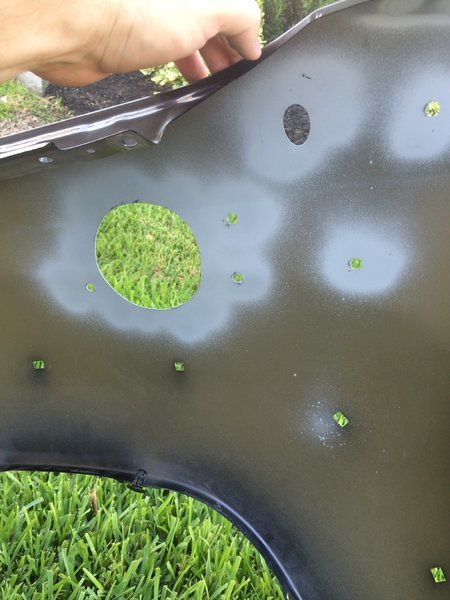

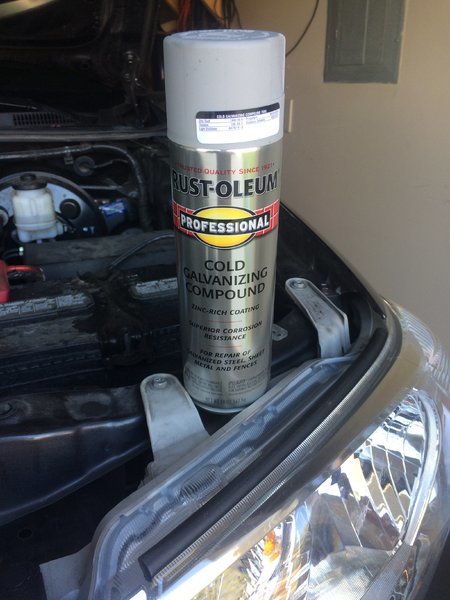

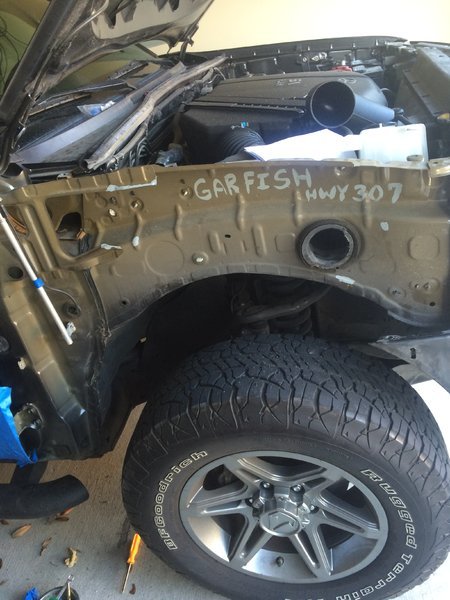

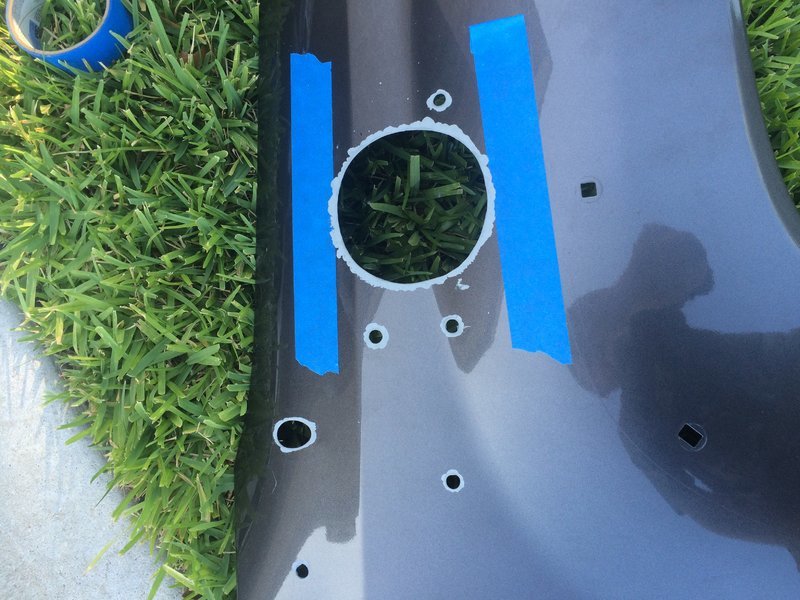

    Back to the fender - drilled holes (I used a 3/8" bit but recall it seemed a bit large at the time - turns out the "slop" was necessary for adustment) and used galvanizing paint to seal up the bare metal. I also put this paint on the areas of the frame that were cut.
    IMG_3054.jpg IMG_3055.jpg IMG_3056.jpg IMG_3052.jpg

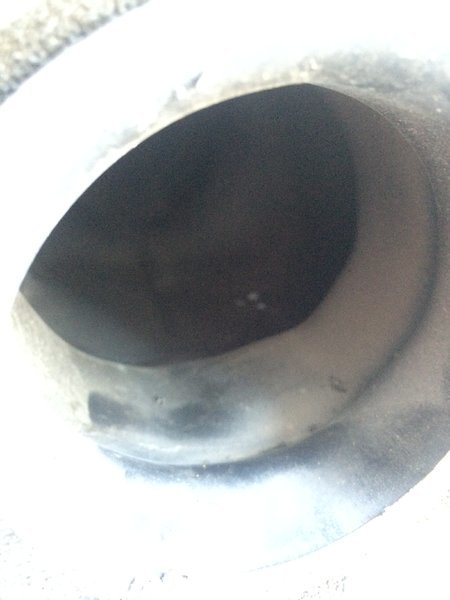

    Side note - inside the air scoop, I notice these little holes. My guess is that this allows moisture to drain and that there is some sort of diaphragm over the holes to prevent water from coming back in (sort of like a check valve?). Anyhow - just thought I would make that note since this project is all about where water can/cannot enter. (and with that - i know that i need to look at waterproofing other areas of the truck - like gear boxes, etc.)

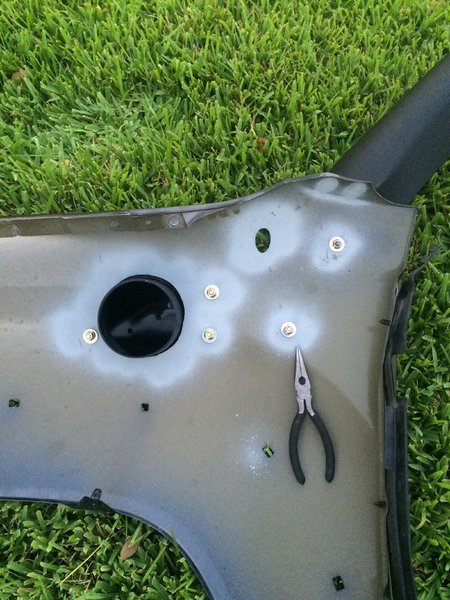

    Onward - Next I installed the snorkel on the fender with blue loctite.
    https://www.permatex.com/products/t...permatex-medium-strength-threadlocker-blue-2/

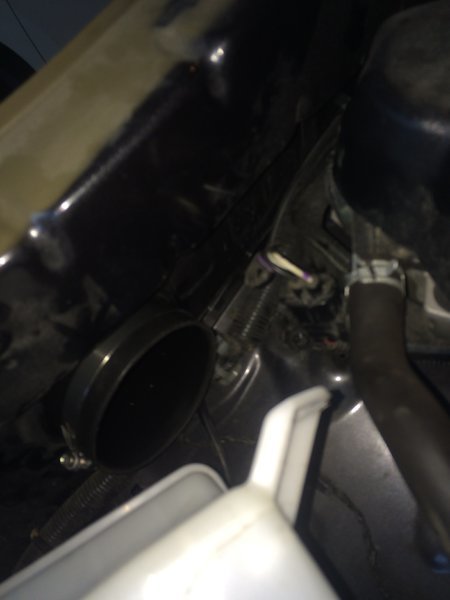

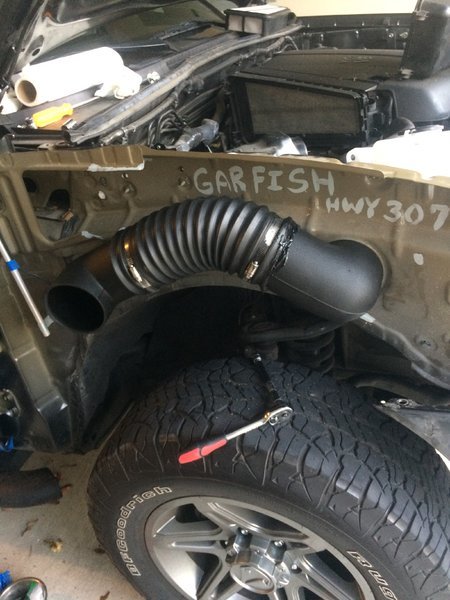

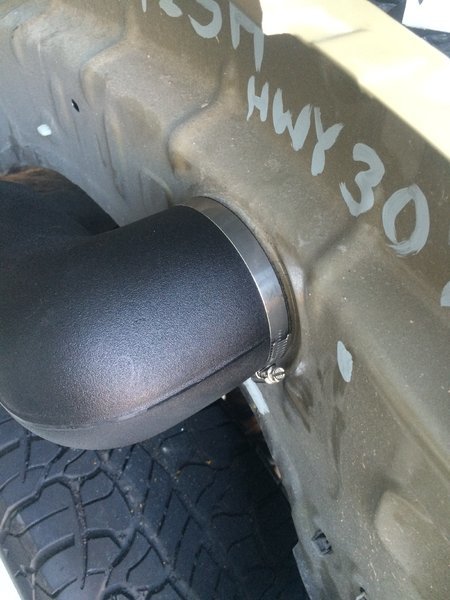

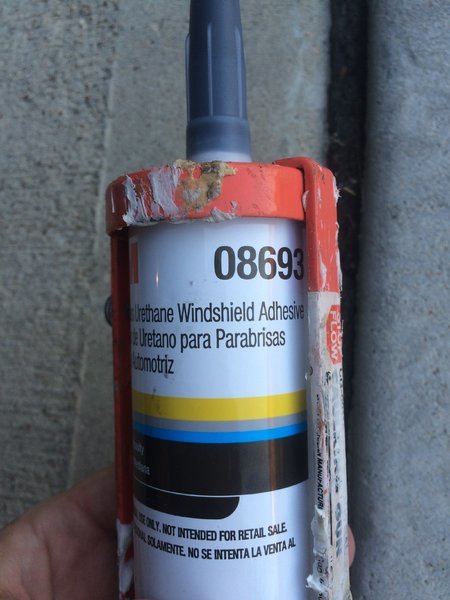

    Then, I secured the air line and sealed it up with Urethane (really messy). Notice that I put the 90° Elbow through the wall first and then I installed the cut off section from the air scoop; just found it easier to do it that way. Note: there is talk about silicone causing O2 sensor malfunctions and that you must use alternatives - this is what i decided upon - Urethane.

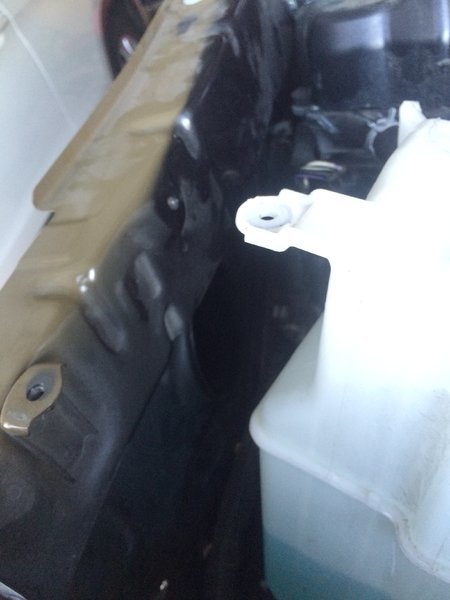

    IMG_3060.jpg IMG_3061.jpg IMG_3065.jpg IMG_3063.jpg
    This is what the air hose sub assembly looks like just before fender installation:

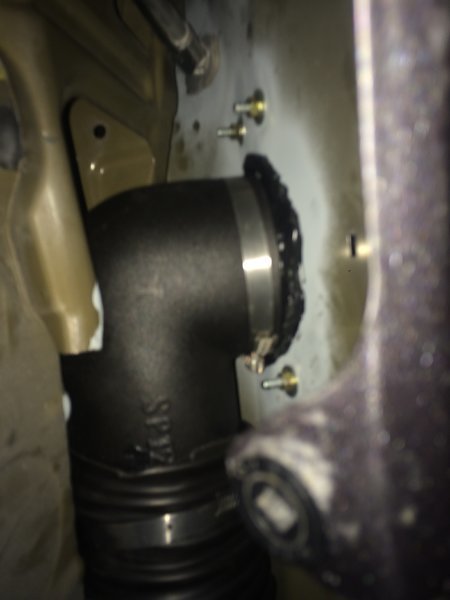

    Re-Re-install fender and attach air hose with sealer - make sure to put the hose clamp in a position that it is facing down & also consider that they "walk" a bit when tightening:

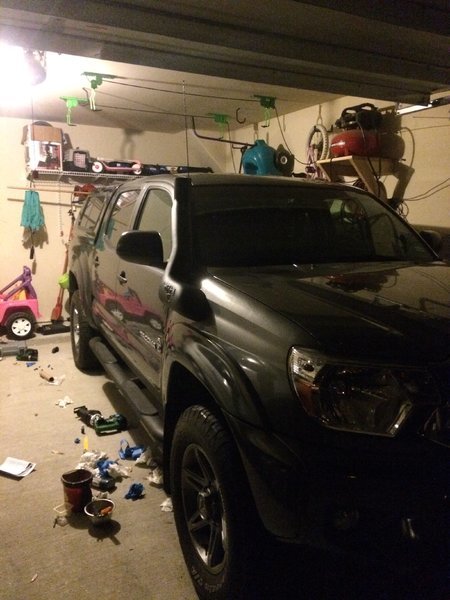

    getting there...in process of putting everything back together and getting all that Urethane off of my hands (note that it is late into the night at this point):

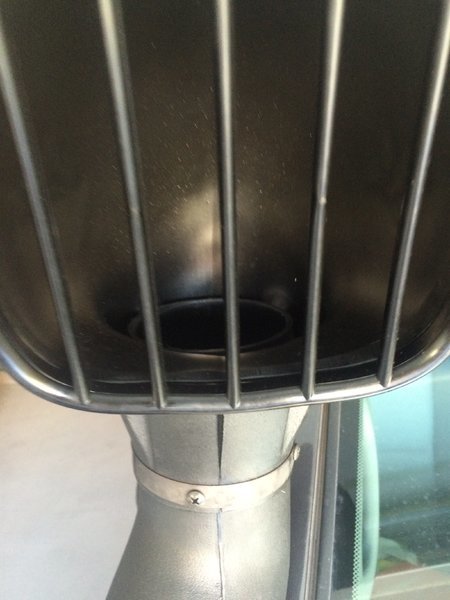

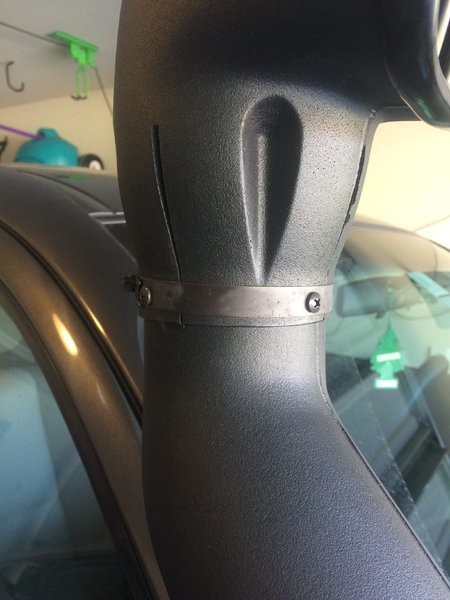

    Hood installation (recommend predrilling holes in hose clamp because the self tapping screws were anything but that considering the hardness of the clamp material). note that the snorkel neck is sticking up a bit; this is to prevent pooled water from funneling down the tube and directing it around the outside of the tube. You do not want to put it too low or too high:
    IMG_3087.jpg IMG_3084.jpg

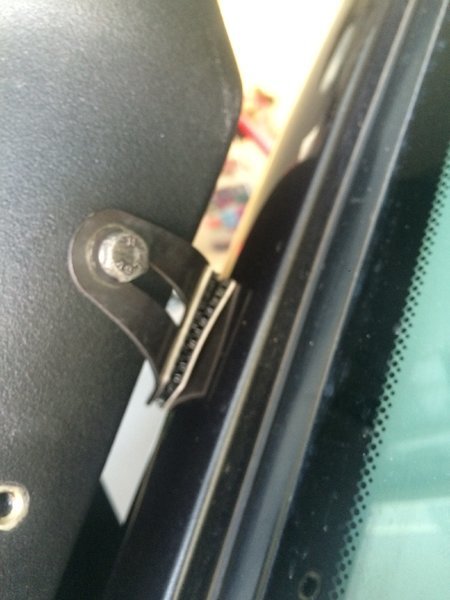

    I attached the column to the snorkel using 3M Dual Lock. This stuff is fantastic and I have been using the extra 20' on all sorts of other projects. I have also pass through automatic carwashes (and not the touchless ones either - full on scrubbing ones) and it is holding.

    Overall, the install required about a 4 out of 10 as far as technical know-how but was very time consuming and tedious. I'd recommend patience and protect your paint job in surrounding areas when going on and off with the fenders. In summary, It is over a year later & it turns out I still like it. Car wash tested too.
    I have not noticed a fuel economy / MPG change either with the snorkel or the shell.

    Supplemental info, thanks, and references:
    @lemons post (I forgot about this one - helpful):
    https://www.tacomaworld.com/threads/how-to-airflow-snorkel-install.443155/

    Also - Thanks to @Texoma for guidance as well - Urethane Selection

    Info on Dual Lock:
    http://multimedia.3m.com/mws/media/564564O/dual-lock-reclosable-fasteners-sj3872-sj3870-sj3871.pdf
    https://www.itapestore.com/3M-Dual-Lock-Guide_ep_49-1.html

    Last edited: May 1, 2017
    davidwer07, rileySB, BohlaaH and 7 others like this.
  2. Mar 20, 2017 at 8:41 AM
    #2
    mashir

    mashir Well-Known Member

    Joined:
    Jan 13, 2014
    Member:
    #120572
    Messages:
    118
    Gender:
    Male
    First Name:
    Matt
    Colorado
    Vehicle:
    2014 DCSB TRD Off-Road
    OME BP-51 full kit, SPC UCAs, FJ TRD Trail Team wheels in black, 255/85/16 Cooper Discoverer ST Maxx, All-Pro aluminum front bumper and IFS skid, Slee Off-Road silders and rear tire carrier bumper, Rigid and BD lighting, Baja Rack roof rack, Bruteforce Fab bed cage, CVT RTT
    Awesome, I had been wondering about car washes with a snorkel. You feel like water being directed at the snorkel intake is OK going through a wash as well?

    Garfish307 [OP] likes this.
  3. Mar 20, 2017 at 9:11 AM
    #3
    Garfish307

    Garfish307 [OP] Well-Known Member

    Joined:
    Mar 24, 2016
    Member:
    #182243
    Messages:
    388
    Gender:
    Male
    First Name:
    Steve
    Katy, TX
    Vehicle:
    2014 Tacoma 4x4 Texas Edition
    Flux Capacitor
    I've never had an issue with the car wash. Been through it routinely and always leave it running.

    mashir and DaveEli like this.
  4. Mar 20, 2017 at 10:13 AM
    #4
    Lord Helmet

    Lord Helmet Prepare To Attack

    Joined:
    Aug 30, 2012
    Member:
    #85875
    Messages:
    38,885
    Gender:
    Male
    First Name:
    Nick
    SoCal
    Vehicle:
    2018 T4R ORP W/ KDSS '13 Taco, & Spaceball One
    Great write up for all to see and use. Good job :thumbsup:

    Garfish307 [OP] likes this.
  5. Mar 20, 2017 at 8:43 PM
    #5
    Garfish307

    Garfish307 [OP] Well-Known Member

    Joined:
    Mar 24, 2016
    Member:
    #182243
    Messages:
    388
    Gender:
    Male
    First Name:
    Steve
    Katy, TX
    Vehicle:
    2014 Tacoma 4x4 Texas Edition
    Flux Capacitor
    thanks - and may the Schwartz be with you

    Lord Helmet likes this.
  6. Mar 20, 2017 at 8:56 PM
    #6
    Lord Helmet

    Lord Helmet Prepare To Attack

    Joined:
    Aug 30, 2012
    Member:
    #85875
    Messages:
    38,885
    Gender:
    Male
    First Name:
    Nick
    SoCal
    Vehicle:
    2018 T4R ORP W/ KDSS '13 Taco, & Spaceball One
    :laugh:

    [​IMG]

  7. Mar 23, 2017 at 3:55 PM
    #7
    rileySB

    rileySB RileySB

    Joined:
    Apr 8, 2013
    Member:
    #101692
    Messages:
    889
    Gender:
    Female
    First Name:
    Gen
    Santa Barbara, CA
    Vehicle:
    13 DCSB OR 4x4
    5100/887, Dakars, 285s, Built Right UCAs, Icon rears
    great writeup!

    Garfish307 [OP] likes this.
  8. Mar 24, 2017 at 12:48 PM
    #8
    Benzdriver81

    Benzdriver81 Making it fool-proof will just make a better fool

    Joined:
    Aug 1, 2016
    Member:
    #193495
    Messages:
    6,106
    Gender:
    Male
    First Name:
    Kevin
    PNW
    Vehicle:
    05 DCLB Sport
  9. Mar 24, 2017 at 1:53 PM
    #9
    jessandjamie

    jessandjamie Well-Known Member

    Joined:
    Dec 25, 2013
    Member:
    #119190
    Messages:
    328
    Gender:
    Male
    Arizona
    Those holes are just that, drainage holes. They have nothing to stop water from coming back in. ARB Safari snorkel instructions say to seal them. As well as the other 2 near the air filter.

    Last edited: Mar 24, 2017
    seoulja99 and Garfish307 [OP] like this.
  10. Mar 24, 2017 at 6:29 PM
    #10
    Garfish307

    Garfish307 [OP] Well-Known Member

    Joined:
    Mar 24, 2016
    Member:
    #182243
    Messages:
    388
    Gender:
    Male
    First Name:
    Steve
    Katy, TX
    Vehicle:
    2014 Tacoma 4x4 Texas Edition
    Flux Capacitor
    Hmmmmm.....:confused: Thanks for the note about the Safari installation instructions. I'm gonna think on this a bit. Some initial thoughts - impossible to never get water in - there must be a way for it to get out. Even most diving snorkels have a dump valve / flapper. In the case of a submerged, air-filled container, there would be hydrostatic pressure which would allow water to get in - in combination with engine suction (no forced air at that low speed). It seems the "right" thing to do would be to install a check valve over (or under) these holes. Not really following ARB instructions - but will dig.:spy::pccoffee:

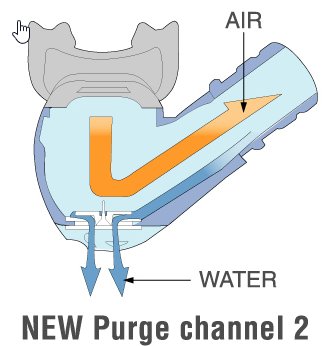

    diving snorkel purge valve...

  11. Mar 24, 2017 at 9:59 PM
    #11
    TYetti

    TYetti 4cylinders of awesomeness

    Joined:
    Mar 8, 2014
    Member:
    #124858
    Messages:
    2,336
    Gender:
    Male
    First Name:
    Mat
    Abbotsford, BC, Canada
    Vehicle:
    09 Tacoma AC 2.7L 5spd 4x4
    I've had my airflow on for a year in all sorts of conditions. Air filter has never gotten wet or even damp. Unlike before I did the snorkel mod. I actually parked my truck shortly after installing 35s cause I was missing most of my inner fenders....


    4WDTrout and Garfish307 [OP] like this.
  12. Jul 15, 2018 at 7:24 PM
    #12
    YanE30M3

    YanE30M3 GO PATS!

    Joined:
    Sep 26, 2014
    Member:
    #139118
    Messages:
    1,512
    Gender:
    Male
    First Name:
    Yan
    Monterey CA
    Vehicle:
    15 TRD Sport (DCLB-BRM) - 88 ///M3 (Zinnoberrot)
    OME 887/Dakars/NV305s/33" Duratracs/+
    subed for install

  13. Jul 15, 2018 at 9:20 PM
    #13
    Lord Helmet

    Lord Helmet Prepare To Attack

    Joined:
    Aug 30, 2012
    Member:
    #85875
    Messages:
    38,885
    Gender:
    Male
    First Name:
    Nick
    SoCal
    Vehicle:
    2018 T4R ORP W/ KDSS '13 Taco, & Spaceball One
    2nd Favorite mod on my truck :thumbsup: Installing the King suspension is still 1st :D


    davidwer07 and itaro like this.
  14. Jul 24, 2018 at 6:28 PM
    #14
    FlintHillBilly

    FlintHillBilly BIG FAT DAVE

    Joined:
    Jun 27, 2015
    Member:
    #158280
    Messages:
    165
    Gender:
    Male
    First Name:
    Not Dave
    Flat Lands
    Vehicle:
    14' Reg Cab 4x4
    Toyota
    Great write up.

    I know its a year old thread... (Just realized OP hasnt been seen since May)

    Garfish or anyone else, I'm not wanting to tap into my A frame quite yet so I've been hesitant on going with a snorkel.

    Have you had any issues or concerns since you've used the 3M Dual Lock tape? Highway or high winds any issues? Have you had to replace the tape at any time since you've had it?

    If anybody can chime in who's snorkeled this route, that would be great as well.

    itaro likes this.
  15. Aug 10, 2018 at 9:13 PM
    #15
    Garfish307

    Garfish307 [OP] Well-Known Member

    Joined:
    Mar 24, 2016
    Member:
    #182243
    Messages:
    388
    Gender:
    Male
    First Name:
    Steve
    Katy, TX
    Vehicle:
    2014 Tacoma 4x4 Texas Edition
    Flux Capacitor
    I had to change the dual lock once - held up for a while but I was riding around for about 3 months with it detached before i realized it. No issues whatsoever. I routinely pass through automated car washes... go for it. I get a lot of admiration and questions about it - especially since I live in Houston-Harvey-affected area.
