Aluminum replacement for plastic rear coolant bypass joint

Discussion in '3rd Gen. Tacomas (2016+)' started by Jowett, Jan 5, 2021.

  1. Jan 5, 2021 at 2:59 PM
    #1
    Jowett

    Jowett [OP] Well-Known Member

    Joined:
    May 5, 2016
    Member:
    #186182
    Messages:
    1,307
    Gender:
    Male
    First Name:
    Brian
    North Adams, MA
    Well, well, well, what do we have here? Yup, a rear coolant bypass made of the proper material for the job. Uses MLS gaskets, too. Built to take the heat!

    For the uninitiated, read following links...

    https://www.tacomaworld.com/threads/check-your-3-5l-coolant-pipe.531758/

    https://www.tacomaworld.com/threads/3-5l-rear-water-bypass-joint-leak.651341/

    The good... It bolts up. The temp sensor is correct. The not good... The coolant port for the heater core is in the wrong place. This can be dealt with fairly easily via a hose, by modifying the port outlet, or maybe both. The wire harness mounts are wrong, but look easy to deal with. There is an additional port that will need to be blocked.

    Please note, my application is a 6MT, which has no coolant hoses running to the ATF warmer/cooler. I do not know if this will be an issue on automatic equipped trucks.

    Pics, more to come.

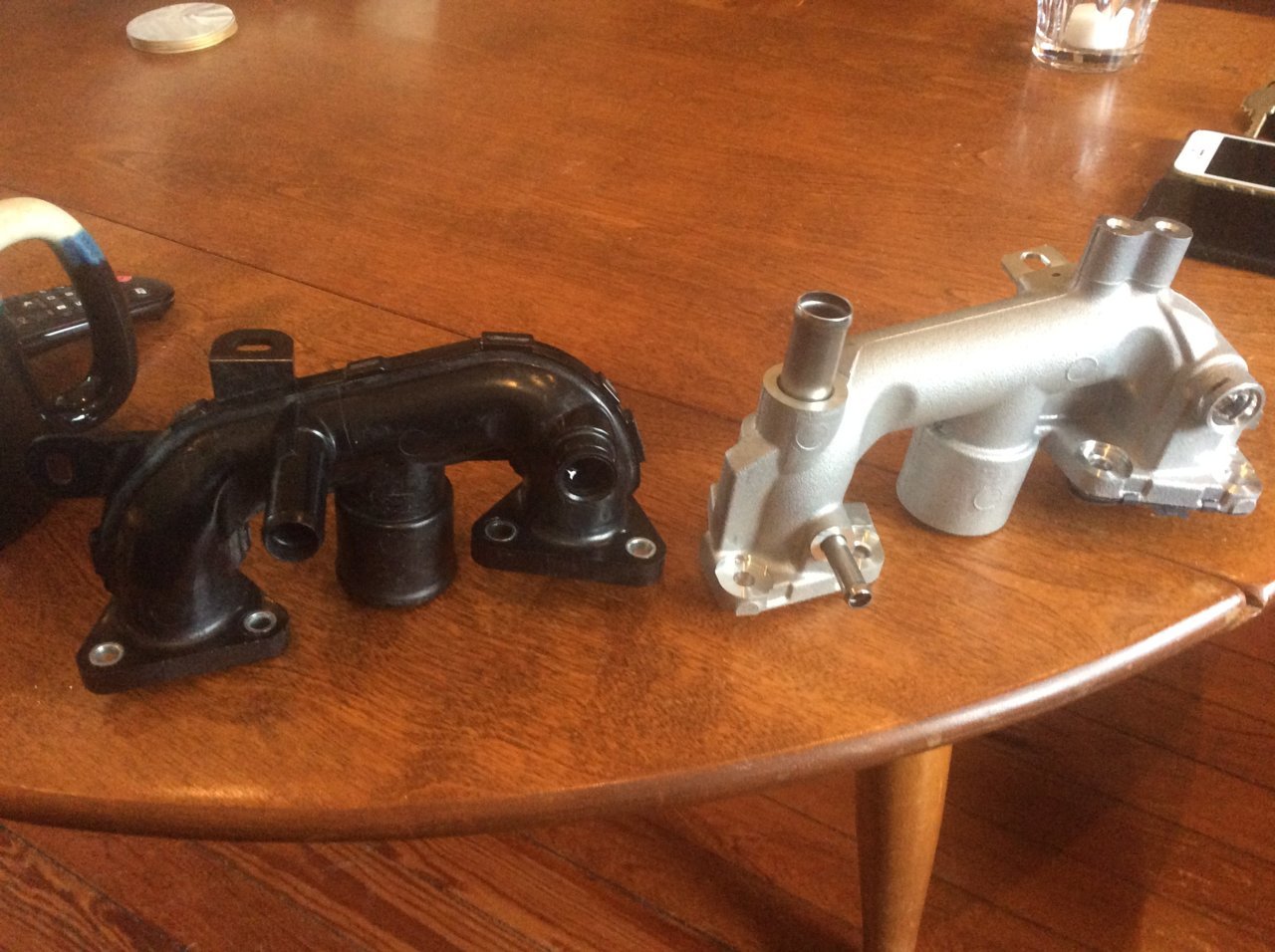

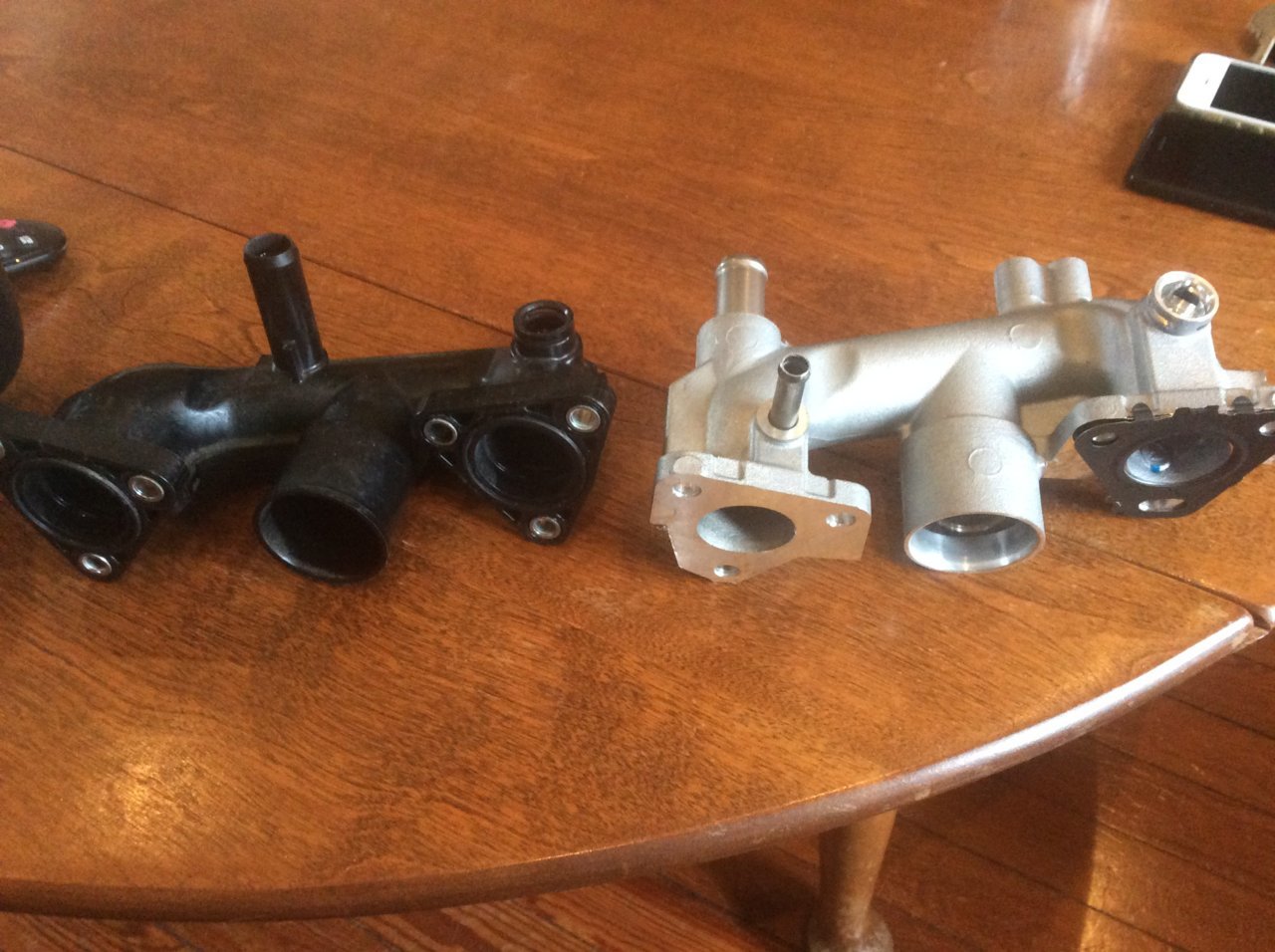

    IMG_3986.jpg IMG_3987.jpg

  2. Jan 5, 2021 at 3:02 PM
    #2
    Skydvrr

    Skydvrr IG: @kalopsianick

    Joined:
    Sep 13, 2017
    Member:
    #229889
    Messages:
    12,536
    First Name:
    Nick
    YMH
    Vehicle:
    Black '17 OR
    Ohhh shit son! You're a parts finding, ass kickin genius

  3. Jan 5, 2021 at 3:03 PM
    #3
    Jowett

    Jowett [OP] Well-Known Member

    Joined:
    May 5, 2016
    Member:
    #186182
    Messages:
    1,307
    Gender:
    Male
    First Name:
    Brian
    North Adams, MA
    I love scouring parts diagrams for upgrades!

    G8R_Taco, Junkhead and Skydvrr like this.
  4. Jan 5, 2021 at 3:04 PM
    #4
    Skydvrr

    Skydvrr IG: @kalopsianick

    Joined:
    Sep 13, 2017
    Member:
    #229889
    Messages:
    12,536
    First Name:
    Nick
    YMH
    Vehicle:
    Black '17 OR

    Is the plastic one off your truck? You're probably balls deep in your SC so it wasn't too bad to get to?

  5. Jan 5, 2021 at 3:06 PM
    #5
    Jowett

    Jowett [OP] Well-Known Member

    Joined:
    May 5, 2016
    Member:
    #186182
    Messages:
    1,307
    Gender:
    Male
    First Name:
    Brian
    North Adams, MA
    Yes. The transmission is out, too, so easy access. Looks like a PITA from the top.

    Skydvrr likes this.
  6. Jan 5, 2021 at 3:14 PM
    #6
    YotaKid

    YotaKid Well-Known Member

    Joined:
    Dec 21, 2019
    Member:
    #313882
    Messages:
    164
    Gender:
    Male
    AZ
    Vehicle:
    2017 SR 4x4
    Shiny:eek:

    wahoobie likes this.
  7. Jan 5, 2021 at 3:16 PM
    #7
    Skydvrr

    Skydvrr IG: @kalopsianick

    Joined:
    Sep 13, 2017
    Member:
    #229889
    Messages:
    12,536
    First Name:
    Nick
    YMH
    Vehicle:
    Black '17 OR

    Oh yeah you're working on the trans too. Does the exploded view show transmission lines for AT?

  8. Jan 5, 2021 at 3:17 PM
    #8
    shakerhood

    shakerhood Well-Known Member

    Joined:
    Aug 9, 2015
    Member:
    #161370
    Messages:
    33,497
    Gender:
    Male
    Southern Ohio
    Vehicle:
    2017 MGM DCSB Off Road, 6 Speed MT, P&T
    Nice find!

    Junkhead likes this.
  9. Jan 5, 2021 at 4:01 PM
    #9
    Jowett

    Jowett [OP] Well-Known Member

    Joined:
    May 5, 2016
    Member:
    #186182
    Messages:
    1,307
    Gender:
    Male
    First Name:
    Brian
    North Adams, MA
    Shows the parts, but not certain on exact hose path through the area. Ideally, someone needs to look.

    Traction and Skydvrr like this.
  10. Jan 5, 2021 at 5:21 PM
    #10
    Skydvrr

    Skydvrr IG: @kalopsianick

    Joined:
    Sep 13, 2017
    Member:
    #229889
    Messages:
    12,536
    First Name:
    Nick
    YMH
    Vehicle:
    Black '17 OR

    Hopefully someone will chime in. If not I'll try to look

  11. Jan 5, 2021 at 5:33 PM
    #11
    GBR

    GBR Well-Known Member

    Joined:
    Mar 4, 2019
    Member:
    #285384
    Messages:
    190
    Vehicle:
    19 TRD OR
    Just curious what model this came off of?

  12. Jan 5, 2021 at 6:22 PM
    #12
    Jowett

    Jowett [OP] Well-Known Member

    Joined:
    May 5, 2016
    Member:
    #186182
    Messages:
    1,307
    Gender:
    Male
    First Name:
    Brian
    North Adams, MA
    This comes from the Lexus LS and LC 500h, which are hybrids and use the 3.5L 8GR-FXS version of our engine. It has 13:1 pistons and exhaust gas recirculation... needless to say, things run a little hotter on this engine, and this aluminum part was likely installed to deal with that extra heat.

    Part #s

    16356-31080 Joint, water bypass $119.50
    16341-31030 Gasket x 2 $8.85

    Lexus may want a vin # in order to supply this part.

    Let's get it all mapped out... it isn't done until it's done.

    Last edited: Aug 9, 2022 at 6:34 PM
  13. Jan 5, 2021 at 6:29 PM
    #13
    mysubiewasalemon

    mysubiewasalemon Well-Known Member

    Joined:
    Oct 18, 2018
    Member:
    #269886
    Messages:
    1,706
    Gender:
    Male
    What did you get the parts for

  14. Jan 5, 2021 at 6:39 PM
    #14
    GrundleJuice

    GrundleJuice Well-Known Member

    Joined:
    Mar 15, 2015
    Member:
    #150931
    Messages:
    2,242
    Gender:
    Male
    Michigan
    Vehicle:
    2016 TRD Bro
    [S]Un-Molested[/S] Lightly Molested
    I think he got them for his truck....


    ....I kid, I kid.

    Last edited: Jan 5, 2021
    Junkhead likes this.
  15. Jan 5, 2021 at 7:05 PM
    #15
    Jowett

    Jowett [OP] Well-Known Member

    Joined:
    May 5, 2016
    Member:
    #186182
    Messages:
    1,307
    Gender:
    Male
    First Name:
    Brian
    North Adams, MA
    List prices added above.

    Junkhead and shakerhood like this.
  16. Jan 5, 2021 at 8:41 PM
    #16
    mysubiewasalemon

    mysubiewasalemon Well-Known Member

    Joined:
    Oct 18, 2018
    Member:
    #269886
    Messages:
    1,706
    Gender:
    Male
  17. Jan 6, 2021 at 6:55 AM
    #17
    mattleg

    mattleg Well-Known Member

    Joined:
    Aug 31, 2018
    Member:
    #264744
    Messages:
    744
    First Name:
    Matt
    Kansas
    Vehicle:
    2020 OR DCSB AT 4WD
    It's the same for AT as MT, the bypass line goes to the heater core first. It's only after the heater core does the AT vary by adding the warmer before returning to the thermostat.

  18. Jan 26, 2021 at 3:01 PM
    #18
    rlx02

    rlx02 ¯\_(ツ)_/¯

    Joined:
    Sep 3, 2016
    Member:
    #196329
    Messages:
    5,878
    Western WA
    Vehicle:
    2017 Inferno DCSB TRD OR 4x4
    Any updates with this?

  19. Jan 26, 2021 at 3:29 PM
    #19
    Jowett

    Jowett [OP] Well-Known Member

    Joined:
    May 5, 2016
    Member:
    #186182
    Messages:
    1,307
    Gender:
    Male
    First Name:
    Brian
    North Adams, MA
    I have several hoses ordered, so we'll see if there is something out there that will make this swap a little easier. Is your bypass in need of replacement?

  20. Feb 10, 2021 at 8:54 AM
    #20
    rlx02

    rlx02 ¯\_(ツ)_/¯

    Joined:
    Sep 3, 2016
    Member:
    #196329
    Messages:
    5,878
    Western WA
    Vehicle:
    2017 Inferno DCSB TRD OR 4x4
    Mine is liveable right now, I'm just monitoring it as my coolant level is still in the middle but I definitely will need replacement in the future.
