Anytime Front and Rear Camera Mod

Discussion in '3rd Gen Tacoma Parts Marketplace (2016+)' started by Logistics91, Apr 3, 2018.

  1. Apr 3, 2018 at 5:59 PM
    #1
    Logistics91

    Logistics91 [OP] Well-Known Member

    Joined:
    Mar 12, 2017
    Member:
    #213071
    Messages:
    646
    Gender:
    Male
    First Name:
    JJ
    Vehicle:
    2017 Quicksand Tacoma TRD OR
    Tacoma World,

    Just as the title says, Anytime Front and Rear Camera!!! Very easy to install, but even easier than before. The full kits (both front and rear) are now PLUG AND PLAY harnesses. Just follow step by step instructions! I personally use mine ALL the time. I tow from time to time and love having a way to check trailer connections and cargo while driving. I also love being able to watch my tow/recovery strap become taught while pulling/recovering a buddy out of a hole. It is also nice to be able to see what's in front of you while off road. I also use it to make sure I pull far enough into the garage/parking spots. Your use may vary.




    This kit "tricks" the head unit and backup camera into thinking the vehicle is in reverse at anytime you flip the switch. It can be activated at ANYTIME, or even all the time. This kit is especially awesome because it has the ability to activate the reverse camera without triggering the reverse lights. The reverse camera and lights still work as normal while shifting the vehicle to Reverse.

    This kit will also allow you to connect a front/forward facing (or any direction you choose) camera to the head unit as well. It will operate in the same fashion as the rear camera.

    Free shipping is included on all kits. The kit takes about 30 minutes to install and you can mount the switch anywhere you would like (may require extending wires in certain circumstances). All you need is the ability to connect a 'plug and play' harness, cut, strip, and splice some wires, (instructions provided) and you're all set! While these kits come with Plug and Play harnesses, you will still need to wire in the switches, but you will not need to cut any of the wires on the Factory Head Unit Harness.

    $100 OEM STYLE ANYTIME REAR and FRONT Kit includes: Click Here to Order
    • Plug and Play Harnesses for both the front and rear cameras with a provided OEM style "FRONT and REAR CAMERA" illuminated push button switch. All switches are black with white lettering. Illumination is standard Blue. The switch is pre-wired with color coded harness. This switch will fit inside the "blank" spots. No trimming required to fit. SPECIFY WHERE YOU ARE MOUNTING THIS SWITCH, CENTER STACK AREA OR CUBBYHOLE AREA ON DRIVERS LEFT. There are two sizes/shapes of the OEM Style Switches. Can be purchased without switches for $90. Kit does not include a front camera, although you may purchase one from the site. You can also elect to purchase your own camera, but it must have an RCA output as it's source.
    $50 OEM STYLE ANYTIME REAR Kit includes: Click Here to Order

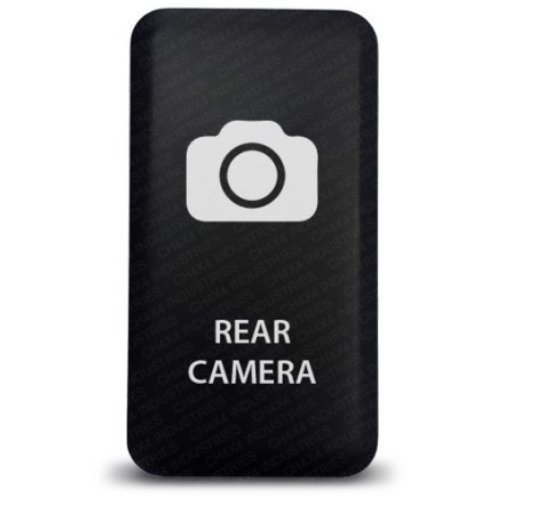

    • Plug and Play Harness with a provided OEM style "REAR CAMERA" illuminated push button switch. All switches are black with white lettering. Illumination is standard Blue. The switch is pre-wired with color coded harness. This switch will fit inside the "blank" spots. No trimming required to fit. SPECIFY WHERE YOU ARE MOUNTING THIS SWITCH, CENTER STACK AREA OR CUBBYHOLE AREA ON DRIVERS LEFT. There are two sizes/shapes of the OEM Style Switches. Can be purchased for $40 without a switch.
    $60 OEM STYLE ANYTIME FRONT Kit includes: Click Here to Order

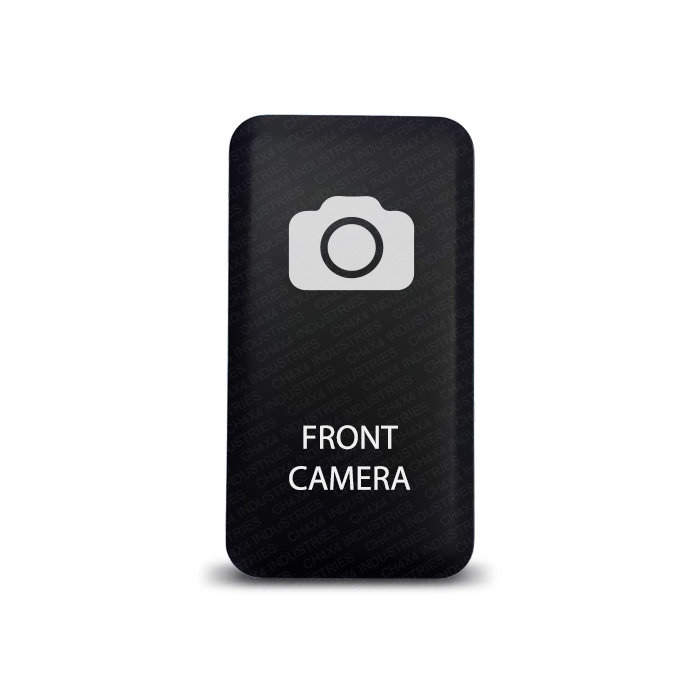

    • Plug and Play Harness with a provided OEM style "FRONT CAMERA" illuminated push button switch. All switches are black with white lettering. Illumination is standard Blue. The switch is pre-wired with color coded harness. This switch will fit inside the "blank" spots. No trimming required to fit. SPECIFY WHERE YOU ARE MOUNTING THIS SWITCH, CENTER STACK AREA OR CUBBYHOLE AREA ON DRIVERS LEFT. There are two sizes/shapes of the OEM Style Switches. Can be purchased for $50 without a switch.
    $15 Basic kit Includes - BYOS 'Bring Your Own Switch' Also Compatible with Switch Pros SP8100+ and SPODs: Click Here to Order
    *Please note, this kit does not come with a plug and play harness. You will need to cut one wire on the Factory Head Unit. And is for the REAR CAMERA ONLY.
    • Step by step installation guide
    • 1x Inline "Y" pre-wired harness
    • 1x Wiring diagram and step by step full color installation instructions.

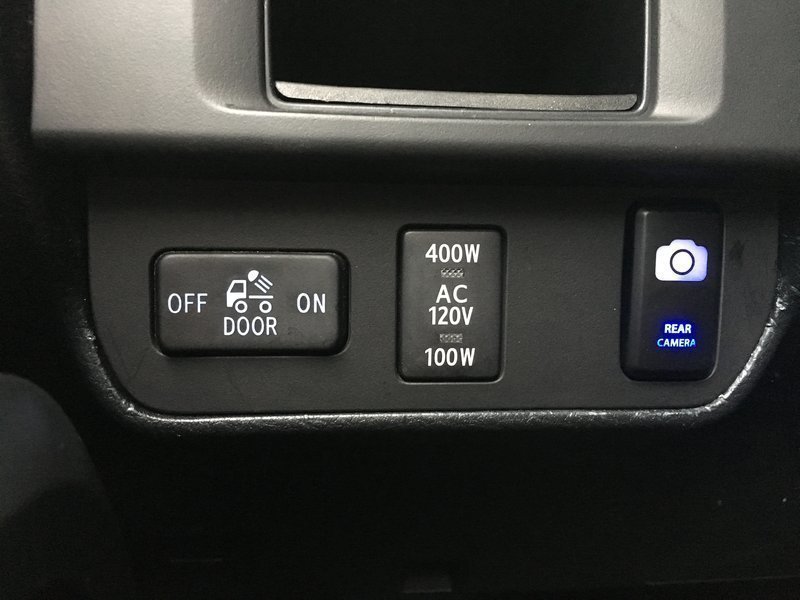

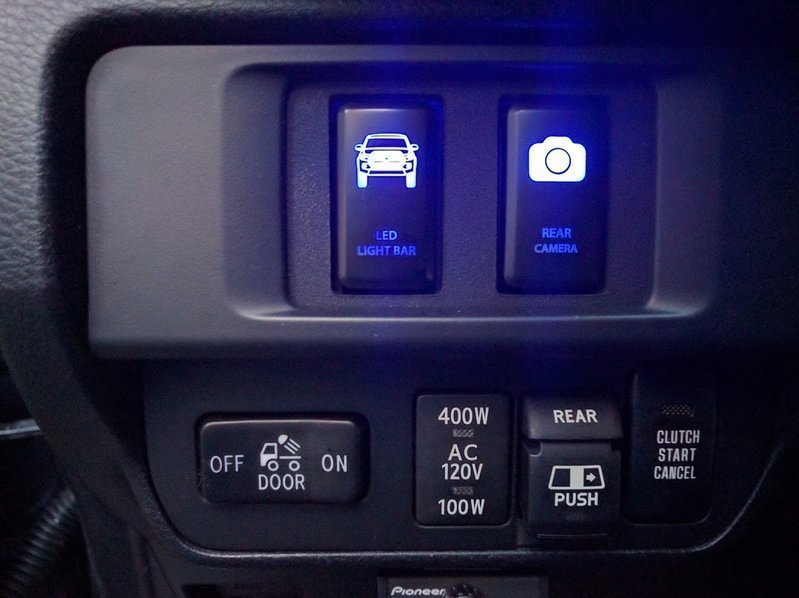

    IMG_1891.jpg IMG_2612.jpg Screen Shot 2017-01-10 at 6.21.27 PM.jpg TOY-FCAM2.jpg TOY-REACAM2-SML.jpg

    Each kit is tested for functionality with a multi-meter before shipping. A full color installation guide is included with all kits.

    All kits will begin shipping immediately. For those that preordered your Front Camera Kit, you should be receiving a tracking number shortly.

    For those that remember the old kits made by @brendanwebster911 he is an Army buddy and I have taken over the production of these kits from him. Kits are still Veteran designed and assembled.

    To Order: Message me or click the links above.

    2nd Gen Thread
    https://www.tacomaworld.com/threads/anytime-rear-camera-mod-for-2nd-gen-tacomas.535786/

    Thank you.
    JJ

    Last edited: Jun 2, 2018
  2. Apr 3, 2018 at 6:36 PM
    #2
    johntoyota

    johntoyota "I'm higher than you'll ever be." -Treetop

    Joined:
    Mar 11, 2016
    Member:
    #180956
    Messages:
    2,977
    Gender:
    Male
    First Name:
    John
    Littleton, CO by way of Chattavegas, TN
    Vehicle:
    16 TRDOR DCLB with things and stuff and such
    Can’t wait to add the front camera to my set up!

  3. Apr 3, 2018 at 6:39 PM
    #3
    Logistics91

    Logistics91 [OP] Well-Known Member

    Joined:
    Mar 12, 2017
    Member:
    #213071
    Messages:
    646
    Gender:
    Male
    First Name:
    JJ
    Vehicle:
    2017 Quicksand Tacoma TRD OR
    John,

    Yours will be in the mail tomorrow. Let me know if you have any questions once you receive it.

    Thanks again.
    JJ

    ikon4x4 and johntoyota like this.
  4. Apr 3, 2018 at 6:43 PM
    #4
    Slideeslide

    Slideeslide Member

    Joined:
    Apr 2, 2018
    Member:
    #249145
    Messages:
    8
    Gender:
    Male
    I have your Anytime rear kit, awesome product. Any way to add front camera to this existing setup?

  5. Apr 3, 2018 at 6:45 PM
    #5
    Logistics91

    Logistics91 [OP] Well-Known Member

    Joined:
    Mar 12, 2017
    Member:
    #213071
    Messages:
    646
    Gender:
    Male
    First Name:
    JJ
    Vehicle:
    2017 Quicksand Tacoma TRD OR
    Absolutely. Just go to the link below.

    $60 OEM STYLE ANYTIME FRONT Kit includes: Click Here to Order
    • Plug and Play Harness with a provided OEM style "FRONT CAMERA" illuminated push button switch. All switches are black with white lettering. Illumination is standard Blue. The switch is pre-wired with color coded harness. This switch will fit inside the "blank" spots. No trimming required to fit. SPECIFY WHERE YOU ARE MOUNTING THIS SWITCH, CENTER STACK AREA OR CUBBYHOLE AREA ON DRIVERS LEFT. There are two sizes/shapes of the OEM Style Switches. Can be purchased for $50 without a switch.
    JJ

    TBranch, Pfiermka and Slideeslide like this.
  6. Apr 3, 2018 at 6:51 PM
    #6
    ra29dreams

    ra29dreams Well-Known Member

    Joined:
    Sep 24, 2017
    Member:
    #230969
    Messages:
    101
    Gender:
    Male
    First Name:
    Chris
    Jacksonville, FL
    Vehicle:
    2017 Tacoma TRD Off-Road
    Nicely done!

    Second video didn’t cover front camera, not sure if that was installed also. Can you run a double throw rocker switch instead of buttons (on-off-on) ?

    Does the 100 kit include the nav overrode?

  7. Apr 3, 2018 at 7:27 PM
    #7
    Logistics91

    Logistics91 [OP] Well-Known Member

    Joined:
    Mar 12, 2017
    Member:
    #213071
    Messages:
    646
    Gender:
    Male
    First Name:
    JJ
    Vehicle:
    2017 Quicksand Tacoma TRD OR
    Second video was just part of the old kit. Yes, you can use pretty much any switch you choice. I no longer sell the Nav Override, but I'd be happy to walk you through how to do it yourself.

    JJ

  8. Apr 3, 2018 at 7:30 PM
    #8
    Slashaar

    Slashaar Trail Limo Supreme & Certified Hole Massager

    Joined:
    Nov 23, 2017
    Member:
    #236717
    Messages:
    5,058
    Gender:
    Male
    First Name:
    Josh
    Kansas City, MO
    Vehicle:
    2015 Tacoma TRD-Sport DC LB
    Ranch Hand Brush Guard, 5100s, 3rd gen Leafs with Icon AAL
    2nd gen version with a 3 position switch? :D

  9. Apr 3, 2018 at 7:34 PM
    #9
    Logistics91

    Logistics91 [OP] Well-Known Member

    Joined:
    Mar 12, 2017
    Member:
    #213071
    Messages:
    646
    Gender:
    Male
    First Name:
    JJ
    Vehicle:
    2017 Quicksand Tacoma TRD OR
    Josh, shoot me a message.

    JJ

    Slashaar likes this.
  10. Apr 3, 2018 at 7:42 PM
    #10
    Slashaar

    Slashaar Trail Limo Supreme & Certified Hole Massager

    Joined:
    Nov 23, 2017
    Member:
    #236717
    Messages:
    5,058
    Gender:
    Male
    First Name:
    Josh
    Kansas City, MO
    Vehicle:
    2015 Tacoma TRD-Sport DC LB
    Ranch Hand Brush Guard, 5100s, 3rd gen Leafs with Icon AAL
    Not something I really need right now, was more of a feeler, but I'd be interested in the future. I'll shoot you a PM when I'm ready! :thumbsup:

  11. Apr 3, 2018 at 7:42 PM
    #11
    Logistics91

    Logistics91 [OP] Well-Known Member

    Joined:
    Mar 12, 2017
    Member:
    #213071
    Messages:
    646
    Gender:
    Male
    First Name:
    JJ
    Vehicle:
    2017 Quicksand Tacoma TRD OR
    Sounds good.

    Slashaar likes this.
  12. Apr 3, 2018 at 11:56 PM
    #12
    MapleTRD

    MapleTRD Well-Known Member

    Joined:
    Jul 27, 2017
    Member:
    #225167
    Messages:
    194
    Gender:
    Male
    Vehicle:
    2017 trd sport
    What kind of camera do you offer

  13. Apr 4, 2018 at 6:14 AM
    #13
    Logistics91

    Logistics91 [OP] Well-Known Member

    Joined:
    Mar 12, 2017
    Member:
    #213071
    Messages:
    646
    Gender:
    Male
    First Name:
    JJ
    Vehicle:
    2017 Quicksand Tacoma TRD OR
    An off brand camera. It's the same camera that I'm running in my video. Clear picture. Offers a 170 degree viewing angle. It's held up well for about a month now. No issues.

    JJ

  14. Apr 4, 2018 at 6:39 AM
    #14
    FickleHobbyist

    FickleHobbyist Active Member

    Joined:
    Feb 20, 2018
    Member:
    #245030
    Messages:
    41
    Gender:
    Male
    Vehicle:
    2018 Tacoma TRD OR DCLB 4x4, Cement Gray
    Stock
    Any plans to offer a 3 position type switch for the front and rear camera combo? It seems silly to have two separate switches when you would never engage both at the same time.

    Something like this guy. You could label the front and rear switch positions, and would obviously need to ensure it is not a momentary switch.

    [​IMG]

    STrooper, Kpatt9, tjpratt and 2 others like this.
  15. Apr 4, 2018 at 6:43 AM
    #15
    Logistics91

    Logistics91 [OP] Well-Known Member

    Joined:
    Mar 12, 2017
    Member:
    #213071
    Messages:
    646
    Gender:
    Male
    First Name:
    JJ
    Vehicle:
    2017 Quicksand Tacoma TRD OR
    I don't have any plans to sell a rocker switch. I want the kit to look as factory/OEM as possible, that's why I use the push style switches. I do however offer the kits without switches. So anyone can install any switch that they choose.

    JJ

  16. Apr 4, 2018 at 6:46 AM
    #16
    FickleHobbyist

    FickleHobbyist Active Member

    Joined:
    Feb 20, 2018
    Member:
    #245030
    Messages:
    41
    Gender:
    Male
    Vehicle:
    2018 Tacoma TRD OR DCLB 4x4, Cement Gray
    Stock
    Fair enough. I'm adding this to my list of things to do eventually.

  17. Apr 4, 2018 at 6:49 AM
    #17
    Logistics91

    Logistics91 [OP] Well-Known Member

    Joined:
    Mar 12, 2017
    Member:
    #213071
    Messages:
    646
    Gender:
    Male
    First Name:
    JJ
    Vehicle:
    2017 Quicksand Tacoma TRD OR
    Believe me, I went to multiple vendors trying to find a 3 position push style switch. If you or anyone finds, one let me know.

    JJ

  18. Apr 4, 2018 at 7:40 AM
    #18
    rarsop

    rarsop Member

    Joined:
    Jan 12, 2017
    Member:
    #207378
    Messages:
    20
    Gender:
    Male
    First Name:
    Ryan
    Bozeman, MT
    Vehicle:
    2017 TRD Pro Tacoma, Cement, 6-Speed
    HID, LED, SnugTop Rebel
    which front camera are you using?

  19. Apr 4, 2018 at 7:41 AM
    #19
    Logistics91

    Logistics91 [OP] Well-Known Member

    Joined:
    Mar 12, 2017
    Member:
    #213071
    Messages:
    646
    Gender:
    Male
    First Name:
    JJ
    Vehicle:
    2017 Quicksand Tacoma TRD OR
    Ryan,

    An off brand camera. It's the same camera that I'm running in my video. Clear picture. Offers a 170 degree viewing angle. It's held up well for about a month now. No issues.

    You are welcome to use your own camera as well.

    JJ

  20. Apr 4, 2018 at 8:09 AM
    #20
    dilbert

    dilbert Well-Known Member

    Joined:
    Mar 14, 2016
    Member:
    #181276
    Messages:
    1,030
    Gender:
    Male
    PNW
    Vehicle:
    2019 DCLB TRD Off-Road
    Is the front camera kit a standalone option, or would I need to have the rear kit for it to work? I currently have another front/rear camera kit installed, but would like to add front camera with a switch (my current system uses AV input on the head unit for the front camera).
