Anytime Front and Rear Camera Mod

Discussion in '3rd Gen Tacoma Parts Marketplace (2016+)' started by Logistics91, Apr 3, 2018.

  1. Jun 25, 2018 at 6:39 PM
    #561
    Logistics91

    Logistics91 [OP] Well-Known Member

    Joined:
    Mar 12, 2017
    Member:
    #213071
    Messages:
    646
    Gender:
    Male
    First Name:
    JJ
    Vehicle:
    2017 Quicksand Tacoma TRD OR
    Sent you a message.

    TacoWil likes this.
  2. Jun 26, 2018 at 6:32 AM
    #562
    Trdboi

    Trdboi Member

    Joined:
    Oct 12, 2016
    Member:
    #199638
    Messages:
    10
    Gender:
    Male
    First Name:
    Chee
    NORCAL
    Vehicle:
    2017 Quicksand Tacoma TRD Off-road
    Level 8 Bully Pro wheels with 285/70/17 Goodyear Duratracs My own CMC and custom exhaust with oem chopped Icon Stage 4 suspension kit SOS custom sliders BAMF grille All LED lighting conversions BAKFLIP G2 COVER CUSTOM WELDED brackets everywhere CUSTOM stainless steel intake tube
    Hi interested in purchasing this kit asap that includes everything. Even a front camera that you would specify. See nothing on your website. Please let me know, thank you.

  3. Jun 26, 2018 at 6:37 AM
    #563
    Logistics91

    Logistics91 [OP] Well-Known Member

    Joined:
    Mar 12, 2017
    Member:
    #213071
    Messages:
    646
    Gender:
    Male
    First Name:
    JJ
    Vehicle:
    2017 Quicksand Tacoma TRD OR
    Chee, I sent you a message.

    Trdboi likes this.
  4. Jun 26, 2018 at 8:27 AM
    #564
    Zenraider

    Zenraider Member

    Joined:
    Jun 26, 2018
    Member:
    #257550
    Messages:
    6
    Gender:
    Male
    Vehicle:
    2017 taco TRD 4x4 w/jbl premium
    Vanilla
    I got a vanilla 2017 taco with the premium jbl nav package. I want to hook up a 3rd cam in the back seat for a baby monitor lookin my boys car seat plus the front cam. Is there any special wiring needed to add the 3rd cam or will a plain rca split work? Since the signal is controlled via the buttons. I believe in theory, it should work so long as only 1 button is on at a time .

    Also. Is the website going to have an option on for the nav bypass? Or do we just put that in the comments when ordering?

    Lastly, when will the website be up for ordering ?

    Logistics91 [OP] likes this.
  5. Jun 26, 2018 at 8:34 AM
    #565
    Logistics91

    Logistics91 [OP] Well-Known Member

    Joined:
    Mar 12, 2017
    Member:
    #213071
    Messages:
    646
    Gender:
    Male
    First Name:
    JJ
    Vehicle:
    2017 Quicksand Tacoma TRD OR
    The site is currently down for some maintenance and updates. My web guy has assured me that it will be up in the next day or so.

    A 3rd camera is possible. I have already tested it. Expect to see it on the site as well. I don't install the nav override, but if you would like me to tag the wire and include instructions on how this is done, I can do that.

  6. Jun 28, 2018 at 1:17 PM
    #566
    Zenraider

    Zenraider Member

    Joined:
    Jun 26, 2018
    Member:
    #257550
    Messages:
    6
    Gender:
    Male
    Vehicle:
    2017 taco TRD 4x4 w/jbl premium
    Vanilla
    That works for me. I'm patiently waiting for the items to come up on the storefront

  7. Jun 29, 2018 at 12:06 AM
    #567
    NateWest

    NateWest Well-Known Member

    Joined:
    Apr 26, 2017
    Member:
    #217427
    Messages:
    233
    Gender:
    Male
    First Name:
    Nate
    Renton WA
    Vehicle:
    2017 Super white DCSB TRDOR
    Buy this product the seller couldn't be more helpful. ask questions! watch the videos its simple

    Logistics91 [OP] likes this.
  8. Jun 30, 2018 at 1:02 PM
    #568
    Humble Soul

    Humble Soul Well-Known Member

    Joined:
    May 31, 2018
    Member:
    #255123
    Messages:
    65
    First Name:
    kalanz
    Oʻahu, Hawaiʻi
    Vehicle:
    2018 TRD Sport 4x4 Cement
    Wanting to grab a set but says product unavailable ?

    Logistics91 [OP] likes this.
  9. Jun 30, 2018 at 1:59 PM
    #569
    Logistics91

    Logistics91 [OP] Well-Known Member

    Joined:
    Mar 12, 2017
    Member:
    #213071
    Messages:
    646
    Gender:
    Male
    First Name:
    JJ
    Vehicle:
    2017 Quicksand Tacoma TRD OR
    Doing some maintenance on the site. I'll post here once it's back up.

    Humble Soul and Zenraider like this.
  10. Jun 30, 2018 at 9:15 PM
    #570
    Slim_shadowz

    Slim_shadowz Well-Known Member

    Joined:
    Jul 21, 2017
    Member:
    #224648
    Messages:
    159
    Gender:
    Male
    Vehicle:
    17 Sport DCLB MGM 4x2

    Has anyone installed this switch for the nav over ride yet? If so did you just run it like you would a standard spst switch?

  11. Jul 1, 2018 at 7:45 AM
    #571
    fatboyfirebass

    fatboyfirebass Well-Known Member

    Joined:
    Mar 24, 2018
    Member:
    #248258
    Messages:
    513
    Gender:
    Male
    Vehicle:
    2018 Blk TRD OR DCSB MT6 Prem/Tech Pkgs
    OV Tuned, S&B Intake, MBRP Dual black Cat-back, accumulator delete, URD SS, Custom Car Grille, MESO Ultimate Turn Signal, RIGID fogs, BHLM with LED upgrade, Geko Bed & Underhood lighting, Rear camera anytime, Nav Block Override, DE-badged, TVD blackout kit, Sienna mirror control swap, HiLux interior door handles, Hybrid SS/Delrin Shift Knob, Cali-Raised bed Stiffeners, Ultimate Tailgate Seal, "El Dorado" Dual-quad horns.
    This is actually a SPDT, so you end up not using one of the terminals to get it to act like a SPST. I used a different brand a few pages back, that had 2 different switches in the same housing, one for camera and one for NAV. But, but the wiring is the same. I have attached a pic of how you would wire this switch. I have shown 2 options. First, so that the LED only comes on when you turn on the headlights and all the switch lights in the cab turn on. In this set up the LED is only so you can see the switch in the dark. I figure you will know immediately if NAV override is on and no need for an indicator light on your switch. Option 2, you could just leave off the LED power source and just wire in the NAV circuit. But the switch would always be dark, and depending on where you mount in, may be hard to find at night.

    switch wiring option #1.jpg switch wiring option #2.jpg

    Edit: you can move the upper NAV wire From NO to the NC depending on which way you want the button, (in or out), when activated

    Last edited: Jul 2, 2018
  12. Jul 1, 2018 at 3:54 PM
    #572
    Slim_shadowz

    Slim_shadowz Well-Known Member

    Joined:
    Jul 21, 2017
    Member:
    #224648
    Messages:
    159
    Gender:
    Male
    Vehicle:
    17 Sport DCLB MGM 4x2
    Thank you very much!! I would have probably wired it wrong if you didn't show me the diagram.:bowdown:

    Logistics91 [OP] likes this.
  13. Jul 1, 2018 at 7:00 PM
    #573
    fatboyfirebass

    fatboyfirebass Well-Known Member

    Joined:
    Mar 24, 2018
    Member:
    #248258
    Messages:
    513
    Gender:
    Male
    Vehicle:
    2018 Blk TRD OR DCSB MT6 Prem/Tech Pkgs
    OV Tuned, S&B Intake, MBRP Dual black Cat-back, accumulator delete, URD SS, Custom Car Grille, MESO Ultimate Turn Signal, RIGID fogs, BHLM with LED upgrade, Geko Bed & Underhood lighting, Rear camera anytime, Nav Block Override, DE-badged, TVD blackout kit, Sienna mirror control swap, HiLux interior door handles, Hybrid SS/Delrin Shift Knob, Cali-Raised bed Stiffeners, Ultimate Tailgate Seal, "El Dorado" Dual-quad horns.
    You really can't do want you want with that type of switch. But you can get close with this switch.
    https://www.amazon.com/uxcell-Mount...ncoding=UTF8&refRID=WQTFGR1GR1RX9XHSC114&th=1
    Then you need to add an external indicator LED, either pre-wired, https://www.amazon.com/120PCS-Color...rd_wg=7B2CO&psc=1&refRID=DPRH1MQWKH3XX593QMFK
    or hobby style with a housing
    https://www.amazon.com/dp/B01ER728F...NS&pd_rd_r=ETCTZ1ZZ5FX0X27H8J56&pd_rd_w=fiALa
    https://www.amazon.com/Uxcell-A1312...TF8&qid=1530490698&sr=8-7&keywords=LED+socket

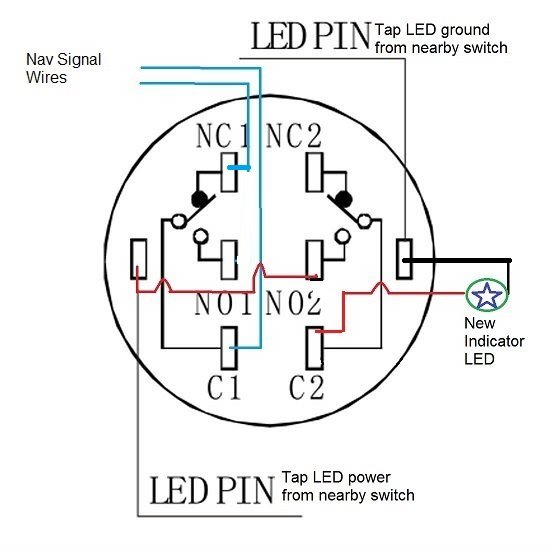

    and then wire it like this
    EDIT: The Upper NAV wire should connect to NC1. I Have corrected the picture.

    Or you could go with a rocker from OTRATTW. They show it listed in the wiring section of the site, but I can't find the product listing. Here it is listed by another vendor as well.
    https://www.dirtyparts.com/store/detail.cfm/SWITCH-ON-ON-DPDT-BLU-BLU/pid-159248

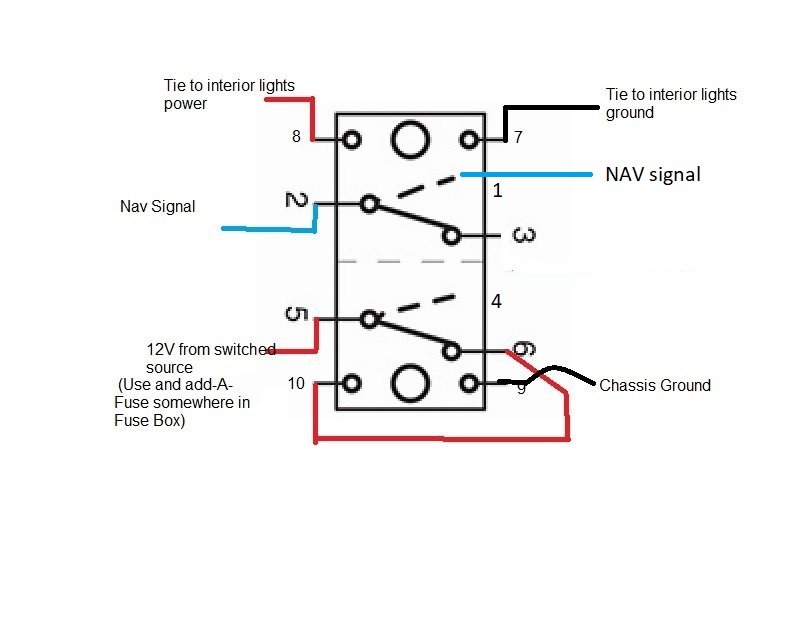

    if you wire it like this:
    Edit: I originally posted the wrong switch picture here. The exiting NAV signal needs to attach to pin 1

    https://www.amazon.com/Add-Fuse-same-function-Bussmann/dp/B007FFG5YI

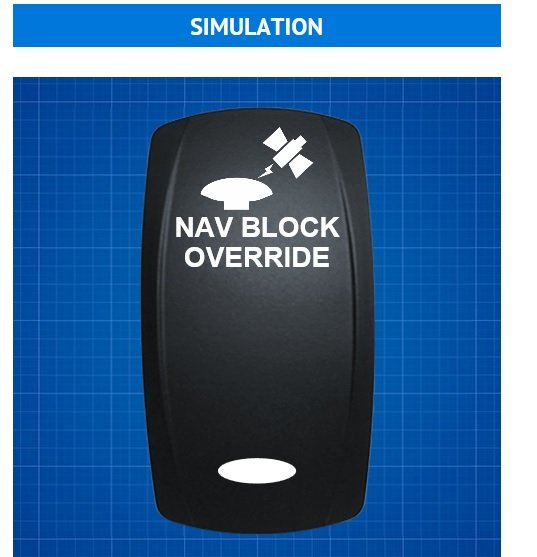

    The upper LED will illuminate with the dash lights etc. The bottom LED will Act as in "ON" indicator. You could then get a custom rocker switch from RockerSwitchPros like this.

    You may have to reverse which LED is which depending on how you want the switch to be back lit

    Last edited: Jul 2, 2018
    ACEkraut and Logistics91 [OP] like this.
  14. Jul 1, 2018 at 7:27 PM
    #574
    ACEkraut

    ACEkraut Well-Known Member

    Joined:
    May 11, 2014
    Member:
    #129627
    Messages:
    2,370
    Gender:
    Male
    First Name:
    Aaron
    Topsham, Maine
    Vehicle:
    2014 DCSB TRD Off Road
    Tons of info to go over. Many thanks for taking the time to post it.

  15. Jul 1, 2018 at 7:33 PM
    #575
    fatboyfirebass

    fatboyfirebass Well-Known Member

    Joined:
    Mar 24, 2018
    Member:
    #248258
    Messages:
    513
    Gender:
    Male
    Vehicle:
    2018 Blk TRD OR DCSB MT6 Prem/Tech Pkgs
    OV Tuned, S&B Intake, MBRP Dual black Cat-back, accumulator delete, URD SS, Custom Car Grille, MESO Ultimate Turn Signal, RIGID fogs, BHLM with LED upgrade, Geko Bed & Underhood lighting, Rear camera anytime, Nav Block Override, DE-badged, TVD blackout kit, Sienna mirror control swap, HiLux interior door handles, Hybrid SS/Delrin Shift Knob, Cali-Raised bed Stiffeners, Ultimate Tailgate Seal, "El Dorado" Dual-quad horns.
    I'm happy to help when I can.

  16. Jul 2, 2018 at 9:48 AM
    #576
    red yoda

    red yoda ASE Master Certified Technician

    Joined:
    Feb 24, 2011
    Member:
    #51795
    Messages:
    498
    Gender:
    Male
    First Name:
    brandon
    Mount pleasant,mi
    Vehicle:
    2018 Toyota Tacoma SR
    Logistics91, I sent you a message about a order

    Logistics91 [OP] likes this.
  17. Jul 2, 2018 at 9:48 AM
    #577
    Logistics91

    Logistics91 [OP] Well-Known Member

    Joined:
    Mar 12, 2017
    Member:
    #213071
    Messages:
    646
    Gender:
    Male
    First Name:
    JJ
    Vehicle:
    2017 Quicksand Tacoma TRD OR
    Sent you a response.

  18. Jul 2, 2018 at 8:52 PM
    #578
    Cementoffroad

    Cementoffroad Active Member

    Joined:
    Apr 7, 2018
    Member:
    #249785
    Messages:
    30
    Gender:
    Male
    First Name:
    Josh
    Vehicle:
    18 Cement OR

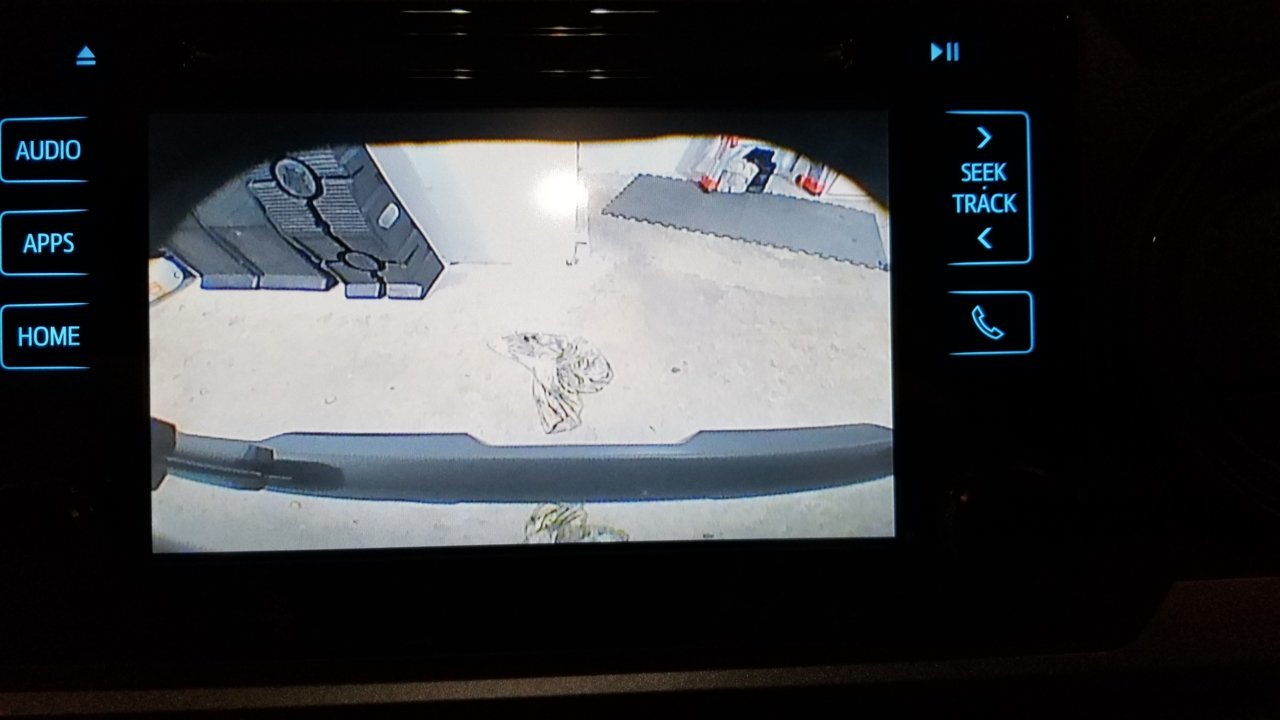

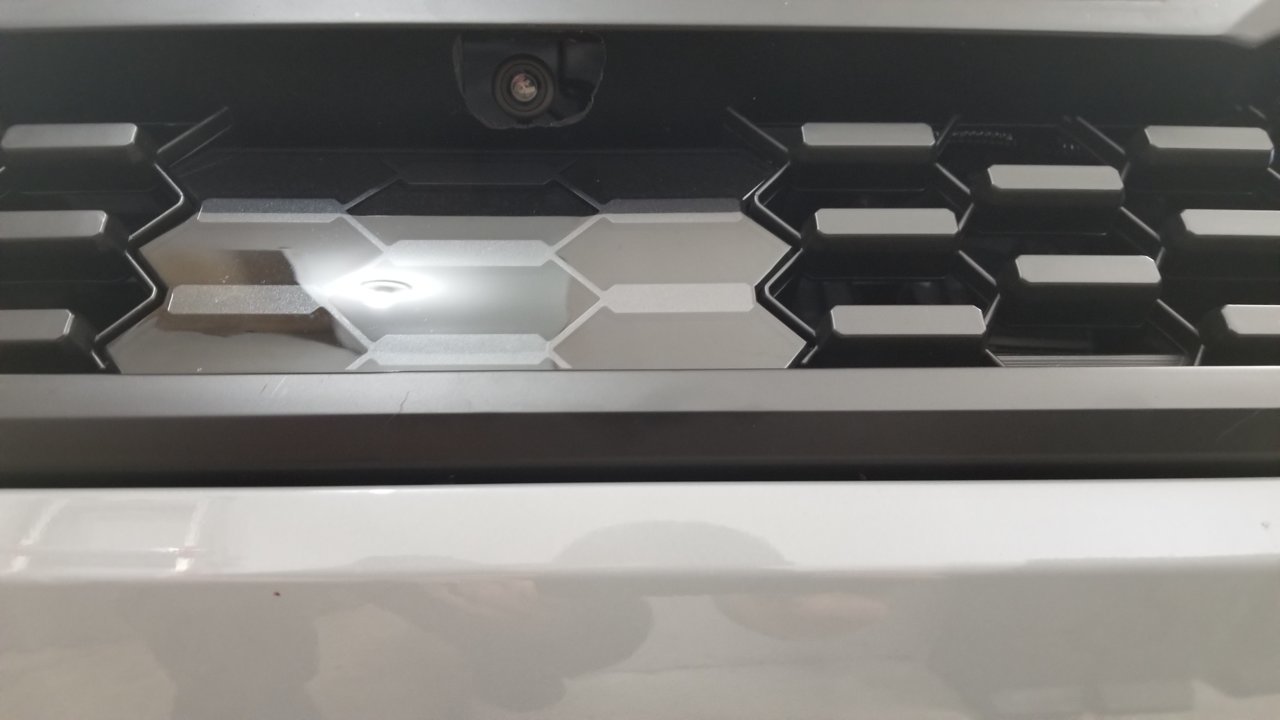

    Here is my finished setup in my truck. I couldn't get a better mounting angle while keeping the camera 100% protected behind the grill, hence a small portion at the top of my display still showing the grill. I'm happy with it.
    Many thanks to JJ for all the off hours/Sunday support.

    20180702_204407.jpg 20180702_204428.jpg

  19. Jul 5, 2018 at 4:19 PM
    #579
    Jbailon

    Jbailon New Member

    Joined:
    Jul 5, 2018
    Member:
    #258432
    Messages:
    1
    Gender:
    Male
    First Name:
    Juan
    Vehicle:
    Tacoma 2016 trd sport 4x4
    Helo @Logistics91 can you send me install instruction y havent recive, thanks.

  20. Jul 5, 2018 at 4:32 PM
    #580
    Logistics91

    Logistics91 [OP] Well-Known Member

    Joined:
    Mar 12, 2017
    Member:
    #213071
    Messages:
    646
    Gender:
    Male
    First Name:
    JJ
    Vehicle:
    2017 Quicksand Tacoma TRD OR
    Juan, it was sent to your email address. I'll resend it.
